Page 50 of 397
SOLAR CELL MODULE (IF SO
EQUIPPED)
This vehicle uses a solar cell module to provide
power to the 12-volt battery. The solar cell mod-
ule only provides power to help maintain the
charge of the 12-volt battery; it will not recharge
a discharged 12-volt battery.
The solar cell module does not provide power to
the Li-ion battery.
For maintenance, see “Cleaning exterior” in the
“Appearance and care” section.
NOTE:
The solar cell may not provide full charging
power in the following situations.
•When the intensity of sunlight is weak.
•When the solar cell module is in the
shade.
•When the solar cell module is covered by
leaves or dirt.DRIVING RANGE BUTTON (IF SO
EQUIPPED)
Push the driving range button on the steering
wheel to check the estimated distance the ve-
hicle may be driven with the available Li-ion bat-
tery charge. See LEAF Navigation System Own-
er’s Manual.
Solar cell module on the rear spoiler
EV-30EV Overview
Page 327 of 397
REMOVING SPOTS
Remove tar and oil spots, industrial dust, insects,
and tree sap as quickly as possible from the paint
surface to avoid lasting damage or staining. Spe-
cial cleaning products are available at a NISSAN
certified LEAF dealer or any automotive acces-
sory stores.
UNDERBODY
In areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and causing
the acceleration of corrosion on the underbody
and suspension. Before the winter period and
again in the spring, the underseal must be
checked and, if necessary, re-treated.
GLASS
Use glass cleaner to remove smoke and dust film
from the glass surfaces. It is normal for glass to
become coated with a film after the vehicle is
parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.
CAUTION
When cleaning the inside of the windows,
do not use sharp-edged tools, abrasivecleaners or chlorine-based disinfectant
cleaners. They could damage the electri-
cal conductors, radio antenna elements
or rear window defroster elements.
SOLAR CELL MODULE (IF SO
EQUIPPED)
The solar cell uses a plastic cover. When clean-
ing the cell:
• Do not polish the solar cell using a dry cloth or a
wax that contains a compound. Doing so may
strip off the hard coating.
• In order to maintain the solar cell’s effective-
ness, be sure to remove any leaves or dirt from
the surface of the cell.
WHEELS
Wash the wheels when washing the vehicle to
maintain their appearance.
• Clean the inner side of the wheels when the
wheel is changed or the underside of the vehicle
is washed.
• Inspect wheel rims regularly for dents or corro-
sion. Such damage may cause loss of pressure
or poor seal at the tire bead.• NISSAN recommends that the road wheels be
waxed to protect against road salt in areas
where it is used during winter.
CAUTION
Do not use abrasive cleaners when wash-
ing the wheels.
Aluminum alloy wheels
Wash regularly with a sponge dampened in a
mild soap solution, especially during winter
months in areas where road salt is used. Salt
could discolor the wheels if not removed.
CAUTION
Follow the directions below to avoid
staining or discoloring the wheels:
• Do not use a cleaner that uses strong
acid or alkali contents to clean the
wheels.
• Do not apply wheel cleaners to the
wheels when they are hot. The wheel
temperature should be the same as
ambient temperature.
• Rinse the wheel to completely remove
the cleaner within 15 minutes after the
cleaner is applied.
Appearance and care7-3
Page 328 of 397
CHROME PARTS
Clean chrome parts regularly with a non- abrasive
chrome polish to maintain the finish.
TIRE DRESSING
NISSAN does not recommend the use of tire
dressings. Tire manufacturers apply a coating to
the tires to help reduce discoloration of the rub-
ber. If a tire dressing is applied to the tires, it may
react with the coating and form a compound. This
compound may come off the tire while driving and
stain the vehicle paint.
If you choose to use a tire dressing, take the
following precautions:
• Use a water-based tire dressing. The coating on
the tire dissolves more easily with an oil-based
tire dressing.
• Apply a light coat of tire dressing to help prevent
it from entering the tire tread/grooves (where it
would be difficult to remove) .
• Wipe off excess tire dressing using a dry towel.
Make sure the tire dressing is completely re-
moved from the tire tread/grooves.
• Allow the tire dressing to dry as recommended
by the tire dressing manufacturer.Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl and
leather surfaces with a clean, soft cloth damp-
ened in mild soap solution, then wipe clean with a
dry soft cloth.
Regular care and cleaning is required in order to
maintain the appearance of the leather.
Before using any fabric protector, read the manu-
facturer’s recommendations. Some fabric pro-
tectors contain chemicals that may stain or
bleach the seat material.
Use a cloth dampened only with water to clean
the meter and gauge lens.
WARNING
Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can
damage the seat or occupant classifica-
tion sensor. This can also affect the op-
eration of the air bag system and result in
serious personal injury.
CAUTION
• Never use benzine, thinner, or any
similar material.• Small dirt particles can be abrasive
and damaging to the leather surfaces
and should be removed promptly. Do
not use saddle soap, car waxes, pol-
ishes, oils, cleaning fluids, solvents,
detergents or ammonia-based clean-
ers as they may damage the leather’s
natural finish.
• Never use fabric protectors unless rec-
ommended by the manufacturer.
• Do not use glass or plastic cleaner on
meter or gauge lens covers. It may
damage the lens cover.
AIR FRESHENERS
Most air fresheners use a solvent that could affect
the vehicle interior. If you use an air freshener,
take the following precautions:
• Hanging-type air fresheners can cause perma-
nent discoloration when they contact vehicle
interior surfaces. Place the air freshener in a
location that allows it to hang free and not
contact an interior surface.
• Liquid-type air fresheners typically clip on the
vents. These products can cause immediate
damage and discoloration when spilled on inte-
rior surfaces.
CLEANING INTERIOR
7-4Appearance and care
Page 351 of 397
CAUTION
• Be careful not to allow children to
swallow the battery and removed
parts.
• An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.
• When changing batteries, do not let
dust or oil get on the components.
• There is danger of explosion if the
lithium battery is incorrectly replaced.
Replace only with the same or equiva-
lent type.
Replace the battery in the Intelligent Key as fol-
lows:
1. Remove the mechanical key from the Intelli-
gent Key.2. Insert a small screwdriver into the slit of the
corner and twist it to separate the upper part
from the lower part. Use a cloth to protect the
casing.
3. Replace the battery with a new one.
Recommended battery:
CR2025 or equivalent
• Do not touch the internal circuit and electric
terminals as doing so could cause a malfunc-
tion.
• Hold the battery by the edges. Holding the
battery across the contact points will seri-
ously deplete the storage capacity.
• Make sure that theside faces the bottom
of the case.
NISSAN INTELLIGENT KEY®
BATTERY REPLACEMENT
Maintenance and do-it yourself8-19
Page 368 of 397

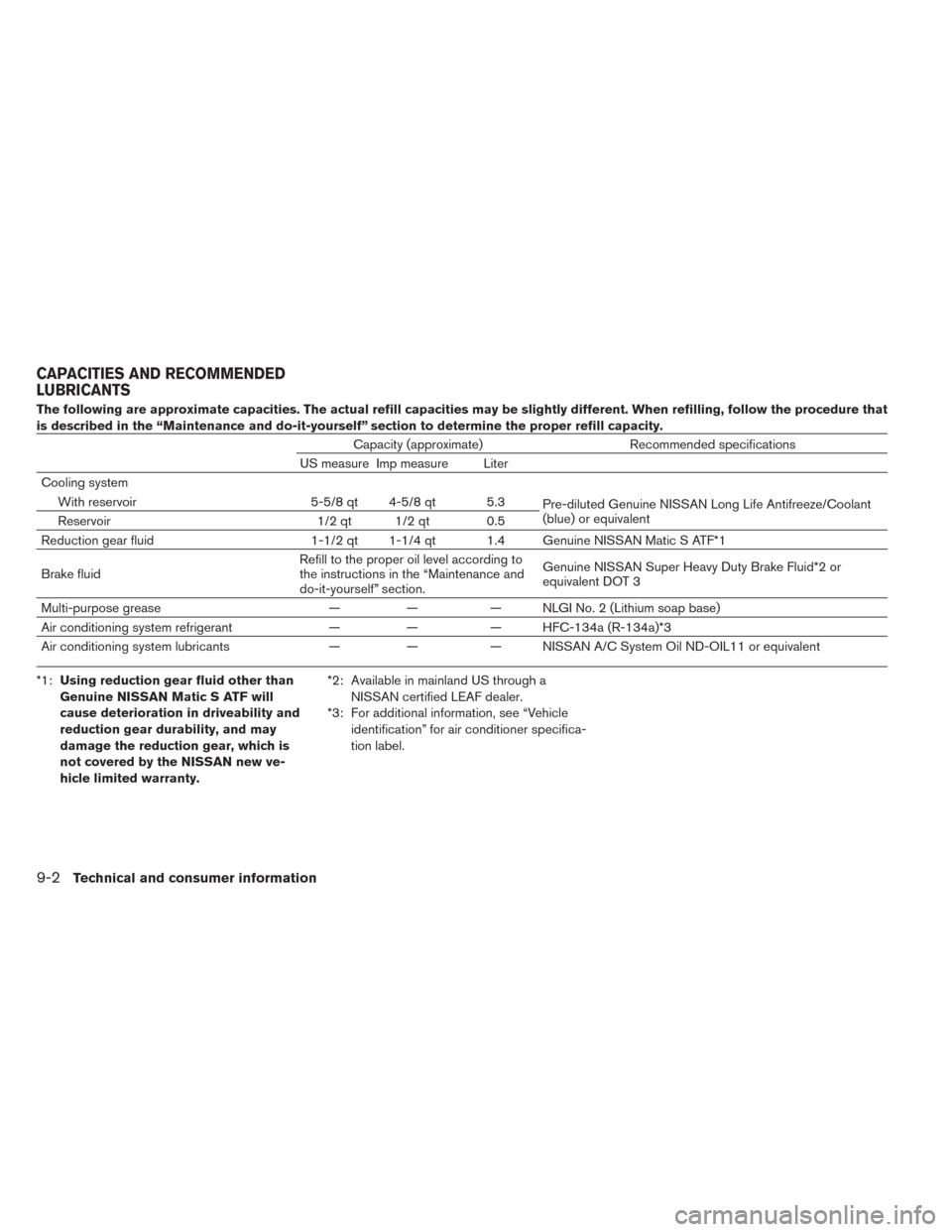

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure that
is described in the “Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (approximate) Recommended specifications
US measure Imp measure Liter
Cooling system
With reservoir 5-5/8 qt 4-5/8 qt 5.3
Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant
(blue) or equivalent
Reservoir 1/2 qt 1/2 qt 0.5
Reduction gear fluid 1-1/2 qt 1-1/4 qt 1.4 Genuine NISSAN Matic S ATF*1
Brake fluidRefill to the proper oil level according to
the instructions in the “Maintenance and
do-it-yourself” section.Genuine NISSAN Super Heavy Duty Brake Fluid*2 or
equivalent DOT 3
Multi-purpose grease — — — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant — — — HFC-134a (R-134a)*3
Air conditioning system lubricants — — — NISSAN A/C System Oil ND-OIL11 or equivalent
*1:Using reduction gear fluid other than
Genuine NISSAN Matic S ATF will
cause deterioration in driveability and
reduction gear durability, and may
damage the reduction gear, which is
not covered by the NISSAN new ve-
hicle limited warranty.*2: Available in mainland US through a
NISSAN certified LEAF dealer.
*3: For additional information, see “Vehicle
identification” for air conditioner specifica-
tion label.
CAPACITIES AND RECOMMENDED
LUBRICANTS
9-2Technical and consumer information
Page 369 of 397

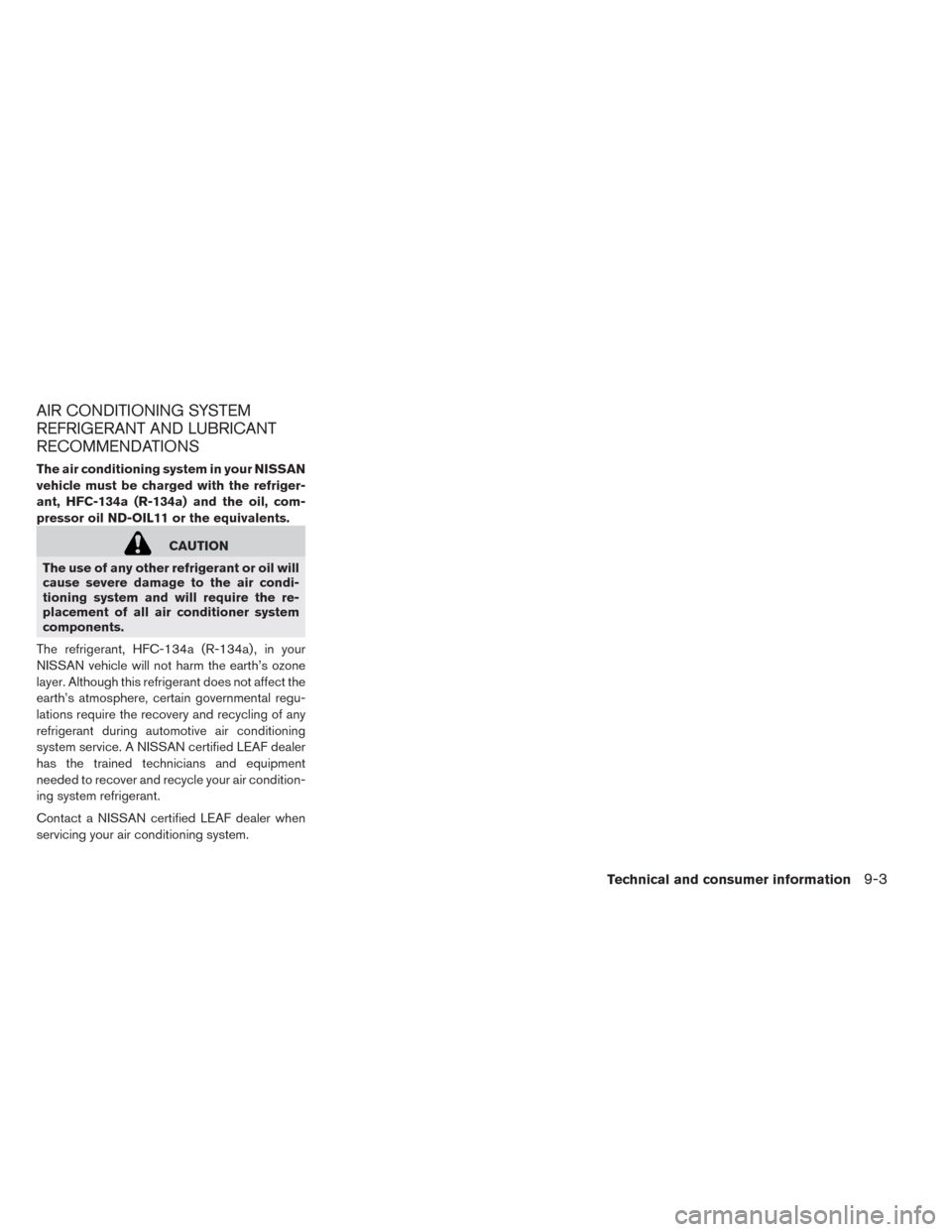

AIR CONDITIONING SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONS
The air conditioning system in your NISSAN
vehicle must be charged with the refriger-
ant, HFC-134a (R-134a) and the oil, com-
pressor oil ND-OIL11 or the equivalents.
CAUTION
The use of any other refrigerant or oil will
cause severe damage to the air condi-
tioning system and will require the re-
placement of all air conditioner system
components.
The refrigerant, HFC-134a (R-134a) , in your
NISSAN vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect the
earth’s atmosphere, certain governmental regu-
lations require the recovery and recycling of any
refrigerant during automotive air conditioning
system service. A NISSAN certified LEAF dealer
has the trained technicians and equipment
needed to recover and recycle your air condition-
ing system refrigerant.
Contact a NISSAN certified LEAF dealer when
servicing your air conditioning system.
Technical and consumer information9-3
Page 392 of 397
Airbagwarninglight.............1-48
Bulb replacement...............8-21
Ceiling light..................2-58
Foglightswitch................2-45
Headlights bulb replacement........8-22
Headlightswitch...............2-43
Indicatorlights................2-20
Interior lights.................2-58
Maplights...................2-58
Replacement.................8-21
Warninglights ................2-14
Light reminder warning.............2-26
Lights, Exterior and interior light
replacement...................8-23
Li-ion battery...................EV-2
Li-ion battery available charge gauge......2-9
Li-ion battery capacity level gauge.......2-10
Li-ion battery status check..........CH-26
Li-ion battery temperature gauge........2-7
Li-ion battery warmer..............EV-5
Limited power..................2-34
Loading information (See vehicle loading
information)....................9-10
Lock........................3-5
Automatic door locks.............3-5
Door locks...................3-3
Power door lock................3-3
Rearhatchlock................3-17Low tire pressure warning light.........2-17
Low tire pressure warning system (See tire
pressure monitoring system (TPMS))......5-2
Luggage side hook...............2-55
M
Maintenance...................8-12
12-volt battery................8-12
General maintenance.............8-2
Indicators for maintenance..........2-35
Insidevehicle..................8-3
Maintenanceprecautions...........8-5
Maintenance requirements..........8-2
Outside vehicle.................8-2
Seat belt maintenance............1-15
Manual front seat adjustment...........1-3
Maplights ....................2-58
Mechanical key (Intelligent Key system).....3-3
Meters and gauges................2-5
Mirror.......................3-21
Inside rearview mirror............3-21
Outside mirrors................3-23
Vanity mirror..................3-21
Motor....................5-11,9-6
Before starting system............5-10
Motor compartment................8-7
N
NISSAN Intelligent Key® system......3-6,5-7
Key operating range of the door lock/unlock
function.....................3-8
Key operation..................3-9
NISSAN Vehicle Immobilizer System......2-38
Normal charge.................CH-9
Home charge................CH-9
Occasional charge.............CH-9
Publiccharge ................CH-9
O
Odometer.....................2-6
Off-road recovery.................5-5
Oil .........................9-2
Capacities and recommended lubricants . .9-2
Opening rear hatch...............3-10
Outside air temperature.............2-10
Outside mirrors.................3-23
Owner’s Manual/Service Manual order
information....................9-18
P
Panic alarm....................3-14
