NISSAN LEAF 2015 1.G Navigation Manual


> (GLW    0RGHO 1DYL(9 @
*3[Mode]:
The play mode setting display will appear when
[Mode] is touched.
*4[Info]:
Touch the screen to indicate the track information
screen.
*5[SCAN]:
Touch to play the next track after playing the
current track for 10 seconds. Touch again to
choose the last track that was played last time.
*6Folder list:
Touch the folder to indicate the track list.
Track list:
Touch the screen to play the track that is chosen.
Selecting tracksGUID-862588E4-8C79-4035-A221-A6B5BA877E9EPushof theTUNE SEEK CH button to play
the previous track.
Push
of the TUNE SEEK CH button to play
the next track.
Touch the track on the track list to play the track
that is chosen.
Touch the folder to indicate the track list.
SCAN function:
Touch [SCAN] to play the next track after playing
the current track for 10 seconds. Touch [SCAN]
again to choose the last track that was played
last time.
Next/Previous File and Fast For-
ward/Rewind
GUID-E977EB45-7BEA-4101-8271-D7B673F98EE9Push the TUNE SEEK CH button for more than
1.5 seconds while a USB memory is being
played to fast forward or rewind though the
current track.
When the TUNE SEEK CH button is released,
the USB memory will return to normal play
speed.
When the TUNE SEEK CH button is pushed for
less than 1.5 seconds while a USB memory is
being played, the next track or the beginning of
the current track on the USB memory will be
played.
Select play modeGUID-E3DB5454-DBEE-420A-A679-EDA24F02FD8FThe play mode setting display will appear when
[Mode] is selected.
Select the preferred play mode from the
following items.
. Normal
. 1 Folder Repeat
. 1 Track Repeat
. All Random
. 1 Folder Random
BLUETOOTH


> (GLW    0RGHO 1DYL(9 @
4-20Audio system
Regulatory informationGUID-8A5804E2-2DFA-4F0E-BDCA-F37F6A4AFE93
FCC Regulatory information:
.CAUTION: To maintain compliance with
FCC's RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.
. Operation is subject to the following two
conditions:
Ð This device may not cause interference
and
Ð This device must accept any interfer- ence, including interference that may
cause undesired operation of the device
IC Regulatory information:
. Operation is subject to the following two
conditions:
Ð This device may not cause interference,
and
Ð This device must accept any interfer- ence, including interference that may
cause undesired operation of the device.
. This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations. Bluetooth


> (GLW    0RGHO 1DYL(9 @
LNF0016X
6. Touch [OK]. The standby message screenwill appear. Operate the compatible Blue-
tooth


> (GLW    0RGHO 1DYL(9 @
4-22Audio system
INFO:
Depending on the audio device that is con-
nected to the vehicle, the name of tracks or
albums may not be displayed.
Next/Previous Track and Fast For-
ward/Rewind
GUID-22130072-5DEF-434A-A733-4DCFEE7C739EPush the TUNE SEEK CH button is pushed for
more than 1.5 seconds while a Bluetooth


> (GLW    0RGHO 1DYL(9 @
When theCD´AUXbutton is pushed with the
system off and a compatible device connected,
the system will turn on. If another audio source is
playing and a compatible device is connected,
push the CD´AUXbutton repeatedly until the
center display changes to the AUX mode.
INFO:
Insert a 1/4 inch (3.5 mm) stereo mini plug in the
auxiliary input jack. If a cable with a mono plug is
used, the audio output may not function
normally.
How to view AUX screenGUID-3A8A4717-B982-4AEC-B5FA-083909A32A94
LNF0020X
Select the volume settings from the following
options.
. Low
. Medium .
High
STEERING WHEEL SWITCHES FOR
AUDIO CONTROL
GUID-8A6FE299-FCD9-40E1-B943-BD5E80FDBC47The audio system can be operated using the
control switches on the steering wheel.
LNF0153X
1. SOURCE button
2. Volume control button
SOURCE buttonGUID-A72FFA6B-91BA-416E-A385-A09861CAB60BPush the SOURCE switch to change the mode
to available audio source.
AM and FM radio:
. Tilting up/down for less than 1.5 seconds
will skip up or down through the preset
stations. .
Tilting up/down for more than 1.5 seconds
will seek up or down to the next station.
SiriusXM Satellite Radio:
. Tilting up/down for less than 1.5 seconds
will skip up or down through the preset
channels.
. Tilting up/down for more than 1.5 seconds
will go to the next or previous category.
Pandora


> (GLW    0RGHO 1DYL(9 @
4-24Audio system
.Tilting up/down for more than 1.5 seconds
will skip up or down through the folders (if
playing compressed audio files) .
USB:
. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks.
. Tilting up/down for more than 1.5 seconds
will skip up or down through the folders.
Bluetooth


> (GLW    0RGHO 1DYL(9 @
5 CARWINGSTM
Telematics overview...
.................................................................. 5-2

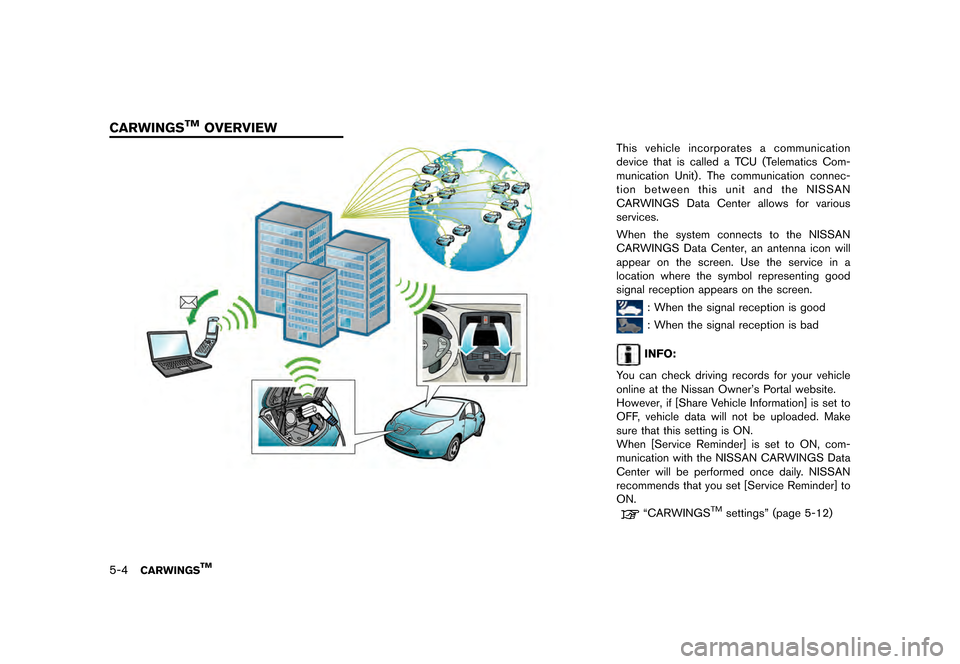

CARWINGSTMoverview ...
.......................................................... 5-4
About service application ...
.................................................. 5-6
Notice for usage ...
................................................................... 5-6
Radio approval number and information ...
........................ 5-7
Displaying CARWINGS
TMinformation screen ...
................... 5-7
How to view information screen ...
...................................... 5-8
Storing favorites ...
........................................................................\
. 5-9
Google search ...
........................................................................\
. 5-10
Viewing CARWINGS
TMrecords ...
........................................ 5-11 CARWINGS
TMsettings
...
....................................................... 5-12
Setting messages that are received by email ...
......... 5-12
Information feed setting ...
................................................ 5-15
Displaying unit ID information ...
...................................... 5-18
Reset all CARWINGS
TMsettings to default ...
........... 5-18
Error message on communication ...
..................................... 5-19
Data communication settings ...
.............................................. 5-20
Automatic carrier settings ...
............................................. 5-20
Manual carrier settings ...
.................................................. 5-20
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
5-2CARWINGSTM
GUID-3E037282-D6EC-4C54-913F-6E5DC076CCEAIn addition to Event Data Recorders (EDRs)
mentioned in the LEAF Owner's Manual, this
vehicle is equipped with electronic modules that
monitor, control and record data concerning
various vehicle systems, including the motor,
batteries, braking and electrical systems. Other
electronic modules record information concern-
ing driving conditions, including idling, braking,
acceleration, trip and other related data, in-
formation about your use of the car and its
features such as air conditioner or headlight
usage, diagnostic trouble codes, vehicle char-
ging, vehicle speed, direction and/or location.
Some of this data is stored by the vehicle for use
during vehicle servicing. Other data concerning
your vehicle's operation and performance is
wirelessly transmitted by cellular connection
through the vehicle onboard telematics system
upon vehicle start-up or at other intervals to
NISSAN. This data may be used by NISSAN for
various purposes, including: to provide you with
CARWINGS
TMservices (refer to the CAR-
WINGSTMsection of this manual for details);
troubleshooting; evaluation of your vehicle's
quality, functionality and performance; analysis
and research by NISSAN designed to, among
other things, optimize performance of future
electric vehicles including improvements in
future battery life; to offer you new or additional
products or services; and as otherwise may be required by law. Such data may be shared with
NISSAN's parents, subsidiaries, affiliates, suc-
cessors or assignees; authorized NISSAN certi-
fied LEAF dealers; NISSAN's marketing
partners; your fleet company, if your vehicle is
a fleet vehicle; your rental company, if your
vehicle is a rental vehicle; and third party service
providers such as cellular, information systems
and data management providers.
State laws allow access and use of data
recorded by vehicle devices with the consent
of the vehicle owner or pursuant to subscription
agreement. While you are not required to allow
such access and use, if you do not so agree
NISSAN may be unable under applicable law to
activate the vehicle telematics system in your
vehicle, and certain features of your vehicle
which are dependent on vehicle telematics will
not operate as intended or designed. These may
include features such as automatic charging
station map updates, remote battery state of
charge check, charging complete notice, remote
plug in reminder, remote charging on, remote
climate control on, drive route planning, driving
tips to improve range, driving history, billing
simulation, ECO ranking, ECO forest, mainte-
nance reminders, etc. Other features that may
be developed and offered by NISSAN in the
future may also not function without telematics
data transmission.CARWINGS
TMtelematics services are provided
by NISSAN pursuant to a subscription services
agreement covering your vehicle. This agree-
ment is necessary for all owners. This agree-
ment, and an explanation of its terms and
conditions, can be found at the NISSAN Own-
er's Portal webpage. Further, the operator of the
vehicle must also touch [OK] on the Navi screen
to indicate assent each time he or she starts the
car. If you decide at any time that you do not
want your vehicle to transmit data to NISSAN,
you can deactivate the telematics account
associated with this vehicle by canceling the
subscription services agreement by visiting the
NISSAN Owner's Portal Webpage or calling
NISSAN at 1-877-NOGASEV (1-877-664-
2738) . The service can be reactivated later
upon request if you choose. Simply visit the
same website or call the number above. Alter-
natively, you can turn off the transmission of
certain categories of data through the use of
settings found in the Navigation system under
Menu, CARWINGS
TM, Vehicle Information
Sharing with NISSAN. Note, turning off ªVehicle
Information Sharing with NISSANº will only
disable the automatic sharing of information at
vehicle start-up. Certain categories of data may
still be transmitted if vehicle telematics features
are accessed either in the vehicle or remotely.
Your agreement to the transmission and use of
TELEMATICS OVERVIEW
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

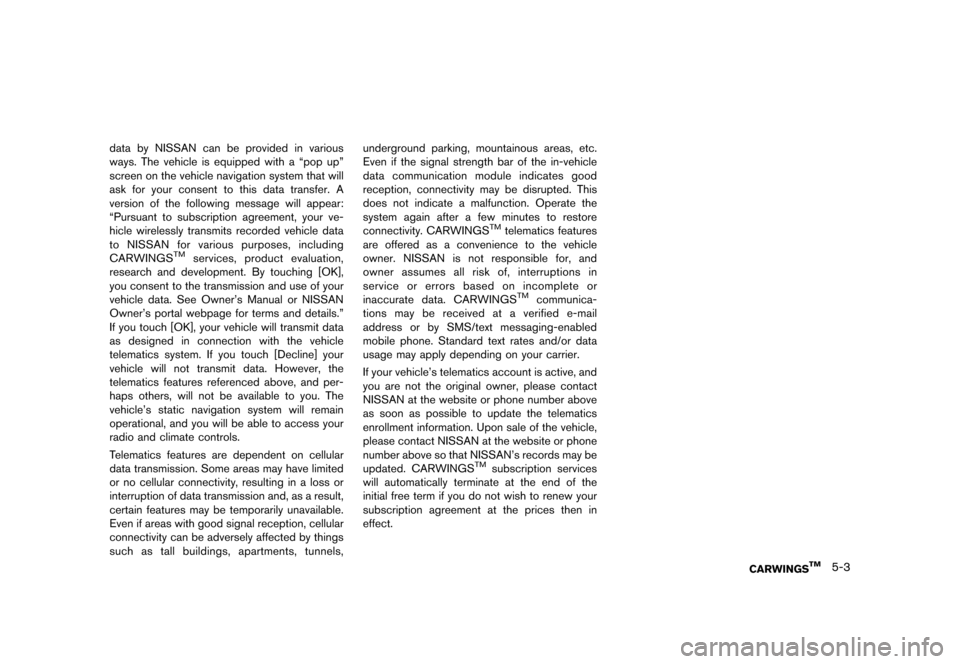

data by NISSAN can be provided in various
ways. The vehicle is equipped with a ªpop upº
screen on the vehicle navigation system that will
ask for your consent to this data transfer. A
version of the following message will appear:
ªPursuant to subscription agreement, your ve-
hicle wirelessly transmits recorded vehicle data
to NISSAN for various purposes, including
CARWINGS
TMservices, product evaluation,
research and development. By touching [OK],
you consent to the transmission and use of your
vehicle data. See Owner's Manual or NISSAN
Owner's portal webpage for terms and details.º
If you touch [OK], your vehicle will transmit data
as designed in connection with the vehicle
telematics system. If you touch [Decline] your
vehicle will not transmit data. However, the
telematics features referenced above, and per-
haps others, will not be available to you. The
vehicle's static navigation system will remain
operational, and you will be able to access your
radio and climate controls.
Telematics features are dependent on cellular
data transmission. Some areas may have limited
or no cellular connectivity, resulting in a loss or
interruption of data transmission and, as a result,
certain features may be temporarily unavailable.
Even if areas with good signal reception, cellular
connectivity can be adversely affected by things
such as tall buildings, apartments, tunnels, underground parking, mountainous areas, etc.
Even if the signal strength bar of the in-vehicle
data communication module indicates good
reception, connectivity may be disrupted. This
does not indicate a malfunction. Operate the
system again after a few minutes to restore
connectivity. CARWINGS
TMtelematics features
are offered as a convenience to the vehicle
owner. NISSAN is not responsible for, and
owner assumes all risk of, interruptions in
service or errors based on incomplete or
inaccurate data. CARWINGS
TMcommunica-
tions may be received at a verified e-mail
address or by SMS/text messaging-enabled
mobile phone. Standard text rates and/or data
usage may apply depending on your carrier.
If your vehicle's telematics account is active, and
you are not the original owner, please contact
NISSAN at the website or phone number above
as soon as possible to update the telematics
enrollment information. Upon sale of the vehicle,
please contact NISSAN at the website or phone
number above so that NISSAN's records may be
updated. CARWINGS
TMsubscription services
will automatically terminate at the end of the
initial free term if you do not wish to renew your
subscription agreement at the prices then in
effect.
CARWINGSTM5-3
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
5-4CARWINGSTM
GUID-BD80DC71-630C-4E32-832B-7F6CF8AA5894
LNG0042X
This vehicle incorporates a communication
device that is called a TCU (Telematics Com-
munication Unit) . The communication connec-
tion between this unit and the NISSAN
CARWINGS Data Center allows for various
services.
When the system connects to the NISSAN
CARWINGS Data Center, an antenna icon will
appear on the screen. Use the service in a
location where the symbol representing good
signal reception appears on the screen.
: When the signal reception is good
: When the signal reception is bad
INFO:
You can check driving records for your vehicle
online at the Nissan Owner's Portal website.
However, if [Share Vehicle Information] is set to
OFF, vehicle data will not be uploaded. Make
sure that this setting is ON.
When [Service Reminder] is set to ON, com-
munication with the NISSAN CARWINGS Data
Center will be performed once daily. NISSAN
recommends that you set [Service Reminder] to
ON.
ªCARWINGSTMsettingsº (page 5-12)
CARWINGSTMOVERVIEW
&RQGLWLRQ 1$0
