NISSAN LEAF 2015 1.G Roadside Assistance Guide Foreword
This
manual describes roadside assistance operations and related warnings for this vehicle.
This vehicle is an electrically driven car equipped with a high voltage battery pack. Failure to fo

Page 3 of 39

NISSAN LEAF 2015 1.G Roadside Assistance Guide Table of Contents
FOREWORD
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RAG–2
NISSAN EMERGENCY CONTACT INFORMAT

Page 4 of 39

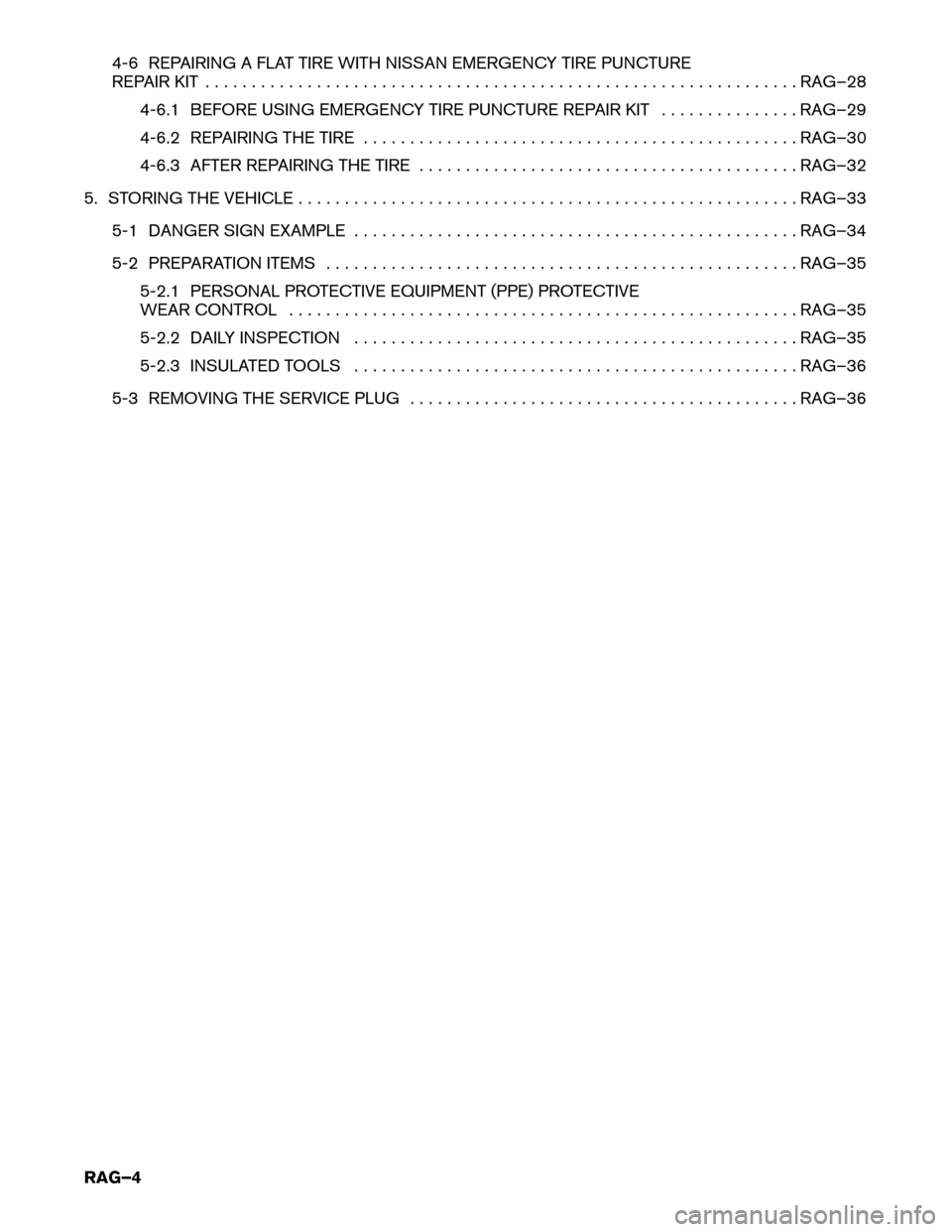

NISSAN LEAF 2015 1.G Roadside Assistance Guide 4-6 REPAIRING A FLAT TIRE WITH NISSAN EMERGENCY TIRE PUNCTURE
REP
AIR KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 5 of 39

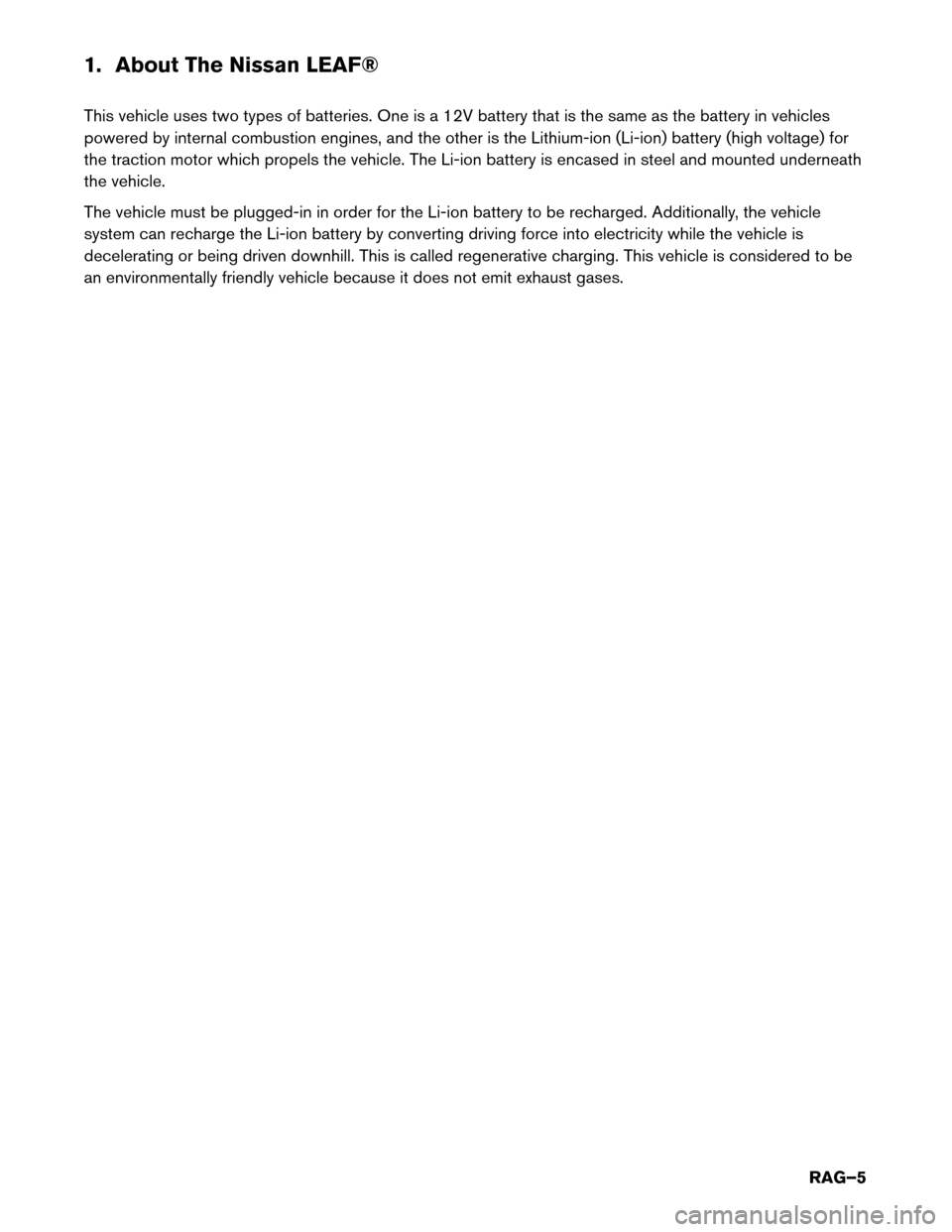

NISSAN LEAF 2015 1.G Roadside Assistance Guide 1. About The Nissan LEAF®
This
vehicle uses two types of batteries. One is a 12V battery that is the same as the battery in vehicles
powered by internal combustion engines, and the other is the Lithi

Page 6 of 39

NISSAN LEAF 2015 1.G Roadside Assistance Guide 1-1 LEAF Identification
1-1.1
Exterior

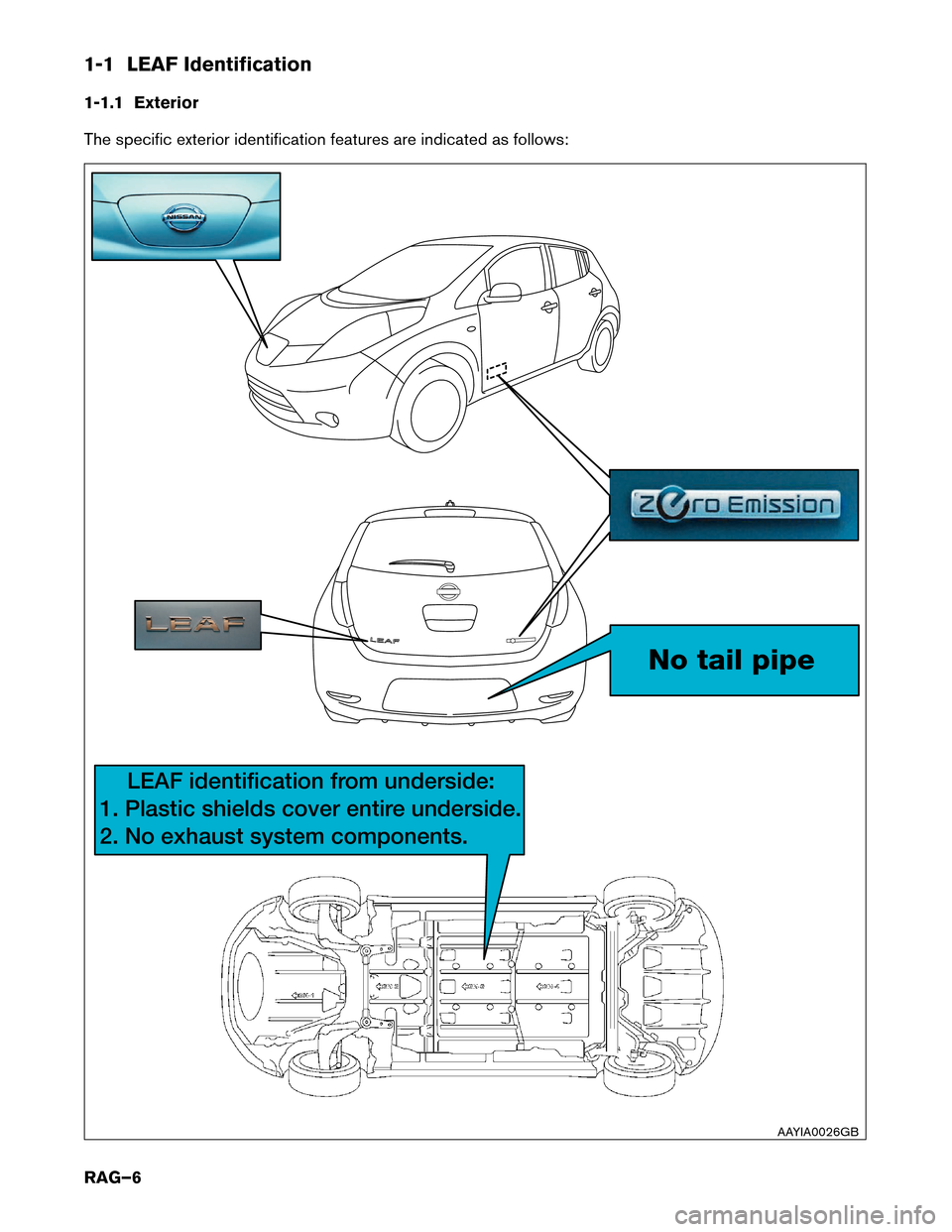

The specific exterior identification features are indicated as follows: No tail pipe
LEAF identification from underside:
1. Plastic shields cover entir
 e under

Page 7 of 39

NISSAN LEAF 2015 1.G Roadside Assistance Guide 1-1.2 Interior Component Location

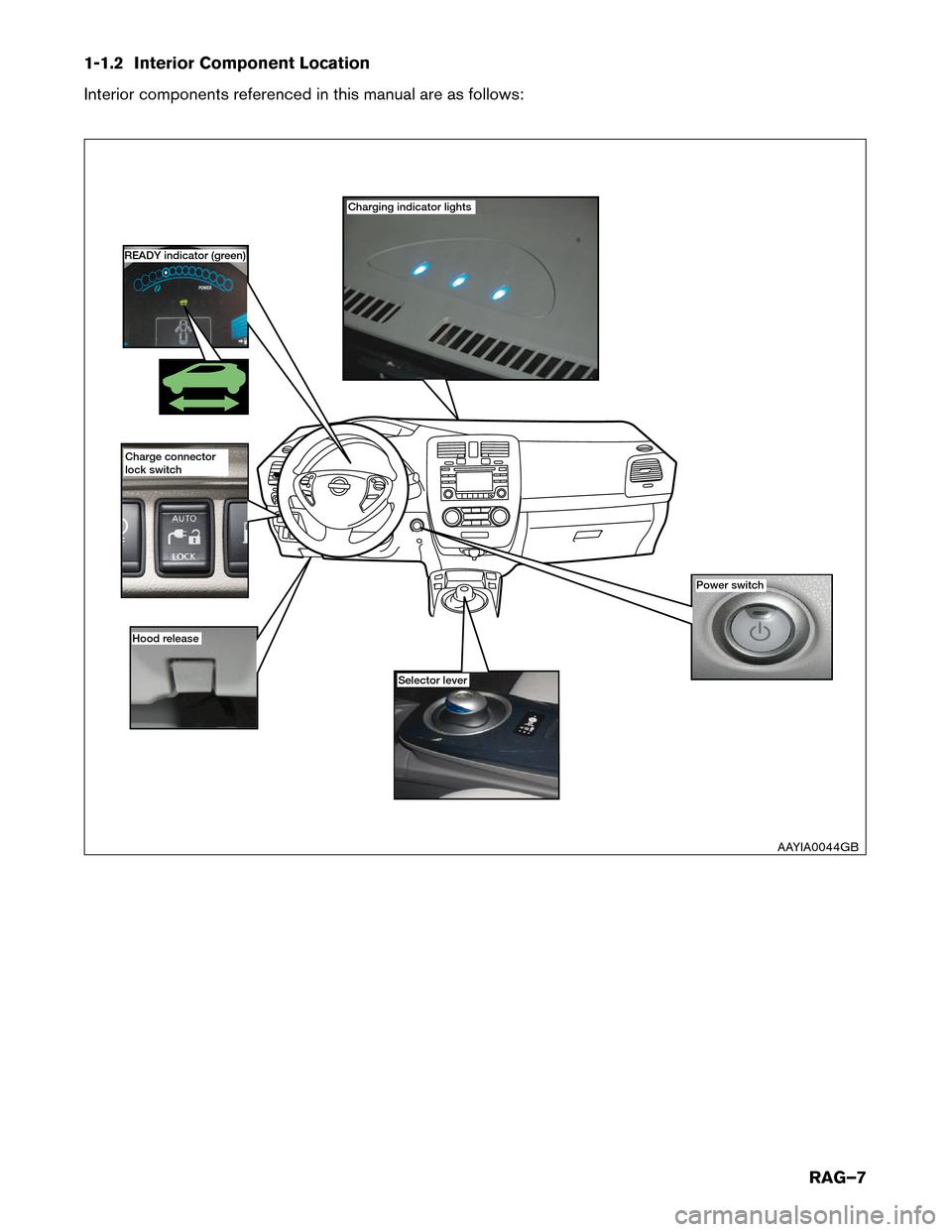

Interior
components referenced in this manual are as follows: Charging indicator lights
Power switch
Hood r

elease Selector lever
READY indicator (green)
Charge conn

Page 8 of 39

NISSAN LEAF 2015 1.G Roadside Assistance Guide 1-1.3 Vehicle Identification Number (VIN) Layout
The
vehicle identification number can be located as follows: Example VIN : 1N4A Z0CPXFC053500
The LEAF is identified by the 5
thalphanumeric character:

Page 9 of 39

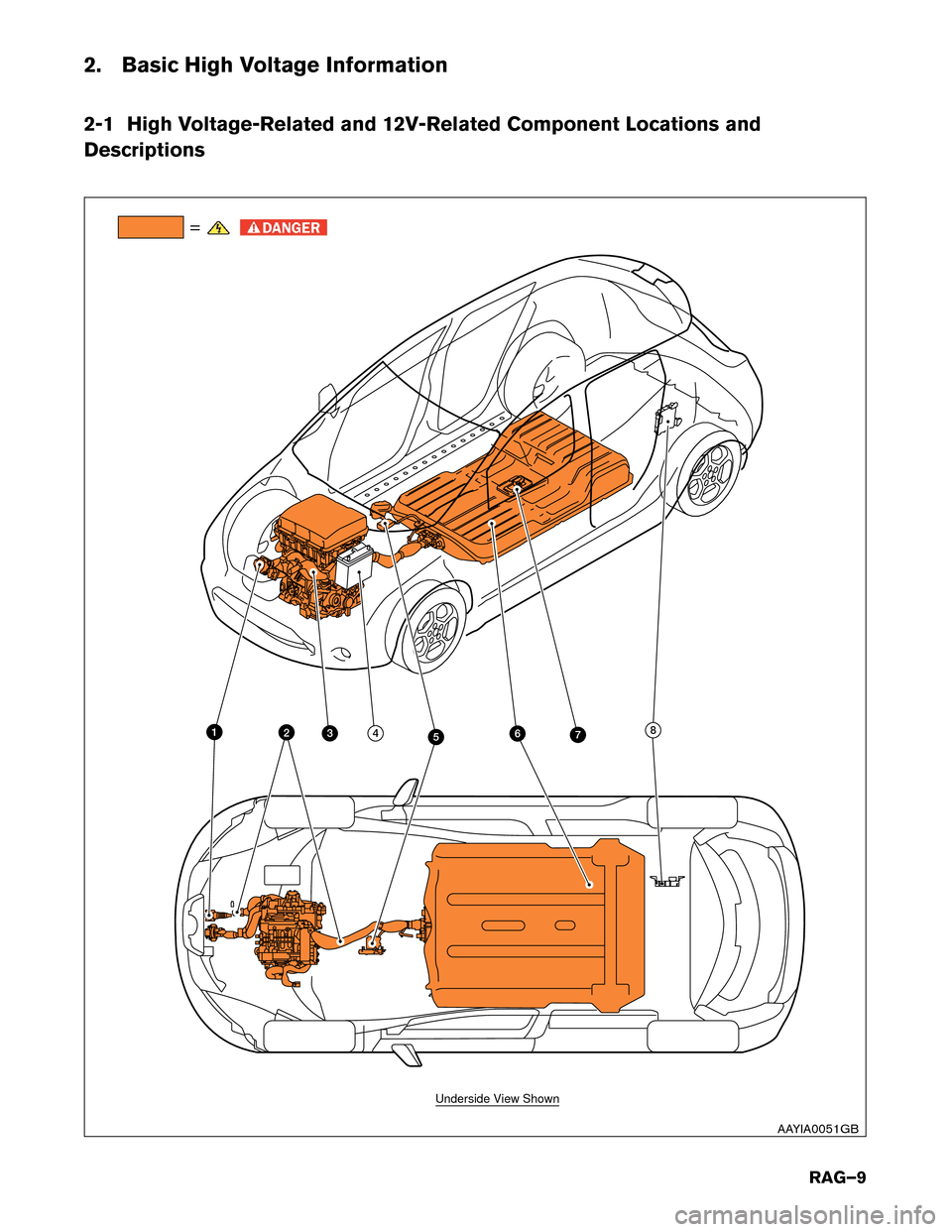

NISSAN LEAF 2015 1.G Roadside Assistance Guide 2. Basic High Voltage Information
2-1
High Voltage-Related and 12V-Related Component Locations and
Descriptions =
76
342 8
5 1
Underside View Shown
AAYIA0051GB
RAG–9

Page 10 of 39

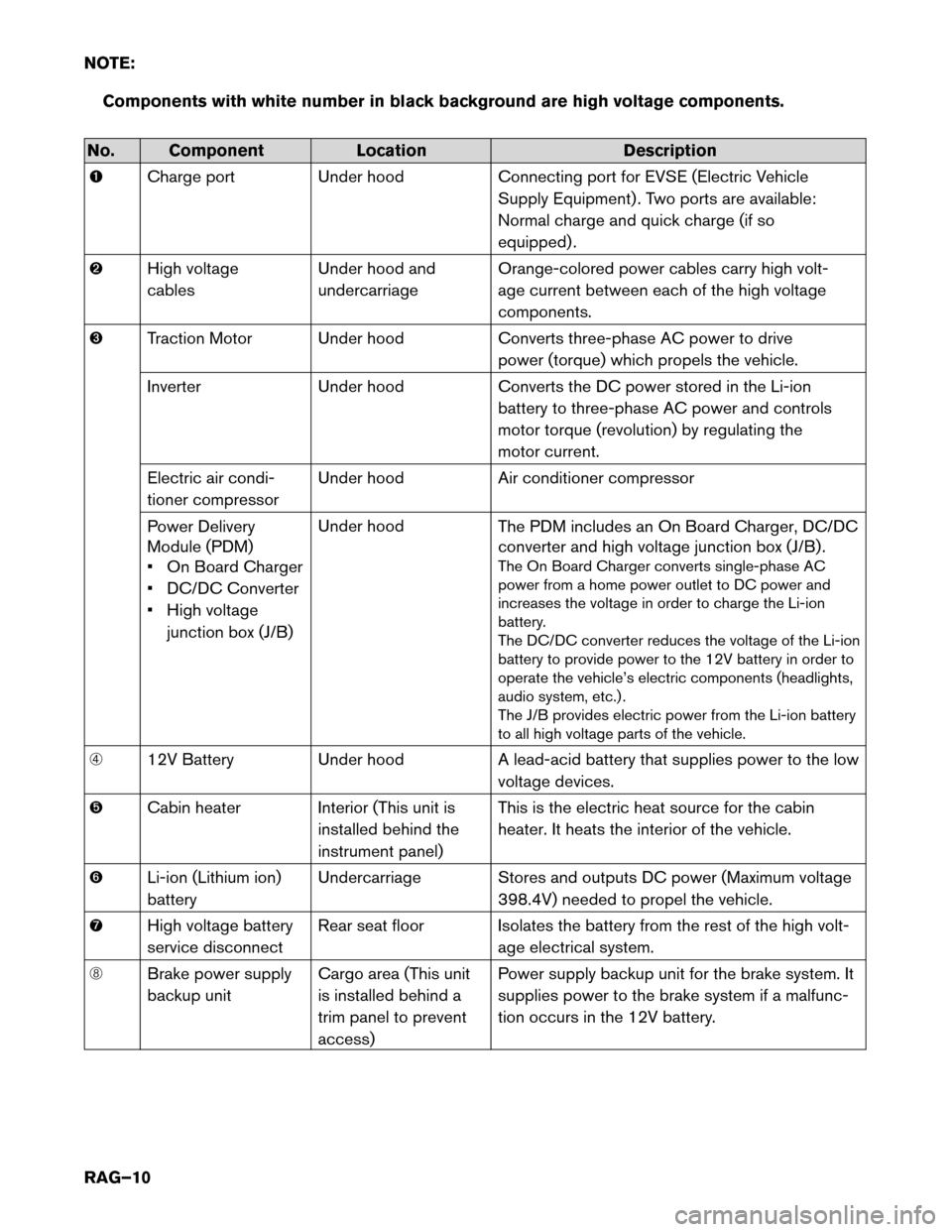

NISSAN LEAF 2015 1.G Roadside Assistance Guide NOTE:
Components with white number in black background are high voltage components.No. Component
LocationDescription
� Charge

port Under hood Connecting port for EVSE (Electric Vehicle
Supply Equipme
