Page 291 of 412

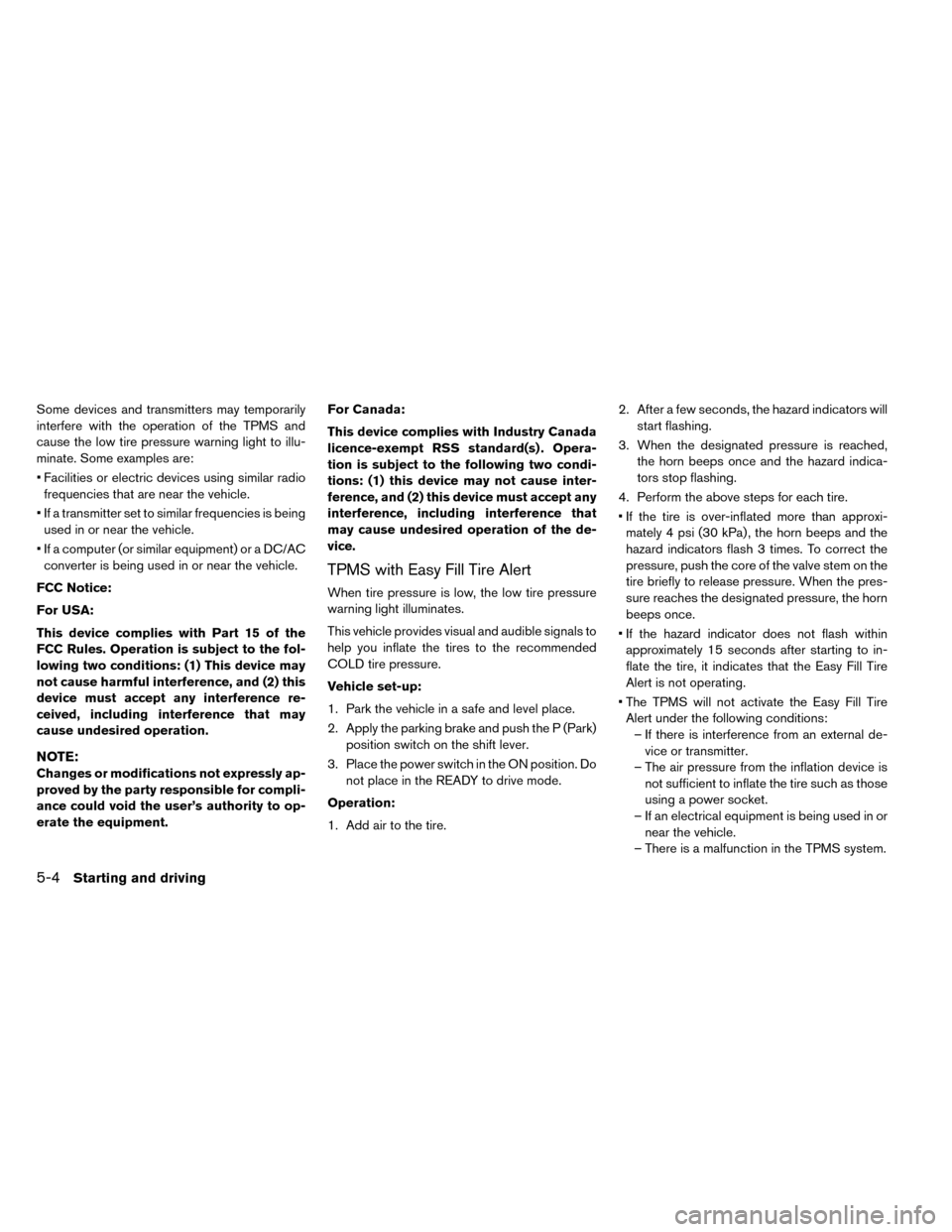

NISSAN LEAF 2015 1.G Owners Manual Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to illu-
minate. Some examples are:
• Facilities or electric devi

Page 292 of 412

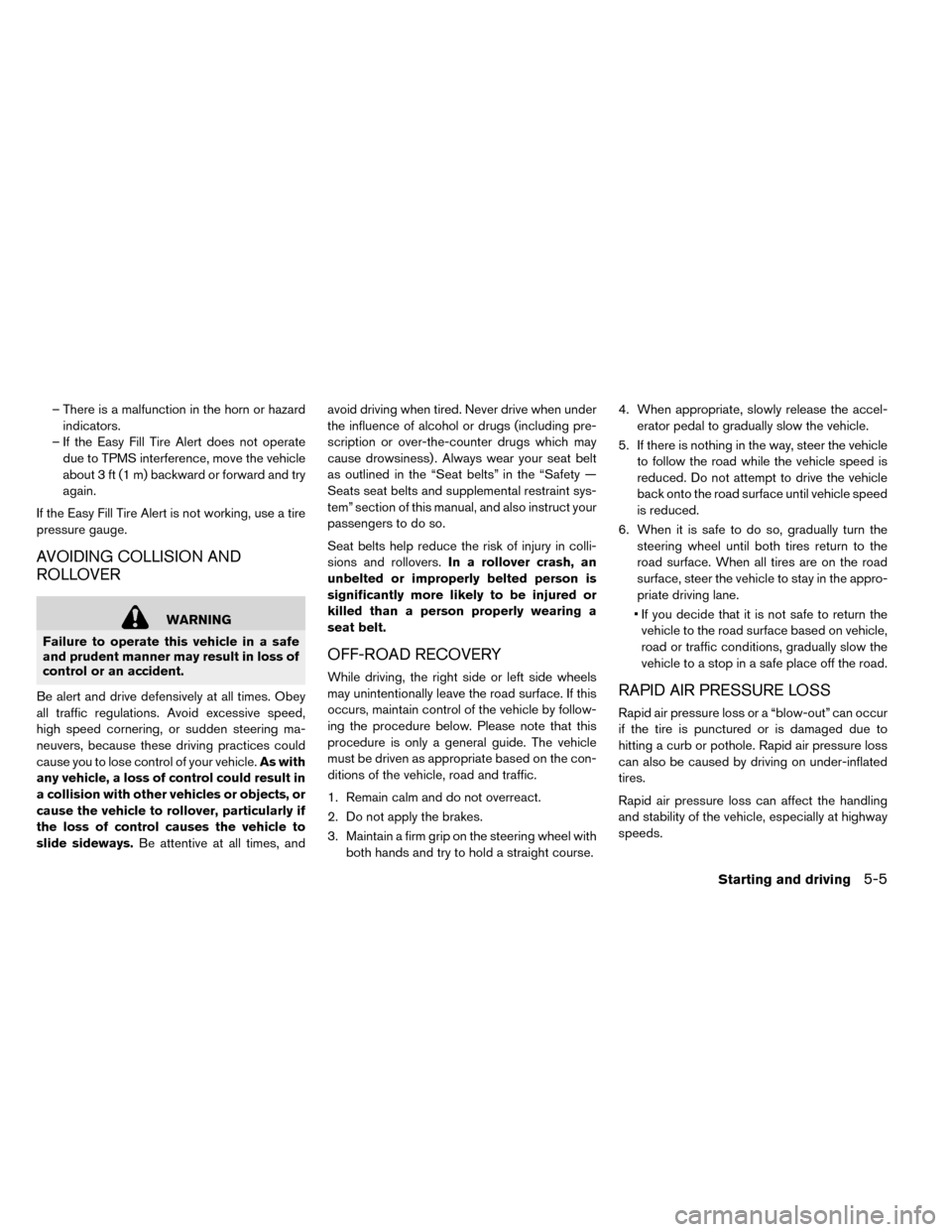

NISSAN LEAF 2015 1.G Owners Manual – There is a malfunction in the horn or hazardindicators.
– If the Easy Fill Tire Alert does not operate due to TPMS interference, move the vehicle
about 3 ft (1 m) backward or forward and try
aga

Page 293 of 412

NISSAN LEAF 2015 1.G Owners Manual Help prevent rapid air pressure loss by maintain-
ing the correct air pressure and visually inspect
the tires for wear and damage. See “Wheels and
tires” in the “Maintenance and do-it-yourself

Page 294 of 412

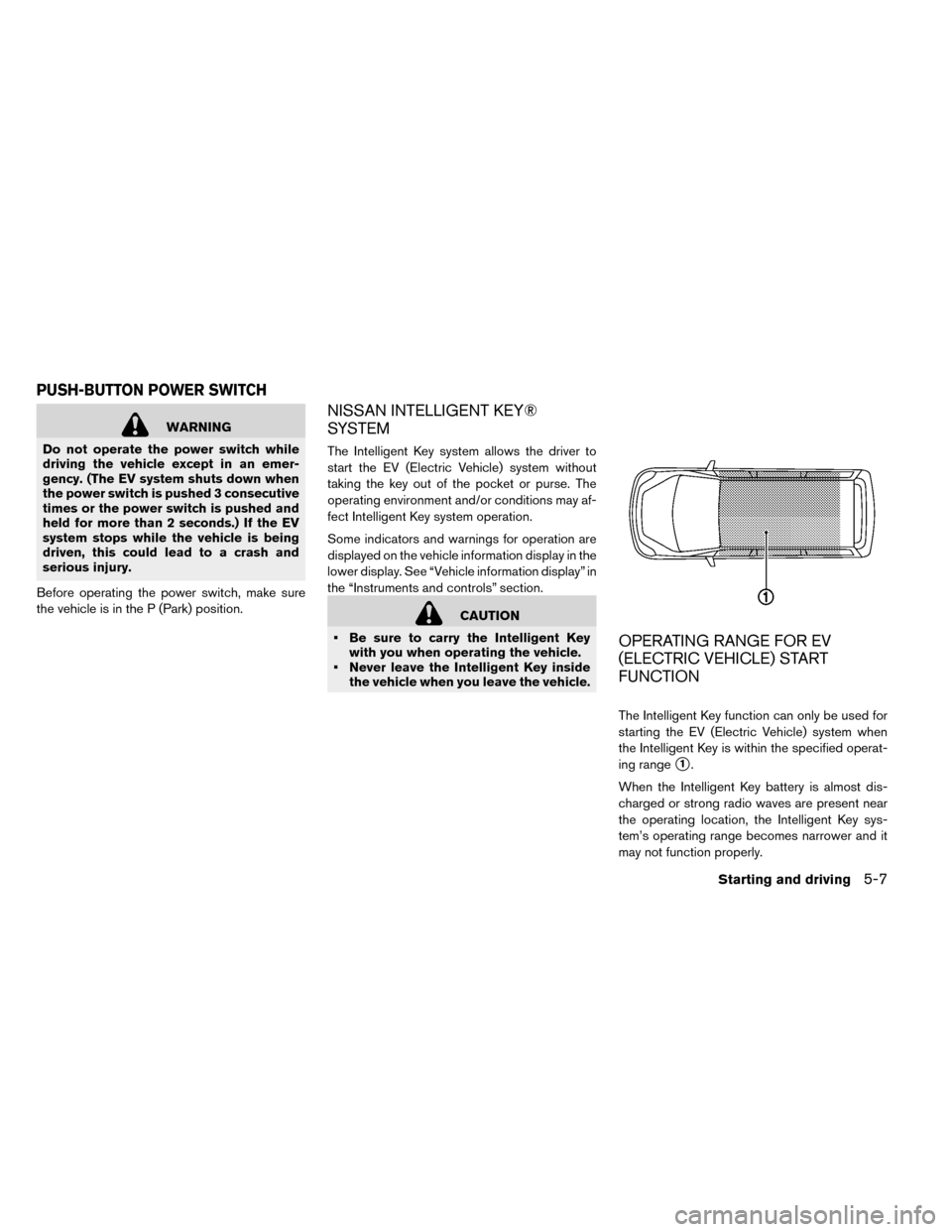

NISSAN LEAF 2015 1.G Owners Manual WARNING
Do not operate the power switch while
driving the vehicle except in an emer-
gency. (The EV system shuts down when
the power switch is pushed 3 consecutive
times or the power switch is pushed

Page 295 of 412

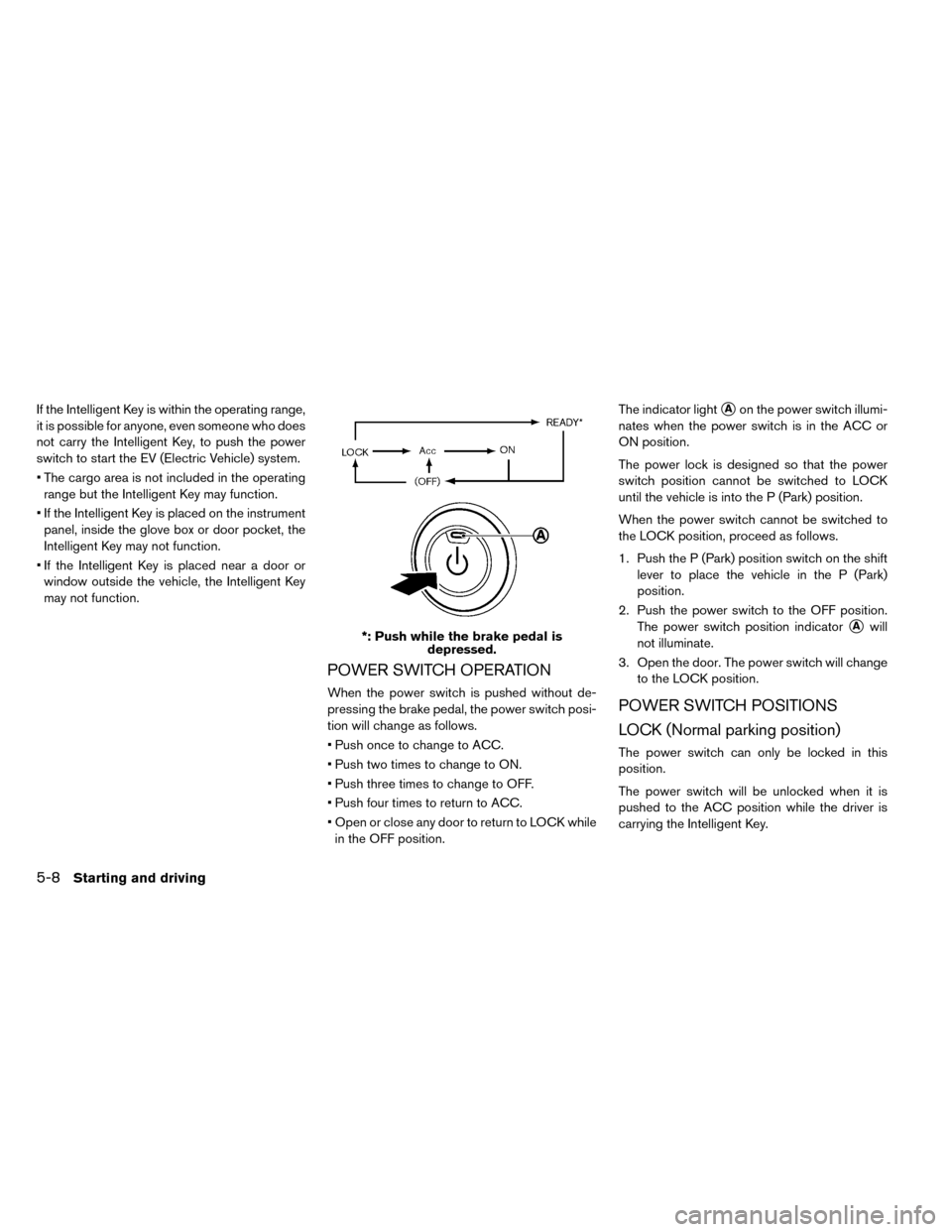

NISSAN LEAF 2015 1.G Owners Manual If the Intelligent Key is within the operating range,
it is possible for anyone, even someone who does
not carry the Intelligent Key, to push the power
switch to start the EV (Electric Vehicle) system

Page 296 of 412

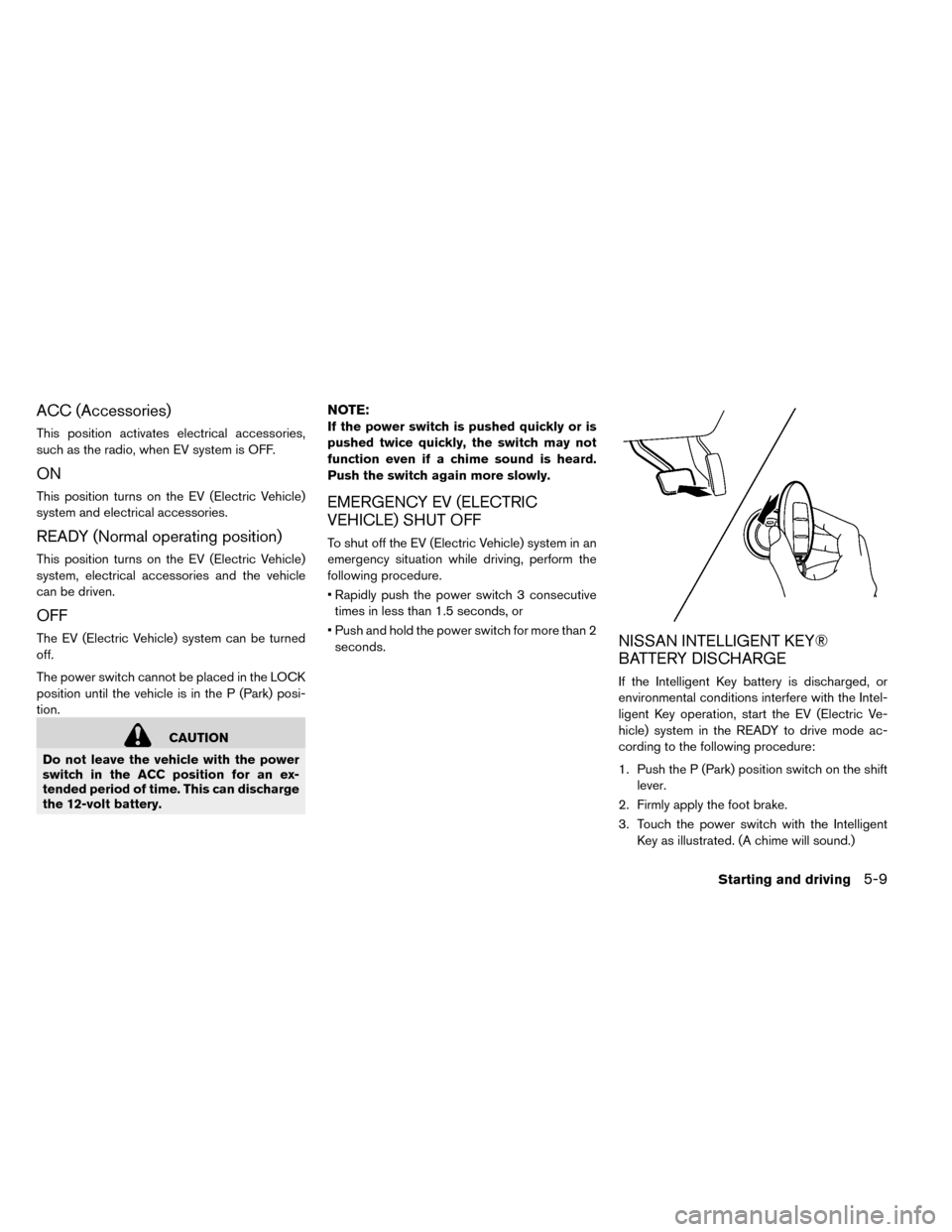

NISSAN LEAF 2015 1.G Owners Manual ACC (Accessories)
This position activates electrical accessories,
such as the radio, when EV system is OFF.
ON
This position turns on the EV (Electric Vehicle)
system and electrical accessories.
READY

Page 297 of 412

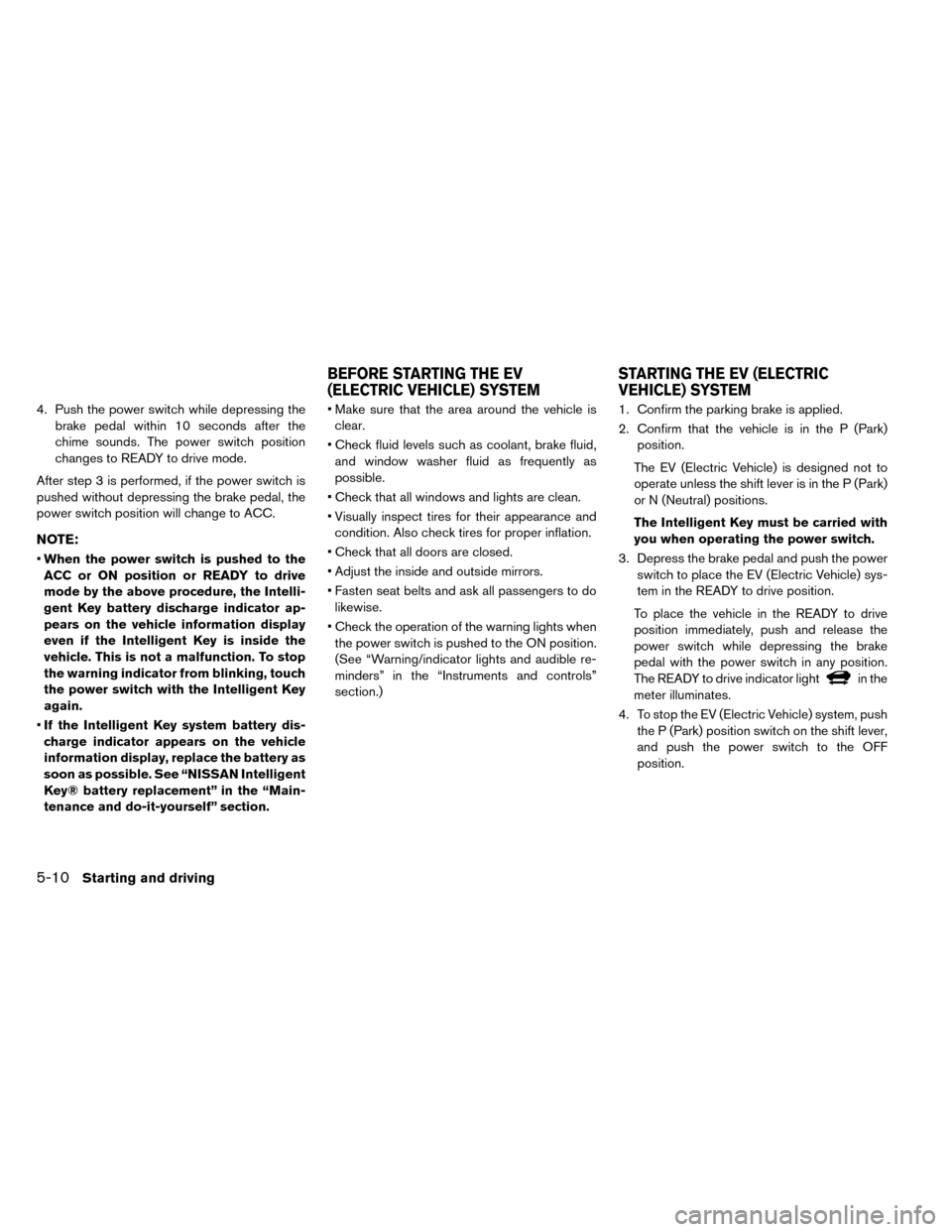

NISSAN LEAF 2015 1.G Owners Manual 4. Push the power switch while depressing thebrake pedal within 10 seconds after the
chime sounds. The power switch position
changes to READY to drive mode.
After step 3 is performed, if the power swi

Page 298 of 412

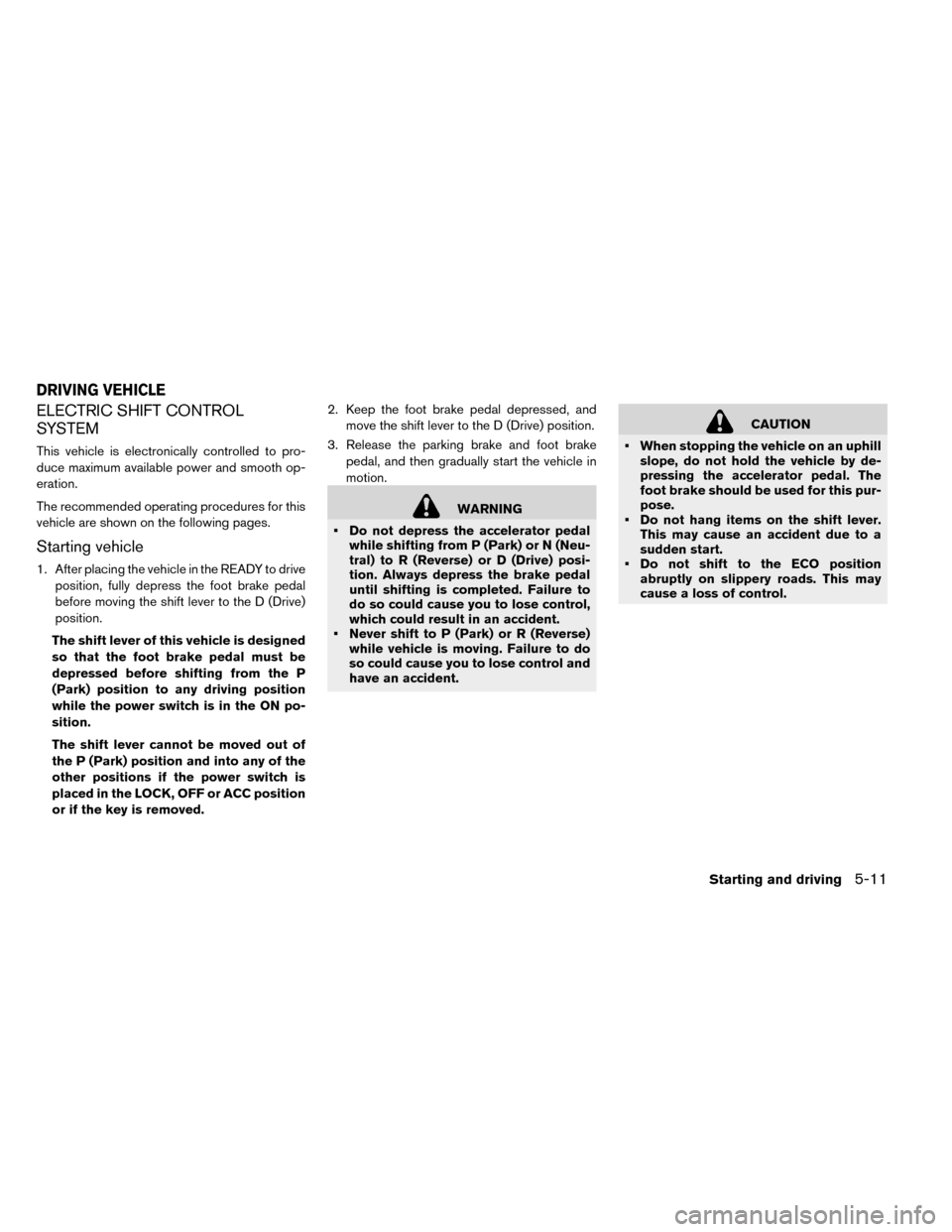

NISSAN LEAF 2015 1.G Owners Manual ELECTRIC SHIFT CONTROL
SYSTEM
This vehicle is electronically controlled to pro-
duce maximum available power and smooth op-
eration.
The recommended operating procedures for this
vehicle are shown on

Page 299 of 412

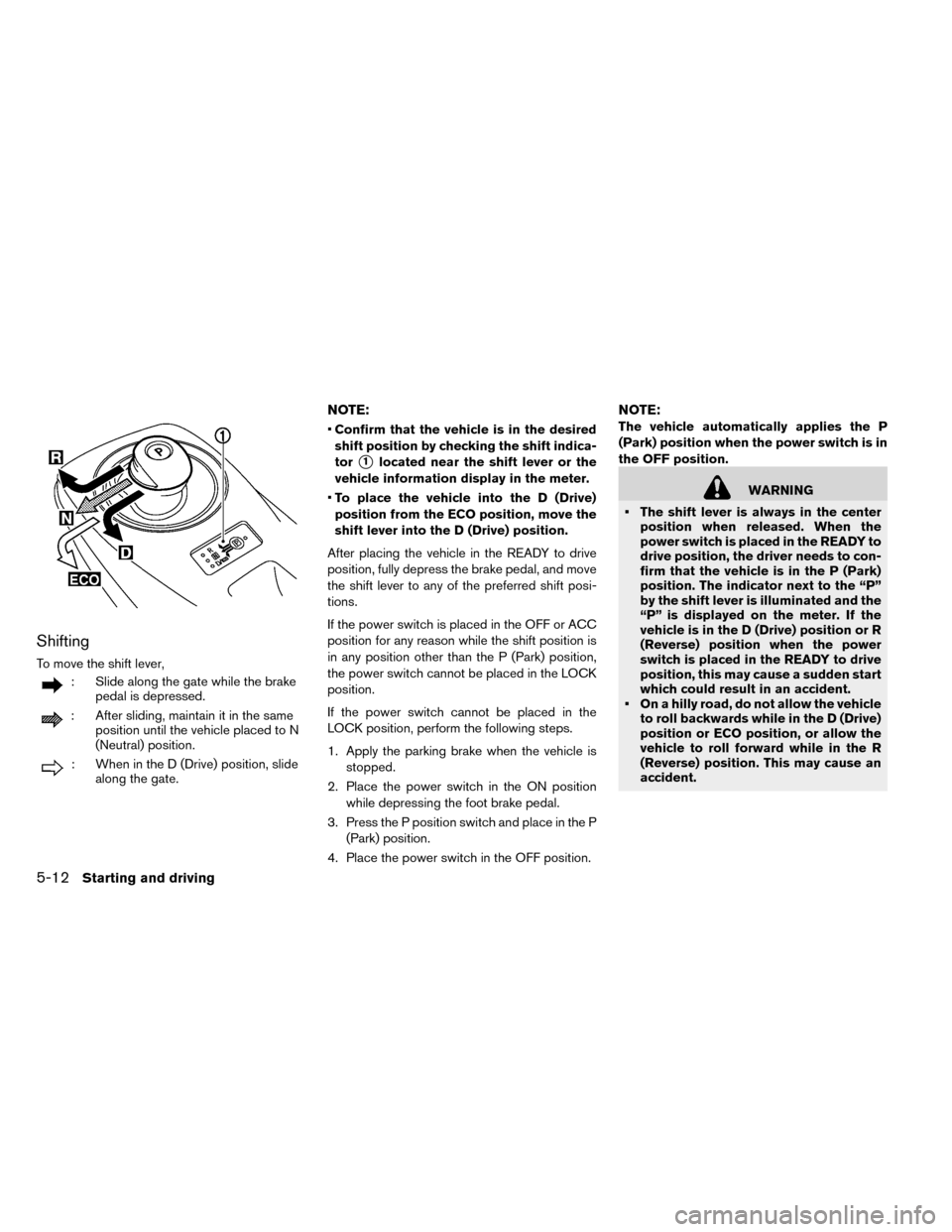

NISSAN LEAF 2015 1.G Owners Manual Shifting
To move the shift lever,
: Slide along the gate while the brakepedal is depressed.
: After sliding, maintain it in the same position until the vehicle placed to N
(Neutral) position.
: When i

Page 300 of 412

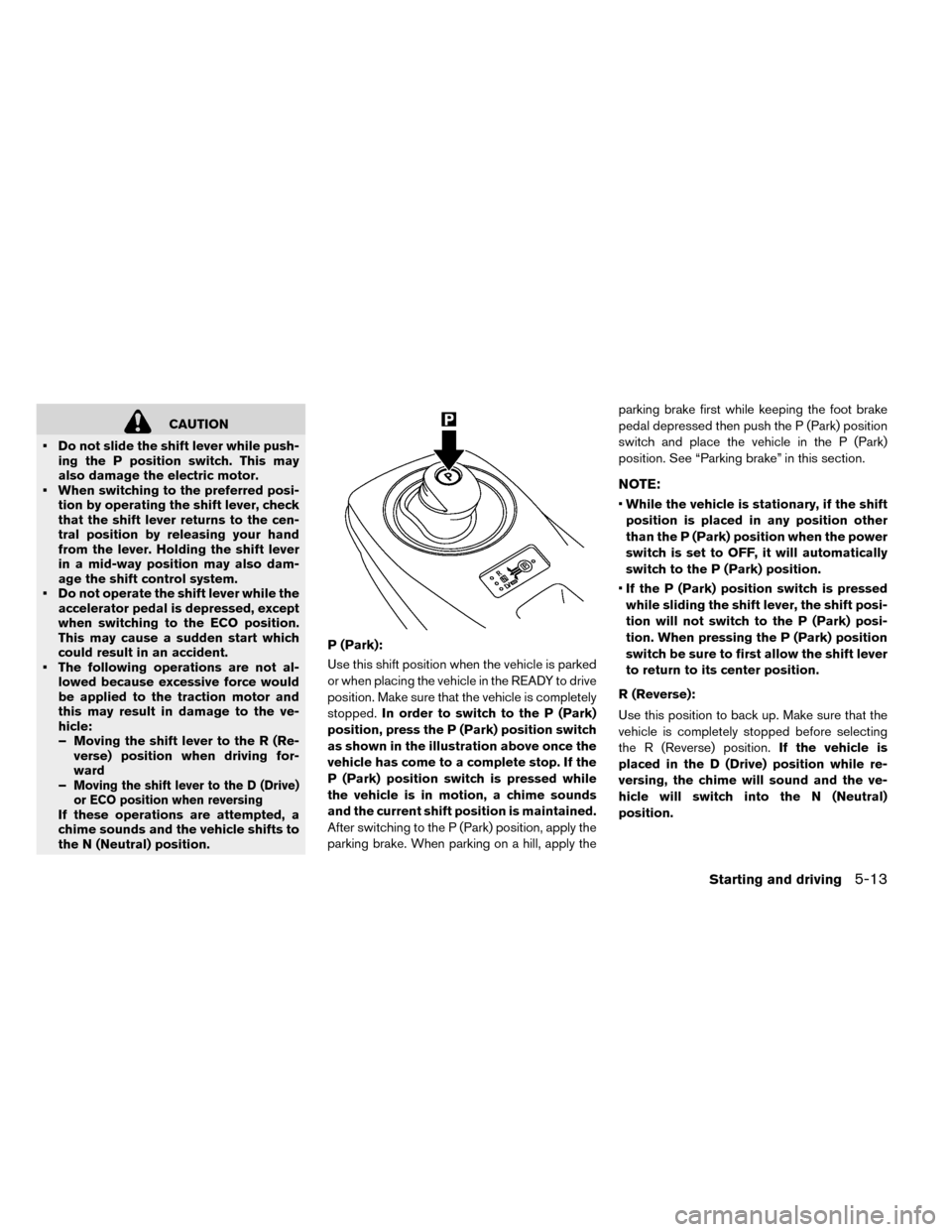

NISSAN LEAF 2015 1.G Owners Manual CAUTION
• Do not slide the shift lever while push- ing the P position switch. This may
also damage the electric motor.
• When switching to the preferred posi- tion by operating the shift lever, ch
