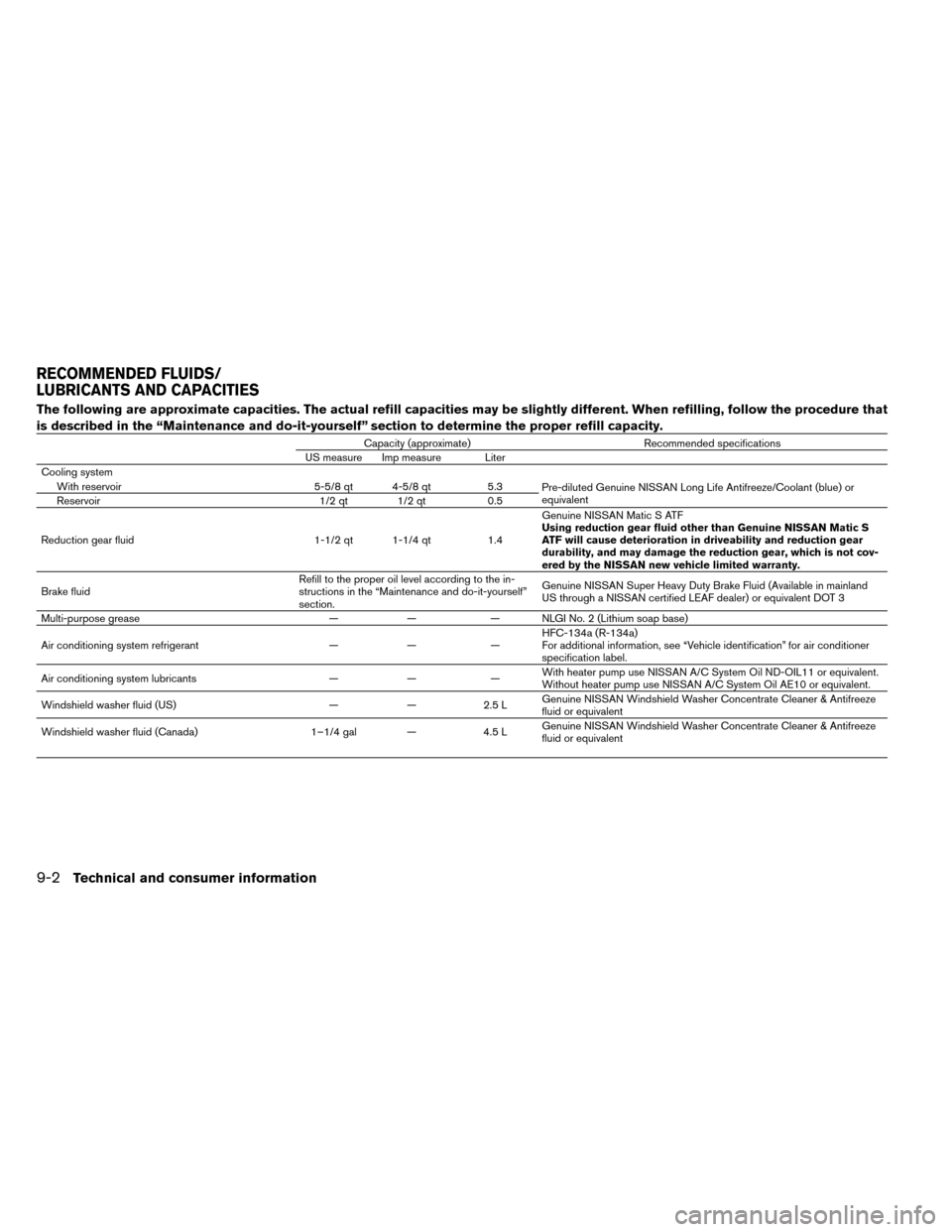

oil capacities NISSAN LEAF 2015 1.G Owners Manual

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure that
is described in the “Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (approximate)Recommended specifications
US measure Imp measure Liter
Cooling system With reservoir 5-5/8 qt 4-5/8 qt5.3
Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or
equivalent
Reservoir 1/2 qt 1/2 qt0.5
Reduction gear fluid 1-1/2 qt 1-1/4 qt1.4Genuine NISSAN Matic S ATF
Using reduction gear fluid other than Genuine NISSAN Matic S
ATF will cause deterioration in driveability and reduction gear
durability, and may damage the reduction gear, which is not cov-
ered by the NISSAN new vehicle limited warranty.
Brake fluid Refill to the proper oil level according to the in-
structions in the “Maintenance and do-it-yourself”
section.Genuine NISSAN Super Heavy Duty Brake Fluid (Available in mainland
US through a NISSAN certified LEAF dealer) or equivalent DOT 3
Multi-purpose grease —— — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant —— —HFC-134a (R-134a)
For additional information, see “Vehicle identification” for air conditioner
specification label.
Air conditioning system lubricants —— —With heater pump use NISSAN A/C System Oil ND-OIL11 or equivalent.
Without heater pump use NISSAN A/C System Oil AE10 or equivalent.
Windshield washer fluid (US) ——2.5 LGenuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze
fluid or equivalent
Windshield washer fluid (Canada) 1–1/4 gal —4.5 LGenuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze
fluid or equivalent
RECOMMENDED FLUIDS/
LUBRICANTS AND CAPACITIES
9-2Technical and consumer information

Lock........................3-5
Automatic door locks .............3-5
Door locks ...................3-3
Power door lock ................3-3
Rearhatchlock................3-18
Low tire pressure warning light .........2-16
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) ......5-2
Luggage side hook ...............2-54
M
Maintenance...................8-11
12-volt battery ................8-11
Generalmaintenance .............8-2
Indicatorsformaintenance..........2-34
Inside vehicle ..................8-3
Maintenance precautions ...........8-5
Maintenance requirements ..........8-2
Outside vehicle .................8-2
Seatbeltmaintenance............1-15
Manual front seat adjustment ...........1-3
Maplights ....................2-57
Mechanical key (Intelligent Key system) .....3-3
Meters and gauges ................2-5
Mirror .......................3-23
Inside rearview mirror.............3-23
Outside mirrors ................3-24
Vanity mirror ..................3-22
Motor....................5-10,9-5 Before starting system
............5-10
Motor compartment ................8-7
N
NISSAN Intelligent Key® system ......3-6,5-7
Key operating range of the door lock/unlock
function.....................3-8
Key operation ..................3-9
NISSAN Vehicle Immobilizer System ......2-37
Normalcharge..................CH-9 Home charge ................CH-9
Occasional charge .............CH-9
Publiccharge ................CH-9
O
Odometer .....................2-6
Off-road recovery .................5-5
Oil .........................9-2 Recommended fluids/lubricants and
capacities ....................9-2
Opening rear hatch ...............3-10
Outside air temperature .............2-10
Outside mirrors .................3-24
Owner’s Manual/Service Manual order
information ....................9-19
P
Panic alarm....................3-14
Parking ......................5-15
Parking on hills ................5-18
Parking brake break-in ..............5-21
Power .......................3-3 Power door lock ................3-3
Power steering system ............5-19
Power windows ................2-55
Powereconomy.................5-17
Powermeter....................2-7
Power outlet ...................2-49
Power steering system .............5-19
Powerswitch.................5-7,5-8
Precautions ....................5-20
Brake precautions ..............5-20
Charging ...................CH-2
Child restraints ................1-18
Cruise control .................5-15
High voltage precautions ..........EV-7
Maintenance..................8-5
Road accident precautions .........EV-8
Seatbeltusage ................1-8
Supplemental restraint system........1-36
When starting and driving ...........5-2
Push starting ...................6-12
10-4Technical and consumer information
