trip computer NISSAN LEAF 2015 1.G Owners Manual
[x] Cancel search | Manufacturer: NISSAN, Model Year: 2015, Model line: LEAF, Model: NISSAN LEAF 2015 1.GPages: 412, PDF Size: 8.81 MB
Page 15 of 412
1. TRIP switch for twin trip odometer (P 2-6)
2. Trip computer switch (P 2-27)
3. Instrument brightness control switch(P 2-41)
4. Headlight, fog light and turn signal switch — Headlight (P 2-42)
— Turn signal light (P 2-44)
— Fog light (if so equipped) (P 2-44)
5. Steering-wheel-mounted controls (left side) (See LEAF Navigation System Owner’s
Manual.)
—
Driving range button (if so
equipped)
— Audio control
— Bluetooth® Hands-Free Phone System
control
6. Steering wheel — Power steering system (P 5-19)
— Horn (P 2-46)
— Driver’s supplemental air bag (P 1-36)
7. Wiper and washer switch (P 2-38)
8. Steering-wheel-mounted controls (right side)
— Cruise control switches (P 5-15)
— ECO button (if so equipped) (P 2-46)
9. Fuse box cover (P 8-16)
10. Heated steering wheel (P 2-45)
COCKPIT
0-6Illustrated table of contents
Page 18 of 412
This vehicle is equipped with an upper display
and a lower display.
1. Master warning light (P 2-18)
2. ECO indicator (P 2-10)
3. Speedometer (P 2-6)
4. Clock (P 2-11)
5. Outside air temperature (P 2-10)
6. Turn signal/Hazard indicator light (P 2-21)
7. Li-ion battery temperature gauge (P 2-7)
8. Warning/indicator lights (P 2-12)
9. Power meter (P 2-7)
10. ECO indicator (P 2-46)
11. READY to drive indicator light (P 2-20)
12. Vehicle information display (P 2-22)— Odometer/twin trip odometer (P 2-6)
— Trip computer (P 2-27)
— Shift “P” warning (if so equipped) (P 2-26)
— Indicator for timer (P 2-35)
13. Driving range (P 2-8)
14. Li-ion battery available charge gauge (P 2-9)
15. Li-ion battery capacity level gauge (P 2-10)
Upper display and lower display
METERS AND GAUGES
Illustrated table of contents0-9
Page 140 of 412

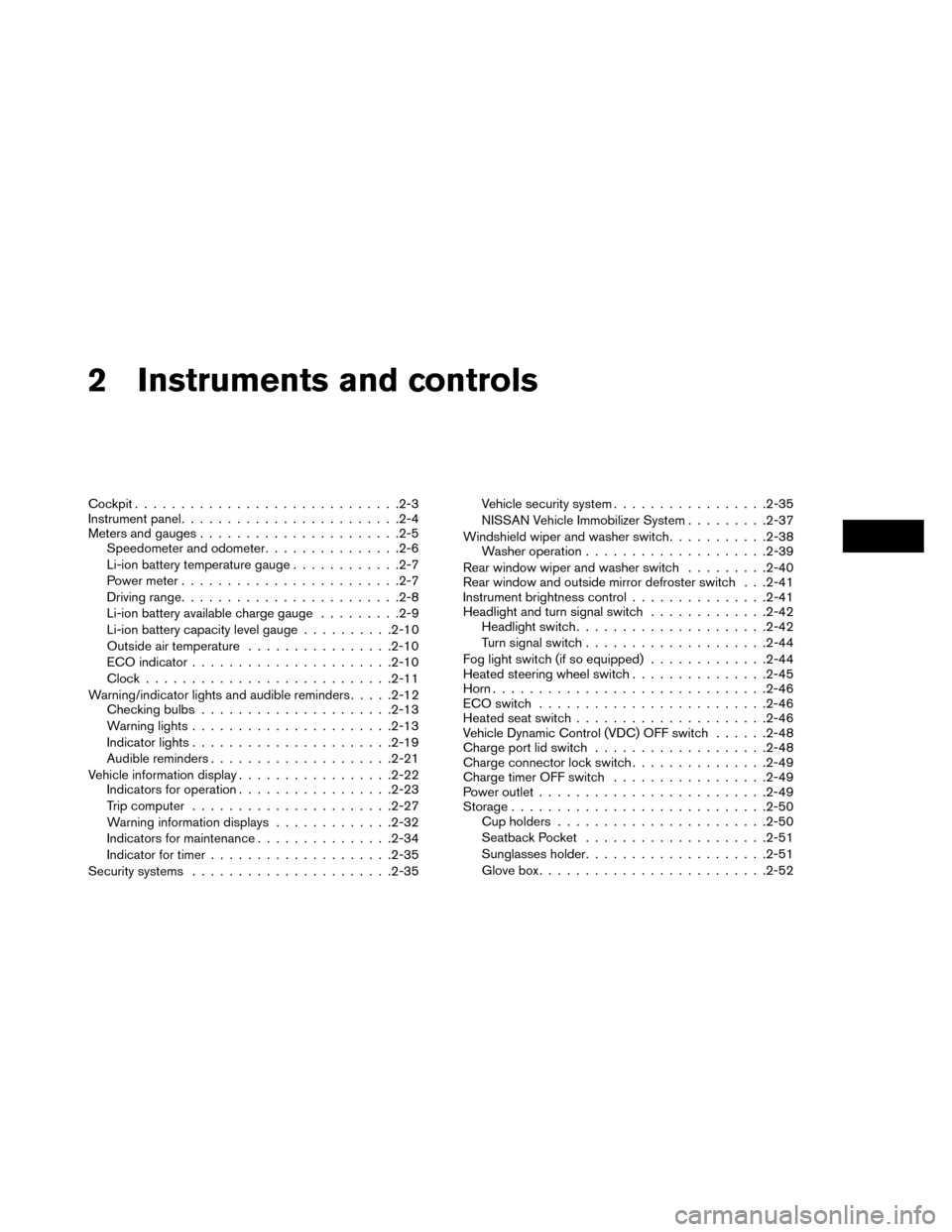

2 Instruments and controls
Cockpit............................ .2-3
Instrument panel ....................... .2-4
Meters and gauges ..................... .2-5
Speedometer and odometer ...............2-6
Li-ion battery temperature gauge ............2-7
Power meter ....................... .2-7
Driving range ....................... .2-8
Li-ion battery available charge gauge .........2-9
Li-ion battery capacity level gauge ..........2-10
Outside air temperature ................2-10
ECO indicator ..................... .2-10
Clock .......................... .2-11
Warning/indicator lights and audible reminders .....2-12
Checking bulbs .................... .2-13
Warning lights ..................... .2-13
Indicator lights ..................... .2-19
Audible reminders ................... .2-21
Vehicle information display .................2-22
Indicators for operation ................ .2-23
Trip computer ..................... .2-27
Warning information displays .............2-32
Indicators for maintenance ...............2-34
Indicator for timer ................... .2-35
Security systems ..................... .2-35Vehicle security system
................ .2-35
NISSAN Vehicle Immobilizer System .........2-37
Windshield wiper and washer switch ...........2-38
Washer operation ................... .2-39
Rear window wiper and washer switch .........2-40
Rear window and outside mirror defroster switch . . .2-41
Instrument brightness control ...............2-41
Headlight and turn signal switch .............2-42
Headlight switch .................... .2-42
Turn signal switch ................... .2-44
Fog light switch (if so equipped) .............2-44
Heated steering
wheel switch ...............2-45
Horn ............................. .2-46
ECO switch ........................ .2-46
Heated seat switch .................... .2-46
Vehicle Dynamic Control (VDC) OFF switch ......2-48
Charge port lid switch .................. .2-48
Charge connector lock switch ...............2-49
Charge timer OFF switch .................2-49
Power outlet ........................ .2-49
Storage ........................... .2-50
Cup holders ...................... .2-50
Seatback Pocket ................... .2-51
Sunglasses holder ................... .2-51
Glove box ........................ .2-52
Page 142 of 412
1. TRIP switch for twin trip odometer
2. Trip computer switch
3. Instrument brightness control switch
4. Headlight, fog light (if so equipped) and turnsignal switch
— Headlight
— Turn signal light — Fog light (if so equipped)
5. Steering-wheel-mounted controls (left side) (See LEAF Navigation System Owner’s
Manual.)
—
Driving range button (if so
equipped)
— Audio control — Bluetooth® Hands-Free Phone System
control
6. Steering wheel — Electric power steering system
— Horn
— Driver’s supplemental air bag
7. Wiper and washer switch
8. Steering-wheel-mounted controls (right side)
— Cruise control switches
— ECO button (if so equipped)
9. Fuse box cover
10. Heated steering wheel
11. Vehicle Dynamic Control (VDC) OFF switch
12. Charge timer OFF switch
13. Charge connector lock switch
14. Charge port lid opener switch
15. Tilting steering wheel lever
16. Heated seat switch
17. Shift lever
18. Storage tray
COCKPIT
Instruments and controls2-3
Page 144 of 412
1. Master warning lights
2. ECO indicator
3. Speedometer
4. Clock
5. Outside air temperature
6. Turn signal/Hazard indicator light
7. Li-ion battery temperature gauge8. Warning/Indicator lights
9. Power meter
10. ECO indicator
11. READY to drive indicator light
12. Vehicle information display
— Odometer/twin trip odometer
— Trip computer — Shift position indicator
— Indicator for timer
13. Driving range
14. Li-ion battery available charge gauge
15. Li-ion battery capacity level gauge
METERS AND GAUGES
Instruments and controls2-5
Page 163 of 412

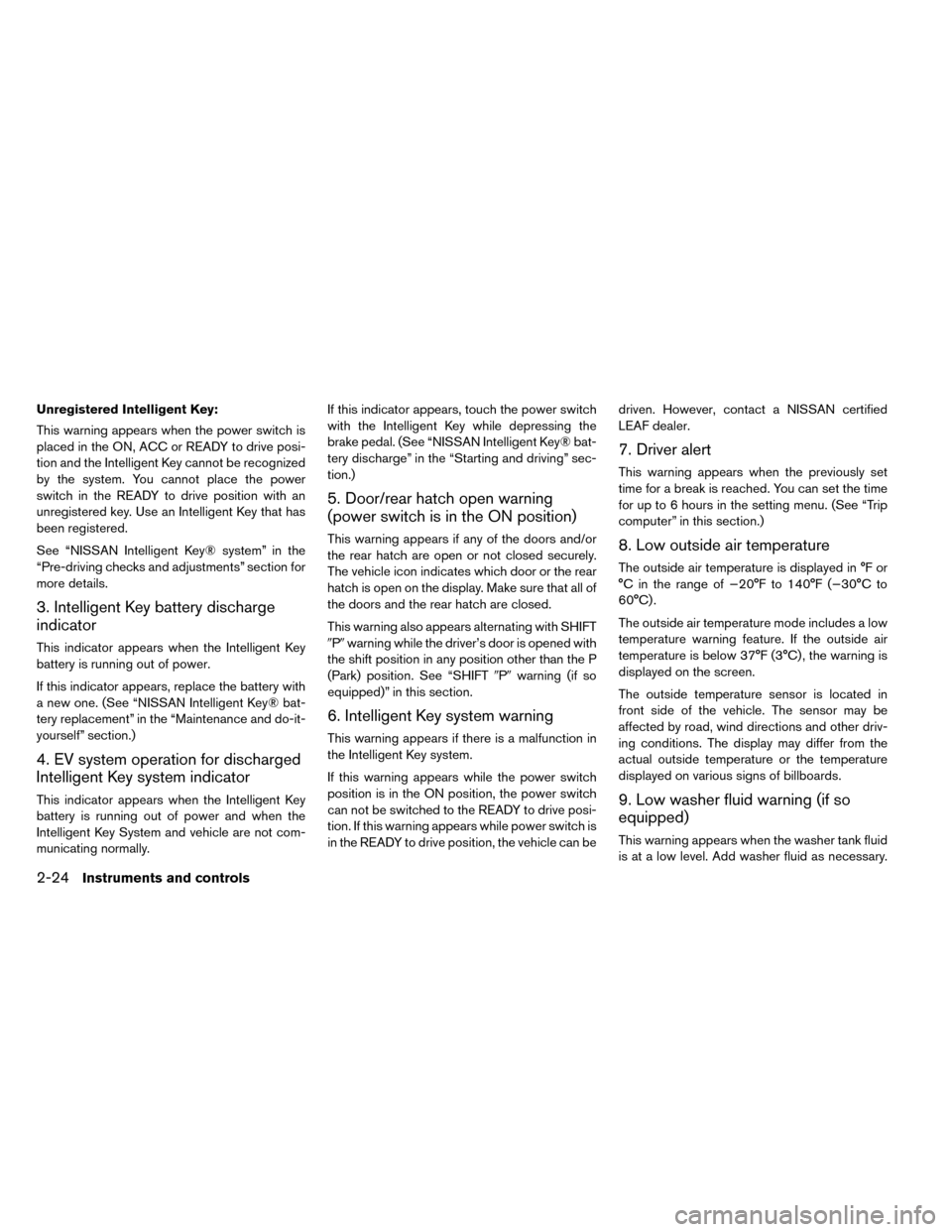

Unregistered Intelligent Key:
This warning appears when the power switch is
placed in the ON, ACC or READY to drive posi-
tion and the Intelligent Key cannot be recognized
by the system. You cannot place the power
switch in the READY to drive position with an
unregistered key. Use an Intelligent Key that has
been registered.
See “NISSAN Intelligent Key® system” in the
“Pre-driving checks and adjustments” section for
more details.
3. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery with
a new one. (See “NISSAN Intelligent Key® bat-
tery replacement” in the “Maintenance and do-it-
yourself” section.)
4. EV system operation for discharged
Intelligent Key system indicator
This indicator appears when the Intelligent Key
battery is running out of power and when the
Intelligent Key System and vehicle are not com-
municating normally.If this indicator appears, touch the power switch
with the Intelligent Key while depressing the
brake pedal. (See “NISSAN Intelligent Key® bat-
tery discharge” in the “Starting and driving” sec-
tion.)
5. Door/rear hatch open warning
(power switch is in the ON position)
This warning appears if any of the doors and/or
the rear hatch are open or not closed securely.
The vehicle icon indicates which door or the rear
hatch is open on the display. Make sure that all of
the doors and the rear hatch are closed.
This warning also appears alternating with SHIFT
P
warning while the driver’s door is opened with
the shift position in any position other than the P
(Park) position. See “SHIFT Pwarning (if so
equipped)” in this section.
6. Intelligent Key system warning
This warning appears if there is a malfunction in
the Intelligent Key system.
If this warning appears while the power switch
position is in the ON position, the power switch
can not be switched to the READY to drive posi-
tion. If this warning appears while power switch is
in the READY to drive position, the vehicle can be driven. However, contact a NISSAN certified
LEAF dealer.
7. Driver alert
This warning appears when the previously set
time for a break is reached. You can set the time
for up to 6 hours in the setting menu. (See “Trip
computer” in this section.)
8. Low outside air temperature
The outside air temperature is displayed in °F or
°C in the range of −20°F to 140°F (−30°C to
60°C) .
The outside air temperature mode includes a low
temperature warning feature. If the outside air
temperature is below 37°F (3°C) , the warning is
displayed on the screen.
The outside temperature sensor is located in
front side of the vehicle. The sensor may be
affected by road, wind directions and other driv-
ing conditions. The display may differ from the
actual outside temperature or the temperature
displayed on various signs of billboards.
9. Low washer fluid warning (if so
equipped)
This warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
2-24Instruments and controls
Page 166 of 412
25. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7km/h) and the parking brake is
applied.

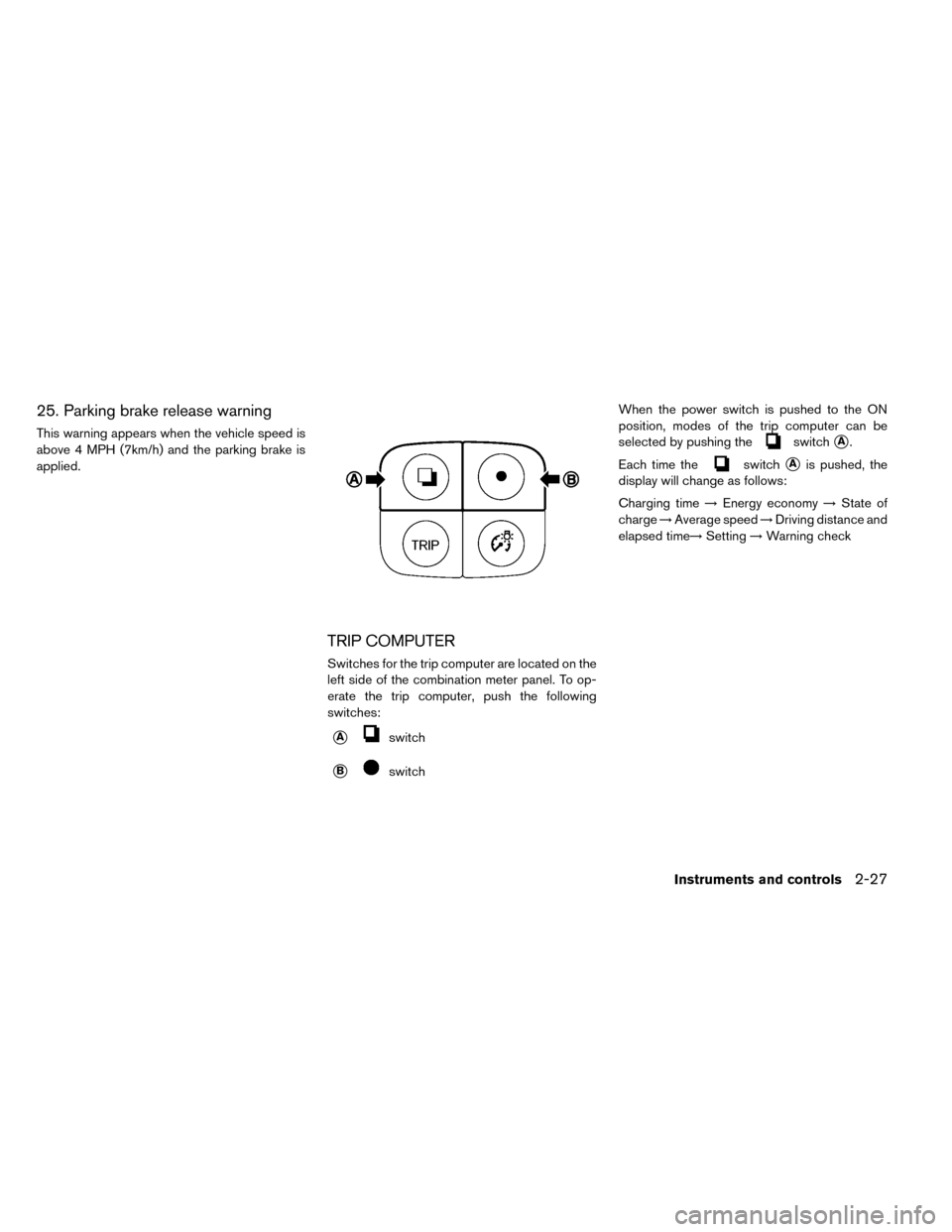

TRIP COMPUTER
Switches for the trip computer are located on the
left side of the combination meter panel. To op-
erate the trip computer, push the following
switches:
Aswitch
BswitchWhen the power switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the
switchA.
Each time the
switchAis pushed, the
display will change as follows:
Charging time →Energy economy →State of
charge →Average speed →Driving distance and
elapsed time→ Setting→Warning check
Instruments and controls2-27
Page 173 of 412
2. The system displays a message screen andannounces the contents of the message to
warn that power output is restricted and in-
form the driver of the reason for this occur-
rence and what action is to be taken.

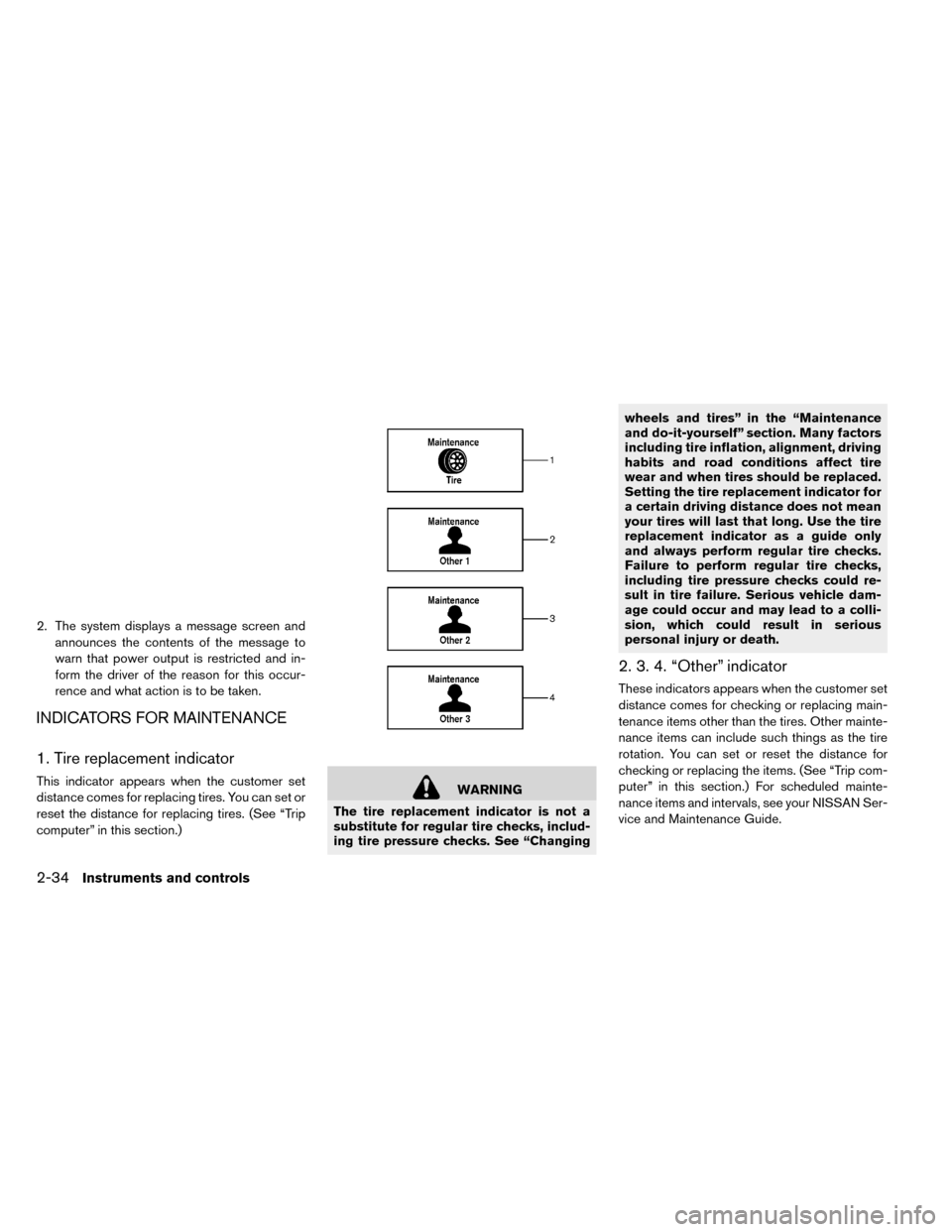

INDICATORS FOR MAINTENANCE
1. Tire replacement indicator
This indicator appears when the customer set
distance comes for replacing tires. You can set or
reset the distance for replacing tires. (See “Trip
computer” in this section.)WARNING
The tire replacement indicator is not a
substitute for regular tire checks, includ-
ing tire pressure checks. See “Changing wheels and tires” in the “Maintenance
and do-it-yourself” section. Many factors
including tire inflation, alignment, driving
habits and road conditions affect tire
wear and when tires should be replaced.
Setting the tire replacement indicator for
a certain driving distance does not mean
your tires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could re-
sult in tire failure. Serious vehicle dam-
age could occur and may lead to a colli-
sion, which could result in serious
personal injury or death.
2. 3. 4. “Other” indicator
These indicators appears when the customer set
distance comes for checking or replacing main-
tenance items other than the tires. Other mainte-
nance items can include such things as the tire
rotation. You can set or reset the distance for
checking or replacing the items. (See “Trip com-
puter” in this section.) For scheduled mainte-
nance items and intervals, see your NISSAN Ser-
vice and Maintenance Guide.
2-34Instruments and controls
Page 403 of 412
Supplemental restraint system.........1-36
Precautions on supplemental restraint
system.....................1-36
Switch ......................2-42
Autolightswitch................2-42
ChargetimerOFFswitch ..........2-49
ECOswitch..................2-46
Foglightswitch................2-44
Hazard warning flasher switch ........6-2
Headlightswitch...............2-42
Power door lock switch ............3-5
Rear window and outside mirror defroster
switch.....................2-41
Turnsignalswitch ..............2-44
Vehicle dynamic control (VDC)
offswitch...................2-48
T
Telematics overview ...............9-16
Temperature ....................2-7
Li-ion battery temperature gauge .......2-7
Theft (NISSAN Vehicle Immobilizer System) ,
traction motor start ................2-37
Tilt steering column ...............3-21
Tire........................2-16 Low tire pressure warning light .......2-16
Tires ........................6-3 Flat tire .....................6-3
Low tire pressure warning system ......5-2Tire and Loading information label . . .8-27, 9-8
Tirechains ..................8-32
Tire dressing
..................7-4
Tire pressure .................8-28
Tire pressure monitoring system
(TPMS) ..................5-2,6-3
Tire rotation ..................8-32
Types of tires .................8-31
Uniform tire quality grading .........9-14
Wheels and tires ...............8-26
Wheel/tire size .................9-5
Tonneau cover ..................2-53
Top........................1-21 Tether strap child restraints .........1-21
Towing......................9-14 Flattowing ..................9-14
Towing a trailer ................9-14
Towtrucktowing...............6-12
TPMS, Tire pressure monitoring system .....5-2
TPMS, Tire pressure warning system ......6-3
Tractionmotor...................9-7 Traction motor serial number .........9-7
Trailer towing ...................9-14
Transceiver, HomeLink® Universal .......2-59
Transceiver ..................2-59
Transmitter, With Intelligent Key system
(See Intelligent Key system) ...........3-13
Tricklecharge.................CH-11
Trip computer ..................2-27
Turn signal switch ................2-44
Type of charge and how to charge the Li-ion battery
..................CH-5
U
Underbody cleaning ................7-3
Uniform tire quality grading ...........9-14
Unplugged status ...............CH-27
V
Vanity mirror...................3-22
Vehicle.......................9-6 Dimensionsandweights............9-6
Identification number (VIN) ..........9-7
Loading information .............9-10
Recovery (freeing stuck vehicle) .......6-14
Security system ................2-35
Vehicle dynamic control (VDC) off
switch.....................2-48
Vehicle dynamic control (VDC) system . . .5-23
Vehicle Dynamic Control (VDC) warning
light......................2-19
Vehicle Dynamic Control (VDC) warning
light........................2-19
Vehicle information display ...........2-22
Vehicle security system .............2-35
Vents........................4-8
10-6Technical and consumer information
