Page 231 of 437

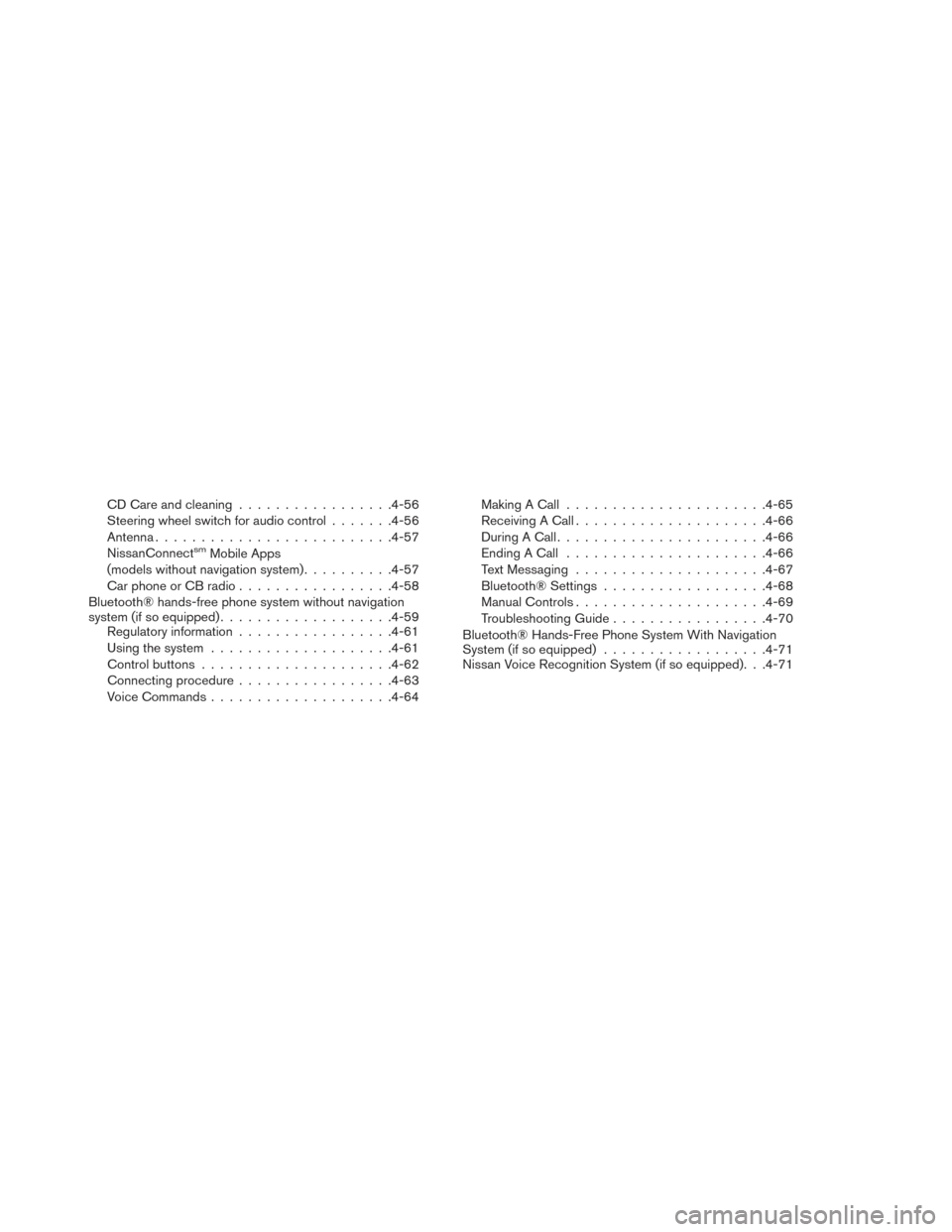

CD Care and cleaning................ .4-56
Steering wheel switch for audio control .......4-56
Antenna ......................... .4-57
NissanConnect
smMobile Apps
(models without navigation system) ..........4-57
Car phone or CB radio ................ .4-58
Bluetooth® hands-free phone system without navigation
system (if so equipped) .................. .4-59
Regulatory information ................ .4-61
Using the system ................... .4-61
Control buttons .................... .4-62
Connecting procedure ................ .4-63
Voice Commands ................... .4-64Making A Call
..................... .4-65
Receiving A Call .................... .4-66
During A Call ...................... .4-66
Ending A Call ..................... .4-66
Text Messaging .................... .4-67
Bluetooth® Settings ................. .4-68
Manual Controls .................... .4-69
Troubleshooting Guide ................ .4-70
Bluetooth® Hands-Free Phone System With Navigation
System (if so equipped) ................. .4-71
Nissan Voice Recognition System (if so equipped). . .4-71
Page 232 of 437
1. CAMERA button (if so equipped)
REARVIEW MONITOR (IF SO
EQUIPPED)
Display screen, heater, air conditioner, audio and phone systems4-3
Page 233 of 437

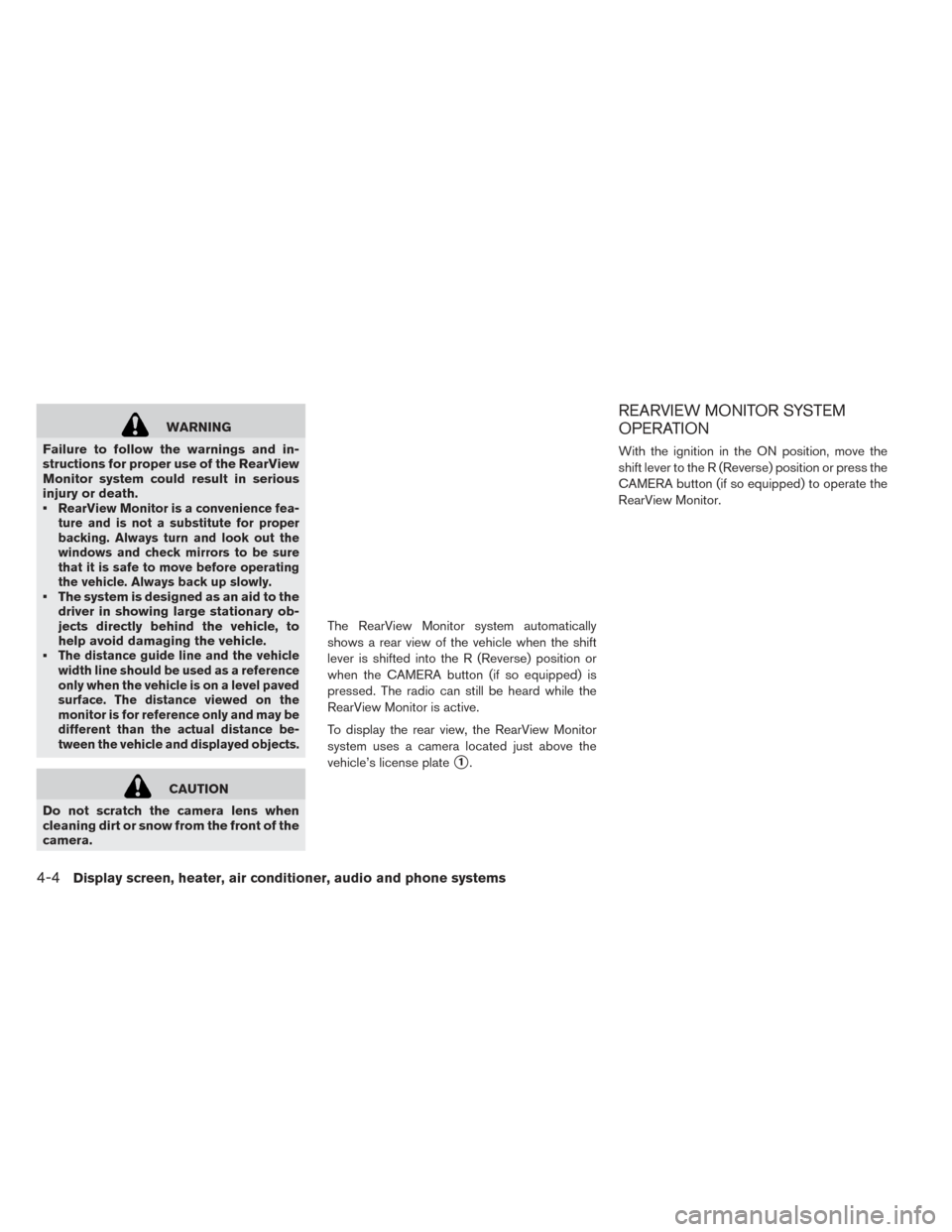

WARNING
Failure to follow the warnings and in-
structions for proper use of the RearView
Monitor system could result in serious
injury or death.
•
RearView Monitor is a convenience fea-
ture and is not a substitute for proper
backing. Always turn and look out the
windows and check mirrors to be sure
that it is safe to move before operating
the vehicle. Always back up slowly.
• The system is designed as an aid to the driver in showing large stationary ob-
jects directly behind the vehicle, to
help avoid damaging the vehicle.
•
The distance guide line and the vehicle
width line should be used as a reference
only when the vehicle is on a level paved
surface. The distance viewed on the
monitor is for reference only and may be
different than the actual distance be-
tween the vehicle and displayed objects.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the front of the
camera. The RearView Monitor system automatically
shows a rear view of the vehicle when the shift
lever is shifted into the R (Reverse) position or
when the CAMERA button (if so equipped) is
pressed. The radio can still be heard while the
RearView Monitor is active.
To display the rear view, the RearView Monitor
system uses a camera located just above the
vehicle’s license plate
1.
REARVIEW MONITOR SYSTEM
OPERATION
With the ignition in the ON position, move the
shift lever to the R (Reverse) position or press the
CAMERA button (if so equipped) to operate the
RearView Monitor.
4-4Display screen, heater, air conditioner, audio and phone systems
Page 234 of 437

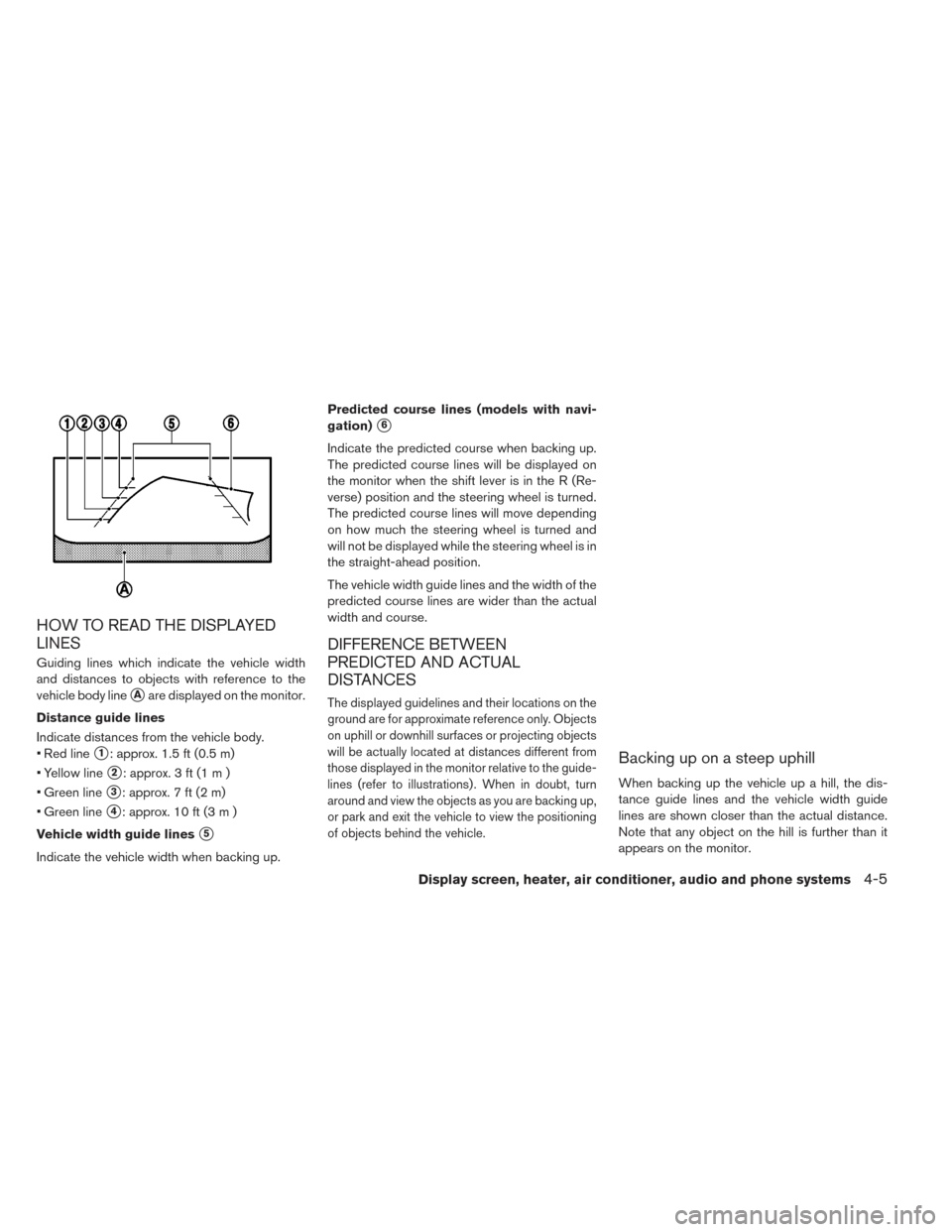

HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
Aare displayed on the monitor.
Distance guide lines
Indicate distances from the vehicle body.
• Red line
1: approx. 1.5 ft (0.5 m)
• Yellow line
2: approx. 3 ft (1 m )
• Green line
3: approx. 7 ft (2 m)
• Green line
4: approx. 10 ft (3 m )
Vehicle width guide lines
5
Indicate the vehicle width when backing up. Predicted course lines (models with navi-
gation)
6
Indicate the predicted course when backing up.
The predicted course lines will be displayed on
the monitor when the shift lever is in the R (Re-
verse) position and the steering wheel is turned.
The predicted course lines will move depending
on how much the steering wheel is turned and
will not be displayed while the steering wheel is in
the straight-ahead position.
The vehicle width guide lines and the width of the
predicted course lines are wider than the actual
width and course.
DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES
The displayed guidelines and their locations on the
ground are for approximate reference only. Objects
on uphill or downhill surfaces or projecting objects
will be actually located at distances different from
those displayed in the monitor relative to the guide-
lines (refer to illustrations) . When in doubt, turn
around and view the objects as you are backing up,
or park and exit the vehicle to view the positioning
of objects behind the vehicle.
Backing up on a steep uphill
When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
Note that any object on the hill is further than it
appears on the monitor.
Display screen, heater, air conditioner, audio and phone systems4-5
Page 235 of 437

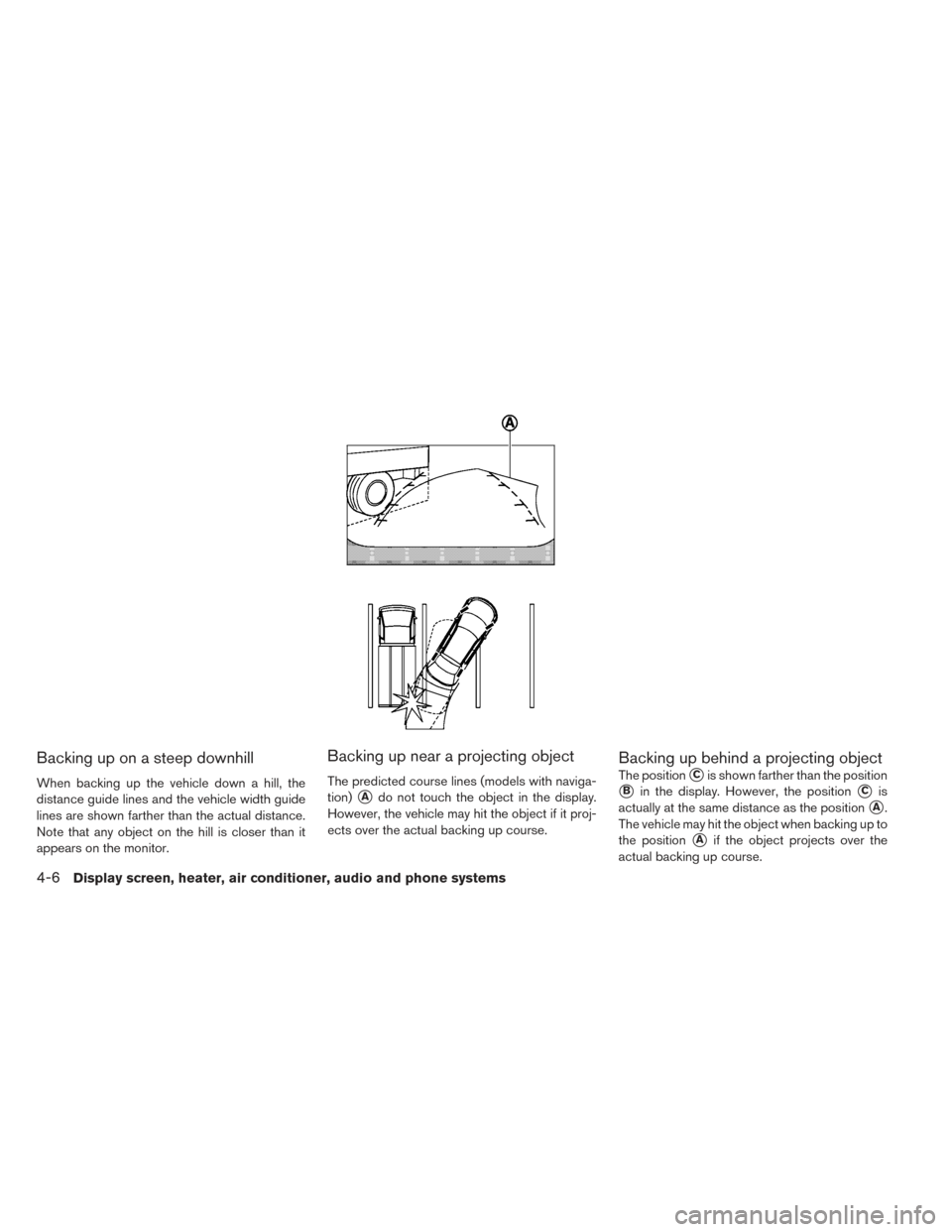

Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown farther than the actual distance.
Note that any object on the hill is closer than it
appears on the monitor.
Backing up near a projecting object
The predicted course lines (models with naviga-
tion)
Ado not touch the object in the display.
However, the vehicle may hit the object if it proj-
ects over the actual backing up course.
Backing up behind a projecting object
The positionCis shown farther than the position
Bin the display. However, the positionCis
actually at the same distance as the position
A.
The vehicle may hit the object when backing up to
the position
Aif the object projects over the
actual backing up course.
4-6Display screen, heater, air conditioner, audio and phone systems
Page 236 of 437
HOW TO PARK WITH PREDICTED
COURSE LINES (MODELS WITH
NAVIGATION)
WARNING
• If the tires are replaced with different sized tires, the predicted course lines
may be displayed incorrectly.
• On a snow-covered or slippery road, there may be a difference between the
predicted course line and the actual
course line.
• If the battery is disconnected or be- comes discharged, the predicted
course lines may be displayed incor-
rectly. If this occurs, please perform
the following procedures:
- Turn the steering wheel from lock to
lock while the engine is running.
- Drive the vehicle on a straight road
for more than 5 minutes.
• When the steering wheel is turned with the ignition switch in the ACC position,
the predicted course lines may be dis-
played incorrectly. 1. Visually check that the parking space is safe
before parking your vehicle.
2. The rear view of the vehicle is displayed on the screen
Awhen the shift lever is moved to the
R (Reverse) position.
Display screen, heater, air conditioner, audio and phone systems4-7
Page 237 of 437

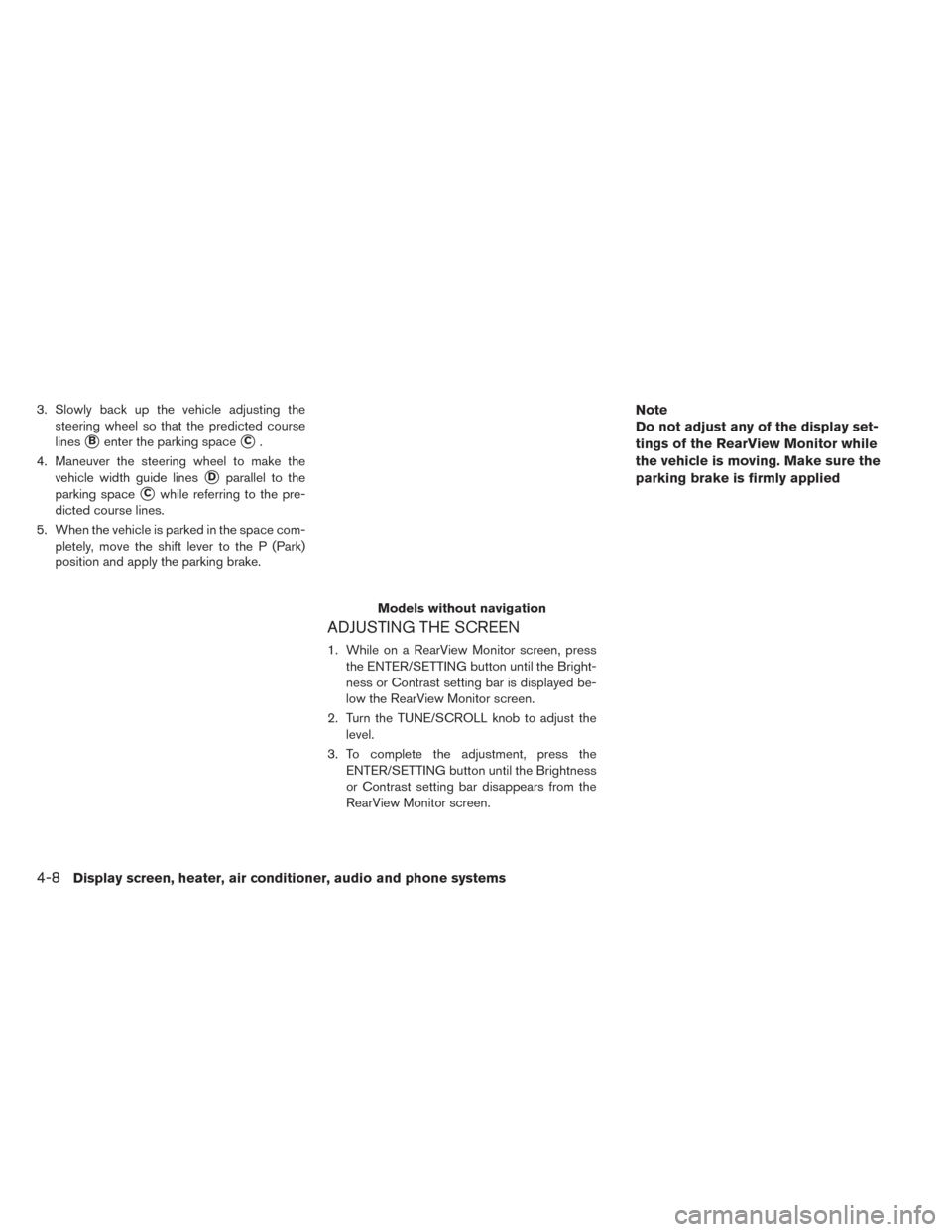

3. Slowly back up the vehicle adjusting thesteering wheel so that the predicted course
lines
Benter the parking spaceC.
4. Maneuver the steering wheel to make the vehicle width guide lines
Dparallel to the
parking space
Cwhile referring to the pre-
dicted course lines.
5. When the vehicle is parked in the space com- pletely, move the shift lever to the P (Park)
position and apply the parking brake.
ADJUSTING THE SCREEN
1. While on a RearView Monitor screen, pressthe ENTER/SETTING button until the Bright-
ness or Contrast setting bar is displayed be-
low the RearView Monitor screen.
2. Turn the TUNE/SCROLL knob to adjust the level.
3. To complete the adjustment, press the ENTER/SETTING button until the Brightness
or Contrast setting bar disappears from the
RearView Monitor screen.
Note
Do not adjust any of the display set-
tings of the RearView Monitor while
the vehicle is moving. Make sure the
parking brake is firmly applied
Models without navigation
4-8Display screen, heater, air conditioner, audio and phone systems
Page 238 of 437

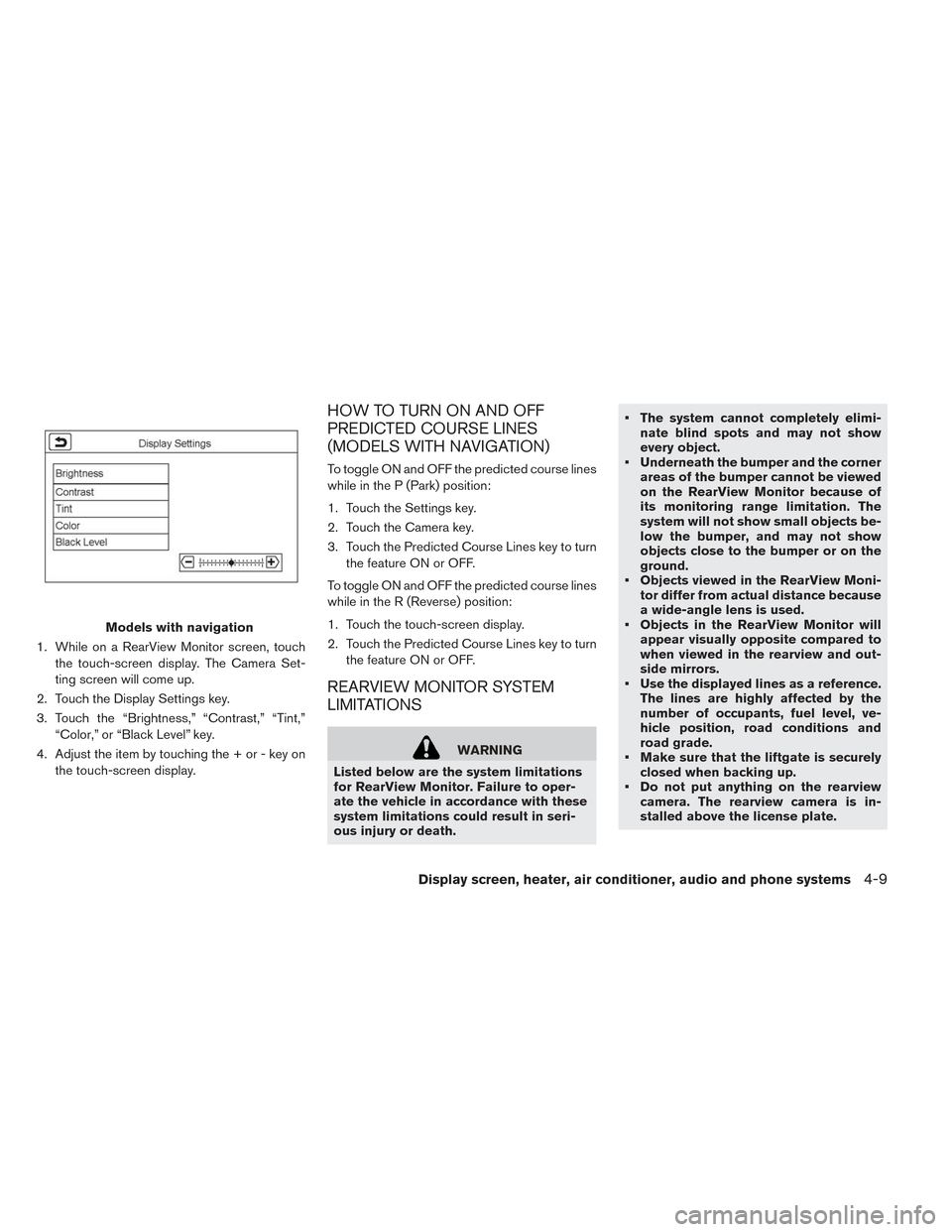

Models with navigation
1. While on a RearView Monitor screen, touch the touch-screen display. The Camera Set-
ting screen will come up.
2. Touch the Display Settings key.
3. Touch the “Brightness,” “Contrast,” “Tint,” “Color,” or “Black Level” key.
4. Adjust the item by touching the + or - key on the touch-screen display.
HOW TO TURN ON AND OFF
PREDICTED COURSE LINES
(MODELS WITH NAVIGATION)
To toggle ON and OFF the predicted course lines
while in the P (Park) position:
1. Touch the Settings key.
2. Touch the Camera key.
3. Touch the Predicted Course Lines key to turnthe feature ON or OFF.
To toggle ON and OFF the predicted course lines
while in the R (Reverse) position:
1. Touch the touch-screen display.
2. Touch the Predicted Course Lines key to turn the feature ON or OFF.
REARVIEW MONITOR SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations
for RearView Monitor. Failure to oper-
ate the vehicle in accordance with these
system limitations could result in seri-
ous injury or death. • The system cannot completely elimi-
nate blind spots and may not show
every object.
• Underneath the bumper and the corner areas of the bumper cannot be viewed
on the RearView Monitor because of
its monitoring range limitation. The
system will not show small objects be-
low the bumper, and may not show
objects close to the bumper or on the
ground.
• Objects viewed in the RearView Moni- tor differ from actual distance because
a wide-angle lens is used.
• Objects in the RearView Monitor will appear visually opposite compared to
when viewed in the rearview and out-
side mirrors.
• Use the displayed lines as a reference. The lines are highly affected by the
number of occupants, fuel level, ve-
hicle position, road conditions and
road grade.
• Make sure that the liftgate is securely closed when backing up.
• Do not put anything on the rearview camera. The rearview camera is in-
stalled above the license plate.
Display screen, heater, air conditioner, audio and phone systems4-9
Page 239 of 437

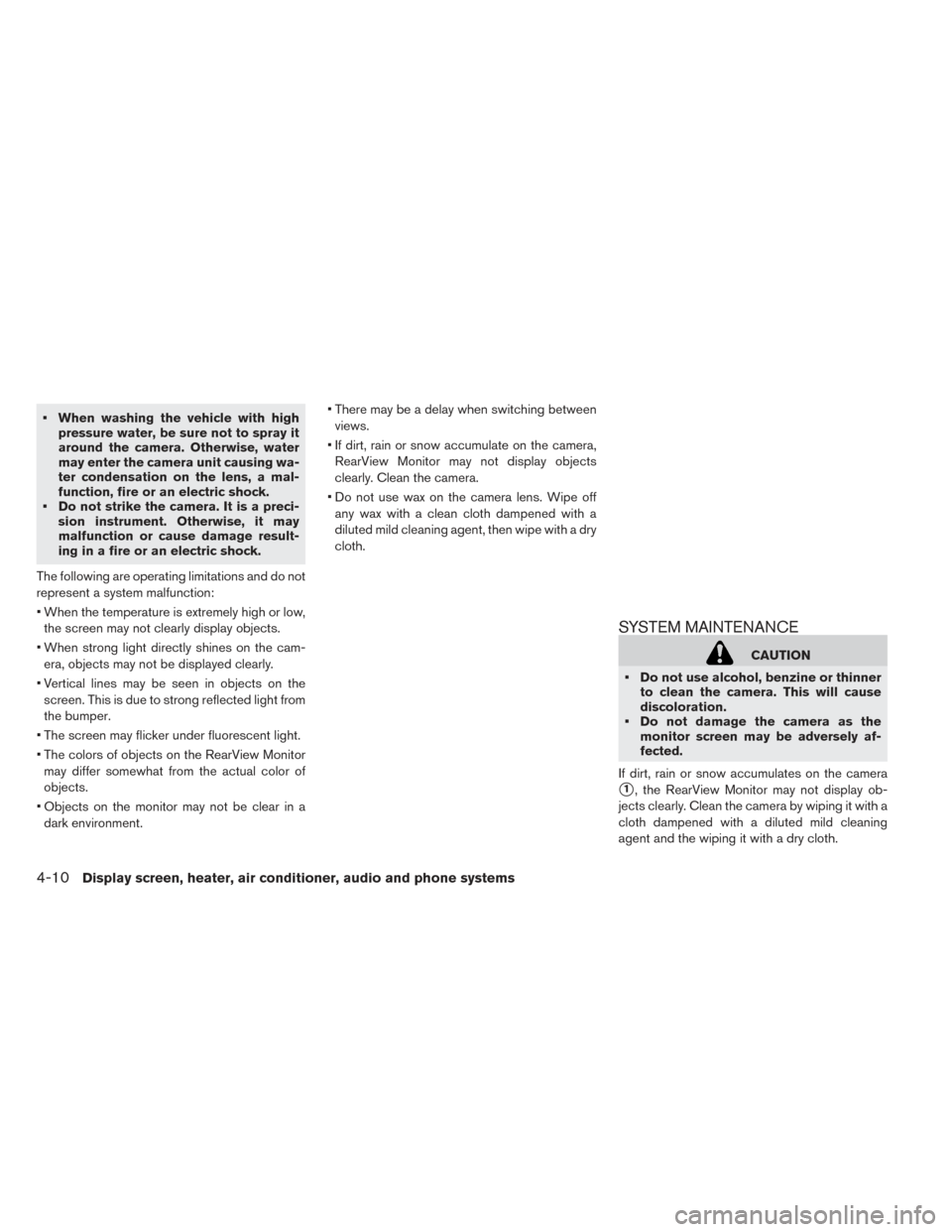

• When washing the vehicle with highpressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing wa-
ter condensation on the lens, a mal-
function, fire or an electric shock.
• Do not strike the camera. It is a preci- sion instrument. Otherwise, it may
malfunction or cause damage result-
ing in a fire or an electric shock.
The following are operating limitations and do not
represent a system malfunction:
• When the temperature is extremely high or low, the screen may not clearly display objects.
• When strong light directly shines on the cam- era, objects may not be displayed clearly.
• Vertical lines may be seen in objects on the screen. This is due to strong reflected light from
the bumper.
• The screen may flicker under fluorescent light.
• The colors of objects on the RearView Monitor may differ somewhat from the actual color of
objects.
• Objects on the monitor may not be clear in a dark environment. • There may be a delay when switching between
views.
• If dirt, rain or snow accumulate on the camera, RearView Monitor may not display objects
clearly. Clean the camera.
• Do not use wax on the camera lens. Wipe off any wax with a clean cloth dampened with a
diluted mild cleaning agent, then wipe with a dry
cloth.
SYSTEM MAINTENANCE
CAUTION
• Do not use alcohol, benzine or thinner to clean the camera. This will cause
discoloration.
• Do not damage the camera as the monitor screen may be adversely af-
fected.
If dirt, rain or snow accumulates on the camera
1, the RearView Monitor may not display ob-
jects clearly. Clean the camera by wiping it with a
cloth dampened with a diluted mild cleaning
agent and the wiping it with a dry cloth.
4-10Display screen, heater, air conditioner, audio and phone systems
Page 240 of 437
1. CAMERA button
AROUND VIEW® MONITOR (IF SO
EQUIPPED)
Display screen, heater, air conditioner, audio and phone systems4-11
