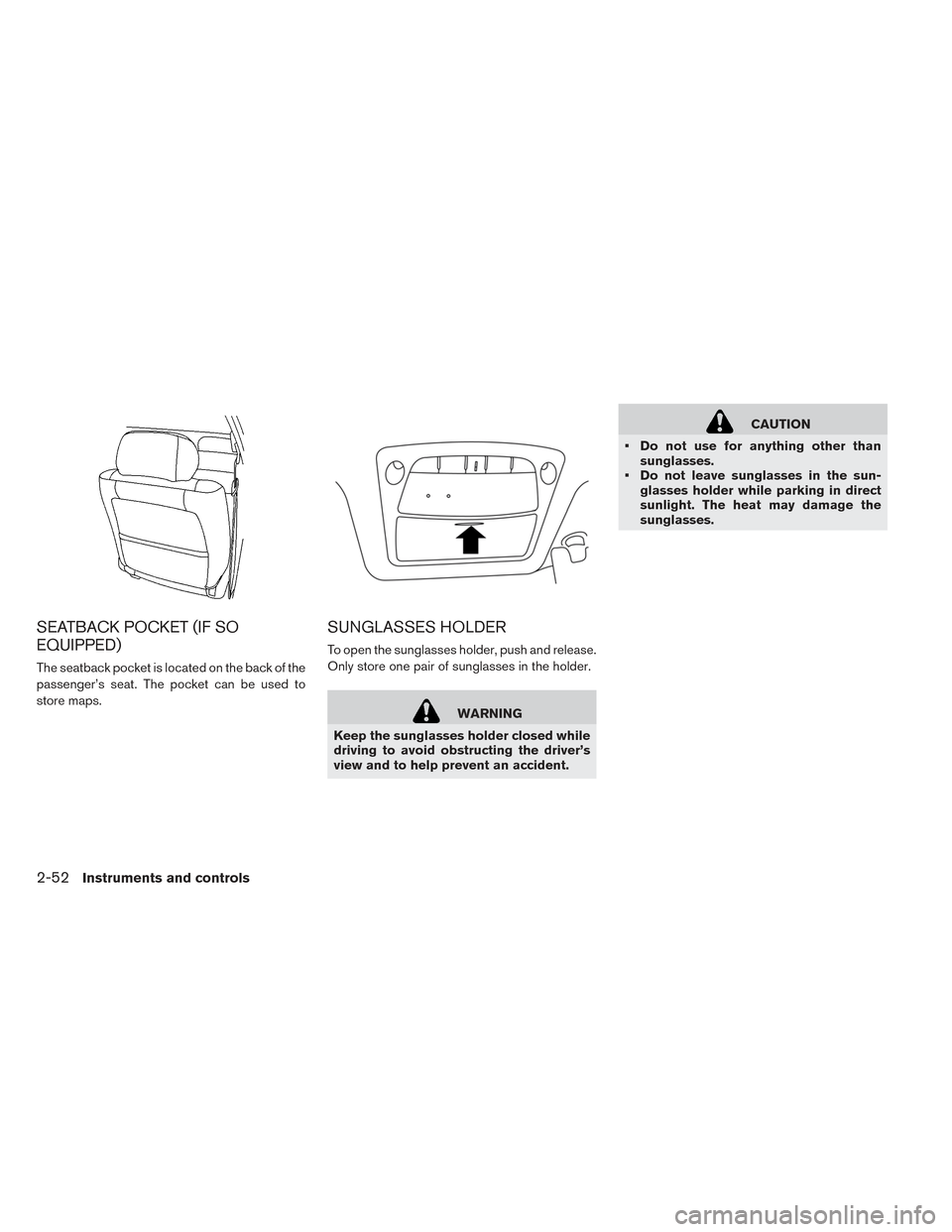

Page 191 of 437
SEATBACK POCKET (IF SO
The seatback pocket is located on the back of the
passenger’s seat. The pocket can be used to
To open the sunglasses holder, push and release.
Only store one pair of sunglasses in the holder.
Keep the sunglasses holder closed while
driving to avoid obstructing the driver’s
view and to help prevent an accident.
• Do not use for anything other than sunglasses.
• Do not leave sunglasses in the sun- glasses holder while parking in direct
sunlight. The heat may damage the
2-52Instruments and controls
Page 192 of 437

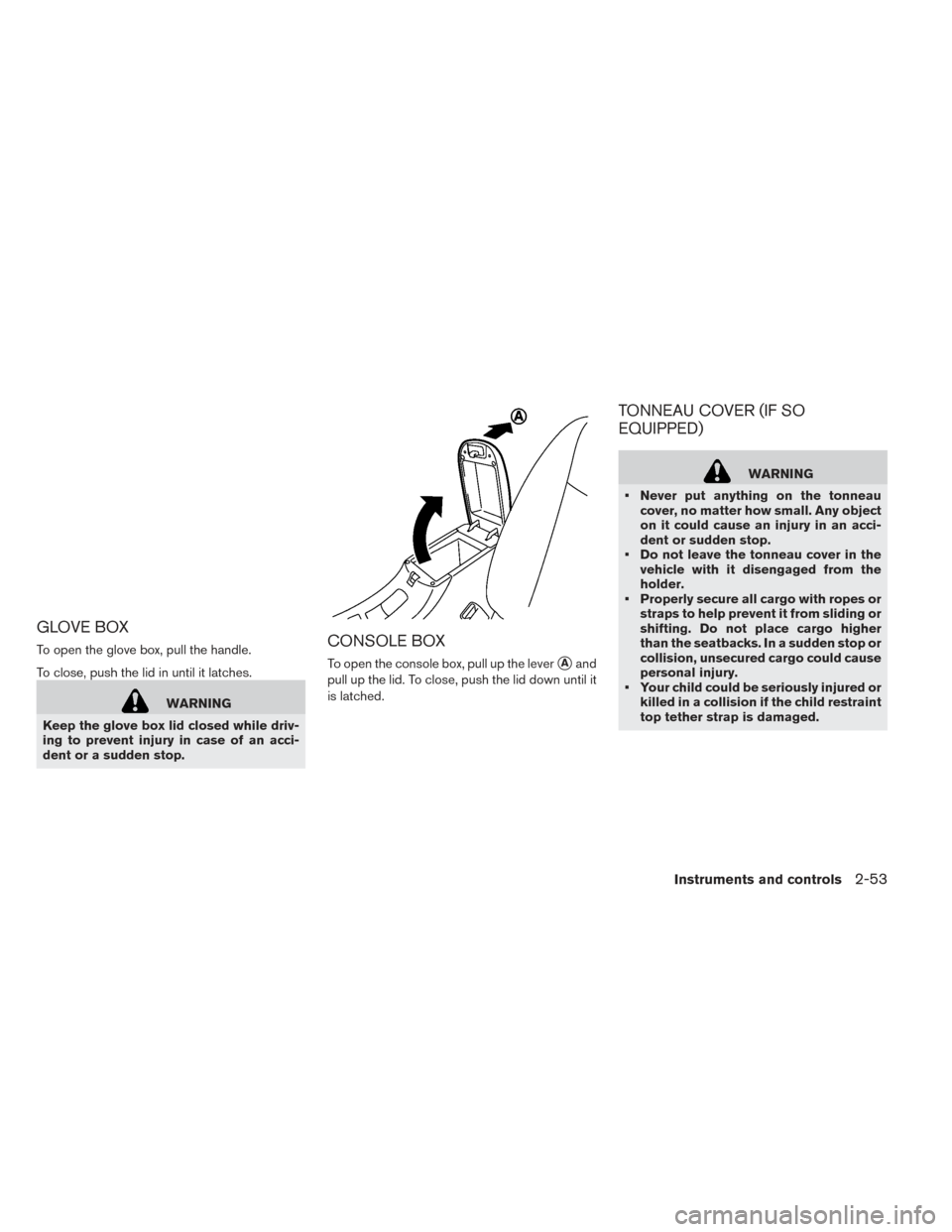

To open the glove box, pull the handle.
To close, push the lid in until it latches.
Keep the glove box lid closed while driv-
ing to prevent injury in case of an acci-
dent or a sudden stop.
To open the console box, pull up the leverAand
pull up the lid. To close, push the lid down until it
TONNEAU COVER (IF SO
• Never put anything on the tonneau cover, no matter how small. Any object
on it could cause an injury in an acci-
dent or sudden stop.
• Do not leave the tonneau cover in the vehicle with it disengaged from the
• Properly secure all cargo with ropes or straps to help prevent it from sliding or
shifting. Do not place cargo higher
than the seatbacks. In a sudden stop or
collision, unsecured cargo could cause
• Your child could be seriously injured or killed in a collision if the child restraint
top tether strap is damaged.
Instruments and controls2-53
Page 193 of 437
– If the tonneau cover contacts the toptether strap when it is attached to
the top tether anchor, remove the
tonneau cover from the vehicle or
secure it on the cargo floor below its
attachment location. If the tonneau
cover is not removed, it may damage
the top tether strap during a colli-
– Do not allow cargo to contact the top tether strap when it is attached
to the top tether anchor. Properly
secure the cargo so it does not con-
tact the top tether strap. Cargo that
is not properly secured or that con-
tacts the top tether strap may dam-
age the top tether strap during a
The tonneau cover keeps the luggage compart-
ment contents hidden from the outside.
To remove the tonneau cover:
1. Remove the straps from the rear hatch.
2. Pull up the tonneau cover.
3. Remove the tonneau cover holders from therear pillar. 4. Slide down the tonneau cover along the rear
5. Remove the tonneau cover by pulling either the left or right side backward away from the
2-54Instruments and controls
Page 194 of 437

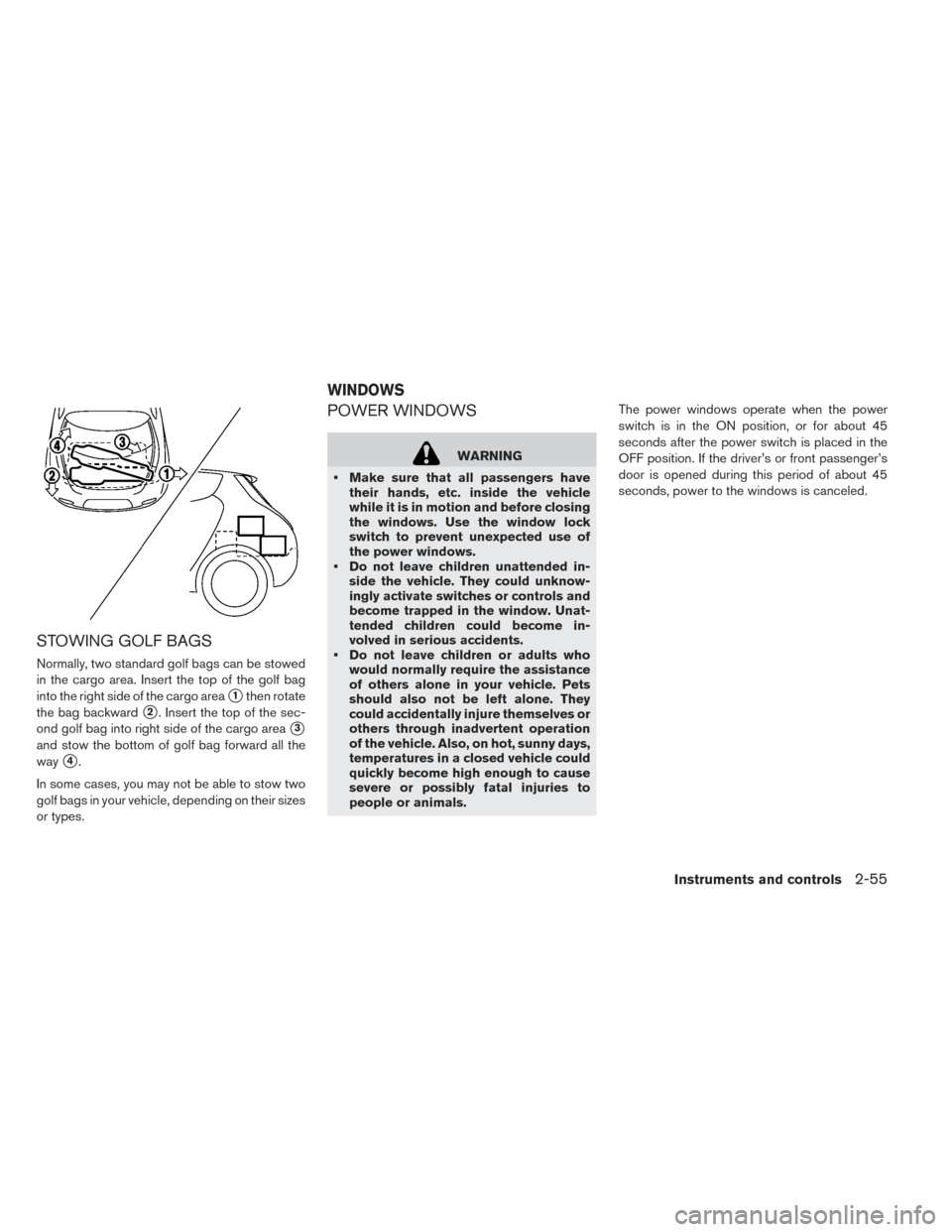

STOWING GOLF BAGS
Normally, two standard golf bags can be stowed
in the cargo area. Insert the top of the golf bag
into the right side of the cargo area
the bag backward
2. Insert the top of the sec-
ond golf bag into right side of the cargo area
and stow the bottom of golf bag forward all the
In some cases, you may not be able to stow two
golf bags in your vehicle, depending on their sizes
• Make sure that all passengers have their hands, etc. inside the vehicle
while it is in motion and before closing
the windows. Use the window lock
switch to prevent unexpected use of
the power windows.
• Do not leave children unattended in- side the vehicle. They could unknow-
ingly activate switches or controls and
become trapped in the window. Unat-
tended children could become in-
volved in serious accidents.
• Do not leave children or adults who would normally require the assistance
of others alone in your vehicle. Pets
should also not be left alone. They
could accidentally injure themselves or
others through inadvertent operation
of the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals. The power windows operate when the power
switch is in the ON position, or for about 45
seconds after the power switch is placed in the
OFF position. If the driver’s or front passenger’s
door is opened during this period of about 45
seconds, power to the windows is canceled.
Instruments and controls2-55
Page 195 of 437

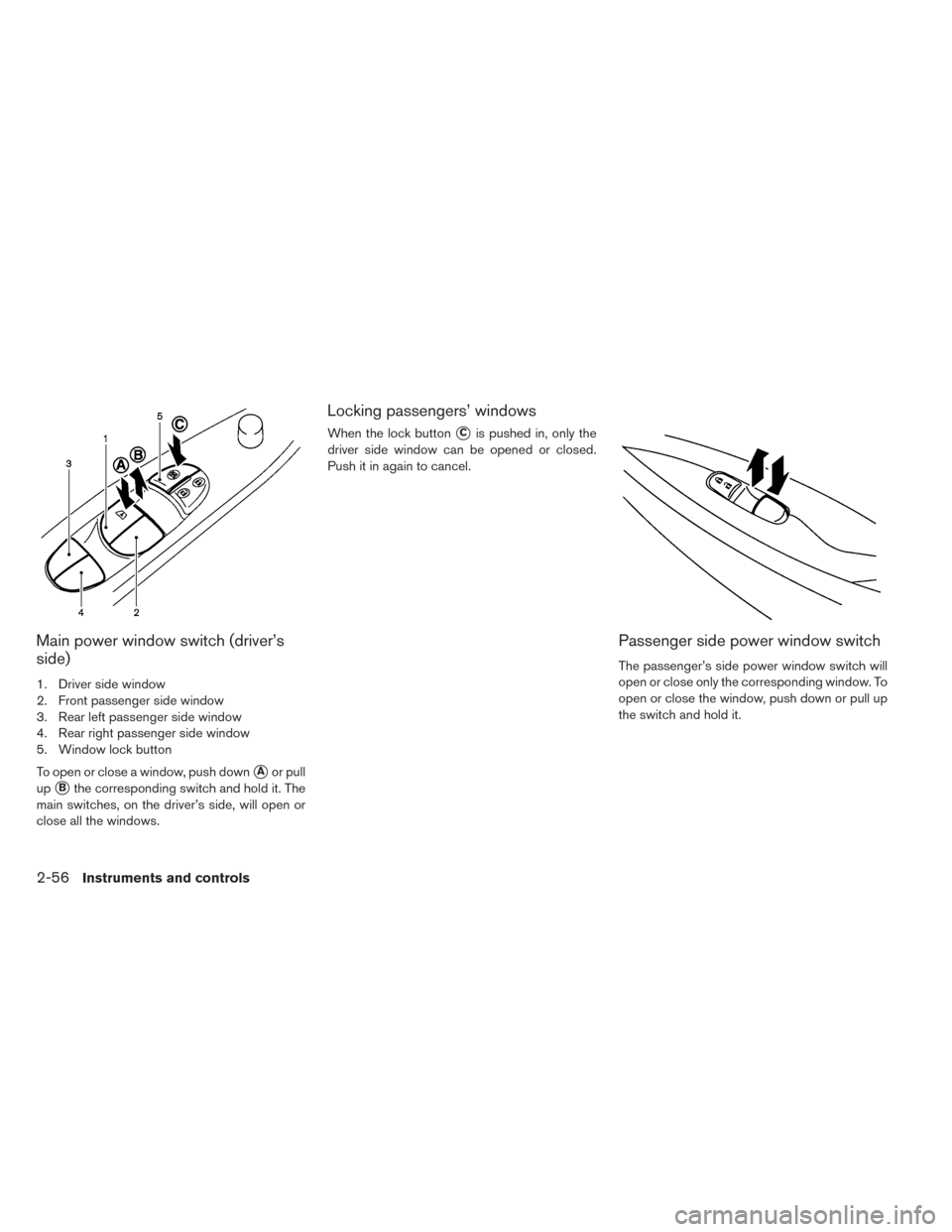

Main power window switch (driver’s
1. Driver side window
2. Front passenger side window
3. Rear left passenger side window
4. Rear right passenger side window
5. Window lock button
To open or close a window, push down
Bthe corresponding switch and hold it. The
main switches, on the driver’s side, will open or
close all the windows.
Locking passengers’ windows
When the lock buttonCis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
Passenger side power window switch
The passenger’s side power window switch will
open or close only the corresponding window. To
open or close the window, push down or pull up
the switch and hold it.
2-56Instruments and controls
Page 196 of 437

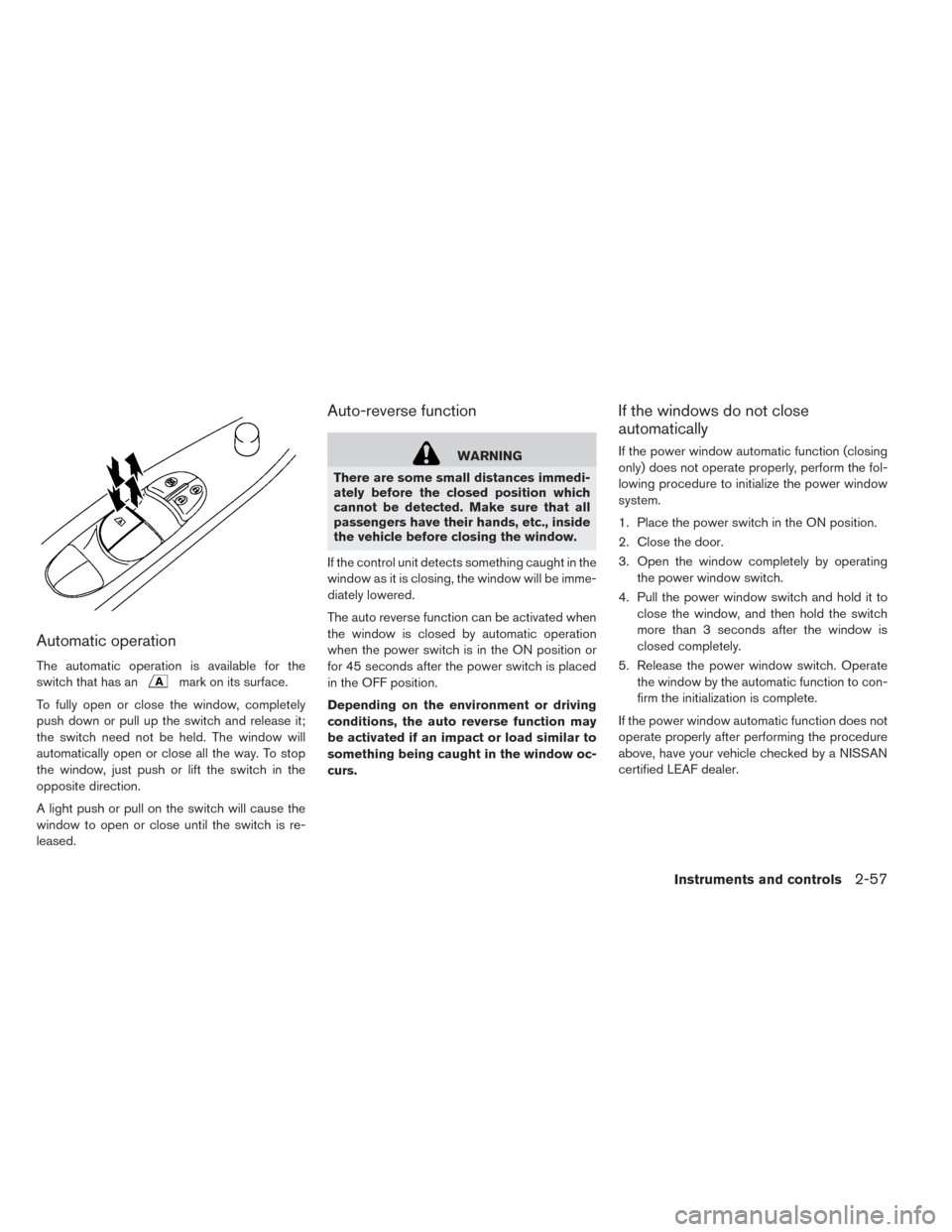

The automatic operation is available for the
switch that has an
mark on its surface.
To fully open or close the window, completely
push down or pull up the switch and release it;
the switch need not be held. The window will
automatically open or close all the way. To stop
the window, just push or lift the switch in the
A light push or pull on the switch will cause the
window to open or close until the switch is re-
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the window.
If the control unit detects something caught in the
window as it is closing, the window will be imme-
The auto reverse function can be activated when
the window is closed by automatic operation
when the power switch is in the ON position or
for 45 seconds after the power switch is placed
in the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
If the windows do not close
If the power window automatic function (closing
only) does not operate properly, perform the fol-
lowing procedure to initialize the power window
1. Place the power switch in the ON position.
2. Close the door.
3. Open the window completely by operating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the switch
more than 3 seconds after the window is
5. Release the power window switch. Operate the window by the automatic function to con-
firm the initialization is complete.
If the power window automatic function does not
operate properly after performing the procedure
above, have your vehicle checked by a NISSAN
certified LEAF dealer.
Instruments and controls2-57
Page 197 of 437

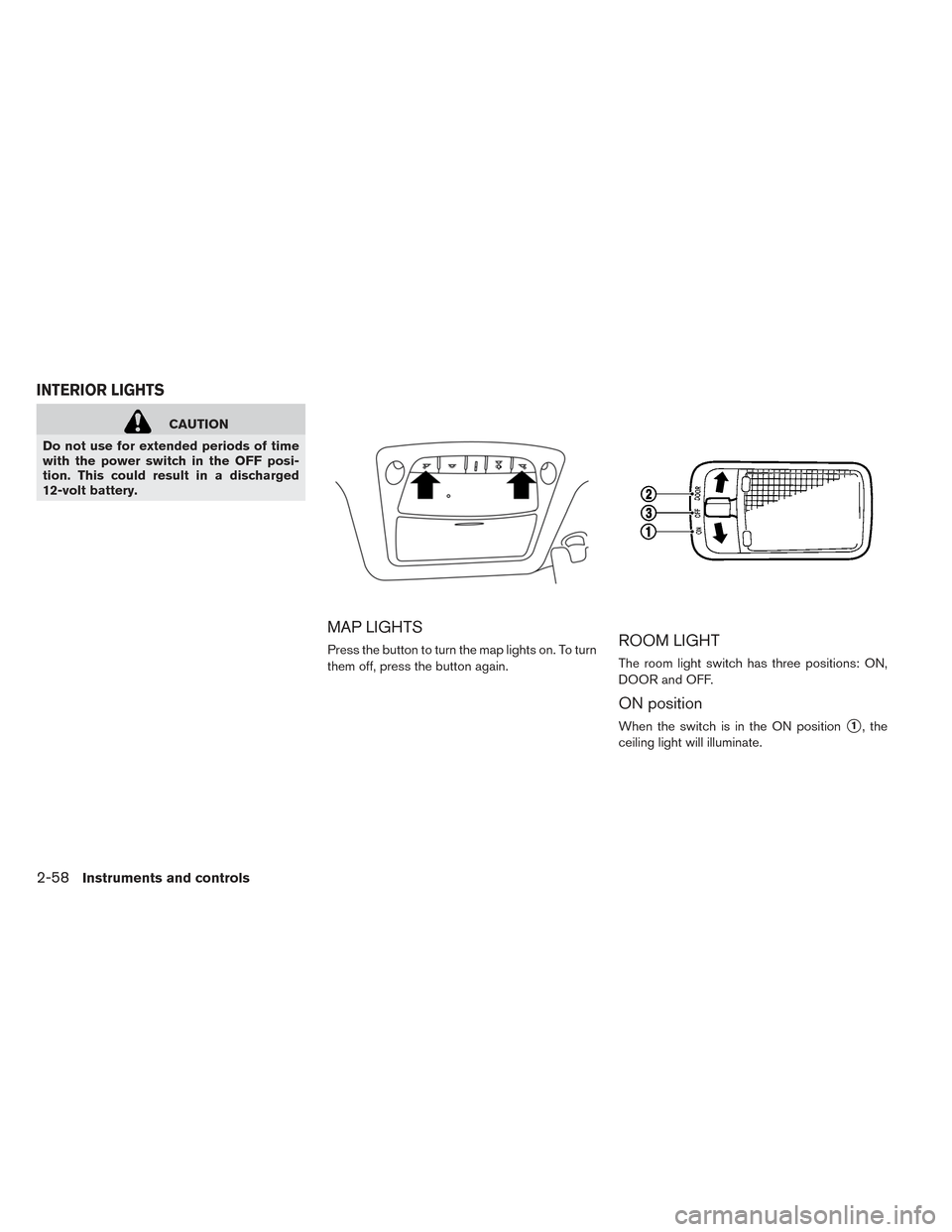

Do not use for extended periods of time
with the power switch in the OFF posi-
tion. This could result in a discharged
Press the button to turn the map lights on. To turn
them off, press the button again.ROOM LIGHT
The room light switch has three positions: ON,
DOOR and OFF.
When the switch is in the ON position1, the
ceiling light will illuminate.
2-58Instruments and controls
Page 198 of 437

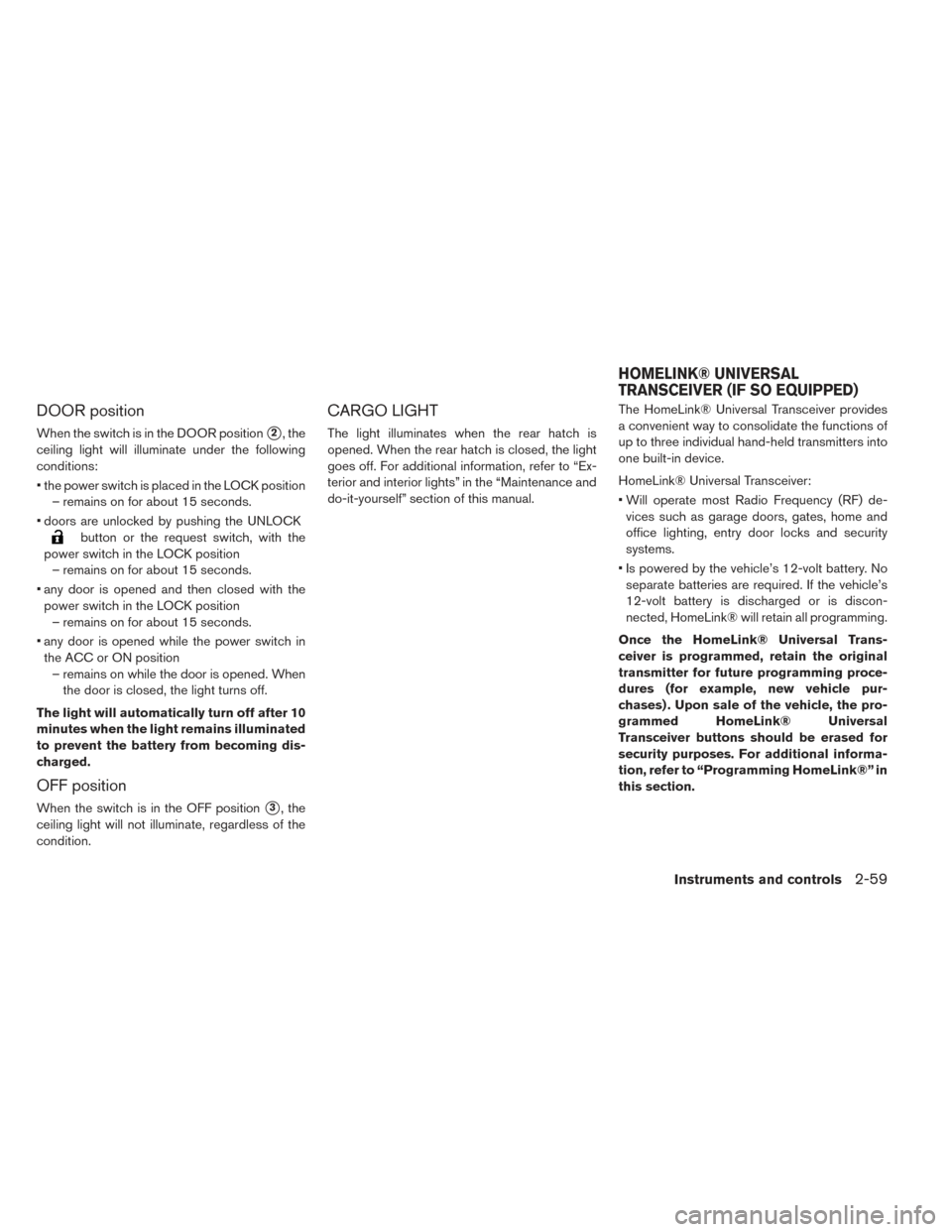

When the switch is in the DOOR position2, the
ceiling light will illuminate under the following
• the power switch is placed in the LOCK position – remains on for about 15 seconds.
• doors are unlocked by pushing the UNLOCK
button or the request switch, with the
power switch in the LOCK position – remains on for about 15 seconds.
• any door is opened and then closed with the power switch in the LOCK position – remains on for about 15 seconds.
• any door is opened while the power switch in the ACC or ON position – remains on while the door is opened. When the door is closed, the light turns off.
The light will automatically turn off after 10
minutes when the light remains illuminated
to prevent the battery from becoming dis-
When the switch is in the OFF position3, the
ceiling light will not illuminate, regardless of the
The light illuminates when the rear hatch is
opened. When the rear hatch is closed, the light
goes off. For additional information, refer to “Ex-
terior and interior lights” in the “Maintenance and
do-it-yourself” section of this manual. The HomeLink® Universal Transceiver provides
a convenient way to consolidate the functions of
up to three individual hand-held transmitters into
one built-in device.
HomeLink® Universal Transceiver:
• Will operate most Radio Frequency (RF) de-
vices such as garage doors, gates, home and
office lighting, entry door locks and security
• Is powered by the vehicle’s 12-volt battery. No separate batteries are required. If the vehicle’s
12-volt battery is discharged or is discon-
nected, HomeLink® will retain all programming.
Once the HomeLink® Universal Trans-
ceiver is programmed, retain the original
transmitter for future programming proce-
dures (for example, new vehicle pur-
chases) . Upon sale of the vehicle, the pro-
grammed HomeLink® Universal
Transceiver buttons should be erased for
security purposes. For additional informa-
tion, refer to “Programming HomeLink®” in
TRANSCEIVER (IF SO EQUIPPED)
Instruments and controls2-59
Page 199 of 437

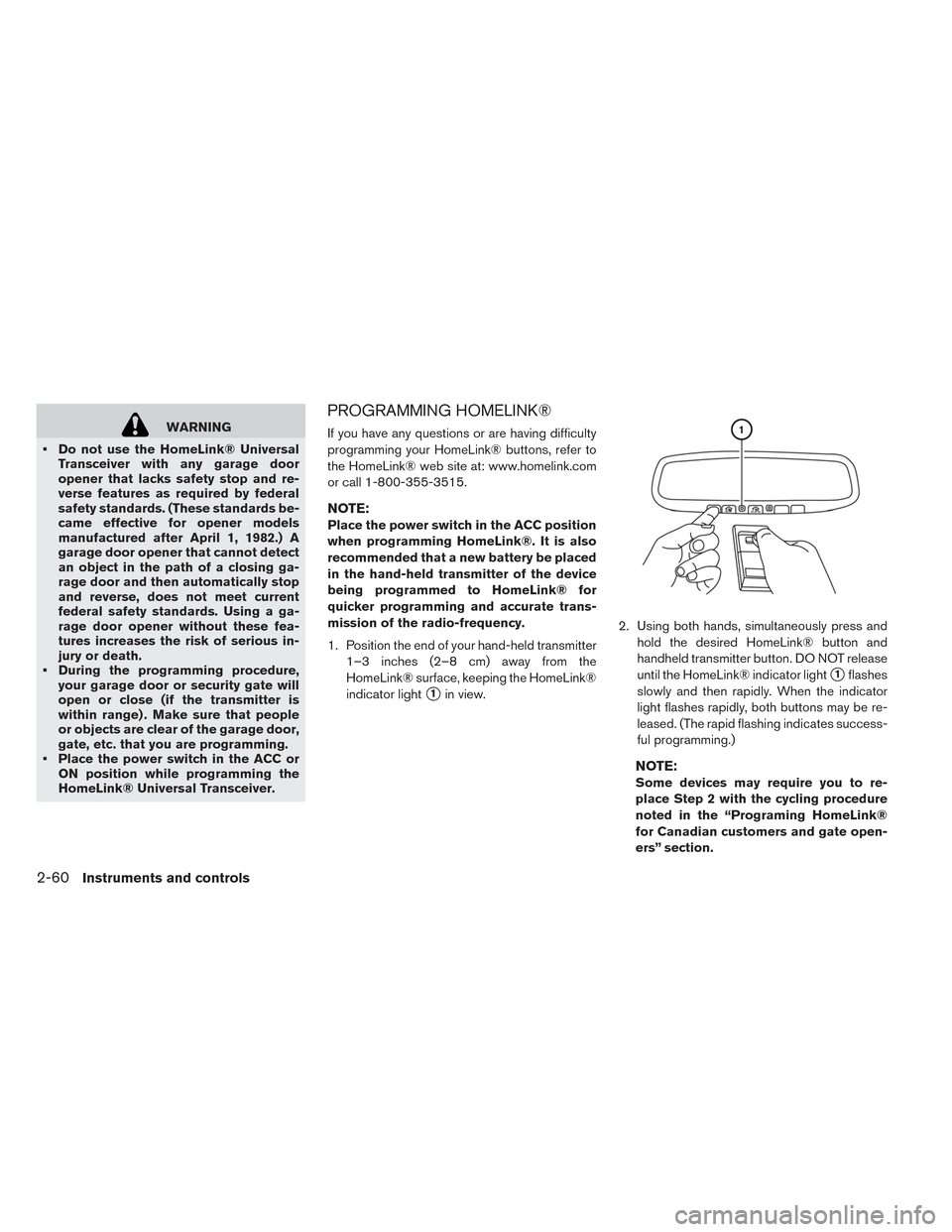

• Do not use the HomeLink® Universal Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards be-
came effective for opener models
manufactured after April 1, 1982.) A
garage door opener that cannot detect
an object in the path of a closing ga-
rage door and then automatically stop
and reverse, does not meet current
federal safety standards. Using a ga-
rage door opener without these fea-
tures increases the risk of serious in-
jury or death.
• During the programming procedure, your garage door or security gate will
open or close (if the transmitter is
within range) . Make sure that people
or objects are clear of the garage door,
gate, etc. that you are programming.
• Place the power switch in the ACC or ON position while programming the
HomeLink® Universal Transceiver.
If you have any questions or are having difficulty
programming your HomeLink® buttons, refer to
the HomeLink® web site at: www.homelink.com
or call 1-800-355-3515.
Place the power switch in the ACC position
when programming HomeLink®. It is also
recommended that a new battery be placed
in the hand-held transmitter of the device
being programmed to HomeLink® for
quicker programming and accurate trans-
mission of the radio-frequency.
1. Position the end of your hand-held transmitter
1–3 inches (2–8 cm) away from the
HomeLink® surface, keeping the HomeLink®
1in view. 2. Using both hands, simultaneously press and
hold the desired HomeLink® button and
handheld transmitter button. DO NOT release
until the HomeLink® indicator light
slowly and then rapidly. When the indicator
light flashes rapidly, both buttons may be re-
leased. (The rapid flashing indicates success-
Some devices may require you to re-
place Step 2 with the cycling procedure
noted in the “Programing HomeLink®
for Canadian customers and gate open-
2-60Instruments and controls
Page 200 of 437

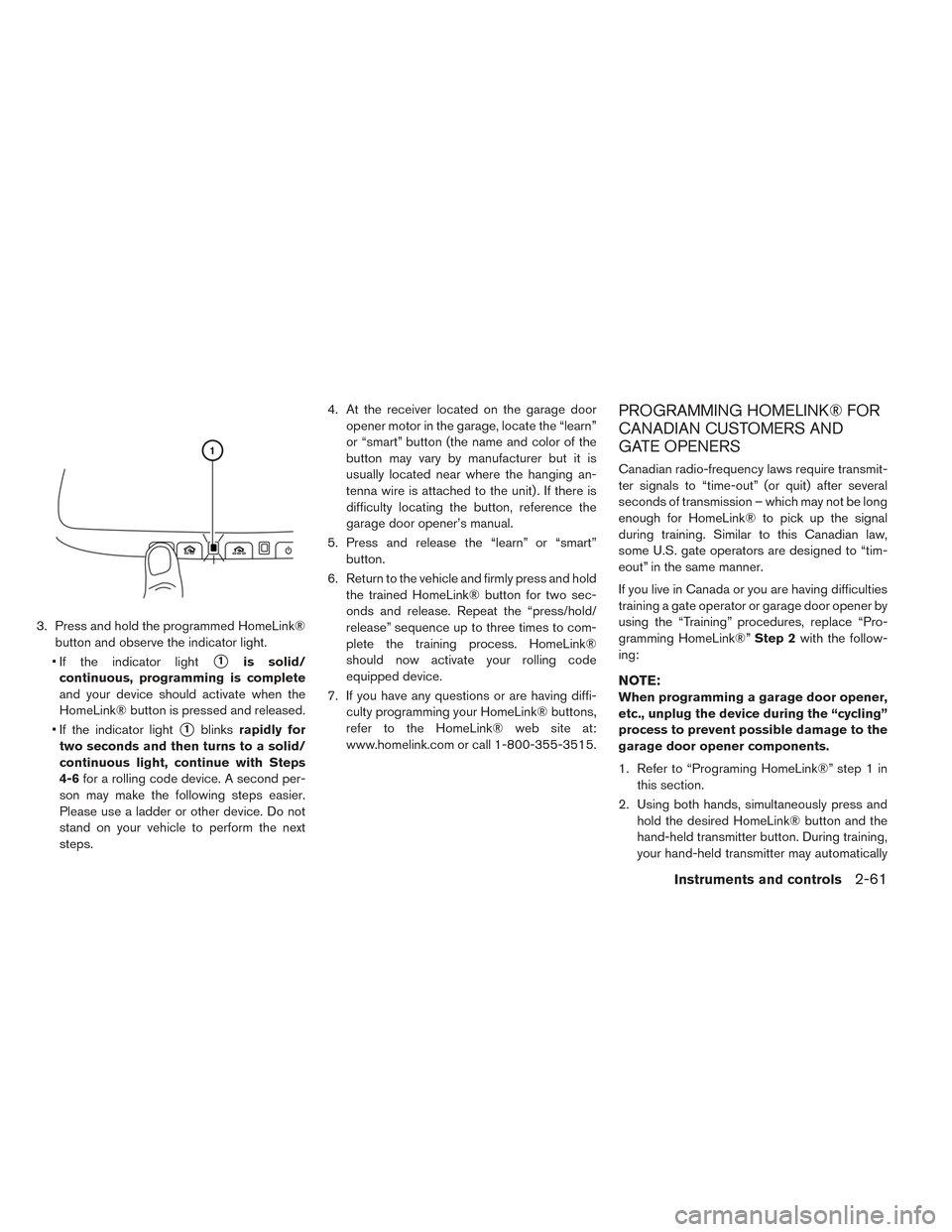

3. Press and hold the programmed HomeLink®button and observe the indicator light.
• If the indicator light
continuous, programming is complete
and your device should activate when the
HomeLink® button is pressed and released.
• If the indicator light
1blinks rapidly for
two seconds and then turns to a solid/
continuous light, continue with Steps
4-6 for a rolling code device. A second per-
son may make the following steps easier.
Please use a ladder or other device. Do not
stand on your vehicle to perform the next
steps. 4. At the receiver located on the garage door
opener motor in the garage, locate the “learn”
or “smart” button (the name and color of the
button may vary by manufacturer but it is
usually located near where the hanging an-
tenna wire is attached to the unit) . If there is
difficulty locating the button, reference the
garage door opener’s manual.
5. Press and release the “learn” or “smart” button.
6. Return to the vehicle and firmly press and hold the trained HomeLink® button for two sec-
onds and release. Repeat the “press/hold/
release” sequence up to three times to com-
plete the training process. HomeLink®
should now activate your rolling code
7. If you have any questions or are having diffi- culty programming your HomeLink® buttons,
refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-3515.
PROGRAMMING HOMELINK® FOR
CANADIAN CUSTOMERS AND
Canadian radio-frequency laws require transmit-
ter signals to “time-out” (or quit) after several
seconds of transmission – which may not be long
enough for HomeLink® to pick up the signal
during training. Similar to this Canadian law,
some U.S. gate operators are designed to “tim-
eout” in the same manner.
If you live in Canada or you are having difficulties
training a gate operator or garage door opener by
using the “Training” procedures, replace “Pro-
gramming HomeLink®” Step 2with the follow-
When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.
1. Refer to “Programing HomeLink®” step 1 in this section.
2. Using both hands, simultaneously press and hold the desired HomeLink® button and the
hand-held transmitter button. During training,
your hand-held transmitter may automatically
Instruments and controls2-61
Trending: ABS, bluetooth, climate control, AUX, mirror, Warning lights, oil level
