audio NISSAN LEAF 2017 1.G Navigation Manual

1st Command 2nd Command 3rd Command ActionCD Turns on the CD, selecting the last played mode.
USB Turns on the USB, selecting the last played mode.
iPod Turns on the iPod
Š, selecting the last played mode.
Bluetooth AudioTurns on the BluetoothŠAudio, selecting the last played mode.
AUX
Turns on the AUX audio, selecting the last played mode.
AM Turns to the AM band, selecting the station of the preferred frequency.
AM Preset <1-6> Plays the spoken AM preset station.
FM Turns to the FM band, selecting the station of the preferred frequency.
FM Preset <1-12> Plays the spoken FM preset station.
SXM Turns to the SiriusXM Satellite Radio band, selecting the channel number.
SXM Turns to the SiriusXM Satellite Radio band, selecting the channel name.
SXM Preset <1-18> Plays the spoken SXM preset channel.
USB Show Folders Displays folders in the USB memory device.
USB Play Folder Plays songs in the selected folder in the USB memory device.
USB Play File Plays songs in the selected file in the USB memory device.
iPod Play Artist Turns on the iPod
Š, selecting the artist.
iPod Play Album Turns on the iPodŠ, selecting the album.
iPod Play Song Turns on the iPodŠ, selecting the track. You can speak the commands successively
iPod Play Playlist Turns on the iPodŠ, playing the playlist that you spoke.
iPod Show ArtistsDisplays a list of Artist names stored in the iPodŠ.
8-14
8. Voice recognition

1st Command 2nd Command 3rd Command ActioniPod Show Albums Displays a list of Albums in the iPodŠ.
iPod Show SongsDisplays a list of songs in the iPodŠ.
iPod Play Artist name><1-5>
Turns on the iPodŠ, selecting the artist.
iPod Play Album name><1 - 5>
Turns on the iPodŠ, selecting the album.
iPod Play Song name><1 - 5>
Turns on the iPodŠ, selecting the track. You can speak the commands successively.
iPod Play Playlist list name><1 - 5>
Turns on the iPodŠ, playing the playlist that you spoke.
iPod Play All Songs Plays all songs in the iPodŠ.
Play Artist
Plays the songs of the corresponding song list in the iPod
Š.Play Album
Play Song
Play Playlist
INFO:
A SiriusXM Travel Link or SiriusXM Traffic subscription is necessary to receive SiriusXM information services.
“SiriusXM Travel Link” (page 6-8)
Operating tips for audio command operation: . An audio device connected via Bluetooth
Šcannot be operated with the Voice Recognition system. Source change is only available for BluetoothŠ
streaming Audio.
8-15
8. Voice recognition

.When selecting “Yes” in the pop-up screen that displays after a new USB audio device is connected, the USB audio device is registered in the voice
recognition system and is selected automatically. One iPodŠand one USB device can be registered in the system. If a USB audio device is newly
registered, old data is overwritten. It may take a few moments to register an audio device. If you want to enable voice operation for music stored in a
previously registered audio device, select the device you want to use in advance. Even when a device has been previously registered, simply connecting
the device will not result in it being selected automatically.
“Voice recognition settings” (page 8-18)
. The Voice Recognition system may not function when the song information is too long (artist names, album titles, song titles and play lists, etc.) .
. The SiriusXM function will not operate without a subscription to SiriusXM Satellite Radio.
. When playing USB files with the voice recognition system, do not pronounce the extension attached to the file name (such as “.mp3”) .
. Song titles registered in ID3 tags cannot be pronounced for voice recognition operation.
Information Command
1st Command 2nd Command Action
Information Where am I?
Displays information of the current position.
SXM Weather Map Displays the SiriusXM Weather map.
SXM Current Weather Displays the nearby weather (current weather).
SXM Weather Forecast Displays the weather forecast.
SXM Movie Listings Displays SiriusXM Movie Listings.
SXM Stocks Displays SiriusXM stock information.
SXM Sports Scores Displays sports scores.
SXM Traffic Turns the traffic information system on or off.
Favorite Feeds Plays Favorite Feeds.
All Information Feeds Plays Information Feeds.
Update Stations Updates nearby charging stations.
8-16
8. Voice recognition

VOICE RECOGNITION SETTINGS
The voice recognition settings can be changed.
1. Touch [Setting] on the Launch Bar.
2. Touch [Voice Recognition].
3. Touch the item you would like to set.
Available settings. [Minimize Voice Feedback]:
Turns the minimize voice feedback function
on/off. When this item is turned on, short and
minimized voice feedback will be provided.
. [Audio device setting]:
Select an audio device to be operated via the
Voice Recognition system from the audio
devices connected to the USB port. A device
with an indicator light illuminated can be
operated with the Voice Recognition system.
8-18
8. Voice recognition

10 Troubleshooting guide
Customer assistance ............................................................. 10-2
System unit ........................................................................\
...... 10-3Liquid crystal display ....................................................... 10-3
Unique EV functions .............................................................. 10-5 Driving range ..................................................................... 10-5
Charging stations ............................................................. 10-6
Energy information display ............................................. 10-7
Timer function .................................................................... 10-8
Audio system ........................................................................\
10-10 HD Radio technology (for U.S.) ................................. 10-10
Compact Disc (CD) player ......................................... 10-12
iPod
Šplayer .................................................................... 10-14 USB memory device ................................................... 10-16
Bluetooth
Šstreaming audio ..................................... 10-17
BluetoothŠHands-Free Phone System ........................ 10-19
NissanConnectSMEV ........................................................ 10-22
Navigation ........................................................................\
..... 10-23 Basic operations .......................................................... 10-23
Vehicle icon .................................................................. 10-24
Route calculation and visual guidance .................. 10-26
Voice guidance ............................................................ 10-28
Traffic information ........................................................ 10-29
Voice recognition ................................................................ 10-30

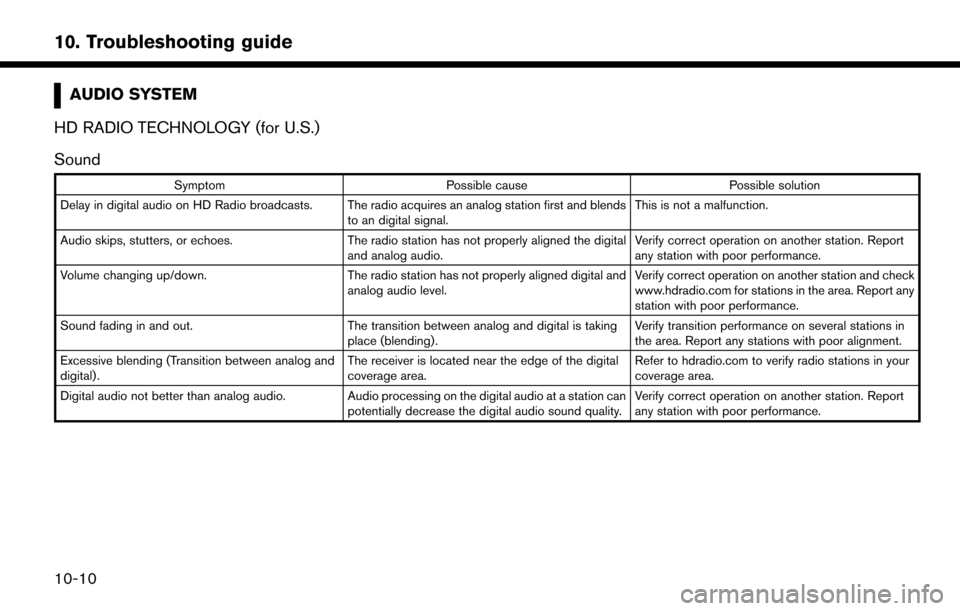

AUDIO SYSTEM
HD RADIO TECHNOLOGY (for U.S.)
Sound
Symptom Possible cause Possible solution
Delay in digital audio on HD Radio broadcasts. The radio acquires an analog station first and blends to an digital signal.This is not a malfunction.
Audio skips, stutters, or echoes. The radio station has not properly aligned the digital
and analog audio. Verify correct operation on another station. Report
any station with poor performance.
Volume changing up/down. The radio station has not properly aligned digital and
analog audio level. Verify correct operation on another station and check
www.hdradio.com for stations in the area. Report any
station with poor performance.
Sound fading in and out. The transition between analog and digital is taking
place (blending). Verify transition performance on several stations in
the area. Report any stations with poor alignment.
Excessive blending (Transition between analog and
digital). The receiver is located near the edge of the digital
coverage area.Refer to hdradio.com to verify radio stations in your
coverage area.
Digital audio not better than analog audio. Audio processing on the digital audio at a station can potentially decrease the digital audio sound quality.Verify correct operation on another station. Report
any station with poor performance.
10-10
10. Troubleshooting guide

COMPACT DISC (CD) PLAYER
SymptomPossible cause Possible solution
Music cannot be played back. The disc is inserted upside down. Insert a CD with the label side facing up.
Moisture condensation occurs inside the unit. Wait until the moisture evaporates (approximately 1 hour).
The cabin temperature is too high. Wait until the cabin temperature becomes moderate.
The disc is scratched or dirty. A disc is not always
playable if it is scratched. Wipe off any dirt from the disc.
Depending on the condition in which they are stored,
discs may become unreadable due to deterioration
(for example, keeping the discs in the passenger
compartment, etc.) . Change the disc with a deterioration-free disc. Do
not use a deteriorated disc. The label surface of the
disc may crack or chip, and the layer of the label
surface may eventually peel off.
The compressed audio files cannot be played back. If both music CD files (CD-DA data) and com- pressed audio files (MP3 data, etc.) are mixed on one
disc, the audio compression files cannot be played
back.Prepare a disc that includes compressed audio files
only.
The files are not named using characters that are
compliant with the specifications. Use the character codes and the number of
characters that are compliant with the specifications
for folder names and file names. In addition, always
use “.MP3”, “.WMA”, “.mp3” or “.wma” for file
extensions.
It takes a long time before the music starts playing. The disc contains a large amount of data. Some time may be required to check the files. It is
recommended that unnecessary folders or any files
other than compressed audio files should not be
recorded in a disc.
The sound quality is poor. The disc is dirty.Wipe off any dirt from the disc.
10-12
10. Troubleshooting guide

iPodŠPLAYER
SymptomPossible cause Possible solution
The system does not recognize an iPodŠ.A connector cable is not correctly connected, or the
iPodŠdoes not correctly operate.Connect the connector cable again. If the system
does not recognize the iPodŠafter this operation is
performed, reset the iPodŠ.
The iPodŠthat is to be connected is not compatible
with the system.Check the iPodŠmodel and firmware versions available
for the system.
A USB extension cable is not correctly connected. Do not use a USB extension cable.
The cable is rapidly connected to or disconnected
from the USB port. Slowly connect or disconnect the USB cable.
An iPod
Šcannot be operated.The iPodŠis connected to the in-vehicle audio system
while headsets, etc. are connected to the iPodŠ.Remove all equipment from the iPodŠafter discon-
necting the iPodŠfrom the system, and then connect it to
the system again.
The iPodŠis not operating normally.Disconnect the iPodŠfrom the in-vehicle audio system,
and then connect it to the system again.
The system plays back an album/file that includes a
particular album art. Disconnect the iPodŠfrom the in-vehicle audio system,
and then reset the iPodŠ. Disable the album art, and then
connect the iPodŠto the system.“iPodŠMenu” (page 4-27)
An iPodŠdoes not respond.There are too many files in a category. Decrease the number of files in a category (less than
65500 files).
The shuffle function is turned on. Turn off the shuffle function if many files are stored on
the iPod
Š.
Music cannot be played back. A connector is not connected to the iPodŠ.Firmly connect the connector to the iPodŠ.
Playback cuts out.The sound cuts due to vibration resulting from an
unstable location of the iPodŠ.Place the iPodŠon a stable location where it does not
roll over.
Distorted sound occurs. The EQ (equalizer) function of the iPodŠis turned on.Turn off the EQ (equalizer) function on your iPodŠ.
10-14
10. Troubleshooting guide

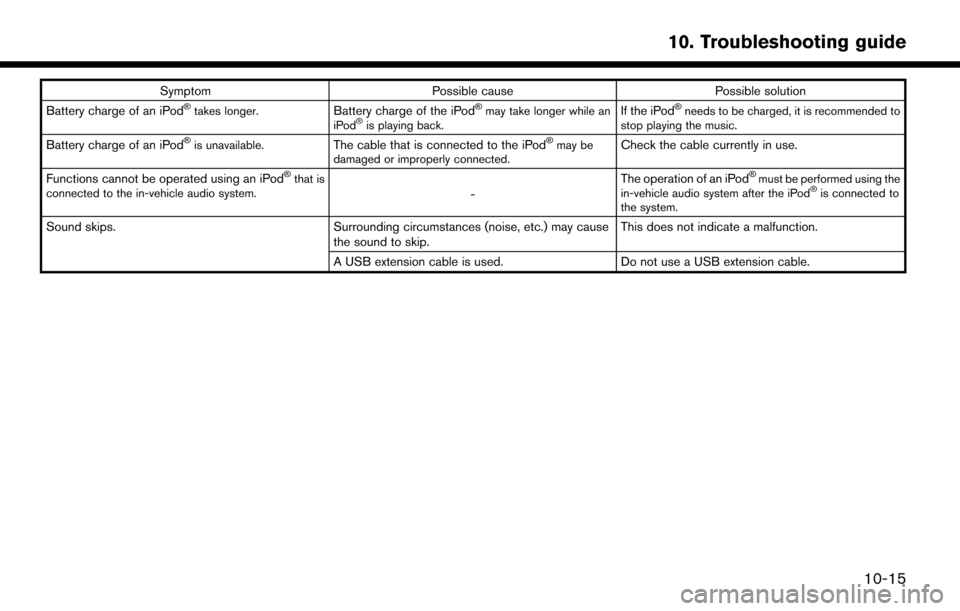

SymptomPossible cause Possible solution
Battery charge of an iPodŠtakes longer.Battery charge of the iPodŠmay take longer while an
iPodŠis playing back.If the iPodŠneeds to be charged, it is recommended to
stop playing the music.
Battery charge of an iPodŠis unavailable.The cable that is connected to the iPodŠmay be
damaged or improperly connected.Check the cable currently in use.
Functions cannot be operated using an iPod
Šthat is
connected to the in-vehicle audio system.- The operation of an iPod
Šmust be performed using the
in-vehicle audio system after the iPodŠis connected to
the system.
Sound skips. Surrounding circumstances (noise, etc.) may cause
the sound to skip. This does not indicate a malfunction.
A USB extension cable is used. Do not use a USB extension cable.
10-15
10. Troubleshooting guide

BLUETOOTHŠSTREAMING AUDIO
SymptomPossible cause Possible solution
Registration cannot be performed. The BluetoothŠaudio device is not compatible with the
in-vehicle audio system.Check the BluetoothŠaudio device Owner’s Manual.
BluetoothŠis disabled on device.Check that the BluetoothŠfunction is enabled on
device.
The PIN code is incorrect. Check the PIN code for the BluetoothŠaudio device
that is to be registered.
Check that the PIN code for the BluetoothŠaudio
device is consistent with that for the in-vehicle audio
system.
Another BluetoothŠdevice is used in the vehicle.Turn off the other BluetoothŠdevice until the registra-
tion is completed.
Music cannot be played back. The BluetoothŠaudio device is not compatible with the
in-vehicle audio system.Check the BluetoothŠaudio device Owner’s Manual.
The system is not set to the BluetoothŠaudio mode.Switch to the BluetoothŠaudio mode.“Selecting audio source” (page 4-12)
A BluetoothŠadapter is turned off.Turn on a BluetoothŠadapter when it is used for a
BluetoothŠaudio device.
Playback stops. The BluetoothŠaudio device is not compatible with the
in-vehicle audio system.Visit www.nissanusa.com/bluetooth/ to check
BluetoothŠaudio device compatibility.
A cellular call is active. This is not a malfunction.
Sound may cut out when a BluetoothŠaudio device
is operated.Switch to the BluetoothŠaudio mode, and then operate
a function on the touch screen display of the in-vehicle
system instead of conducting the operation on the
Bluetooth
Šaudio device.“Selecting audio source” (page 4-12)
10-17
10. Troubleshooting guide
