NISSAN LEAF 2017 1.G Owners Manual

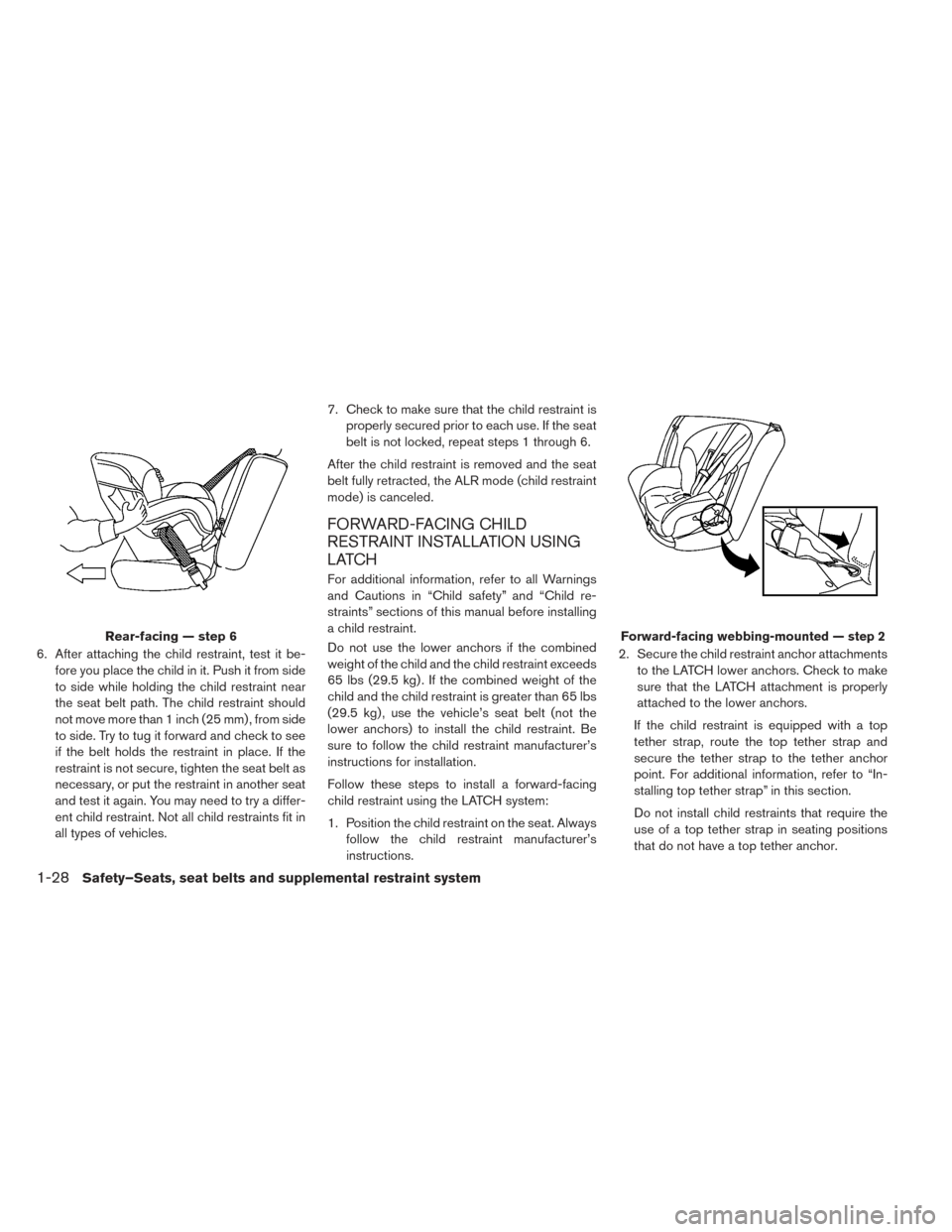

6. After attaching the child restraint, test it be-fore you place the child in it. Push it from side
to side while holding the child restraint near
the seat belt path. The child restraint should
not move more than 1 inch (25 mm) , from side
to side. Try to tug it forward and check to see
if the belt holds the restraint in place. If the
restraint is not secure, tighten the seat belt as
necessary, or put the restraint in another seat
and test it again. You may need to try a differ-
ent child restraint. Not all child restraints fit in
all types of vehicles. 7. Check to make sure that the child restraint is
properly secured prior to each use. If the seat
belt is not locked, repeat steps 1 through 6.
After the child restraint is removed and the seat
belt fully retracted, the ALR mode (child restraint
mode) is canceled.
FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
LATCH
For additional information, refer to all Warnings
and Cautions in “Child safety” and “Child re-
straints” sections of this manual before installing
a child restraint.
Do not use the lower anchors if the combined
weight of the child and the child restraint exceeds
65 lbs (29.5 kg) . If the combined weight of the
child and the child restraint is greater than 65 lbs
(29.5 kg) , use the vehicle’s seat belt (not the
lower anchors) to install the child restraint. Be
sure to follow the child restraint manufacturer’s
instructions for installation.
Follow these steps to install a forward-facing
child restraint using the LATCH system:
1. Position the child restraint on the seat. Always follow the child restraint manufacturer’s
instructions. 2. Secure the child restraint anchor attachments
to the LATCH lower anchors. Check to make
sure that the LATCH attachment is properly
attached to the lower anchors.
If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point. For additional information, refer to “In-
stalling top tether strap” in this section.
Do not install child restraints that require the
use of a top tether strap in seating positions
that do not have a top tether anchor.
Rear-facing — step 6Forward-facing webbing-mounted — step 2
1-28Safety–Seats, seat belts and supplemental restraint system

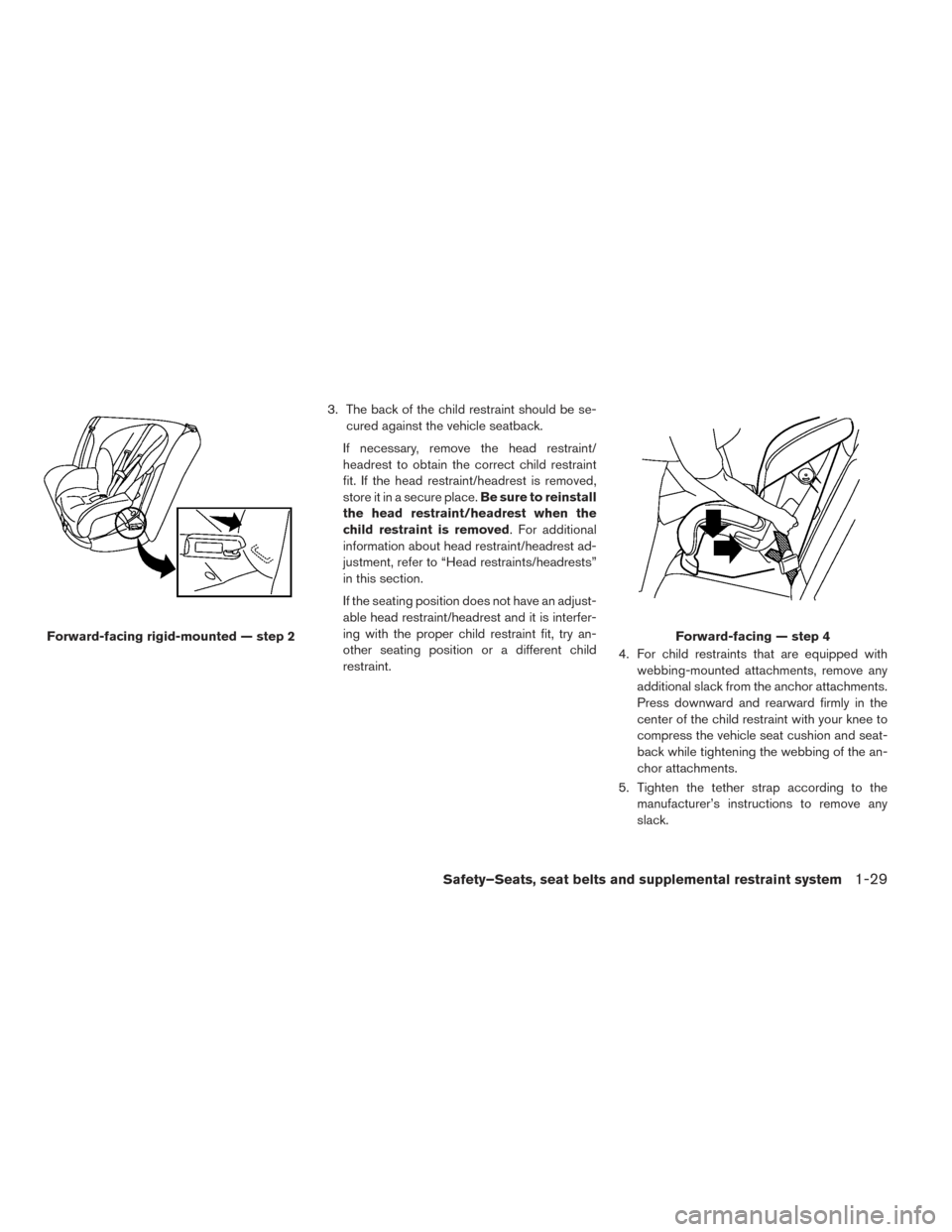

3. The back of the child restraint should be se-cured against the vehicle seatback.
If necessary, remove the head restraint/
headrest to obtain the correct child restraint
fit. If the head restraint/headrest is removed,
store it in a secure place. Be sure to reinstall
the head restraint/headrest when the
child restraint is removed. For additional
information about head restraint/headrest ad-
justment, refer to “Head restraints/headrests”
in this section.
If the seating position does not have an adjust-
able head restraint/headrest and it is interfer-
ing with the proper child restraint fit, try an-
other seating position or a different child
restraint. 4. For child restraints that are equipped with
webbing-mounted attachments, remove any
additional slack from the anchor attachments.
Press downward and rearward firmly in the
center of the child restraint with your knee to
compress the vehicle seat cushion and seat-
back while tightening the webbing of the an-
chor attachments.
5. Tighten the tether strap according to the manufacturer’s instructions to remove any
slack.
Forward-facing rigid-mounted — step 2Forward-facing — step 4
Safety–Seats, seat belts and supplemental restraint system1-29

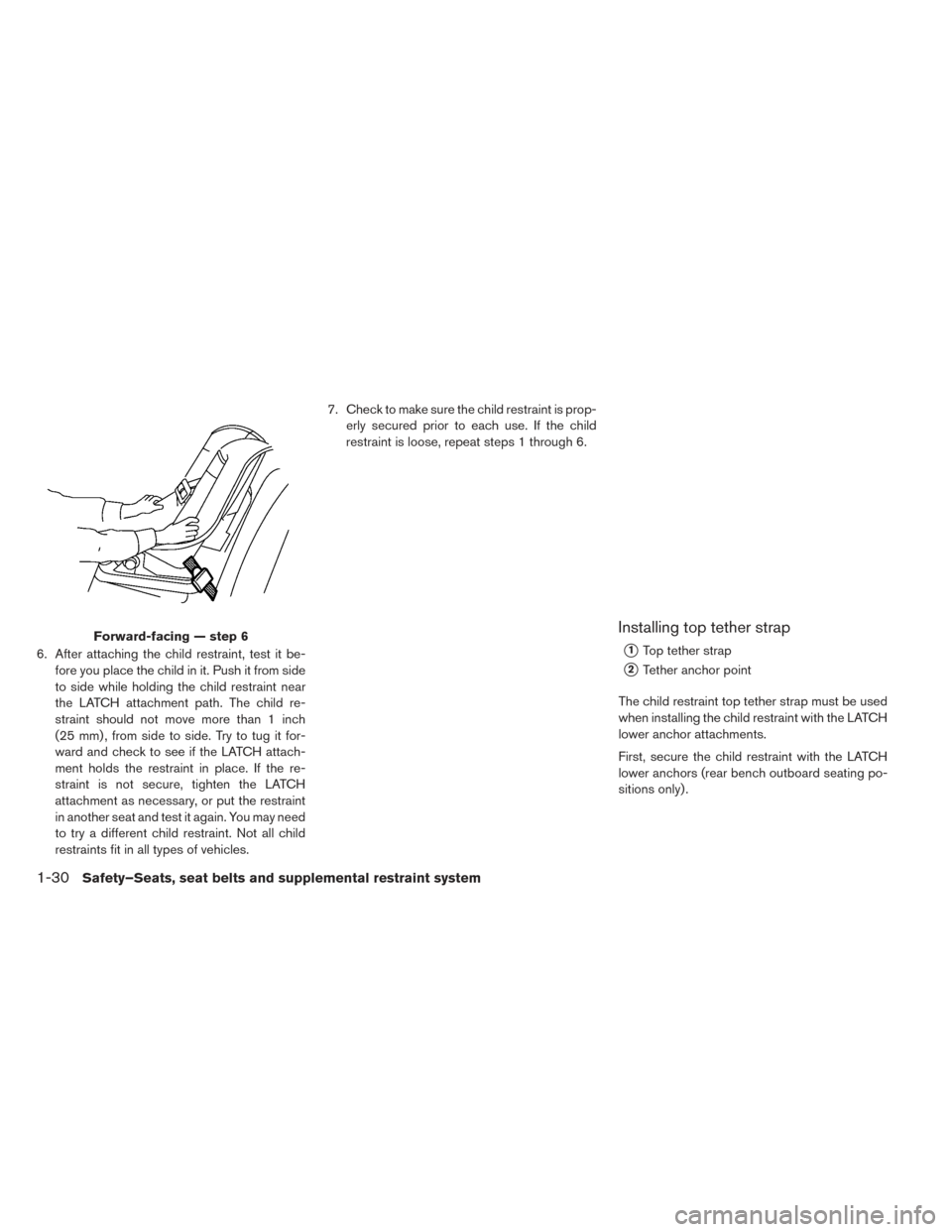

6. After attaching the child restraint, test it be-fore you place the child in it. Push it from side
to side while holding the child restraint near
the LATCH attachment path. The child re-
straint should not move more than 1 inch
(25 mm) , from side to side. Try to tug it for-
ward and check to see if the LATCH attach-
ment holds the restraint in place. If the re-
straint is not secure, tighten the LATCH
attachment as necessary, or put the restraint
in another seat and test it again. You may need
to try a different child restraint. Not all child
restraints fit in all types of vehicles. 7. Check to make sure the child restraint is prop-
erly secured prior to each use. If the child
restraint is loose, repeat steps 1 through 6.
Installing top tether strap
1Top tether strap
2Tether anchor point
The child restraint top tether strap must be used
when installing the child restraint with the LATCH
lower anchor attachments.
First, secure the child restraint with the LATCH
lower anchors (rear bench outboard seating po-
sitions only) .
Forward-facing — step 6
1-30Safety–Seats, seat belts and supplemental restraint system

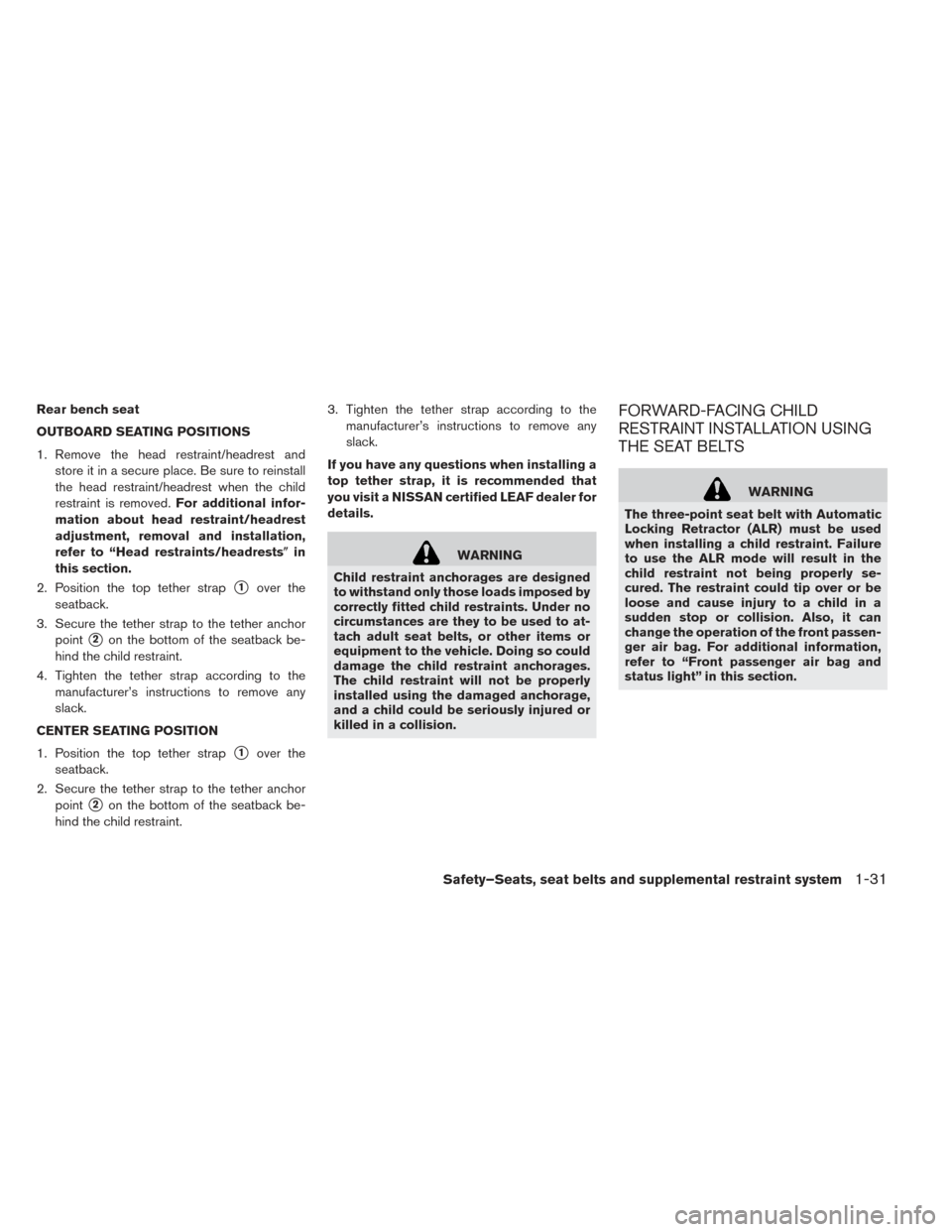

Rear bench seat
OUTBOARD SEATING POSITIONS
1. Remove the head restraint/headrest andstore it in a secure place. Be sure to reinstall
the head restraint/headrest when the child
restraint is removed. For additional infor-
mation about head restraint/headrest
adjustment, removal and installation,
refer to “Head restraints/headrests in
this section.
2. Position the top tether strap
1over the
seatback.
3. Secure the tether strap to the tether anchor point
2on the bottom of the seatback be-
hind the child restraint.
4. Tighten the tether strap according to the manufacturer’s instructions to remove any
slack.
CENTER SEATING POSITION
1. Position the top tether strap
1over the
seatback.
2. Secure the tether strap to the tether anchor point
2on the bottom of the seatback be-
hind the child restraint. 3. Tighten the tether strap according to the
manufacturer’s instructions to remove any
slack.
If you have any questions when installing a
top tether strap, it is recommended that
you visit a NISSAN certified LEAF dealer for
details.
WARNING
Child restraint anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used to at-
tach adult seat belts, or other items or
equipment to the vehicle. Doing so could
damage the child restraint anchorages.
The child restraint will not be properly
installed using the damaged anchorage,
and a child could be seriously injured or
killed in a collision.
FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
THE SEAT BELTS
WARNING
The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure
to use the ALR mode will result in the
child restraint not being properly se-
cured. The restraint could tip over or be
loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front passen-
ger air bag. For additional information,
refer to “Front passenger air bag and
status light” in this section.
Safety–Seats, seat belts and supplemental restraint system1-31

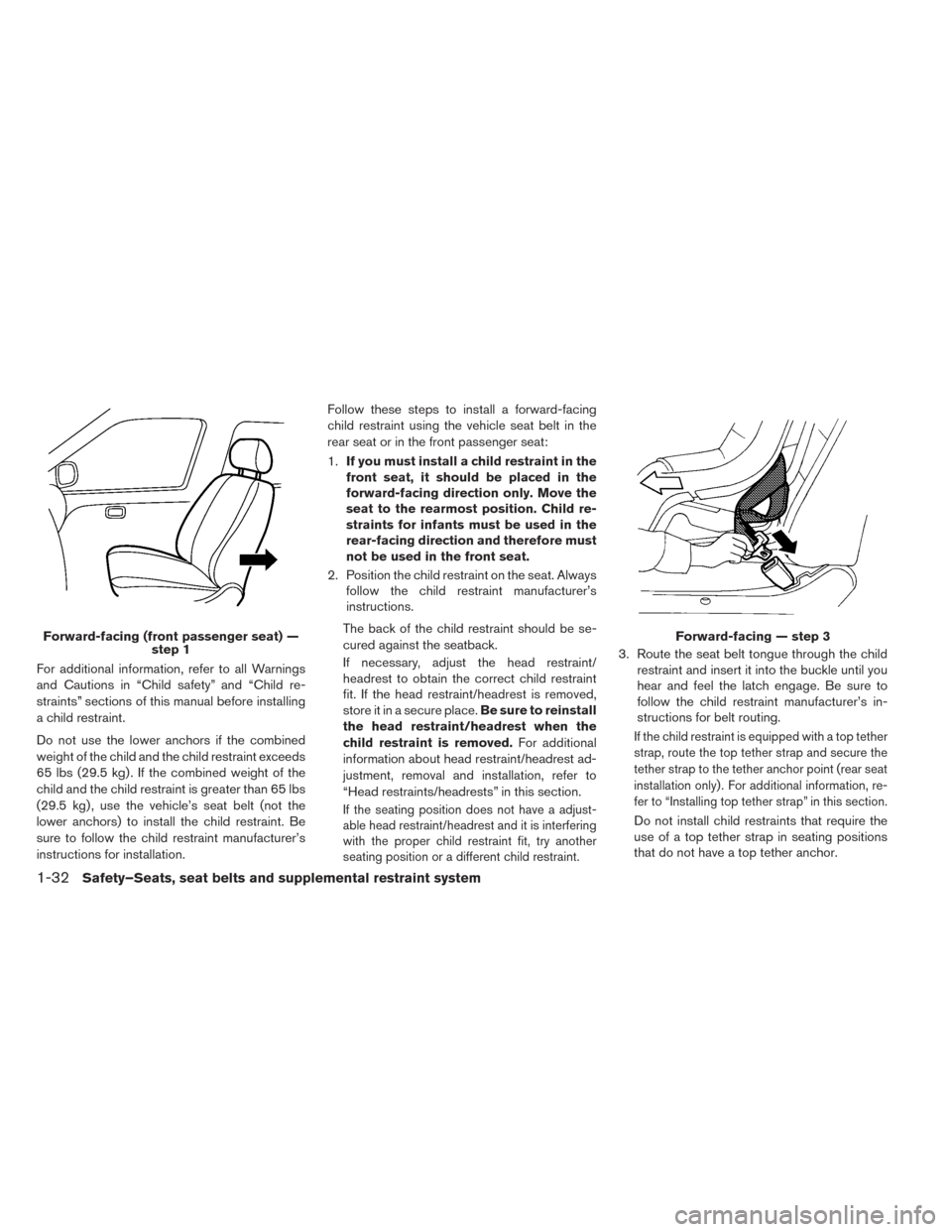

For additional information, refer to all Warnings
and Cautions in “Child safety” and “Child re-
straints” sections of this manual before installing
a child restraint.
Do not use the lower anchors if the combined
weight of the child and the child restraint exceeds
65 lbs (29.5 kg) . If the combined weight of the
child and the child restraint is greater than 65 lbs
(29.5 kg) , use the vehicle’s seat belt (not the
lower anchors) to install the child restraint. Be
sure to follow the child restraint manufacturer’s
instructions for installation.Follow these steps to install a forward-facing
child restraint using the vehicle seat belt in the
rear seat or in the front passenger seat:
1.
If you must install a child restraint in the
front seat, it should be placed in the
forward-facing direction only. Move the
seat to the rearmost position. Child re-
straints for infants must be used in the
rear-facing direction and therefore must
not be used in the front seat.
2. Position the child restraint on the seat. Always follow the child restraint manufacturer’s
instructions.
The back of the child restraint should be se-
cured against the seatback.
If necessary, adjust the head restraint/
headrest to obtain the correct child restraint
fit. If the head restraint/headrest is removed,
store it in a secure place. Be sure to reinstall
the head restraint/headrest when the
child restraint is removed. For additional
information about head restraint/headrest ad-
justment, removal and installation, refer to
“Head restraints/headrests” in this section.
If the seating position does not have a adjust-
able head restraint/headrest and it is interfering
with the proper child restraint fit, try another
seating position or a different child restraint.
3. Route the seat belt tongue through the child restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s in-
structions for belt routing.
If the child restraint is equipped with a top tether
strap, route the top tether strap and secure the
tether strap to the tether anchor point (rear seat
installation only) . For additional information, re-
fer to “Installing top tether strap” in this section.
Do not install child restraints that require the
use of a top tether strap in seating positions
that do not have a top tether anchor.
Forward-facing (front passenger seat) — step 1Forward-facing — step 3
1-32Safety–Seats, seat belts and supplemental restraint system

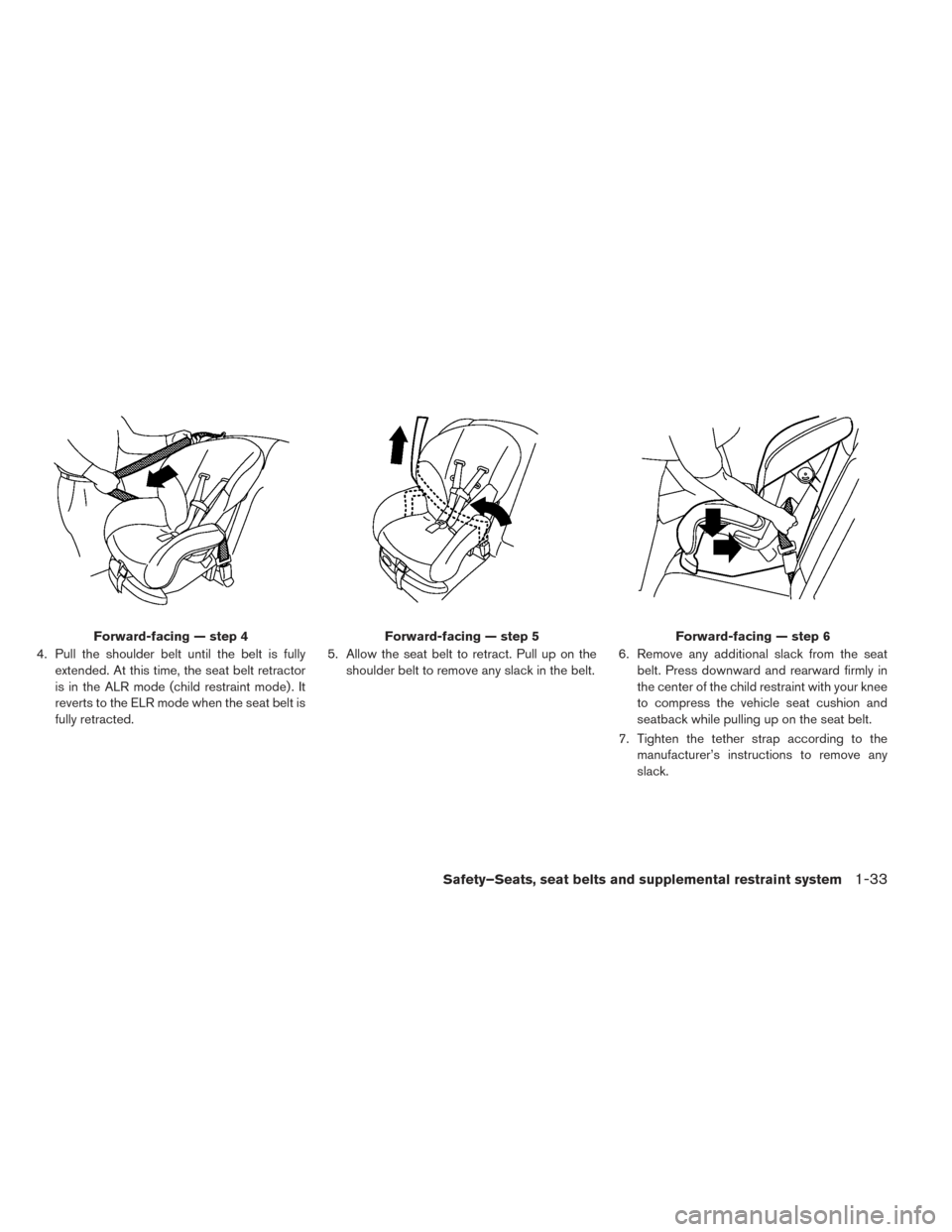

4. Pull the shoulder belt until the belt is fullyextended. At this time, the seat belt retractor
is in the ALR mode (child restraint mode) . It
reverts to the ELR mode when the seat belt is
fully retracted. 5. Allow the seat belt to retract. Pull up on the
shoulder belt to remove any slack in the belt. 6. Remove any additional slack from the seat
belt. Press downward and rearward firmly in
the center of the child restraint with your knee
to compress the vehicle seat cushion and
seatback while pulling up on the seat belt.
7. Tighten the tether strap according to the manufacturer’s instructions to remove any
slack.
Forward-facing — step 4Forward-facing — step 5Forward-facing — step 6
Safety–Seats, seat belts and supplemental restraint system1-33

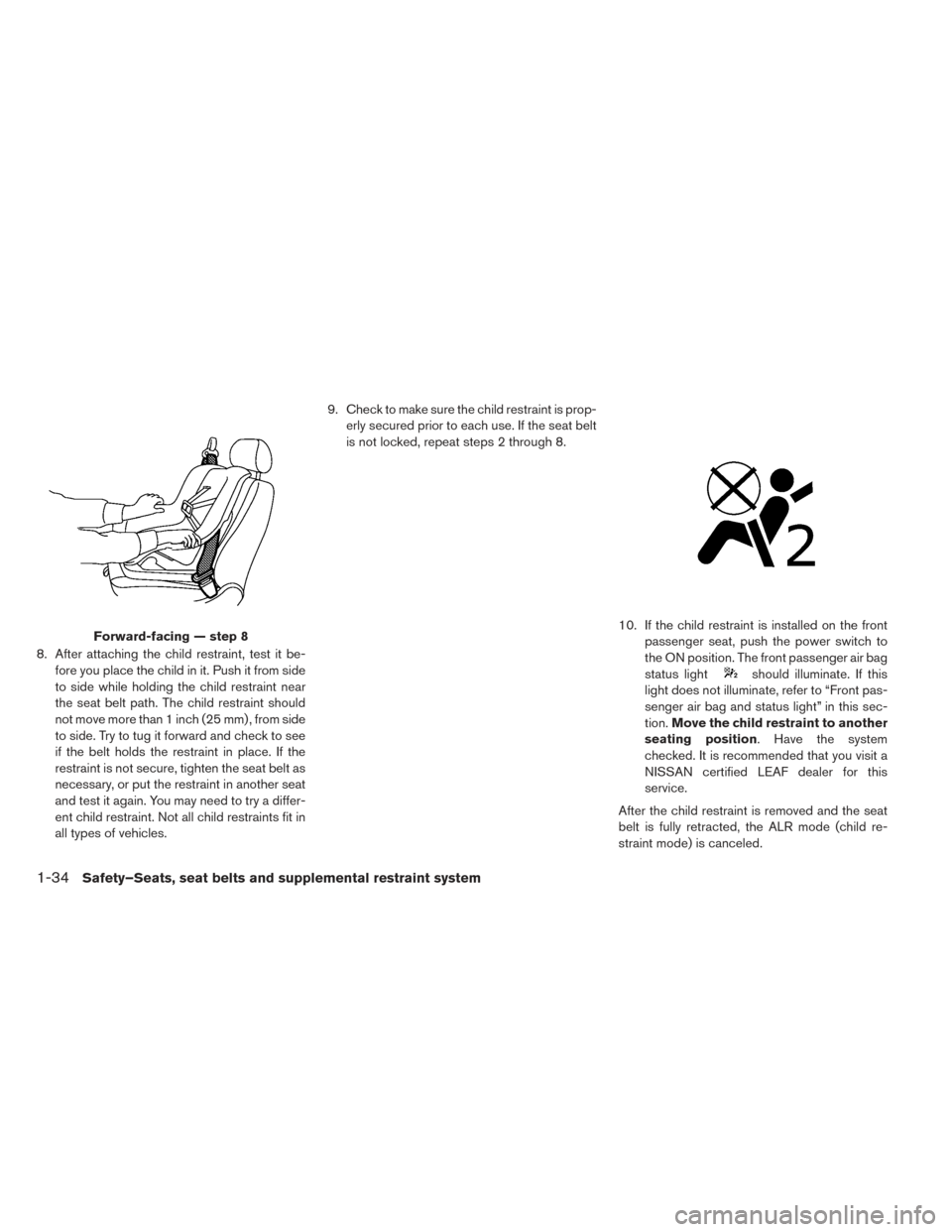

8. After attaching the child restraint, test it be-fore you place the child in it. Push it from side
to side while holding the child restraint near
the seat belt path. The child restraint should
not move more than 1 inch (25 mm) , from side
to side. Try to tug it forward and check to see
if the belt holds the restraint in place. If the
restraint is not secure, tighten the seat belt as
necessary, or put the restraint in another seat
and test it again. You may need to try a differ-
ent child restraint. Not all child restraints fit in
all types of vehicles. 9. Check to make sure the child restraint is prop-
erly secured prior to each use. If the seat belt
is not locked, repeat steps 2 through 8.
10. If the child restraint is installed on the frontpassenger seat, push the power switch to
the ON position. The front passenger air bag
status light
should illuminate. If this
light does not illuminate, refer to “Front pas-
senger air bag and status light” in this sec-
tion. Move the child restraint to another
seating position. Have the system
checked. It is recommended that you visit a
NISSAN certified LEAF dealer for this
service.
After the child restraint is removed and the seat
belt is fully retracted, the ALR mode (child re-
straint mode) is canceled.
Forward-facing — step 8
1-34Safety–Seats, seat belts and supplemental restraint system

Installing top tether strap
1Top tether strap
2Tether anchor point
The child restraint top tether strap must be used
when installing the child restraint with the seat
belts.
First, secure the child restraint with the seat belt. Rear bench seat
OUTBOARD SEATING POSITIONS
1. Remove the head restraint/headrest and
store it in a secure place. Be sure to reinstall
the head restraint/headrest when the child
restraint is removed. For additional infor-
mation about head restraint/headrest
adjustment, removal and installation,
refer to “Head restraints/headrests in
this section.
2. Position the top tether strap
1over the
seatback.
3. Secure the tether strap to the tether anchor point
2on the bottom of the seatback be-
hind the child restraint.
4. Tighten the tether strap according to the manufacturer’s instructions to remove any
slack.
CENTER SEATING POSITION
1. Position the top tether strap
1over the
seatback.
2. Secure the tether strap to the tether anchor point
2on the bottom of the seatback be-
hind the child restraint. 3. Tighten the tether strap according to the
manufacturer’s instructions to remove any
slack.
If you have any questions when installing a
top tether strap, it is recommended that
you visit a NISSAN certified LEAF dealer for
this service.
WARNING
Child restraint anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used to at-
tach adult seat belts, or other items or
equipment to the vehicle. Doing so could
damage the child restraint anchorages.
The child restraint will not be properly
installed using the damaged anchorage,
and a child could be seriously injured or
killed in a collision.
BOOSTER SEATS
For additional information on installing a booster
seat in your vehicle, follow the instructions out-
lined in this section.
Safety–Seats, seat belts and supplemental restraint system1-35

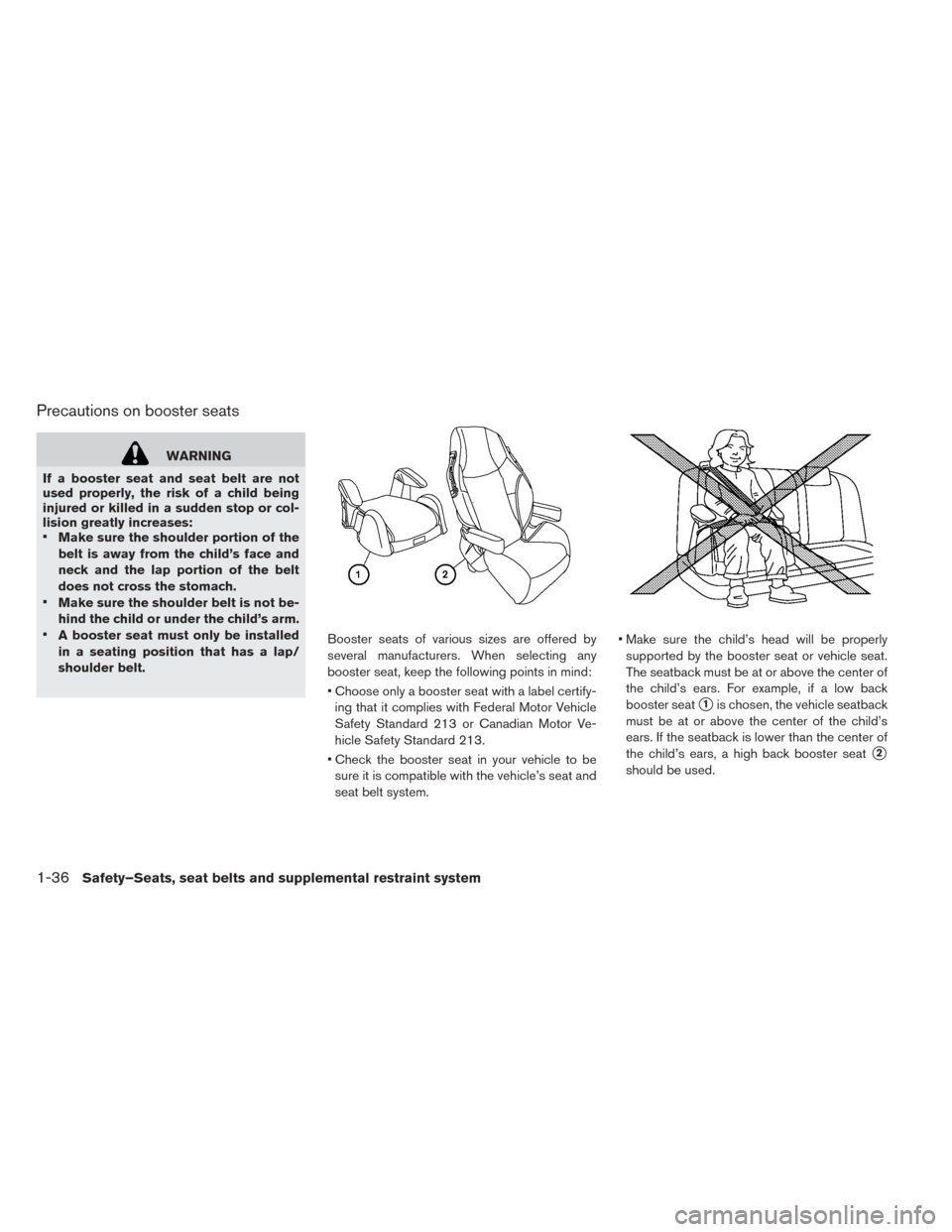

Precautions on booster seats
WARNING
If a booster seat and seat belt are not
used properly, the risk of a child being
injured or killed in a sudden stop or col-
lision greatly increases:
• Make sure the shoulder portion of the
belt is away from the child’s face and
neck and the lap portion of the belt
does not cross the stomach.
• Make sure the shoulder belt is not be-
hind the child or under the child’s arm.
• A booster seat must only be installed
in a seating position that has a lap/
shoulder belt. Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
• Choose only a booster seat with a label certify-
ing that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor Ve-
hicle Safety Standard 213.
• Check the booster seat in your vehicle to be sure it is compatible with the vehicle’s seat and
seat belt system. • Make sure the child’s head will be properly
supported by the booster seat or vehicle seat.
The seatback must be at or above the center of
the child’s ears. For example, if a low back
booster seat
1is chosen, the vehicle seatback
must be at or above the center of the child’s
ears. If the seatback is lower than the center of
the child’s ears, a high back booster seat
2
should be used.
1-36Safety–Seats, seat belts and supplemental restraint system

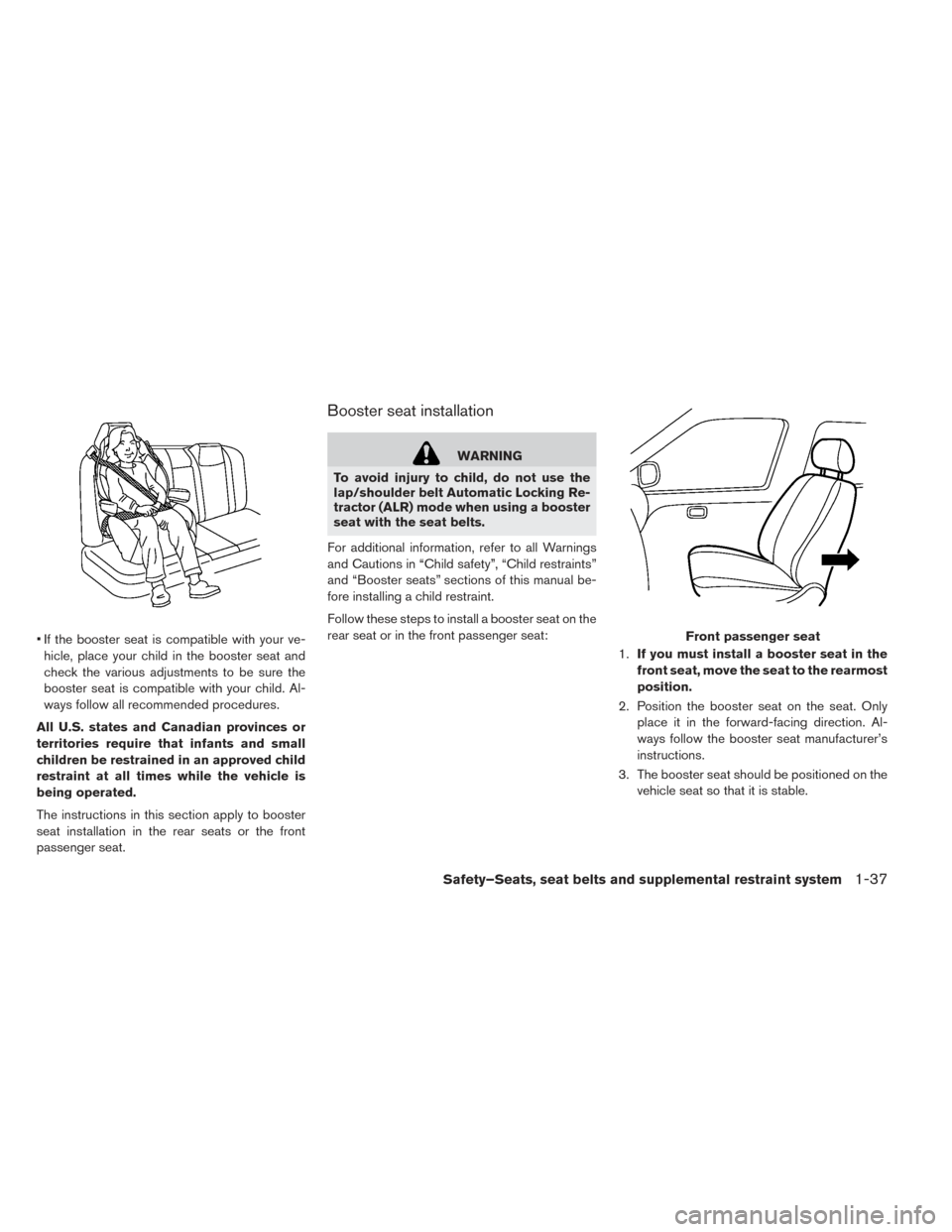

• If the booster seat is compatible with your ve-hicle, place your child in the booster seat and
check the various adjustments to be sure the
booster seat is compatible with your child. Al-
ways follow all recommended procedures.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.
The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.
Booster seat installation
WARNING
To avoid injury to child, do not use the
lap/shoulder belt Automatic Locking Re-
tractor (ALR) mode when using a booster
seat with the seat belts.
For additional information, refer to all Warnings
and Cautions in “Child safety”, “Child restraints”
and “Booster seats” sections of this manual be-
fore installing a child restraint.
Follow these steps to install a booster seat on the
rear seat or in the front passenger seat: 1.If you must install a booster seat in the
front seat, move the seat to the rearmost
position.
2. Position the booster seat on the seat. Only place it in the forward-facing direction. Al-
ways follow the booster seat manufacturer’s
instructions.
3. The booster seat should be positioned on the vehicle seat so that it is stable.
Front passenger seat
Safety–Seats, seat belts and supplemental restraint system1-37
