NISSAN LEAF 2019 Owner´s Manual

CAUTION
• Do not allow the Intelligent Key, which contains electrical compo-
nents, to come into contact with wa-
ter or salt water. This could affect the
functioning of the system.
• Do not drop the Intelligent Key.
• Do not strike the Intelligent Key sharply against another object.
• Do not change or modif y the Intelli- gent Key.
• The Intelligent Key may be damaged if it gets wet. If the Intelligent Key
gets wet, immediately wipe until it is
completely dry.
• If the outside temperature is below 14°F (−10°C), the battery of the Intel-
ligent Key may not function prop-
erly.
• Do not place the Intelligent Key for an extended period in an area where
temperatures exceed 140°F (60°C).
• Do not attach the Intelligent Key to a key holder that contains a magnet.
• Do not place the Intelligent Key near equipment that produces a mag-
netic field, such as a TV, audio equip-
ment, personal computer or cellular
phone. If an Intelligent Key is lost or stolen, NISSAN
recommends erasing the ID code of that
Intelligent Key from the vehicle. This may
prevent the unauthorized use of the Intelli-
gent Key to operate the vehicle. For addi-
tional information, it is recommended that
you visit a NISSAN certified LEAF dealer.
The Intelligent Key function can be dis-
abled. For additional information, it is rec-
ommended that you visit a NISSAN certi-
fied LEAF dealer.
NISSAN INTELLIGENT KEY®
OPERATING RANGE OF THE DOOR
LOCK/UNLOCK FUNCTION
The Intelligent Key functions can only be
used when the Intelligent Key is within the
specified operating range from the request
switch
1.
When the Intelligent Key battery is dis-
charged or strong radio waves are present
near the operating location, the Intelligent
Key system’s operating range becomes
narrower, and the Intelligent Key may not
function properly.
3-8Pre-driving checks and adjustments

The operating range is within 31.50 in
(80 cm) from each request switch
1.
If the Intelligent Key is too close to the door
glass, handle or rear bumper, the request
switches may not function.
When the Intelligent Key is within the oper-
ating range, it is possible for anyone who
does not carry the Intelligent Key to push
the request switch to lock/unlock the
doors including the rear hatch.
DOOR LOCKS/UNLOCKS
PRECAUTION
• Do not push the door handle request switch with the Intelligent Key held in your
hand as illustrated. The close distance to
the door handle will cause the Intelligent
Key system to have difficulty recognizing
that the Intelligent Key is outside the
vehicle.
•
Af ter locking with the door handle request
switch, verif y the doors are securely locked
by testing them.
• To prevent the Intelligent Key from being lef t inside the vehicle, make sure you carry
the key with you and then lock the doors.
• Do not pull the door handle before push- ing the door handle request switch. The
door will be unlocked but will not open.
Release the door handle once and pull it
again to open the door.
Pre-driving checks and adjustments3-9

NISSAN INTELLIGENT KEY®
OPERATION
You can lock or unlock the doors without
taking the key out from your pocket or bag.When you carry the Intelligent Key with you,
you can lock or unlock all doors by pushing
the door handle request switch (driver’s or
front passenger’s)
Aor rear hatch request
switch
Bwithin the range of operation.
When you lock or unlock the doors or the
rear hatch, the hazard indicator may flash
and the horn (or the outside chime) may
sound as a confirmation. For additional in-
formation, refer to “Hazard warning flasher
switch” in the “In case of emergency” sec-
tion of this manual and “Horn” in the “Instru-
ments and controls” section of this manual.
Locking doors
1. Push the power switch into the OFF po- sition and make sure you carry the Intel-
ligent Key with you.
2. Close the driver’s door (other doors may be open).
3. Push the door handle request switch on the driver’s door
Awhile carrying the
Intelligent Key with you. The passenger
door and rear hatch request switches
will only lock the doors if all doors are
closed. *1
4. All the doors and the rear hatch will lock.
3-10Pre-driving checks and adjustments

5. The hazard indicator may flash twiceand the outside chime may sound twice.
*1:
Doors will not lock by pushing the door
handle request switch when the Intelligent
Key is lef t inside the vehicle. A chime sounds
to alert that the Intelligent Key is in the ve-
hicle. However, when an Intelligent Key is in-
side the vehicle, doors can be locked with
another registered Intelligent Key.
CAUTION
• Af ter locking the door using the re- quest switch, make sure that the
doors have been securely locked by
operating the door handles.
• When locking the doors using the re- quest switch, make sure to have the
Intelligent Key in your possession
before operating the request switch
to prevent the Intelligent Key from
being lef t in the vehicle.
• The request switch is operational only when the Intelligent Key has
been detected by the Intelligent Key
system.
Unlocking doors
1. Push the door handle request switchA
or the rear hatch request switchBonce
while carrying the Intelligent Key with
you.
2. The hazard indicator may flash once and the outside chime may sound once.
The corresponding door or the rear
hatch will unlock.
3. Push the door handle request or the rear hatch request switch again within one
minute.
4. The hazard indicator may flash once and the outside chime may sound once
again. All the doors and the rear hatch
will unlock.
All doors will be locked automatically un-
less one of the following operations is per-
formed within one minute af ter pushing
the request switch while the doors are
locked.
• Opening any door.
• Pushing the power switch. During this one minute time period, if
the
button on the Intelligent Key is
pressed, all doors will be locked automati-
cally af ter another one minute.
NOTE:
If “Selective Unlock” is turned off in the
“Vehicle Settings,” all doors will unlock
upon first request switch press.
Opening rear hatch
1. Carry the Intelligent Key.
2. Push the rear hatch opener switch
C.
3. The rear hatch will unlock and open.
12-VOLT BATTERY SAVER SYSTEM
When all the following conditions are met
for a period of time, the battery saver sys-
tem will cut off the power supply to prevent
12-volt battery discharge.
• The power switch is in the ACC or ON position,
• All doors are closed, and
• The vehicle is in the P (Park) position.
Pre-driving checks and adjustments3-11

WARNING SIGNALS
To help prevent the vehicle from moving
unexpectedly by erroneous operation of
the Intelligent Key listed on the following
chart or to help prevent the vehicle from
being stolen, chime or beep sounds inside
and outside the vehicle and a warning dis-
plays in the vehicle information display.When a chime or beep sounds or the warn-
ing displays, be sure to check the vehicle
and Intelligent Key.
For additional information, refer to the
”Troubleshooting guide” in this section and
“Vehicle information display” in the “Instru-
ments and controls” section of this manual.
TROUBLESHOOTING GUIDE
Verif y the location of all Intelligent Keys that
are programmed for the vehicle. If another
Intelligent Key is in range or inside the
vehicle, the vehicle system may respond
differently than expected.
Symptom
Possible causeAction to take
When opening the driver’s door
to get out of the vehicleThe inside warning chime sounds continu-
ously. The power switch is pushed to the OFF
position while the driver's door is open.
Close the driver's door.
The power switch is in the ACC position. Push the power switch to the OFF position
then close the driver's door.
When closing the door af ter get-
ting out of the vehicle The No Key Detected warning appears on
the display, the outside chime sounds three
times and the inside warning chime sounds
for a few seconds.
The power switch is in the ACC or ON
position.
Push the power switch to the OFF position.
The Rear Door Alert (if so equipped) warning
message appears on the display, the horn
sounds three times twice, or a Check Back
Seat for all Articles (if so equipped) warning
appears on the display. The Rear Door Alert (if so equipped) is
activated.
Check the back seat for all articles, press
the ENTER button to clear the Rear Door
Alert (if so equipped) warning message.
The outside chime sounds continuously. The power switch is in the ACC or OFF
position, the electric shif t control sys-
tem has malfunctioned and the vehicle
cannot be placed in the P (Park) position
when the parking brake is not applied.Make sure the parking brake is applied.
When closing the door with the
inside lock knob turned to LOCK The outside chime sounds for a few sec-
onds and all the doors unlock. The Intelligent Key is inside the vehicle
or cargo area.
Carry the Intelligent Key with you.
3-12Pre-driving checks and adjustments

SymptomPossible causeAction to take
When pushing the request
switch or thebutton on
the Intelligent Key to lock the
doorThe outside chime sounds for a few seconds.The Intelligent Key is inside the vehicle
or a cargo area. Carry the Intelligent Key with you.
When pushing the power switch
in the READY to drive position The EV system operation for discharged
Intelligent Key system indicator appears on
the display.
The Intelligent Key battery charge is low.For additional information, refer to
“NISSAN Intelligent Key® battery discharge”
in the “Starting and driving” section of this
manual.
The No Key Detected warning appears on
the display and the inside warning chime
sounds for a few seconds. The Intelligent Key is not in the vehicle. Carry the Intelligent Key with you.
When pushing the power switch The Key System Error indicator appears on
the display. It warns of a malfunction with the Intel-
ligent Key system.It is recommended that you visit a NISSAN
certified LEAF dealer.
Pre-driving checks and adjustments3-13

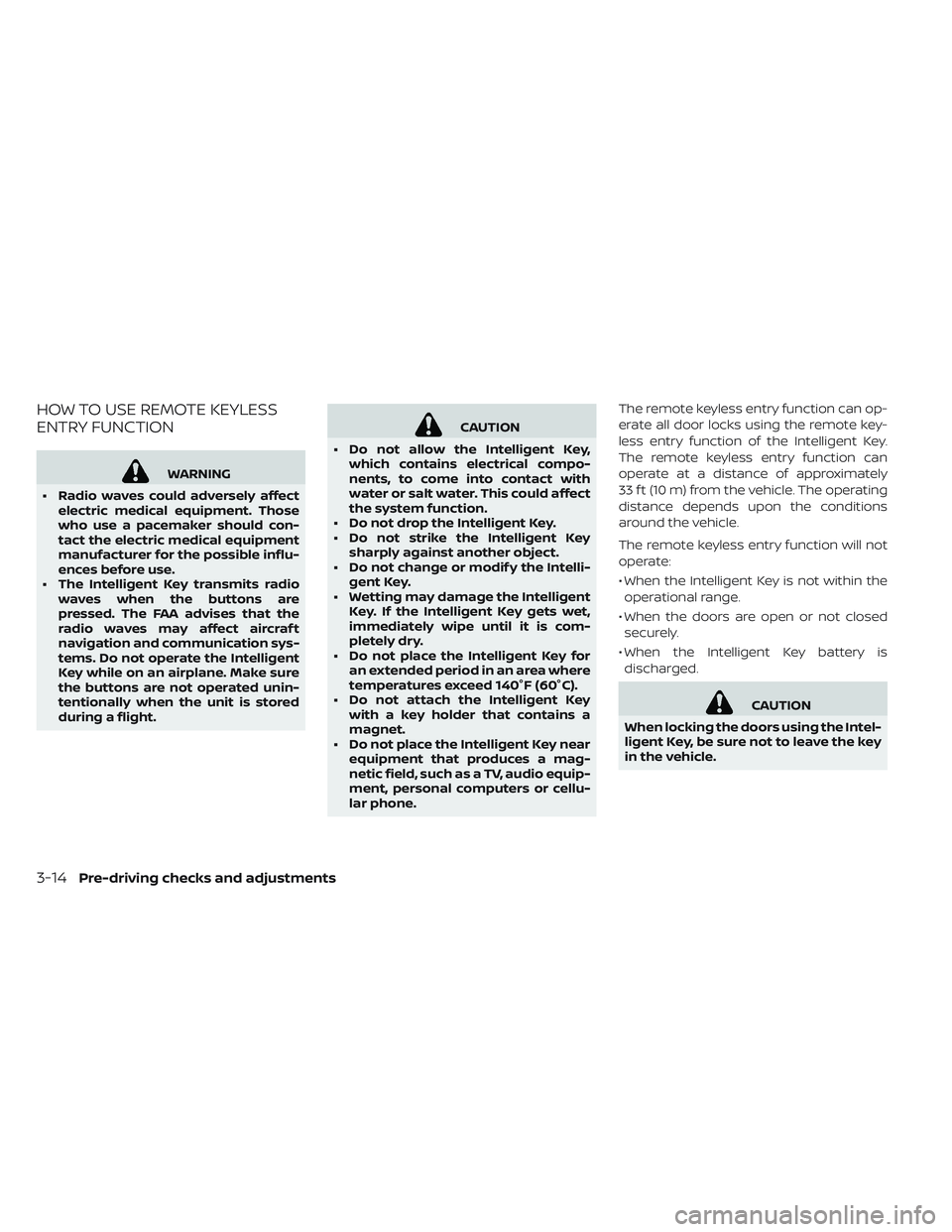

HOW TO USE REMOTE KEYLESS
ENTRY FUNCTION
WARNING
• Radio waves could adversely affect electric medical equipment. Those
who use a pacemaker should con-
tact the electric medical equipment
manufacturer for the possible influ-
ences before use.
• The Intelligent Key transmits radio waves when the buttons are
pressed. The FAA advises that the
radio waves may affect aircraf t
navigation and communication sys-
tems. Do not operate the Intelligent
Key while on an airplane. Make sure
the buttons are not operated unin-
tentionally when the unit is stored
during a flight.
CAUTION
• Do not allow the Intelligent Key, which contains electrical compo-
nents, to come into contact with
water or salt water. This could affect
the system function.
• Do not drop the Intelligent Key.
• Do not strike the Intelligent Key sharply against another object.
• Do not change or modif y the Intelli- gent Key.
• Wetting may damage the Intelligent Key. If the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
• Do not place the Intelligent Key for an extended period in an area where
temperatures exceed 140°F (60°C).
• Do not attach the Intelligent Key with a key holder that contains a
magnet.
• Do not place the Intelligent Key near equipment that produces a mag-
netic field, such as a TV, audio equip-
ment, personal computers or cellu-
lar phone. The remote keyless entry function can op-
erate all door locks using the remote key-
less entry function of the Intelligent Key.
The remote keyless entry function can
operate at a distance of approximately
33 f t (10 m) from the vehicle. The operating
distance depends upon the conditions
around the vehicle.
The remote keyless entry function will not
operate:
• When the Intelligent Key is not within the
operational range.
• When the doors are open or not closed securely.
• When the Intelligent Key battery is discharged.
CAUTION
When locking the doors using the Intel-
ligent Key, be sure not to leave the key
in the vehicle.
3-14Pre-driving checks and adjustments

Locking doors
1Lockbutton
2Unlockbutton
3Charge port unlockbutton
4Panicbutton
When you lock or unlock the doors, the haz-
ard indicator may flash and the horn may
sound as a confirmation. For additional in-
formation, refer to “Hazard warning flasher
switch” in the “In case of emergency” sec-
tion and “Horn” in the “Instruments and
controls” sections of this manual. 1. Push the power switch to the OFF posi-
tion and make sure you carry the Intelli-
gent Key with you.
2. Carry the Intelligent Key with you.
3. Close all the doors.
4. Press the
button1on the Intelli-
gent Key.
5. All the doors and the rear hatch will lock.
6. The hazard indicator may flash twice and the horn may chirp once.
Operate the door handles to confirm that
the doors have been securely locked.
Unlocking doors
1. Press thebutton2on the Intelli-
gent Key once.
2. The hazard indicator may flash once. The driver’s door will unlock.
3. Press the
button on the Intelligent
Key again within one minute.
4. The hazard indicator may flash once again. All the doors and the rear hatch
will unlock. All doors will be locked automatically un-
less one of the following operations is per-
formed within one minute af ter pressing
the
button while the doors are locked.
•
Opening any door (including the rear hatch).
• Pushing the power switch.
During this one minute time period, if
the
button on the Intelligent Key is
pressed, all doors will be locked automati-
cally af ter another one minute.
Opening charge port lid
The charge port lid may be opened by
pressing and holding the
button3.
For additional information, refer to "Open-
ing charge port lid" in this section.
Using panic alarm
If you are near your vehicle and feel threat-
ened, you may activate the alarm to call
attention as follows:
1. Push the
button4on the Intelli-
gent Key for more than 1 second.
2. The panic alarm and headlights will stay on for a period of time.
3. The panic alarm stops when:
Pre-driving checks and adjustments3-15

• It has run for a period of time, or
• Any of the buttons on the Intelligent Keyis pushed. (Note: The
button must
be pushed for more than 1 second.)
Setting hazard indicator and horn
mode
This vehicle is set in hazard indicator and
horn mode when you first receive the ve-
hicle.
In hazard indicator and horn mode, when
the
button1is pressed, the hazard
indicator flashes twice and the horn chirps
once. When the
button2is pressed,
the hazard indicator flashes once. If horns are not necessary, the system can
be switched to the hazard indicator mode.
In hazard indicator mode, when the
button is pressed, the hazard indicator
flashes twice. When the
button is
pressed, neither the hazard indicator nor
the horn operates.
Hazard indicator and horn mode:
Operation DOOR LOCK DOOR UNLOCK
Pushing door handle request switch or rear hatch request switch HAZARD -
twice
OUTSIDE CHIME - twice HAZARD -
once
OUTSIDE CHIME - once
Pressing
orbutton HAZARD -
twice
HORN - once HAZARD -
once
HORN - none
Hazard indicator mode:
Operation DOOR LOCK DOOR UNLOCK
Pushing door handle request switch or rear hatch request switch HAZARD -
twice
OUTSIDE CHIME - none HAZARD - none
OUTSIDE CHIME - none
Pressing
orbutton HAZARD -
twice
HORN - none HAZARD - none
HORN - none
3-16Pre-driving checks and adjustments

Switching procedure:
To switch the hazard indicator and horn
(chime) operation, press the
1and
2buttons on the Intelligent Key si-
multaneously for more than two seconds.
• When the hazard indicator mode is set, the hazard indicator flashes three times.
• When the hazard indicator and horn mode is set, the hazard indicator flashes
once and the horn chirps once.
WARNING
• Make sure that the hood is com- pletely closed and latched before
driving. Failure to do so could cause
the hood to open during driving and
result in an accident.
• If steam or smoke is emitting from the motor compartment, do not
open the hood. Doing so could cause
an injury.
HOOD
Pre-driving checks and adjustments3-17
