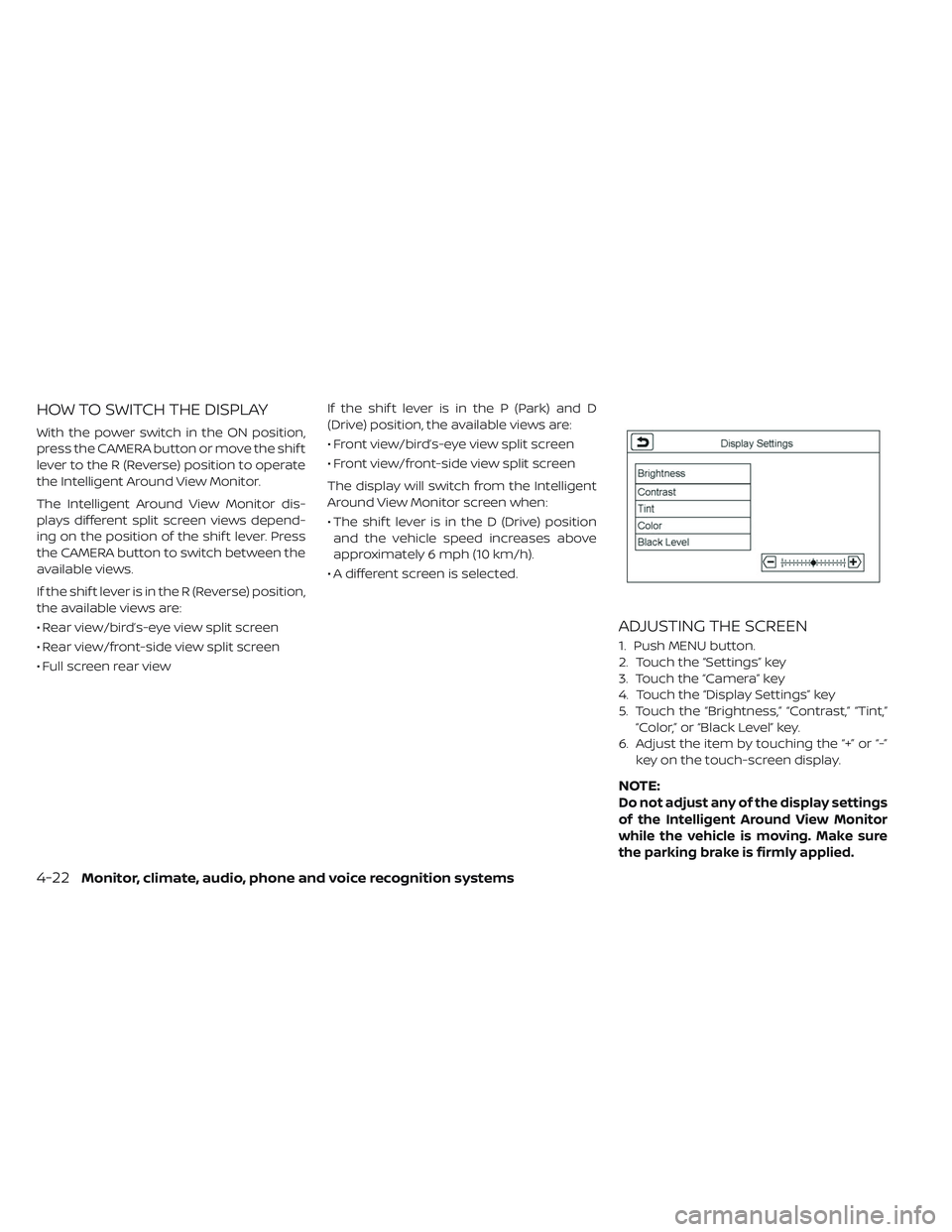

HOW TO SWITCH THE DISPLAY
With the power switch in the ON position,
press the CAMERA button or move the shif t
lever to the R (Reverse) position to operate
the Intelligent Around View Monitor.
The Intelligent Around View Monitor dis-
plays different split screen views depend-
ing on the position of the shif t lever. Press
the CAMERA button to switch between the
available views.
If the shif t lever is in the R (Reverse) position,
the available views are:
• Rear view/bird’s-eye view split screen
• Rear view/front-side view split screen
• Full screen rear viewIf the shif t lever is in the P (Park) and D
(Drive) position, the available views are:
• Front view/bird’s-eye view split screen
• Front view/front-side view split screen
The display will switch from the Intelligent
Around View Monitor screen when:
• The shif t lever is in the D (Drive) position
and the vehicle speed increases above
approximately 6 mph (10 km/h).
• A different screen is selected.
ADJUSTING THE SCREEN
1. Push MENU button.
2. Touch the “Settings” key
3. Touch the “Camera” key
4. Touch the “Display Settings” key
5. Touch the “Brightness,” “Contrast,” “Tint,” “Color,” or “Black Level” key.
6. Adjust the item by touching the “+” or “-” key on the touch-screen display.
NOTE:
Do not adjust any of the display settings
of the Intelligent Around View Monitor
while the vehicle is moving. Make sure
the parking brake is firmly applied.
4-22Monitor, climate, audio, phone and voice recognition systems
Page 302 of 610

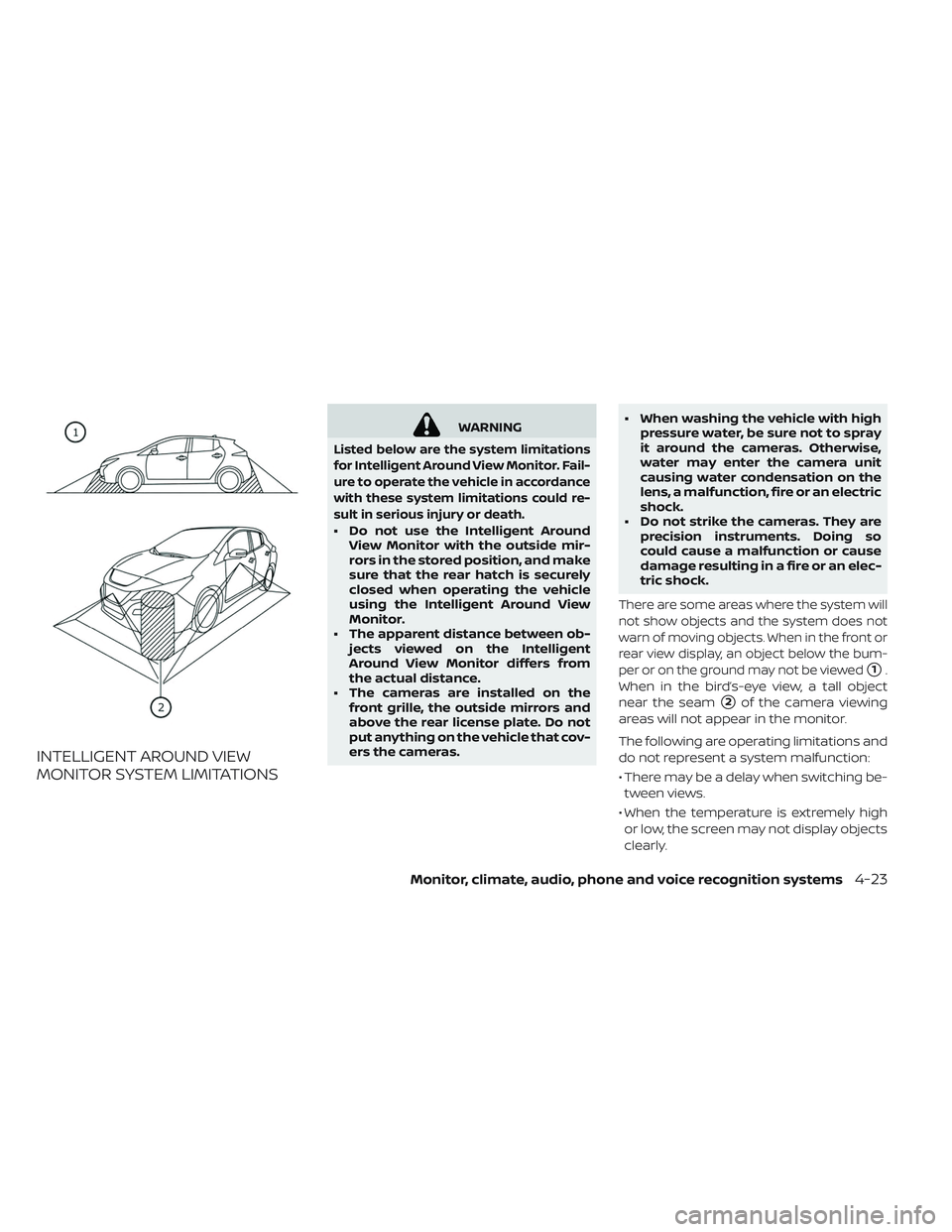

INTELLIGENT AROUND VIEW
MONITOR SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations
for Intelligent Around View Monitor. Fail-
ure to operate the vehicle in accordance
with these system limitations could re-
sult in serious injury or death.
• Do not use the Intelligent AroundView Monitor with the outside mir-
rors in the stored position, and make
sure that the rear hatch is securely
closed when operating the vehicle
using the Intelligent Around View
Monitor.
• The apparent distance between ob- jects viewed on the Intelligent
Around View Monitor differs from
the actual distance.
• The cameras are installed on the front grille, the outside mirrors and
above the rear license plate. Do not
put anything on the vehicle that cov-
ers the cameras. • When washing the vehicle with high
pressure water, be sure not to spray
it around the cameras. Otherwise,
water may enter the camera unit
causing water condensation on the
lens, a malfunction, fire or an electric
shock.
• Do not strike the cameras. They are precision instruments. Doing so
could cause a malfunction or cause
damage resulting in a fire or an elec-
tric shock.
There are some areas where the system will
not show objects and the system does not
warn of moving objects. When in the front or
rear view display, an object below the bum-
per or on the ground may not be viewed
1.
When in the bird’s-eye view, a tall object
near the seam
2of the camera viewing
areas will not appear in the monitor.
The following are operating limitations and
do not represent a system malfunction:
• There may be a delay when switching be- tween views.
• When the temperature is extremely high or low, the screen may not display objects
clearly.
Monitor, climate, audio, phone and voice recognition systems4-23
Page 303 of 610

• When strong light directly shines on thecamera, objects may not be displayed
clearly.
• The screen may flicker under fluorescent light.
• The colors of objects on the Intelligent Around View Monitor may differ some-
what from the actual color of objects.
•
Objects on the Intelligent Around View
Monitor may not be clear and the color of
the object may differ in a dark environment.
• There may be differences in sharpness between each camera view of the bird’s-
eye view.
• Do not use wax on the camera lens. Wipe off any wax with a clean cloth that has
been dampened with a diluted mild clean-
ing agent, then wipe with a dry cloth.
System temporarily unavailable
When the “!” icon is displayed on the screen,
there are abnormal conditions in the Intel-
ligent Around View Monitor. This will not
hinder normal driving operation but the
system should be inspected. It is recom-
mended that you visit a NISSAN certified
LEAF dealer for this service.
When the “[X]” icon is displayed on the screen,
the camera image may be receiving tempo-
rary electronic disturbances from surround-
ing devices. This will not hinder normal driv-
ing operation but the system should be
inspected if it occurs frequently. It is recom-
mended that you visit a NISSAN certified
LEAF dealer for this service.
4-24Monitor, climate, audio, phone and voice recognition systems
Page 304 of 610

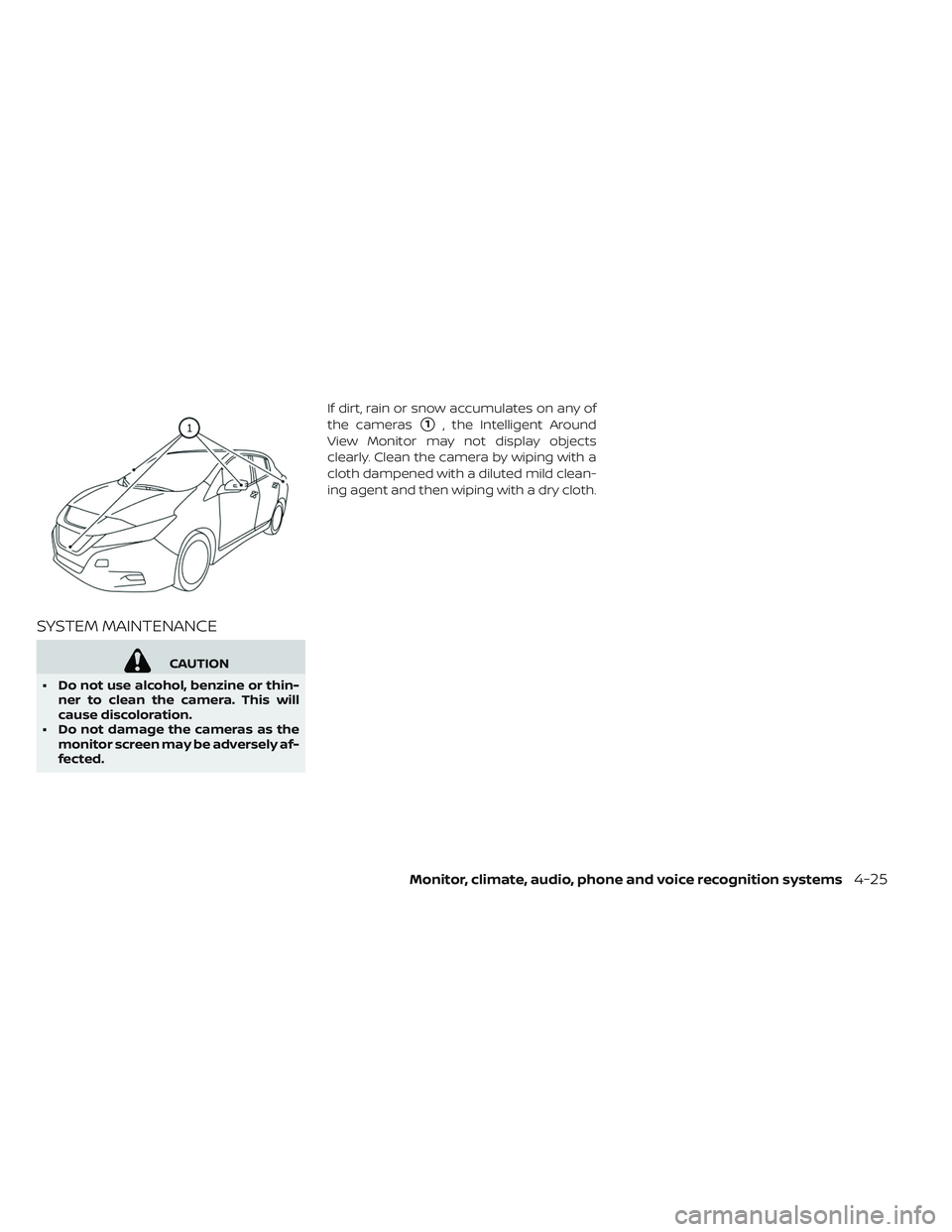

SYSTEM MAINTENANCE
CAUTION
• Do not use alcohol, benzine or thin- ner to clean the camera. This will
cause discoloration.
• Do not damage the cameras as the monitor screen may be adversely af-
fected. If dirt, rain or snow accumulates on any of
the cameras
1, the Intelligent Around
View Monitor may not display objects
clearly. Clean the camera by wiping with a
cloth dampened with a diluted mild clean-
ing agent and then wiping with a dry cloth.
Monitor, climate, audio, phone and voice recognition systems4-25
Page 305 of 610

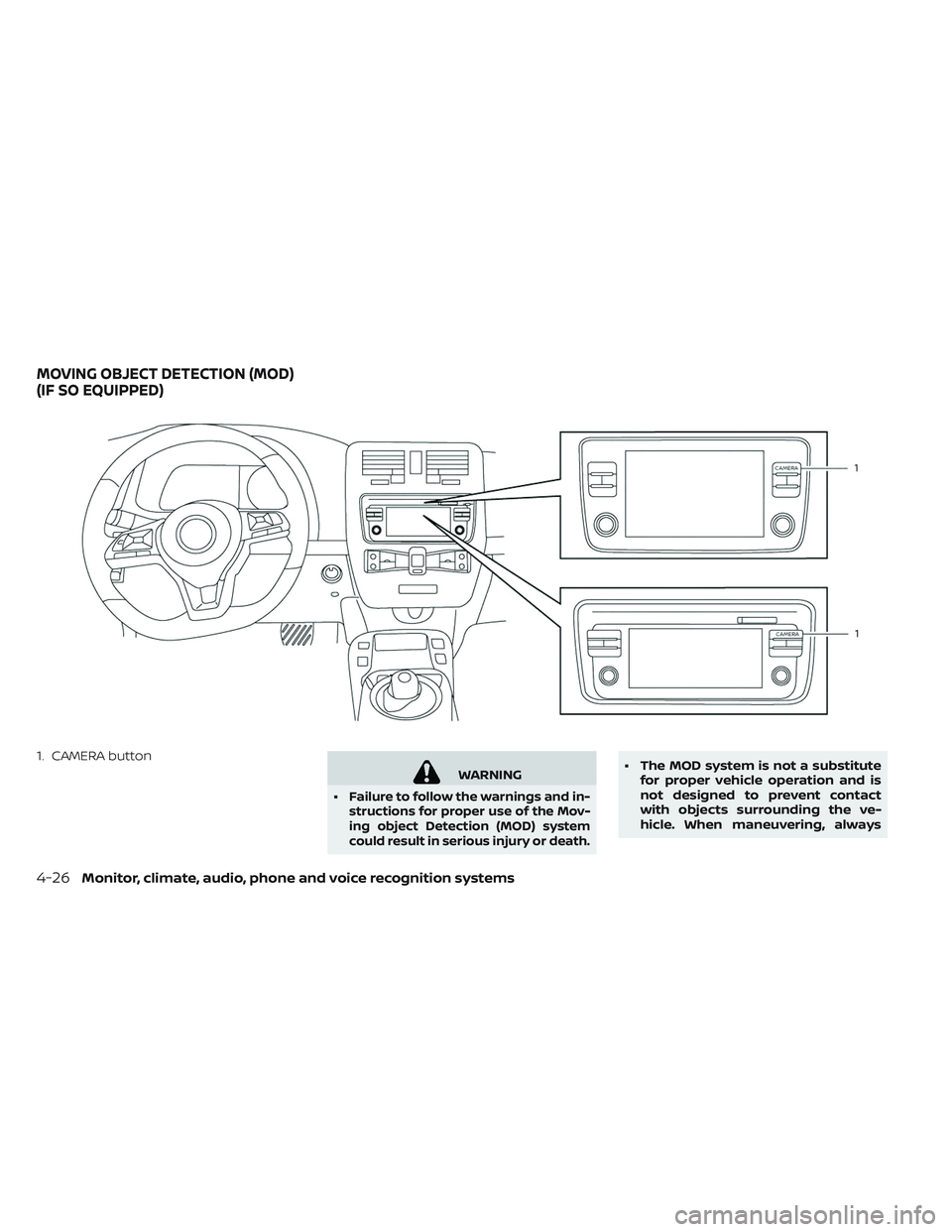

1. CAMERA button
WARNING
•
Failure to follow the warnings and in-
structions for proper use of the Mov-
ing object Detection (MOD) system
could result in serious injury or death.
• The MOD system is not a substitute for proper vehicle operation and is
not designed to prevent contact
with objects surrounding the ve-
hicle. When maneuvering, always
MOVING OBJECT DETECTION (MOD)
(IF SO EQUIPPED)
4-26Monitor, climate, audio, phone and voice recognition systems
Page 306 of 610

use the outside mirrors and rear-
view mirror and turn and check the
surroundings to ensure it is safe to
maneuver.
• The system is deactivated at speeds above 5 mph (8 km/h). It is reacti-
vated at lower speeds.
• The MOD system is not designed to detect surrounding stationary ob-
jects.
The MOD system can inform the driver of
moving objects near the vehicle when
backing out of garages, maneuvering in
parking lots and in other such instances.
The MOD system detects moving objects
by using image processing technology on
the image shown in the display.

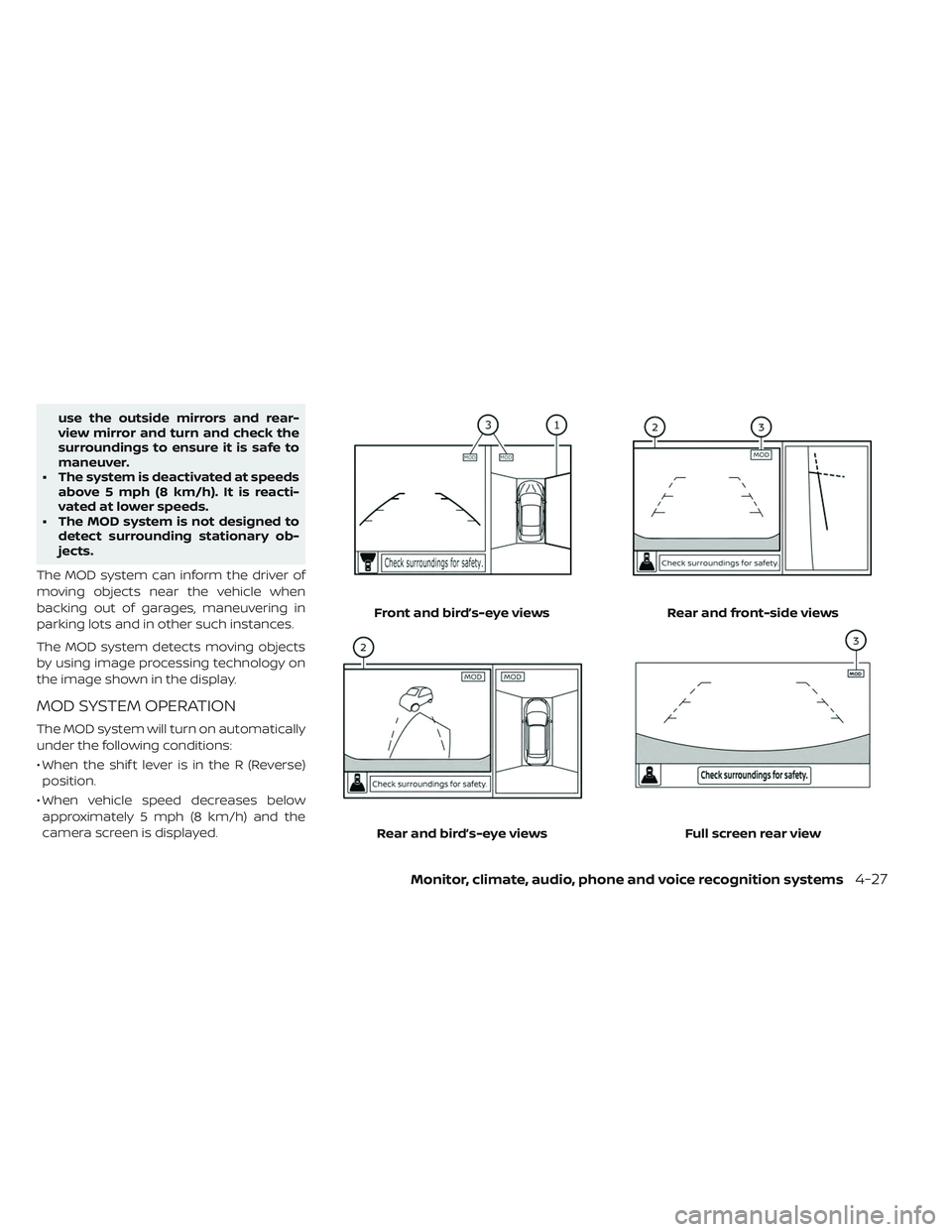

MOD SYSTEM OPERATION
The MOD system will turn on automatically
under the following conditions:
• When the shif t lever is in the R (Reverse) position.
• When vehicle speed decreases below approximately 5 mph (8 km/h) and the
camera screen is displayed. Front and bird’s-eye views
Rear and bird’s-eye views Rear and front-side views
Full screen rear view
Monitor, climate, audio, phone and voice recognition systems4-27
Page 307 of 610

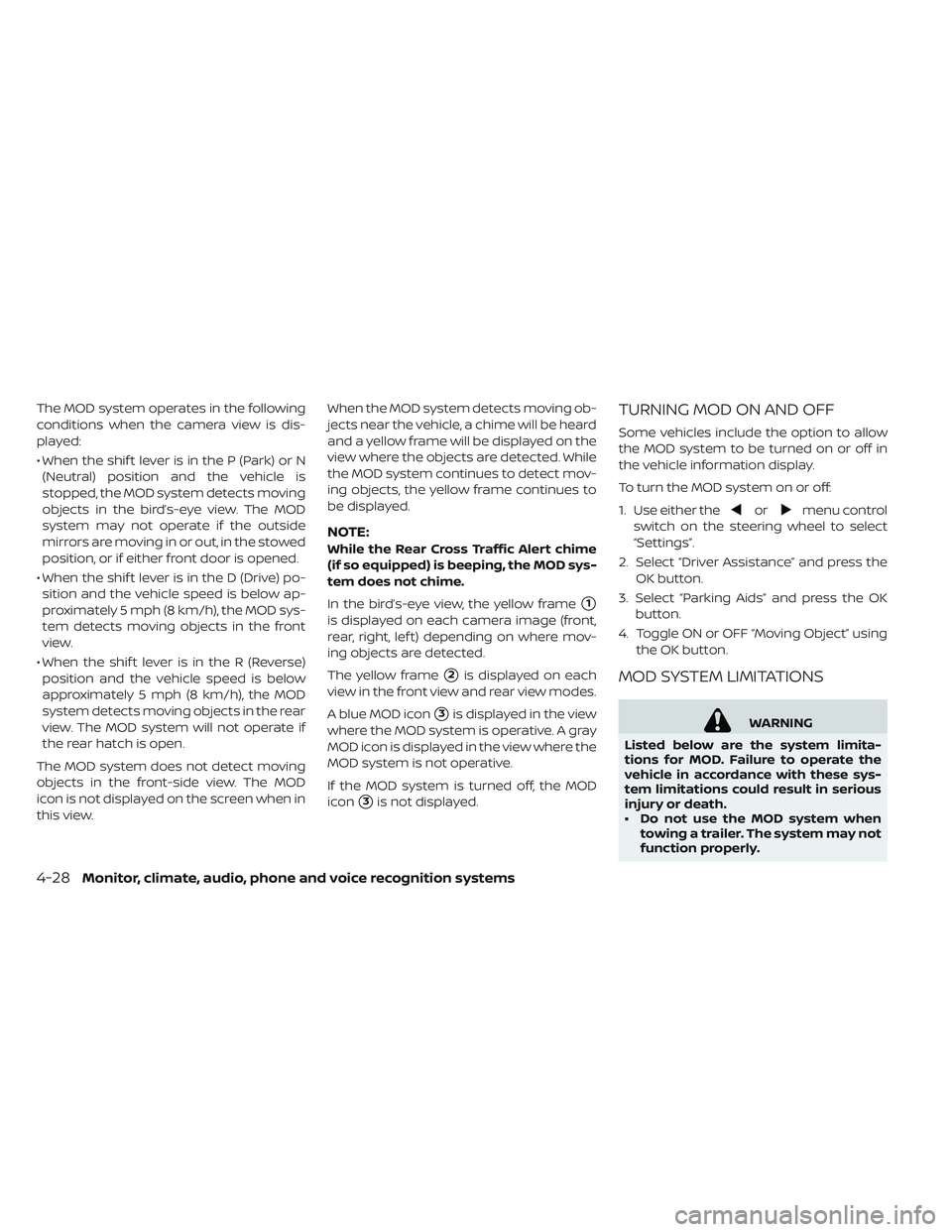

The MOD system operates in the following
conditions when the camera view is dis-
played:
• When the shif t lever is in the P (Park) or N(Neutral) position and the vehicle is
stopped, the MOD system detects moving
objects in the bird’s-eye view. The MOD
system may not operate if the outside
mirrors are moving in or out, in the stowed
position, or if either front door is opened.
• When the shif t lever is in the D (Drive) po- sition and the vehicle speed is below ap-
proximately 5 mph (8 km/h), the MOD sys-
tem detects moving objects in the front
view.
• When the shif t lever is in the R (Reverse) position and the vehicle speed is below
approximately 5 mph (8 km/h), the MOD
system detects moving objects in the rear
view. The MOD system will not operate if
the rear hatch is open.
The MOD system does not detect moving
objects in the front-side view. The MOD
icon is not displayed on the screen when in
this view. When the MOD system detects moving ob-
jects near the vehicle, a chime will be heard
and a yellow frame will be displayed on the
view where the objects are detected. While
the MOD system continues to detect mov-
ing objects, the yellow frame continues to
be displayed.
NOTE:
While the Rear Cross Traffic Alert chime
(if so equipped) is beeping, the MOD sys-
tem does not chime.
In the bird’s-eye view, the yellow frame
1
is displayed on each camera image (front,
rear, right, lef t) depending on where mov-
ing objects are detected.
The yellow frame
2is displayed on each
view in the front view and rear view modes.
A blue MOD icon
3is displayed in the view
where the MOD system is operative. A gray
MOD icon is displayed in the view where the
MOD system is not operative.
If the MOD system is turned off, the MOD
icon
3is not displayed.
TURNING MOD ON AND OFF
Some vehicles include the option to allow
the MOD system to be turned on or off in
the vehicle information display.
To turn the MOD system on or off:
1. Use either the
ormenu control
switch on the steering wheel to select
“Settings”.
2. Select “Driver Assistance” and press the OK button.
3. Select “Parking Aids” and press the OK button.
4. Toggle ON or OFF “Moving Object” using the OK button.
MOD SYSTEM LIMITATIONS
WARNING
Listed below are the system limita-
tions for MOD. Failure to operate the
vehicle in accordance with these sys-
tem limitations could result in serious
injury or death.
• Do not use the MOD system when towing a trailer. The system may not
function properly.
4-28Monitor, climate, audio, phone and voice recognition systems
Page 308 of 610

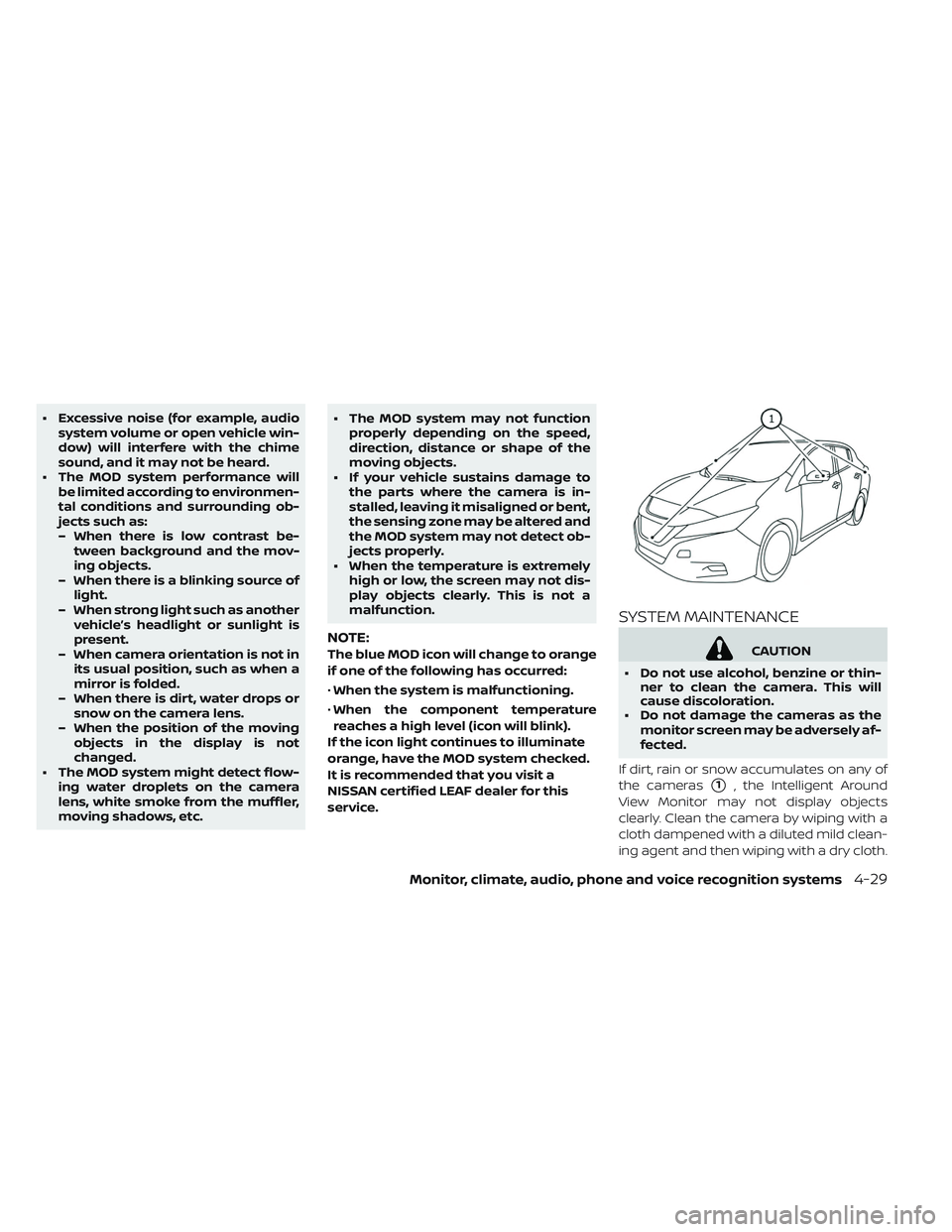

• Excessive noise (for example, audiosystem volume or open vehicle win-
dow) will interfere with the chime
sound, and it may not be heard.
• The MOD system performance will be limited according to environmen-
tal conditions and surrounding ob-
jects such as:
– When there is low contrast be-tween background and the mov-
ing objects.
– When there is a blinking source of light.
– When strong light such as another vehicle’s headlight or sunlight is
present.
– When camera orientation is not in its usual position, such as when a
mirror is folded.
– When there is dirt, water drops or snow on the camera lens.
– When the position of the moving objects in the display is not
changed.
• The MOD system might detect flow- ing water droplets on the camera
lens, white smoke from the muffler,
moving shadows, etc. • The MOD system may not function
properly depending on the speed,
direction, distance or shape of the
moving objects.
• If your vehicle sustains damage to the parts where the camera is in-
stalled, leaving it misaligned or bent,
the sensing zone may be altered and
the MOD system may not detect ob-
jects properly.
• When the temperature is extremely high or low, the screen may not dis-
play objects clearly. This is not a
malfunction.
NOTE:
The blue MOD icon will change to orange
if one of the following has occurred:
•When the system is malfunctioning.
• When the component temperature
reaches a high level (icon will blink).
If the icon light continues to illuminate
orange, have the MOD system checked.
It is recommended that you visit a
NISSAN certified LEAF dealer for this
service.
SYSTEM MAINTENANCE
CAUTION
• Do not use alcohol, benzine or thin- ner to clean the camera. This will
cause discoloration.
• Do not damage the cameras as the
monitor screen may be adversely af-
fected.
If dirt, rain or snow accumulates on any of
the cameras
1, the Intelligent Around
View Monitor may not display objects
clearly. Clean the camera by wiping with a
cloth dampened with a diluted mild clean-
ing agent and then wiping with a dry cloth.
Monitor, climate, audio, phone and voice recognition systems4-29
Page 309 of 610

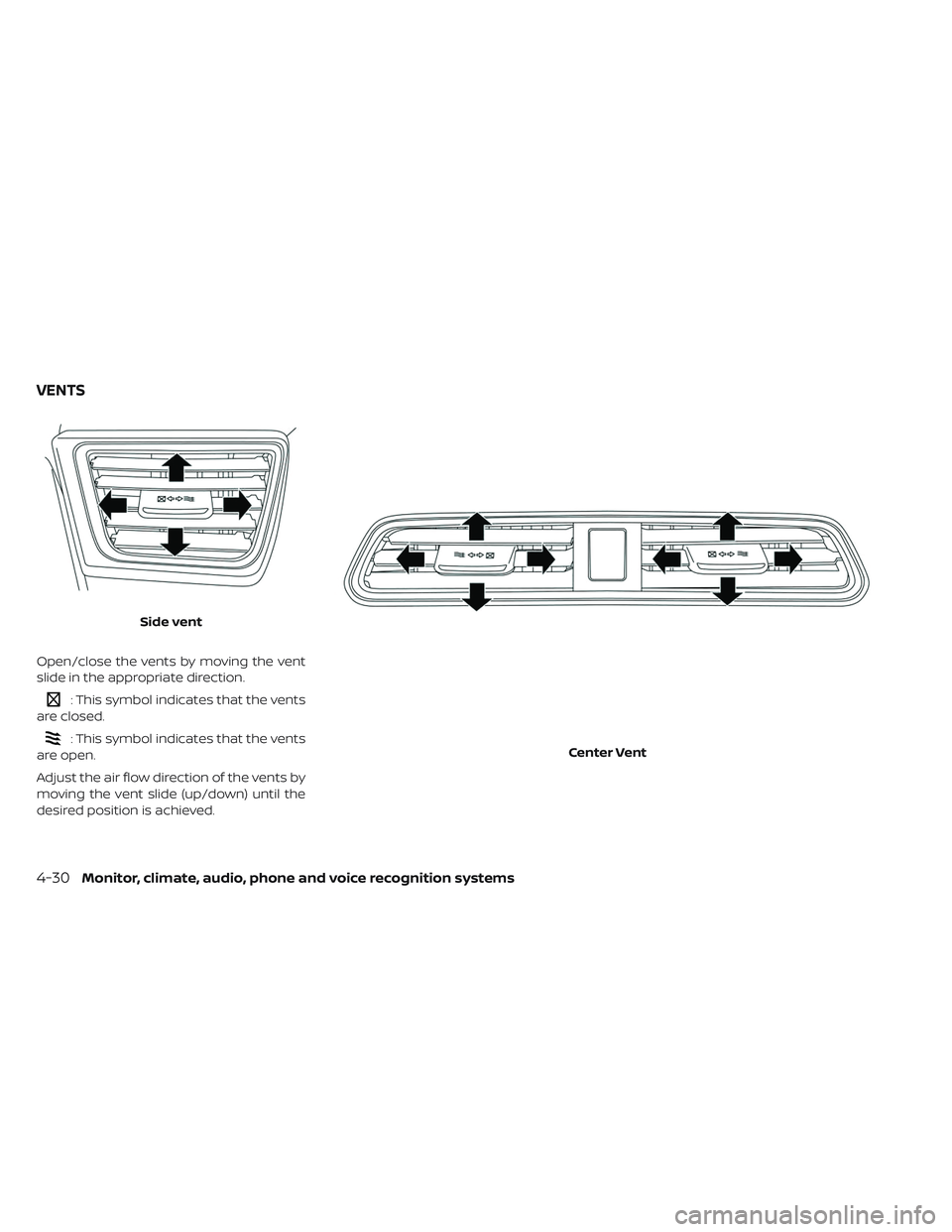

Open/close the vents by moving the vent
slide in the appropriate direction.
: This symbol indicates that the vents
are closed.
: This symbol indicates that the vents
are open.
Adjust the air flow direction of the vents by
moving the vent slide (up/down) until the
desired position is achieved. Side vent
Center Vent
VENTS
4-30Monitor, climate, audio, phone and voice recognition systems
Page 310 of 610

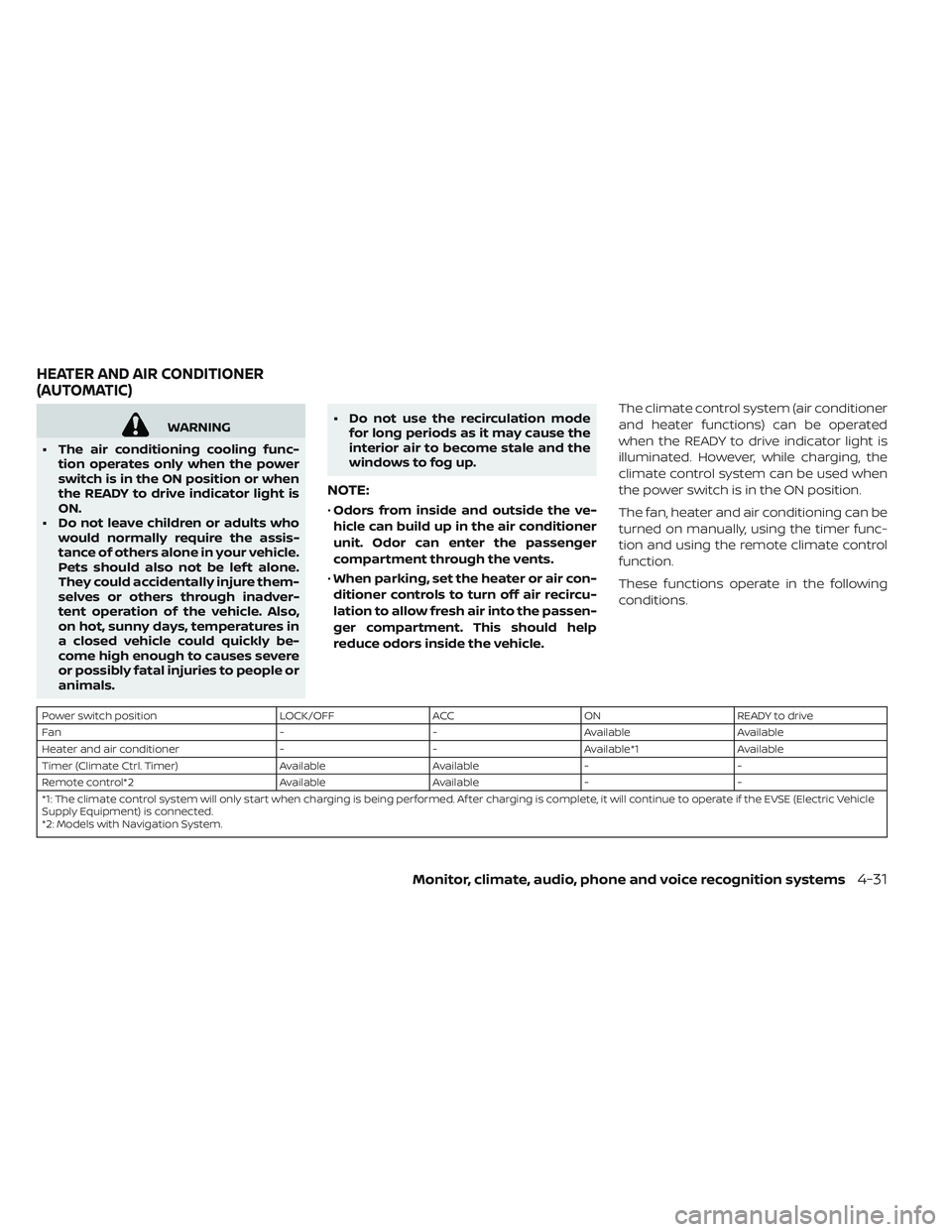

WARNING
• The air conditioning cooling func- tion operates only when the power
switch is in the ON position or when
the READY to drive indicator light is
ON.
• Do not leave children or adults who would normally require the assis-
tance of others alone in your vehicle.
Pets should also not be lef t alone.
They could accidentally injure them-
selves or others through inadver-
tent operation of the vehicle. Also,
on hot, sunny days, temperatures in
a closed vehicle could quickly be-
come high enough to causes severe
or possibly fatal injuries to people or
animals. • Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.
NOTE:
•Odors from inside and outside the ve-
hicle can build up in the air conditioner
unit. Odor can enter the passenger
compartment through the vents.
• When parking, set the heater or air con-
ditioner controls to turn off air recircu-
lation to allow fresh air into the passen-
ger compartment. This should help
reduce odors inside the vehicle. The climate control system (air conditioner
and heater functions) can be operated
when the READY to drive indicator light is
illuminated. However, while charging, the
climate control system can be used when
the power switch is in the ON position.
The fan, heater and air conditioning can be
turned on manually, using the timer func-
tion and using the remote climate control
function.
These functions operate in the following
conditions.
Power switch position
LOCK/OFFACCON READY to drive
Fan --Available Available
Heater and air conditioner --Available*1 Available
Timer (Climate Ctrl. Timer) AvailableAvailable- -
Remote control*2 AvailableAvailable- -
*1: The climate control system will only start when charging is being performed. Af ter charging is complete, it will continue to operate if the EVSE (Electric Vehicle
Supply Equipment) is connected.
*2: Models with Navigation System.
HEATER AND AIR CONDITIONER
(AUTOMATIC)
Monitor, climate, audio, phone and voice recognition systems4-31
