NISSAN MAXIMA 2007 A34 / 6.G Quick Reference Guide

Sh ift_exhilaration
2007
MAXI MA

Q U I C K R E F E R E N C E G U I D E

WINDSHIELD WIPER/WASHER CONTROLSTIRE PRESSURE MONITORING SYSTEM (TPMS)HEADLIGHT AND TURN SIGNAL CONTROL
010203*See your Owner’s Manual for more information.
INSTRUMENT BRIGHTNESS CONTROL*CRUISE CONTROLSTEERING WHEEL SWITCHES FOR AUDIO CONTROL
040506
TRACTION CONTROL SYSTEM (TCS) OFF SWITCH/VEHICLE DYNAMIC CONTROL (VDC) OFF SWITCH*REAR SONAR SYSTEM OFF SWITCHOUTSIDE MIRROR CONTROL SWITCH
070809
CONTROL PANEL DISPLAYHOOD RELEASE*STEERING WHEEL TILT ADJUSTMENT*
101112
03
04
01
02
05
06
14
08
07
11
12
09
10
13
FRONT-PASSENGER

AIR BAG STATUS LIGHTAUDIO SYSTEM
1314
CLIMATE CONTROLS
15
15

STEERING WHEEL SWITCHES FOR AUDIO
CONTROL (if so equipped)
 To choose Preset A, B, C, CD or SAT (if so
equipped) press MODE repeatedly.
 The tuning up or down< > switch can be used to
perform the following:
• Push the< > switch for less than 1.5 seconds
to change to a preset station.
• Push and hold the
< > switch for more than 1.5 seconds to seek the next or previous
broadcasting radio station.
• Push the
< >
switch while playing a CD (if so equipped) for less than 1.5 seconds to

change programs on the CD.
• If the vehicle is equipped with a CD changer, push and hold the
< >
switch for more

than 1.5 seconds to change between CDs.
CRUISE CONTROL
 To activate the cruise control, push the ON.OFF
switch. The indicator light in the instrument panel
will illuminate.
 To set cruising speed, accelerate the vehicle to
desired speed, push the COAST/SET switch
and release it. The SET indicator light in the
instrument panel will illuminate.
 To reset at a faster cruising speed, push and hold the ACCEL/RES switch. When
the vehicle attains the speed you desire, release the switch.
 To reset at a slower cruising speed, push and hold the COAST/SET switch.
Release the switch when the vehicle slows to the desired speed.
 To cancel cruise control, push the CANCEL switch or tap the brake pedal. The SET
indicator light in the instrument panel will go out.
 To resume a preset speed, push and release the ACCEL/RES switch. The
vehicle returns to the last set cruising speed when the vehicle speed is over
25 MPH (40 km/h)
 To turn off cruise control, push the ON.OFF switch. Both the CRUISE indicator light and
the SET light in the instrument panel will go out.
SEAT BELT WARNING LIGHT AND CHIME
 The light and chime remind you to fasten your seat belts. The light illuminates whenever the ignition key is turned to the ON or START position and remains illuminated until the driver’s seat belt is fastened. At the same time, the chime sounds for approximately 6 seconds unless the driver’s seat belt is securely fastened.
 The seat belt warning light may also illuminate if the front passenger’s seat belt is not fastened when the front passenger’s seat is occupied. For 7 seconds after the ignition switch is in the ON position, the system does not activate the warning light for the front passenger.
Refer to the Owner’s Manual for detailed information regarding seat belt usage.

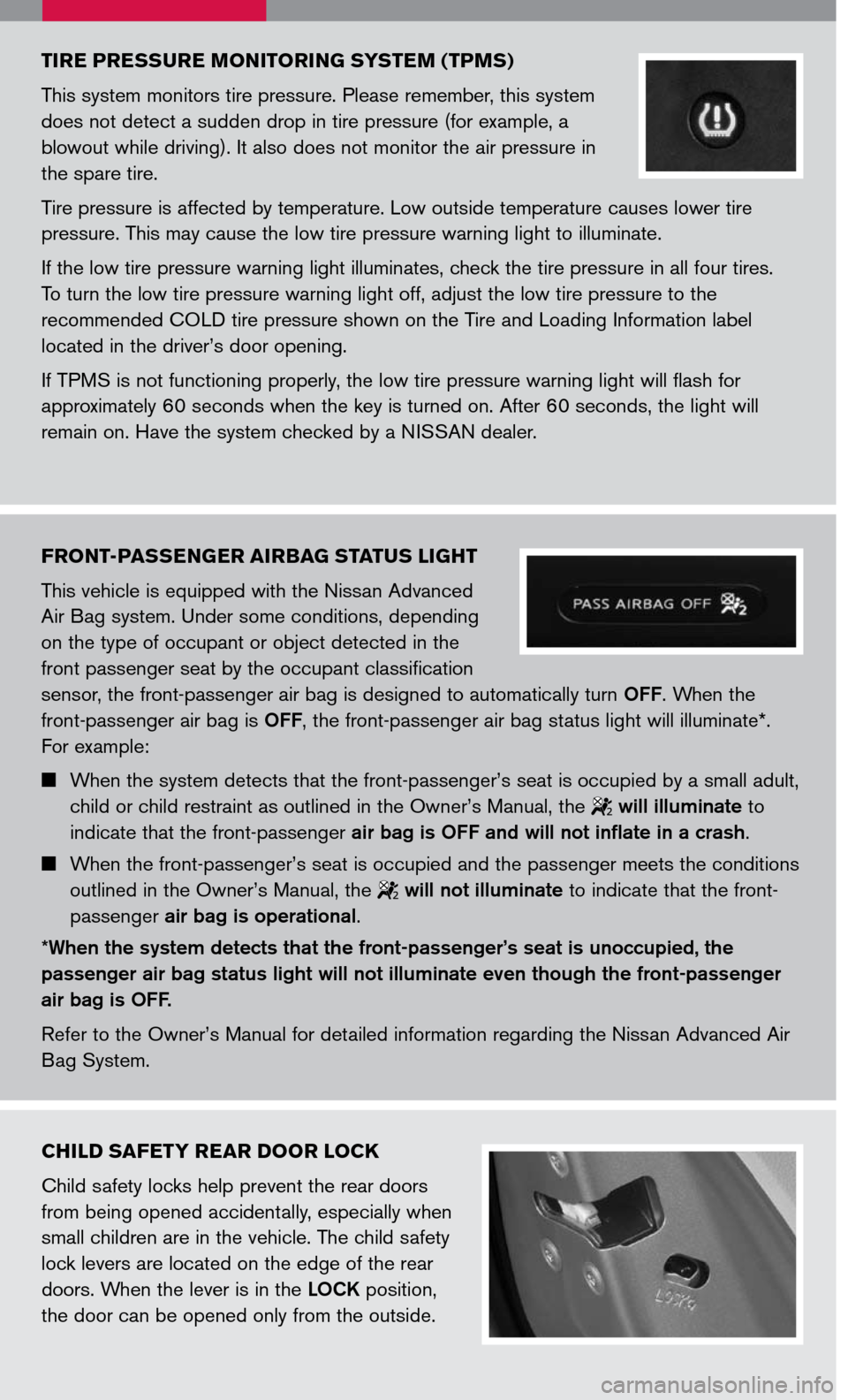

TIRE PRESSURE MONITORING SYSTEM (TPMS)
This system monitors tire pressure. Please remember, this system
does not detect a sudden drop in tire pressure (for example, a
blowout while driving). It also does not monitor the air pressure in
the spare tire.
Tire pressure is affected by temperature. Low outside temperature causes lower tire
pressure. This may cause the low tire pressure warning light to illuminate.
If the low tire pressure warning light illuminates, check the tire pressure in all four tires.
To turn the low tire pressure warning light off, adjust the low tire pressure to the
recommended COLD tire pressure shown on the Tire and Loading Information label
located in the driver’s door opening.
If TPMS is not functioning properly, the low tire pressure warning light will flash for
approximately 60 seconds when the key is turned on. After 60 seconds, the light will
remain on. Have the system checked by a NISSAN dealer.
FRONT-PASSENGER AIRBAG STATUS LIGHT
This vehicle is equipped with the Nissan Advanced
Air Bag system. Under some conditions, depending
on the type of occupant or object detected in the
front passenger seat by the occupant classification
sensor, the front-passenger air bag is designed to automatically turn OFF. When the
front-passenger air bag is OFF, the front-passenger air bag status light will illuminate*.
For example:
 When the system detects that the front-passenger’s seat is occupied by a small adult,
child or child restraint as outlined in the Owner’s Manual, the will illuminate to
indicate that the front-passenger air bag is OFF and will not inflate in a crash.
 When the front-passenger’s seat is occupied and the passenger meets the conditions
outlined in the Owner’s Manual, the will not illuminate to indicate that the front-
passenger air bag is operational.
*When the system detects that the front-passenger’s seat is unoccupied, the
passenger air bag status light will not illuminate even though the front-passenger
air bag is OFF.
Refer to the Owner’s Manual for detailed information regarding the Nissan Advanced Air
Bag System.
CHILD SAFETY REAR DOOR LOCK
Child safety locks help prevent the rear doors
from being opened accidentally, especially when
small children are in the vehicle. The child safety
lock levers are located on the edge of the rear
doors. When the lever is in the LOCK position,
the door can be opened only from the outside.

AUTOMATIC DRIVER POSITIONER
(if so equipped)
The automatic driver positioner system has
two features:
 Memory storage function.
 Entry/exit function.
MEMORY STORAGE FUNCTION
Two positions for the driver’s seat, steering
column, and outside mirrors can be stored
in the automatic driver positioner memory.
Follow these procedures to set driver preferences.
SET THE DESIRED POSITIONING
1. Set the shift selector lever to the P (Park) position.
2. Turn the ignition on and adjust the driver’s seat, steering column, and outside mirrors
to the desired positions.
3. Press the
SET (memory) button and within 5 seconds press the position button (1 or
2) for at least 1 second until the indicator light illuminates. The position is now stored
in memory.
LINK TO KEYFOB
 Within 5 seconds of setting the memory position (indicator light is on and ignition is
on), press the
lpd0151
button on the remote.
 A keyfob can be linked to each memory button.
 If memory positioning is reset to a new location, the keyfob automatically re-links.
RECALLING A MEMORY SETTING FROM THE MEMORY PAD
 With the shift selector lever in the P (Park) position, press the position button (1 or 2)
for at least 1 second.
FROM THE KEYFOB
 If properly linked, operation of the
lpd0151
button will automatically return the driver’s seat,
steering column and outside mirrors to the memorized position.
ENTRY/EXIT FUNCTION
The driver’s seat and steering column automatically move to allow the driver to get
into and out of the driver’s seat more easily. The driver’s seat slides backward and the
steering column moves up when:
 The driver’s door is opened, the ignition switch is in the LOCK position and the shift
selector lever is in the P (Park) position.
The driver’s seat and steering column return to the previous position when:
 The driver’s door is closed and the ignition switch is pushed.

FRONT SEAT ADJUSTMENTS
With manual seats (passenger’s seat if so equipped):
F ORWARD AND BACKWARD
 Pull up on the lever under the front of the seat and slide forward or backward. Release
the lever to lock the seat in position.
R ECLINING
 Lift the lever on the side of the seat to adjust your seatback forward or backward;
release the lever when you have found a comfortable angle and the seat belt fits
properly.
W ITH POWER SEATS
(driver’s seat, if so equipped for passenger’s seat):
F ORWARD AND BACKWARD
 Move the control 01 forward or backward to
adjust the seat cushion forward or backward.
 Pull up on the control 01 to raise the
driver’s seat cushion; press down to lower
the cushion.
R ECLINING

 Push the switch 02 forward to move the seatback
forward; push it back to move the seatback backward.
L UMBAR SUPPORT
(driver’s seat, manual or power, if so equipped):
 Your driver’s seat has a lumbar support; adjust it by moving the manual lever up or
down. Or, if equipped with power lumbar, adjust it by pushing the switch 03 forward
or backward.
02
03
01
FOLDING DOWN THE REAR SEATS
(5 passenger model only)
FROM INSIDE THE VEHICLE
 Press the release button 01 to fold down the
center/passenger’s side rear seat.
 Reach through the opening and pull on the
strap 02 located behind the seat to fold
down the driver’s side rear seat.
F ROM THE TRUNK
 Pull the strap 03 located behind the seat to
fold down the center/passenger’s side rear
seat.
 Pull on the strap 04 located behind the seat
to fold down the driver’s side rear seat.
0304
01
02

AUTOMATIC CLIMATE CONTROL
AUTO BUTTON

Press the AUTO button 01. Turn the driver’s side temperature control dial 02 to the desired temperature. This will allow the fan speed, air flow distribution and temperature to be automatically maintained.
 When AUTO is pressed, AUTO will be displayed. When DUAL is pressed, DUAL will be displayed.
 Press AUTO to automatically control fan speed. Press OFF to cancel fan speed operation.
DRIVER’S SIDE TEMPERATURE CONTROL DIAL
Turn the driver’s temperature control dial left for cold air or right for hot air.
DUAL BUTTON Press the DUAL button to turn the passenger’s side temperature controls on or off. This will allow the passenger’s side temperature to be adjusted independently from driver’s side control.
PASSENGER’S SIDE TEMPERATURE CONTROL DIAL
Turn the passenger’s temperature control dial left for cold air or right for hot air.
AIR FLOW MODE CONTROL BUTTON
Press MODE button repeatedly to scroll through the following air flow outlets:
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
Air flows mainly from the defroster vents.
FAN SPEED CONTROL BUTTONS
Press the fan speed button (faster) or (slower) to manually control fan speed.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
 Press the defroster control button to turn the system on. The A/C automatically turns on when the defroster mode is selected.
 Turn the driver’s side temperature control dial left or right to set the desired temperature.
 To set the defroster on high, press the manual fan speed button then press to set fan speed to maximum.
DEFROSTING/DEFOGGING REAR WINDOW AND (if so equipped) OUTSIDE HEATED MIRROR
Push the rear window defroster switch on. Push the switch again to manually turn the defroster off. This function automatically turns off in approximately 15 minutes.
A/C ON/OFF BUTTON
Press the A/C button to manually turn the A/C on or off.
05
04
08
07
06
03
02
01
02
06
01050703
090810
04
09

SEEK/TRACK BUTTON
 To scan quickly through each broadcasting station, press the SEEK/TRACK
button.
 To skip from one track to another on a CD, press the SEEK/TRACK button.
DISP BUTTON
To show CD or SAT* information in the audio display, press the DISP button.
TUNE/FOLDER· CAT BUTTON
 To manually tune the radio, press the TUNE button.
 When the TUNE button is pressed while a CD is playing, it will fast forward or
rewind. When the button is released, the CD will play at normal speed.
 MP3 PL AYBACK (if so equipped)
In addition to playing audio CDs, the audio system can play MP3 files recorded on
CD-ROM, CD-R, and CD-RW discs. Each disc can have a maximum of 8 folder
levels and 255 folders. A total of 512 MP3 files can be played back. During MP3
playback, some recorded ID3 tag information can be displayed by pressing the
DISP button. Use the FOLDER · CAT button to navigate the MP3 files.
SCAN/RPT BUTTON
Press the SCAN RPT button to stop at each broadcasting station (AM, FM or SAT*)
for 5 seconds. Pressing the button again during this 5-second period will stop scan
tuning and the radio will remain tuned to that station.
PRESET A · B · C BUTTON
Press the PRESET A.B.C button until you reach the desired setting. The radio is
equipped with three separate banks, each with six station presets. You may store
any combination of FM, AM or SAT* radio presets on each bank.
FM/AM/SAT* BUTTONS
Pressing the FM, AM or SAT* radio select button will change the band to either FM,
AM or SAT* radio stations.
05
04
03
02
01
06
FM/AM/SAT* RADIO WITH CD CHANGER (if so equipped)
01
03
05
08
02
04
0607
09
10
11

07
08
AUX BUTTON
Press the AUX button to play a compatible device such as an MP3 player when it is
plugged into the auxiliary jack.
LOAD BUTTON
LOAD A SINGLE DISC - Press the LOAD button for less than 1.5 seconds. Select
the loading slot by pressing the CD insert select button (1- 6), then insert the CD.
LOAD UP TO 6 DISCS - Press and hold the LOAD button for more than 1.5
seconds. The slot numbers (1- 6) will illuminate on the display when CDs are loaded
into the changer.
STATION AND CD SELECT BUTTONS
To store a station in a preset you must first select A, B, or C memory bank by
pressing the PRESET A·B·C button and tune to the desired FM, AM or SAT*
station. Then press and hold the desired station select button for at least 2
seconds. When the preset indicator illuminates, a beep will sound, indicating
memorization is complete. To retrieve a previously set station, select the memory
bank where the preset was set, then press the corresponding station select button.
TUNING AND AUDIO CONTROL KNOB
To manually tune the radio, turn the TUNE knob. To adjust the Bass, Midrange,
Treble, Fade, Balance, and Speed Sensitive Volume (SSV) (if so equipped), press
the AUDIO knob until the desired mode appears in the display. Then turn the
TUNE knob to adjust to the desired level.
EJECT BUTTON
EJECT A SINGLE DISC - Press the button for less than 1.5 seconds. Select the
eject slot by pressing the CD insert select button (1 to 6). The CD will then eject.
09
11
CONTROL PANEL DISPLAY
WITH NAVIGATION SYSTEM
(if so equipped)
TRIP BUTTON
When the TRIP button is pressed,
the following modes will display on the
screen:
 Warning messages (if there are any)
 TRIP 1 (Elapsed Time, Driving
Distance, Average Speed)
 TRIP 2 (Elapsed Time, Driving Distance, Average Speed)
 FUEL ECONOMY (Average Fuel Economy, Distance to Empty)
 MAINTENANCE (Engine Oil, Tire Rotation and Tire Pressure)
 OFF
10
EJECT ALL DISCS - Press and hold the button for more than 1.5 seconds.
* SAT presets are only available on SAT equipped vehicles.

MAINTENANCE ITEMS
You can set the engine oil and the tire rotation interval. To display the setting of the
maintenance interval, select the ENGINE OIL or TIRE ROTATION key using the
joystick and press the ENTER button. To set the maintenance interval, select the
M AINTENANCE SCHEDULE
key using the joystick and push the joystick to the right or
left. To reset the maintenance interval, select the RESET key using the joystick and press
the ENTER button.
DISPLAY SCREEN SETTINGS
The SETTING screen will appear when the SETTING button is pressed. Select the
DISPLAY key with the joystick and press the ENTER button to choose from various
display screen options. The DISPLAY key will allow you to personalize the information
shown on the display screen, such as climate control or audio system display.
CLOCK SET/ADJUSTMENT
The clock on the display screen can be adjusted using the joystick by the following
procedure:
 Press the SETTING button, then select SYSTEM SETTINGS from the menu on the
display screen.
 Next select CLOCK to enter the CLOCK SETTINGS mode.
 Then select the HOURS or MINUTES key and hold the joystick left or right to adjust
the time. After the desired time is shown on the display screen, press the BACK
button to store.
Refer to your Owner’s Manual and Navigation System Owner’s Manual for additional
information on your navigation system.
I NTELLIGENT KEY SYSTEM
The Intelligent Key system allows you to lock or unlock your
vehicle, open your trunk and start the engine.
NOTE
: It is important to make sure the Intelligent Key is
with you (that is, in your pocket or purse).
 The operating range of the door and trunk lock/unlock
function is approximately 31 in (0.8 m).
 Locking the vehicle - Push any door handle Request
Switch 01 once.
 Unlocking the vehicle - Push any door handle Request
Switch 01 once. The corresponding door will unlock.
Push the door handle Request Switch 01 again within
1 minute; all other doors will unlock.
STARTING THE ENGINE
 Push the ignition knob in.
 Confirm the Intelligent Key warning light is illuminated
green.
 Turn the ignition knob to start the engine.
01
