Engine coolant*:Replace coolant at the
specified interval. When adding or replac-
ing coolant, be sure to use only Genuine
NISSAN Long Life Antifreeze/Coolant (blue)
or equivalent with the proper mixture. (For
additional information on the proper mix-
ture for your area, refer to “Engine cooling
system” in the “Do-it-yourself ” section of
this manual.)
NOTE: Mixing any other type of coolant or
the use of non-distilled water may reduce
the recommended service interval of the
coolant.
Engine oil and oil filter: Replace engine oil
and oil filter at the specified intervals. For
recommended oil grade and viscosity refer
to “Recommended fluids/lubricants and
capacities” in the “Technical and consumer
information” section of this manual.
Fuel lines*: Check the fuel hoses, piping
and connections for leaks, looseness, or
deterioration. Tighten connections or re-
place parts as necessary.
Spark plugs: Replace at specified intervals.
Install new plugs of the same type as origi-
nally equipped.CHASSIS AND BODY
MAINTENANCE:
Brake lines and cables: Visually inspect for
proper installation. Check for chafing,
cracks, deterioration, and signs of leaking.
Replace any deteriorated or damaged
parts immediately.
Brake pads and rotors: Check for wear,
deterioration and fluid leaks. Replace any
deteriorated or damaged parts immedi-
ately.
Exhaust system: Visually inspect the ex-
haust pipes, muffler and hangers for leaks,
cracks, deterioration, and damage. Tighten
connections or replace parts as necessary.
In-cabin microfilter: Replace at specified
intervals. When driving for prolonged peri-
ods in dusty conditions, replace the filter
more frequently.
Steering gear and linkage, axle and sus-
pension parts, drive shaf t boots: Check
for damage, looseness, and leakage of oil
or grease. Under severe driving conditions,
inspect more frequently. Tire rotation:
Tires should be rotated every
5,000 miles (8,000 km) according to the in-
structions under “General maintenance” in
this section. When rotating tires, check for
damage and uneven wear. Replace if nec-
essary.
Transmission fluid/oil: Visually inspect for
signs of leakage at specified intervals.
If towing a trailer, using a camper or car-top
carrier, or driving on rough or muddy roads,
replace the CVT fluid every 60,000 miles
(96,000 km) or request the dealer to inspect
the fluid deterioration data using a CON-
SULT. If the deterioration data is more than
210000, replace the CVT fluid.
9-6Maintenance and schedules

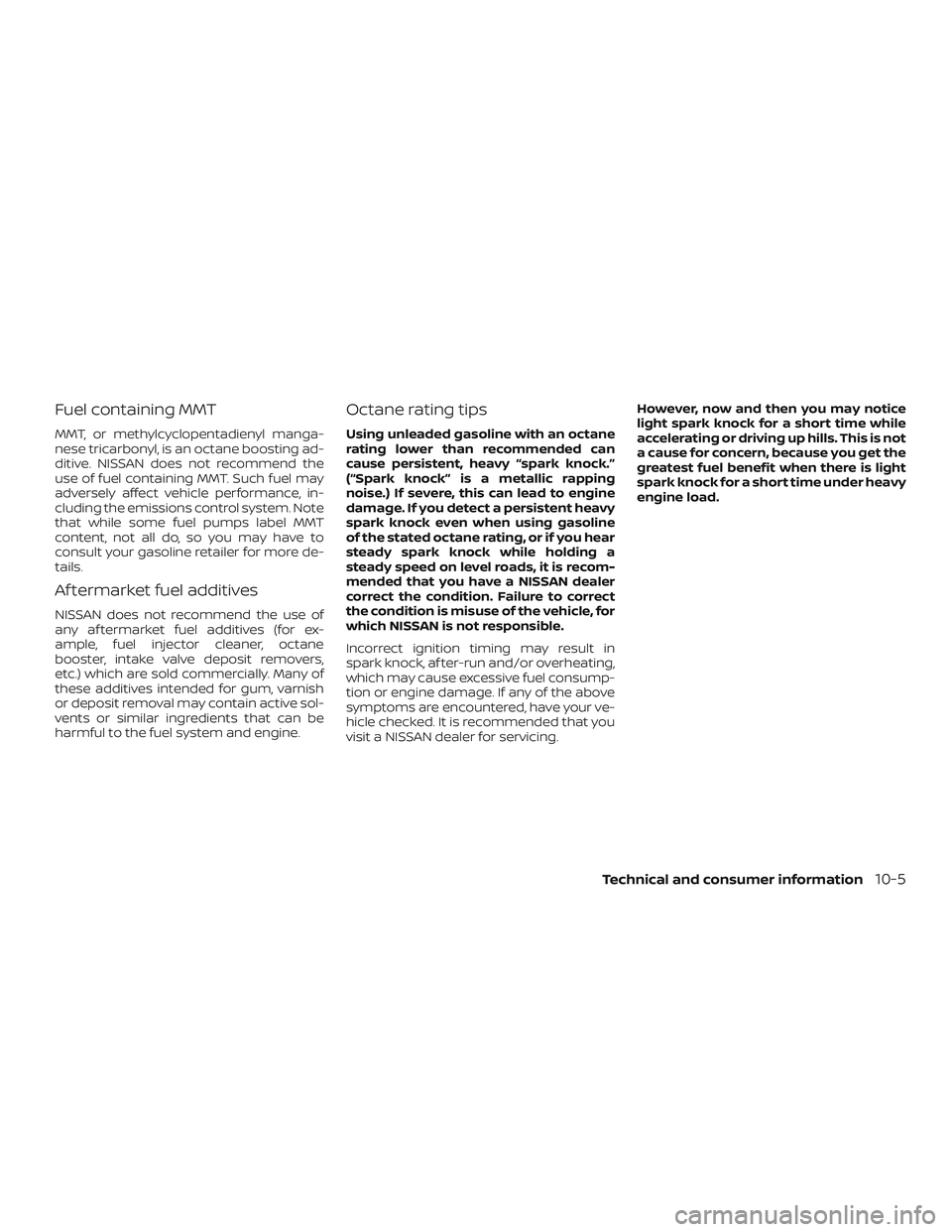

Fuel containing MMT
MMT, or methylcyclopentadienyl manga-
nese tricarbonyl, is an octane boosting ad-
ditive. NISSAN does not recommend the
use of fuel containing MMT. Such fuel may
adversely affect vehicle performance, in-
cluding the emissions control system. Note
that while some fuel pumps label MMT
content, not all do, so you may have to
consult your gasoline retailer for more de-
tails.
Af termarket fuel additives
NISSAN does not recommend the use of
any af termarket fuel additives (for ex-
ample, fuel injector cleaner, octane
booster, intake valve deposit removers,
etc.) which are sold commercially. Many of
these additives intended for gum, varnish
or deposit removal may contain active sol-
vents or similar ingredients that can be
harmful to the fuel system and engine.
Octane rating tips
Using unleaded gasoline with an octane
rating lower than recommended can
cause persistent, heavy “spark knock.”
(“Spark knock” is a metallic rapping
noise.) If severe, this can lead to engine
damage. If you detect a persistent heavy
spark knock even when using gasoline
of the stated octane rating, or if you hear
steady spark knock while holding a
steady speed on level roads, it is recom-
mended that you have a NISSAN dealer
correct the condition. Failure to correct
the condition is misuse of the vehicle, for
which NISSAN is not responsible.
Incorrect ignition timing may result in
spark knock, af ter-run and/or overheating,
which may cause excessive fuel consump-
tion or engine damage. If any of the above
symptoms are encountered, have your ve-
hicle checked. It is recommended that you
visit a NISSAN dealer for servicing.However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not
a cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
Technical and consumer information10-5

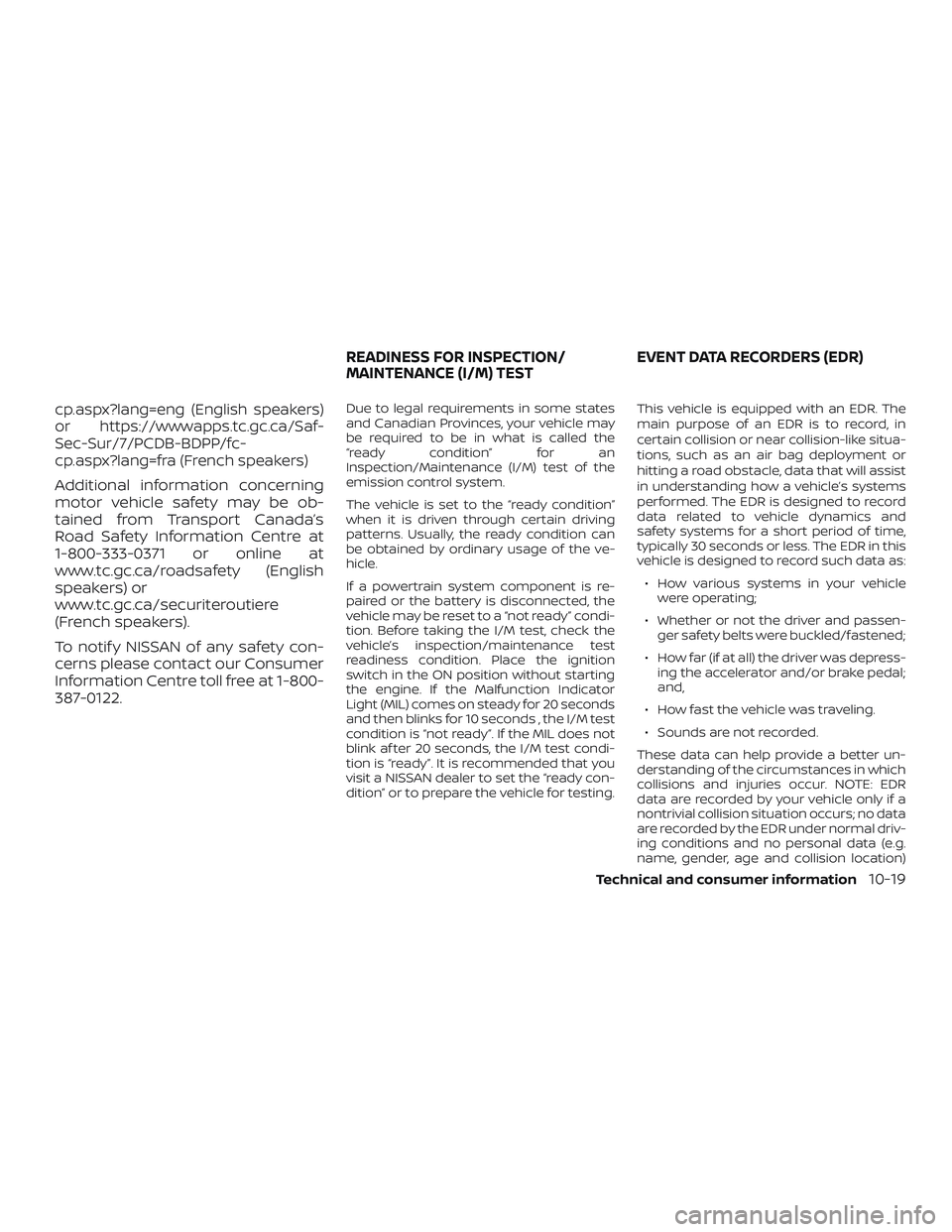

cp.aspx?lang=eng (English speakers)
or https://wwwapps.tc.gc.ca/Saf-
Sec-Sur/7/PCDB-BDPP/fc-
cp.aspx?lang=fra (French speakers)
Additional information concerning
motor vehicle safety may be ob-
tained from Transport Canada’s
Road Safety Information Centre at
1-800-333-0371 or online at
www.tc.gc.ca/roadsafety (English
speakers) or
www.tc.gc.ca/securiteroutiere
(French speakers).
To notif y NISSAN of any safety con-
cerns please contact our Consumer
Information Centre toll free at 1-800-
387-0122.
Due to legal requirements in some states
and Canadian Provinces, your vehicle may
be required to be in what is called the
“ready condition” for an
Inspection/Maintenance (I/M) test of the
emission control system.
The vehicle is set to the “ready condition”
when it is driven through certain driving
patterns. Usually, the ready condition can
be obtained by ordinary usage of the ve-
hicle.
If a powertrain system component is re-
paired or the battery is disconnected, the
vehicle may be reset to a “not ready” condi-
tion. Before taking the I/M test, check the
vehicle’s inspection/maintenance test
readiness condition. Place the ignition
switch in the ON position without starting
the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds
and then blinks for 10 seconds , the I/M test
condition is “not ready”. If the MIL does not
blink af ter 20 seconds, the I/M test condi-
tion is “ready”. It is recommended that you
visit a NISSAN dealer to set the “ready con-
dition” or to prepare the vehicle for testing.This vehicle is equipped with an EDR. The
main purpose of an EDR is to record, in
certain collision or near collision-like situa-
tions, such as an air bag deployment or
hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems
performed. The EDR is designed to record
data related to vehicle dynamics and
safety systems for a short period of time,
typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as:
∙ How various systems in your vehicle were operating;
∙ Whether or not the driver and passen- ger safety belts were buckled/fastened;
∙ How far (if at all) the driver was depress- ing the accelerator and/or brake pedal;
and,
∙ How fast the vehicle was traveling.
∙ Sounds are not recorded.
These data can help provide a better un-
derstanding of the circumstances in which
collisions and injuries occur. NOTE: EDR
data are recorded by your vehicle only if a
nontrivial collision situation occurs; no data
are recorded by the EDR under normal driv-
ing conditions and no personal data (e.g.
name, gender, age and collision location)
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST EVENT DATA RECORDERS (EDR)
Technical and consumer information10-19

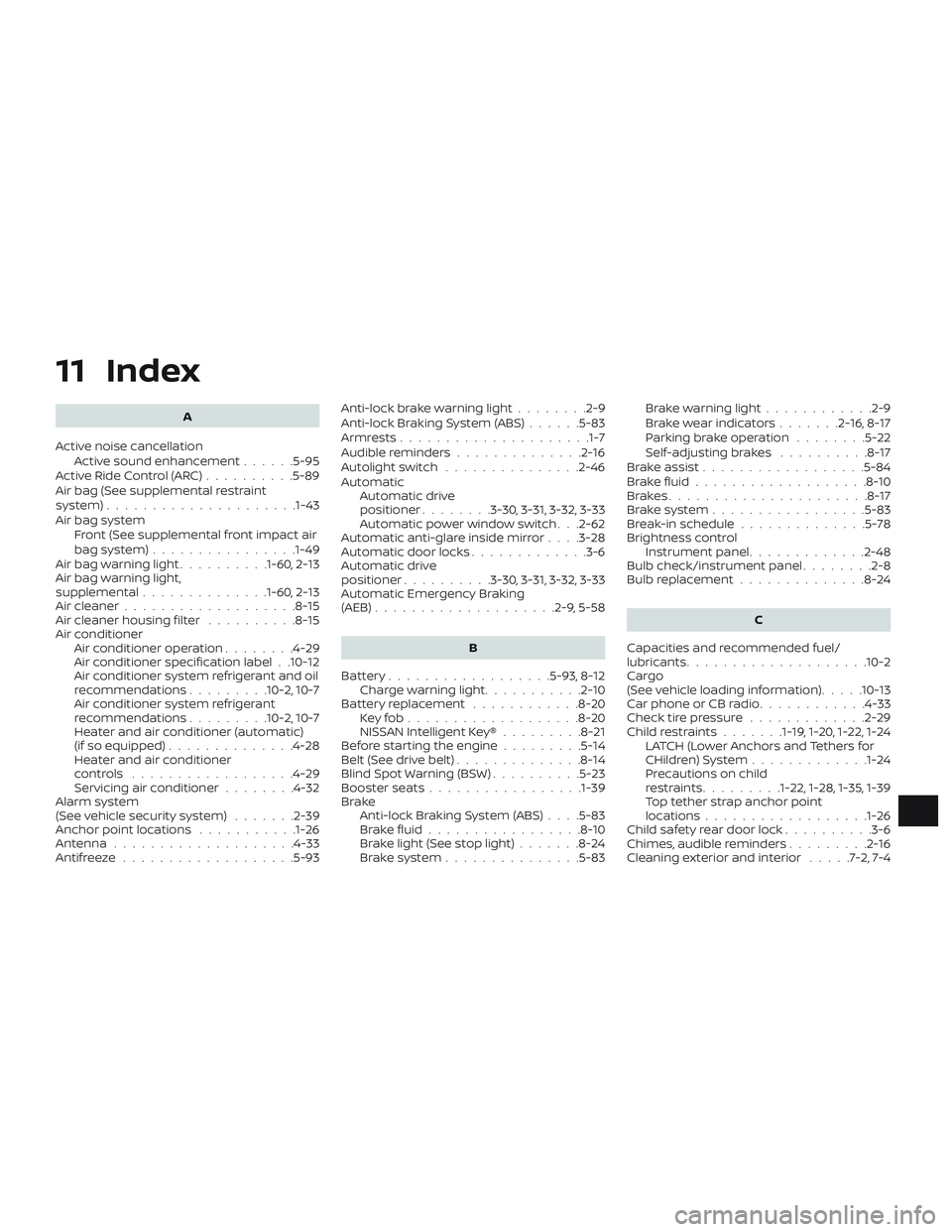

11 Index
A
Active noise cancellation Active sound enhancement ......5-95
ActiveRideControl(ARC)..........5-89
Air bag (See supplemental restraint
system) .................... .1-43
Air bag system Front (See supplemental front impact air
bagsystem)............... .1-49
Airbagwarninglight..........1-60, 2-13
Air bag warning light,
supplemental ..............1-60, 2-13
Air cleaner ...................8-15
Air cleaner housing filter ..........8-15
Air conditioner Air conditioner operation ........4-29
Air conditioner specification label . .10-12
Air conditioner system refrigerant and oil
recommendations .........10-2,10-7
Air conditioner system refrigerant
recommendations .........10-2,10-7
Heater and air conditioner (automatic)
(if so equipped) ..............4-28
Heater and air conditioner
controls ..................4-29
Servicing air conditioner ........4-32
Alarm system
(See vehicle security system) .......2-39
Anchor point locations ...........1-26
Antenna ....................4-33
Antifreeze ...................5-93 Anti-lock brake warning light
........2-9
Anti-lock Braking System (ABS) ......5-83
Armrests.................... .1-7
Audible reminders ..............2-16
Autolightswitch ...............2-46
Automatic Automatic drive
positioner ........3-30,3-31,3-32,3-33
Automatic power window switch . . .2-62
Automatic anti-glare inside mirror ....3-28
Automatic door locks .............3-6
Automatic drive
positioner ..........3-30,3-31,3-32,3-33
Automatic Emergency Braking
(AEB) ....................2-9,5-58
B
Battery..................5-93,8-12 Charge warning light ...........2-10
Battery replacement ............8-20
Keyfob...................8-20
NISSAN Intelligent Key® .........8-21
Before starting the engine .........5-14
Belt(Seedrivebelt)..............8-14
Blind Spot Warning (BSW) ..........5-23
Booster seats .................1-39
Brake Anti-lock Braking System (ABS) ....5-83
Brakefluid.................8-10
Brakelight(Seestoplight).......8-24
Brakesystem...............5-83 Brakewarninglight............2-9
Brakewearindicators.......2-16,8-17
Parking brake operation
........5-22
Self-adjustingbrakes ..........8-17
Brakeassist..................5-84
Brakefluid...................8-10
Brakes......................8-17
Brakesystem.................5-83
Break-in schedule ..............5-78
Brightness control Instrument panel .............2-48
Bulb check/instrument panel ........2-8
Bulb replacement ..............8-24
C
Capacities and recommended fuel/
lubricants....................10-2
Cargo
(See vehicle loading information) .....10-13
Car phone or CB radio ............4-33
Check tire pressure .............2-29
C

hildrestraints.......1-19, 1-20, 1-22, 1-24 LATCH (Lower Anchors and Tethers for
CHildren)System.............1-24
Precautions on child
restraints.........1-22, 1-28, 1-35, 1-39
Top tether strap anchor point
locations................. .1-26
Child safety rear door lock ..........3-6
Chimes, audible reminders .........2-16
Cleaningexteriorandinterior .....7-2,7-4

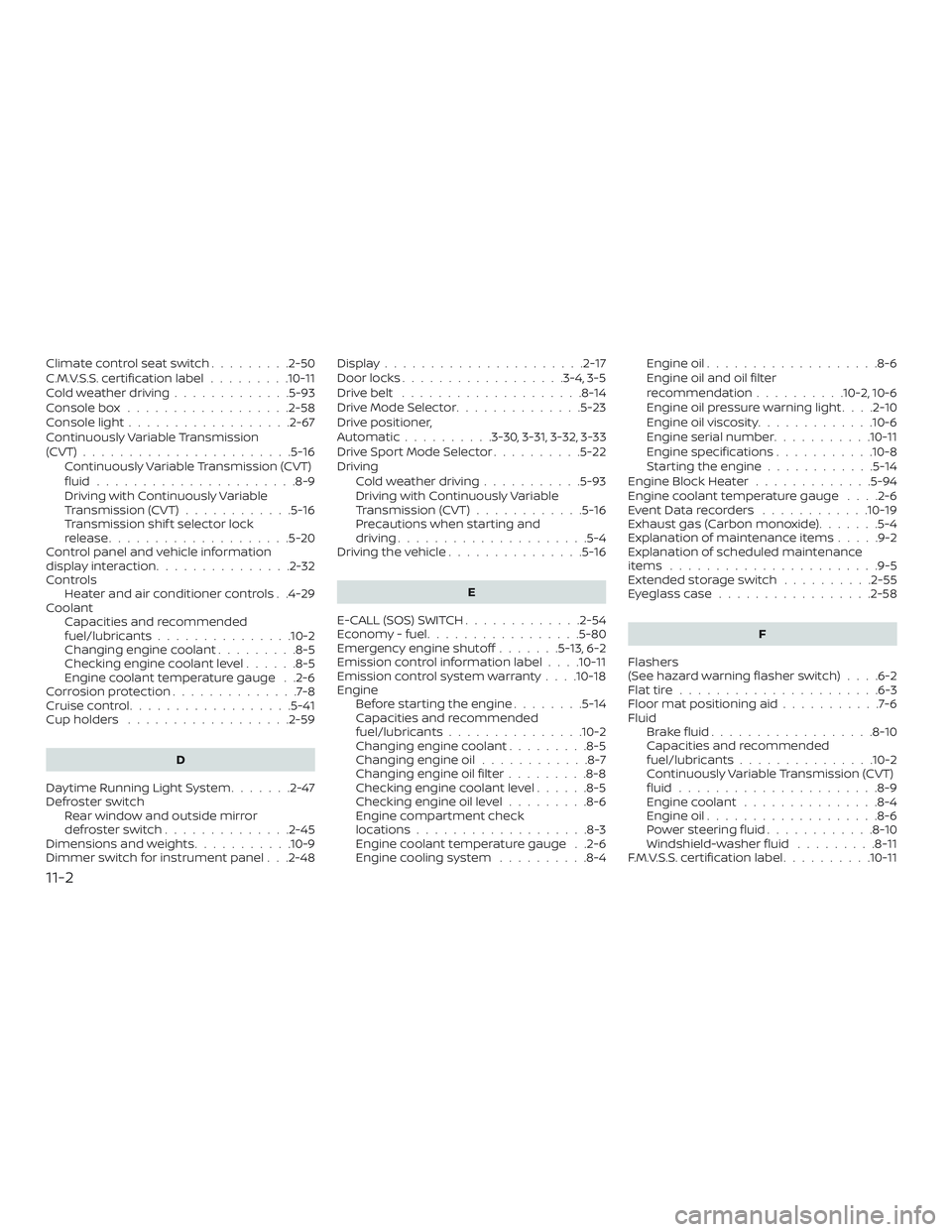

Climatecontrolseatswitch.........2-50
C.M.V.S.S. certification label.........10-11
Coldweatherdriving.............5-93
Console box ..................2-58
Console light ..................2-67
Continuously Variable Transmission
(CVT) .......................5-16
Continuously Variable Transmission (CVT)
fluid......................8-9
Driving with Continuously Variable
Transmission (CVT) ............5-16
Transmission shif t selector lock
release....................5-20
Control panel and vehicle information
displayinteraction...............2-32
Controls Heater and air conditioner controls . .4-29
Coolant Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant .........8-5
Checking engine coolant level ......8-5
Engine coolant temperature gauge . .2-6
Corrosionprotection..............7-8
Cruisecontrol..................5-41
Cupholders ..................2-59
D
Daytime Running Light System .......2-47
Defroster switch Rear window and outside mirror
defrosterswitch..............2-45
Dimensions and weights ...........10-9
Dimmer switch for instrument panel . . .2-48 Display......................2-17
Door locks
..................3-4,3-5
Drivebelt ....................8-14
Drive Mode Selector ..............5-23
Drive positioner,
Automatic..........3-30,3-31,3-32,3-33
Drive Sport Mode Selector ..........5-22
Driving Cold weather driving ...........5-93
Driving with Continuously Variable
Transmission (CVT) ............5-16
Precautions when starting and
driving.....................5-4
Drivingthevehicle...............5-16
E
E-CALL (SOS) SWITCH .............2-54
Economy - fuel .................5-80
Emergency engine shutoff .......5-13,6-2
Emission control information label . . . .10-11
Emission control system warranty . . . .10-18
Engine Before starting the engine ........5-14
Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant .........8-5
Changing engine oil ............8-7
Changing engine oil filter .........8-8
Checking engine coolant level ......8-5
Checking engine oil level .........8-6
Engine compartment check
locations...................8-3
Engine coolant temperature gauge . .2-6
Engine cooling system ..........8-4 Engine oil
...................8-6
Engine oil and oil filter
recommendation ..........10-2,10-6
Engine oil pressure warning light . . . .2-10
Engine oil viscosity .............10-6
Engine serial number ...........10-11
Engine specifications ...........10-8
Starting the engine ............5-14
Engine Block Heater .............5-94
Engine coolant temperature gauge ....2-6
EventDatarecorders ............10-19
Exhaust gas (Carbon monoxide) .......5-4
Explanation of maintenance items .....9-2
Explanation of scheduled maintenance
items .......................9-5
Extended storage switch ..........2-55
Eyeglasscase.................2-58
F
Flashers
(Seehazardwarningflasherswitch)....6-2
Flattire......................6-3
Floormatpositioningaid...........7-6
Fluid Brakefluid..................8-10
Capacities and recommended
fuel/lubricants...............10-2
Continuously Variable Transmission (CVT)
f
luid......................8-9
Engine coolant ...............8-4
Engine oil ...................8-6
Powersteeringfluid............8-10
Windshield-washer fluid .........8-11
F.M.V.S.S. certification label ..........10-11
11-2

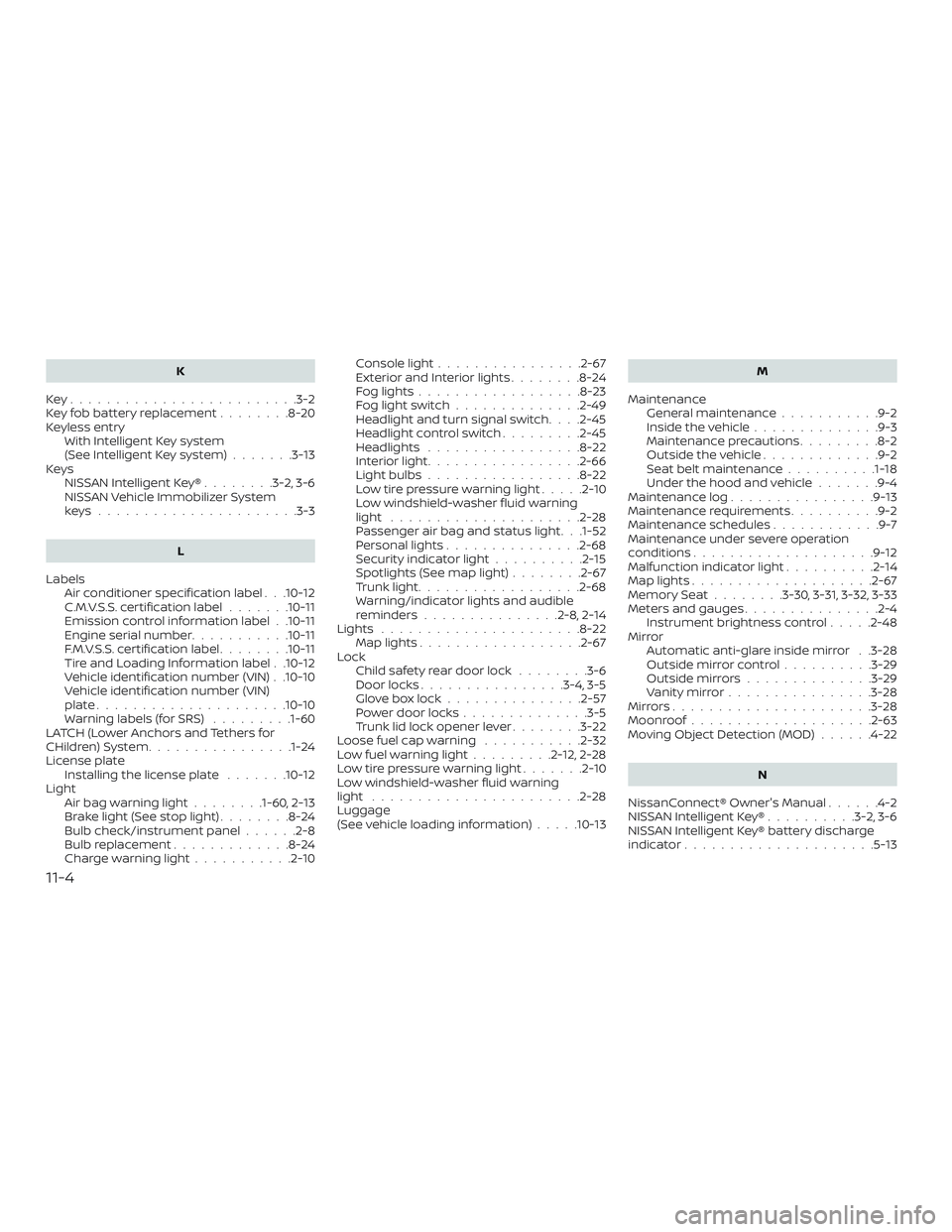

K
Key.........................3-2
Key fob battery replacement ........8-20
Keyless entry With Intelligent Key system
(See Intelligent Key system) .......3-13
Keys NISSAN Intelligent Key® ........3-2,3-6
NISSAN Vehicle Immobilizer System
keys......................3-3
L
Labels Air conditioner specification label . . .10-12
C.M.V.S.S. certification label .......10-11
Emission control information label . .10-11
Engine serial number ...........10-11
F.M.V.S.S. certification label ........10-11
Tire and Loading Information label . .10-12
Vehicle identification number (VIN) . .10-10
Vehicle identification number (VIN)
plate.....................10-10
Warning labels (for SRS) .........1-60
LATCH (Lower Anchors and Tethers for
CHildren)System............... .1-24
License plate Installing the license plate .......10-12
Light Airbagwarninglight........1-60, 2-13
Brakelight(Seestoplight)........8-24
Bulb check/instrument panel ......2-8
Bulb replacement .............8-24
Charge warning light ...........2-10 Console light
................2-67
ExteriorandInteriorlights........8-24
Foglights..................8-23
Foglightswitch..............2-49
Headlight and turn signal switch ....2-45
Headlightcontrolswitch.........2-45
Headlights .................8-22
Interiorlight.................2-66
Lightbulbs.................8-22
Low tire pressure warning light .....2-10
Low windshield-washer fluid warning
light .....................2-28
Passenger air bag and status light. . .1-52
Personal lights ...............2-68
Security indicator light ..........2-15
Spotlights(Seemaplight)........2-67
Trunklight..................2-68
Warning/indicator lights and audible
reminder s...............2-8,2-14
Lights ......................8-22 Maplights..................2-67
Lock Child safety rear door lock ........3-6
Door locks ................3-4,3-5
Gloveboxlock...............2-57
Power door locks ..............3-5
Trunk lid lock opener lever ........3-22
Loose fuel cap warning ...........2-32
Lowfuelwarninglight.........2-12,2-28
Low tire pressure warning light .......2-10
Low windshield-washer fluid warning
light .......................2-28
Luggage
(See vehicle loading information) .....10-13 M
Maintenance General maintenance ...........9-2
Insidethevehicle..............9-3
Maintenance precautions .........8-2
Outsidethevehicle.............9-2
Seat belt maintenance ..........1-18
Under the hood and vehicle .......9-4
Maintenance log ................9-13
Maintenance requirements ..........9-2
Maintenance schedules ............9-7
Maintenance under severe operation
conditions....................9-12
Malfunctionindicatorlight..........2-14
Maplights....................2-67
Memory Seat ........3-30,3-31,3-32,3-33
Meters and gauges ...............2-4
Instrument brightness control .....2-48
Mirror Automatic anti-glare inside mirror . .3-28
Outsidemirrorcontrol..........3-29
Outsidemirrors..............3-29
Vanitymirror................3-28
Mirrors......................3-28
Moonroof ....................2-63
Moving Object Detection (MOD) ......4-22
N
NissanConnect® Owner's Manual ......4-2
NISSAN Intelligent Key® ..........
3-2,3-6
NISSAN Intelligent Key® battery discharge
indicator.....................5-13
11-4

NISSAN Vehicle Immobilizer
System...................2-41,5-14O
Octane rating (See fuel octane rating). . .10-5
Odometer ....................2-5
Oil Capacities and recommended
fuel/lubricants...............10-2
Changing engine oil ............8-7
Changing engine oil filter .........8-8
Checking engine oil level .........8-6
Engine oil ...................8-6
Engine oil and oil filter
recommendation ..........10-2,10-6
Engine oil viscosity .............10-6
Outsidemirrorcontrol............3-29
Outsidemirrors................3-29
Overhead sunglasses holder ........2-58
Overheat Ifyourvehicleoverheats.........6-10
Owner's manual order form ........10-20
Owner's manual/service manual order
information..................10-20
P
Parking Parking brake operation .........5-22
Parking/parkingonhills.........5-81
Parkingbrake..................5-22
Personal lights .................2-68 Power
Power door locks ..............3-5
Poweroutlet................2-54
Powerrearwindows ...........2-61
Powersteeringfluid............8-10
Power steering system .........5-82
Powerwindows..............2-60
Rearpowerwindows...........2-61
Poweroutlet..................2-54
Powersteering.................5-82
Powersteeringfluid..............8-10
Precautions Maintenance precautions .........8-2
Precautions on booster
seats............1-22, 1-28, 1-35, 1-39
Precautions on child
restraints.........1-22, 1-28, 1-35, 1-39
Precautions on seat belt usage .....1-11
Precautions on supplemental restraint
system ................... .1-43
Precautions when starting and
driving.....................5-4
Push starting ..................6-10
R
Radio Car phone or CB radio ..........4-33
Rain-sensing auto wiper system ......2-44
Readiness for inspection maintenance
(I/M) test ....................10-19
RearCrossTrafficAlert(RCTA)........5-33
Rear power sunshade ............2-65
Rearpowerwindows.............2-61
Rearseat.................... .1-5Rear sun shade
................2-65
RearViewMonitor................4-3
Rear window and outside mirror defroster
switch......................2-45
Recommended Fluids ............10-2
Recorders EventData.................10-19
Refrigerant recommendation .....10-2,10-7
Registering a vehicle in another
country .....................10-10
Remote Engine Start ..........3-18,5-15
Reporting safety defects (US only) . . . .10-18
S
Safety Child safety rear door lock ........3-6
Childseatbelts .....1-22, 1-28, 1-35, 1-39
Reporting safety defects (US only) . .10-18
Seat adjustment Front power seat adjustment .......1-3
Seatback pockets ...............2-56
Seat belt Childsafety................ .1-19
Infants and small children ........1-20
InjuredPerson............... .1-14
L
argerchildren.............. .1-20
Precautionsonseatbeltusage.....1-11
Pregnant women ..............1-14
Seat belt extenders ............1-18
Seat belt maintenance ..........1-18
Seatbelts................1-11, 7-7
Shoulder belt height adjustment . . . .1-18
Three-pointtypewithretractor.....1-14
Seat belt extenders ..............1-18
11-5
