Page 351 of 492

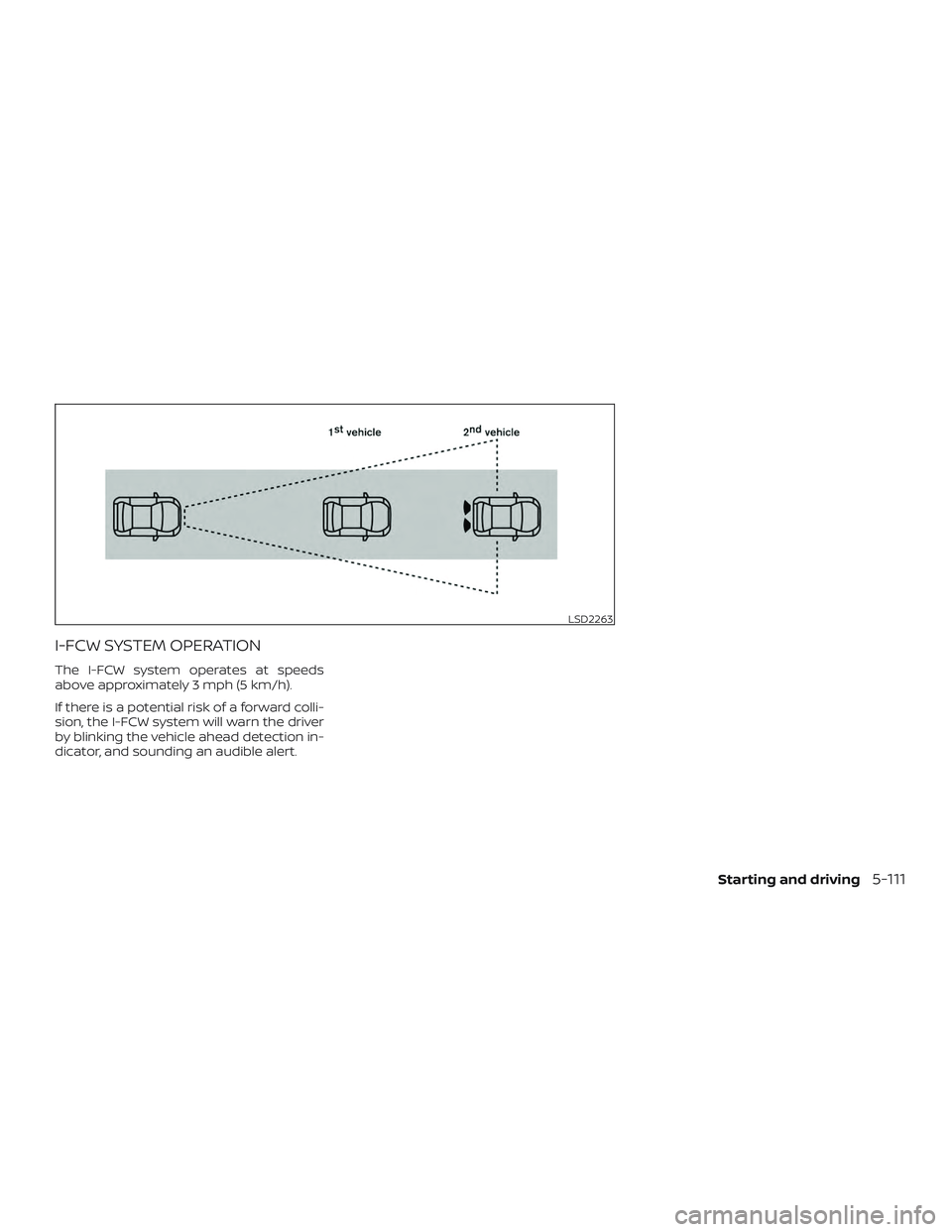

NISSAN MAXIMA 2019  Owner´s Manual I-FCW SYSTEM OPERATION
The I-FCW system operates at speeds
above approximately 3 mph (5 km/h).
If there is a potential risk of a forward colli-
sion, the I-FCW system will warn the driver
by blinking

Page 352 of 492

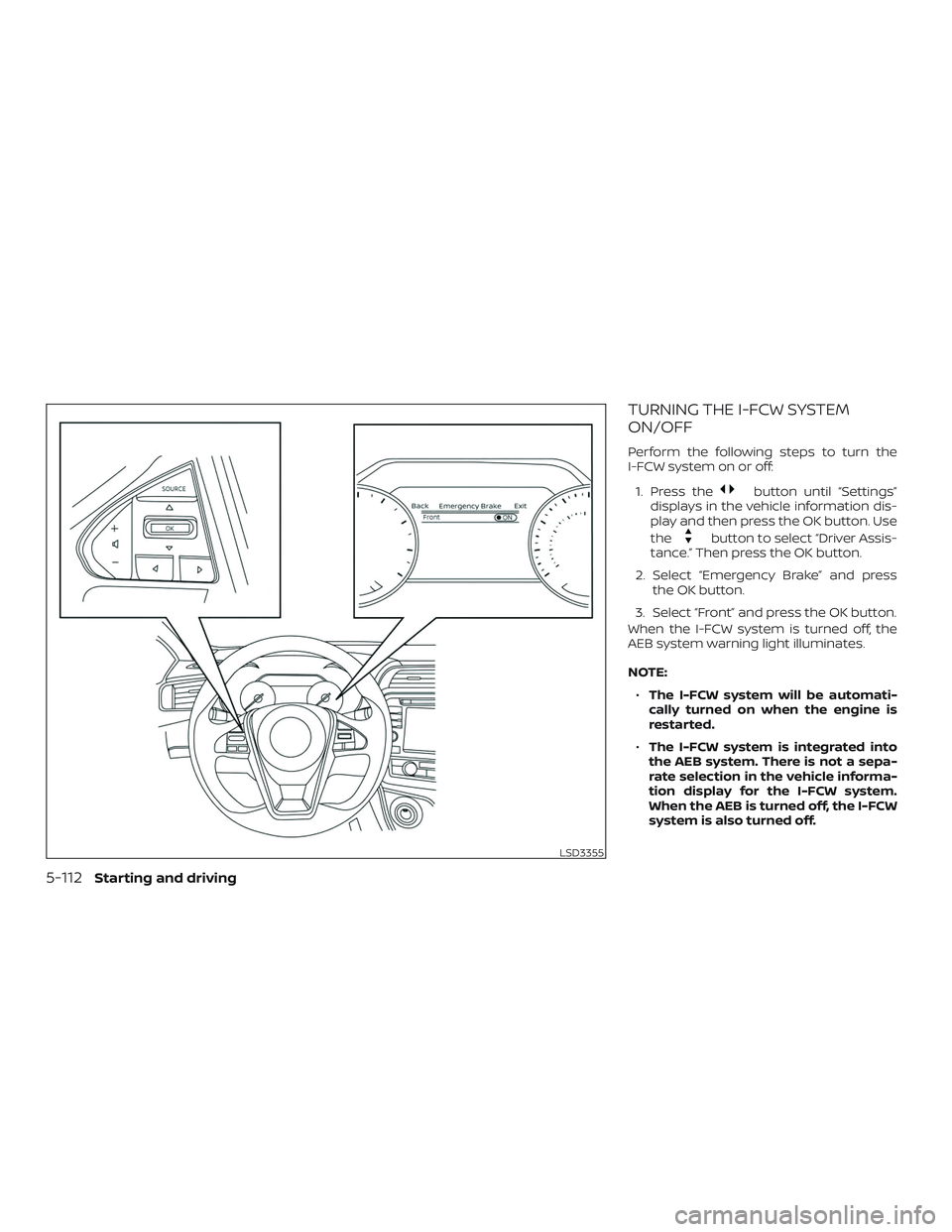

NISSAN MAXIMA 2019  Owner´s Manual TURNING THE I-FCW SYSTEM
ON/OFF
Perform the following steps to turn the
I-FCW system on or off:1. Press the
button until “Settings”
displays in the vehicle information dis-
play and then press the

Page 353 of 492

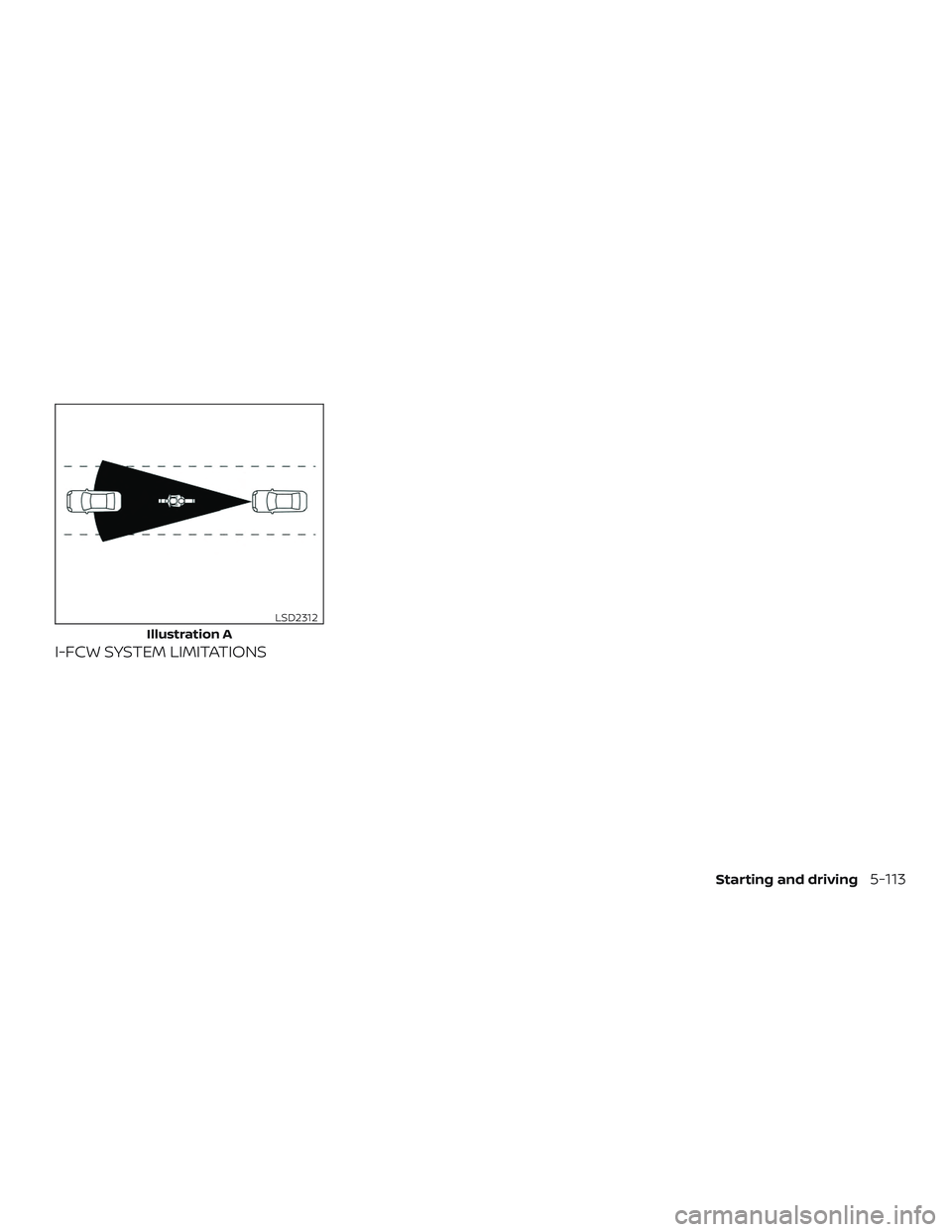

NISSAN MAXIMA 2019  Owner´s Manual I-FCW SYSTEM LIMITATIONS
Illustration A
LSD2312
Starting and driving5-113

Page 354 of 492

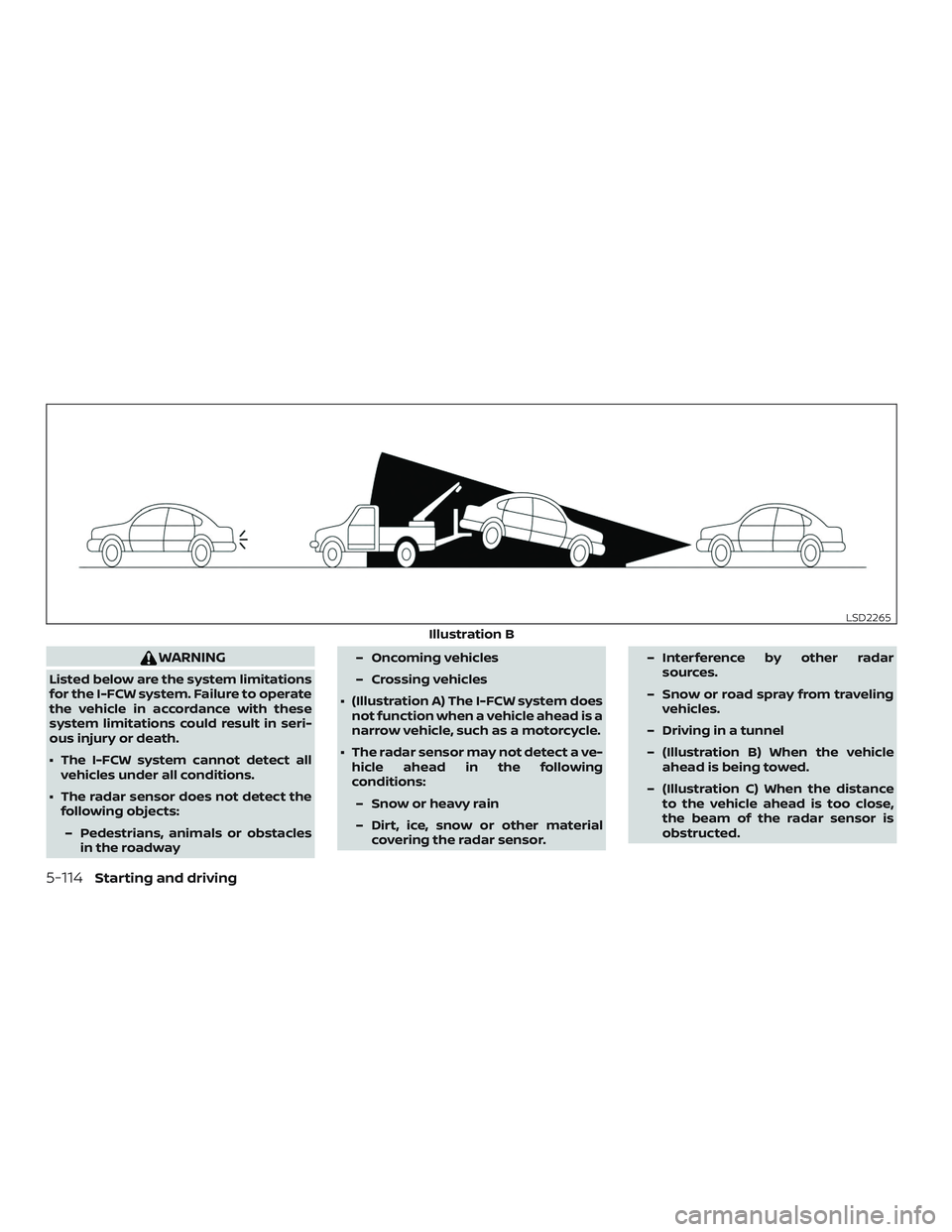

NISSAN MAXIMA 2019  Owner´s Manual WARNING
Listed below are the system limitations
for the I-FCW system. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.
∙ The I-FC

Page 355 of 492

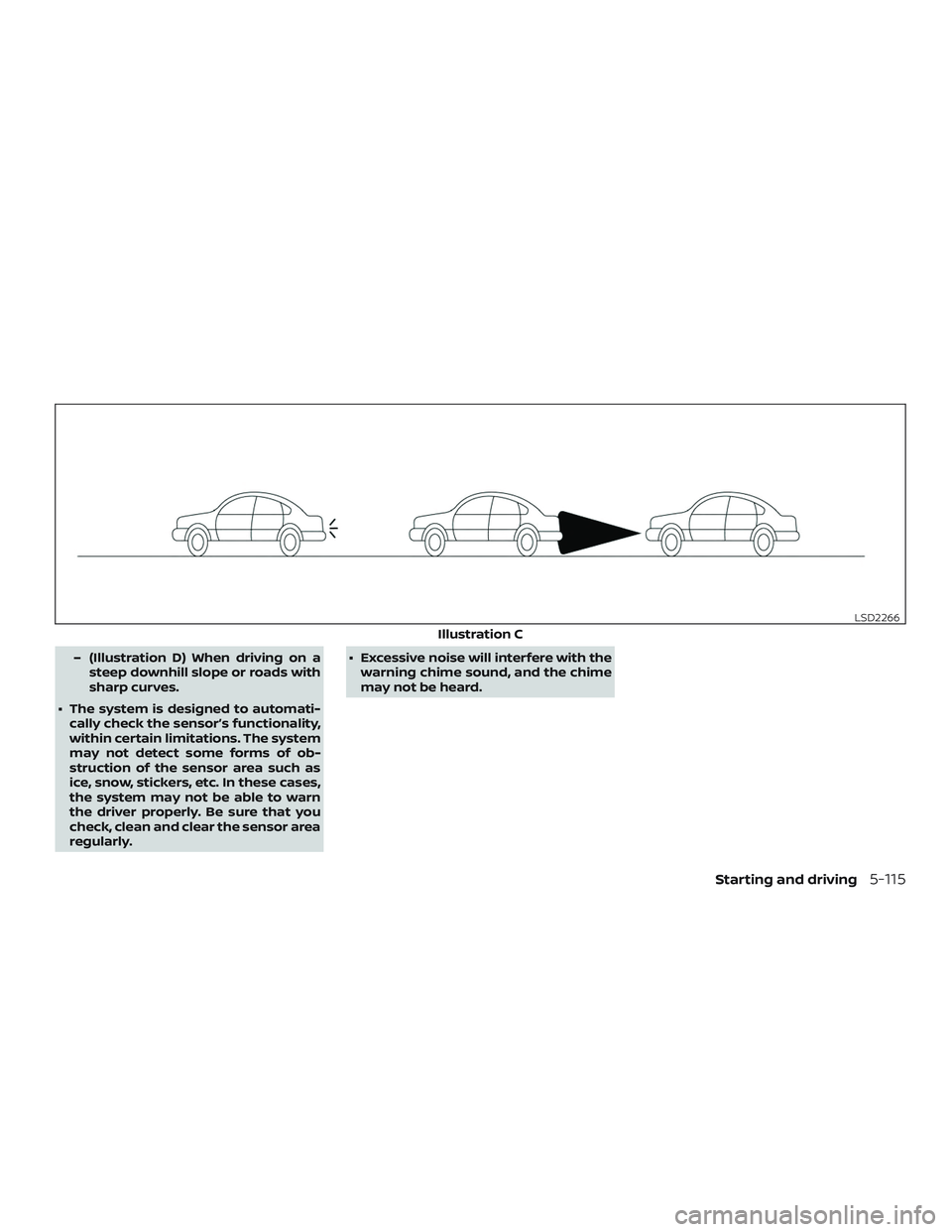

NISSAN MAXIMA 2019  Owner´s Manual – (Illustration D) When driving on asteep downhill slope or roads with
sharp curves.
∙ The system is designed to automati- cally check the sensor’s functionality,
within certain limitations. The

Page 356 of 492

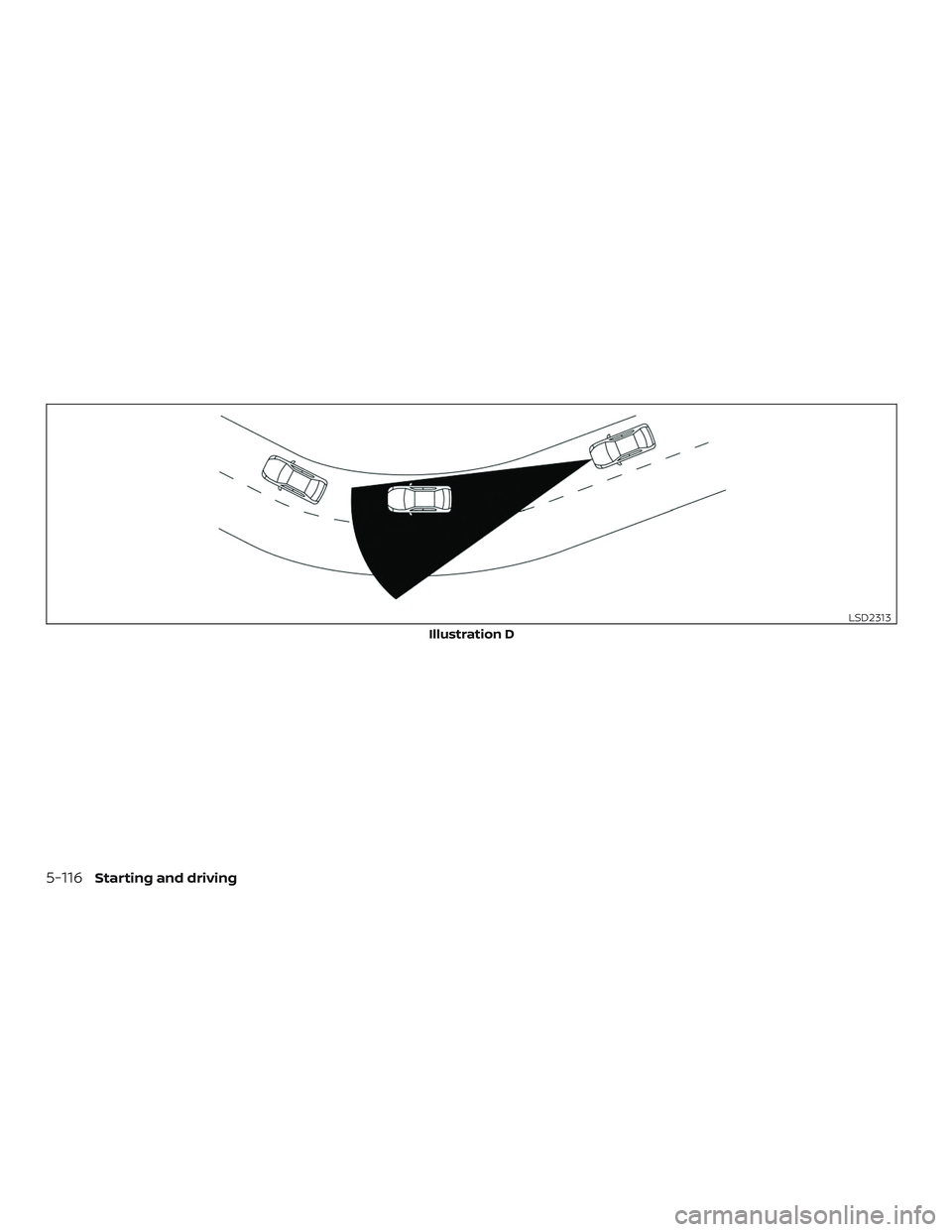

NISSAN MAXIMA 2019  Owner´s Manual Illustration D
LSD2313
5-116Starting and driving

Page 357 of 492

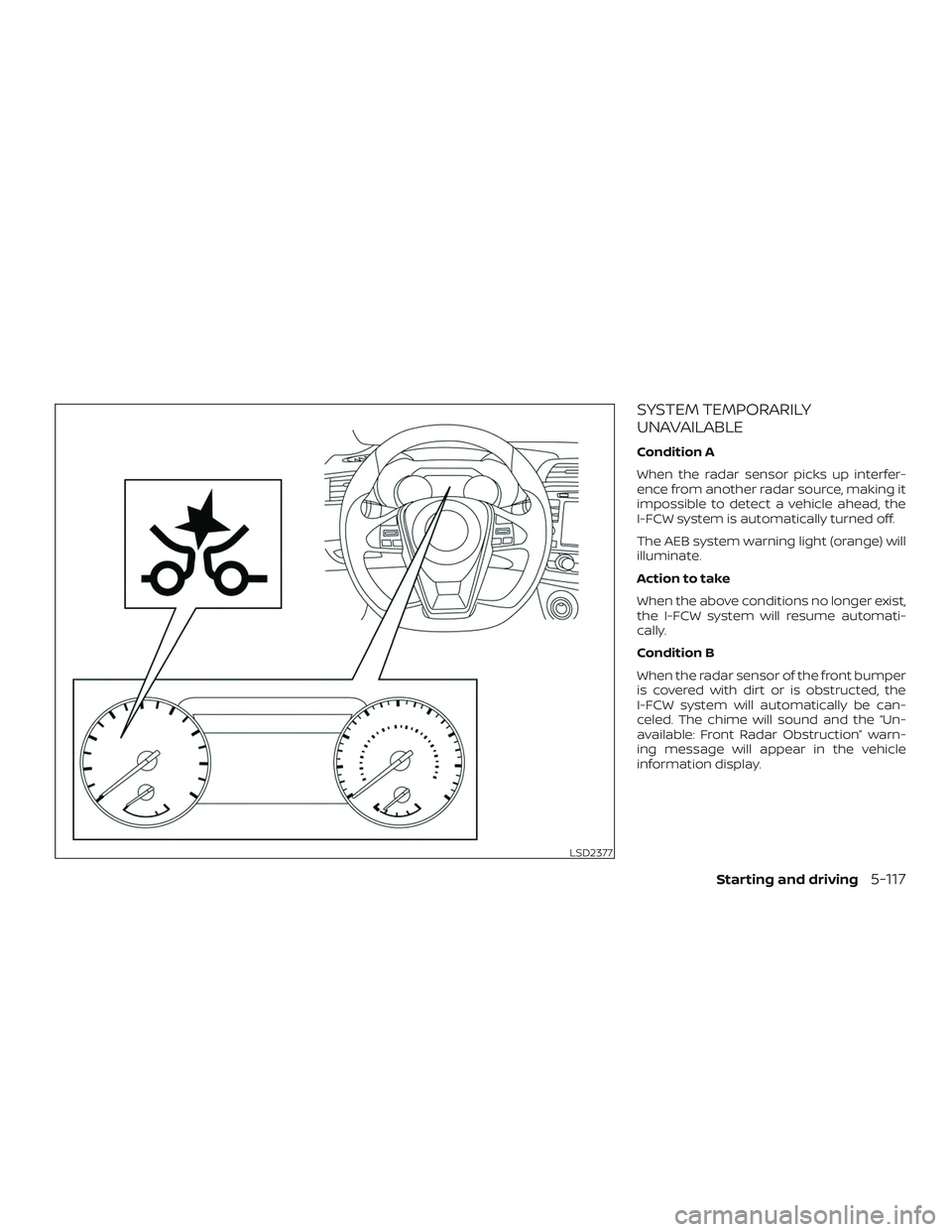

NISSAN MAXIMA 2019  Owner´s Manual SYSTEM TEMPORARILY
UNAVAILABLE
Condition A
When the radar sensor picks up interfer-
ence from another radar source, making it
impossible to detect a vehicle ahead, the
I-FCW system is automatically tu

Page 358 of 492

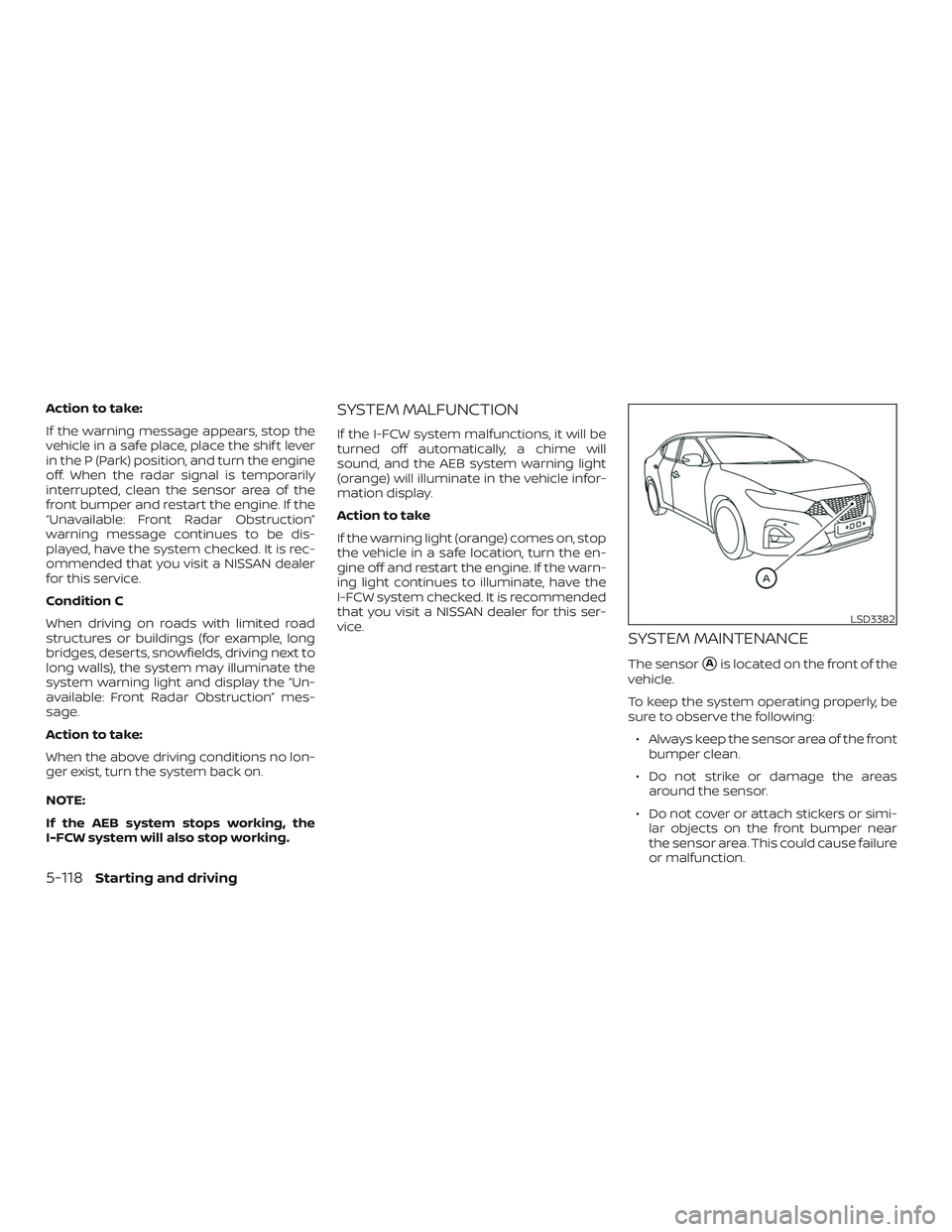

NISSAN MAXIMA 2019  Owner´s Manual Action to take:
If the warning message appears, stop the
vehicle in a safe place, place the shif t lever
in the P (Park) position, and turn the engine
off. When the radar signal is temporarily
interru

Page 359 of 492

NISSAN MAXIMA 2019  Owner´s Manual ∙ Do not attach metallic objects near thesensor area (brush guard, etc.). This
could cause failure or malfunction.
∙ Do not alter, remove or paint the front bumper. Before customizing or restor-
i

Page 360 of 492

NISSAN MAXIMA 2019  Owner´s Manual Radio frequency radiation exposure infor-
mation:
This equipment complies with FCC and IC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
op
