Page 341 of 492

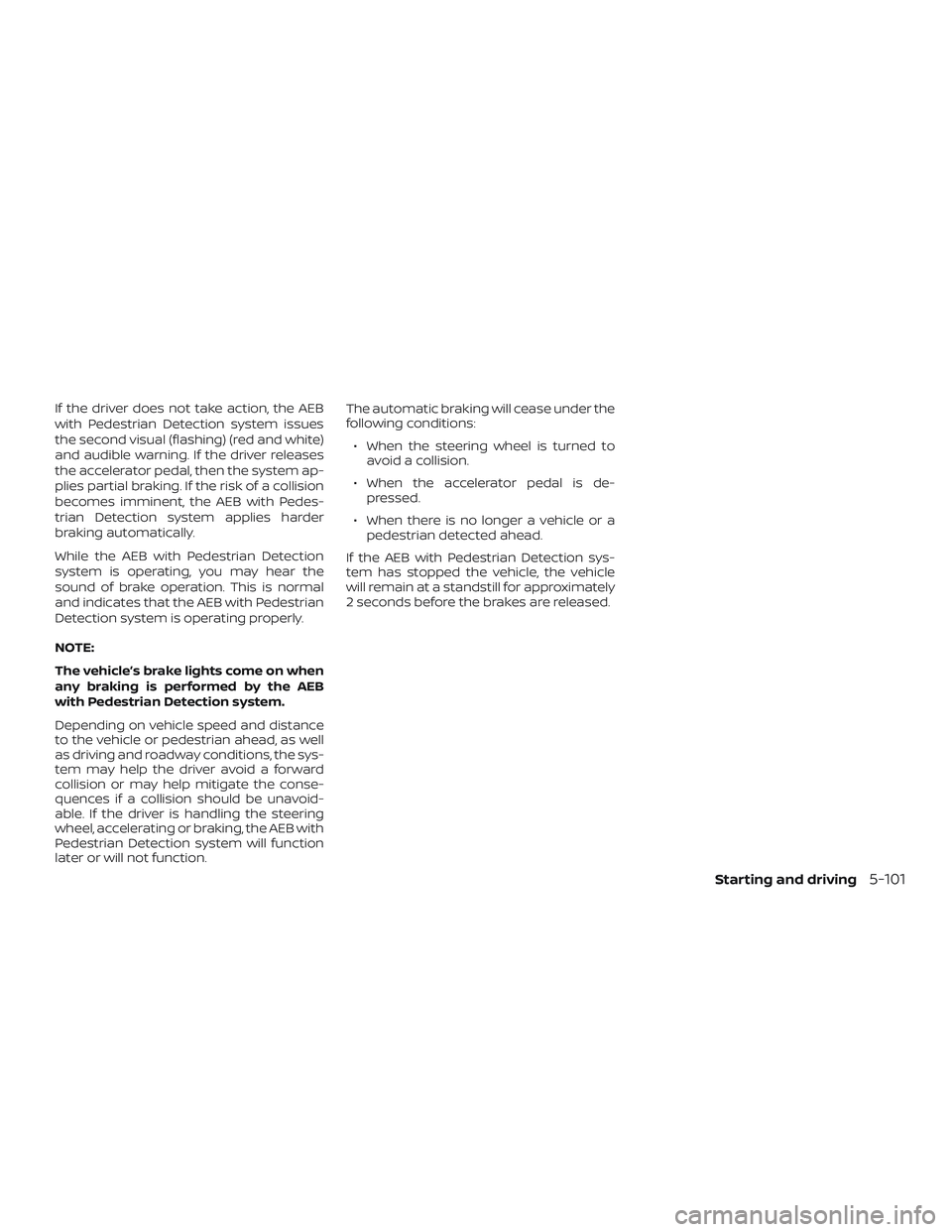

NISSAN MAXIMA 2019  Owner´s Manual If the driver does not take action, the AEB
with Pedestrian Detection system issues
the second visual (flashing) (red and white)
and audible warning. If the driver releases
the accelerator pedal, then

Page 342 of 492

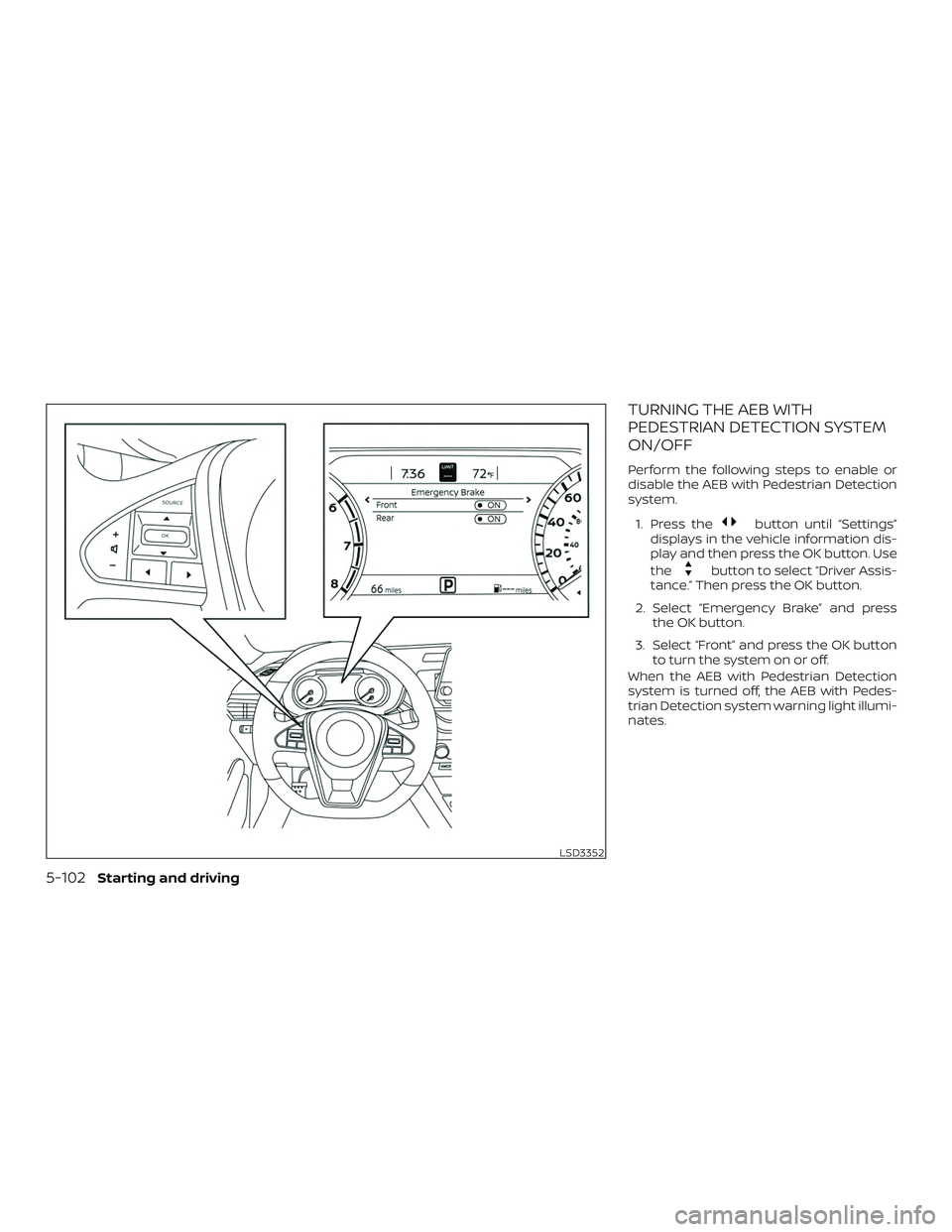

NISSAN MAXIMA 2019  Owner´s Manual TURNING THE AEB WITH
PEDESTRIAN DETECTION SYSTEM
ON/OFF
Perform the following steps to enable or
disable the AEB with Pedestrian Detection
system.1. Press the
button until “Settings”
displays in t

Page 343 of 492

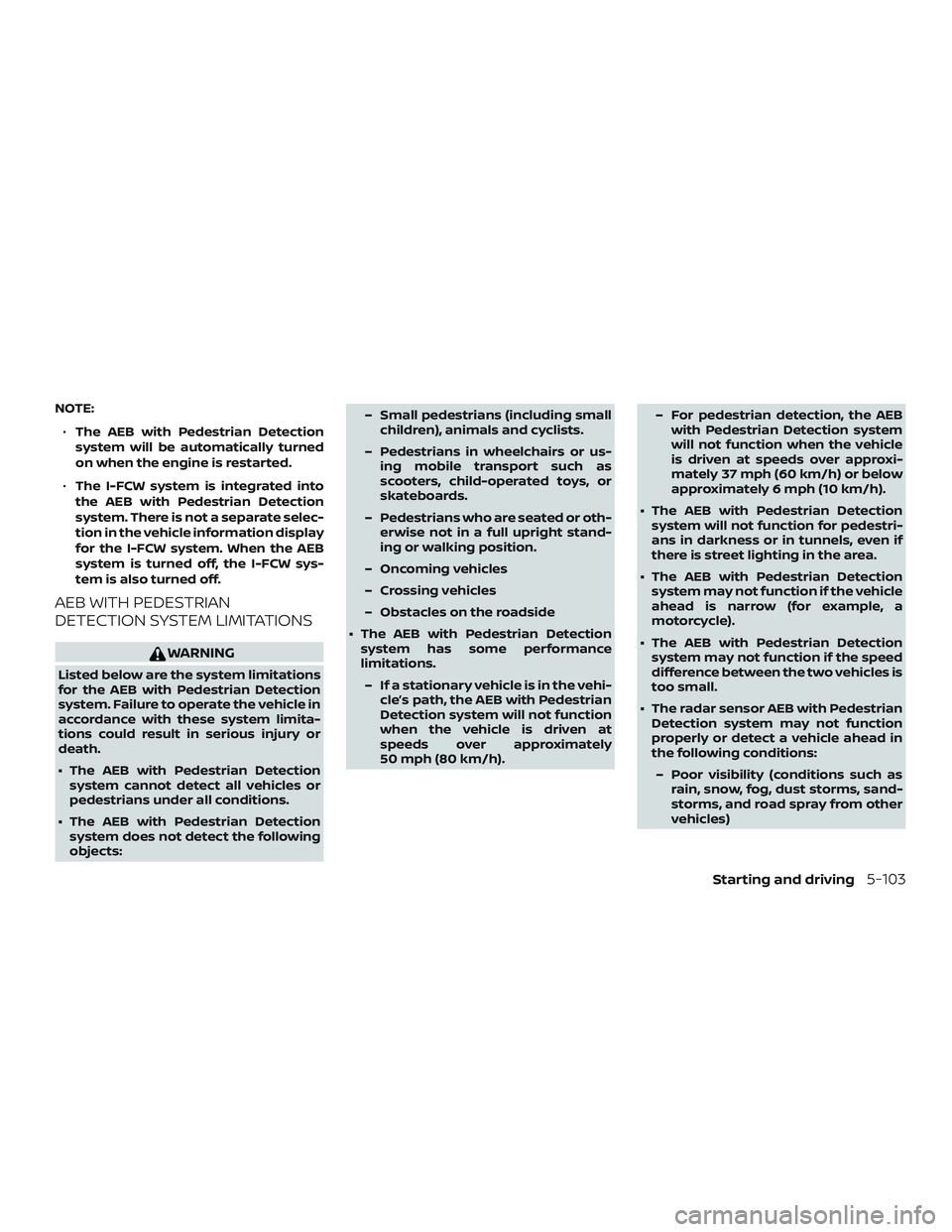

NISSAN MAXIMA 2019  Owner´s Manual NOTE:∙ The AEB with Pedestrian Detection
system will be automatically turned
on when the engine is restarted.
∙ The I-FCW system is integrated into
the AEB with Pedestrian Detection
system. There

Page 344 of 492

NISSAN MAXIMA 2019  Owner´s Manual – Driving on a steep downhill slopeor roads with sharp curves.
– Driving on a bumpy road surface, such as an uneven dirt road.
– If dirt, ice, snow or other material is covering the radar sensor

Page 345 of 492

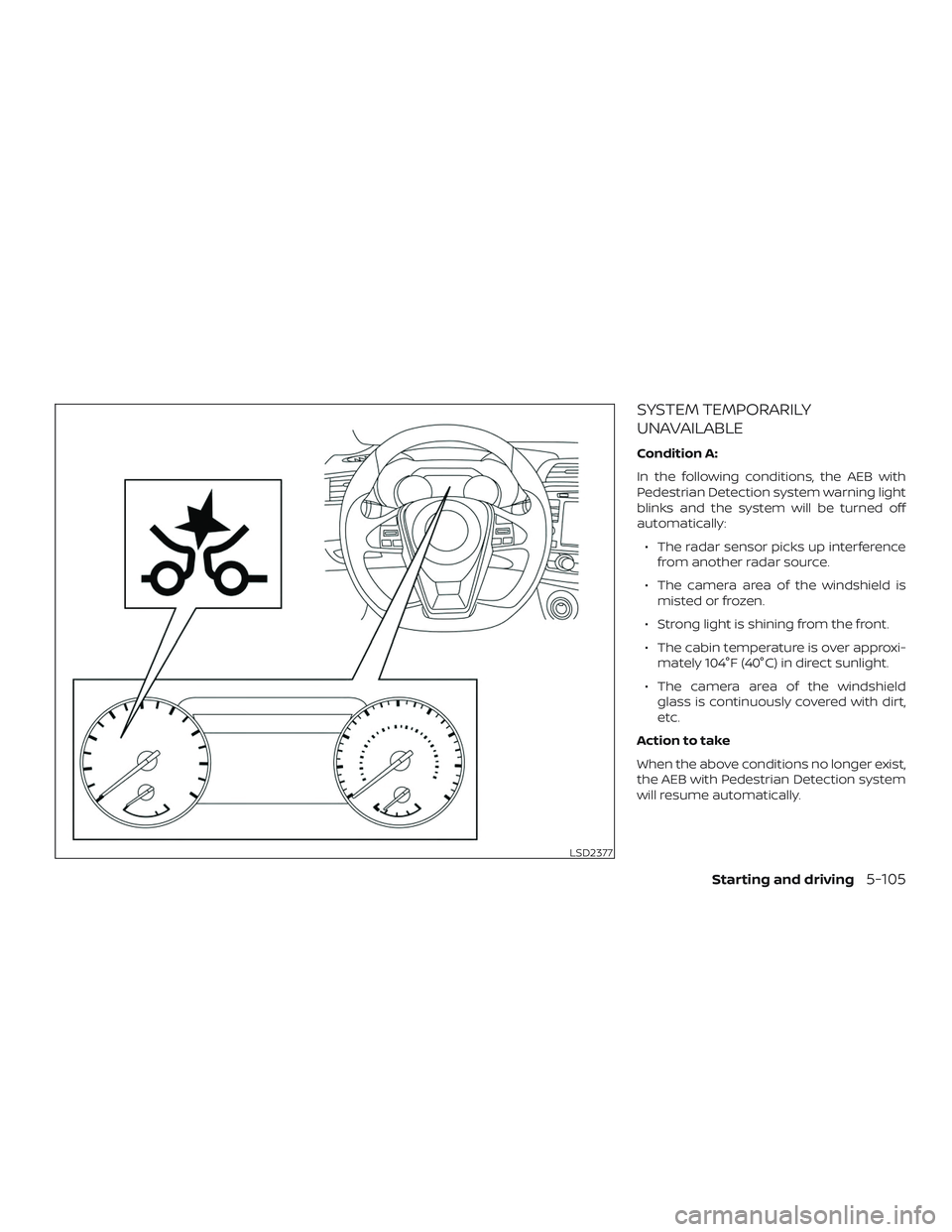

NISSAN MAXIMA 2019  Owner´s Manual SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
In the following conditions, the AEB with
Pedestrian Detection system warning light
blinks and the system will be turned off
automatically:∙ The radar sen

Page 346 of 492

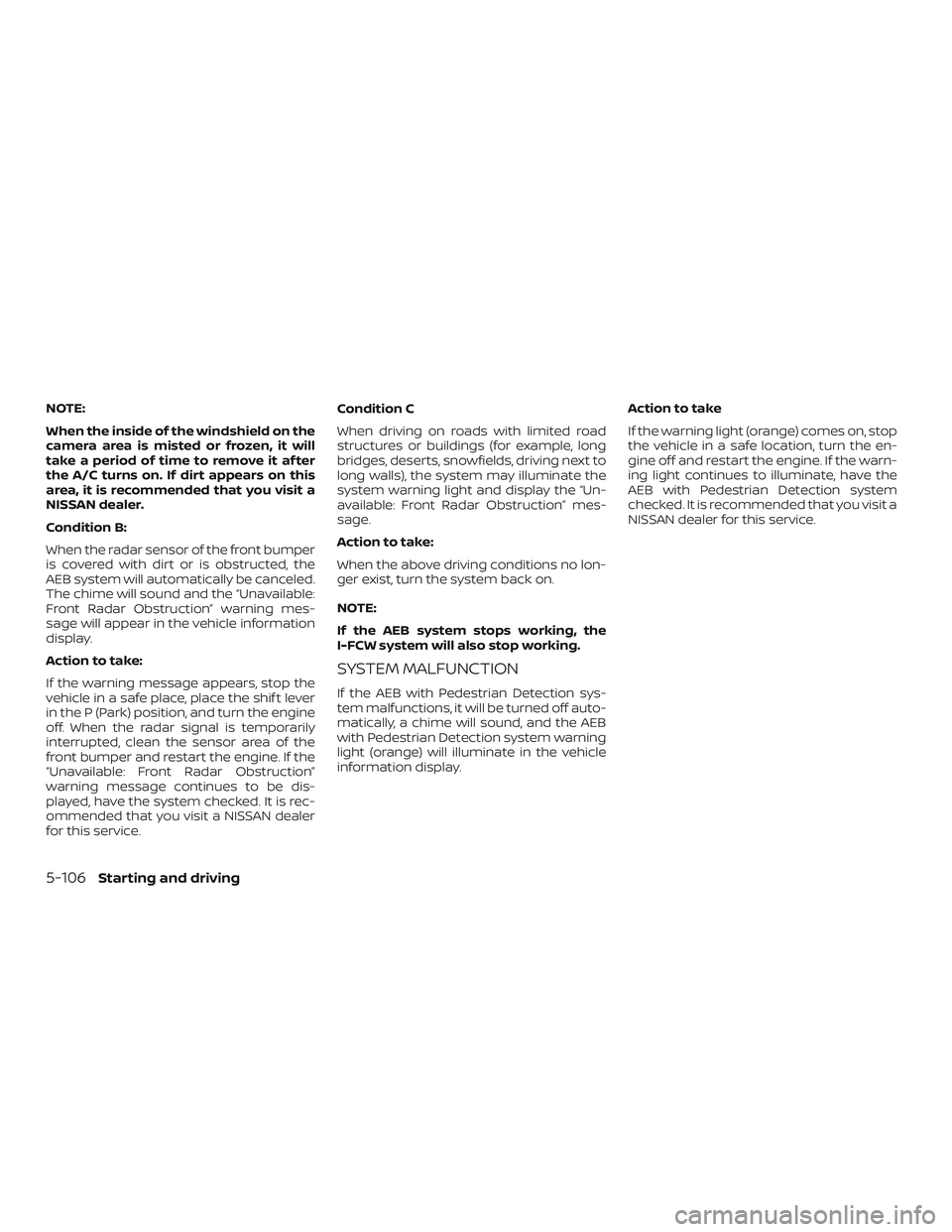

NISSAN MAXIMA 2019  Owner´s Manual NOTE:
When the inside of the windshield on the
camera area is misted or frozen, it will
take a period of time to remove it af ter
the A/C turns on. If dirt appears on this
area, it is recommended that

Page 347 of 492

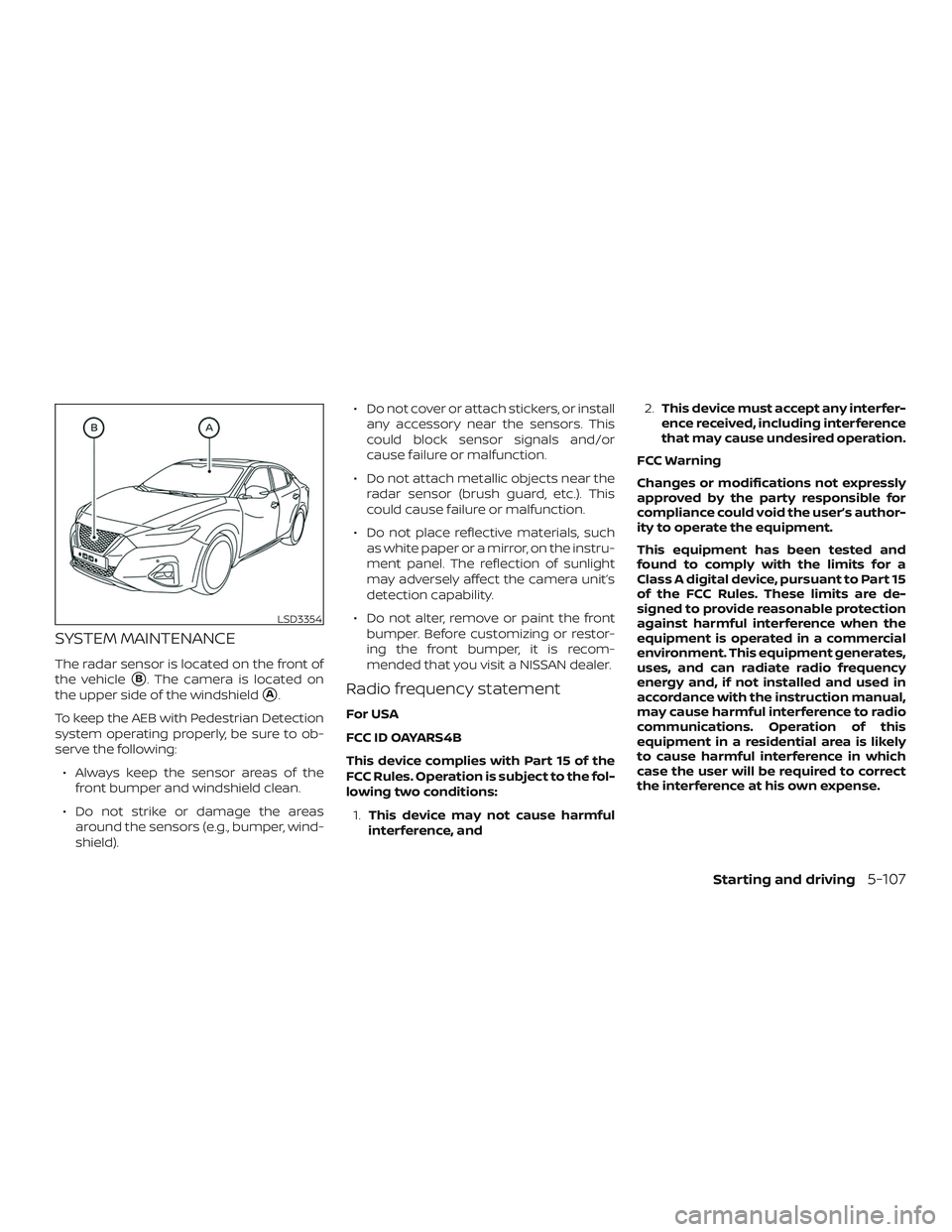

NISSAN MAXIMA 2019  Owner´s Manual SYSTEM MAINTENANCE
The radar sensor is located on the front of
the vehicle
B. The camera is located on
the upper side of the windshield
A.
To keep the AEB with Pedestrian Detection
system operating

Page 348 of 492

NISSAN MAXIMA 2019  Owner´s Manual Radio frequency radiation exposure in-
formation:
This equipment complies with FCC radia-
tion exposure limits set forth for an un-
controlled environment.
This equipment should be installed and
opera

Page 349 of 492

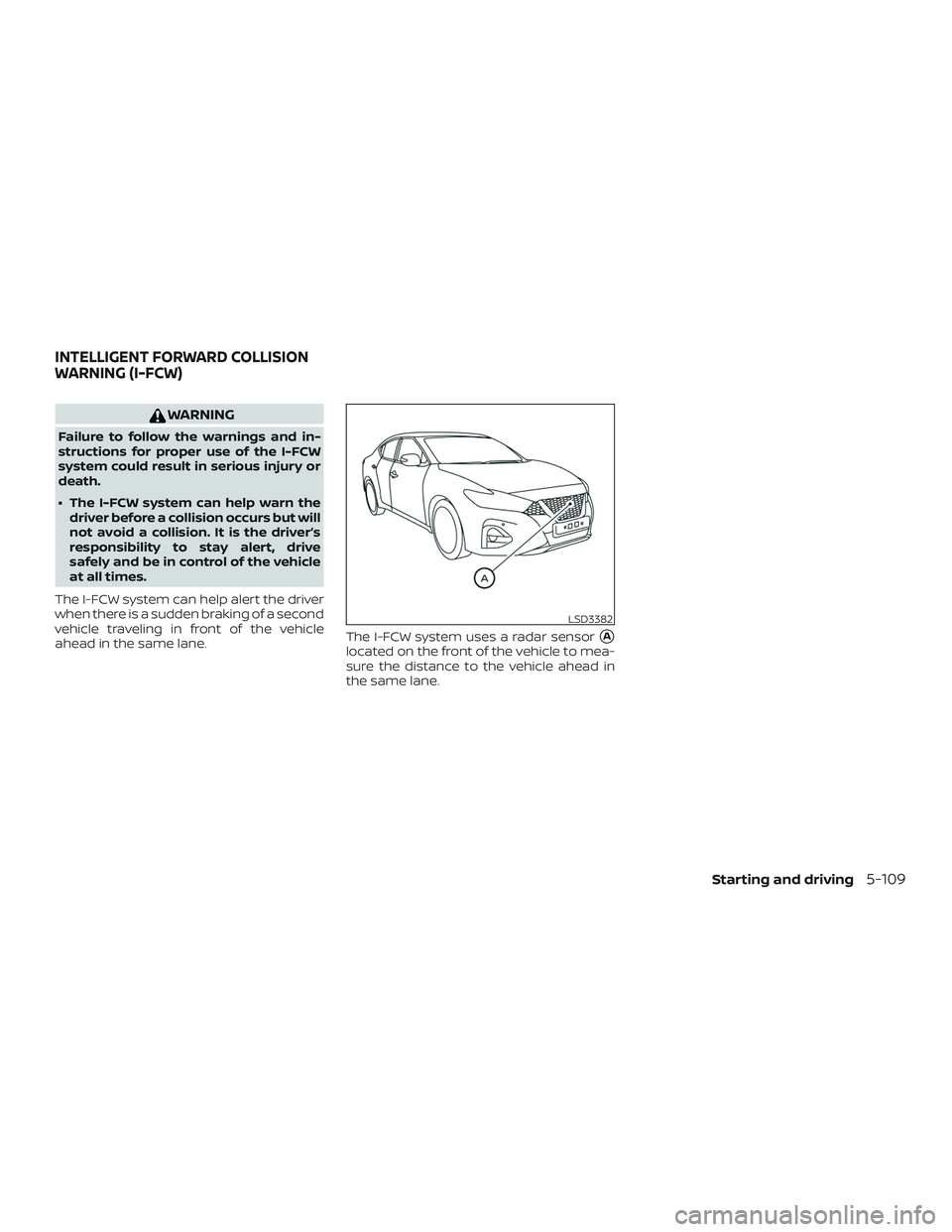

NISSAN MAXIMA 2019  Owner´s Manual WARNING
Failure to follow the warnings and in-
structions for proper use of the I-FCW
system could result in serious injury or
death.
∙ The I-FCW system can help warn thedriver before a collision oc

Page 350 of 492

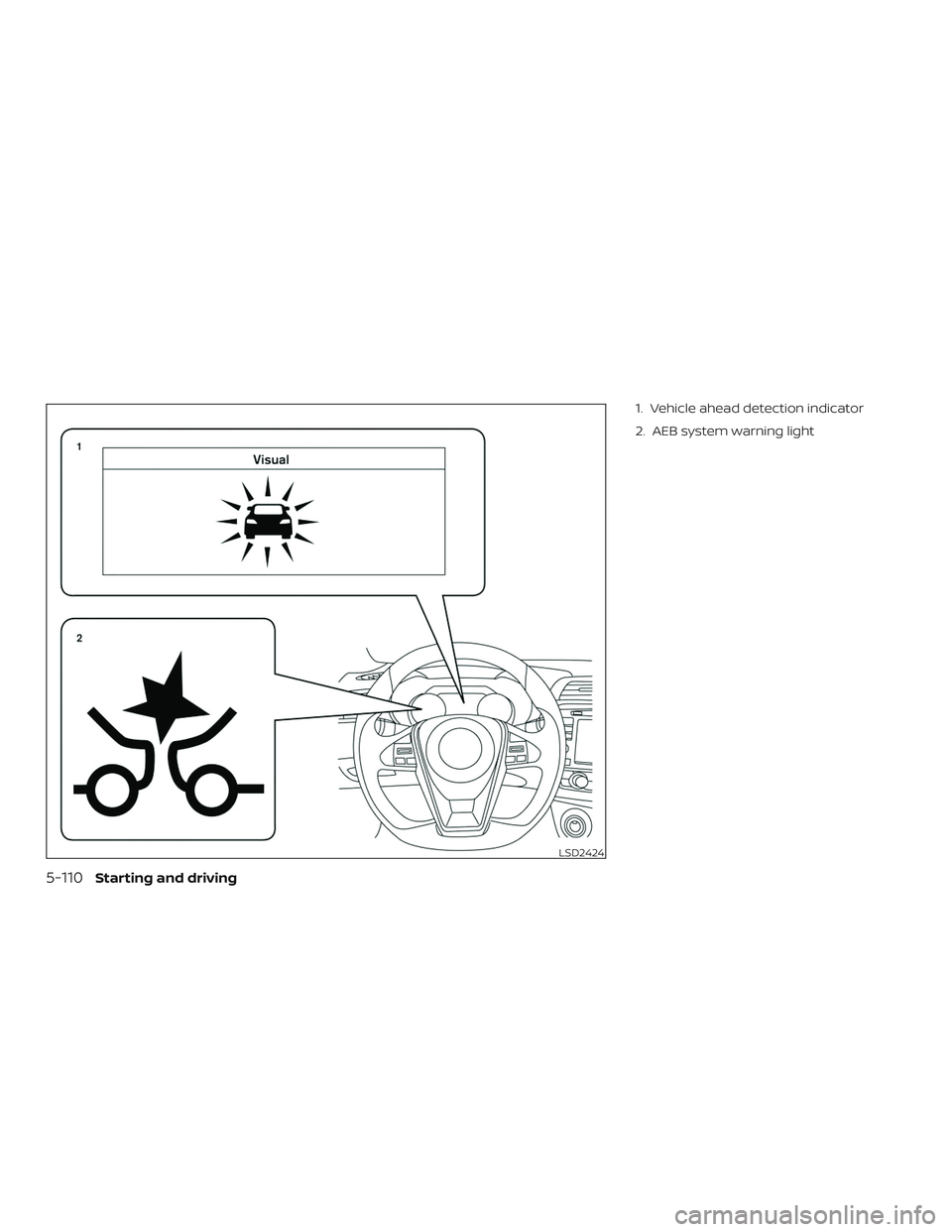

NISSAN MAXIMA 2019  Owner´s Manual 1. Vehicle ahead detection indicator
2. AEB system warning light
LSD2424
5-110Starting and driving
