Page 331 of 492

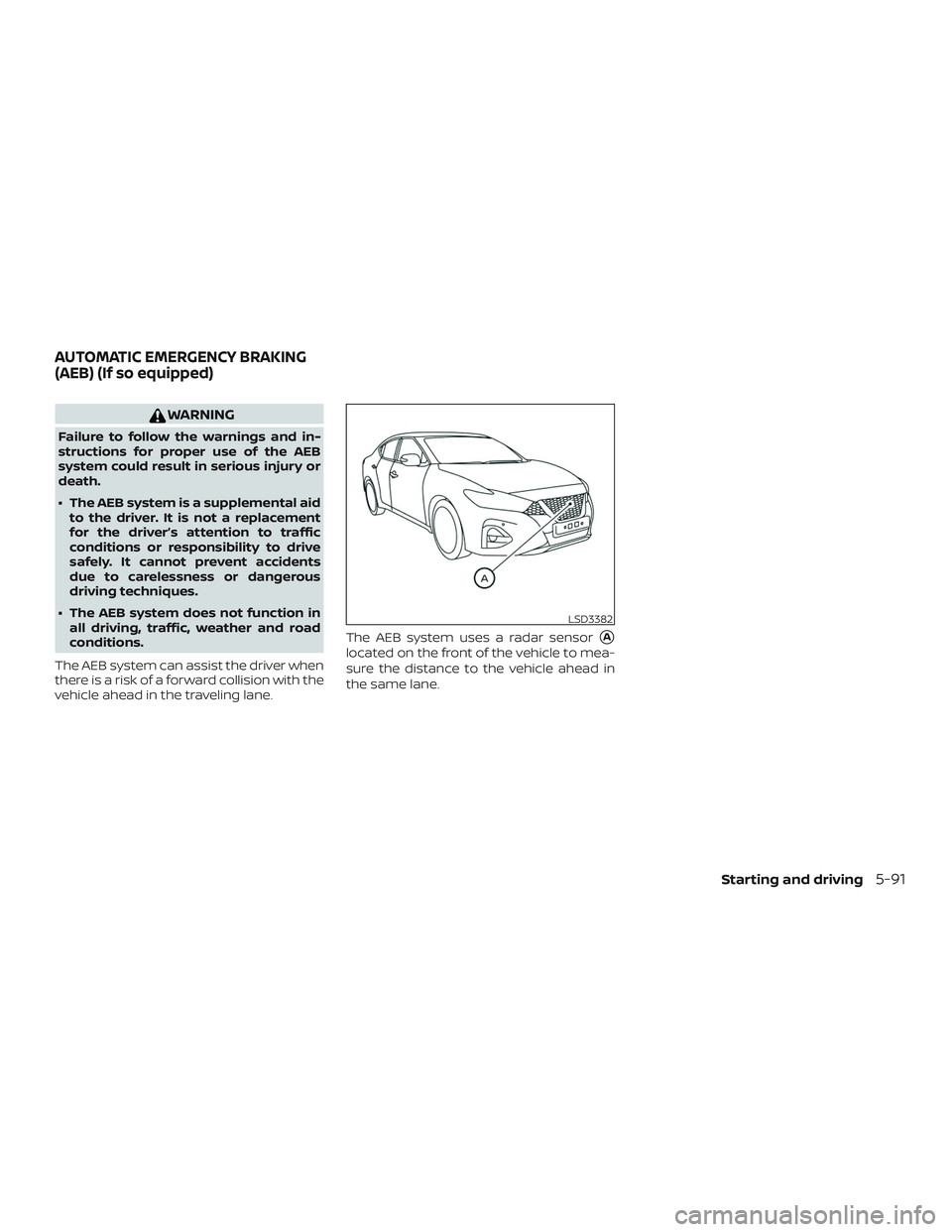

NISSAN MAXIMA 2019  Owner´s Manual WARNING
Failure to follow the warnings and in-
structions for proper use of the AEB
system could result in serious injury or
death.
∙ The AEB system is a supplemental aidto the driver. It is not a r

Page 332 of 492

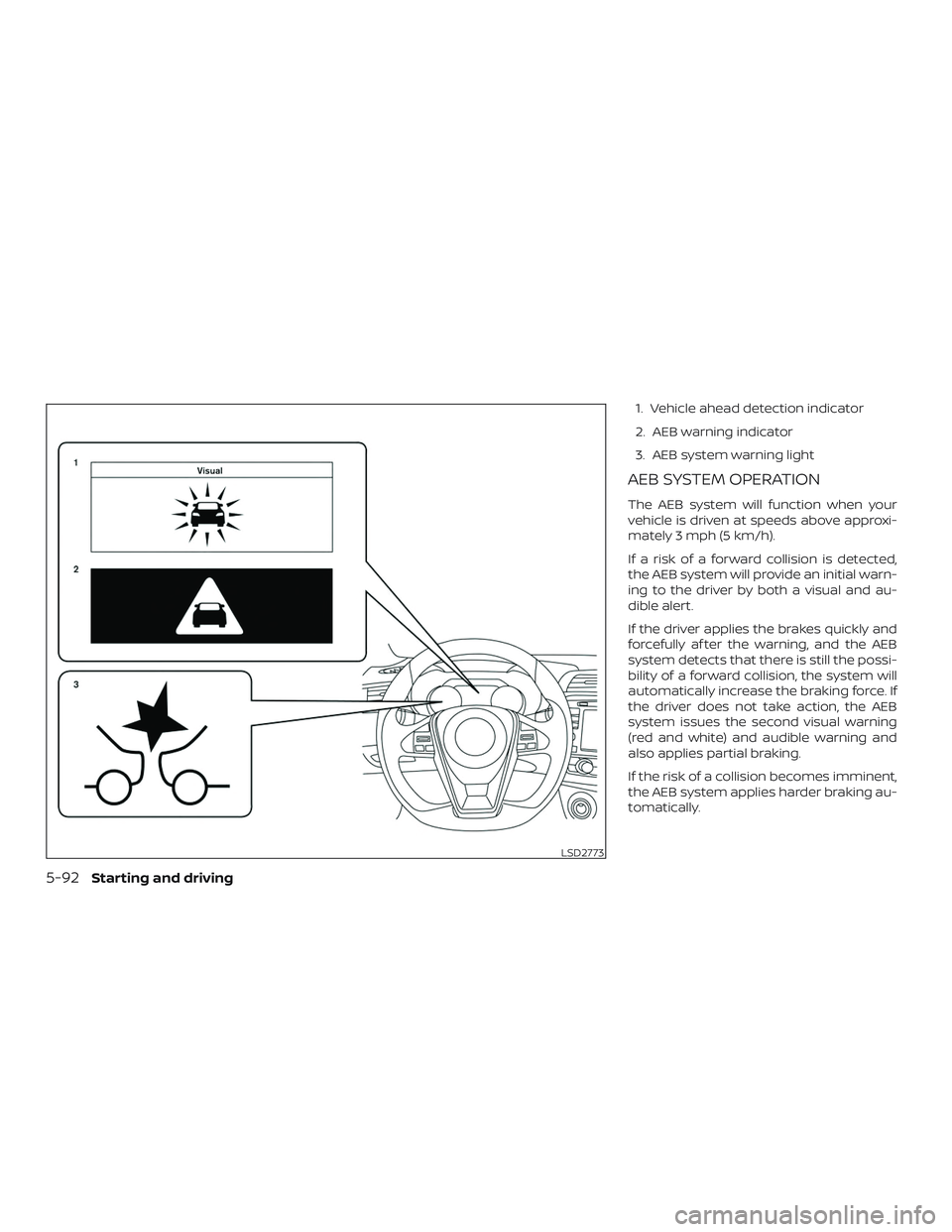

NISSAN MAXIMA 2019  Owner´s Manual 1. Vehicle ahead detection indicator
2. AEB warning indicator
3. AEB system warning light
AEB SYSTEM OPERATION
The AEB system will function when your
vehicle is driven at speeds above approxi-
mately

Page 333 of 492

NISSAN MAXIMA 2019  Owner´s Manual NOTE:
The vehicle’s brake lights come on when
braking is performed by the AEB system.
Depending on vehicle speed and distance
to the vehicle ahead, as well as driving and
roadway conditions, the sys

Page 334 of 492

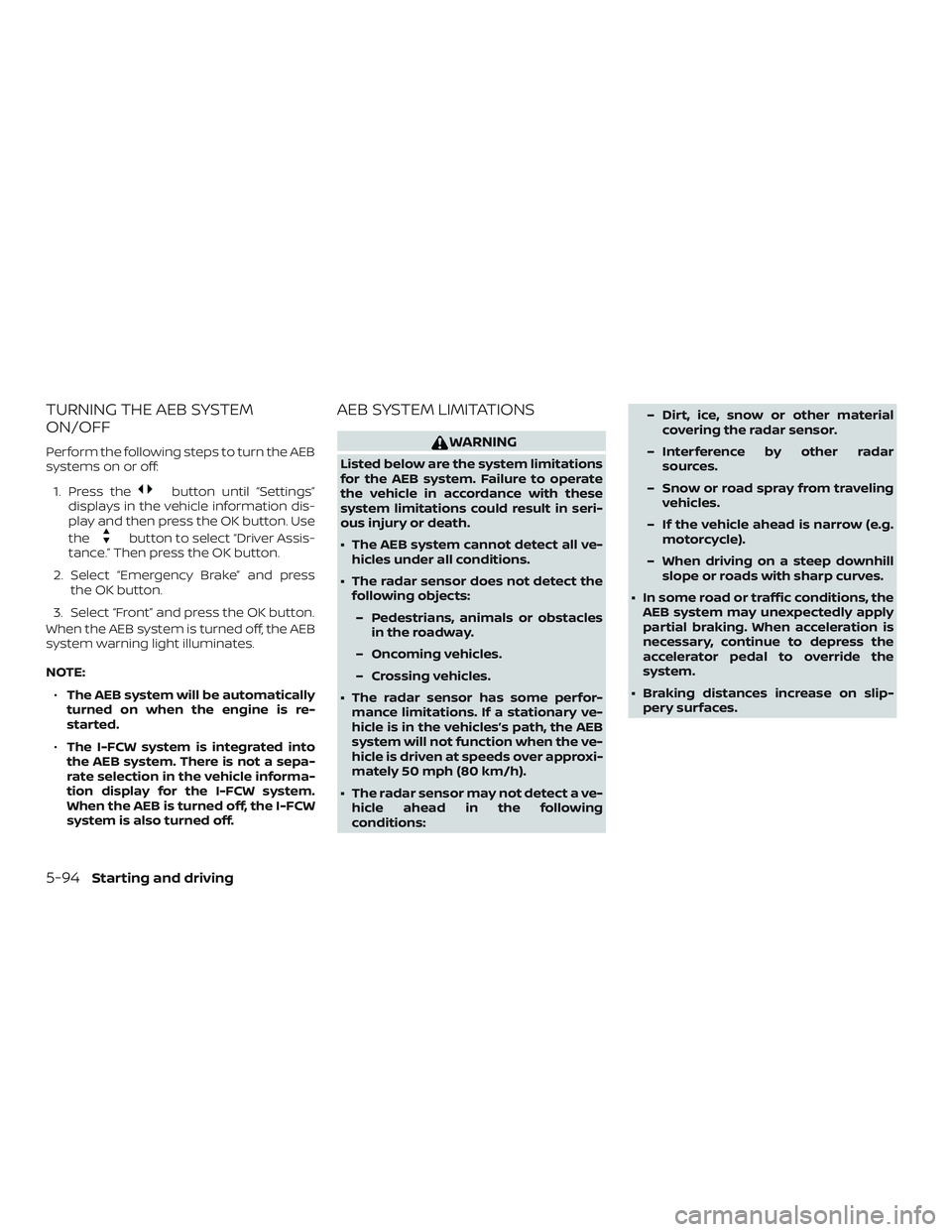

NISSAN MAXIMA 2019  Owner´s Manual TURNING THE AEB SYSTEM
ON/OFF
Perform the following steps to turn the AEB
systems on or off:1. Press the
button until “Settings”
displays in the vehicle information dis-
play and then press the OK

Page 335 of 492

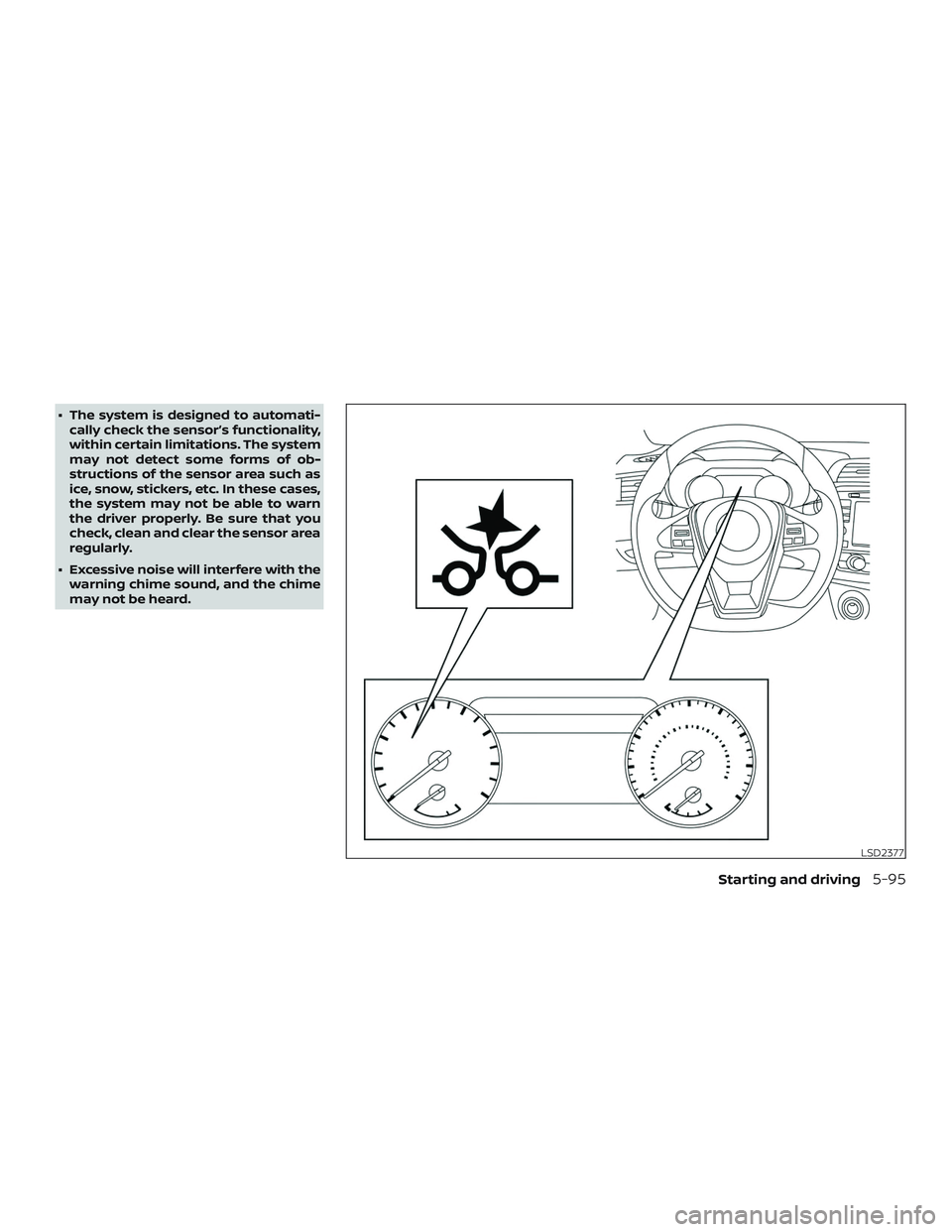

NISSAN MAXIMA 2019  Owner´s Manual ∙ The system is designed to automati-cally check the sensor’s functionality,
within certain limitations. The system
may not detect some forms of ob-
structions of the sensor area such as
ice, snow

Page 336 of 492

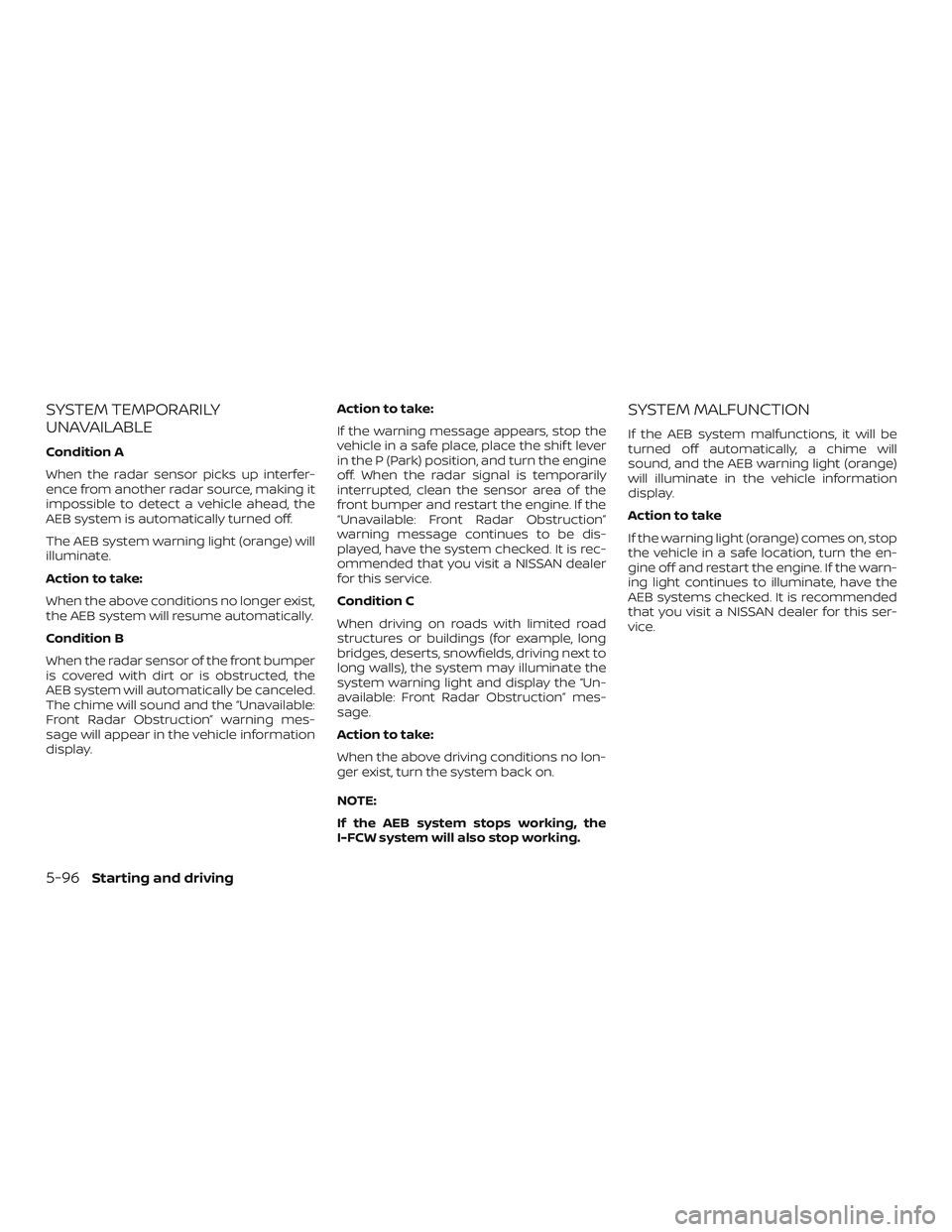

NISSAN MAXIMA 2019  Owner´s Manual SYSTEM TEMPORARILY
UNAVAILABLE
Condition A
When the radar sensor picks up interfer-
ence from another radar source, making it
impossible to detect a vehicle ahead, the
AEB system is automatically turn

Page 337 of 492

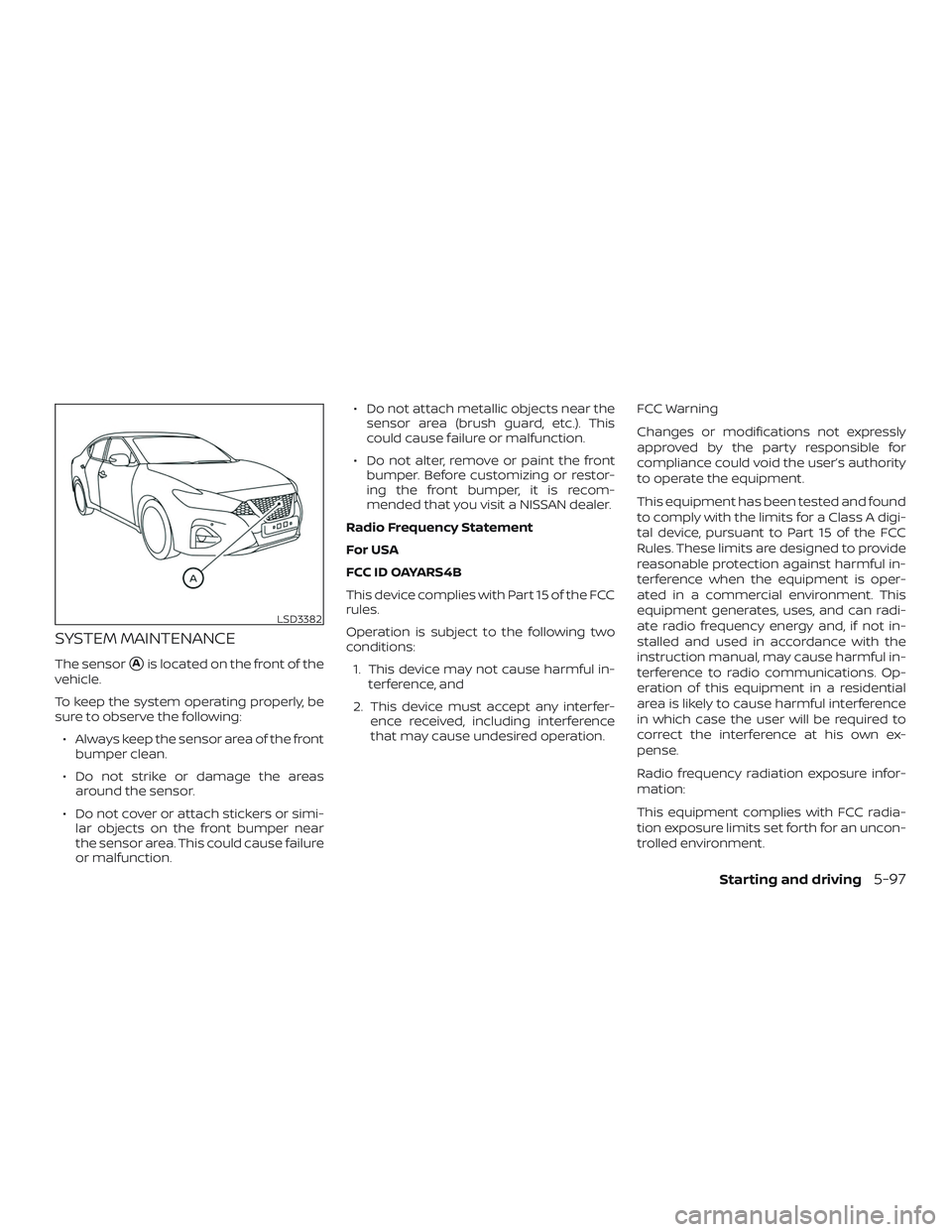

NISSAN MAXIMA 2019  Owner´s Manual SYSTEM MAINTENANCE
The sensorAis located on the front of the
vehicle.
To keep the system operating properly, be
sure to observe the following:
∙ Always keep the sensor area of the front bumper clea

Page 338 of 492

NISSAN MAXIMA 2019  Owner´s Manual This equipment should be installed and
operated with minimum distance of 20 cm
between the radiator and your body.
The transmitter must not be co-located or
operating in conjunction with any other an-

Page 339 of 492

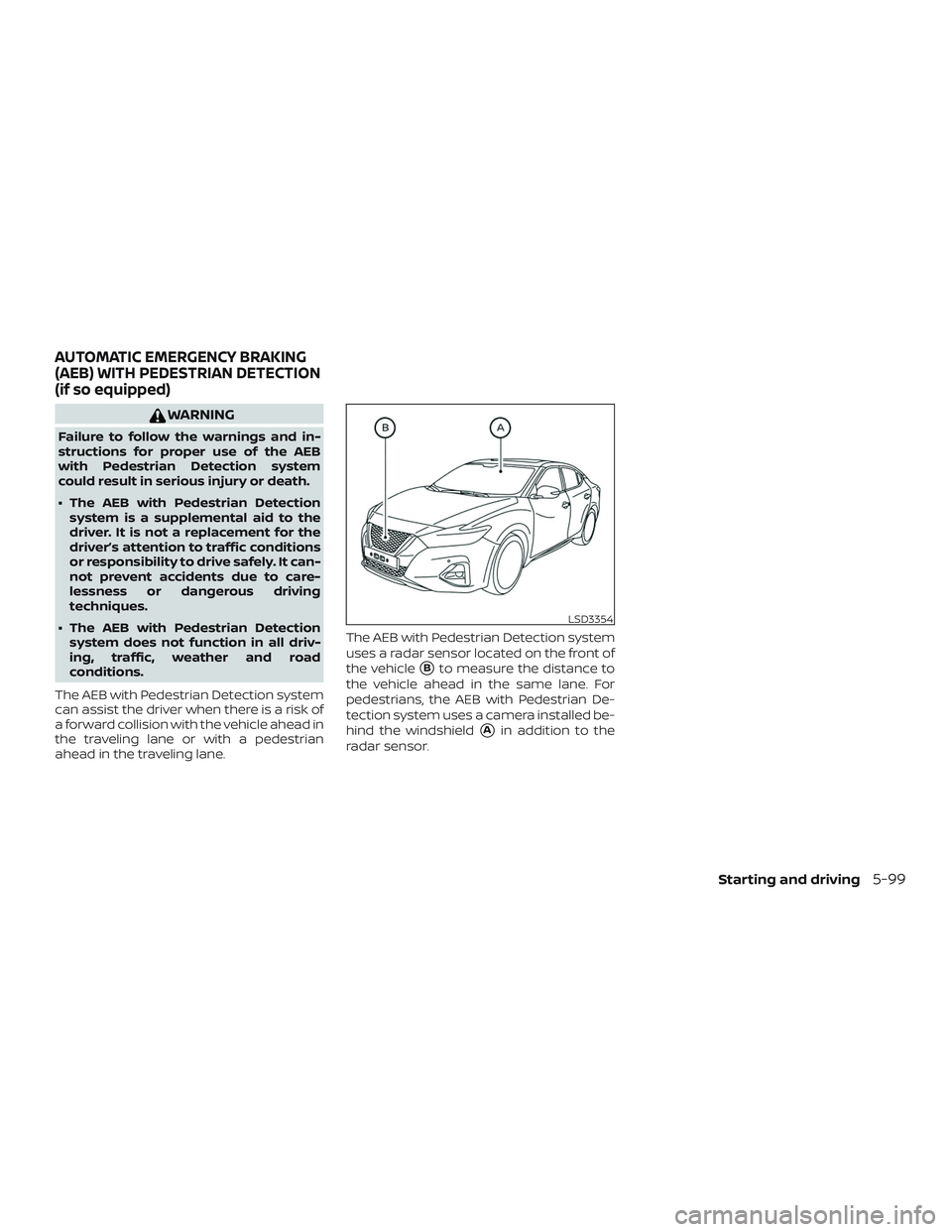

NISSAN MAXIMA 2019  Owner´s Manual WARNING
Failure to follow the warnings and in-
structions for proper use of the AEB
with Pedestrian Detection system
could result in serious injury or death.
∙ The AEB with Pedestrian Detectionsyste

Page 340 of 492

NISSAN MAXIMA 2019  Owner´s Manual 1. Vehicle ahead detection indicator
2. AEB with Pedestrian Detection emer-gency warning indicator
3. AEB with Pedestrian Detection system warning light
AEB WITH PEDESTRIAN
DETECTION SYSTEM OPERATION
