Page 301 of 500

NISSAN MAXIMA 2020  Owner´s Manual Malfunction
If the BSW system malfunctions, it will turn
off automatically. The BSW/RCTA indicator
(orange) will appear in the vehicle informa-
tion display.
NOTE:
If the BSW system stops working, the

Page 302 of 500

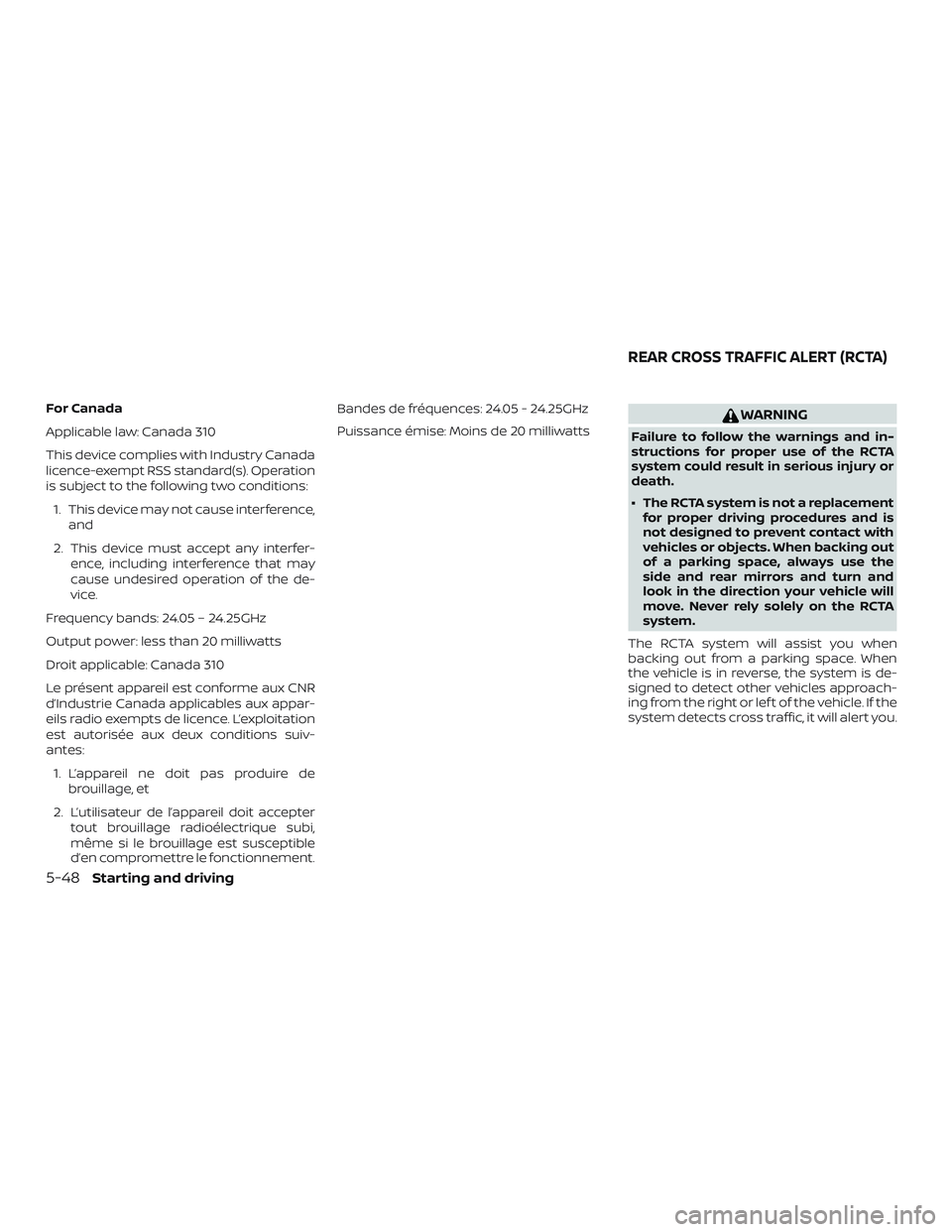

NISSAN MAXIMA 2020  Owner´s Manual For Canada
Applicable law: Canada 310
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:1. This device may not cause interf

Page 303 of 500

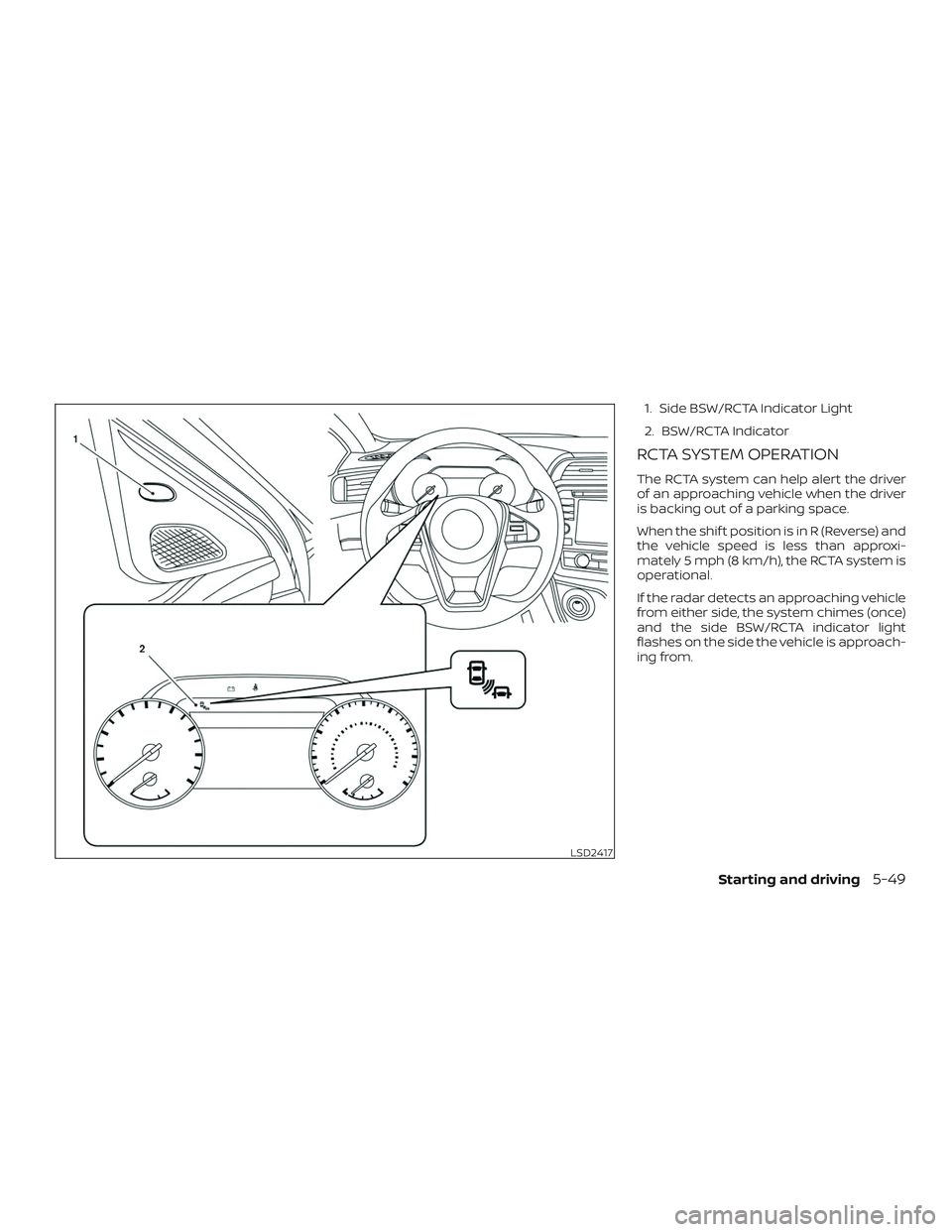

NISSAN MAXIMA 2020  Owner´s Manual 1. Side BSW/RCTA Indicator Light
2. BSW/RCTA Indicator
RCTA SYSTEM OPERATION
The RCTA system can help alert the driver
of an approaching vehicle when the driver
is backing out of a parking space.
When

Page 304 of 500

NISSAN MAXIMA 2020  Owner´s Manual The RCTA system uses radar sensors1
installed on both sides near the rear bum-
per to detect an approaching vehicle.
The radar sensors
1can detect an ap-
proaching vehicle from up to approxi-
mately

Page 305 of 500

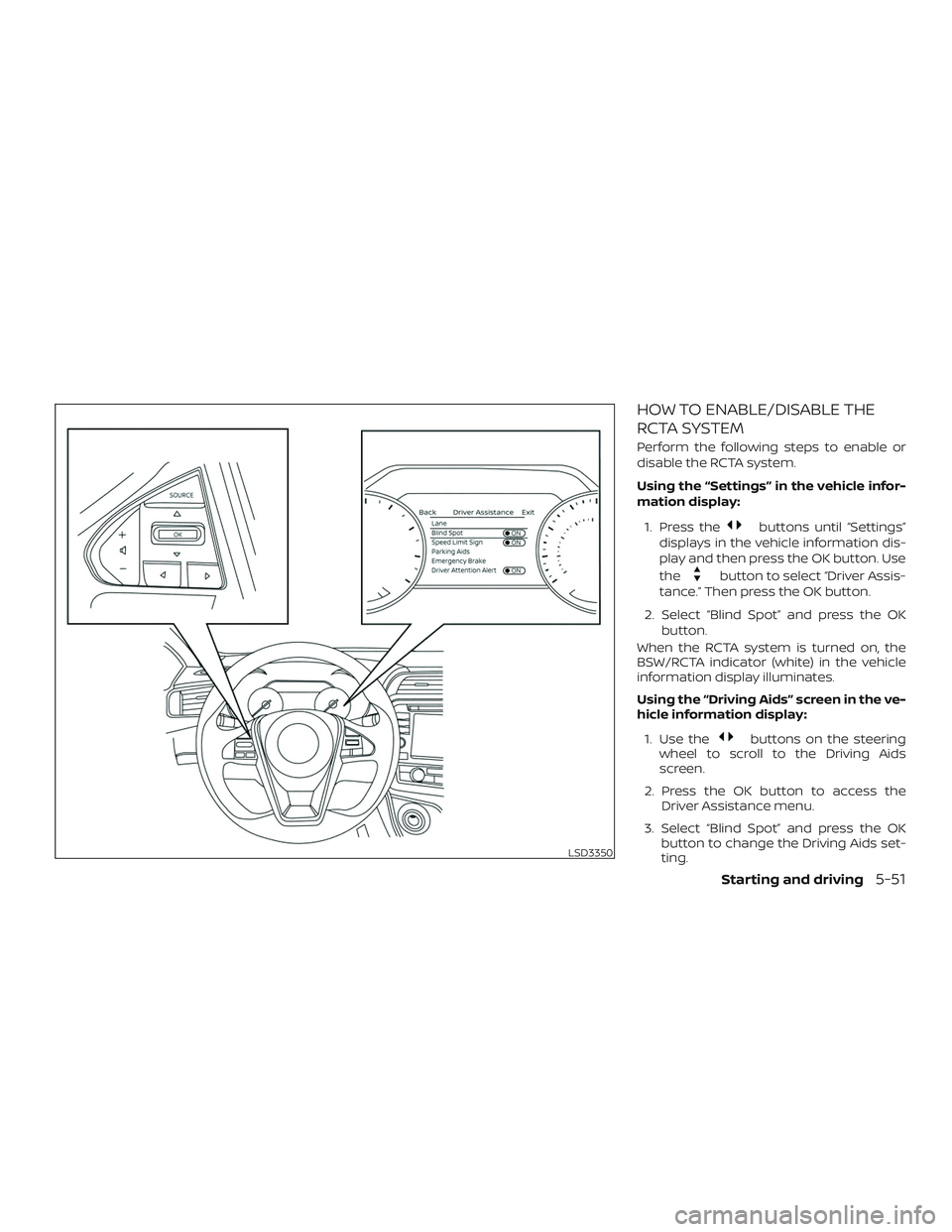

NISSAN MAXIMA 2020  Owner´s Manual HOW TO ENABLE/DISABLE THE
RCTA SYSTEM
Perform the following steps to enable or
disable the RCTA system.
Using the “Settings” in the vehicle infor-
mation display:1. Press the
buttons until “Sett

Page 306 of 500

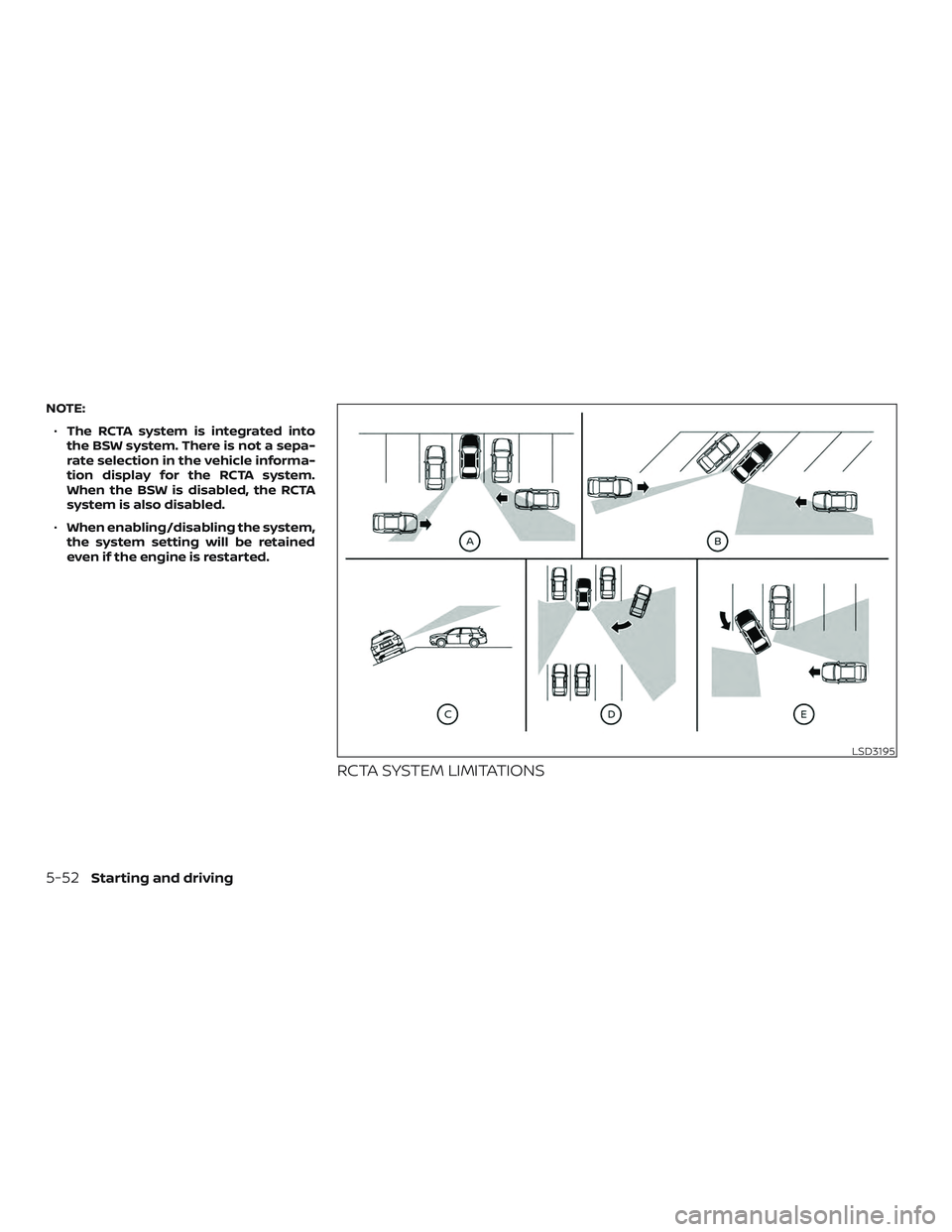

NISSAN MAXIMA 2020  Owner´s Manual NOTE:∙ The RCTA system is integrated into
the BSW system. There is not a sepa-
rate selection in the vehicle informa-
tion display for the RCTA system.
When the BSW is disabled, the RCTA
system is a

Page 307 of 500

NISSAN MAXIMA 2020  Owner´s Manual WARNING
Listed below are the system limitations
for the RCTA system. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.
∙ Always ch

Page 308 of 500

NISSAN MAXIMA 2020  Owner´s Manual NOTE:
In the case of several vehicles approach-
ing in a row (Illustration 1) or in the oppo-
site direction (Illustration 2), a chime may
not be sounded by the RCTA system af-
ter the first vehicle p

Page 309 of 500

NISSAN MAXIMA 2020  Owner´s Manual SYSTEM TEMPORARILY
UNAVAILABLE
When radar blockage is detected, the sys-
tem will be deactivated automatically. The
“Side Radar Obstruction” warning message
will appear and the BSW/RCTA indicator

Page 310 of 500

NISSAN MAXIMA 2020  Owner´s Manual Malfunction
When the RCTA system malfunctions, it will
turn off automatically. The BSW/RCTA indi-
cator (orange) will appear in the vehicle in-
formation display.
NOTE:
If the BSW system stops working
