Page 308 of 428
![NISSAN MAXIMA PLATINUM 2018 Owners Manual – When replacing tires, install thespecified size of tires on all four
wheels.
– When installing a spare tire, make sure that it is the proper size and
type as specified on the Tire and
Loading In NISSAN MAXIMA PLATINUM 2018 Owners Manual – When replacing tires, install thespecified size of tires on all four
wheels.
– When installing a spare tire, make sure that it is the proper size and
type as specified on the Tire and
Loading In](/img/5/56782/w960_56782-307.png)
– When replacing tires, install thespecified size of tires on all four
wheels.
– When installing a spare tire, make sure that it is the proper size and
type as specified on the Tire and
Loading Information label. For ad-
ditional information, refer to “Tire
and Loading Information label” in
the “Technical and consumer infor-
mation” section of this manual.
– For additional information, refer to “Wheels and tires” in the “Do-it-
yourself ” section of this manual.
The ABS controls the brakes so the wheels
do not lock during hard braking or when
braking on slippery surfaces. The system
detects the rotation speed at each wheel
and varies the brake fluid pressure to pre-
vent each wheel from locking and sliding.
By preventing each wheel from locking, the
system helps the driver maintain steering
control and helps to minimize swerving
and spinning on slippery surfaces.
Using the system
Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady
pressure, but do not pump the brakes. The Anti-lock Braking System will operate to
prevent the wheels from locking up. Steer
the vehicle to avoid obstacles.
Page 317 of 428
![NISSAN MAXIMA PLATINUM 2018 Owners Manual FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply
de-icer through the key hole. If the lock
becomes frozen, heat the key before in-
serting it into the key hole or use the re-
mot NISSAN MAXIMA PLATINUM 2018 Owners Manual FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply
de-icer through the key hole. If the lock
becomes frozen, heat the key before in-
serting it into the key hole or use the re-
mot](/img/5/56782/w960_56782-316.png)
FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply
de-icer through the key hole. If the lock
becomes frozen, heat the key before in-
serting it into the key hole or use the re-
mote keyless entry function on the Intelli-
gent Key.
ANTIFREEZE
In the winter when it is anticipated that the
temperature will drop below 32°F (0°C),
check the antifreeze to assure proper win-
ter protection. For additional information,
refer to “Engine cooling system” in the “Do-
it-yourself ” section of this manual.
BATTERY
If the battery is not fully charged during
extremely cold weather conditions, the
battery fluid may freeze and damage the
battery. To maintain maximum efficiency,
the battery should be checked regularly.
For additional information, refer to “Battery”
in the “Do-it-yourself ” section of this
manual.
DRAINING OF COOLANT WATER
If the vehicle is to be lef t outside without
anti-freeze, drain the cooling system, in-
cluding the engine block. Refill before oper-
ating the vehicle. For additional informa-
tion, refer to “Changing engine coolant” in
the “Do-it-yourself ” section of this manual.
TIRE EQUIPMENT
1. SUMMER tires have a tread designed toprovide superior performance on dry
pavement. However, the performance
of these tires will be substantially re-
duced in snowy and icy conditions. If
you operate your vehicle on snowy or
icy roads, NISSAN recommends the use
of MUD & SNOW or ALL SEASON TIRES
on all four wheels. It is recommended
that you visit a NISSAN dealer for the tire
type, size, speed rating and availability
information.
2. For additional traction on icy roads, studded tires may be used. However,
some U.S. states and Canadian prov-
inces prohibit their use. Check local,
state and provincial laws before install-
ing studded tires. Skid and traction capabilities of studded
snow tires on wet or dry surfaces may be
poorer than that of non-studded snow
tires.
SPECIAL WINTER EQUIPMENT
It is recommended that the following items
be carried in the vehicle during winter:
∙ A scraper and stiff-bristled brush to re- move ice and snow from the windows
and wiper blades.
∙ A sturdy, flat board to be placed under the jack to give it firm support.
∙ A shovel to dig the vehicle out of snow- drif ts.
∙ Extra washer fluid to refill the windshield-washer fluid reservoir.
DRIVING ON SNOW OR ICE
Page 376 of 428
![NISSAN MAXIMA PLATINUM 2018 Owners Manual Summer tires
NISSAN specifies summer tires on some
models to provide superior performance
on dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the t NISSAN MAXIMA PLATINUM 2018 Owners Manual Summer tires
NISSAN specifies summer tires on some
models to provide superior performance
on dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the t](/img/5/56782/w960_56782-375.png)

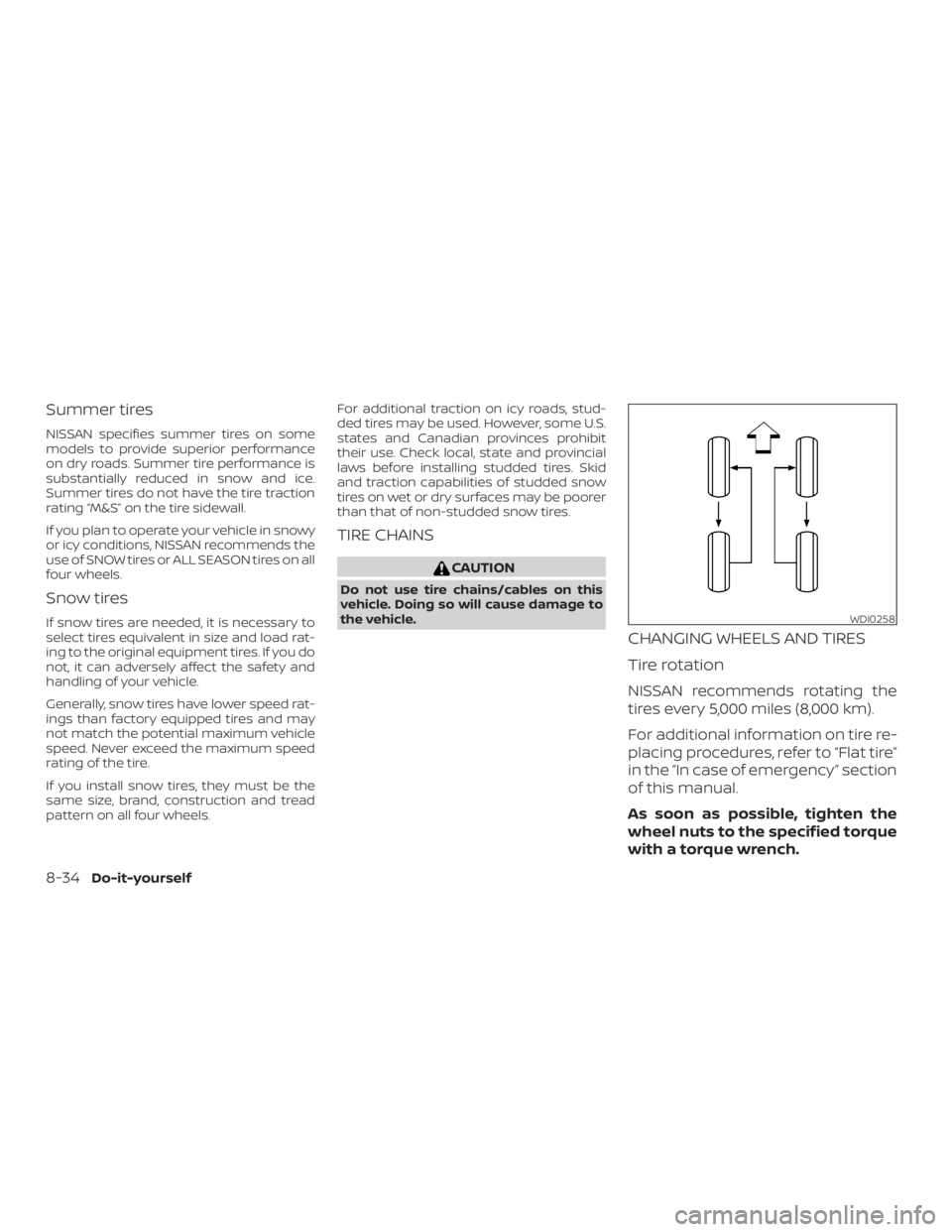

Summer tires
NISSAN specifies summer tires on some
models to provide superior performance
on dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the tire traction
rating “M&S” on the tire sidewall.
If you plan to operate your vehicle in snowy
or icy conditions, NISSAN recommends the
use of SNOW tires or ALL SEASON tires on all
four wheels.
Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load rat-
ing to the original equipment tires. If you do
not, it can adversely affect the safety and
handling of your vehicle.
Generally, snow tires have lower speed rat-
ings than factory equipped tires and may
not match the potential maximum vehicle
speed. Never exceed the maximum speed
rating of the tire.
If you install snow tires, they must be the
same size, brand, construction and tread
pattern on all four wheels.For additional traction on icy roads, stud-
ded tires may be used. However, some U.S.
states and Canadian provinces prohibit
their use. Check local, state and provincial
laws before installing studded tires. Skid
and traction capabilities of studded snow
tires on wet or dry surfaces may be poorer
than that of non-studded snow tires.
TIRE CHAINS
Page 378 of 428
![NISSAN MAXIMA PLATINUM 2018 Owners Manual Replacing wheels and tires
When replacing a tire, use the same size,
tread design, speed rating and load carry-
ing capacity as originally equipped. Rec-
ommended types and sizes are shown in
“Wheel NISSAN MAXIMA PLATINUM 2018 Owners Manual Replacing wheels and tires
When replacing a tire, use the same size,
tread design, speed rating and load carry-
ing capacity as originally equipped. Rec-
ommended types and sizes are shown in
“Wheel](/img/5/56782/w960_56782-377.png)

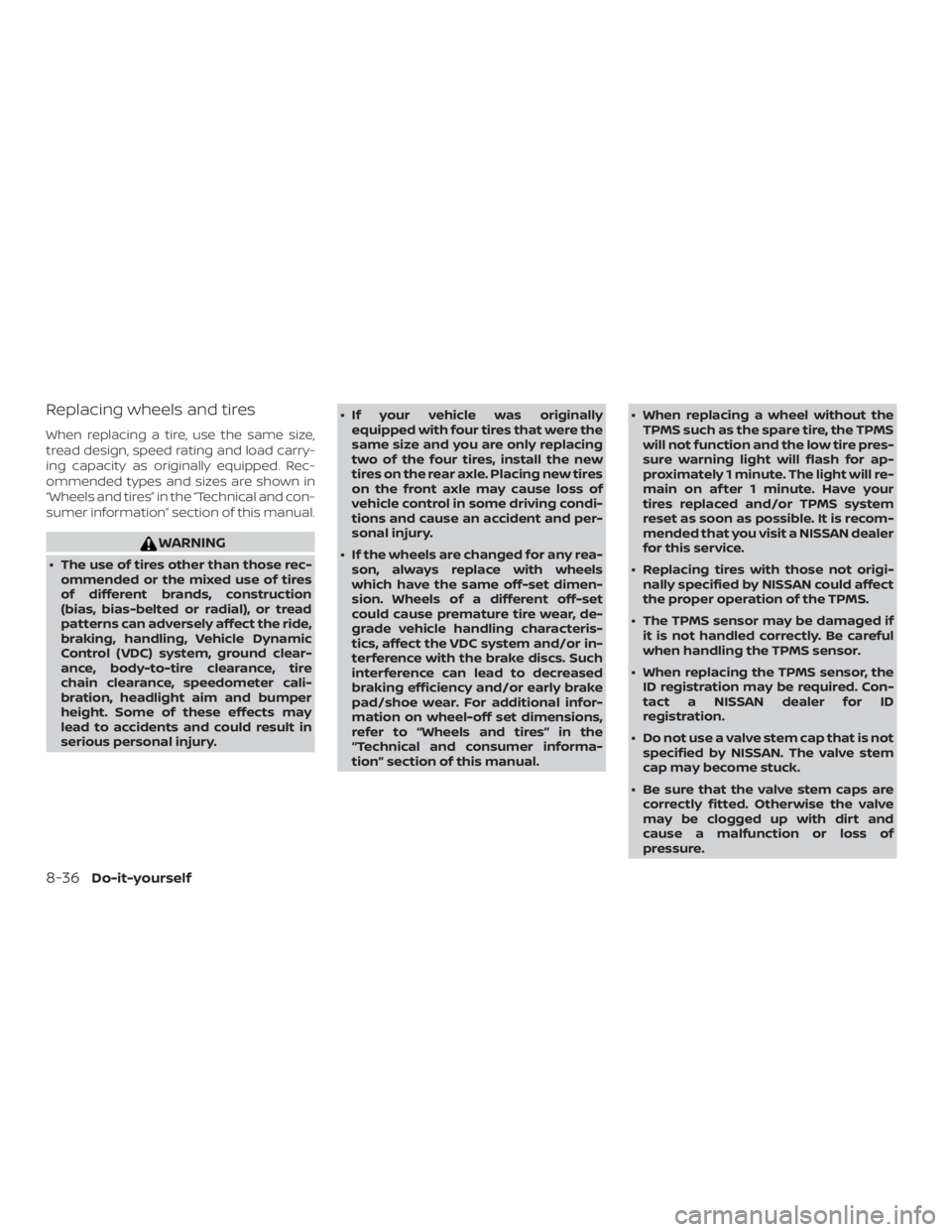

Replacing wheels and tires
When replacing a tire, use the same size,
tread design, speed rating and load carry-
ing capacity as originally equipped. Rec-
ommended types and sizes are shown in
“Wheels and tires” in the “Technical and con-
sumer information” section of this manual.
Page 422 of 428
![NISSAN MAXIMA PLATINUM 2018 Owners Manual Seatbeltwarninglight.........1-14, 2-13
SeatsAdjustment ..................1-2
Armrests .................. .1-7
Automatic drive
positioner ........3-30,3-31,3-32,3-33
Frontseats..................1-2
He NISSAN MAXIMA PLATINUM 2018 Owners Manual Seatbeltwarninglight.........1-14, 2-13
SeatsAdjustment ..................1-2
Armrests .................. .1-7
Automatic drive
positioner ........3-30,3-31,3-32,3-33
Frontseats..................1-2
He](/img/5/56782/w960_56782-421.png)
Seatbeltwarninglight.........1-14, 2-13
SeatsAdjustment ..................1-2
Armrests .................. .1-7
Automatic drive
positioner ........3-30,3-31,3-32,3-33
Frontseats..................1-2
Heatedseats................2-51
Rearseat...................1-5
Security indicator light ............2-15
Security system (NISSAN Vehicle Immobilizer
System), engine start ..........2-41,5-14
Security systems Vehicle security system .........2-39
Self-adjustingbrakes.............8-17
Service manual order form .........10-20
Servicing air conditioner ...........4-32
Shif ting Continuously Variable Transmission
(CVT) .....................5-17
Shoulder belt height adjustment ......1-18
Spark plug replacement ...........8-15
Spark plugs ...................8-15
Specifications .................10-8
Speedometer ................2-4,2-5
Speedometer and odometer ........2-4
Spotlights(Seemaplight)..........2-67
SRS warning label ...............1-60
Stability control ................5-85
Standard maintenance ............9-8
Starting Before starting the engine ........5-14
Jumpstarting.............6-8,8-14
Precautions when starting and
driving .....................5-4
Push starting ................6-10 Starting the engine
............5-14
Starting the engine ..............5-14
Steering Powersteeringfluid............8-10
Powersteeringsystem .........5-82
Steering wheel .................3-25
Stoplight....................8-24
Storage.....................2-56
Storagetray...................2-57
Sunglasses case ................2-58
Sunglasses holder ..............2-58
Sunroof .....................2-63
Sunvisors....................3-27
Supplemental air bag warning
light.................... .1-60, 2-13
Supplemental front impact air bag
system ..................... .1-49
Supplemental restraint system Information and warning labels . . . .1-60
Precautions on supplemental restraint
system ................... .1-43
Supplemental restraint system
(Supplemental air bag system) .......1-43
Switch Autolightswitch..............2-46
Automatic power window switch . . .2-62
Foglightswitch..............2-49
Hazard warning flasher switch ......6-2
Headlight and turn signal switch ....2-45
Headlightcontrolswitch.........2-45
Instrument brightness control .....2-48
Power door lock switch ..........3-5
Rear window and outside mirror
defrosterswitch..............2-45
Turn signal switch .............2-48 T
Tachometer ...................2-6
Temperature gauge Engine coolant temperature gauge . .2-6
Thef t (NISSAN Vehicle Immobilizer System),
engine start ................
2-41,5-14
Three-waycatalyst...............5-4
Tire Flattire....................6-3
Spare tire ................6-4,8-37
Tire and Loading Information label . .10-12
Tire chains .................8-34
Tire pressure ................8-26
Tirerotation ................8-34
Types of tires ................8-33
Uniform tire quality grading .......10-17
Wheels and tires ..............8-26
Wheel/tire size ...............10-9
Tire pressure Low tire pressure warning light .....2-10
Tire Pressure Monitoring System (TPMS) . .5-5
Towing 4-wheel drive models ...........6-12
Flattowing.................10-16
Trailertowing...............10-16
Towingatrailer................10-16
Towingyourvehicle..............6-11
Transceiver HomeLink® Universal
Transceiver .......2-68,2-69,2-70,2 -71,
2-71, 2-72
Transmission Continuously Variable Transmission (CVT)
fluid......................8-9
11-6
Page 423 of 428
![NISSAN MAXIMA PLATINUM 2018 Owners Manual Driving with Continuously Variable
Transmission (CVT)............5-16
Travel (See registering a vehicle in another
country) .....................10-10
Trip odometer ...............2-4,2-5
Trunk access NISSAN MAXIMA PLATINUM 2018 Owners Manual Driving with Continuously Variable
Transmission (CVT)............5-16
Travel (See registering a vehicle in another
country) .....................10-10
Trip odometer ...............2-4,2-5
Trunk access](/img/5/56782/w960_56782-422.png)
Driving with Continuously Variable
Transmission (CVT)............5-16
Travel (See registering a vehicle in another
country) .....................10-10
Trip odometer ...............2-4,2-5
Trunk access through the rear seat. .1-5, 3-22
Trunk lid lock opener lever ..........3-22
Trunklight....................2-68
Turn signal switch ...............2-48
U
Uniform tire quality grading .........10-17
USB/iPod® Charging Ports ..........4-32
V
Vanitymirror..................3-28
Vehicle dimensions and weights ......10-9
Vehicle Dynamic Control (VDC) OFF
switch......................2-53
Vehicle dynamic control (VDC) system . .5-85
Vehicle Dynamic Control (VDC) system . .5-85
Vehicle identification .............10-10
Vehicle identification number (VIN) . . . .10-10
Vehicle identification number (VIN)
(Chassis number) ...............10-10
Vehicle identification number (VIN)
plate.......................10-10
Vehicle immobilizer system ......2-41,5-14
VehicleInformationDisplay.........2-17
Vehicle loading information ........10-13
Vehiclerecovery................6-12
Vehicle security system ...........2-39Vehicle security system (NISSAN Vehicle
Immobilizer System), engine start . .2-41, 5-14
Vents.......................4-26
Visors.......................3-27
W
Warning Airbagwarninglight........1-60, 2-13
Anti-lock brake warning light .......2-9
Battery charge warning light ......2-10
Brakewarninglight.............2-9
Engine oil pressure warning light ....2-10
Hazard warning flasher switch ......6-2
Loose fuel cap warning .........2-32
Lowfuelwarninglight.......2-12,2-28
Lowtirepressurewarninglight.....2-10
Low windshield-washer fluid warning
light .....................2-28
Passenger air bag and status light. . .1-52
Seatbeltwarninglight.......1-14, 2-13
Supplemental air bag warning
light.................. .1-60, 2-13
TPMS......................2-4
Vehicle security system .........2-39
Warning/indicator lights and audible
reminder s...............2-8,2-14
Warning labels (for SRS) .........1-60
Warning/indicator lights and audible
reminder s.................2-8,2-14
Audible reminders ..........2-8,2-14
Indicatorlights ............2-8,2-14
Warninglights.............2-8,2-14
Warninglights...............2-8,2-14 Weights (See dimensions and weights) . .10-9
Wheels and tires
................8-26
Wheel/tire size .................10-9
When traveling or registering in another
country .....................10-10
Windows ................... .2-60
Locking passengers' windows .....2-62
Powerrearwindows ...........2-61
Powerwindows..............2-60
Rearpowerwindows...........2-61
Windshield-washer fluid ...........8-11
Windshield wiper blades ...........8-16
Wiper Wiper blades ................8-16
Wiper and washer switch ..........2-42
11-7
