NISSAN MICRA 2018 Owner´s Manual

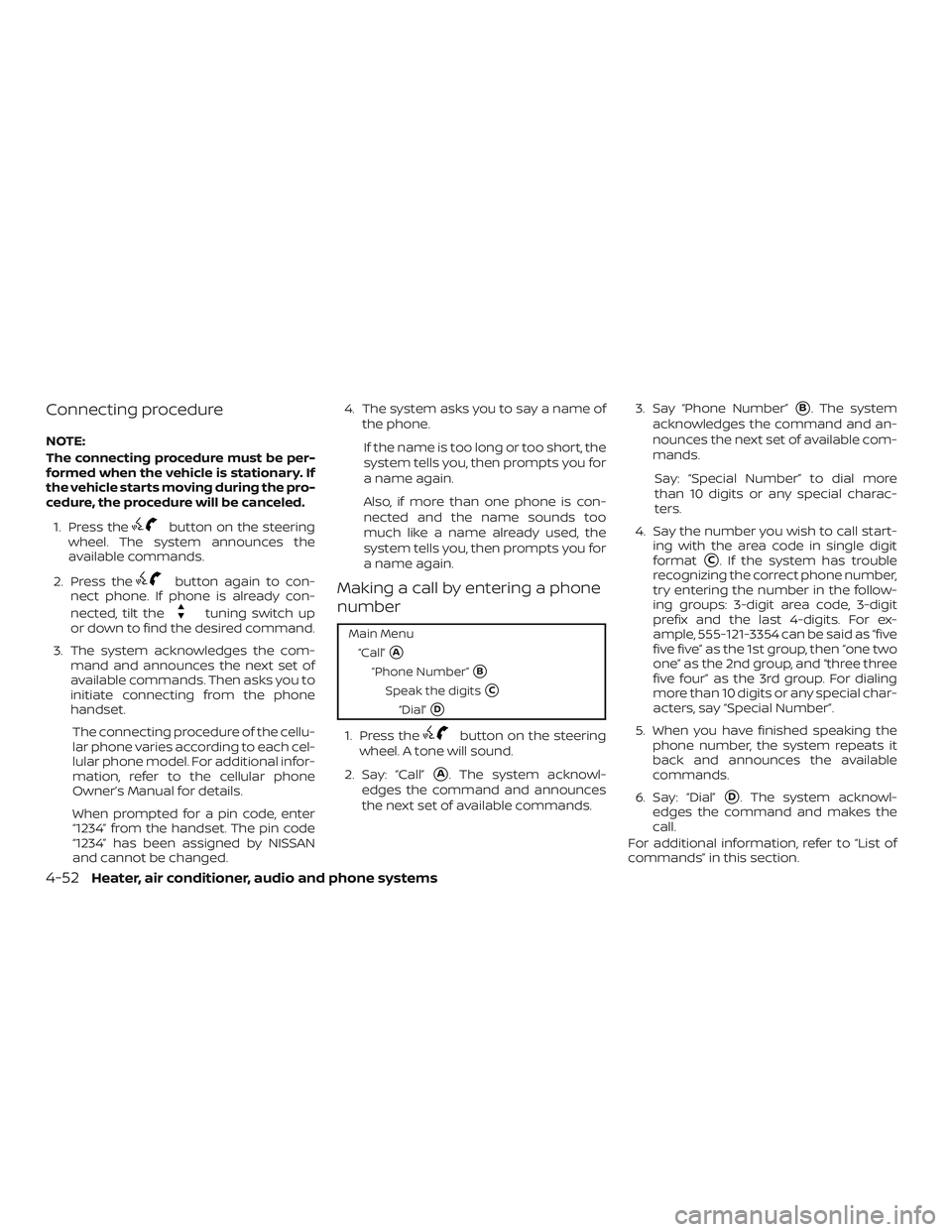

Connecting procedure
NOTE:
The connecting procedure must be per-
formed when the vehicle is stationary. If
the vehicle starts moving during the pro-
cedure, the procedure will be canceled.1. Press the
button on the steering
wheel. The system announces the
available commands.
2. Press the
button again to con-
nect phone. If phone is already con-
nected, tilt the
tuning switch up
or down to find the desired command.
3. The system acknowledges the com- mand and announces the next set of
available commands. Then asks you to
initiate connecting from the phone
handset.
The connecting procedure of the cellu-
lar phone varies according to each cel-
lular phone model. For additional infor-
mation, refer to the cellular phone
Owner’s Manual for details.
When prompted for a pin code, enter
“1234” from the handset. The pin code
“1234” has been assigned by NISSAN
and cannot be changed. 4. The system asks you to say a name of
the phone.
If the name is too long or too short, the
system tells you, then prompts you for
a name again.
Also, if more than one phone is con-
nected and the name sounds too
much like a name already used, the
system tells you, then prompts you for
a name again.
Making a call by entering a phone
number
Main Menu “Call”
A
“Phone Number”B
Speak the digitsC
“Dial”D
1. Press thebutton on the steering
wheel. A tone will sound.
2. Say: “Call”
A. The system acknowl-
edges the command and announces
the next set of available commands. 3. Say “Phone Number”
B. The system
acknowledges the command and an-
nounces the next set of available com-
mands.
Say: “Special Number” to dial more
than 10 digits or any special charac-
ters.
4. Say the number you wish to call start- ing with the area code in single digit
format
C. If the system has trouble
recognizing the correct phone number,
try entering the number in the follow-
ing groups: 3-digit area code, 3-digit
prefix and the last 4-digits. For ex-
ample, 555-121-3354 can be said as “five
five five” as the 1st group, then “one two
one” as the 2nd group, and “three three
five four” as the 3rd group. For dialing
more than 10 digits or any special char-
acters, say “Special Number”.
5. When you have finished speaking the phone number, the system repeats it
back and announces the available
commands.
6. Say: “Dial”
D. The system acknowl-
edges the command and makes the
call.
For additional information, refer to “List of
commands” in this section.
4-52Heater, air conditioner, audio and phone systems

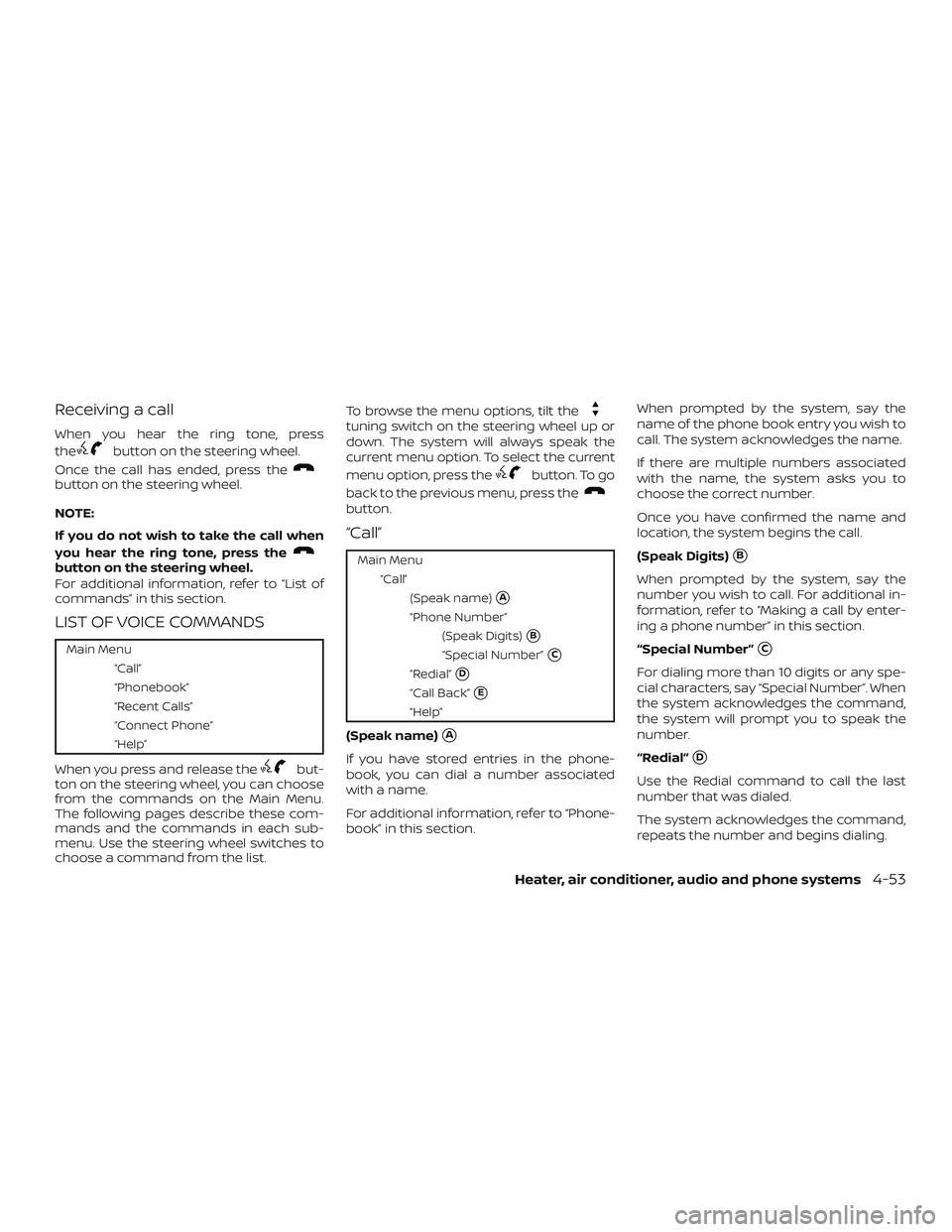

Receiving a call
When you hear the ring tone, press
the
button on the steering wheel.
Once the call has ended, press the
button on the steering wheel.
NOTE:
If you do not wish to take the call when
you hear the ring tone, press the
button on the steering wheel.
For additional information, refer to “List of
commands” in this section.
LIST OF VOICE COMMANDS
Main Menu
“Call”
“Phonebook”
“Recent Calls”
“Connect Phone”
“Help”
When you press and release thebut-
ton on the steering wheel, you can choose
from the commands on the Main Menu.
The following pages describe these com-
mands and the commands in each sub-
menu. Use the steering wheel switches to
choose a command from the list. To browse the menu options, tilt the
tuning switch on the steering wheel up or
down. The system will always speak the
current menu option. To select the current
menu option, press the
button. To go
back to the previous menu, press the
button.
“Call”
Main Menu
“Call” (Speak name)
A
“Phone Number” (Speak Digits)
B
“Special Number”C
“Redial”D
“Call Back”E
“Help”
(Speak name)A
If you have stored entries in the phone-
book, you can dial a number associated
with a name.
For additional information, refer to “Phone-
book” in this section. When prompted by the system, say the
name of the phone book entry you wish to
call. The system acknowledges the name.
If there are multiple numbers associated
with the name, the system asks you to
choose the correct number.
Once you have confirmed the name and
location, the system begins the call.
(Speak Digits)
B
When prompted by the system, say the
number you wish to call. For additional in-
formation, refer to “Making a call by enter-
ing a phone number” in this section.
“Special Number”
C
For dialing more than 10 digits or any spe-
cial characters, say “Special Number”. When
the system acknowledges the command,
the system will prompt you to speak the
number.
“Redial”
D
Use the Redial command to call the last
number that was dialed.
The system acknowledges the command,
repeats the number and begins dialing.
Heater, air conditioner, audio and phone systems4-53

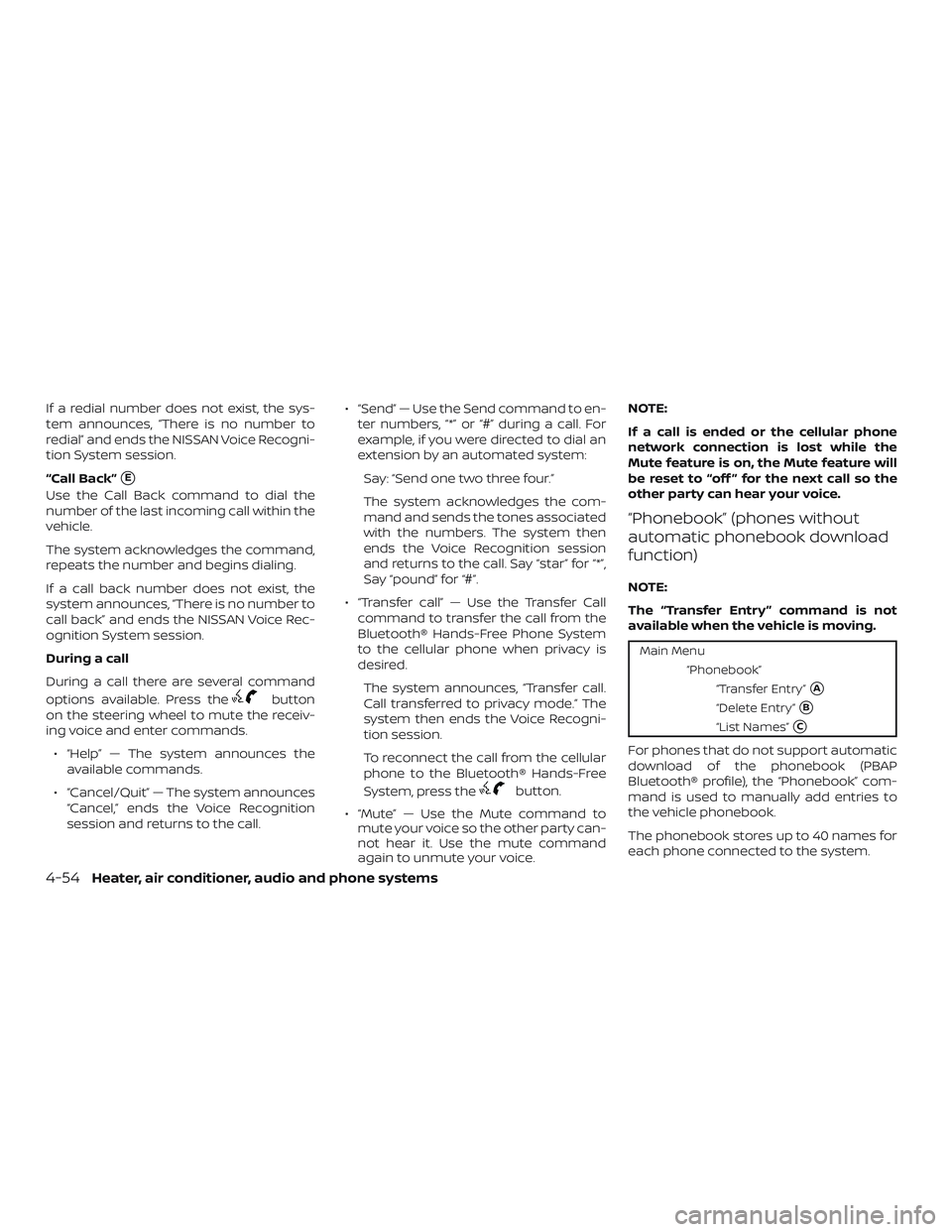

If a redial number does not exist, the sys-
tem announces, “There is no number to
redial” and ends the NISSAN Voice Recogni-
tion System session.
“Call Back”
E
Use the Call Back command to dial the
number of the last incoming call within the
vehicle.
The system acknowledges the command,
repeats the number and begins dialing.
If a call back number does not exist, the
system announces, “There is no number to
call back” and ends the NISSAN Voice Rec-
ognition System session.
During a call
During a call there are several command
options available. Press the
button
on the steering wheel to mute the receiv-
ing voice and enter commands.
∙ “Help” — The system announces the available commands.
∙ “Cancel/Quit” — The system announces “Cancel,” ends the Voice Recognition
session and returns to the call. ∙ “Send” — Use the Send command to en-
ter numbers, “*” or “#” during a call. For
example, if you were directed to dial an
extension by an automated system:
Say: “Send one two three four.”
The system acknowledges the com-
mand and sends the tones associated
with the numbers. The system then
ends the Voice Recognition session
and returns to the call. Say “star” for “*”,
Say “pound” for “#”.
∙ “Transfer call” — Use the Transfer Call command to transfer the call from the
Bluetooth® Hands-Free Phone System
to the cellular phone when privacy is
desired.
The system announces, “Transfer call.
Call transferred to privacy mode.” The
system then ends the Voice Recogni-
tion session.
To reconnect the call from the cellular
phone to the Bluetooth® Hands-Free
System, press the
button.
∙ “Mute” — Use the Mute command to mute your voice so the other party can-
not hear it. Use the mute command
again to unmute your voice. NOTE:
If a call is ended or the cellular phone
network connection is lost while the
Mute feature is on, the Mute feature will
be reset to “off ” for the next call so the
other party can hear your voice.
“Phonebook” (phones without
automatic phonebook download
function)
NOTE:
The “Transfer Entry ” command is not
available when the vehicle is moving.
Main Menu
“Phonebook”“Transfer Entry”
A
“Delete Entry”B
“List Names”C
For phones that do not support automatic
download of the phonebook (PBAP
Bluetooth® profile), the “Phonebook” com-
mand is used to manually add entries to
the vehicle phonebook.
The phonebook stores up to 40 names for
each phone connected to the system.
4-54Heater, air conditioner, audio and phone systems

NOTE:
Each phone has its own separate phone-
book. You cannot access Phone A’s
phonebook if you are currently con-
nected with Phone B.
“Transfer Entry ”
A
Use the Transfer Entry command to store a
new name in the system.
When prompted by the system, say the
name you would like to give the new entry.
For example, say: “Mary.”
If the name is too long or too short, the
system tells you, then prompts you for a
name again.
Also, if the name sounds too much like a
name already stored, the system tells you,
then prompts you for a name again.
The system will ask you to transfer a phone
number stored in the cellular phone’s
memory.
To transfer a phone number stored in the
cellular phone’s memory:
Select “Transfer entry.” The system ac-
knowledges the command and asks you
to initiate the transfer from the phone
handset. The new contact phone numberwill be transferred from the cellular phone
via the Bluetooth® communication link.
The transfer procedure varies according to
each cellular phone. For additional infor-
mation, refer to the cellular phone Owner’s
Manual.
The system repeats the number and
prompts you for the next command. When
you have finished entering numbers or
transferring an entry, choose “Store.”
The system confirms the name, location
and number.
“Delete Entry ”B
Use the Delete Entry command to erase
one entry from the phonebook. Af ter the
system recognizes the command, speak
the name to delete or say “List Names” to
choose an entry.
“List Names”
C
Use the List Names command to hear all
the names in the phonebook.
The system recites the phonebook entries
but does not include the actual phone
numbers. When the playback of the list is
complete, the system goes back to the
main menu.You can stop the playback of the list at any
time by pressing the
button on the
steering wheel. The system ends the ses-
sion.
“Phonebook” (phones with
automatic phonebook download
function)
NOTE:
The “Transfer Entry ” command is not
available when the vehicle is moving.
Main Menu
“Phonebook”Say a Name
“List Names”
A
“Help”
For phones that support automatic down-
load of the phonebook (PBAP Bluetooth®
profile), the “Phonebook” command is used
to manage entries in the vehicle phone-
book. You can say the name of an entry at
this menu to initiate dialing of that entry.
The phonebook stores up to 1000 names
for each phone connected to the system.
When a phone is connected to the system,
the phonebook is automatically down-
Heater, air conditioner, audio and phone systems4-55

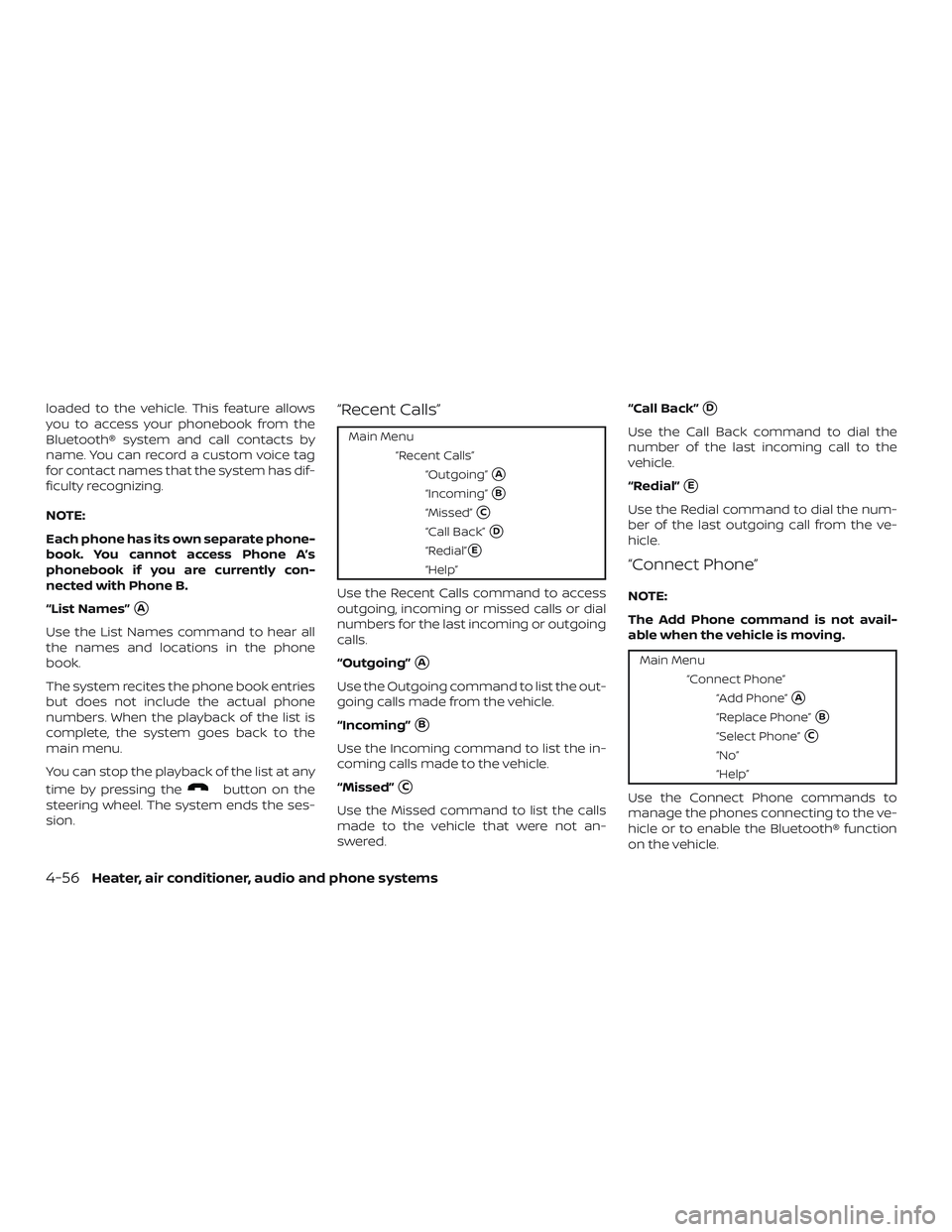

loaded to the vehicle. This feature allows
you to access your phonebook from the
Bluetooth® system and call contacts by
name. You can record a custom voice tag
for contact names that the system has dif-
ficulty recognizing.
NOTE:
Each phone has its own separate phone-
book. You cannot access Phone A’s
phonebook if you are currently con-
nected with Phone B.
“List Names”
A
Use the List Names command to hear all
the names and locations in the phone
book.
The system recites the phone book entries
but does not include the actual phone
numbers. When the playback of the list is
complete, the system goes back to the
main menu.
You can stop the playback of the list at any
time by pressing the
button on the
steering wheel. The system ends the ses-
sion.
“Recent Calls”
Main Menu
“Recent Calls”“Outgoing”
A
“Incoming”B
“Missed”C
“Call Back”D
“Redial”E
“Help”
Use the Recent Calls command to access
outgoing, incoming or missed calls or dial
numbers for the last incoming or outgoing
calls.
“Outgoing”
A
Use the Outgoing command to list the out-
going calls made from the vehicle.
“Incoming”
B
Use the Incoming command to list the in-
coming calls made to the vehicle.
“Missed”
C
Use the Missed command to list the calls
made to the vehicle that were not an-
swered. “Call Back”
D
Use the Call Back command to dial the
number of the last incoming call to the
vehicle.
“Redial”
E
Use the Redial command to dial the num-
ber of the last outgoing call from the ve-
hicle.
“Connect Phone”
NOTE:
The Add Phone command is not avail-
able when the vehicle is moving.
Main Menu
“Connect Phone”“Add Phone”
A
“Replace Phone”B
“Select Phone”C
“No”
“Help”
Use the Connect Phone commands to
manage the phones connecting to the ve-
hicle or to enable the Bluetooth® function
on the vehicle.
4-56Heater, air conditioner, audio and phone systems

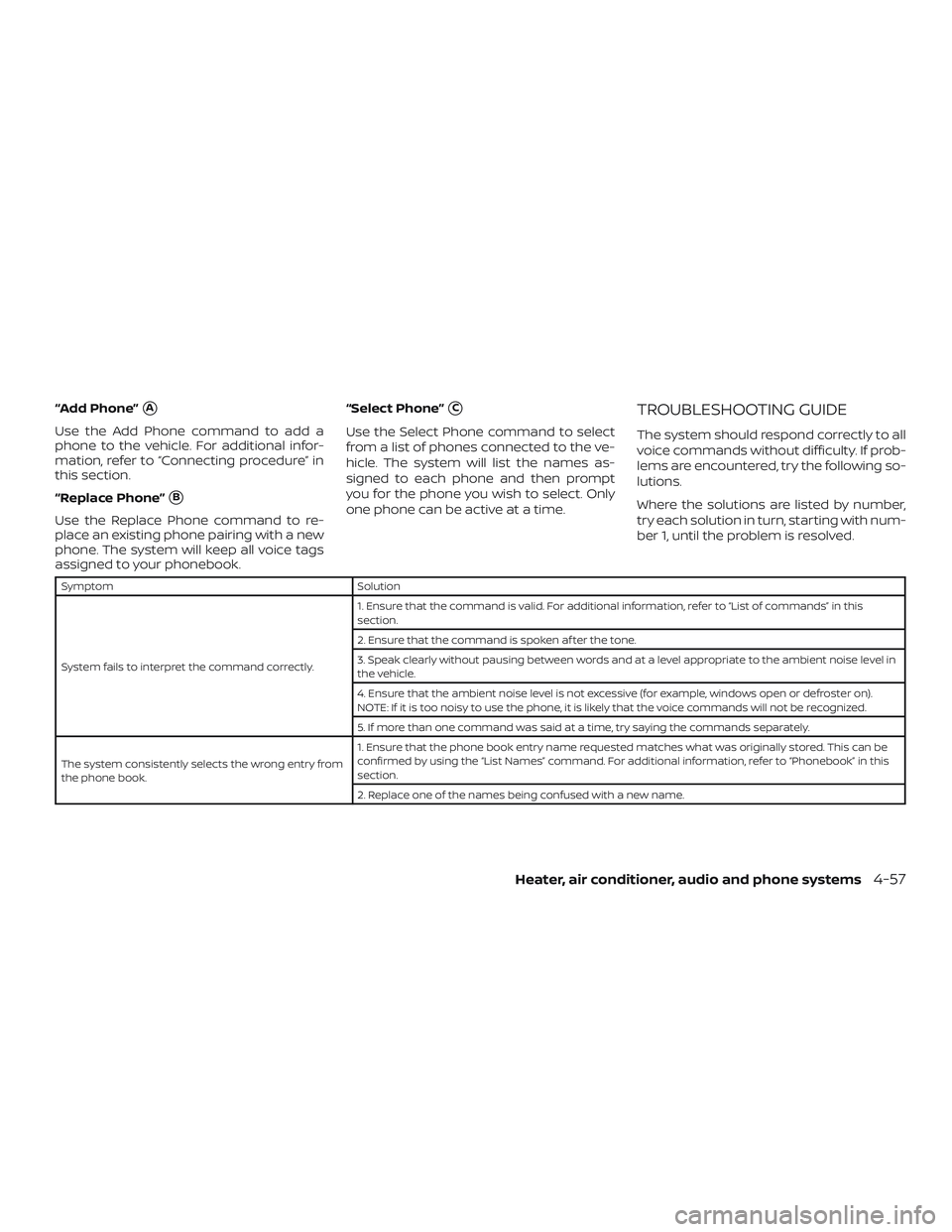

“Add Phone”A
Use the Add Phone command to add a
phone to the vehicle. For additional infor-
mation, refer to “Connecting procedure” in
this section.
“Replace Phone”
B
Use the Replace Phone command to re-
place an existing phone pairing with a new
phone. The system will keep all voice tags
assigned to your phonebook.“Select Phone”
C
Use the Select Phone command to select
from a list of phones connected to the ve-
hicle. The system will list the names as-
signed to each phone and then prompt
you for the phone you wish to select. Only
one phone can be active at a time.
TROUBLESHOOTING GUIDE
The system should respond correctly to all
voice commands without difficulty. If prob-
lems are encountered, try the following so-
lutions.
Where the solutions are listed by number,
try each solution in turn, starting with num-
ber 1, until the problem is resolved.
Symptom
Solution
System fails to interpret the command correctly. 1. Ensure that the command is valid. For additional information, refer to “List of commands” in this
section.
2. Ensure that the command is spoken af ter the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in
the vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on).
NOTE: If it is too noisy to use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
The system consistently selects the wrong entry from
the phone book. 1. Ensure that the phone book entry name requested matches what was originally stored. This can be
confirmed by using the “List Names” command. For additional information, refer to “Phonebook” in this
section.
2. Replace one of the names being confused with a new name.
Heater, air conditioner, audio and phone systems4-57

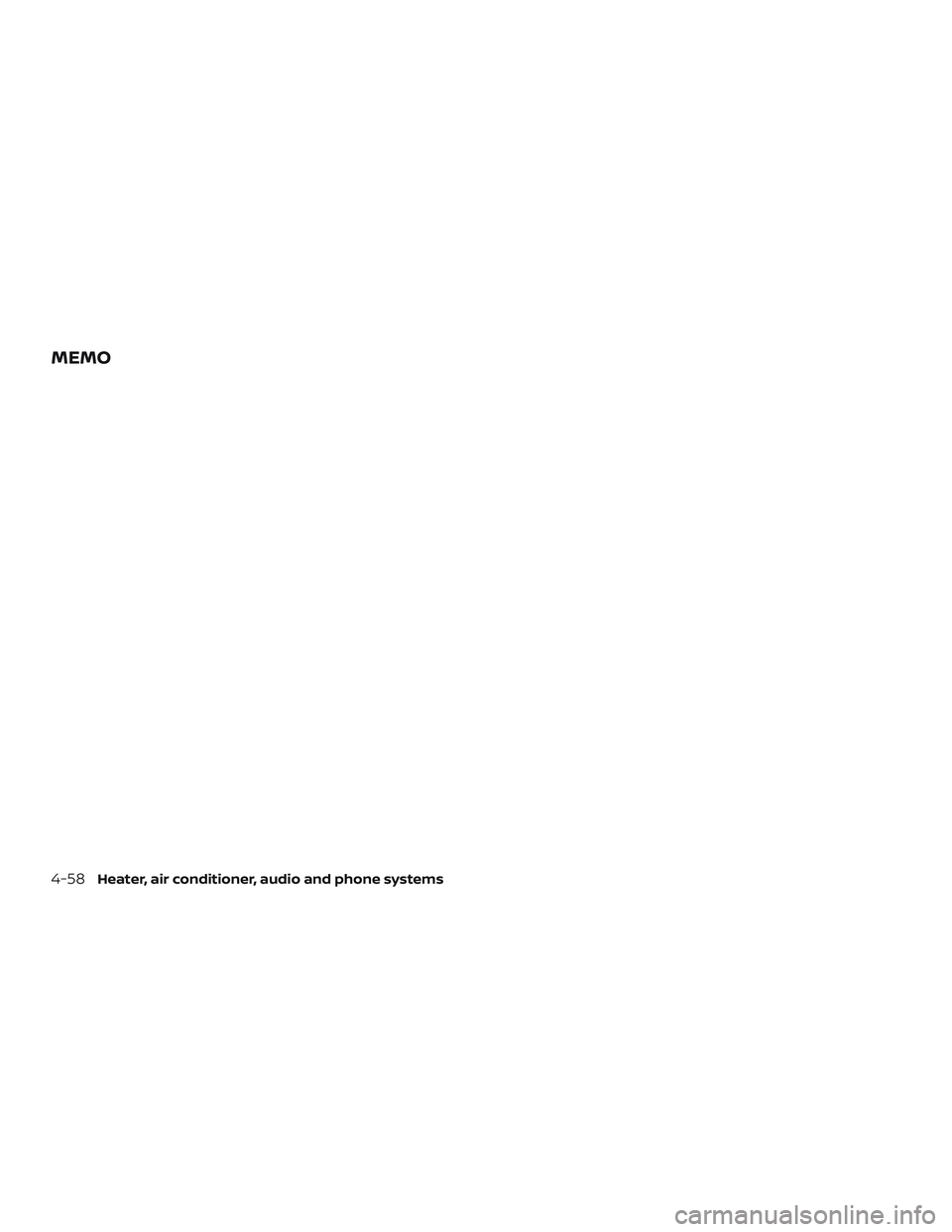

MEMO
4-58Heater, air conditioner, audio and phone systems

5 Starting and driving
Precautions when starting and driving..........5-2
Exhaust gas (carbon monoxide) ..............5-2
Three-way catalyst ...........................5-2
Avoiding collision and rollover ................5-3
Off-roadrecovery ............................5-3
Rapid air pressure loss .......................5-4
Drinking alcohol/drugs and driving ...........5-5
Ignition switch ...................................5-5
Automatic transmission
(if so equipped) ...............................5-5
Manual transmission (if so equipped) .........5-6
Ignition switch positions ......................5-7
NISSAN Vehicle Immobilizer System ..........5-7
Before starting the engine .......................5-7
Starting the engine ..............................5-8
Driving the vehicle ...............................5-9
Automatic transmission
(if so equipped) ...............................5-9
Manual transmission (if so equipped) ........5-13
Parking brake .................................. 5-15
Cruise control (if so equipped) ..................5-16
Precautions on cruise control ................5-16Cruise control operations
....................5-16
Break-in schedule .............................. 5-17
Fuel efficient driving tips ........................5-18
Increasing fuel economy .......................5-19
Parking/parking on hills ........................5-20
Power steering ................................. 5-21
Brake system ................................... 5-22
Brake precautions ........................... 5-22
Anti-lock Braking System (ABS) ..............5-22
Brake assist ................................. 5-24
Vehicle Dynamic Control (VDC) system .........5-24
Brake force distribution ......................5-25
Cold weather driving ........................... 5-26
Freeing a frozen door lock ...................5-26
Antifreeze ................................... 5-26
Battery...................................... 5-26
Draining of coolant water ....................5-27
Tire equipment .............................. 5-27
Special winter equipment ...................5-27
Driving on snow or ice .......................5-27
Engine block

heater ......................... 5-28

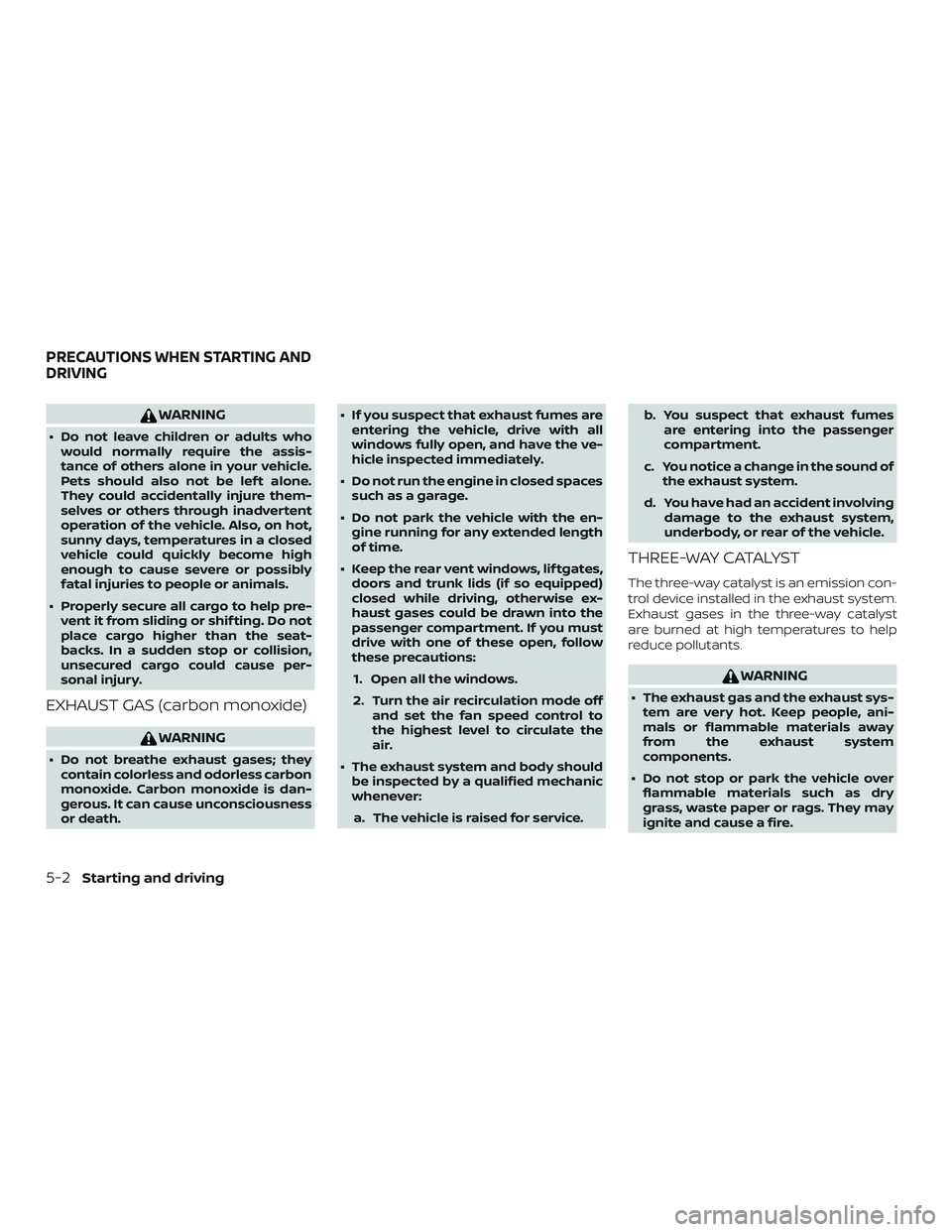

WARNING
∙ Do not leave children or adults whowould normally require the assis-
tance of others alone in your vehicle.
Pets should also not be lef t alone.
They could accidentally injure them-
selves or others through inadvertent
operation of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.
∙ Properly secure all cargo to help pre- vent it from sliding or shif ting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.
EXHAUST GAS (carbon monoxide)
WARNING
∙ Do not breathe exhaust gases; theycontain colorless and odorless carbon
monoxide. Carbon monoxide is dan-
gerous. It can cause unconsciousness
or death. ∙ If you suspect that exhaust fumes are
entering the vehicle, drive with all
windows fully open, and have the ve-
hicle inspected immediately.
∙ Do not run the engine in closed spaces such as a garage.
∙ Do not park the vehicle with the en- gine running for any extended length
of time.
∙ Keep the rear vent windows, lif tgates, doors and trunk lids (if so equipped)
closed while driving, otherwise ex-
haust gases could be drawn into the
passenger compartment. If you must
drive with one of these open, follow
these precautions:
1. Open all the windows.
2. Turn the air recirculation mode off and set the fan speed control to
the highest level to circulate the
air.
∙ The exhaust system and body should be inspected by a qualified mechanic
whenever:
a. The vehicle is raised for service. b. You suspect that exhaust fumes
are entering into the passenger
compartment.
c. You notice a change in the sound of the exhaust system.
d. You have had an accident involving damage to the exhaust system,
underbody, or rear of the vehicle.
THREE-WAY CATALYST
The three-way catalyst is an emission con-
trol device installed in the exhaust system.
Exhaust gases in the three-way catalyst
are burned at high temperatures to help
reduce pollutants.
WARNING
∙ The exhaust gas and the exhaust sys-tem are very hot. Keep people, ani-
mals or flammable materials away
from the exhaust system
components.
∙ Do not stop or park the vehicle over flammable materials such as dry
grass, waste paper or rags. They may
ignite and cause a fire.
PRECAUTIONS WHEN STARTING AND
DRIVING
5-2Starting and driving

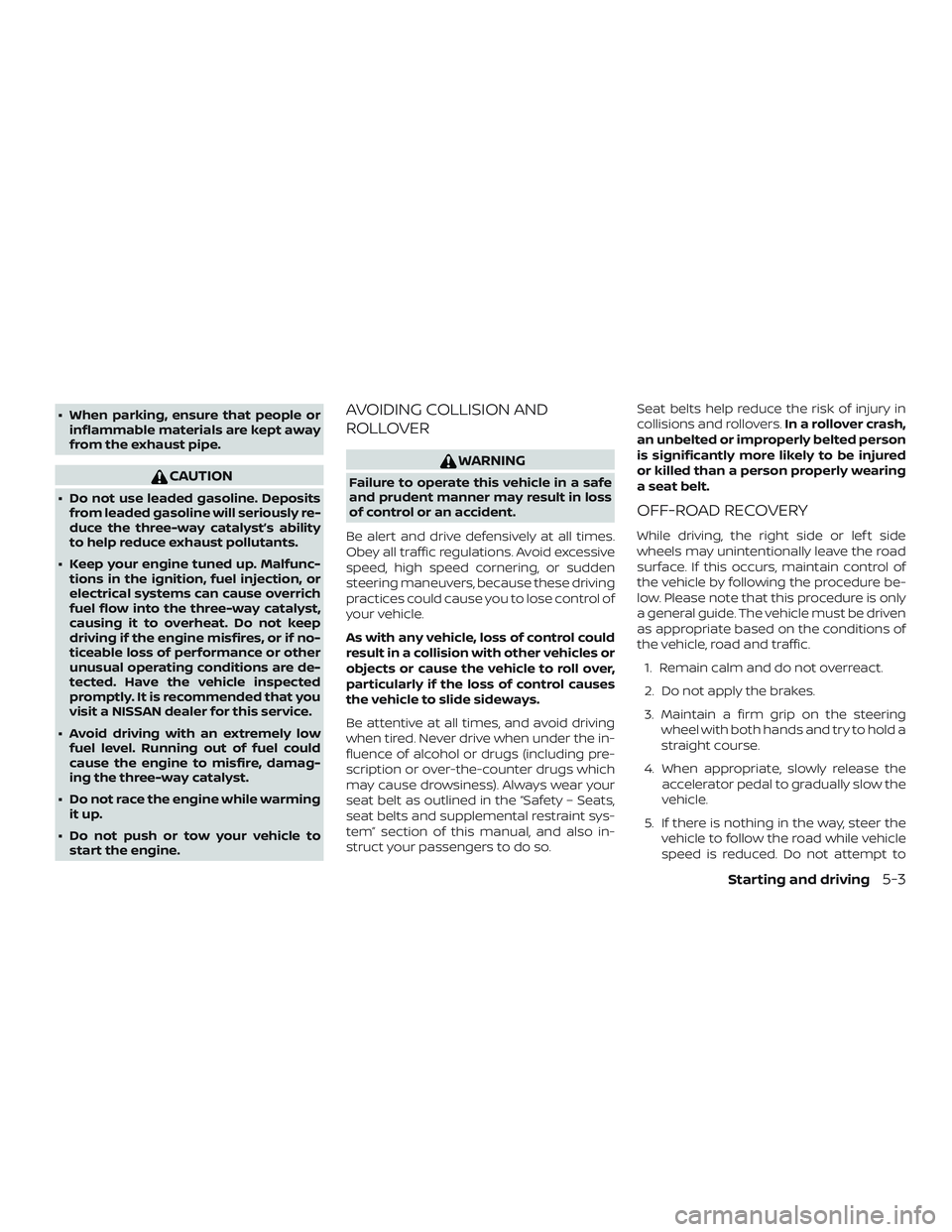

∙ When parking, ensure that people orinflammable materials are kept away
from the exhaust pipe.
CAUTION
∙ Do not use leaded gasoline. Depositsfrom leaded gasoline will seriously re-
duce the three-way catalyst’s ability
to help reduce exhaust pollutants.
∙ Keep your engine tuned up. Malfunc- tions in the ignition, fuel injection, or
electrical systems can cause overrich
fuel flow into the three-way catalyst,
causing it to overheat. Do not keep
driving if the engine misfires, or if no-
ticeable loss of performance or other
unusual operating conditions are de-
tected. Have the vehicle inspected
promptly. It is recommended that you
visit a NISSAN dealer for this service.
∙ Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire, damag-
ing the three-way catalyst.
∙ Do not race the engine while warming it up.
∙ Do not push or tow your vehicle to start the engine.
AVOIDING COLLISION AND
ROLLOVER
WARNING
Failure to operate this vehicle in a safe
and prudent manner may result in loss
of control or an accident.
Be alert and drive defensively at all times.
Obey all traffic regulations. Avoid excessive
speed, high speed cornering, or sudden
steering maneuvers, because these driving
practices could cause you to lose control of
your vehicle.
As with any vehicle, loss of control could
result in a collision with other vehicles or
objects or cause the vehicle to roll over,
particularly if the loss of control causes
the vehicle to slide sideways.
Be attentive at all times, and avoid driving
when tired. Never drive when under the in-
fluence of alcohol or drugs (including pre-
scription or over-the-counter drugs which
may cause drowsiness). Always wear your
seat belt as outlined in the “Safety – Seats,
seat belts and supplemental restraint sys-
tem” section of this manual, and also in-
struct your passengers to do so. Seat belts help reduce the risk of injury in
collisions and rollovers.
In a rollover crash,
an unbelted or improperly belted person
is significantly more likely to be injured
or killed than a person properly wearing
a seat belt.
OFF-ROAD RECOVERY
While driving, the right side or lef t side
wheels may unintentionally leave the road
surface. If this occurs, maintain control of
the vehicle by following the procedure be-
low. Please note that this procedure is only
a general guide. The vehicle must be driven
as appropriate based on the conditions of
the vehicle, road and traffic.
1. Remain calm and do not overreact.
2. Do not apply the brakes.
3. Maintain a firm grip on the steering wheel with both hands and try to hold a
straight course.
4. When appropriate, slowly release the accelerator pedal to gradually slow the
vehicle.
5. If there is nothing in the way, steer the vehicle to follow the road while vehicle
speed is reduced. Do not attempt to
Starting and driving5-3
