NISSAN MURANO 2004 1.G Owners Manual

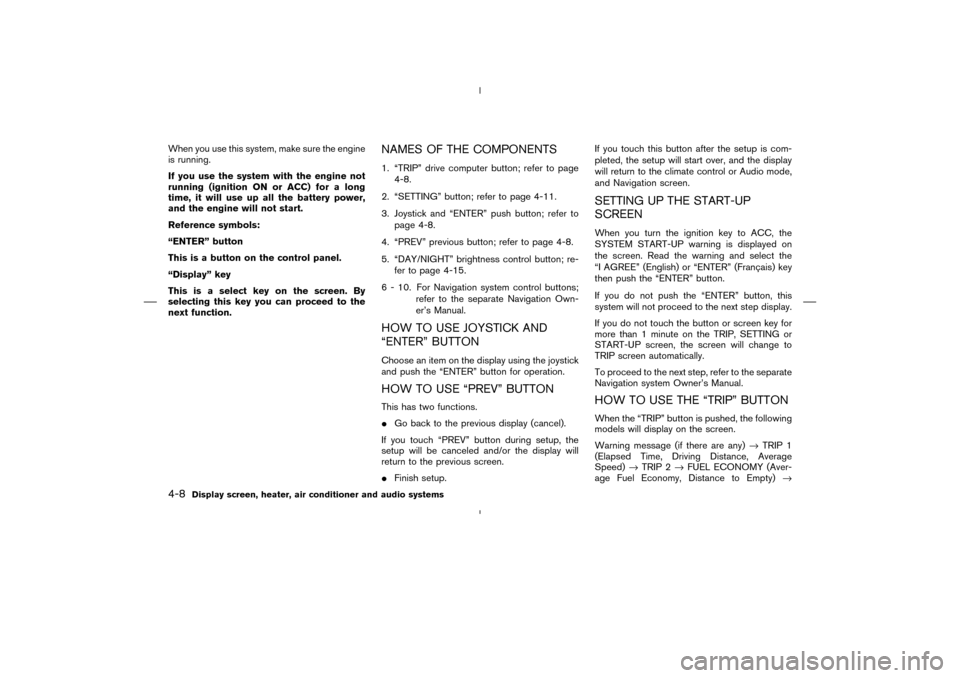

When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ONor ACC) for a long
time, it will use up all the battery power,
and the engine will not start.
Reference symbols:
“ENTER” button
This is a button on the control panel.
“Display” key
This is a select key on the screen. By
selecting this key you can proceed to the
next function.
NAMES OF THE COMPONENTS1. “TRIP” drive computer button; refer to page
4-8.
2. “SETTING” button; refer to page 4-11.
3. Joystick and “ENTER” push button; refer to
page 4-8.
4. “PREV” previous button; refer to page 4-8.
5. “DAY/NIGHT” brightness control button; re-
fer to page 4-15.
6 - 10. For Navigation system control buttons;
refer to the separate Navigation Own-
er’s Manual.HOW TO USE JOYSTICK AND
“ENTER” BUTTONChoose an item on the display using the joystick
and push the “ENTER” button for operation.HOW TO USE “PREV” BUTTONThis has two functions.

Go back to the previous display (cancel).
If you touch “PREV” button during setup, the
setup will be canceled and/or the display will
return to the previous screen.

Finish setup.If you touch this button after the setup is com-
pleted, the setup will start over, and the display
will return to the climate control or Audio mode,
and Navigation screen.
SETTING UP THE START-UP
SCREENWhen you turn the ignition key to ACC, the
SYSTEM START-UP warning is displayed on
the screen. Read the warning and select the
“I AGREE” (English) or “ENTER” (Franc¸ ais) key
then push the “ENTER” button.
If you do not push the “ENTER” button, this
system will not proceed to the next step display.
If you do not touch the button or screen key for
more than 1 minute on the TRIP, SETTING or
START-UP screen, the screen will change to
TRIP screen automatically.
To proceed to the next step, refer to the separate
Navigation system Owner’s Manual.HOW TO USE THE “TRIP” BUTTONWhen the “TRIP” button is pushed, the following
models will display on the screen.
Warning message (if there are any)→TRIP 1
(Elapsed Time, Driving Distance, Average
Speed)→TRIP 2→FUEL ECONOMY (Aver-
age Fuel Economy, Distance to Empty)→
4-8
Display screen, heater, air conditioner and audio systems


04.4.5/Z50-D/V5.0

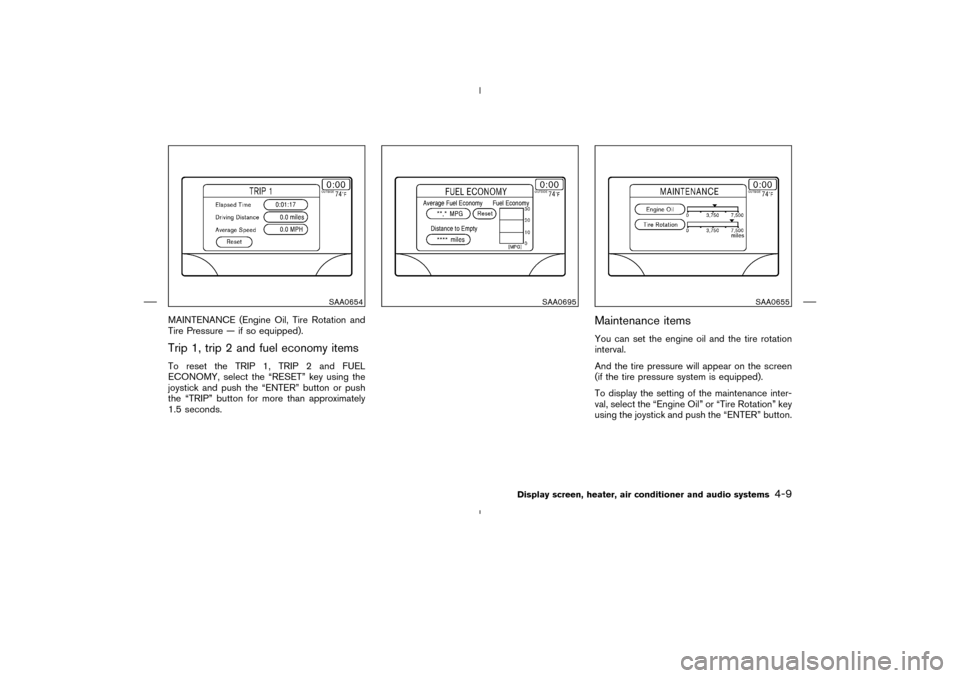

MAINTENANCE (Engine Oil, Tire Rotation and
Tire Pressure — if so equipped).Trip 1, trip 2 and fuel economy itemsTo reset the TRIP 1, TRIP 2 and FUEL
ECONOMY, select the “RESET” key using the
joystick and push the “ENTER” button or push
the “TRIP” button for more than approximately
1.5 seconds.
Maintenance itemsYou can set the engine oil and the tire rotation
interval.
And the tire pressure will appear on the screen
(if the tire pressure system is equipped).
To display the setting of the maintenance inter-
val, select the “Engine Oil” or “Tire Rotation” key
using the joystick and push the “ENTER” button.
SAA0654
SAA0695
SAA0655
Display screen, heater, air conditioner and audio systems
4-9


04.4.5/Z50-D/V5.0


To set the maintenance interval, select the
“Maintenance Schedule” key by using the joy-
stick and push the joystick to right or left.
To reset the maintenance interval, select the
“RESET” key using the joystick and push the
“ENTER” button.
To display the MAINTENANCE INFORMATION,
automatically when setting trip distance is
reached, select the “Display Maintenance Noti-
fication” key and push the “ENTER” button.
Tire pressure information (if so
equipped)Pressure indication in ** psi on the screen
indicates that the pressure is being measured.
After a few driving trips, the pressure for each
tire will be displayed randomly.
The order of tire pressure figures displayed on
the screen does not correspond with the actual
order of the tire position.
Tire pressure rises and falls depending on the
heat caused by the vehicle’s traveling condition
and the temperature.In case of flat tire, a message is displayed on the
screen:
FLAT TIRE — very low tire air pressure.
WARNING
When a spare tire is mounted or a wheel
is replaced, the pressure of that tire will
not be indicated and not be monitored
by the low tire pressure warning system.
Contact your NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.
SAA0656
SAA0657
4-10
Display screen, heater, air conditioner and audio systems


04.4.5/Z50-D/V5.0

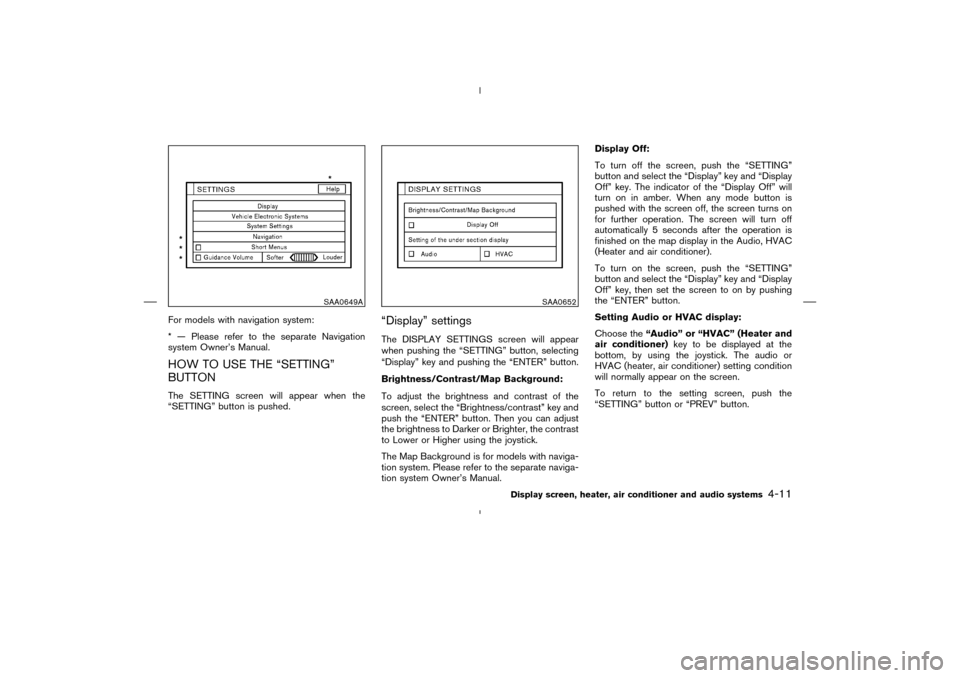

For models with navigation system:
* — Please refer to the separate Navigation
system Owner’s Manual.HOW TO USE THE “SETTING”
BUTTONThe SETTING screen will appear when the
“SETTING” button is pushed.
“Display” settingsThe DISPLAY SETTINGS screen will appear
when pushing the “SETTING” button, selecting
“Display” key and pushing the “ENTER” button.
Brightness/Contrast/Map Background:
To adjust the brightness and contrast of the
screen, select the “Brightness/contrast” key and
push the “ENTER” button. Then you can adjust
the brightness to Darker or Brighter, the contrast
to Lower or Higher using the joystick.
The Map Background is for models with naviga-
tion system. Please refer to the separate naviga-
tion system Owner’s Manual.Display Off:
To turn off the screen, push the “SETTING”
button and select the “Display” key and “Display
Off” key. The indicator of the “Display Off” will
turn on in amber. When any mode button is
pushed with the screen off, the screen turns on
for further operation. The screen will turn off
automatically 5 seconds after the operation is
finished on the map display in the Audio, HVAC
(Heater and air conditioner).
To turn on the screen, push the “SETTING”
button and select the “Display” key and “Display
Off” key, then set the screen to on by pushing
the “ENTER” button.
Setting Audio or HVAC display:
Choose the“Audio” or “HVAC” (Heater and
air conditioner)key to be displayed at the
bottom, by using the joystick. The audio or
HVAC (heater, air conditioner) setting condition
will normally appear on the screen.
To return to the setting screen, push the
“SETTING” button or “PREV” button.
SAA0649A
SAA0652
Display screen, heater, air conditioner and audio systems
4-11


04.4.5/Z50-D/V5.0


Vehicle electronic systemsThe VEHICLE ELECTRONIC SYSTEMS screen
will appear when selecting the “Vehicle Elec-
tronic Systems” key with the joystick and
pushing the “ENTER” button.
You can set the various electronic systems
operating conditions.
To set an operating condition, select the appli-
cable item using the joystick, and push the
“ENTER” button.
The indicator light alternately turns on and off
each time the “ENTER” button is pressed.
Indicator light is illuminated. — ONIndicator light is not illuminated. — OFF
Adjust driver seat when exiting vehicle
(if so equipped):
The driver’s seat automatically moves back and
returns to the original position for exceptional
ease of exit and entry.
Remote unlock driver’s door first:
This key can switch the unlock doors of the 1st
unlocking operation as follows:
ON (Only the driver side door)←→OFF (All the
doors)Keyless remote response — Horn*:
This key changes the horn chirp mode that
occurs when pressing the LOCK button on the
keyfob.
Keyless remote response — Lights*:
This key changes the hazard indicator flash
mode that occurs when pressing the LOCK or
UNLOCK button on the keyfob.
* If you change the horn chirp or the light
flash with the keyfob, the mode may not
be changed with the display. Use the
keyfob to return the mode.
SAA0793
SAA0794
SAA0505A
4-12
Display screen, heater, air conditioner and audio systems


04.4.5/Z50-D/V5.0

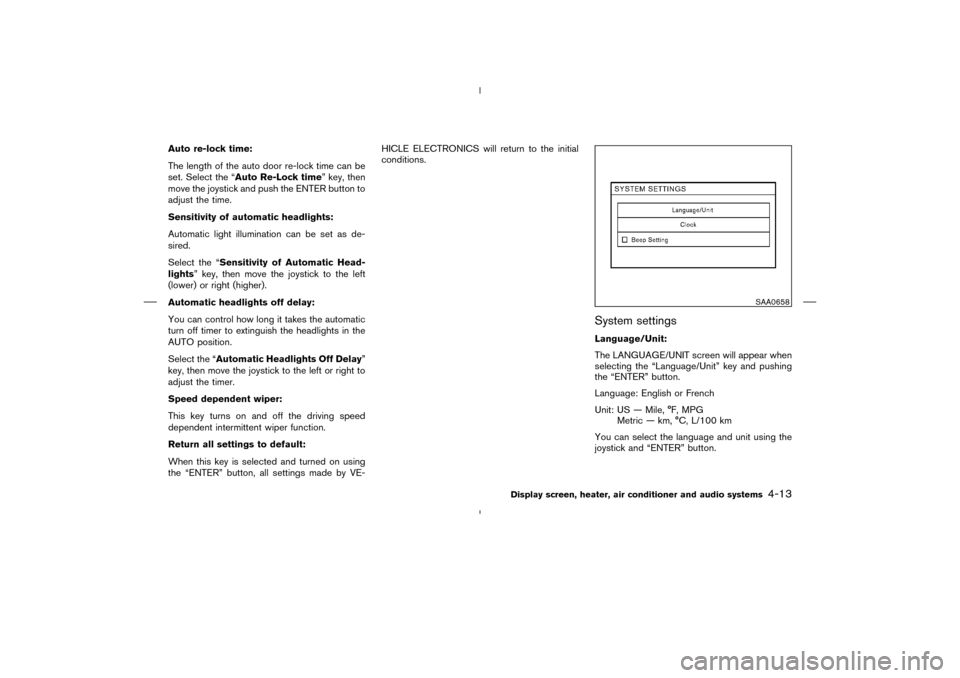

Auto re-lock time:
The length of the auto door re-lock time can be
set. Select the “Auto Re-Lock time” key, then
move the joystick and push the ENTER button to
adjust the time.
Sensitivity of automatic headlights:
Automatic light illumination can be set as de-
sired.
Select the “Sensitivity of Automatic Head-
lights” key, then move the joystick to the left
(lower) or right (higher).
Automatic headlights off delay:
You can control how long it takes the automatic
turn off timer to extinguish the headlights in the
AUTO position.
Select the “Automatic Headlights Off Delay”
key, then move the joystick to the left or right to
adjust the timer.
Speed dependent wiper:
This key turns on and off the driving speed
dependent intermittent wiper function.
Return all settings to default:
When this key is selected and turned on using
the “ENTER” button, all settings made by VE-HICLE ELECTRONICS will return to the initial
conditions.
System settingsLanguage/Unit:
The LANGUAGE/UNIT screen will appear when
selecting the “Language/Unit” key and pushing
the “ENTER” button.
Language: English or French
Unit: US — Mile, °F, MPG
Metric — km, °C, L/100 km
You can select the language and unit using the
joystick and “ENTER” button.
SAA0658
Display screen, heater, air conditioner and audio systems
4-13


04.4.5/Z50-D/V5.0

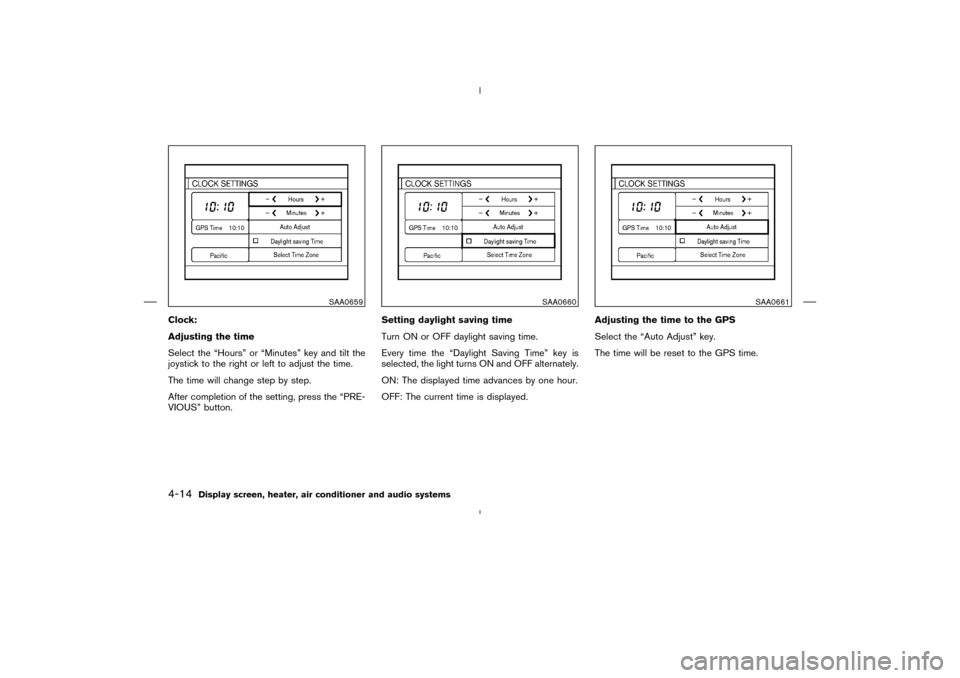

Clock:
Adjusting the time
Select the “Hours” or “Minutes” key and tilt the
joystick to the right or left to adjust the time.
The time will change step by step.
After completion of the setting, press the “PRE-
VIOUS” button.Setting daylight saving time
Turn ON or OFF daylight saving time.
Every time the “Daylight Saving Time” key is
selected, the light turns ON and OFF alternately.
ON: The displayed time advances by one hour.
OFF: The current time is displayed.Adjusting the time to the GPS
Select the “Auto Adjust” key.
The time will be reset to the GPS time.
SAA0659
SAA0660
SAA0661
4-14
Display screen, heater, air conditioner and audio systems


04.4.5/Z50-D/V5.0

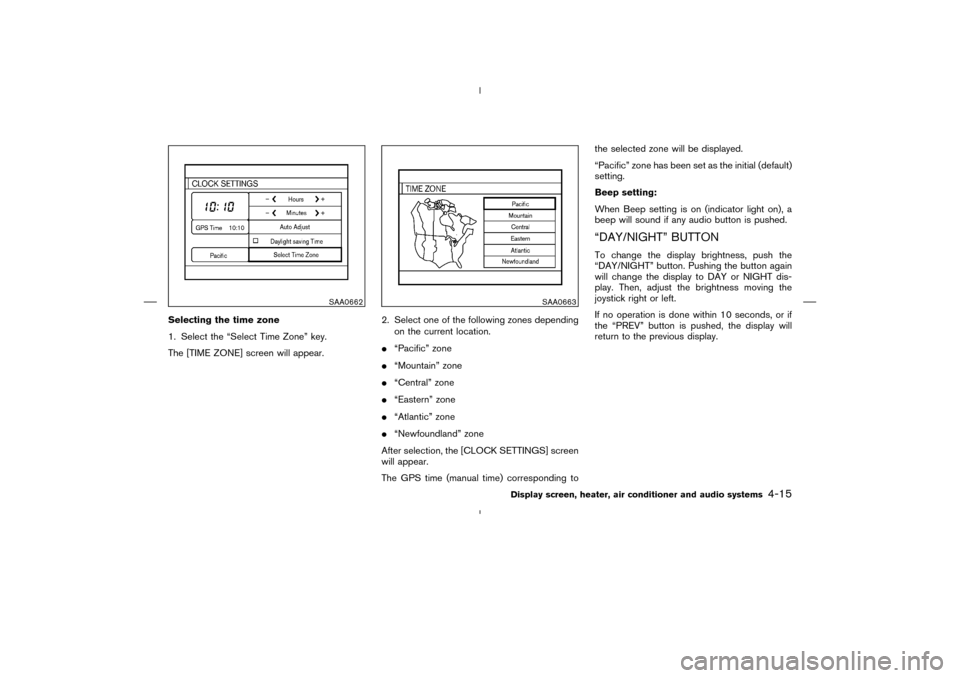

Selecting the time zone
1. Select the “Select Time Zone” key.
The [TIME ZONE] screen will appear.2. Select one of the following zones depending
on the current location.

“Pacific” zone

“Mountain” zone

“Central” zone

“Eastern” zone

“Atlantic” zone

“Newfoundland” zone
After selection, the [CLOCK SETTINGS] screen
will appear.
The GPS time (manual time) corresponding tothe selected zone will be displayed.
“Pacific” zone has been set as the initial (default)
setting.
Beep setting:
When Beep setting is on (indicator light on), a
beep will sound if any audio button is pushed.
“DAY/NIGHT” BUTTONTo change the display brightness, push the
“DAY/NIGHT” button. Pushing the button again
will change the display to DAY or NIGHT dis-
play. Then, adjust the brightness moving the
joystick right or left.
If no operation is done within 10 seconds, or if
the “PREV” button is pushed, the display will
return to the previous display.
SAA0662
SAA0663
Display screen, heater, air conditioner and audio systems
4-15


04.4.5/Z50-D/V5.0

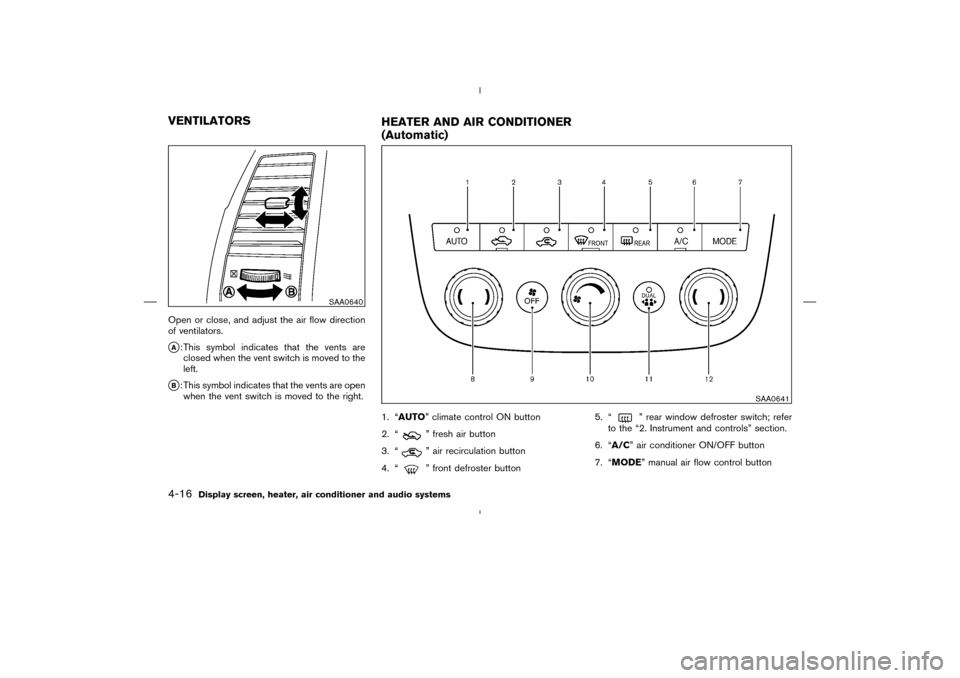

Open or close, and adjust the air flow direction
of ventilators.A: This symbol indicates that the vents are
closed when the vent switch is moved to the
left.
B: This symbol indicates that the vents are open
when the vent switch is moved to the right.
1. “AUTO” climate control ON button
2. “
” fresh air button
3. “” air recirculation button
4. “” front defroster button5. “
” rear window defroster switch; refer
to the “2. Instrument and controls” section.
6. “A/C” air conditioner ON/OFF button
7. “MODE” manual air flow control button
SAA0640
SAA0641
VENTILATORS
HEATER AND AIR CONDITIONER
(Automatic)4-16
Display screen, heater, air conditioner and audio systems


04.4.5/Z50-D/V5.0

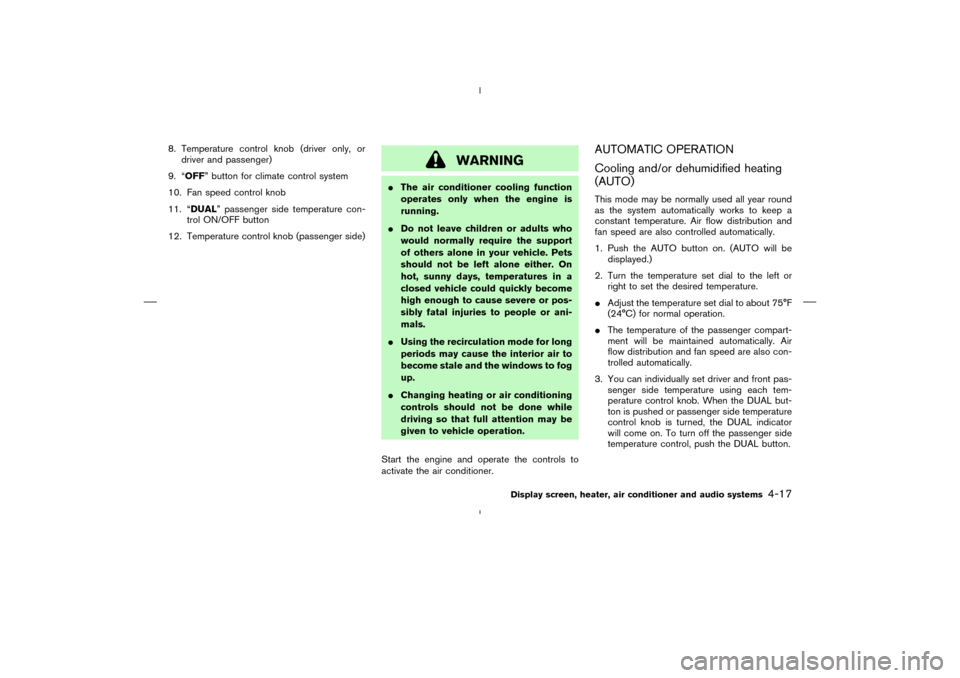

8. Temperature control knob(driver only, or
driver and passenger)
9. “OFF” button for climate control system
10. Fan speed control knob
11. “DUAL” passenger side temperature con-
trol ON/OFF button
12. Temperature control knob(passenger side)
WARNING

The air conditioner cooling function
operates only when the engine is
running.

Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or pos-
sibly fatal injuries to people or ani-
mals.

Using the recirculation mode for long
periods may cause the interior air to
become stale and the windows to fog
up.

Changing heating or air conditioning
controls should not be done while
driving so that full attention may be
given to vehicle operation.
Start the engine and operate the controls to
activate the air conditioner.
AUTOMATIC OPERATION
Cooling and/or dehumidified heating
(AUTO)This mode may be normally used all year round
as the system automatically works to keep a
constant temperature. Air flow distribution and
fan speed are also controlled automatically.
1. Push the AUTO button on. (AUTO will be
displayed.)
2. Turn the temperature set dial to the left or
right to set the desired temperature.

Adjust the temperature set dial to about 75°F
(24°C) for normal operation.

The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.
3. You can individually set driver and front pas-
senger side temperature using each tem-
perature control knob. When the DUAL but-
ton is pushed or passenger side temperature
control knobis turned, the DUAL indicator
will come on. To turn off the passenger side
temperature control, push the DUAL button.
Display screen, heater, air conditioner and audio systems
4-17


04.4.5/Z50-D/V5.0
