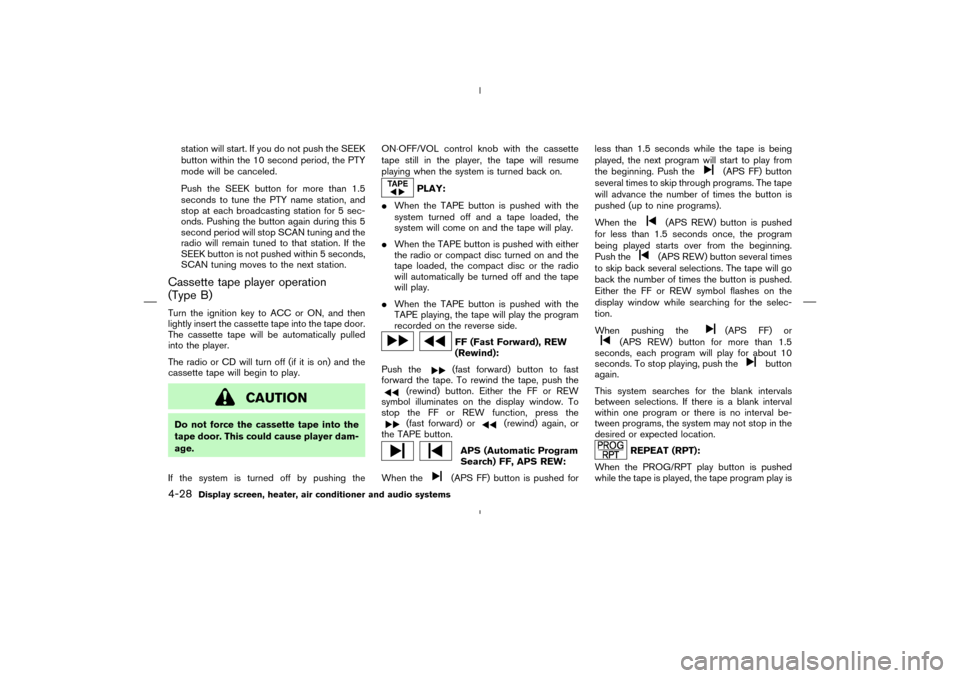

station will start. If you do not push the SEEK
button within the 10 second period, the PTY
mode will be canceled.
Push the SEEK button for more than 1.5
seconds to tune the PTY name station, and
stop at each broadcasting station for 5 sec-
onds. Pushing the button again during this 5
second period will stop SCAN tuning and the
radio will remain tuned to that station. If the
SEEK button is not pushed within 5 seconds,
SCAN tuning moves to the next station.
Cassette tape player operation
(Type B)Turn the ignition key to ACC or ON, and then
lightly insert the cassette tape into the tape door.
The cassette tape will be automatically pulled
into the player.
The radio or CD will turn off (if it is on) and the
cassette tape will begin to play.
CAUTION
Do not force the cassette tape into the
tape door. This could cause player dam-
age.
If the system is turned off by pushing theON⋅OFF/VOL control knobwith the cassette
tape still in the player, the tape will resume
playing when the system is turned back on.
PLAY:

When the TAPE button is pushed with the
system turned off and a tape loaded, the
system will come on and the tape will play.

When the TAPE button is pushed with either
the radio or compact disc turned on and the
tape loaded, the compact disc or the radio
will automatically be turned off and the tape
will play.

When the TAPE button is pushed with the
TAPE playing, the tape will play the program
recorded on the reverse side.
FF (Fast Forward), REW
(Rewind):
Push the(fast forward) button to fast
forward the tape. To rewind the tape, push the
(rewind) button. Either the FF or REW
symbol illuminates on the display window. To
stop the FF or REW function, press the(fast forward) or
(rewind) again, or
the TAPE button.
APS (Automatic Program
Search) FF, APS REW:
When the(APS FF) button is pushed forless than 1.5 seconds while the tape is being
played, the next program will start to play from
the beginning. Push the
(APS FF) button
several times to skip through programs. The tape
will advance the number of times the button is
pushed (up to nine programs).
When the
(APS REW) button is pushed
for less than 1.5 seconds once, the program
being played starts over from the beginning.
Push the(APS REW) button several times
to skip back several selections. The tape will go
back the number of times the button is pushed.
Either the FF or REW symbol flashes on the
display window while searching for the selec-
tion.
When pushing the
(APS FF) or
(APS REW) button for more than 1.5
seconds, each program will play for about 10
seconds. To stop playing, push the
button
again.
This system searches for the blank intervals
between selections. If there is a blank interval
within one program or there is no interval be-
tween programs, the system may not stop in the
desired or expected location.
REPEAT (RPT):
When the PROG/RPT play button is pushed
while the tape is played, the tape program play is
4-28
Display screen, heater, air conditioner and audio systems


04.4.5/Z50-D/V5.0

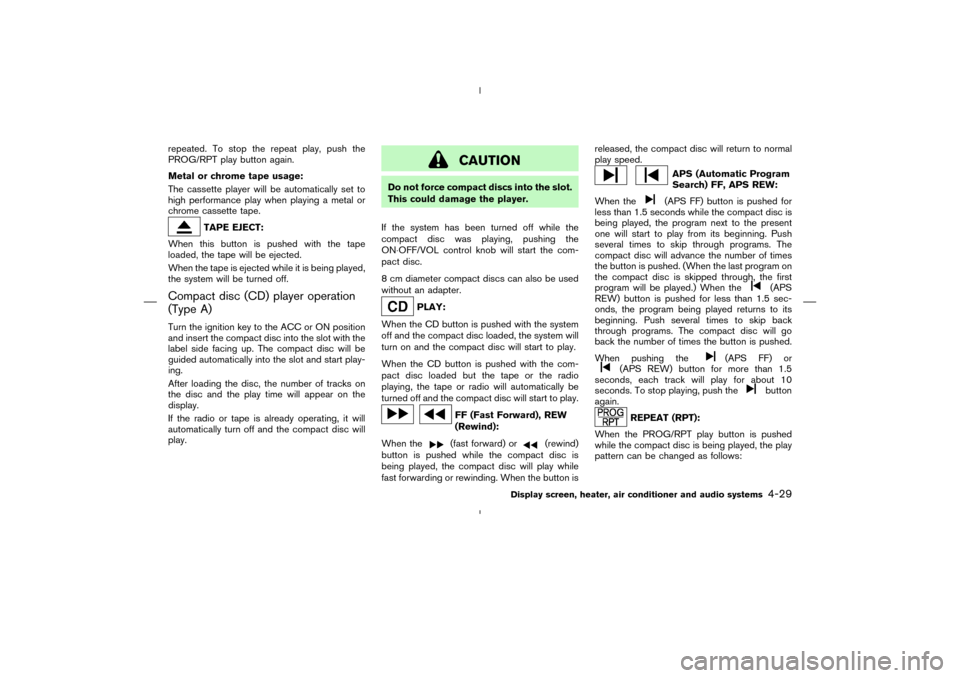

repeated. To stop the repeat play, push the
PROG/RPT play button again.
Metal or chrome tape usage:
The cassette player will be automatically set to
high performance play when playing a metal or
chrome cassette tape.
TAPE EJECT:
When this button is pushed with the tape
loaded, the tape will be ejected.
When the tape is ejected while it is being played,
the system will be turned off.
Compact disc (CD) player operation
(Type A)Turn the ignition key to the ACC or ON position
and insert the compact disc into the slot with the
label side facing up. The compact disc will be
guided automatically into the slot and start play-
ing.
After loading the disc, the number of tracks on
the disc and the play time will appear on the
display.
If the radio or tape is already operating, it will
automatically turn off and the compact disc will
play.
CAUTION
Do not force compact discs into the slot.
This could damage the player.
If the system has been turned off while the
compact disc was playing, pushing the
ON⋅OFF/VOL control knobwill start the com-
pact disc.
8 cm diameter compact discs can also be used
without an adapter.
PLAY:
When the CD button is pushed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.
When the CD button is pushed with the com-
pact disc loaded but the tape or the radio
playing, the tape or radio will automatically be
turned off and the compact disc will start to play.
FF (Fast Forward), REW
(Rewind):
When the(fast forward) or
(rewind)
button is pushed while the compact disc is
being played, the compact disc will play while
fast forwarding or rewinding. When the button isreleased, the compact disc will return to normal
play speed.
APS (Automatic Program
Search) FF, APS REW:
When the(APS FF) button is pushed for
less than 1.5 seconds while the compact disc is
being played, the program next to the present
one will start to play from its beginning. Push
several times to skip through programs. The
compact disc will advance the number of times
the button is pushed. (When the last program on
the compact disc is skipped through, the first
program will be played.) When the
(APS
REW) button is pushed for less than 1.5 sec-
onds, the program being played returns to its
beginning. Push several times to skip back
through programs. The compact disc will go
back the number of times the button is pushed.
When pushing the
(APS FF) or
(APS REW) button for more than 1.5
seconds, each track will play for about 10
seconds. To stop playing, push the
button
again.
REPEAT (RPT):
When the PROG/RPT play button is pushed
while the compact disc is being played, the play
pattern can be changed as follows:
Display screen, heater, air conditioner and audio systems
4-29


04.4.5/Z50-D/V5.0

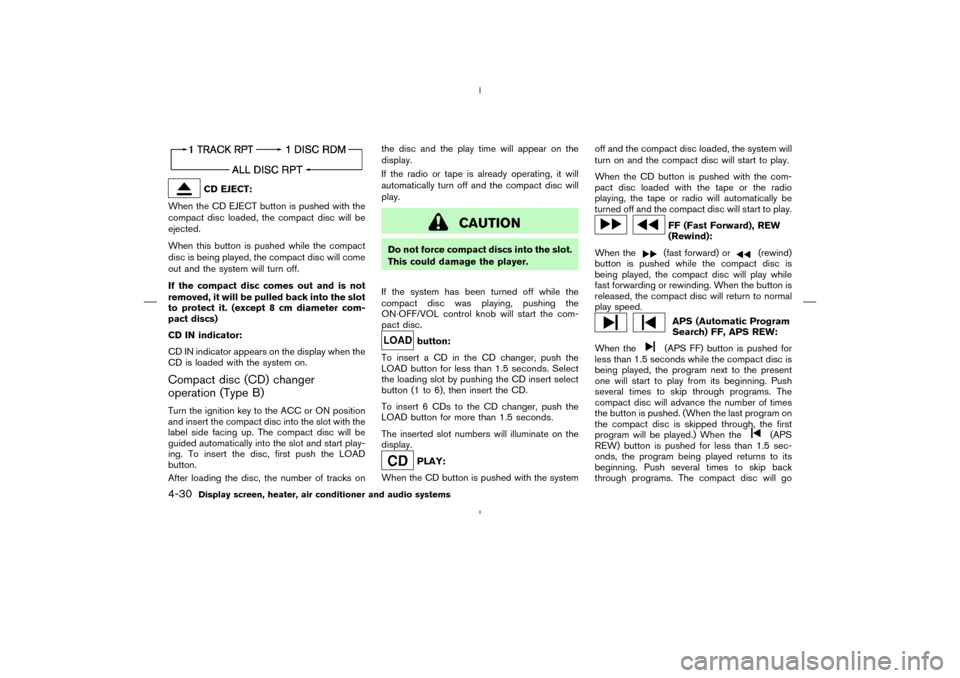

CD EJECT:
When the CD EJECT button is pushed with the
compact disc loaded, the compact disc will be
ejected.
When this button is pushed while the compact
disc is being played, the compact disc will come
out and the system will turn off.
If the compact disc comes out and is not
removed, it will be pulled back into the slot
to protect it. (except 8 cm diameter com-
pact discs)
CD INindicator:
CD IN indicator appears on the display when the
CD is loaded with the system on.
Compact disc (CD) changer
operation (Type B)Turn the ignition key to the ACC or ON position
and insert the compact disc into the slot with the
label side facing up. The compact disc will be
guided automatically into the slot and start play-
ing. To insert the disc, first push the LOAD
button.
After loading the disc, the number of tracks onthe disc and the play time will appear on the
display.
If the radio or tape is already operating, it will
automatically turn off and the compact disc will
play.
CAUTION
Do not force compact discs into the slot.
This could damage the player.
If the system has been turned off while the
compact disc was playing, pushing the
ON⋅OFF/VOL control knobwill start the com-
pact disc.
button:
To insert a CD in the CD changer, push the
LOAD button for less than 1.5 seconds. Select
the loading slot by pushing the CD insert select
button (1 to 6), then insert the CD.
To insert 6 CDs to the CD changer, push the
LOAD button for more than 1.5 seconds.
The inserted slot numbers will illuminate on the
display.PLAY:
When the CD button is pushed with the systemoff and the compact disc loaded, the system will
turn on and the compact disc will start to play.
When the CD button is pushed with the com-
pact disc loaded with the tape or the radio
playing, the tape or radio will automatically be
turned off and the compact disc will start to play.
FF (Fast Forward), REW
(Rewind):
When the(fast forward) or
(rewind)
button is pushed while the compact disc is
being played, the compact disc will play while
fast forwarding or rewinding. When the button is
released, the compact disc will return to normal
play speed.
APS (Automatic Program
Search) FF, APS REW:
When the(APS FF) button is pushed for
less than 1.5 seconds while the compact disc is
being played, the program next to the present
one will start to play from its beginning. Push
several times to skip through programs. The
compact disc will advance the number of times
the button is pushed. (When the last program on
the compact disc is skipped through, the first
program will be played.) When the
(APS
REW) button is pushed for less than 1.5 sec-
onds, the program being played returns to its
beginning. Push several times to skip back
through programs. The compact disc will go
4-30
Display screen, heater, air conditioner and audio systems


04.4.5/Z50-D/V5.0

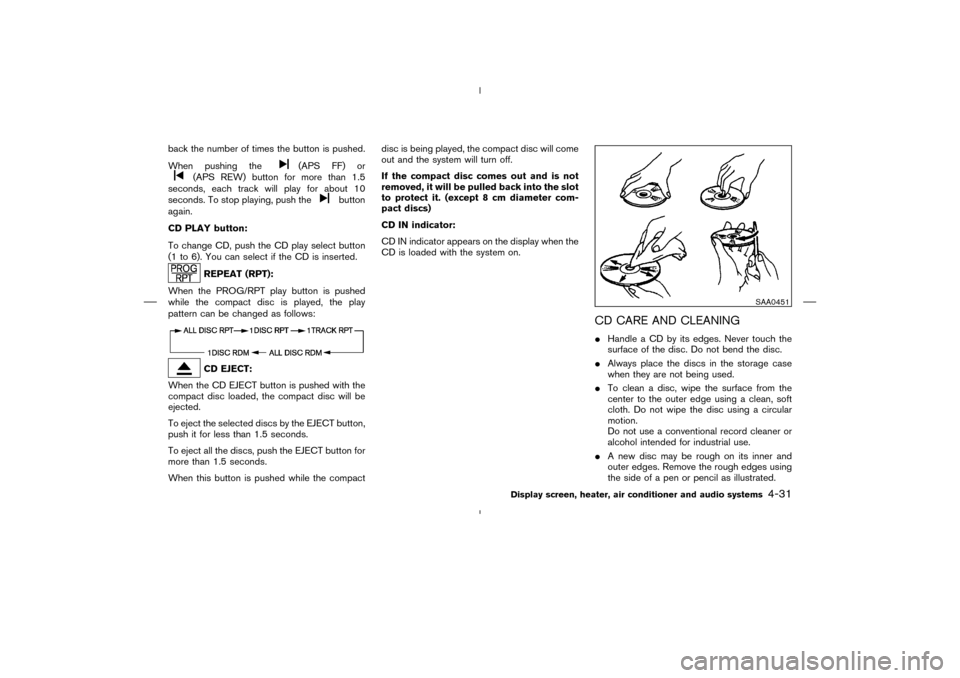

back the number of times the button is pushed.
When pushing the
(APS FF) or
(APS REW) button for more than 1.5
seconds, each track will play for about 10
seconds. To stop playing, push the
button
again.
CD PLAY button:
To change CD, push the CD play select button
(1 to 6). You can select if the CD is inserted.
REPEAT (RPT):
When the PROG/RPT play button is pushed
while the compact disc is played, the play
pattern can be changed as follows:CD EJECT:
When the CD EJECT button is pushed with the
compact disc loaded, the compact disc will be
ejected.
To eject the selected discs by the EJECT button,
push it for less than 1.5 seconds.
To eject all the discs, push the EJECT button for
more than 1.5 seconds.
When this button is pushed while the compactdisc is being played, the compact disc will come
out and the system will turn off.
If the compact disc comes out and is not
removed, it will be pulled back into the slot
to protect it. (except 8 cm diameter com-
pact discs)
CD INindicator:
CD IN indicator appears on the display when the
CD is loaded with the system on.
CD CARE AND CLEANING
Handle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.

Always place the discs in the storage case
when they are not being used.

To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.

A new disc may be rough on its inner and
outer edges. Remove the rough edges using
the side of a pen or pencil as illustrated.
SAA0451
Display screen, heater, air conditioner and audio systems
4-31


04.4.5/Z50-D/V5.0


STEERING SWITCH FOR AUDIO
CONTROL (if so equipped)The audio system can be operated using the
controls on the steering wheel.POWER on/off switchWith the ignition key turned to the ACC or ON
position, push the POWER switch to turn the
audio system on or off.MODE select switchPush the mode select switch to change the
mode in the sequence of FM, AM, SAT, CD and
Tape.
Volume control switchesPush the volume control switch to increase or
decrease the volume.
Tuning
Memory change (radio):
Push the tuning switch
or
for less
than 1.5 seconds to change the radio frequency.
Seek tuning (radio):
Push the tuning switch
or
for more
than 1.5 seconds to seek the next or previous
radio station.
APS (Automatic Program Search) FF,
APS REW (tape and CD):
Push the tuning switch
or
for less
1.5 seconds to return to the beginning of the
present program or skip to the next program.
Push several times to skip back or skip through
programs.
This system searches for the blank intervals
between selections. If there is a blank interval
within one program or there is no interval be-
tween programs, the system may not stop in the
desired or expected location.FF REW (tape or CD):
Push the tuning switch
or
for more
than 1.5 seconds to rewind or fast forward the
tape or to change the playing disc up or down.
To stop the FF or REW function, press the
or
button for less than 1.5 seconds
again.
SAA0567
4-32
Display screen, heater, air conditioner and audio systems


04.4.5/Z50-D/V5.0

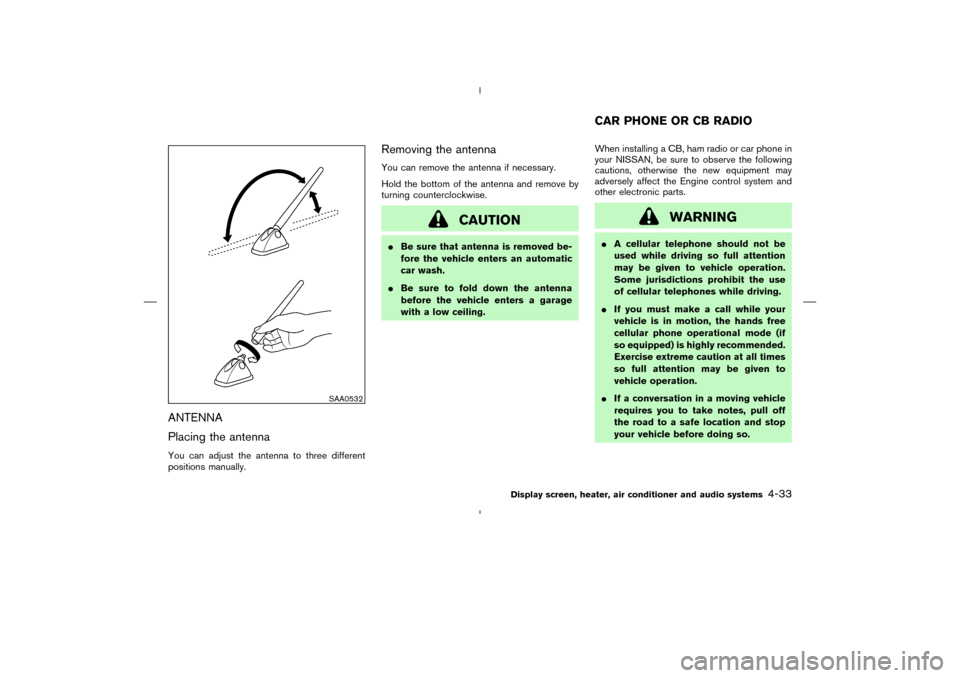

ANTENNA
Placing the antennaYou can adjust the antenna to three different
positions manually.
Removing the antennaYou can remove the antenna if necessary.
Hold the bottom of the antenna and remove by
turning counterclockwise.
CAUTION

Be sure that antenna is removed be-
fore the vehicle enters an automatic
car wash.

Be sure to fold down the antenna
before the vehicle enters a garage
with a low ceiling.When installing a CB, ham radio or car phone in
your NISSAN, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the Engine control system and
other electronic parts.
WARNING

A cellular telephone should not be
used while driving so full attention
may be given to vehicle operation.
Some jurisdictions prohibit the use
of cellular telephones while driving.

If you must make a call while your
vehicle is in motion, the hands free
cellular phone operational mode (if
so equipped) is highly recommended.
Exercise extreme caution at all times
so full attention may be given to
vehicle operation.

If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
SAA0532
CAR PHONE OR CB RADIO
Display screen, heater, air conditioner and audio systems
4-33


04.4.5/Z50-D/V5.0


CAUTION

Keep the antenna as far as possible
away from the electronic control
modules.

Keep the antenna wire more than 8 in
(20 cm) away from the electronic con-
trol system harness. Do not route the
antenna wire next to any harness.

Adjust the antenna standing-wave
ratio as recommended by the manu-
facturer.

Connect the ground wire from the CB
radio chassis to the body.

For details, consult a NISSAN dealer.4-34
Display screen, heater, air conditioner and audio systems


04.4.5/Z50-D/V5.0


5 Starting and drivingPrecautions when starting and driving ............................. 5-2
Exhaust gas (Carbon monoxide) .................................. 5-2
Three way catalyst ........................................................... 5-3
Low tire pressure warning system (if so
equipped) ........................................................................... 5-3
Avoiding collision and rollover ...................................... 5-5
On-pavement and offroad driving precautions
(AWD) ................................................................................. 5-5
Drinking alcohol/drugs and driving .............................. 5-5
Driving safety precautions.............................................. 5-6
Ignition switch ......................................................................... 5-8
Key positions ..................................................................... 5-8
Nissan Vehicle Immobilizer System ............................. 5-9
Before starting the engine ................................................... 5-9
Starting the engine ............................................................. 5-10
Driving the vehicle ............................................................... 5-10
CVT (Continuously Variable Transmission)............. 5-10
M-CVT (CVT with Manual shift mode)..................... 5-14
Parking brake........................................................................ 5-18
Cruise control (if so equipped)........................................ 5-19
Precautions on cruise control .................................... 5-19
Cruise control operations ............................................ 5-19
Break-in schedule ............................................................... 5-21
Increasing fuel economy .................................................... 5-21Using all wheel drive (AWD) (if so equipped)............. 5-22
AWD lock switch operations...................................... 5-23
AWD warning light ........................................................ 5-24
Parking/parking on hills...................................................... 5-26
Power steering ..................................................................... 5-27
Brake system ........................................................................ 5-27
Braking precautions ...................................................... 5-27
Anti-lock brake system (ABS) .................................... 5-28
Vehicle dynamic control (VDC) system (if so
equipped) .............................................................................. 5-29
Cold weather driving .......................................................... 5-30
Freeing a frozen door lock .......................................... 5-30
Antifreeze ......................................................................... 5-30
Battery .............................................................................. 5-30
Draining of coolant water ............................................ 5-30
Tire equipment................................................................ 5-31
Special winter equipment ............................................ 5-31
Driving on snow or ice ................................................. 5-31
Engine block heater (if so equipped) ....................... 5-32


04.4.5/Z50-D/V5.0

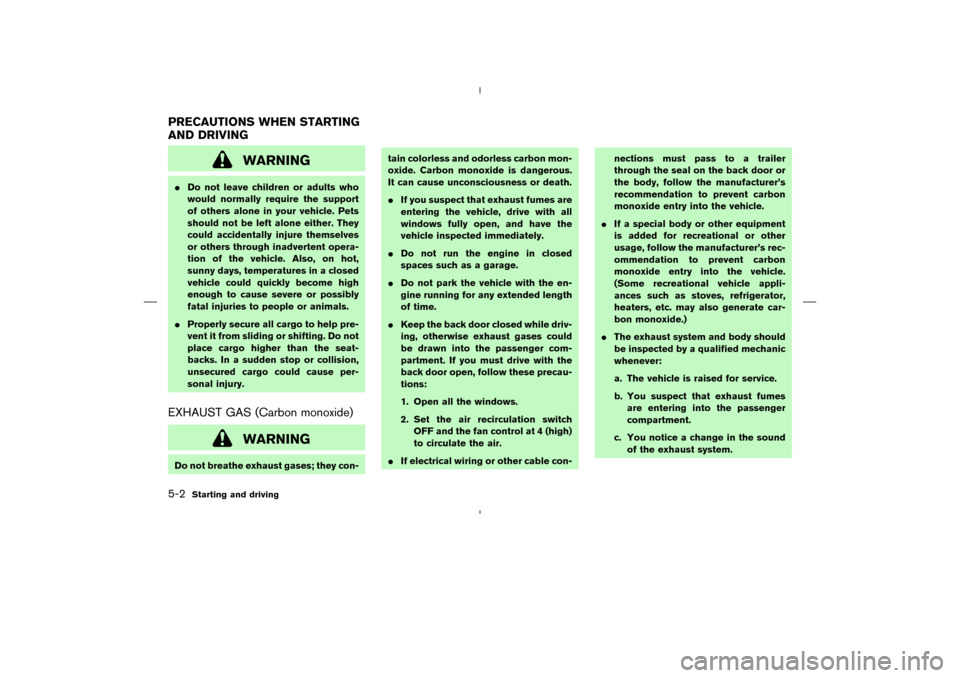

WARNING

Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves
or others through inadvertent opera-
tion of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.EXHAUST GAS (Carbon monoxide)
WARNING
Do not breathe exhaust gases; they con-tain colorless and odorless carbon mon-
oxide. Carbon monoxide is dangerous.
It can cause unconsciousness or death.

If you suspect that exhaust fumes are
entering the vehicle, drive with all
windows fully open, and have the
vehicle inspected immediately.

Do not run the engine in closed
spaces such as a garage.

Do not park the vehicle with the en-
gine running for any extended length
of time.

Keep the back door closed while driv-
ing, otherwise exhaust gases could
be drawn into the passenger com-
partment. If you must drive with the
back door open, follow these precau-
tions:
1. Open all the windows.
2. Set the air recirculation switch
OFF and the fan control at 4 (high)
to circulate the air.

If electrical wiring or other cable con-nections must pass to a trailer
through the seal on the back door or
the body, follow the manufacturer’s
recommendation to prevent carbon
monoxide entry into the vehicle.

If a special body or other equipment
is added for recreational or other
usage, follow the manufacturer’s rec-
ommendation to prevent carbon
monoxide entry into the vehicle.
(Some recreational vehicle appli-
ances such as stoves, refrigerator,
heaters, etc. may also generate car-
bon monoxide.)

The exhaust system and body should
be inspected by a qualified mechanic
whenever:
a. The vehicle is raised for service.
b. You suspect that exhaust fumes
are entering into the passenger
compartment.
c. You notice a change in the sound
of the exhaust system.PRECAUTIONS WHEN STARTING
AND DRIVING5-2
Starting and driving


04.4.5/Z50-D/V5.0


d. You have had an accident involv-
ing damage to the exhaust system,
underbody, or rear of the vehicle.
THREE WAY CATALYSTThe three way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the converter are burned at high tem-
peratures to help reduce pollutants.
WARNING

The exhaust gas and the exhaust sys-
tem are very hot. Keep people, ani-
mals or flammable materials away
from the exhaust system compo-
nents.

Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They may
ignite and cause a fire.
CAUTION

Do not use leaded gasoline. Deposits
from leaded gasoline seriously re-
duce the three way catalyst’s ability
to help reduce exhaust pollutants.

Keep your engine tuned up. Malfunc-
tions in the ignition, fuel injection, or
electrical systems can cause overrich
fuel flow into the three way catalyst,
causing it to overheat. Do not keep
driving if the engine misfires, or if
noticeable loss of performance or
other unusual operating conditions
are detected. Have the vehicle in-
spected promptly by a NISSAN
dealer.

Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, damag-
ing the three way catalyst.

Do not race the engine while warm-
ing it up.

Do not push or tow your vehicle to
start the engine.
LOW TIRE PRESSURE WARNING
SYSTEM (if so equipped)This vehicle is equipped with the low tire pres-
sure warning system, which displays pressure of
all tires (except the spare tire) on the display
screen by sending a signal from a sensor that is
installed in each wheel.
The low tire pressure warning system will acti-
vate only when the vehicle is driven at speeds
above 20 MPH (32 km/h). Also, this system may
not detect a sudden drop in tire pressure (for
example, a flat tire while driving).
Tire pressure rises and falls depending on the
heat caused by the vehicle’s operation and the
outside temperature. Low outside temperature
can lower the temperature of the air inside the
tire which can cause a lower tire inflation pres-
sure. This may cause the low tire pressure
warning light to illuminate.
If the warning light illuminates in low ambient
temperatures as described above, check the tire
pressure for all four tires. Adjust the tire pressure
to the recommended COLD tire pressure shown
on the Tire and Loading Information label to turn
the low tire pressure warning light OFF.
Frequently check the tire pressure information
display on the display screen and adjust pres-
sure of each tire properly. (The order of the tire
Starting and driving
5-3


04.4.5/Z50-D/V5.0
