NISSAN MURANO 2004 1.G Owners Manual
Manufacturer: NISSAN, Model Year: 2004, Model line: MURANO, Model: NISSAN MURANO 2004 1.GPages: 283, PDF Size: 2.88 MB
Page 141 of 283

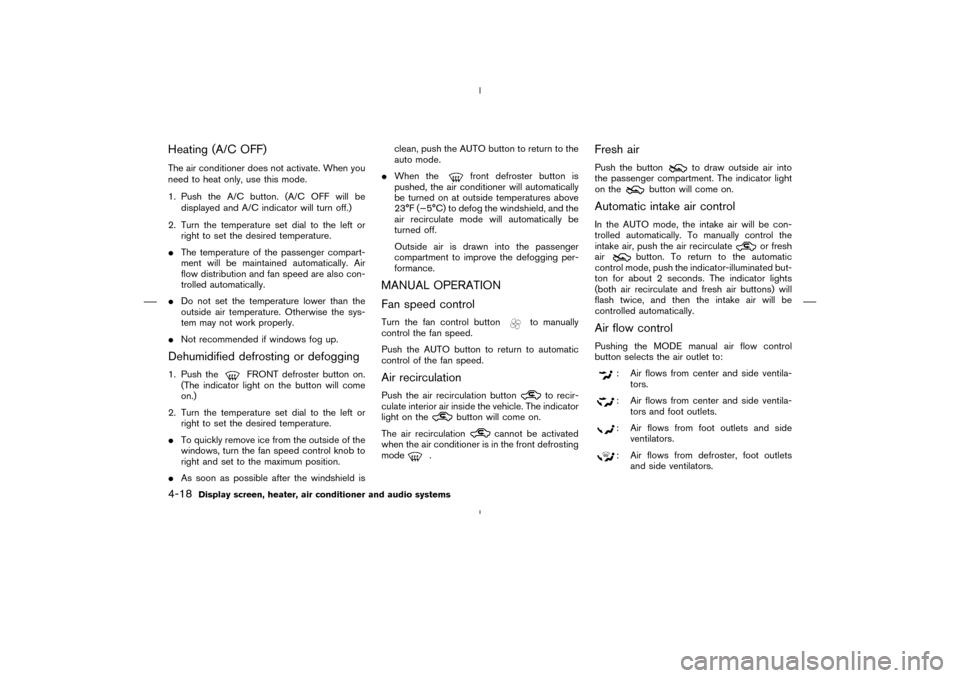

Heating (A/C OFF)The air conditioner does not activate. When you
need to heat only, use this mode.
1. Push the A/C button. (A/C OFF will be
displayed and A/C indicator will turn off.)
2. Turn the temperature set dial to the left or
right to set the desired temperature.
The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.
Do not set the temperature lower than the
outside air temperature. Otherwise the sys-
tem may not work properly.
Not recommended if windows fog up.Dehumidified defrosting or defogging1. Push the
FRONT defroster button on.
(The indicator light on the button will come
on.)
2. Turn the temperature set dial to the left or
right to set the desired temperature.
To quickly remove ice from the outside of the
windows, turn the fan speed control knobto
right and set to the maximum position.
As soon as possible after the windshield isclean, push the AUTO button to return to the
auto mode.
When the
front defroster button is
pushed, the air conditioner will automatically
be turned on at outside temperatures above
23°F (−5°C) to defog the windshield, and the
air recirculate mode will automatically be
turned off.
Outside air is drawn into the passenger
compartment to improve the defogging per-
formance.
MANUAL OPERATION
Fan speed controlTurn the fan control button
to manually
control the fan speed.
Push the AUTO button to return to automatic
control of the fan speed.
Air recirculationPush the air recirculation button
to recir-
culate interior air inside the vehicle. The indicator
light on the
button will come on.
The air recirculation
cannot be activated
when the air conditioner is in the front defrosting
mode
.
Fresh airPush the button
to draw outside air into
the passenger compartment. The indicator light
on the
button will come on.
Automatic intake air controlIn the AUTO mode, the intake air will be con-
trolled automatically. To manually control the
intake air, push the air recirculate
or fresh
air
button. To return to the automatic
control mode, push the indicator-illuminated but-
ton for about 2 seconds. The indicator lights
(both air recirculate and fresh air buttons) will
flash twice, and then the intake air will be
controlled automatically.
Air flow controlPushing the MODE manual air flow control
button selects the air outlet to:
: Air flows from center and side ventila-
tors.: Air flows from center and side ventila-
tors and foot outlets.: Air flows from foot outlets and side
ventilators.: Air flows from defroster, foot outlets
and side ventilators.
4-18
Display screen, heater, air conditioner and audio systems
04.4.5/Z50-D/V5.0
Page 142 of 283

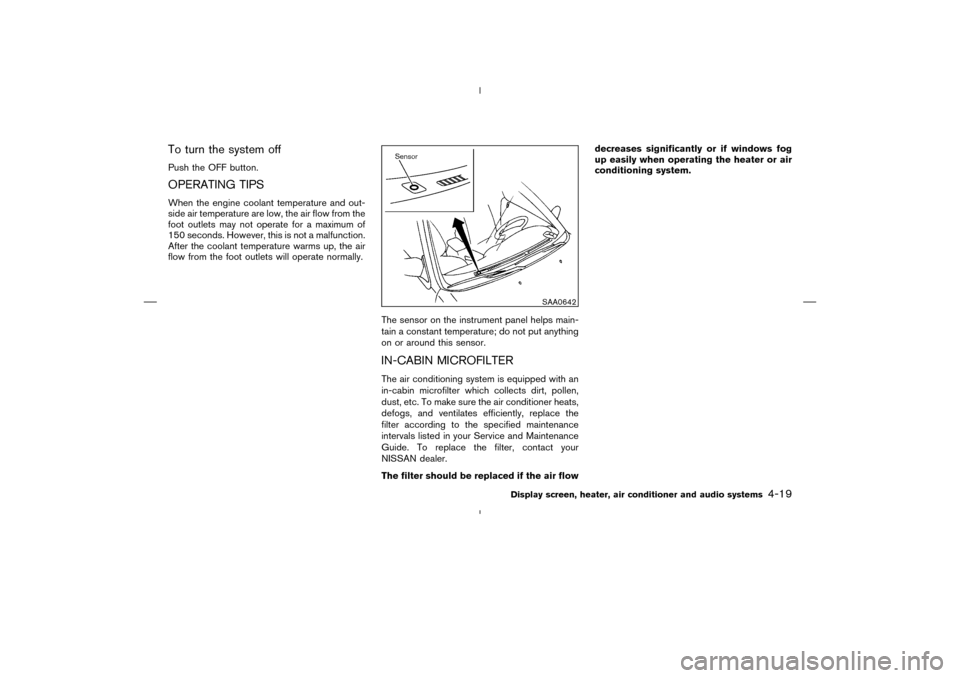

To turn the system offPush the OFF button.OPERATING TIPSWhen the engine coolant temperature and out-
side air temperature are low, the air flow from the
foot outlets may not operate for a maximum of
150 seconds. However, this is not a malfunction.
After the coolant temperature warms up, the air
flow from the foot outlets will operate normally.
The sensor on the instrument panel helps main-
tain a constant temperature; do not put anything
on or around this sensor.
IN-CABIN MICROFILTERThe air conditioning system is equipped with an
in-cabin microfilter which collects dirt, pollen,
dust, etc. To make sure the air conditioner heats,
defogs, and ventilates efficiently, replace the
filter according to the specified maintenance
intervals listed in your Service and Maintenance
Guide. To replace the filter, contact your
NISSAN dealer.
The filter should be replaced if the air flowdecreases significantly or if windows fog
up easily when operating the heater or air
conditioning system.
SAA0642
Display screen, heater, air conditioner and audio systems
4-19
04.4.5/Z50-D/V5.0
Page 143 of 283

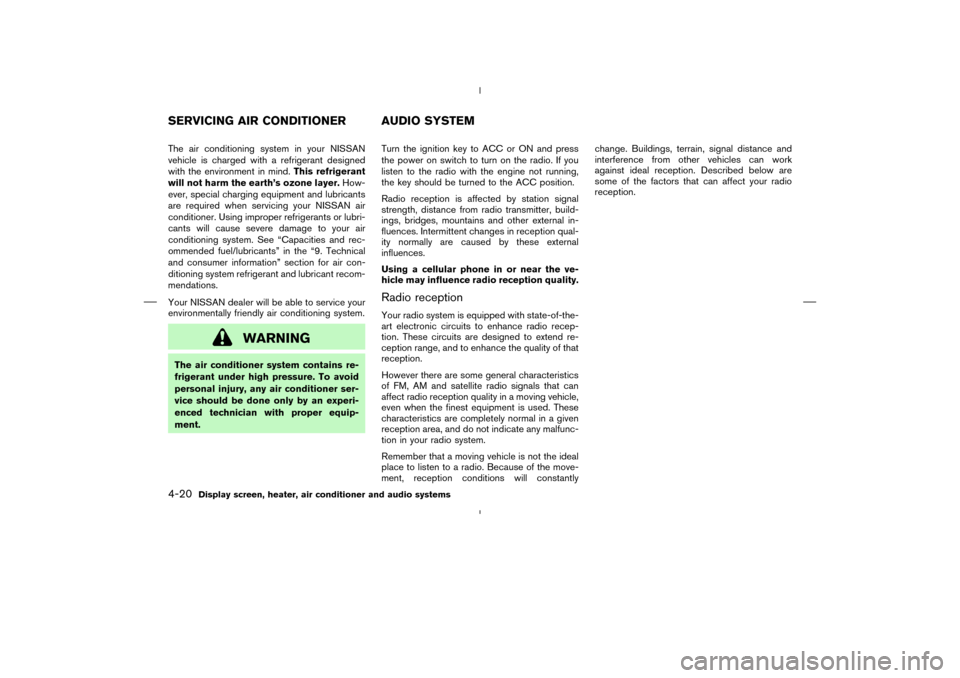

The air conditioning system in your NISSAN
vehicle is charged with a refrigerant designed
with the environment in mind.This refrigerant
will not harm the earth’s ozone layer.How-
ever, special charging equipment and lubricants
are required when servicing your NISSAN air
conditioner. Using improper refrigerants or lubri-
cants will cause severe damage to your air
conditioning system. See “Capacities and rec-
ommended fuel/lubricants” in the “9. Technical
and consumer information” section for air con-
ditioning system refrigerant and lubricant recom-
mendations.
Your NISSAN dealer will be able to service your
environmentally friendly air conditioning system.
WARNING
The air conditioner system contains re-
frigerant under high pressure. To avoid
personal injury, any air conditioner ser-
vice should be done only by an experi-
enced technician with proper equip-
ment.Turn the ignition key to ACC or ON and press
the power on switch to turn on the radio. If you
listen to the radio with the engine not running,
the key should be turned to the ACC position.
Radio reception is affected by station signal
strength, distance from radio transmitter, build-
ings, bridges, mountains and other external in-
fluences. Intermittent changes in reception qual-
ity normally are caused by these external
influences.
Using a cellular phone in or near the ve-
hicle may influence radio reception quality.
Radio receptionYour radio system is equipped with state-of-the-
art electronic circuits to enhance radio recep-
tion. These circuits are designed to extend re-
ception range, and to enhance the quality of that
reception.
However there are some general characteristics
of FM, AM and satellite radio signals that can
affect radio reception quality in a moving vehicle,
even when the finest equipment is used. These
characteristics are completely normal in a given
reception area, and do not indicate any malfunc-
tion in your radio system.
Remember that a moving vehicle is not the ideal
place to listen to a radio. Because of the move-
ment, reception conditions will constantlychange. Buildings, terrain, signal distance and
interference from other vehicles can work
against ideal reception. Described below are
some of the factors that can affect your radio
reception.
SERVICING AIR CONDITIONER AUDIO SYSTEM4-20
Display screen, heater, air conditioner and audio systems
04.4.5/Z50-D/V5.0
Page 144 of 283

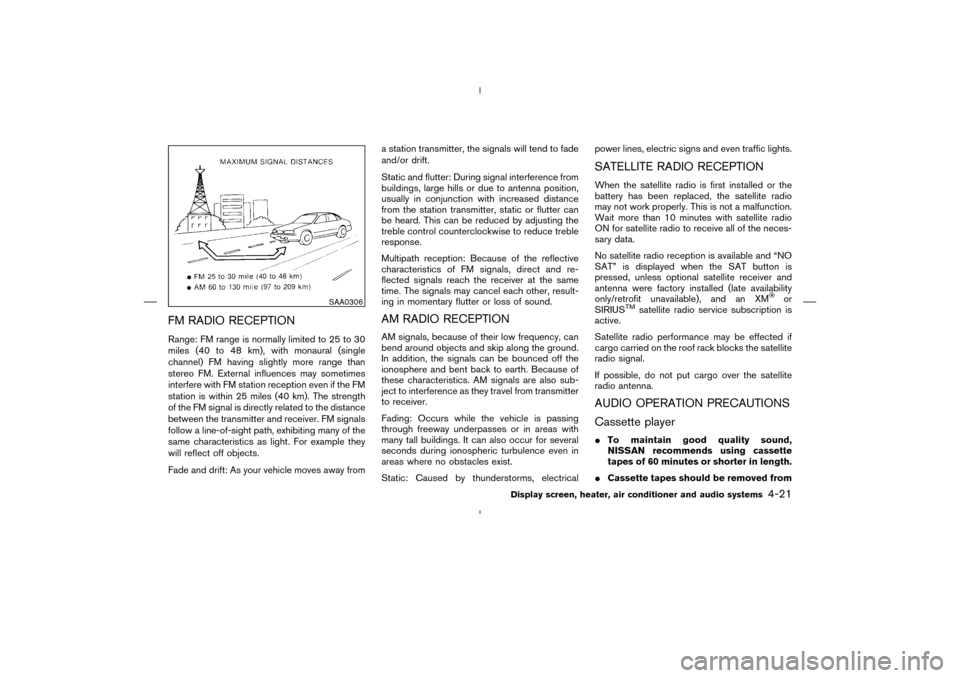

FM RADIO RECEPTIONRange: FM range is normally limited to 25 to 30
miles (40 to 48 km), with monaural (single
channel) FM having slightly more range than
stereo FM. External influences may sometimes
interfere with FM station reception even if the FM
station is within 25 miles (40 km). The strength
of the FM signal is directly related to the distance
between the transmitter and receiver. FM signals
follow a line-of-sight path, exhibiting many of the
same characteristics as light. For example they
will reflect off objects.
Fade and drift: As your vehicle moves away froma station transmitter, the signals will tend to fade
and/or drift.
Static and flutter: During signal interference from
buildings, large hills or due to antenna position,
usually in conjunction with increased distance
from the station transmitter, static or flutter can
be heard. This can be reduced by adjusting the
treble control counterclockwise to reduce treble
response.
Multipath reception: Because of the reflective
characteristics of FM signals, direct and re-
flected signals reach the receiver at the same
time. The signals may cancel each other, result-
ing in momentary flutter or loss of sound.
AM RADIO RECEPTIONAM signals, because of their low frequency, can
bend around objects and skip along the ground.
In addition, the signals can be bounced off the
ionosphere and bent back to earth. Because of
these characteristics. AM signals are also sub-
ject to interference as they travel from transmitter
to receiver.
Fading: Occurs while the vehicle is passing
through freeway underpasses or in areas with
many tall buildings. It can also occur for several
seconds during ionospheric turbulence even in
areas where no obstacles exist.
Static: Caused by thunderstorms, electricalpower lines, electric signs and even traffic lights.
SATELLITE RADIO RECEPTIONWhen the satellite radio is first installed or the
battery has been replaced, the satellite radio
may not work properly. This is not a malfunction.
Wait more than 10 minutes with satellite radio
ON for satellite radio to receive all of the neces-
sary data.
No satellite radio reception is available and “NO
SAT” is displayed when the SAT button is
pressed, unless optional satellite receiver and
antenna were factory installed (late availability
only/retrofit unavailable), and an XM
or
SIRIUS
TM
satellite radio service subscription is
active.
Satellite radio performance may be effected if
cargo carried on the roof rack blocks the satellite
radio signal.
If possible, do not put cargo over the satellite
radio antenna.
AUDIO OPERATION PRECAUTIONS
Cassette playerTo maintain good quality sound,
NISSAN recommends using cassette
tapes of 60 minutes or shorter in length.
Cassette tapes should be removed from
SAA0306
Display screen, heater, air conditioner and audio systems
4-21
04.4.5/Z50-D/V5.0
Page 145 of 283

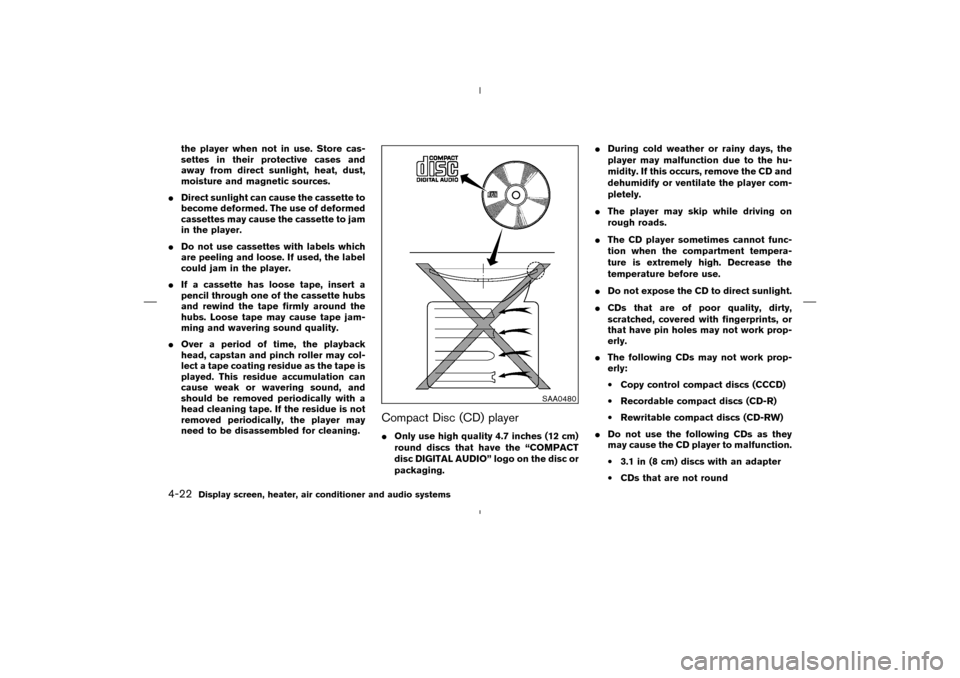

the player when not in use. Store cas-
settes in their protective cases and
away from direct sunlight, heat, dust,
moisture and magnetic sources.
Direct sunlight can cause the cassette to
become deformed. The use of deformed
cassettes may cause the cassette to jam
in the player.
Do not use cassettes with labels which
are peeling and loose. If used, the label
could jam in the player.
If a cassette has loose tape, insert a
pencil through one of the cassette hubs
and rewind the tape firmly around the
hubs. Loose tape may cause tape jam-
ming and wavering sound quality.
Over a period of time, the playback
head, capstan and pinch roller may col-
lect a tape coating residue as the tape is
played. This residue accumulation can
cause weak or wavering sound, and
should be removed periodically with a
head cleaning tape. If the residue is not
removed periodically, the player may
need to be disassembled for cleaning.
Compact Disc (CD) playerOnly use high quality 4.7 inches (12 cm)
round discs that have the “COMPACT
disc DIGITAL AUDIO” logo on the disc or
packaging.During cold weather or rainy days, the
player may malfunction due to the hu-
midity. If this occurs, remove the CD and
dehumidify or ventilate the player com-
pletely.
The player may skip while driving on
rough roads.
The CD player sometimes cannot func-
tion when the compartment tempera-
ture is extremely high. Decrease the
temperature before use.
Do not expose the CD to direct sunlight.
CDs that are of poor quality, dirty,
scratched, covered with fingerprints, or
that have pin holes may not work prop-
erly.
The following CDs may not work prop-
erly:
•Copy control compact discs (CCCD)
•Recordable compact discs (CD-R)
•Rewritable compact discs (CD-RW)
Do not use the following CDs as they
may cause the CD player to malfunction.
•3.1 in (8 cm) discs with an adapter
•CDs that are not round
SAA0480
4-22
Display screen, heater, air conditioner and audio systems
04.4.5/Z50-D/V5.0
Page 146 of 283

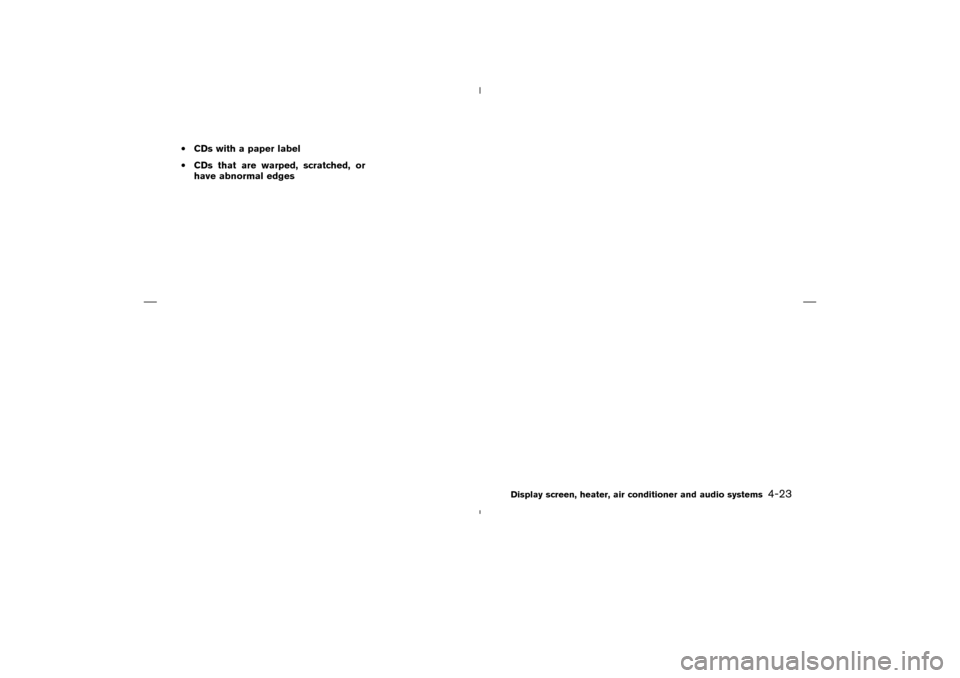

•CDs with a paper label
•CDs that are warped, scratched, or
have abnormal edges
Display screen, heater, air conditioner and audio systems
4-23
04.4.5/Z50-D/V5.0
Page 147 of 283

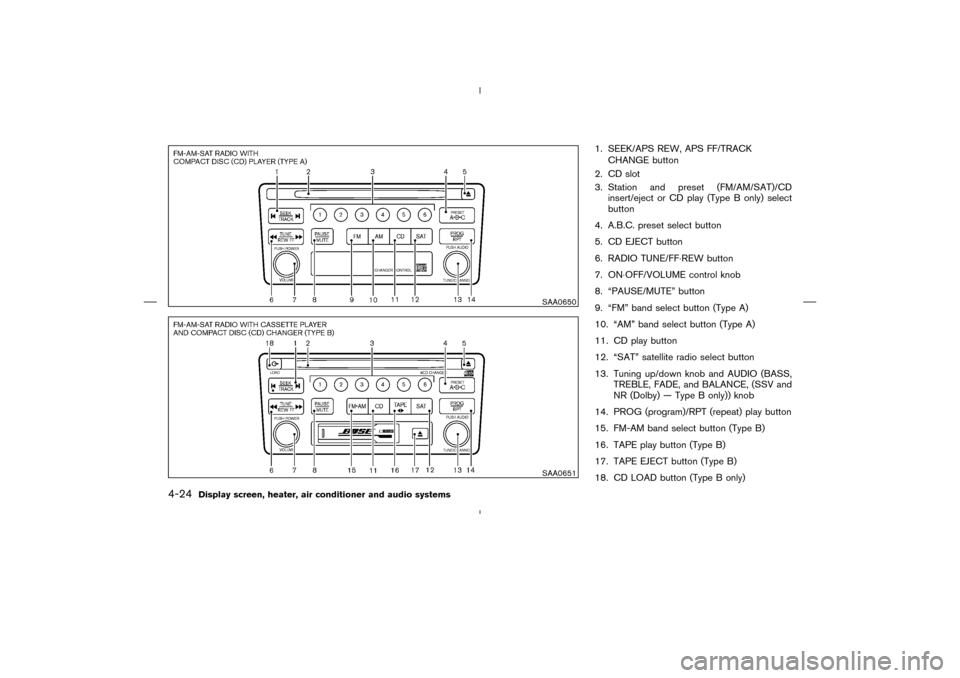

1. SEEK/APS REW, APS FF/TRACK
CHANGE button
2. CD slot
3. Station and preset (FM/AM/SAT)/CD
insert/eject or CD play (Type B only) select
button
4. A.B.C. preset select button
5. CD EJECT button
6. RADIO TUNE/FF⋅REW button
7. ON⋅OFF/VOLUME control knob
8. “PAUSE/MUTE” button
9. “FM” band select button (Type A)
10. “AM” band select button (Type A)
11. CD play button
12. “SAT” satellite radio select button
13. Tuning up/down knoband AUDIO (BASS,
TREBLE, FADE, and BALANCE, (SSV and
NR (Dolby) — Type B only)) knob
14. PROG (program)/RPT (repeat) play button
15. FM-AM band select button (Type B)
16. TAPE play button (Type B)
17. TAPE EJECT button (Type B)
18. CD LOAD button (Type B only)
SAA0650SAA0651
4-24
Display screen, heater, air conditioner and audio systems
04.4.5/Z50-D/V5.0
Page 148 of 283

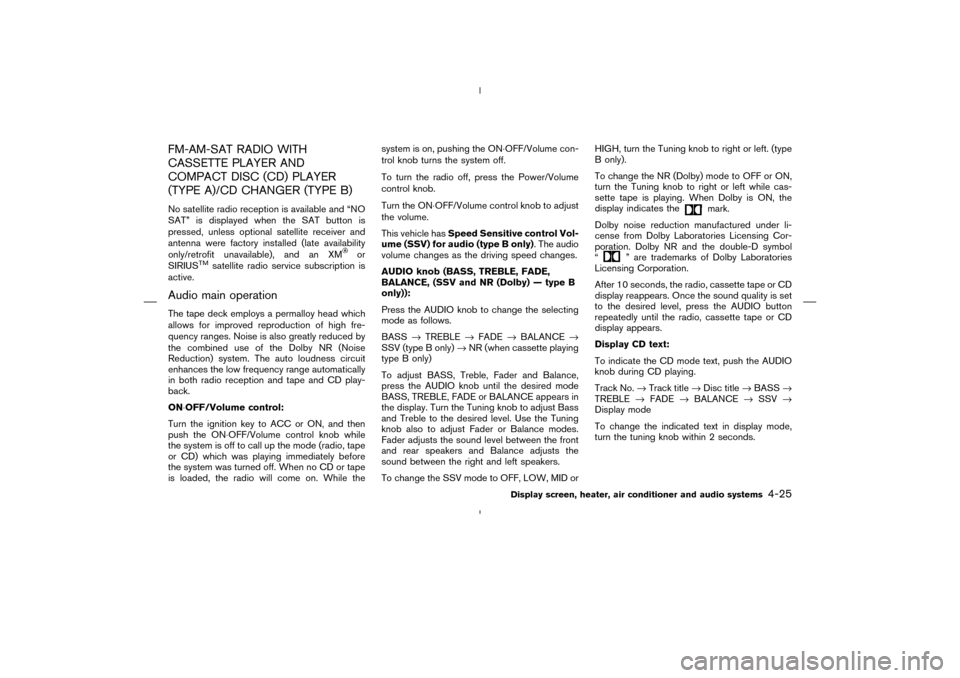

FM-AM-SAT RADIO WITH
CASSETTE PLAYER AND
COMPACT DISC (CD) PLAYER
(TYPE A)/CD CHANGER (TYPE B)No satellite radio reception is available and “NO
SAT” is displayed when the SAT button is
pressed, unless optional satellite receiver and
antenna were factory installed (late availability
only/retrofit unavailable), and an XM
or
SIRIUS
TM
satellite radio service subscription is
active.
Audio main operationThe tape deck employs a permalloy head which
allows for improved reproduction of high fre-
quency ranges. Noise is also greatly reduced by
the combined use of the Dolby NR (Noise
Reduction) system. The auto loudness circuit
enhances the low frequency range automatically
in both radio reception and tape and CD play-
back.
ON⋅OFF/Volume control:
Turn the ignition key to ACC or ON, and then
push the ON⋅OFF/Volume control knobwhile
the system is off to call up the mode (radio, tape
or CD) which was playing immediately before
the system was turned off. When no CD or tape
is loaded, the radio will come on. While thesystem is on, pushing the ON⋅OFF/Volume con-
trol knobturns the system off.
To turn the radio off, press the Power/Volume
control knob.
Turn the ON⋅OFF/Volume control knobto adjust
the volume.
This vehicle hasSpeed Sensitive control Vol-
ume (SSV) for audio (type B only). The audio
volume changes as the driving speed changes.
AUDIO knob (BASS, TREBLE, FADE,
BALANCE, (SSV and NR (Dolby) — type B
only)):
Press the AUDIO knobto change the selecting
mode as follows.
BASS→TREBLE→FADE→BALANCE→
SSV (type B only)→NR (when cassette playing
type B only)
To adjust BASS, Treble, Fader and Balance,
press the AUDIO knobuntil the desired mode
BASS, TREBLE, FADE or BALANCE appears in
the display. Turn the Tuning knobto adjust Bass
and Treble to the desired level. Use the Tuning
knobalso to adjust Fader or Balance modes.
Fader adjusts the sound level between the front
and rear speakers and Balance adjusts the
sound between the right and left speakers.
To change the SSV mode to OFF, LOW, MID orHIGH, turn the Tuning knobto right or left. (type
B only).
To change the NR (Dolby) mode to OFF or ON,
turn the Tuning knobto right or left while cas-
sette tape is playing. When Dolby is ON, the
display indicates the
mark.
Dolby noise reduction manufactured under li-
cense from Dolby Laboratories Licensing Cor-
poration. Dolby NR and the double-D symbol
“
” are trademarks of Dolby Laboratories
Licensing Corporation.
After 10 seconds, the radio, cassette tape or CD
display reappears. Once the sound quality is set
to the desired level, press the AUDIO button
repeatedly until the radio, cassette tape or CD
display appears.
Display CD text:
To indicate the CD mode text, push the AUDIO
knobduring CD playing.
Track No.→Track title→Disc title→BASS→
TREBLE→FADE→BALANCE→SSV→
Display mode
To change the indicated text in display mode,
turn the tuning knobwithin 2 seconds.
Display screen, heater, air conditioner and audio systems
4-25
04.4.5/Z50-D/V5.0
Page 149 of 283

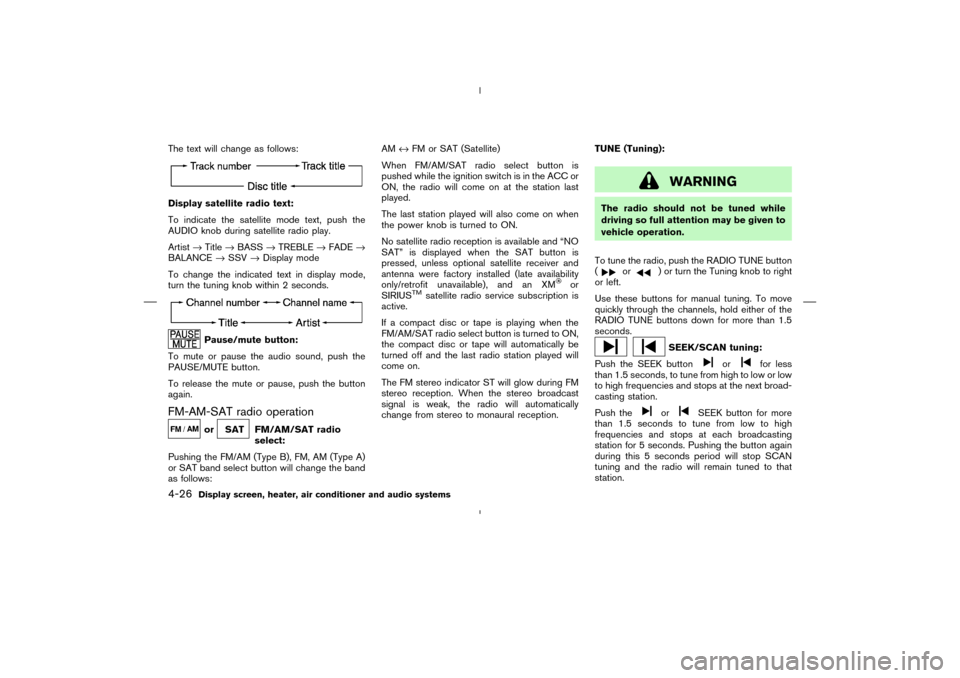

The text will change as follows:Display satellite radio text:
To indicate the satellite mode text, push the
AUDIO knobduring satellite radio play.
Artist→Title→BASS→TREBLE→FADE→
BALANCE→SSV→Display mode
To change the indicated text in display mode,
turn the tuning knobwithin 2 seconds.
Pause/mute button:
To mute or pause the audio sound, push the
PAUSE/MUTE button.
To release the mute or pause, push the button
again.
FM-AM-SAT radio operation
or
SAT FM/AM/SAT radio
select:
Pushing the FM/AM (Type B), FM, AM (Type A)
or SAT band select button will change the band
as follows:AM↔FM or SAT (Satellite)
When FM/AM/SAT radio select button is
pushed while the ignition switch is in the ACC or
ON, the radio will come on at the station last
played.
The last station played will also come on when
the power knobis turned to ON.
No satellite radio reception is available and “NO
SAT” is displayed when the SAT button is
pressed, unless optional satellite receiver and
antenna were factory installed (late availability
only/retrofit unavailable), and an XM
or
SIRIUS
TM
satellite radio service subscription is
active.
If a compact disc or tape is playing when the
FM/AM/SAT radio select button is turned to ON,
the compact disc or tape will automatically be
turned off and the last radio station played will
come on.
The FM stereo indicator ST will glow during FM
stereo reception. When the stereo broadcast
signal is weak, the radio will automatically
change from stereo to monaural reception.TUNE (Tuning):
WARNING
The radio should not be tuned while
driving so full attention may be given to
vehicle operation.
To tune the radio, push the RADIO TUNE button
(
or
) or turn the Tuning knobto right
or left.
Use these buttons for manual tuning. To move
quickly through the channels, hold either of the
RADIO TUNE buttons down for more than 1.5
seconds.SEEK/SCANtuning:
Push the SEEK button
or
for less
than 1.5 seconds, to tune from high to low or low
to high frequencies and stops at the next broad-
casting station.
Push the
or
SEEK button for more
than 1.5 seconds to tune from low to high
frequencies and stops at each broadcasting
station for 5 seconds. Pushing the button again
during this 5 seconds period will stop SCAN
tuning and the radio will remain tuned to that
station.
4-26
Display screen, heater, air conditioner and audio systems
04.4.5/Z50-D/V5.0
Page 150 of 283

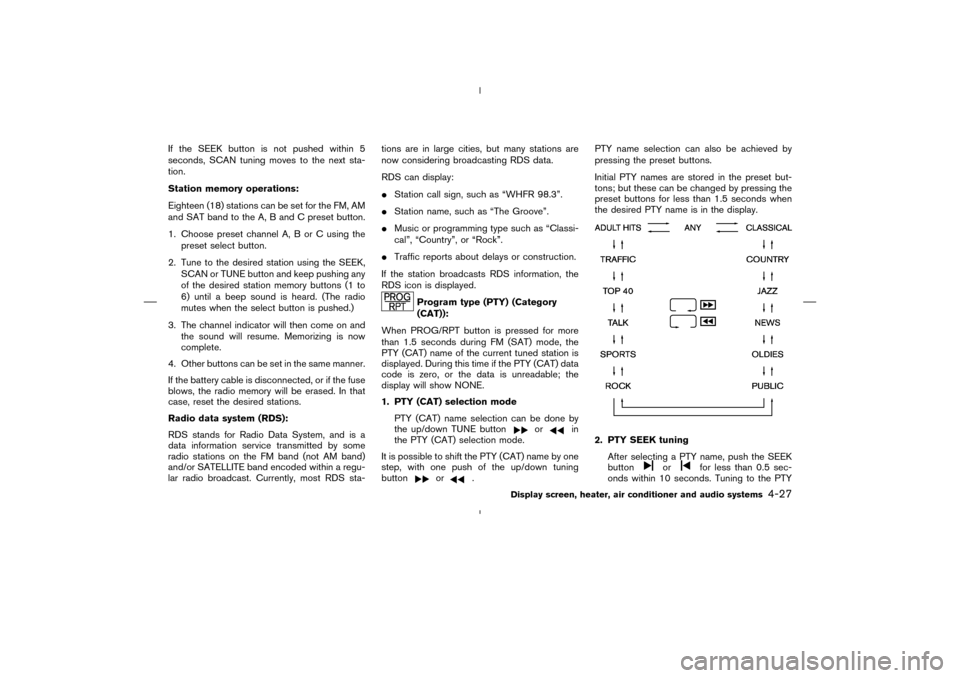

If the SEEK button is not pushed within 5
seconds, SCAN tuning moves to the next sta-
tion.
Station memory operations:
Eighteen (18) stations can be set for the FM, AM
and SAT band to the A, B and C preset button.
1. Choose preset channel A, B or C using the
preset select button.
2. Tune to the desired station using the SEEK,
SCAN or TUNE button and keep pushing any
of the desired station memory buttons (1 to
6) until a beep sound is heard. (The radio
mutes when the select button is pushed.)
3. The channel indicator will then come on and
the sound will resume. Memorizing is now
complete.
4. Other buttons can be set in the same manner.
If the battery cable is disconnected, or if the fuse
blows, the radio memory will be erased. In that
case, reset the desired stations.
Radio data system (RDS):
RDS stands for Radio Data System, and is a
data information service transmitted by some
radio stations on the FM band (not AM band)
and/or SATELLITE band encoded within a regu-
lar radio broadcast. Currently, most RDS sta-tions are in large cities, but many stations are
now considering broadcasting RDS data.
RDS can display:
Station call sign, such as “WHFR 98.3”.
Station name, such as “The Groove”.
Music or programming type such as “Classi-
cal”, “Country”, or “Rock”.
Traffic reports about delays or construction.
If the station broadcasts RDS information, the
RDS icon is displayed.
Program type (PTY) (Category
(CAT)):
When PROG/RPT button is pressed for more
than 1.5 seconds during FM (SAT) mode, the
PTY (CAT) name of the current tuned station is
displayed. During this time if the PTY (CAT) data
code is zero, or the data is unreadable; the
display will show NONE.
1. PTY (CAT) selection mode
PTY (CAT) name selection can be done by
the up/down TUNE button
or
in
the PTY (CAT) selection mode.
It is possible to shift the PTY (CAT) name by one
step, with one push of the up/down tuning
button
or
.PTY name selection can also be achieved by
pressing the preset buttons.
Initial PTY names are stored in the preset but-
tons; but these can be changed by pressing the
preset buttons for less than 1.5 seconds when
the desired PTY name is in the display.
2. PTY SEEK tuning
After selecting a PTY name, push the SEEK
button
or
for less than 0.5 sec-
onds within 10 seconds. Tuning to the PTY
Display screen, heater, air conditioner and audio systems
4-27
04.4.5/Z50-D/V5.0
