NISSAN MURANO 2004 1.G Owners Manual

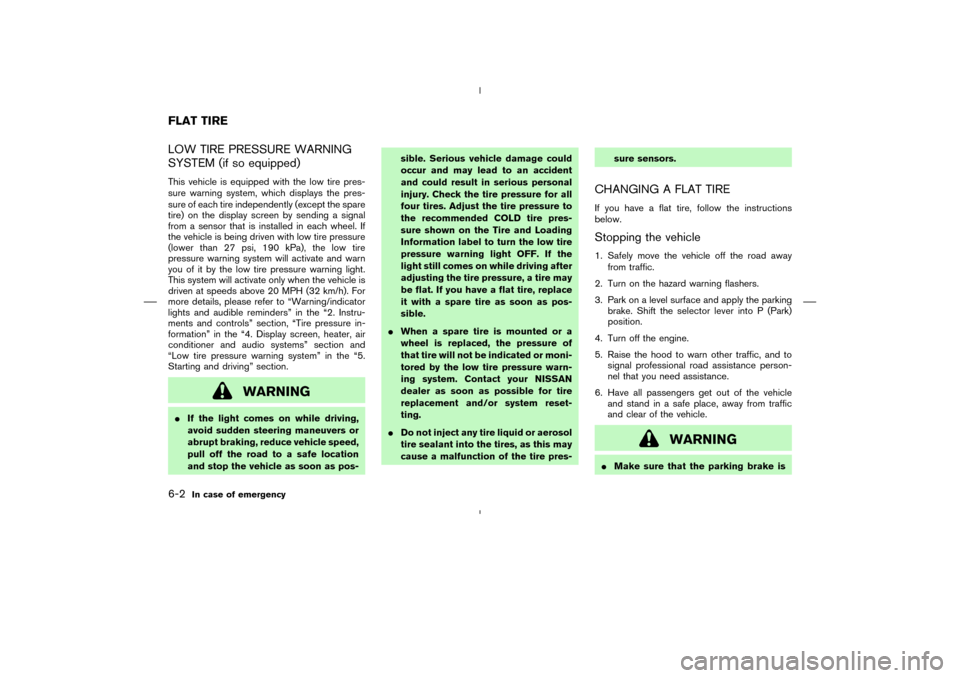

LOW TIRE PRESSURE WARNING
SYSTEM (if so equipped)This vehicle is equipped with the low tire pres-
sure warning system, which displays the pres-
sure of each tire independently (except the spare
tire) on the display screen by sending a signal
from a sensor that is installed in each wheel. If
the vehicle is being driven with low tire pressure
(lower than 27 psi, 190 kPa), the low tire
pressure warning system will activate and warn
you of it by the low tire pressure warning light.
This system will activate only when the vehicle is
driven at speeds above 20 MPH (32 km/h). For
more details, please refer to “Warning/indicator
lights and audible reminders” in the “2. Instru-
ments and controls” section, “Tire pressure in-
formation” in the “4. Display screen, heater, air
conditioner and audio systems” section and
“Low tire pressure warning system” in the “5.
Starting and driving” section.
WARNING

If the light comes on while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location
and stop the vehicle as soon as pos-sible. Serious vehicle damage could
occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still comes on while driving after
adjusting the tire pressure, a tire may
be flat. If you have a flat tire, replace
it with a spare tire as soon as pos-
sible.

When a spare tire is mounted or a
wheel is replaced, the pressure of
that tire will not be indicated or moni-
tored by the low tire pressure warn-
ing system. Contact your NISSAN
dealer as soon as possible for tire
replacement and/or system reset-
ting.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-sure sensors.
CHANGING A FLAT TIREIf you have a flat tire, follow the instructions
below.Stopping the vehicle1. Safely move the vehicle off the road away
from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking
brake. Shift the selector lever into P (Park)
position.
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to
signal professional road assistance person-
nel that you need assistance.
6. Have all passengers get out of the vehicle
and stand in a safe place, away from traffic
and clear of the vehicle.
WARNING

Make sure that the parking brake is
FLAT TIRE6-2
In case of emergency


04.4.5/Z50-D/V5.0


securely applied and the selector le-
ver is shifted into P (Park).

Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.

Never change tires if oncoming traffic
is close to your vehicle. Wait for pro-
fessional road assistance.

When a spare tire is mounted or a
wheel is replaced, the pressure of
that tire will not be indicated and not
be monitored by the low tire pressure
warning system. Contact your
NISSAN dealer as soon as possible
for tire replacement and/or system
resetting. (For models with the low
tire pressure warning system)

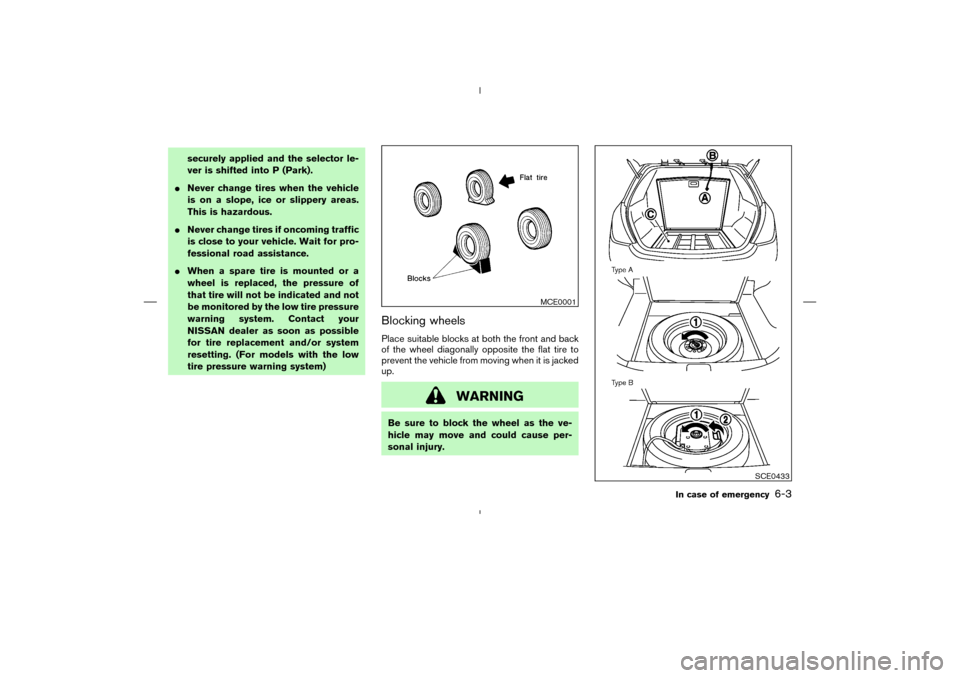

Blocking wheelsPlace suitable blocks at both the front and back
of the wheel diagonally opposite the flat tire to
prevent the vehicle from moving when it is jacked
up.
WARNING
Be sure to block the wheel as the ve-
hicle may move and could cause per-
sonal injury.
MCE0001
SCE0433
In case of emergency
6-3


04.4.5/Z50-D/V5.0

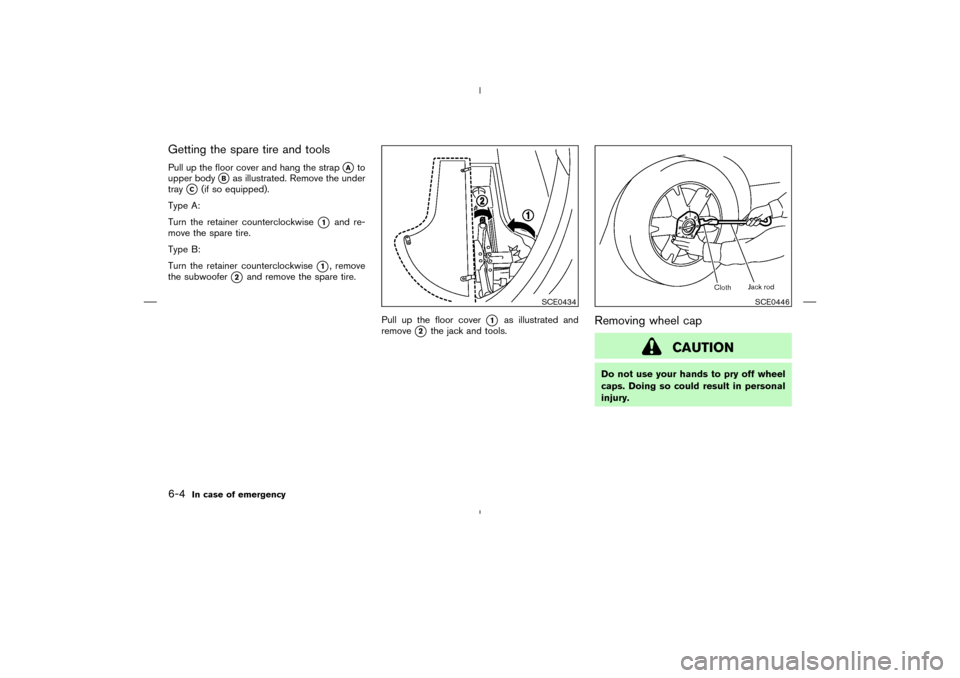

Getting the spare tire and toolsPull up the floor cover and hang the strap
A
to
upper body
B
as illustrated. Remove the under
tray
C
(if so equipped).
Type A:
Turn the retainer counterclockwise
1
and re-
move the spare tire.
Type B:
Turn the retainer counterclockwise
1, remove
the subwoofer
2
and remove the spare tire.
Pull up the floor cover
1
as illustrated and
remove
2
the jack and tools.
Removing wheel cap
CAUTION
Do not use your hands to pry off wheel
caps. Doing so could result in personal
injury.
SCE0434
SCE0446
6-4
In case of emergency


04.4.5/Z50-D/V5.0

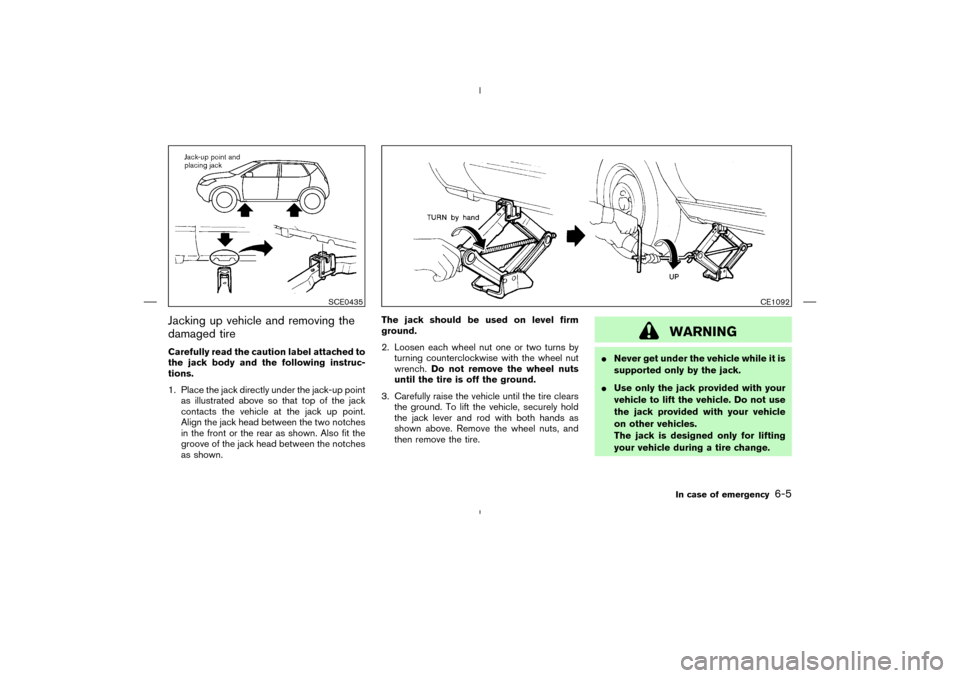

Jacking up vehicle and removing the
damaged tireCarefully read the caution label attached to
the jack body and the following instruc-
tions.
1. Place the jack directly under the jack-up point
as illustrated above so that top of the jack
contacts the vehicle at the jack up point.
Align the jack head between the two notches
in the front or the rear as shown. Also fit the
groove of the jack head between the notches
as shown.The jack should be used on level firm
ground.
2. Loosen each wheel nut one or two turns by
turning counterclockwise with the wheel nut
wrench.Do not remove the wheel nuts
until the tire is off the ground.
3. Carefully raise the vehicle until the tire clears
the ground. To lift the vehicle, securely hold
the jack lever and rod with both hands as
shown above. Remove the wheel nuts, and
then remove the tire.
WARNING

Never get under the vehicle while it is
supported only by the jack.

Use only the jack provided with your
vehicle to lift the vehicle. Do not use
the jack provided with your vehicle
on other vehicles.
The jack is designed only for lifting
your vehicle during a tire change.
SCE0435
CE1092
In case of emergency
6-5


04.4.5/Z50-D/V5.0


Use the correct jack up points; never
use any other part of the vehicle for
jack support.

Never jack up the vehicle more than
necessary.

Never use blocks on or under the
jack.

Do not start or run engine while ve-
hicle is on the jack, as it may cause
the vehicle to move. This is especially
true for vehicles with limited slip dif-
ferential carriers.

Do not allow passengers to stay in
the vehicle while it is on the jack.

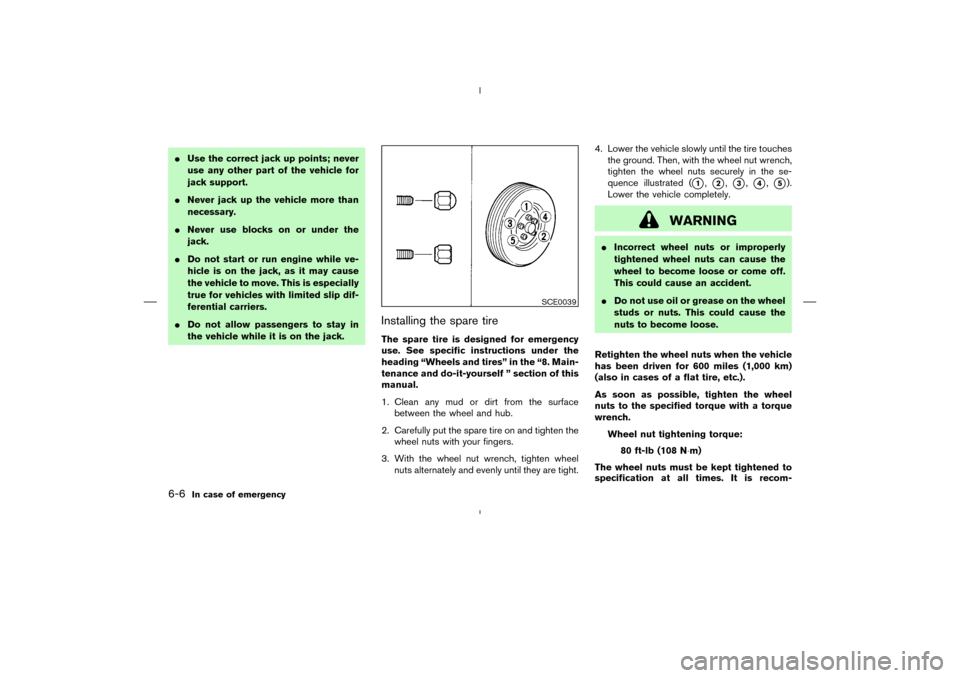

Installing the spare tireThe spare tire is designed for emergency
use. See specific instructions under the
heading “Wheels and tires” in the “8. Main-
tenance and do-it-yourself ” section of this
manual.
1. Clean any mud or dirt from the surface
between the wheel and hub.
2. Carefully put the spare tire on and tighten the
wheel nuts with your fingers.
3. With the wheel nut wrench, tighten wheel
nuts alternately and evenly until they are tight.4. Lower the vehicle slowly until the tire touches
the ground. Then, with the wheel nut wrench,
tighten the wheel nuts securely in the se-
quence illustrated (
1,2,3,4,5).
Lower the vehicle completely.
WARNING

Incorrect wheel nuts or improperly
tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.

Do not use oil or grease on the wheel
studs or nuts. This could cause the
nuts to become loose.
Retighten the wheel nuts when the vehicle
has been driven for 600 miles (1,000 km)
(also in cases of a flat tire, etc.).
As soon as possible, tighten the wheel
nuts to the specified torque with a torque
wrench.
Wheel nut tightening torque:
80 ft-lb (108 N⋅m)
The wheel nuts must be kept tightened to
specification at all times. It is recom-
SCE0039
6-6
In case of emergency


04.4.5/Z50-D/V5.0


mended that wheel nuts be tightened to
specification at each lubrication interval.

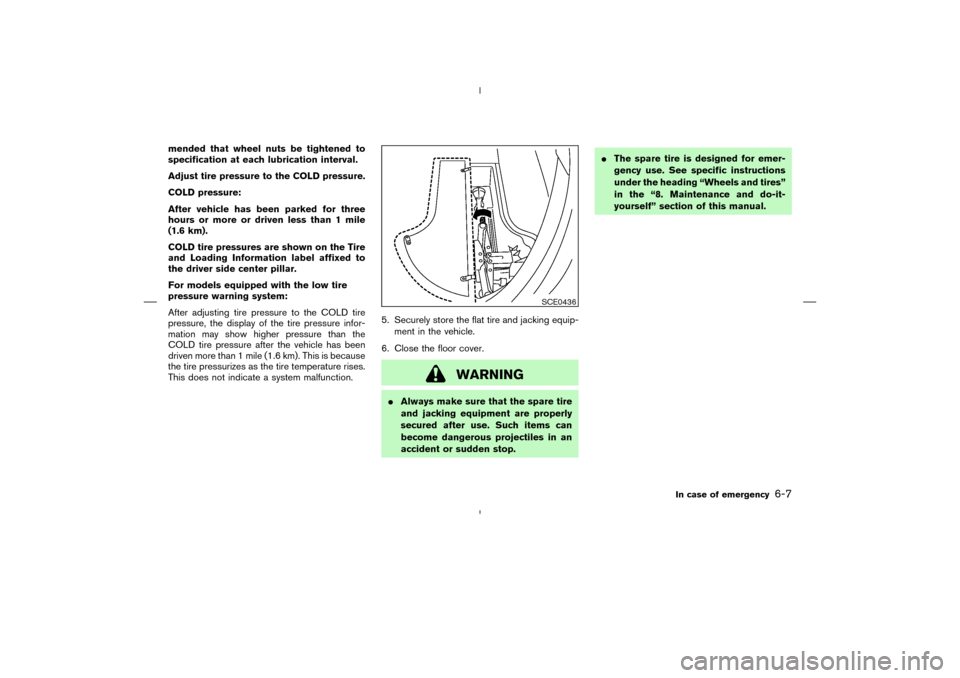

Adjust tire pressure to the COLD pressure.
COLD pressure:
After vehicle has been parked for three
hours or more or driven less than 1 mile
(1.6 km).
COLD tire pressures are shown on the Tire
and Loading Information label affixed to
the driver side center pillar.
For models equipped with the low tire
pressure warning system:
After adjusting tire pressure to the COLD tire
pressure, the display of the tire pressure infor-
mation may show higher pressure than the
COLD tire pressure after the vehicle has been
driven more than 1 mile (1.6 km). This is because
the tire pressurizes as the tire temperature rises.
This does not indicate a system malfunction.5. Securely store the flat tire and jacking equip-
ment in the vehicle.
6. Close the floor cover.
WARNING

Always make sure that the spare tire
and jacking equipment are properly
secured after use. Such items can
become dangerous projectiles in an
accident or sudden stop.
The spare tire is designed for emer-
gency use. See specific instructions
under the heading “Wheels and tires”
in the “8. Maintenance and do-it-
yourself” section of this manual.
SCE0436
In case of emergency
6-7


04.4.5/Z50-D/V5.0

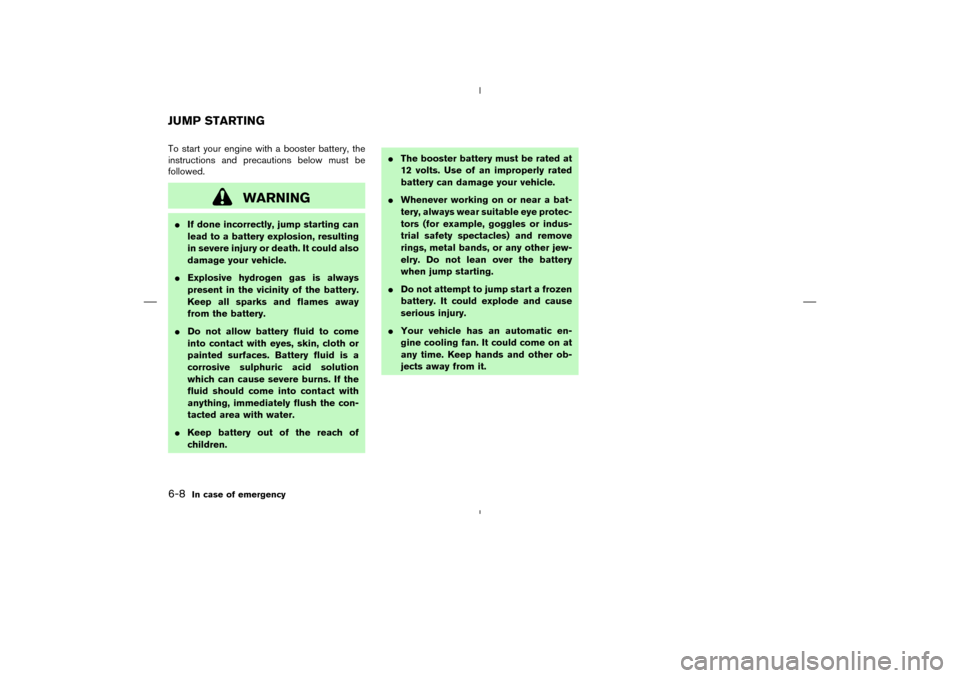

To start your engine with a booster battery, the
instructions and precautions below must be
followed.
WARNING

If done incorrectly, jump starting can
lead to a battery explosion, resulting
in severe injury or death. It could also
damage your vehicle.

Explosive hydrogen gas is always
present in the vicinity of the battery.
Keep all sparks and flames away
from the battery.

Do not allow battery fluid to come
into contact with eyes, skin, cloth or
painted surfaces. Battery fluid is a
corrosive sulphuric acid solution
which can cause severe burns. If the
fluid should come into contact with
anything, immediately flush the con-
tacted area with water.

Keep battery out of the reach of
children.
The booster battery must be rated at
12 volts. Use of an improperly rated
battery can damage your vehicle.

Whenever working on or near a bat-
tery, always wear suitable eye protec-
tors (for example, goggles or indus-
trial safety spectacles) and remove
rings, metal bands, or any other jew-
elry. Do not lean over the battery
when jump starting.

Do not attempt to jump start a frozen
battery. It could explode and cause
serious injury.

Your vehicle has an automatic en-
gine cooling fan. It could come on at
any time. Keep hands and other ob-
jects away from it.JUMP STARTING6-8
In case of emergency


04.4.5/Z50-D/V5.0

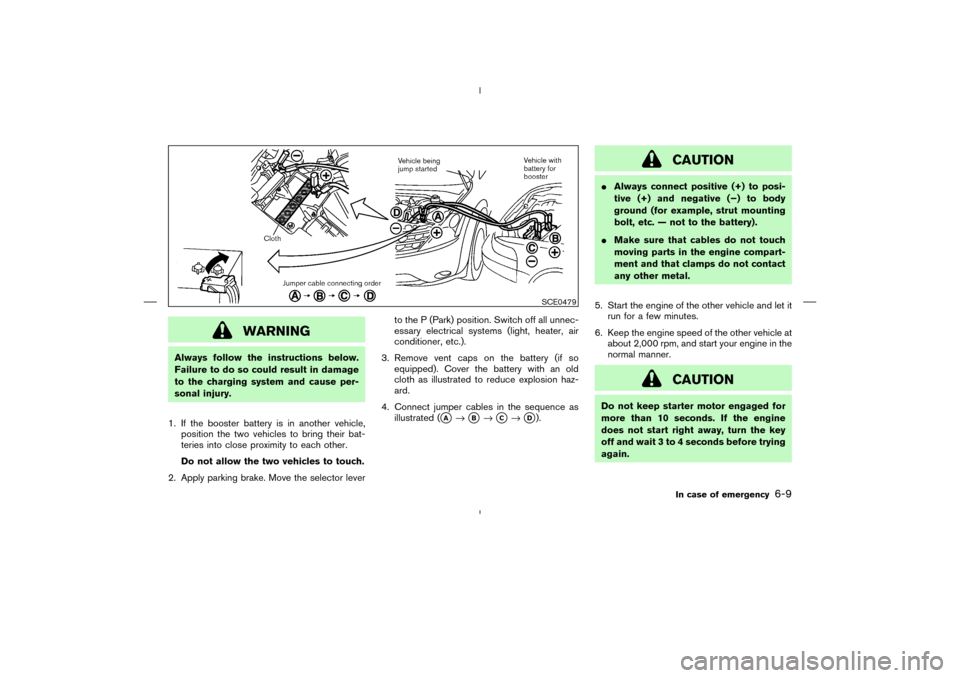

WARNING
Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause per-
sonal injury.
1. If the booster battery is in another vehicle,
position the two vehicles to bring their bat-
teries into close proximity to each other.
Do not allow the two vehicles to touch.
2. Apply parking brake. Move the selector leverto the P (Park) position. Switch off all unnec-
essary electrical systems (light, heater, air
conditioner, etc.).
3. Remove vent caps on the battery (if so
equipped). Cover the battery with an old
cloth as illustrated to reduce explosion haz-
ard.
4. Connect jumper cables in the sequence as
illustrated (
A
→
B
→
C
→
D).
CAUTION

Always connect positive (+) to posi-
tive (+) and negative (−) to body
ground (for example, strut mounting
bolt, etc. — not to the battery).

Make sure that cables do not touch
moving parts in the engine compart-
ment and that clamps do not contact
any other metal.
5. Start the engine of the other vehicle and let it
run for a few minutes.
6. Keep the engine speed of the other vehicle at
about 2,000 rpm, and start your engine in the
normal manner.
CAUTION
Do not keep starter motor engaged for
more than 10 seconds. If the engine
does not start right away, turn the key
off and wait 3 to 4 seconds before trying
again.
SCE0479
In case of emergency
6-9


04.4.5/Z50-D/V5.0

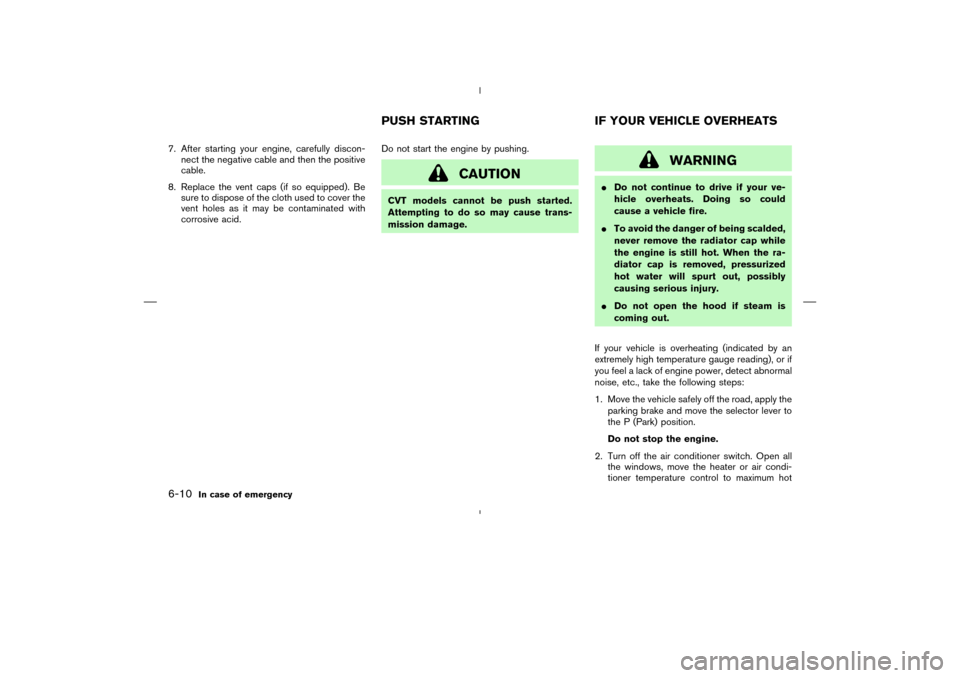

7. After starting your engine, carefully discon-
nect the negative cable and then the positive
cable.
8. Replace the vent caps (if so equipped). Be
sure to dispose of the cloth used to cover the
vent holes as it may be contaminated with
corrosive acid.Do not start the engine by pushing.
CAUTION
CVT models cannot be push started.
Attempting to do so may cause trans-
mission damage.
WARNING

Do not continue to drive if your ve-
hicle overheats. Doing so could
cause a vehicle fire.

To avoid the danger of being scalded,
never remove the radiator cap while
the engine is still hot. When the ra-
diator cap is removed, pressurized
hot water will spurt out, possibly
causing serious injury.

Do not open the hood if steam is
coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading), or if
you feel a lack of engine power, detect abnormal
noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the
parking brake and move the selector lever to
the P (Park) position.
Do not stop the engine.
2. Turn off the air conditioner switch. Open all
the windows, move the heater or air condi-
tioner temperature control to maximum hot
PUSH STARTING IF YOUR VEHICLE OVERHEATS
6-10
In case of emergency


04.4.5/Z50-D/V5.0


and fan control to high speed.
3. If engine overheating is caused by climbing a
long hill on a hot day, run the engine at a fast
idle (approximately 1,500 rpm) until the tem-
perature gauge indication returns to normal.
4. Get out of the vehicle. Look and listen for
steam or coolant escaping from the radiator
before opening the hood. Wait until no steam
or coolant can be seen before proceeding.
5. Open the engine hood.
WARNING
If steam or water is coming from the
engine, stand clear to prevent getting
burned.
6. Visually check if the cooling fan is running.
The radiator hoses and radiator should not
leak water.
If coolant is leaking or the cooling fan does
not run, stop the engine.
WARNING

Be careful not to allow your hands,
hair, jewelry or clothing to come into
contact with, or to get caught in the
cooling fan, or drive belt.

The engine cooling fan can start at
any time when the coolant tempera-
ture is high.
7. After the engine cools down, check the cool-
ant level in the reservoir tank with the engine
running. Add coolant to the reservoir tank if
necessary. Have your vehicle repaired at the
nearest NISSAN dealer.When towing your vehicle, all State, provincial
and local regulations for towing must be fol-
lowed. Incorrect towing equipment could dam-
age your vehicle. Towing instructions are avail-
able from a NISSAN dealer. Local service
operators are generally familiar with the appli-
cable laws and procedures for towing. To assure
proper towing and to prevent accidental damage
to your vehicle, NISSAN recommends having a
service operator tow your vehicle. It is advisable
to have the service operator carefully read the
following precautions.
WARNING

Never ride in a vehicle that is being
towed.

Never get under your vehicle after it
has been lifted by a tow truck.
CAUTION

When towing, make sure that the
transmission, axles, steering system
and powertrain are in working condi-
tion. If any unit is damaged, dolliesTOWING YOUR VEHICLE
In case of emergency
6-11


04.4.5/Z50-D/V5.0
