When turning the vehicle in
ON/LOCK mode on paved roads, you
may feel a braking effect. This is a
normal condition of the AWD model.

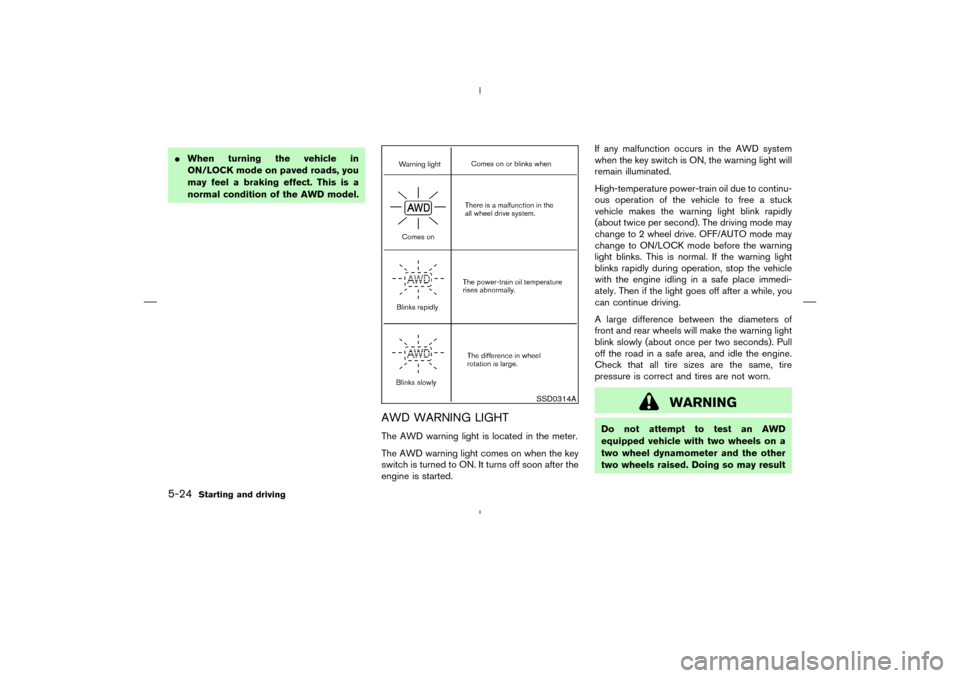

AWD WARNING LIGHTThe AWD warning light is located in the meter.
The AWD warning light comes on when the key
switch is turned to ON. It turns off soon after the
engine is started.If any malfunction occurs in the AWD system
when the key switch is ON, the warning light will
remain illuminated.
High-temperature power-train oil due to continu-
ous operation of the vehicle to free a stuck
vehicle makes the warning light blink rapidly
(about twice per second). The driving mode may
change to 2 wheel drive. OFF/AUTO mode may
change to ON/LOCK mode before the warning
light blinks. This is normal. If the warning light
blinks rapidly during operation, stop the vehicle
with the engine idling in a safe place immedi-
ately. Then if the light goes off after a while, you
can continue driving.
A large difference between the diameters of
front and rear wheels will make the warning light
blink slowly (about once per two seconds). Pull
off the road in a safe area, and idle the engine.
Check that all tire sizes are the same, tire
pressure is correct and tires are not worn.
WARNING
Do not attempt to test an AWD
equipped vehicle with two wheels on a
two wheel dynamometer and the other
two wheels raised. Doing so may result
SSD0314A
5-24
Starting and driving
04.4.5/Z50-D/V5.0
Page 182 of 283
in transmission damage or unex-
pected vehicle movement which
could result in serious vehicle dam-
age or personal injury.

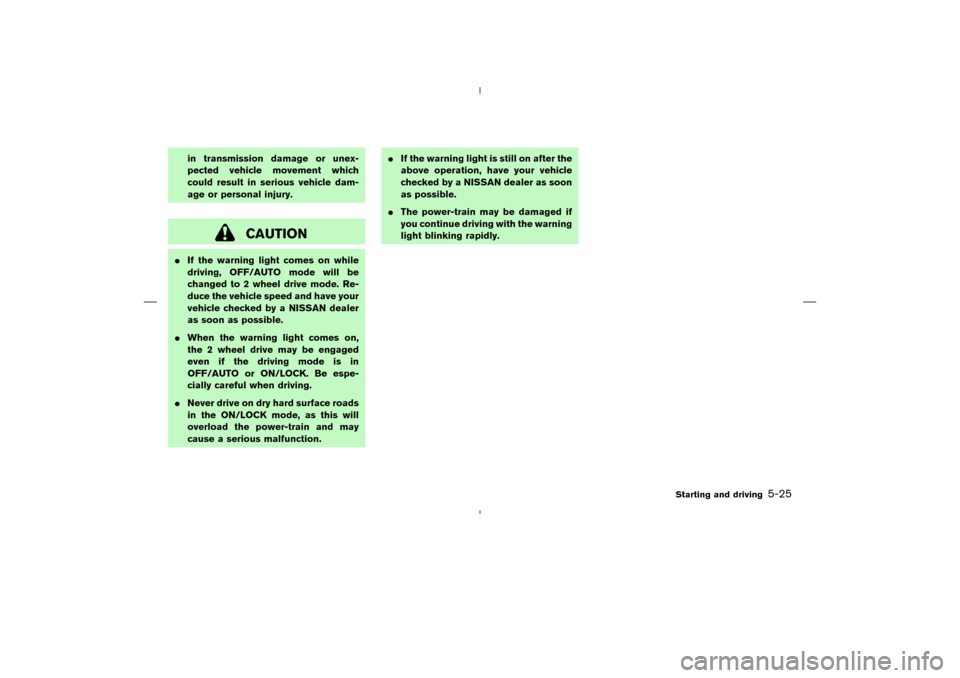

CAUTION
If the warning light comes on while
driving, OFF/AUTO mode will be
changed to 2 wheel drive mode. Re-
duce the vehicle speed and have your
vehicle checked by a NISSAN dealer
as soon as possible.
When the warning light comes on,
the 2 wheel drive may be engaged
even if the driving mode is in
OFF/AUTO or ON/LOCK. Be espe-
cially careful when driving.
Never drive on dry hard surface roads
in the ON/LOCK mode, as this will
overload the power-train and may
cause a serious malfunction.If the warning light is still on after the
above operation, have your vehicle
checked by a NISSAN dealer as soon
as possible.
The power-train may be damaged if
you continue driving with the warning
light blinking rapidly.
Starting and driving
5-25
04.4.5/Z50-D/V5.0
Page 183 of 283
WARNING
Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They may
ignite and cause a fire.
Never leave the engine running while
the vehicle is unattended.
Never leave children unattended in
the vehicle.1. Firmly apply the parking brake.
2. Move the selector lever to the P (Park) posi-
tion.
WARNING
Safe parking procedures require that
both the parking brake be set and the
transmission placed into P (Park).
Failure to do so could cause the ve-
hicle to move unexpectedly or roll
away and result in an accident.
Make sure the selector lever has
been pushed as far forward as it can
go and cannot be moved without de-
pressing the button at the end of the
lever.

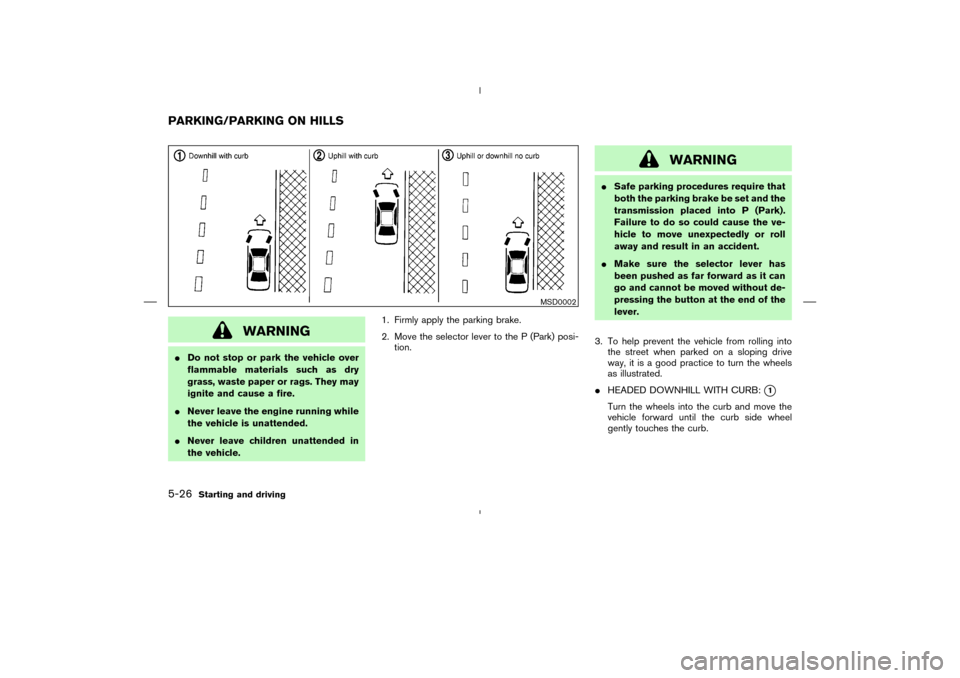

3. To help prevent the vehicle from rolling into
the street when parked on a sloping drive
way, it is a good practice to turn the wheels
as illustrated.
HEADED DOWNHILL WITH CURB:
1
Turn the wheels into the curband move the
vehicle forward until the curbside wheel
gently touches the curb.
MSD0002
PARKING/PARKING ON HILLS5-26
Starting and driving
04.4.5/Z50-D/V5.0
Page 184 of 283
HEADED UPHILL WITH CURB:
2
Turn the wheels away from the curband
move the vehicle back until the curb side
wheel gently touches the curb.
HEADED UPHILL OR DOWNHILL, NO
CURB:
3
Turn the wheels toward the side of the road
so the vehicle will move away from the center
of the road if it moves.
4. Turn the ignition key to the LOCK position
and remove the key.The power assisted steering is designed to use
a hydraulic pump, driven by the engine, to assist
steering.
If the engine stops or drive belt breaks, you will
still have control of the vehicle. However, much
greater steering effort is needed, especially in
sharp turns or at low speeds.
WARNING
If the engine is not running or is turned
off while driving, the power assist for
the steering will not work. Steering will
be much harder to operate.
BRAKING PRECAUTIONSThe brake system has two separate hydraulic
circuits. If one circuit malfunctions, you will still
have braking at two wheels.
Vacuum assisted brake
The brake booster aids braking by using engine
vacuum. If the engine stops, you can stop the
vehicle by depressing the brake pedal. However,
greater foot pressure on the brake pedal will be
required to stop the vehicle and the stopping
distance will be longer.
Wet brakes
When the vehicle is washed or driven through
water, the brakes may get wet. As a result, your
braking distance will be longer and the vehicle
may pull to one side during braking.
To dry brakes, drive the vehicle at a safe speed
while lightly tapping the brake pedal to heat-up
the brakes. Do this until the brakes return to
normal. Avoid driving the vehicle at high speeds
until the brakes function correctly.
Using the brakes
Avoid resting your foot on the brake pedal while
driving. This will cause overheating of the brakes,
increases wear on the brake linings and pads,
and reduces gas mileage.
POWER STEERING BRAKE SYSTEM
Starting and driving
5-27
04.4.5/Z50-D/V5.0
Page 185 of 283
To help save the brakes and to prevent the
brakes from overheating, reduce speed and
downshift to a lower gear before going down a
slope or long grade. Overheated brakes may
reduce braking performance and could result in
loss of vehicle control.
WARNING
While driving on a slippery surface,
be careful when braking, accelerat-
ing or downshifting. Abrupt braking
or accelerating could cause the
wheels to skid and result in an acci-
dent.
If the engine is not running or is
turned off while driving, the power
assist for the brakes will not work.
Braking will be harder.ANTI-LOCK BRAKE SYSTEM (ABS)The anti-lock brake system controls the brakes
at each wheel so the wheels will not lock when
braking abruptly or when braking on slippery
surfaces. The system detects the rotation speed
at each wheel and varies the brake fluid pressure
to prevent each wheel from locking and sliding.By preventing wheel lockup, the system helps
the driver maintain steering control and helps to
minimize swerving and spinning on slippery sur-
faces.
Using the systemDepress the brake pedal and hold it down.
WARNING
Do not pump the brake pedal. Doing so
may result in increased stopping dis-
tances.Normal operationThe anti-lock brake system will not operate at
speeds below 3 to 6 MPH (5 to 10 km/h) to
completely stop the vehicle. (The speeds will
vary according to road conditions.) When the
anti-lock system senses that one or more wheels
are close to locking up, the actuator (under the
hood) rapidly applies and releases hydraulic
pressure (like pumping the brakes very quickly).
While the actuator is working, you may feel a
pulsation in the brake pedal and hear a noise or
vibration from the actuator under the hood. This
is normal and indicates that the anti-lock system
is working properly. However, the ABS operationmay indicate that road conditions are hazardous
and extra care is required while driving.
Self-test featureThe anti-lock brake system consists of electronic
sensors, electric pumps, and hydraulic solenoids
controlled by a computer. The computer has a
built-in diagnostic feature that tests the system
each time you start the engine and move the
vehicle at a low speed in forward or reverse.
When the self-test occurs, you may hear a clunk
noise and/or feel a pulsation in the brake pedal.
This is normal and is not an indication of any
malfunction. If the computer senses any mal-
function, it switches the anti-lock brake system
OFF and turns on the ABS warning light in the
meter. The brake system will then behave nor-
mally, but without anti-lock assistance.
If the light comes on during the self check, or
while you are driving, you should take your
vehicle to your NISSAN dealer for repair at your
earliest convenience.
WARNING
The anti-lock brake system is a sophis-
ticated device, but it cannot prevent ac-
5-28
Starting and driving
04.4.5/Z50-D/V5.0
Page 186 of 283
cidents resulting from careless or dan-
gerous driving techniques. It can help
maintain vehicle control during braking
on slippery surfaces, but remember that
the stopping distance on slippery sur-
faces will be longer than on normal
surfaces, even with the anti-lock sys-
tem. Stopping distances may also be
longer on rough, gravel or snow covered
roads, or if you are using tire chains.
Always maintain a safe distance from
the vehicle in front of you. Ultimately,
the responsibility for safety of self and
others rests in the hands of the driver.
Tire type and condition of tires may also
affect braking effectiveness.
When replacing tires, install the
specified size of tires on all four
wheels.
When installing a spare tire, make
sure it is the proper size and type as
specified on the tire placard. See
“Vehicle identification” in the “9.
Technical and consumer informa-

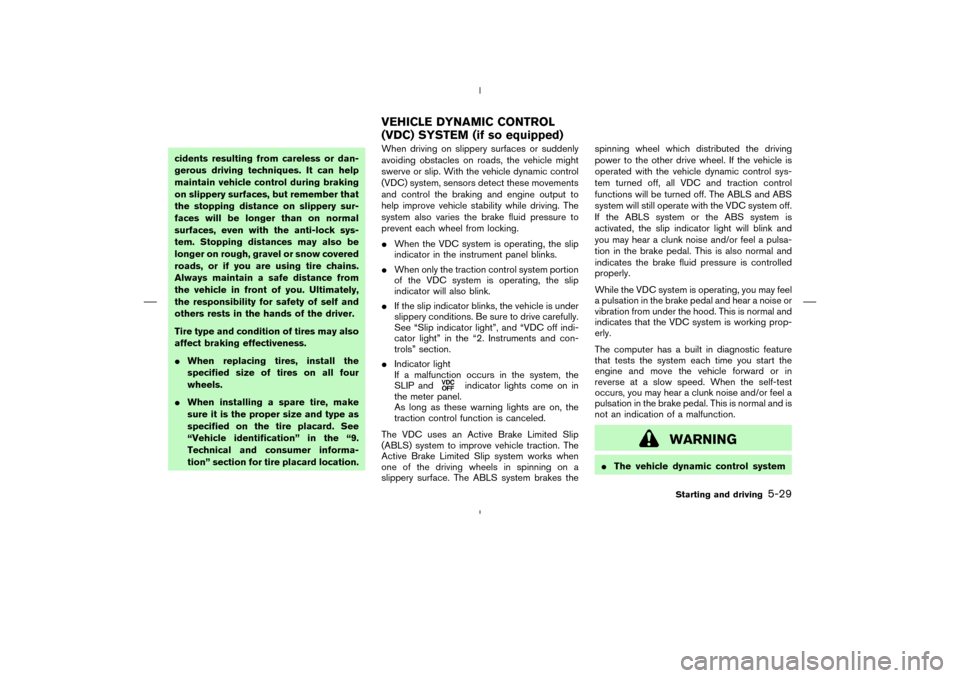

tion” section for tire placard location.When driving on slippery surfaces or suddenly
avoiding obstacles on roads, the vehicle might
swerve or slip. With the vehicle dynamic control
(VDC) system, sensors detect these movements
and control the braking and engine output to
help improve vehicle stability while driving. The
system also varies the brake fluid pressure to
prevent each wheel from locking.
When the VDC system is operating, the slip
indicator in the instrument panel blinks.
When only the traction control system portion
of the VDC system is operating, the slip
indicator will also blink.
If the slip indicator blinks, the vehicle is under
slippery conditions. Be sure to drive carefully.
See “Slip indicator light”, and “VDC off indi-
cator light” in the “2. Instruments and con-
trols” section.
Indicator light
If a malfunction occurs in the system, the
SLIP and
indicator lights come on in
the meter panel.
As long as these warning lights are on, the
traction control function is canceled.
The VDC uses an Active Brake Limited Slip
(ABLS) system to improve vehicle traction. The
Active Brake Limited Slip system works when
one of the driving wheels in spinning on a
slippery surface. The ABLS system brakes thespinning wheel which distributed the driving
power to the other drive wheel. If the vehicle is
operated with the vehicle dynamic control sys-
tem turned off, all VDC and traction control
functions will be turned off. The ABLS and ABS
system will still operate with the VDC system off.
If the ABLS system or the ABS system is
activated, the slip indicator light will blink and
you may hear a clunk noise and/or feel a pulsa-
tion in the brake pedal. This is also normal and
indicates the brake fluid pressure is controlled
properly.
While the VDC system is operating, you may feel
a pulsation in the brake pedal and hear a noise or
vibration from under the hood. This is normal and
indicates that the VDC system is working prop-
erly.
The computer has a built in diagnostic feature
that tests the system each time you start the
engine and move the vehicle forward or in
reverse at a slow speed. When the self-test
occurs, you may hear a clunk noise and/or feel a
pulsation in the brake pedal. This is normal and is
not an indication of a malfunction.
WARNING
The vehicle dynamic control system
VEHICLE DYNAMIC CONTROL
(VDC) SYSTEM (if so equipped)
Starting and driving
5-29
04.4.5/Z50-D/V5.0
Page 187 of 283

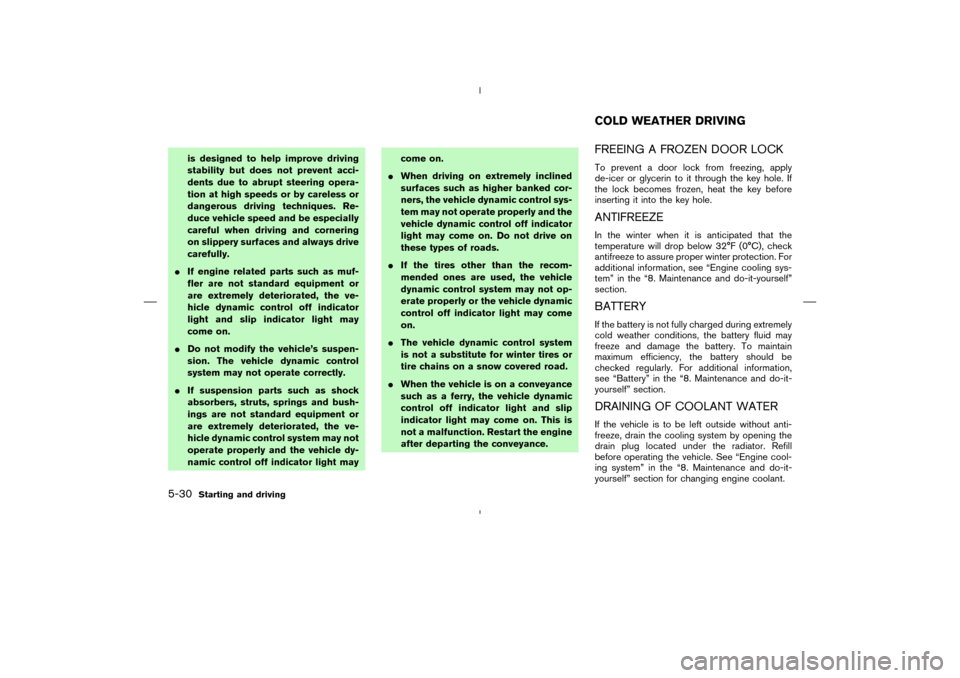

is designed to help improve driving
stability but does not prevent acci-
dents due to abrupt steering opera-
tion at high speeds or by careless or
dangerous driving techniques. Re-
duce vehicle speed and be especially
careful when driving and cornering
on slippery surfaces and always drive
carefully.
If engine related parts such as muf-
fler are not standard equipment or
are extremely deteriorated, the ve-
hicle dynamic control off indicator
light and slip indicator light may
come on.
Do not modify the vehicle’s suspen-
sion. The vehicle dynamic control
system may not operate correctly.
If suspension parts such as shock
absorbers, struts, springs and bush-
ings are not standard equipment or
are extremely deteriorated, the ve-
hicle dynamic control system may not
operate properly and the vehicle dy-
namic control off indicator light maycome on.
When driving on extremely inclined
surfaces such as higher banked cor-
ners, the vehicle dynamic control sys-
tem may not operate properly and the
vehicle dynamic control off indicator
light may come on. Do not drive on
these types of roads.
If the tires other than the recom-
mended ones are used, the vehicle
dynamic control system may not op-
erate properly or the vehicle dynamic
control off indicator light may come
on.
The vehicle dynamic control system
is not a substitute for winter tires or
tire chains on a snow covered road.
When the vehicle is on a conveyance
such as a ferry, the vehicle dynamic
control off indicator light and slip
indicator light may come on. This is
not a malfunction. Restart the engine
after departing the conveyance.
FREEING A FROZEN DOOR LOCKTo prevent a door lock from freezing, apply
de-icer or glycerin to it through the key hole. If
the lock becomes frozen, heat the key before
inserting it into the key hole.ANTIFREEZEIn the winter when it is anticipated that the
temperature will drop below 32°F (0°C), check
antifreeze to assure proper winter protection. For
additional information, see “Engine cooling sys-
tem” in the “8. Maintenance and do-it-yourself”
section.BATTERYIf the battery is not fully charged during extremely
cold weather conditions, the battery fluid may
freeze and damage the battery. To maintain
maximum efficiency, the battery should be
checked regularly. For additional information,
see “Battery” in the “8. Maintenance and do-it-
yourself” section.DRAINING OF COOLANT WATERIf the vehicle is to be left outside without anti-
freeze, drain the cooling system by opening the
drain plug located under the radiator. Refill
before operating the vehicle. See “Engine cool-
ing system” in the “8. Maintenance and do-it-
yourself” section for changing engine coolant.COLD WEATHER DRIVING
5-30
Starting and driving
04.4.5/Z50-D/V5.0
Page 188 of 283
TIRE EQUIPMENT1. SUMMER tires are of a tread design to
provide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your vehicle
on snowy or icy roads, NISSAN recommends
the use of MUD & SNOW or ALL SEASON
tires on all four wheels. Please consult your
NISSAN dealer for the tire type, size, speed
rating and availability information.
2. For additional traction on icy roads, studded
tires may be used. However, some provinces
and states prohibit their use. Check local,
state and provincial laws before installing
studded tires.
Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow
tires.
3. Tire chains may be used if desired. Make sure
they are of proper size for the tires on your
vehicle and are installed according to the
chain manufacturer’s suggestions. Use of tire
chains may be prohibited according to loca-
tion. Check the local laws before installing
tire chains. When installing tire chains, make
sure they are of proper size for the tires on
your vehicle and are installed according tothe chain manufacturer’s suggestions.Use
only SAE Class S chains.Class “S” chains
are used on vehicles with restricted tire to
vehicle clearance. Vehicles that can use
Class “S” chains are designed to meet the
SAE standard minimum clearances between
the tire and the closest vehicle suspension or
body component required to accommodate
the use of a winter traction device (tire chains
or cables). The minimum clearances are de-
termined using the factory equipped tire size.
Other types may damage your vehicle. Use
chain tensioners when recommended by the
tire chain manufacturer to ensure a tight fit.
Loose end links of the tire chain must be
secured or removed to prevent the possibility
of whipping action damage to the fenders or
underbody. If possible, avoid fully loading
your vehicle when using tire chains. In addi-
tion, drive at a reduced speed. Otherwise,
your vehicle may be damaged and/or vehicle
handling and performance may be adversely
affected.
Never install tire chains on TEMPO-
RARY USE ONLY spare tires.
Do not use tire chains on dry roads.
Tire chains must be installed only on the
front wheels and not on the rear wheels.
Do not drive with tire chains on paved roadswhich are clear of snow. Driving with chains in
such conditions can cause damage to the vari-
ous mechanisms of the vehicle due to some
overstress.
4. For all wheel drive:
If you install snow tires, they must also be the
same size, brand, construction and tread
pattern on all four wheels.
SPECIAL WINTER EQUIPMENTIt is recommended that the following items be
carried in the vehicle during winter:
a scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades.
a sturdy, flat board to be placed under the
jack to give it firm support.
a shovel to dig the vehicle out of snow-drifts.
extra window washer fluid to refill the reser-
voir tank.DRIVING ON SNOW OR ICE
WARNING
Wet ice (32°F, 0°C and freezing rain),
Starting and driving
5-31
04.4.5/Z50-D/V5.0
Page 189 of 283

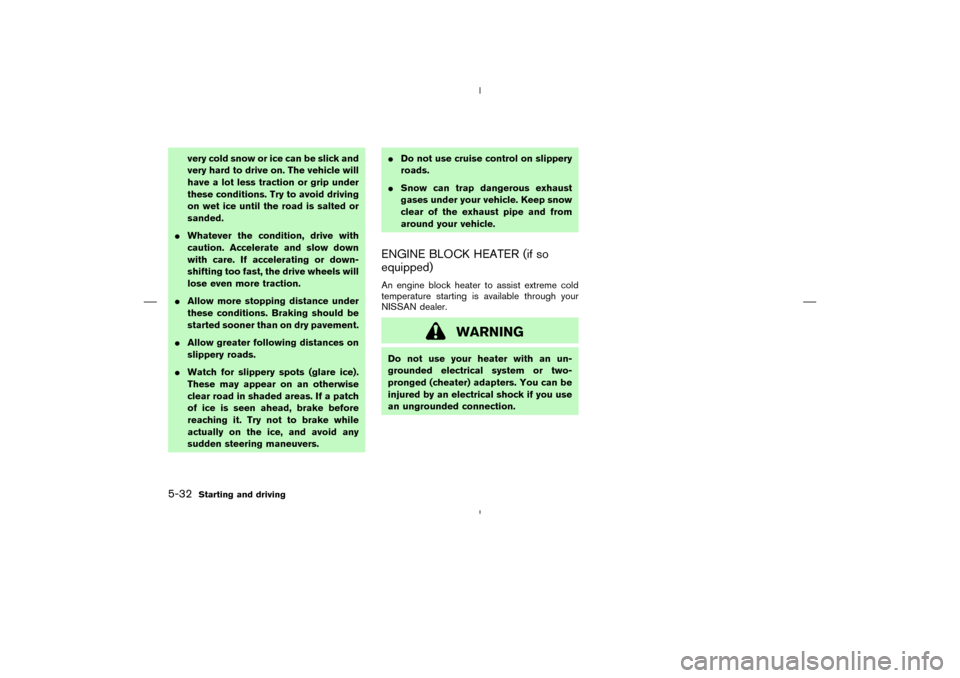

very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have a lot less traction or grip under
these conditions. Try to avoid driving
on wet ice until the road is salted or
sanded.
Whatever the condition, drive with
caution. Accelerate and slow down
with care. If accelerating or down-
shifting too fast, the drive wheels will
lose even more traction.
Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pavement.
Allow greater following distances on
slippery roads.
Watch for slippery spots (glare ice).
These may appear on an otherwise
clear road in shaded areas. If a patch
of ice is seen ahead, brake before
reaching it. Try not to brake while
actually on the ice, and avoid any
sudden steering maneuvers.Do not use cruise control on slippery
roads.
Snow can trap dangerous exhaust
gases under your vehicle. Keep snow
clear of the exhaust pipe and from
around your vehicle.
ENGINE BLOCK HEATER (if so
equipped)An engine block heater to assist extreme cold
temperature starting is available through your
NISSAN dealer.
WARNING
Do not use your heater with an un-
grounded electrical system or two-
pronged (cheater) adapters. You can be
injured by an electrical shock if you use
an ungrounded connection.
5-32
Starting and driving
04.4.5/Z50-D/V5.0
Page 190 of 283

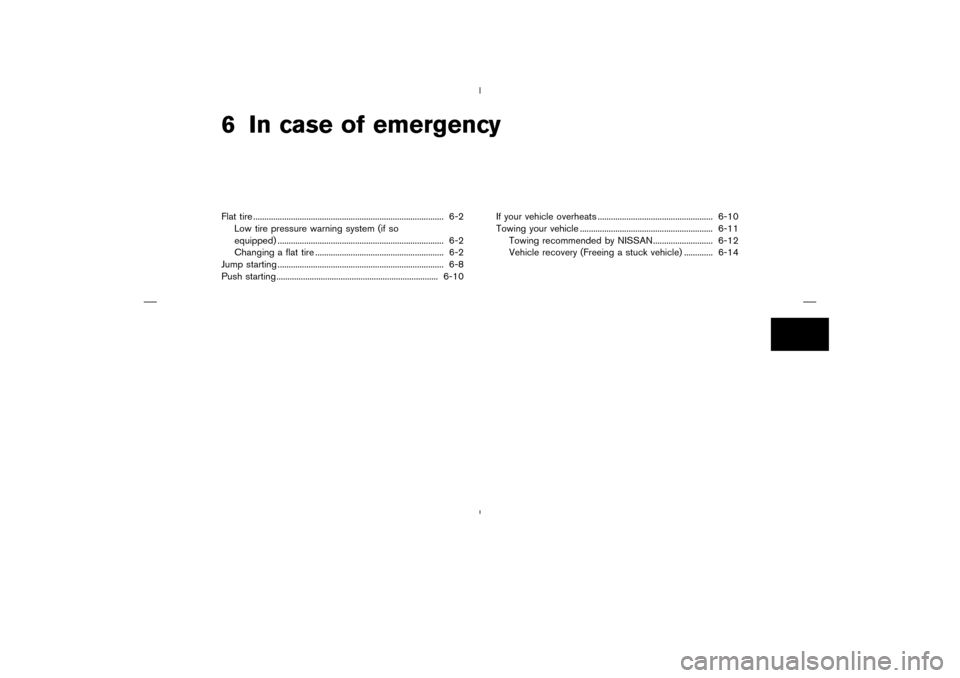

6 In case of emergencyFlat tire ...................................................................................... 6-2
Low tire pressure warning system (if so
equipped) ........................................................................... 6-2
Changing a flat tire .......................................................... 6-2
Jump starting ........................................................................... 6-8
Push starting......................................................................... 6-10If your vehicle overheats .................................................... 6-10
Towing your vehicle ............................................................ 6-11
Towing recommended by NISSAN........................... 6-12
Vehicle recovery (Freeing a stuck vehicle) ............. 6-14
04.4.5/Z50-D/V5.0
