Page 271 of 283

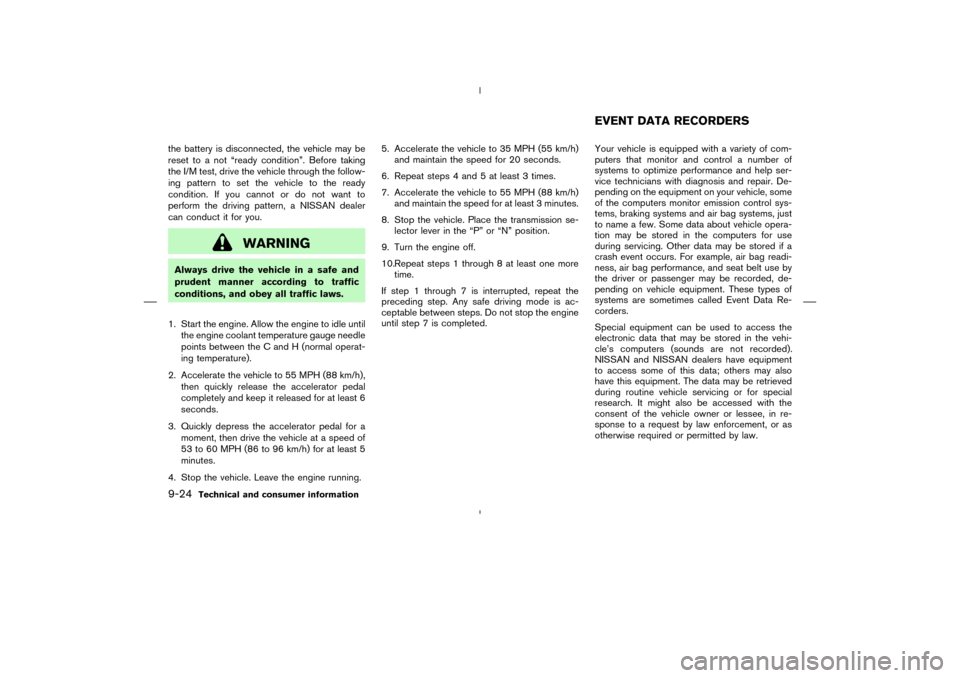

the battery is disconnected, the vehicle may be
reset to a not “ready condition”. Before taking
the I/M test, drive the vehicle through the follow-
ing pattern to set the vehicle to the ready
condition. If you cannot or do not want to
perform the driving pattern, a NISSAN dealer
can conduct it for you.
WARNING
Always drive the vehicle in a safe and
prudent manner according to traffic
conditions, and obey all traffic laws.
1. Start the engine. Allow the engine to idle until
the engine coolant temperature gauge needle
points between the C and H (normal operat-
ing temperature).
2. Accelerate the vehicle to 55 MPH (88 km/h),
then quickly release the accelerator pedal
completely and keep it released for at least 6
seconds.
3. Quickly depress the accelerator pedal for a
moment, then drive the vehicle at a speed of
53 to 60 MPH (86 to 96 km/h) for at least 5
minutes.
4. Stop the vehicle. Leave the engine running.5. Accelerate the vehicle to 35 MPH (55 km/h)
and maintain the speed for 20 seconds.
6. Repeat steps 4 and 5 at least 3 times.
7. Accelerate the vehicle to 55 MPH (88 km/h)
and maintain the speed for at least 3 minutes.
8. Stop the vehicle. Place the transmission se-
lector lever in the “P” or “N” position.
9. Turn the engine off.
10.Repeat steps 1 through 8 at least one more
time.
If step 1 through 7 is interrupted, repeat the
preceding step. Any safe driving mode is ac-
ceptable between steps. Do not stop the engine
until step 7 is completed.Your vehicle is equipped with a variety of com-
puters that monitor and control a number of
systems to optimize performance and help ser-
vice technicians with diagnosis and repair. De-
pending on the equipment on your vehicle, some
of the computers monitor emission control sys-
tems, braking systems and air bag systems, just
to name a few. Some data about vehicle opera-
tion may be stored in the computers for use
during servicing. Other data may be stored if a
crash event occurs. For example, air bag readi-
ness, air bag performance, and seat belt use by
the driver or passenger may be recorded, de-
pending on vehicle equipment. These types of
systems are sometimes called Event Data Re-
corders.
Special equipment can be used to access the
electronic data that may be stored in the vehi-
cle’s computers (sounds are not recorded).
NISSAN and NISSAN dealers have equipment
to access some of this data; others may also
have this equipment. The data may be retrieved
during routine vehicle servicing or for special
research. It might also be accessed with the
consent of the vehicle owner or lessee, in re-
sponse to a request by law enforcement, or as
otherwise required or permitted by law.
EVENT DATA RECORDERS
9-24
Technical and consumer information
04.4.5/Z50-D/V5.0
Page 272 of 283

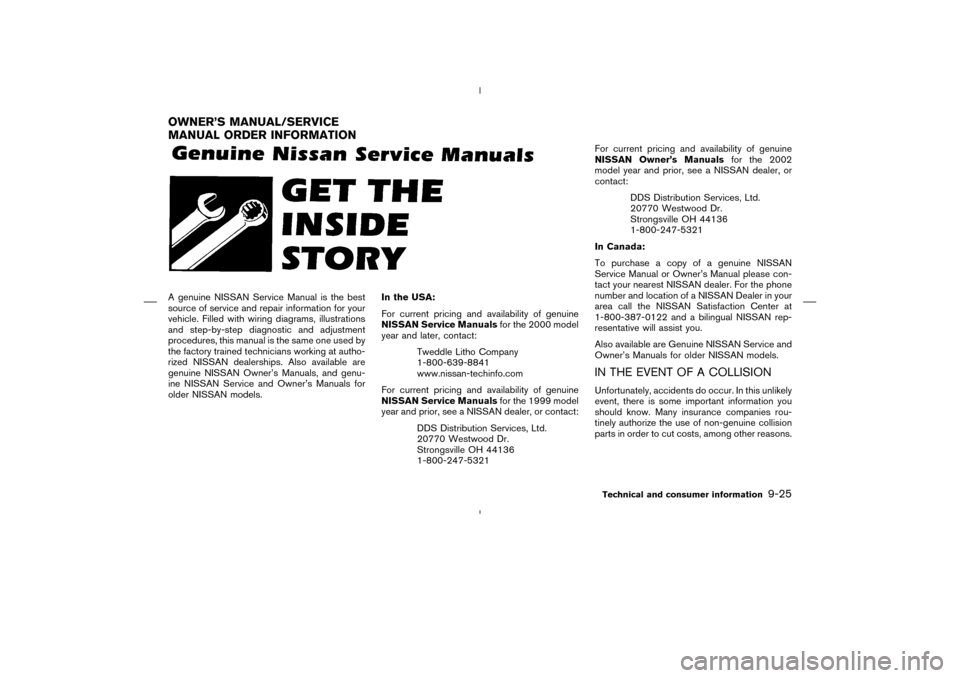

A genuine NISSAN Service Manual is the best
source of service and repair information for your
vehicle. Filled with wiring diagrams, illustrations
and step-by-step diagnostic and adjustment
procedures, this manual is the same one used by
the factory trained technicians working at autho-
rized NISSAN dealerships. Also available are
genuine NISSAN Owner’s Manuals, and genu-
ine NISSAN Service and Owner’s Manuals for
older NISSAN models.In the USA:
For current pricing and availability of genuine
NISSAN Service Manualsfor the 2000 model
year and later, contact:
Tweddle Litho Company
1-800-639-8841
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Service Manualsfor the 1999 model
year and prior, see a NISSAN dealer, or contact:
DDS Distribution Services, Ltd.
20770 Westwood Dr.
Strongsville OH 44136
1-800-247-5321For current pricing and availability of genuine
NISSAN Owner’s Manualsfor the 2002
model year and prior, see a NISSAN dealer, or
contact:
DDS Distribution Services, Ltd.
20770 Westwood Dr.
Strongsville OH 44136
1-800-247-5321
In Canada:
To purchase a copy of a genuine NISSAN
Service Manual or Owner’s Manual please con-
tact your nearest NISSAN dealer. For the phone
number and location of a NISSAN Dealer in your
area call the NISSAN Satisfaction Center at
1-800-387-0122 and a bilingual NISSAN rep-
resentative will assist you.
Also available are Genuine NISSAN Service and
Owner’s Manuals for older NISSAN models.
IN THE EVENT OF A COLLISIONUnfortunately, accidents do occur. In this unlikely
event, there is some important information you
should know. Many insurance companies rou-
tinely authorize the use of non-genuine collision
parts in order to cut costs, among other reasons.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Technical and consumer information
9-25
04.4.5/Z50-D/V5.0
Page 273 of 283

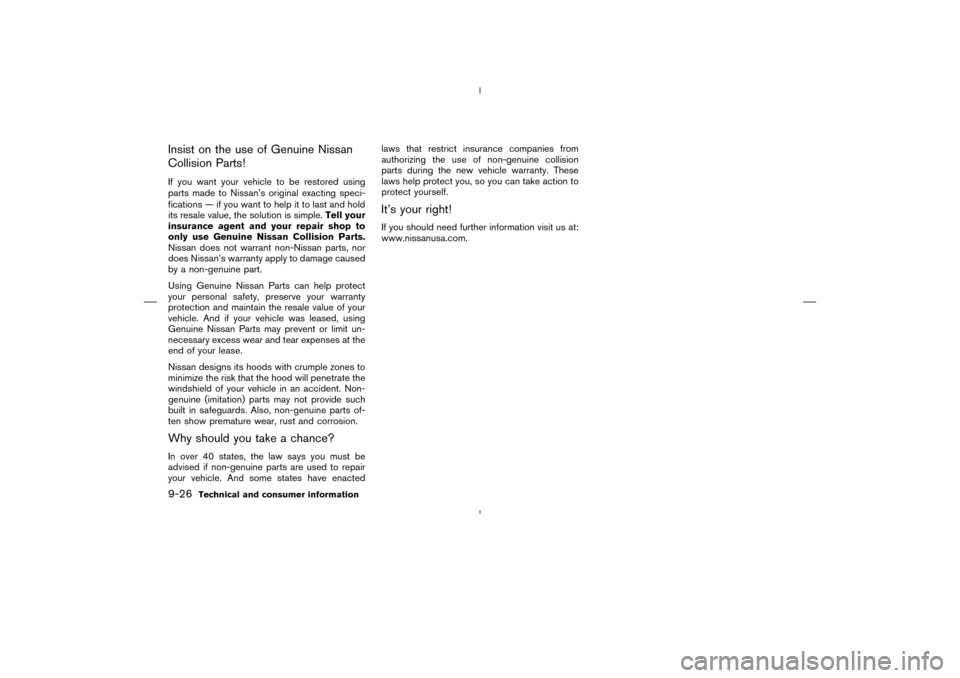

Insist on the use of Genuine Nissan
Collision Parts!If you want your vehicle to be restored using
parts made to Nissan’s original exacting speci-
fications — if you want to help it to last and hold
its resale value, the solution is simple.Tell your
insurance agent and your repair shop to
only use Genuine Nissan Collision Parts.
Nissan does not warrant non-Nissan parts, nor
does Nissan’s warranty apply to damage caused
by a non-genuine part.
Using Genuine Nissan Parts can help protect
your personal safety, preserve your warranty
protection and maintain the resale value of your
vehicle. And if your vehicle was leased, using
Genuine Nissan Parts may prevent or limit un-
necessary excess wear and tear expenses at the
end of your lease.
Nissan designs its hoods with crumple zones to
minimize the risk that the hood will penetrate the
windshield of your vehicle in an accident. Non-
genuine (imitation) parts may not provide such
built in safeguards. Also, non-genuine parts of-
ten show premature wear, rust and corrosion.Why should you take a chance?In over 40 states, the law says you must be
advised if non-genuine parts are used to repair
your vehicle. And some states have enactedlaws that restrict insurance companies from
authorizing the use of non-genuine collision
parts during the new vehicle warranty. These
laws help protect you, so you can take action to
protect yourself.
It’s your right!If you should need further information visit us at:
www.nissanusa.com.
9-26
Technical and consumer information
04.4.5/Z50-D/V5.0
Page 274 of 283

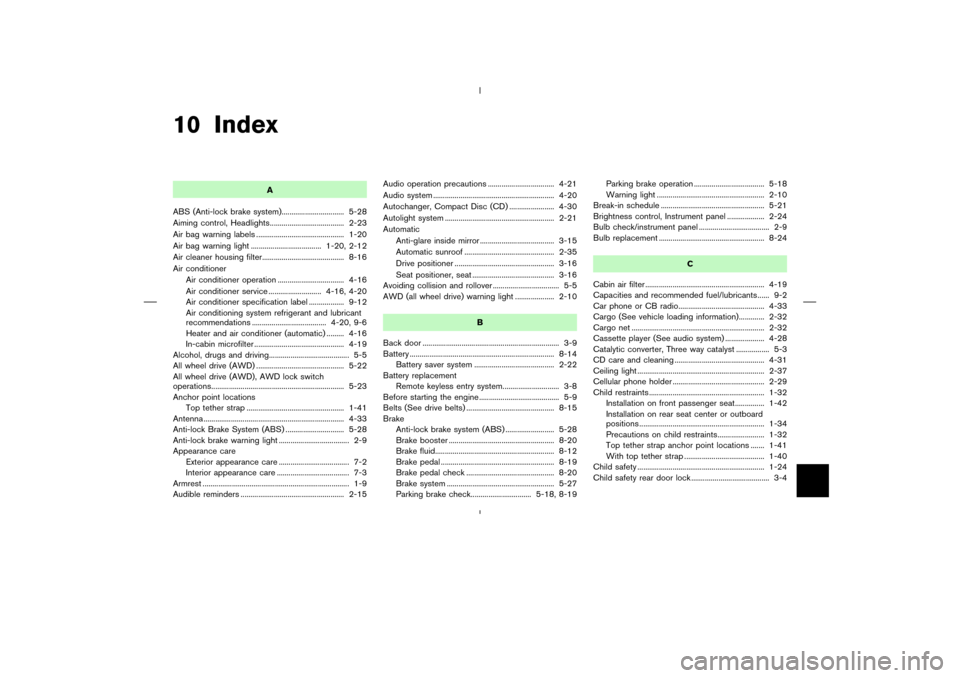

10 Index
A
ABS (Anti-lock brake system)................................ 5-28
Aiming control, Headlights...................................... 2-23
Air bag warning labels ............................................. 1-20
Air bag warning light .................................... 1-20, 2-12
Air cleaner housing filter.......................................... 8-16
Air conditioner
Air conditioner operation .................................. 4-16
Air conditioner service ........................... 4-16, 4-20
Air conditioner specification label .................. 9-12
Air conditioning system refrigerant and lubricant
recommendations ...................................... 4-20, 9-6
Heater and air conditioner (automatic) ......... 4-16
In-cabin microfilter .............................................. 4-19
Alcohol, drugs and driving......................................... 5-5
All wheel drive (AWD) ............................................. 5-22
All wheel drive (AWD), AWD lock switch
operations.................................................................... 5-23
Anchor point locations
Top tether strap .................................................. 1-41
Antenna ........................................................................ 4-33
Anti-lock Brake System (ABS) .............................. 5-28
Anti-lock brake warning light .................................... 2-9
Appearance care
Exterior appearance care .................................... 7-2
Interior appearance care ..................................... 7-3
Armrest ........................................................................... 1-9
Audible reminders ..................................................... 2-15Audio operation precautions .................................. 4-21
Audio system .............................................................. 4-20
Autochanger, Compact Disc (CD) ....................... 4-30
Autolight system ........................................................ 2-21
Automatic
Anti-glare inside mirror ...................................... 3-15
Automatic sunroof .............................................. 2-35
Drive positioner ................................................... 3-16
Seat positioner, seat .......................................... 3-16
Avoiding collision and rollover .................................. 5-5
AWD (all wheel drive) warning light .................... 2-10
B
Back door ...................................................................... 3-9
Battery .......................................................................... 8-14
Battery saver system ......................................... 2-22
Battery replacement
Remote keyless entry system............................. 3-8
Before starting the engine ......................................... 5-9
Belts (See drive belts) ............................................. 8-15
Brake
Anti-lock brake system (ABS) ......................... 5-28
Brake booster ...................................................... 8-20
Brake fluid............................................................. 8-12
Brake pedal .......................................................... 8-19
Brake pedal check ............................................. 8-20
Brake system ....................................................... 5-27
Parking brake check............................... 5-18, 8-19Parking brake operation .................................... 5-18
Warning light ....................................................... 2-10
Break-in schedule ..................................................... 5-21
Brightness control, Instrument panel ................... 2-24
Bulbcheck/instrument panel .................................... 2-9
Bulbreplacement ...................................................... 8-24
C
Cabin air filter ............................................................. 4-19
Capacities and recommended fuel/lubricants...... 9-2
Car phone or CB radio............................................ 4-33
Cargo (See vehicle loading information)............. 2-32
Cargo net .................................................................... 2-32
Cassette player (See audio system) .................... 4-28
Catalytic converter, Three way catalyst ................. 5-3
CD care and cleaning .............................................. 4-31
Ceiling light ................................................................. 2-37
Cellular phone holder ............................................... 2-29
Child restraints ........................................................... 1-32
Installation on front passenger seat............... 1-42
Installation on rear seat center or outboard
positions ................................................................ 1-34
Precautions on child restraints........................ 1-32
Top tether strap anchor point locations ....... 1-41
With top tether strap ......................................... 1-40
Child safety ................................................................. 1-24
Child safety rear door lock ........................................ 3-4
04.4.5/Z50-D/V5.0
Page 275 of 283

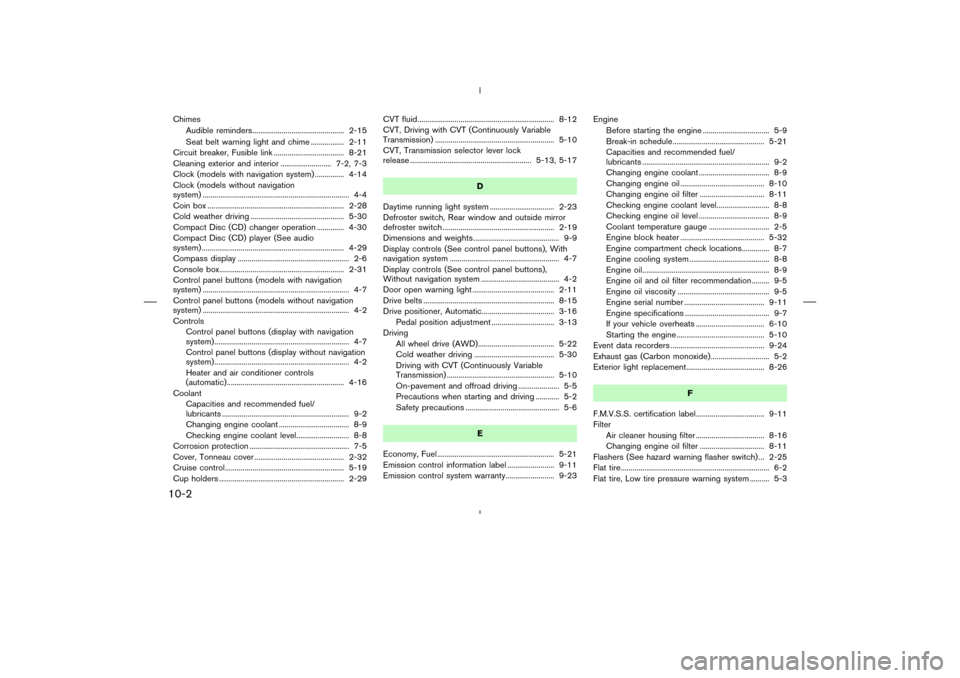

Chimes
Audible reminders............................................... 2-15
Seat belt warning light and chime ................. 2-11
Circuit breaker, Fusible link .................................... 8-21
Cleaning exterior and interior .......................... 7-2, 7-3
Clock (models with navigation system) ............... 4-14
Clock (models without navigation
system) ........................................................................... 4-4
Coin box ...................................................................... 2-28
Cold weather driving ................................................ 5-30
Compact Disc (CD) changer operation .............. 4-30
Compact Disc (CD) player (See audio
system) ......................................................................... 4-29
Compass display ......................................................... 2-6
Console box................................................................ 2-31
Control panel buttons (models with navigation
system) ........................................................................... 4-7
Control panel buttons (models without navigation
system) ........................................................................... 4-2
Controls
Control panel buttons (display with navigation
system)..................................................................... 4-7
Control panel buttons (display without navigation
system)..................................................................... 4-2
Heater and air conditioner controls
(automatic)............................................................ 4-16
Coolant
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Changing engine coolant .................................... 8-9
Checking engine coolant level........................... 8-8
Corrosion protection ................................................... 7-5
Cover, Tonneau cover .............................................. 2-32
Cruise control............................................................. 5-19
Cup holders ................................................................ 2-29CVT fluid...................................................................... 8-12
CVT, Driving with CVT (Continuously Variable
Transmission) ............................................................. 5-10
CVT, Transmission selector lever lock
release .............................................................. 5-13, 5-17
D
Daytime running light system ................................. 2-23
Defroster switch, Rear window and outside mirror
defroster switch ......................................................... 2-19
Dimensions and weights ............................................ 9-9
Display controls (See control panel buttons), With
navigation system ........................................................ 4-7
Display controls (See control panel buttons),
Without navigation system ........................................ 4-2
Door open warning light .......................................... 2-11
Drive belts ................................................................... 8-15
Drive positioner, Automatic..................................... 3-16
Pedal position adjustment ................................ 3-13
Driving
All wheel drive (AWD)....................................... 5-22
Cold weather driving ......................................... 5-30
Driving with CVT (Continuously Variable
Transmission) ....................................................... 5-10
On-pavement and offroad driving ..................... 5-5
Precautions when starting and driving ............ 5-2
Safety precautions ................................................ 5-6
E
Economy, Fuel............................................................ 5-21
Emission control information label ........................ 9-11
Emission control system warranty......................... 9-23Engine
Before starting the engine .................................. 5-9
Break-in schedule............................................... 5-21
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Changing engine coolant .................................... 8-9
Changing engine oil ........................................... 8-10
Changing engine oil filter ................................. 8-11
Checking engine coolant level........................... 8-8
Checking engine oil level .................................... 8-9
Coolant temperature gauge ............................... 2-5
Engine block heater ........................................... 5-32
Engine compartment check locations.............. 8-7
Engine cooling system ......................................... 8-8
Engine oil................................................................. 8-9
Engine oil and oil filter recommendation......... 9-5
Engine oil viscosity ............................................... 9-5
Engine serial number ......................................... 9-11
Engine specifications ........................................... 9-7
If your vehicle overheats ................................... 6-10
Starting the engine............................................. 5-10
Event data recorders ................................................ 9-24
Exhaust gas (Carbon monoxide).............................. 5-2
Exterior light replacement........................................ 8-26
F
F.M.V.S.S. certification label................................... 9-11
Filter
Air cleaner housing filter ................................... 8-16
Changing engine oil filter ................................. 8-11
Flashers (See hazard warning flasher switch) ... 2-25
Flat tire............................................................................ 6-2
Flat tire, Low tire pressure warning system .......... 5-3
04.4.5/Z50-D/V5.0
10-2
Page 276 of 283
Floor mat cleaning ....................................................... 7-4
Fluid
Brake fluid............................................................. 8-12
Capacities and recommended fuel/
lubricants ................................................................. 9-2
CVT fluid ............................................................... 8-12
Engine coolant ....................................................... 8-8
Engine oil................................................................. 8-9
Power steering fluid ........................................... 8-12
Window washer fluid ......................................... 8-13
Fog light switch ......................................................... 2-24
Front power point...................................................... 2-27
Front power seat adjustment .................................... 1-3
Front seat adjustment ................................................. 1-2
Fuel
Capacities and recommended fuel/
lubricants ................................................................. 9-2
filler cap................................................................. 3-11
filler lid ................................................................... 3-11
Fuel economy ...................................................... 5-21
Fuel octane rating ................................................. 9-3
Fuel recommendation ........................................... 9-3
Gauge ...................................................................... 2-5
Fuses ............................................................................ 8-21
Fusible links ................................................................ 8-21
G
Garage door opener, HomeLink
Universal
Transceiver .................................................................. 2-39
Gas cap ....................................................................... 3-11
Gauge ............................................................................. 2-3
Engine coolant temperature gauge .................. 2-5
Fuel gauge .............................................................. 2-5Odometer ................................................................ 2-4
Speedometer .......................................................... 2-4
Tachometer ............................................................. 2-4
General maintenance .................................................. 8-2
Glove box .................................................................... 2-30
Glove box lock ........................................................... 2-30
H
Hazard warning flasher switch............................... 2-25
Head restraints ............................................................. 1-7
Headlights
Aiming control ..................................................... 2-23
Bulbreplacement ............................................... 8-24
Headlight switch ................................................. 2-20
Xenon headlights ................................................ 2-20
Heated seats .............................................................. 2-26
Heater
Engine coolant heater ....................................... 5-32
Heater and air conditioner (automatic) ......... 4-16
HomeLink
Universal Transceiver ......................... 2-39
Hood release ................................................................ 3-9
Horn .............................................................................. 2-25
I
Ignition switch ............................................................... 5-8
Key positions .......................................................... 5-8
Immobilizer system .................................................... 2-17
In-cabin microfilter .................................................... 4-19
Indicator lights............................................................ 2-13
Inside
Automatic anti-glare mirror............................... 3-15Mirror...................................................................... 3-14
Inspection/maintenance (I/M) test ........................ 9-23
Instrument brightness control ................................ 2-24
Instrument panel........................................................... 2-2
Interior light replacement......................................... 8-26
Interior lights ............................................................... 2-37
Ceiling light .......................................................... 2-37
Luggage light ....................................................... 2-37
Map light ............................................................... 2-37
Rear light............................................................... 2-37
ISOFIX child restraint ............................................... 1-39
J
Jump starting................................................................. 6-8
K
Keyless entry (See remote keyless entry
system) ........................................................................... 3-5
Keys................................................................................. 3-2
L
Label, Air conditioner specification label ............ 9-12
Label, Emission control information label............ 9-11
Label, F.M.V.S.S. certification label ...................... 9-11
Labels
Air bag warning labels ...................................... 1-20
Engine serial number ......................................... 9-11
Vehicle identification number (VIN)................ 9-10
LATCH system ........................................................... 1-39
License plate, Installing front license plate......... 9-13
04.4.5/Z50-D/V5.0
10-3
Page 277 of 283
Light
Air bag warning light ......................................... 1-20
Bulbreplacement ............................................... 8-24
Fog light switch................................................... 2-24
Headlight switch ................................................. 2-20
Headlights Bulbreplacement .......................... 8-24
Interior lights ........................................................ 2-37
Replacement ........................................................ 8-24
Vanity mirror light ................................................ 2-39
Warning/indicator lights and audible
reminders ..................................................... 2-9, 2-13
Xenon headlights ................................................ 2-20
Lights, Exterior and interior light replacement ... 8-24
Loading information (See vehicle loading
information) ................................................................. 9-14
Lock
Back door lock....................................................... 3-9
Door locks ............................................................... 3-3
Glove box lock..................................................... 2-30
Power door lock .................................................... 3-3
Lockout protection....................................................... 3-4
Low fuel warning light .............................................. 2-11
Low tire pressure warning light ............................. 2-12
Low tire pressure warning system ................. 5-3, 6-2
Luggage light ............................................................. 2-37
M
Maintenance
Battery ................................................................... 8-14
General maintenance ........................................... 8-2
Inside the vehicle................................................... 8-3
Maintenance precautions .................................... 8-5
Maintenance requirements.................................. 8-2Outside the vehicle............................................... 8-2
Seat belt maintenance ...................................... 1-32
Under the hood and vehicle ............................... 8-4
Malfunction indicator lamp (MIL) ........................... 2-14
Map light...................................................................... 2-37
Meters and gauges ..................................................... 2-3
Meters and gauges, Instrument brightness
control .......................................................................... 2-24
Mirror
Automatic anti-glare inside mirror .................. 3-15
Inside mirror ......................................................... 3-14
Outside mirror control ....................................... 3-15
Outside mirrors ................................................... 3-15
M-CVT (CVT with Manual shift mode) ................ 5-14
N
Net, Cargo net ........................................................... 2-32
New vehicle break-in ................................................ 5-21
Nissan Vehicle Immobilizer System ...................... 2-16
Engine start............................................................. 5-9
O
Odometer ....................................................................... 2-4
Oil
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Changing engine oil ........................................... 8-10
Checking engine oil level .................................... 8-9
Engine oil................................................................. 8-9
Engine oil viscosity ............................................... 9-5
Outside mirror control .............................................. 3-15Outside mirrors .......................................................... 3-15
Overheat, If your vehicle overheats ...................... 6-10
Owner’s Manual/Service Manual order
information................................................................... 9-25
P
Parking
Brake check ......................................................... 8-19
Parking brake check .......................................... 5-18
Parking brake operation .................................... 5-18
Parking/parking on hills ........................................... 5-26
Pedal position adjustment....................................... 3-13
Phone, Car phone or CB radio ............................. 4-33
Power
Front seat adjustment .......................................... 1-3
Power door lock .................................................... 3-3
Power outlet ......................................................... 2-27
Power steering fluid ........................................... 8-12
Power steering system ...................................... 5-27
Power windows................................................... 2-33
Pre-tensioner seat belt system .............................. 1-19
Precautions
Audio operation ................................................... 4-21
Braking precautions ........................................... 5-27
Child restraints .................................................... 1-32
Cruise control ...................................................... 5-19
Driving safety .......................................................... 5-6
Maintenance ........................................................... 8-5
On-pavement and offroad driving ..................... 5-5
Seat belt usage ................................................... 1-22
Supplemental restraint system........................... 1-9
When starting and driving .................................. 5-2
Push starting .............................................................. 6-10
04.4.5/Z50-D/V5.0
10-4
Page 278 of 283
R
Radio, Car phone or CB radio .............................. 4-33
Readiness for inspection/maintenance (I/M) test (US
only) .............................................................................. 9-23
Rear center seat belt................................................ 1-29
Rear door lock, Child safety rear door lock.......... 3-4
Rear light ..................................................................... 2-37
Rear power point....................................................... 2-27
Rear seat adjustment .................................................. 1-5
Rear window and outside mirror defroster
switch ........................................................................... 2-19
Rear window wiper and washer switch .............. 2-19
Recorders, Event data ............................................. 9-24
Registering your vehicle in another country ....... 9-10
Remote keyless entry system ................................... 3-5
Reporting safety defects (US only) ...................... 9-23
S
Safety
Child seat belts ................................................... 1-24
Reporting safety defects (US only)................ 9-23
Towing safety....................................................... 9-19
Safety chain ................................................................ 9-20
Seat
Belt warning light................................................ 1-22
Belt warning light and chime ........................... 2-11
Seat adjustment
Front power seat adjustment ............................. 1-3
Front seat adjustment .......................................... 1-2
Rear seat adjustment ........................................... 1-5Seat belt(s)
Child safety .......................................................... 1-24
Infants and small children ................................. 1-24
Injured persons.................................................... 1-25
Larger children .................................................... 1-24
Pre-tensioner seat belt system ....................... 1-19
Precautions on seat belt usage ...................... 1-22
Pregnant women ................................................. 1-25
Rear center seat belt ......................................... 1-29
Seat belt cleaning ................................................. 7-4
Seat belt extenders ............................................ 1-31
Seat belt hook ..................................................... 1-28
Seat belt maintenance ...................................... 1-32
Seat belts ............................................................. 1-22
Shoulder belt height adjustment..................... 1-28
Three-point type with retractor ....................... 1-25
Seat(s)
Driver-side memory ............................................ 3-16
Heated seats........................................................ 2-26
Seats ........................................................................ 1-2
Security system, Vehicle security system ........... 2-16
Security systems (Nissan Vehicle Immobilizer
System), Engine start ............................................... 2-17
Security systems (See vehicle security
system) ......................................................................... 2-16
Servicing air conditioner .............................. 4-16, 4-20
Shift lock release ........................................... 5-13, 5-17
Shifting, CVT (Continuously Variable
Transmission) ............................................................. 5-10
Shoulder belt height adjustment ........................... 1-28
Spare tire..................................................................... 8-35
Spark plugs................................................................. 8-16
Speedometer ................................................................ 2-4Starting
Before starting the engine .................................. 5-9
Jump starting .......................................................... 6-8
Precautions when starting and driving ............ 5-2
Push starting ........................................................ 6-10
Starting the engine............................................. 5-10
Steering
Power steering fluid ........................................... 8-12
Power steering system ...................................... 5-27
Tilting steering wheel......................................... 3-13
Steering switch for audio control.......................... 4-32
Storage ........................................................................ 2-28
Sun shade ................................................................... 2-36
Sun visors ................................................................... 3-14
Sunroof ........................................................................ 2-35
Automatic sunroof .............................................. 2-35
Supplemental air bag warning labels................... 1-20
Supplemental air bag warning light .......... 1-20, 2-12
Supplemental restraint system ................................. 1-9
Precautions on supplemental restraint
system ...................................................................... 1-9
Switch
Autolight switch .................................................. 2-21
AWD lock switch operations........................... 5-23
Fog light switch................................................... 2-24
Hazard warning flasher switch ........................ 2-25
Headlight aiming control ................................... 2-23
Headlight switch ................................................. 2-20
Ignition switch ........................................................ 5-8
Power door lock switch....................................... 3-4
Rear window and outside mirror defroster
switch..................................................................... 2-19
Turn signal switch .............................................. 2-24
Vehicle dynamic control (VDC) off switch ... 2-27
04.4.5/Z50-D/V5.0
10-5
Page 279 of 283
T
Tachometer.................................................................... 2-4
Temperature gauge, Engine coolant temperature
gauge .............................................................................. 2-5
Three way catalyst ....................................................... 5-3
Tilting steering wheel ............................................... 3-13
Tire
Flat tire ..................................................................... 6-2
Low tire pressure warning system........... 5-3, 6-2
Pressure, Low tire pressure warning light ... 2-12
Safety chain ......................................................... 9-20
Spare tire .............................................................. 8-35
Tire and loading information label .................. 9-12
Uniform tire quality grading .............................. 9-22
Tire and loading information label......................... 9-12
Tires
Tire chains ............................................................ 8-32
Tire pressure ........................................................ 8-27
Tire rotation .......................................................... 8-33
Types of tires ....................................................... 8-31
Wheel/tire size ....................................................... 9-9
Wheels and tires ................................................ 8-27
Tonneau cover ........................................................... 2-32
Top tether strap child restraints ............................ 1-40
Towing
Tow truck towing ................................................ 6-11
Towing a trailer.................................................... 9-17
Towing load/specification chart ...................... 9-17
Towing safety....................................................... 9-19
Trailer towing .............................................................. 9-17
Transceiver, HomeLinkUniversal
Transceiver .................................................................. 2-39Transmission
Driving with CVT (Continuously Variable
Transmission) ....................................................... 5-10
Transmission selector lever lock
release ....................................................... 5-13, 5-17
Transmitter (See remote keyless entry system) ... 3-5
Traveling or registering your vehicle in another
country ......................................................................... 9-10
Turn signal switch ..................................................... 2-24
U
Underbody cleaning .................................................... 7-3
Uniform tire quality grading .................................... 9-22
V
Vanity mirror light ...................................................... 2-39
Vehicle
Dimensions and weights ..................................... 9-9
Identification number (VIN)............................... 9-10
Loading information............................................ 9-14
Recovery (freeing a stuck vehicle) ................. 6-14
Security system ................................................... 2-16
Vehicle dynamic control (VDC) off switch ... 2-27
Vehicle electronic systems ............................... 4-12
Vehicle dynamic control (VDC) system
(if so equipped) ......................................................... 5-29
Vehicle load capacity ............................................... 9-15
Ventilators.................................................................... 4-16W
Warning labels, Air bag warning labels .............. 1-20
Warning light
Air bag warning light .............................. 1-20, 2-12
Anti-lock brake warning light ............................. 2-9
AWD (all wheel drive) warning light .............. 2-10
AWD warning light ............................................. 5-24
Brake warning light ............................................ 2-10
Door open warning light ................................... 2-11
Low fuel warning light ....................................... 2-11
Low tire pressure warning light ...................... 2-12
Seat belt warning light and chime ................. 2-11
Warning lights .............................................................. 2-9
Warning, Hazard warning flasher switch ............ 2-25
Warning, Low tire pressure warning
system.................................................................... 5-3, 6-2
Warning, Warning/indicator lights and audible
reminders ....................................................................... 2-9
Warranty, Emission control system warranty ..... 9-23
Washer switch
Rear window wiper and washer switch........ 2-19
Windshield wiper and washer switch ........... 2-18
Washing ......................................................................... 7-2
Waxing............................................................................ 7-2
Weights (See dimensions and weights) ............... 9-9
Wheel/tire size.............................................................. 9-9
Wheels and tires ....................................................... 8-27
Cleaning aluminum alloy wheels ....................... 7-3
Window washer fluid ............................................... 8-13
Window(s)
Cleaning................................................................... 7-3
Power windows................................................... 2-33
Windshield wiper and washer switch .................. 2-18
04.4.5/Z50-D/V5.0
10-6
Page 280 of 283
Wiper
Rear window wiper and washer switch........ 2-19
Rear window wiper blade................................. 8-19
Windshield wiper and washer switch ........... 2-18
Wiper blades ....................................................... 8-17
X
Xenon headlights....................................................... 2-20
04.4.5/Z50-D/V5.0
10-7
