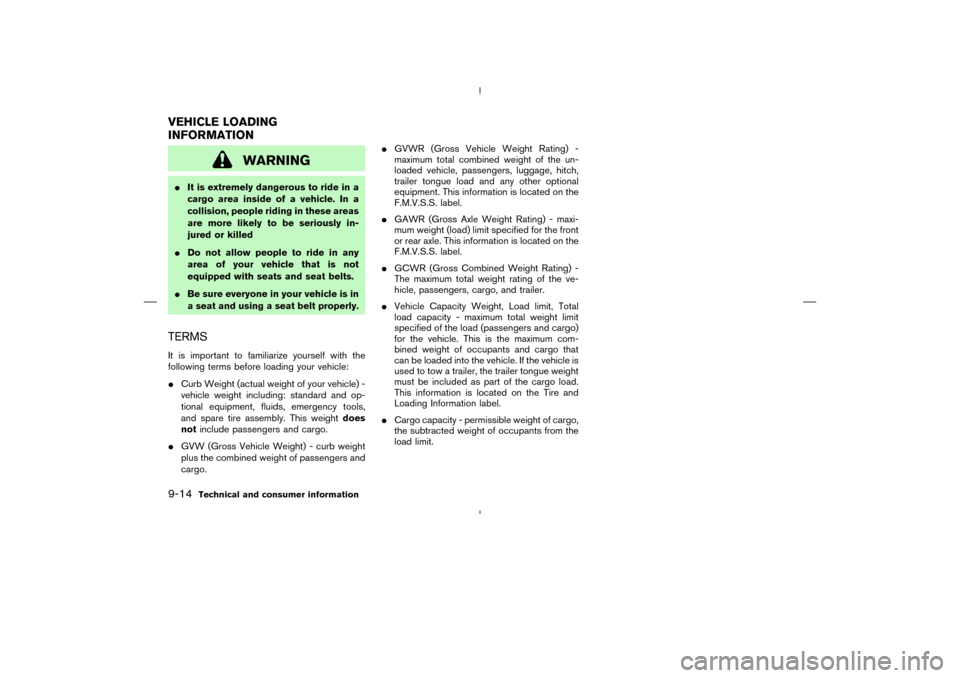

WARNING
It is extremely dangerous to ride in a
cargo area inside of a vehicle. In a
collision, people riding in these areas
are more likely to be seriously in-
jured or killed
Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.
Be sure everyone in your vehicle is in
a seat and using a seat belt properly.TERMSIt is important to familiarize yourself with the
following terms before loading your vehicle:
CurbWeight (actual weight of your vehicle) -
vehicle weight including: standard and op-
tional equipment, fluids, emergency tools,
and spare tire assembly. This weightdoes
notinclude passengers and cargo.
GVW (Gross Vehicle Weight) - curbweight
plus the combined weight of passengers and
cargo.GVWR (Gross Vehicle Weight Rating) -
maximum total combined weight of the un-
loaded vehicle, passengers, luggage, hitch,
trailer tongue load and any other optional
equipment. This information is located on the
F.M.V.S.S. label.
GAWR (Gross Axle Weight Rating) - maxi-
mum weight (load) limit specified for the front
or rear axle. This information is located on the
F.M.V.S.S. label.
GCWR (Gross Combined Weight Rating) -
The maximum total weight rating of the ve-
hicle, passengers, cargo, and trailer.
Vehicle Capacity Weight, Load limit, Total
load capacity - maximum total weight limit
specified of the load (passengers and cargo)
for the vehicle. This is the maximum com-
bined weight of occupants and cargo that
can be loaded into the vehicle. If the vehicle is
used to tow a trailer, the trailer tongue weight
must be included as part of the cargo load.
This information is located on the Tire and
Loading Information label.
Cargo capacity - permissible weight of cargo,
the subtracted weight of occupants from the
load limit.VEHICLE LOADING
INFORMATION9-14
Technical and consumer information
04.4.5/Z50-D/V5.0
Page 262 of 283

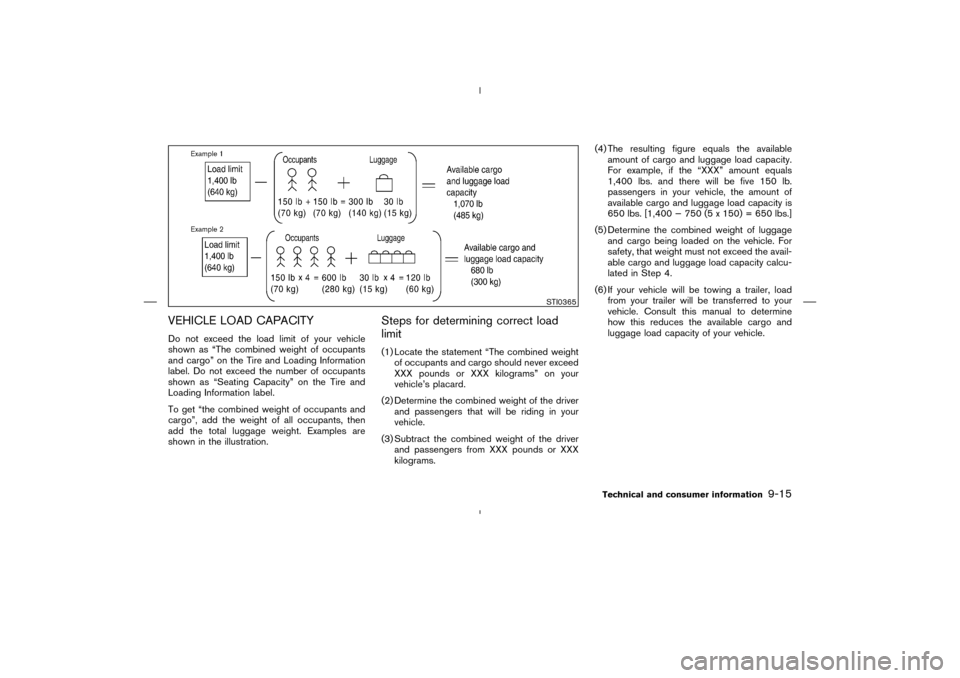

VEHICLE LOAD CAPACITYDo not exceed the load limit of your vehicle
shown as “The combined weight of occupants
and cargo” on the Tire and Loading Information
label. Do not exceed the number of occupants
shown as “Seating Capacity” on the Tire and
Loading Information label.
To get “the combined weight of occupants and
cargo”, add the weight of all occupants, then
add the total luggage weight. Examples are
shown in the illustration.
Steps for determining correct load
limit(1) Locate the statement “The combined weight
of occupants and cargo should never exceed
XXX pounds or XXX kilograms” on your
vehicle’s placard.
(2) Determine the combined weight of the driver
and passengers that will be riding in your
vehicle.
(3) Subtract the combined weight of the driver
and passengers from XXX pounds or XXX
kilograms.(4) The resulting figure equals the available
amount of cargo and luggage load capacity.
For example, if the “XXX” amount equals
1,400 lbs. and there will be five 150 lb.
passengers in your vehicle, the amount of
available cargo and luggage load capacity is
650 lbs. [1,400 − 750 (5 x 150) = 650 lbs.]
(5) Determine the combined weight of luggage
and cargo being loaded on the vehicle. For
safety, that weight must not exceed the avail-
able cargo and luggage load capacity calcu-
lated in Step 4.
(6) If your vehicle will be towing a trailer, load
from your trailer will be transferred to your
vehicle. Consult this manual to determine
how this reduces the available cargo and
luggage load capacity of your vehicle.
STI0365
Technical and consumer information
9-15
04.4.5/Z50-D/V5.0
Page 263 of 283

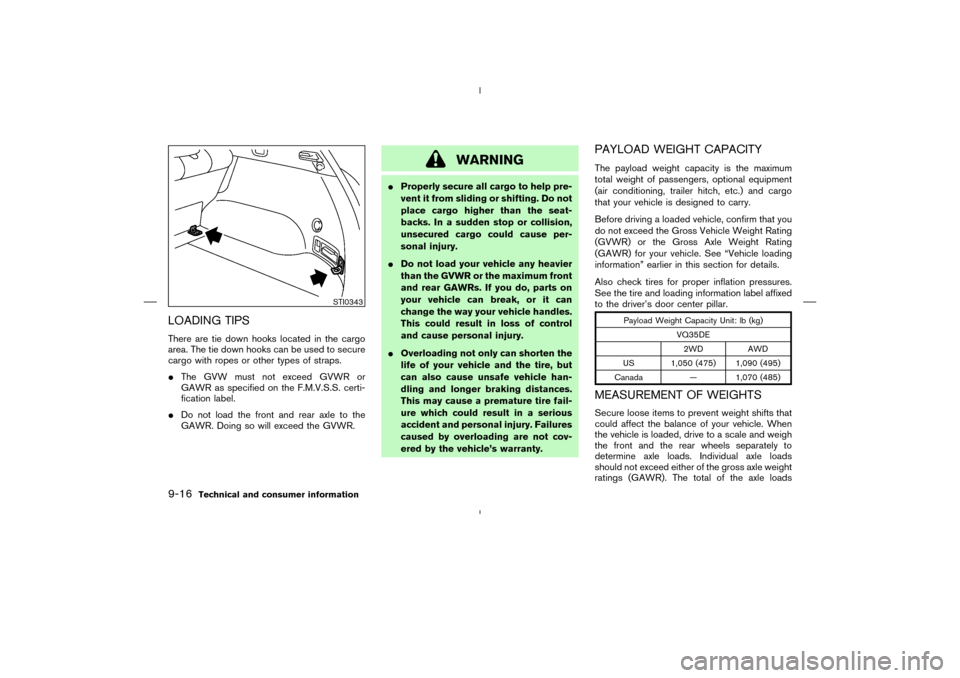

LOADING TIPSThere are tie down hooks located in the cargo
area. The tie down hooks can be used to secure
cargo with ropes or other types of straps.
The GVW must not exceed GVWR or
GAWR as specified on the F.M.V.S.S. certi-
fication label.
Do not load the front and rear axle to the
GAWR. Doing so will exceed the GVWR.
WARNING
Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.
Do not load your vehicle any heavier
than the GVWR or the maximum front
and rear GAWRs. If you do, parts on
your vehicle can break, or it can
change the way your vehicle handles.
This could result in loss of control
and cause personal injury.
Overloading not only can shorten the
life of your vehicle and the tire, but
can also cause unsafe vehicle han-
dling and longer braking distances.
This may cause a premature tire fail-
ure which could result in a serious
accident and personal injury. Failures
caused by overloading are not cov-
ered by the vehicle’s warranty.
PAYLOAD WEIGHT CAPACITYThe payload weight capacity is the maximum
total weight of passengers, optional equipment
(air conditioning, trailer hitch, etc.) and cargo
that your vehicle is designed to carry.
Before driving a loaded vehicle, confirm that you
do not exceed the Gross Vehicle Weight Rating
(GVWR) or the Gross Axle Weight Rating
(GAWR) for your vehicle. See “Vehicle loading
information” earlier in this section for details.
Also check tires for proper inflation pressures.
See the tire and loading information label affixed
to the driver’s door center pillar.
Payload Weight Capacity Unit: lb(kg)
VQ35DE
2WD AWD
US 1,050 (475) 1,090 (495)
Canada — 1,070 (485)
MEASUREMENT OF WEIGHTSSecure loose items to prevent weight shifts that
could affect the balance of your vehicle. When
the vehicle is loaded, drive to a scale and weigh
the front and the rear wheels separately to
determine axle loads. Individual axle loads
should not exceed either of the gross axle weight
ratings (GAWR). The total of the axle loads
STI0343
9-16
Technical and consumer information
04.4.5/Z50-D/V5.0
Page 264 of 283
should not exceed the gross vehicle weight
rating (GVWR). These ratings are given on the
vehicle certification label that is located on the
driver’s door lock pillar. If weight ratings are
exceeded, move or remove items to bring all
weights below the ratings.
CAUTION
Overloading can shorten the life of your
vehicle. Failures caused by overloading
are not covered by your warranty.
Your new vehicle was designed to be used
primarily to carry passengers and cargo. Re-
member that towing a trailer will place additional
loads on your vehicle’s engine, drive train, steer-
ing, braking and other systems.

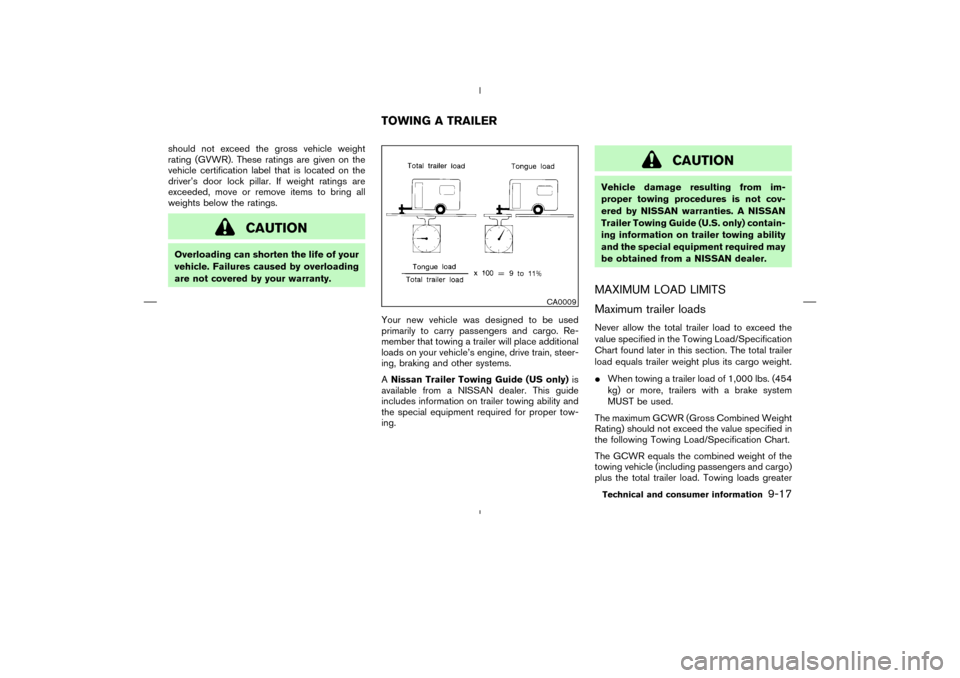

ANissan Trailer Towing Guide (US only)is
available from a NISSAN dealer. This guide
includes information on trailer towing ability and
the special equipment required for proper tow-
ing.
CAUTION
Vehicle damage resulting from im-
proper towing procedures is not cov-
ered by NISSAN warranties. A NISSAN
Trailer Towing Guide (U.S. only) contain-
ing information on trailer towing ability
and the special equipment required may
be obtained from a NISSAN dealer.MAXIMUM LOAD LIMITS
Maximum trailer loadsNever allow the total trailer load to exceed the
value specified in the Towing Load/Specification
Chart found later in this section. The total trailer
load equals trailer weight plus its cargo weight.
When towing a trailer load of 1,000 lbs. (454
kg) or more, trailers with a brake system
MUST be used.
The maximum GCWR (Gross Combined Weight
Rating) should not exceed the value specified in
the following Towing Load/Specification Chart.
The GCWR equals the combined weight of the
towing vehicle (including passengers and cargo)
plus the total trailer load. Towing loads greater
CA0009
TOWING A TRAILER
Technical and consumer information
9-17
04.4.5/Z50-D/V5.0
Page 265 of 283
than these or using improper towing equipment
could adversely affect vehicle handling, braking
and performance.
The ability of your vehicle to tow a trailer is not
only related to the maximum trailer loads, but
also the places you plan to tow. Tow weights
appropriate for level highway driving may have to
be reduced on very steep grades or in low
traction situations (for example, on slippery boat
ramps).
Temperature conditions also can affect towing.
For example, towing a heavy trailer in high
outside temperatures on graded roads can af-
fect engine performance and cause overheating.
The transmission high fluid temperature protec-
tion mode, which helps reduce the chance of
transmission damage, could activate and auto-
matically decrease engine power. Vehicle speed
may decrease to 40 to 50 MPH (65 to 80 km/h)
under high load. Plan your trip carefully to ac-
count for trailer and vehicle load, weather, and
road conditions.
WARNING
Overheating can result in reduced en-
gine power and lower vehicle speed.Also, when the high temperature mode
operates, vehicle speed may be gradu-
ally reduced. On highways, the reduced
speed may be lower than other traffic
which could increase the chance of a
collision. Be especially careful when
driving. If necessary, pull to the side of
the road at a safe place and allow the
engine to cool or the transmission to
return to normal operation.

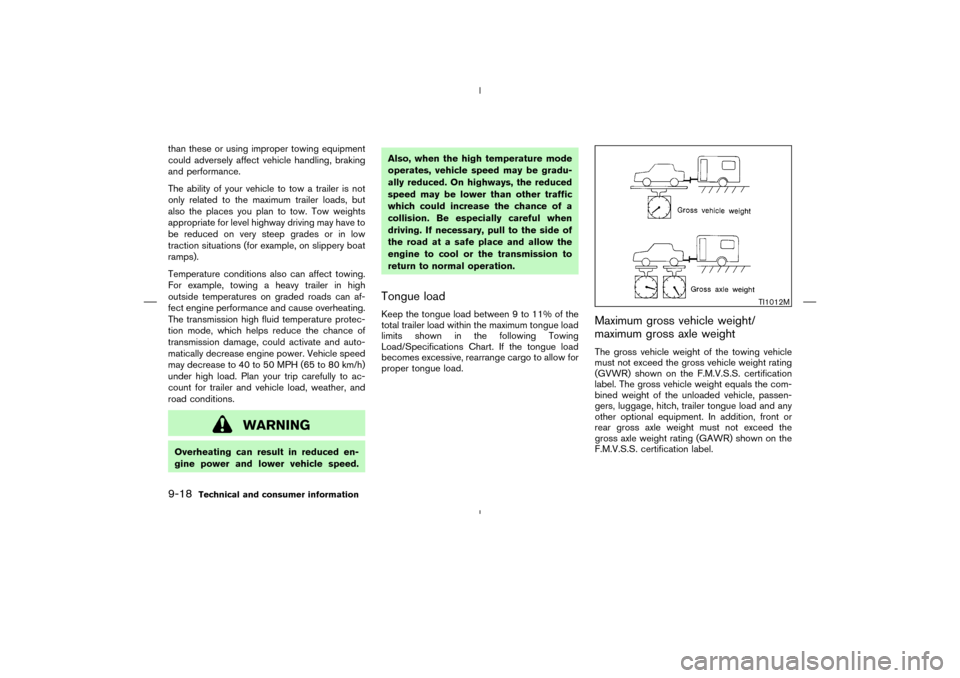

Tongue loadKeep the tongue load between 9 to 11% of the
total trailer load within the maximum tongue load
limits shown in the following Towing
Load/Specifications Chart. If the tongue load
becomes excessive, rearrange cargo to allow for
proper tongue load.
Maximum gross vehicle weight/
maximum gross axle weightThe gross vehicle weight of the towing vehicle
must not exceed the gross vehicle weight rating
(GVWR) shown on the F.M.V.S.S. certification
label. The gross vehicle weight equals the com-
bined weight of the unloaded vehicle, passen-
gers, luggage, hitch, trailer tongue load and any
other optional equipment. In addition, front or
rear gross axle weight must not exceed the
gross axle weight rating (GAWR) shown on the
F.M.V.S.S. certification label.
TI1012M
9-18
Technical and consumer information
04.4.5/Z50-D/V5.0
Page 266 of 283

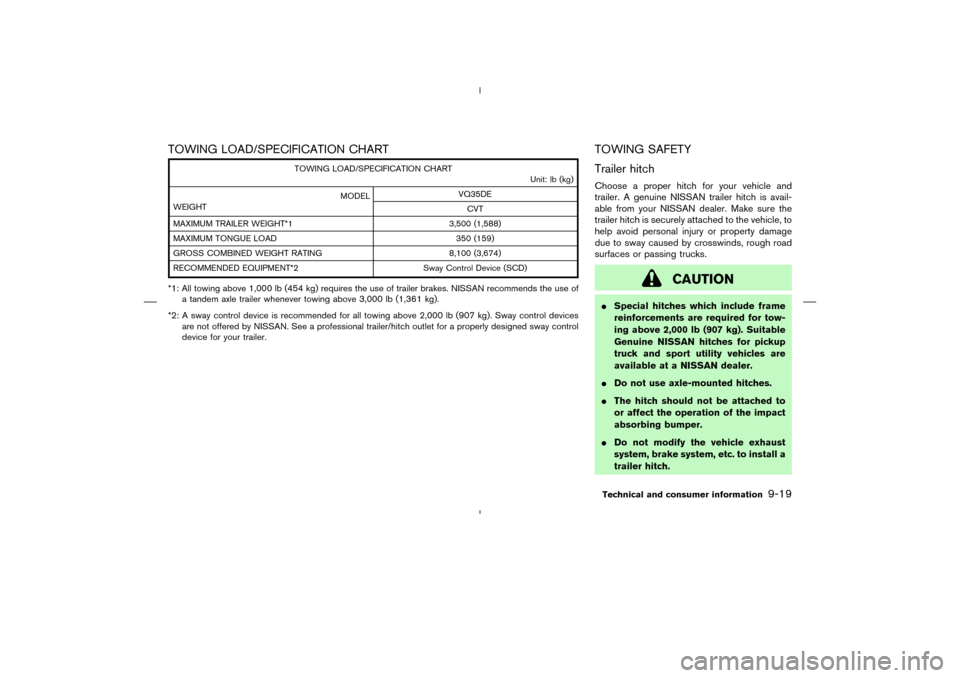

TOWING LOAD/SPECIFICATION CHART
TOWING LOAD/SPECIFICATION CHART
Unit: lb(kg)
MODEL
WEIGHTVQ35DE
CVT
MAXIMUM TRAILER WEIGHT*1 3,500 (1,588)
MAXIMUM TONGUE LOAD 350 (159)
GROSS COMBINED WEIGHT RATING 8,100 (3,674)
RECOMMENDED EQUIPMENT*2 Sway Control Device (SCD)
*1: All towing above 1,000 lb (454 kg) requires the use of trailer brakes. NISSAN recommends the use of
a tandem axle trailer whenever towing above 3,000 lb (1,361 kg).
*2: A sway control device is recommended for all towing above 2,000 lb (907 kg). Sway control devices
are not offered by NISSAN. See a professional trailer/hitch outlet for a properly designed sway control
device for your trailer.
TOWING SAFETY
Trailer hitchChoose a proper hitch for your vehicle and
trailer. A genuine NISSAN trailer hitch is avail-
able from your NISSAN dealer. Make sure the
trailer hitch is securely attached to the vehicle, to
help avoid personal injury or property damage
due to sway caused by crosswinds, rough road
surfaces or passing trucks.
CAUTION
Special hitches which include frame
reinforcements are required for tow-
ing above 2,000 lb (907 kg). Suitable
Genuine NISSAN hitches for pickup
truck and sport utility vehicles are
available at a NISSAN dealer.
Do not use axle-mounted hitches.
The hitch should not be attached to
or affect the operation of the impact
absorbing bumper.
Do not modify the vehicle exhaust
system, brake system, etc. to install a
trailer hitch.Technical and consumer information
9-19
04.4.5/Z50-D/V5.0
Page 267 of 283

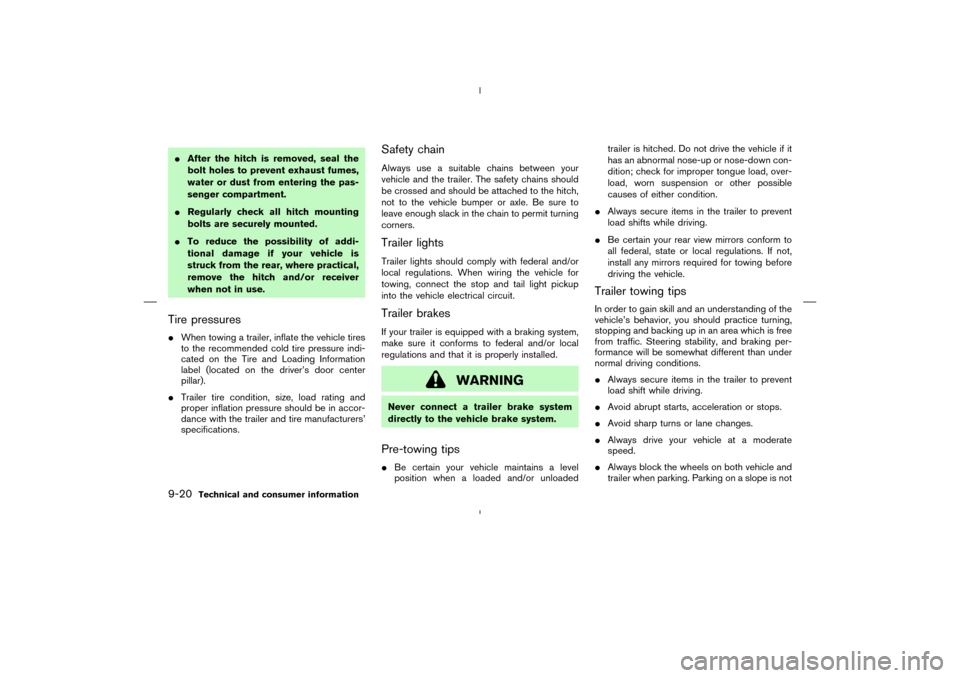

After the hitch is removed, seal the
bolt holes to prevent exhaust fumes,
water or dust from entering the pas-
senger compartment.
Regularly check all hitch mounting
bolts are securely mounted.
To reduce the possibility of addi-
tional damage if your vehicle is
struck from the rear, where practical,
remove the hitch and/or receiver
when not in use.Tire pressuresWhen towing a trailer, inflate the vehicle tires
to the recommended cold tire pressure indi-
cated on the Tire and Loading Information
label (located on the driver’s door center
pillar).
Trailer tire condition, size, load rating and
proper inflation pressure should be in accor-
dance with the trailer and tire manufacturers’
specifications.
Safety chainAlways use a suitable chains between your
vehicle and the trailer. The safety chains should
be crossed and should be attached to the hitch,
not to the vehicle bumper or axle. Be sure to
leave enough slack in the chain to permit turning
corners.Trailer lightsTrailer lights should comply with federal and/or
local regulations. When wiring the vehicle for
towing, connect the stop and tail light pickup
into the vehicle electrical circuit.Trailer brakesIf your trailer is equipped with a braking system,
make sure it conforms to federal and/or local
regulations and that it is properly installed.
WARNING
Never connect a trailer brake system
directly to the vehicle brake system.Pre-towing tipsBe certain your vehicle maintains a level
position when a loaded and/or unloadedtrailer is hitched. Do not drive the vehicle if it
has an abnormal nose-up or nose-down con-
dition; check for improper tongue load, over-
load, worn suspension or other possible
causes of either condition.
Always secure items in the trailer to prevent
load shifts while driving.
Be certain your rear view mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle.
Trailer towing tipsIn order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability, and braking per-
formance will be somewhat different than under
normal driving conditions.
Always secure items in the trailer to prevent
load shift while driving.
Avoid abrupt starts, acceleration or stops.
Avoid sharp turns or lane changes.
Always drive your vehicle at a moderate
speed.
Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
9-20
Technical and consumer information
04.4.5/Z50-D/V5.0
Page 268 of 283

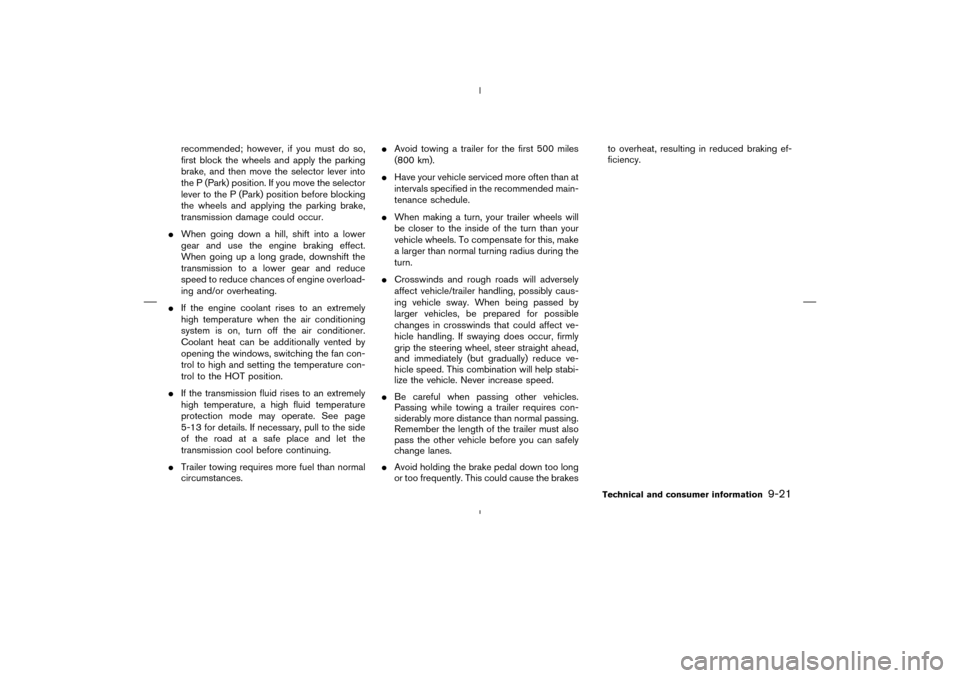

recommended; however, if you must do so,
first block the wheels and apply the parking
brake, and then move the selector lever into
the P (Park) position. If you move the selector
lever to the P (Park) position before blocking
the wheels and applying the parking brake,
transmission damage could occur.
When going down a hill, shift into a lower
gear and use the engine braking effect.
When going up a long grade, downshift the
transmission to a lower gear and reduce
speed to reduce chances of engine overload-
ing and/or overheating.
If the engine coolant rises to an extremely
high temperature when the air conditioning
system is on, turn off the air conditioner.
Coolant heat can be additionally vented by
opening the windows, switching the fan con-
trol to high and setting the temperature con-
trol to the HOT position.
If the transmission fluid rises to an extremely
high temperature, a high fluid temperature
protection mode may operate. See page
5-13 for details. If necessary, pull to the side
of the road at a safe place and let the
transmission cool before continuing.
Trailer towing requires more fuel than normal
circumstances.Avoid towing a trailer for the first 500 miles
(800 km).
Have your vehicle serviced more often than at
intervals specified in the recommended main-
tenance schedule.
When making a turn, your trailer wheels will
be closer to the inside of the turn than your
vehicle wheels. To compensate for this, make
a larger than normal turning radius during the
turn.
Crosswinds and rough roads will adversely
affect vehicle/trailer handling, possibly caus-
ing vehicle sway. When being passed by
larger vehicles, be prepared for possible
changes in crosswinds that could affect ve-
hicle handling. If swaying does occur, firmly
grip the steering wheel, steer straight ahead,
and immediately (but gradually) reduce ve-
hicle speed. This combination will help stabi-
lize the vehicle. Never increase speed.
Be careful when passing other vehicles.
Passing while towing a trailer requires con-
siderably more distance than normal passing.
Remember the length of the trailer must also
pass the other vehicle before you can safely
change lanes.
Avoid holding the brake pedal down too long
or too frequently. This could cause the brakesto overheat, resulting in reduced braking ef-
ficiency.
Technical and consumer information
9-21
04.4.5/Z50-D/V5.0
Page 269 of 283

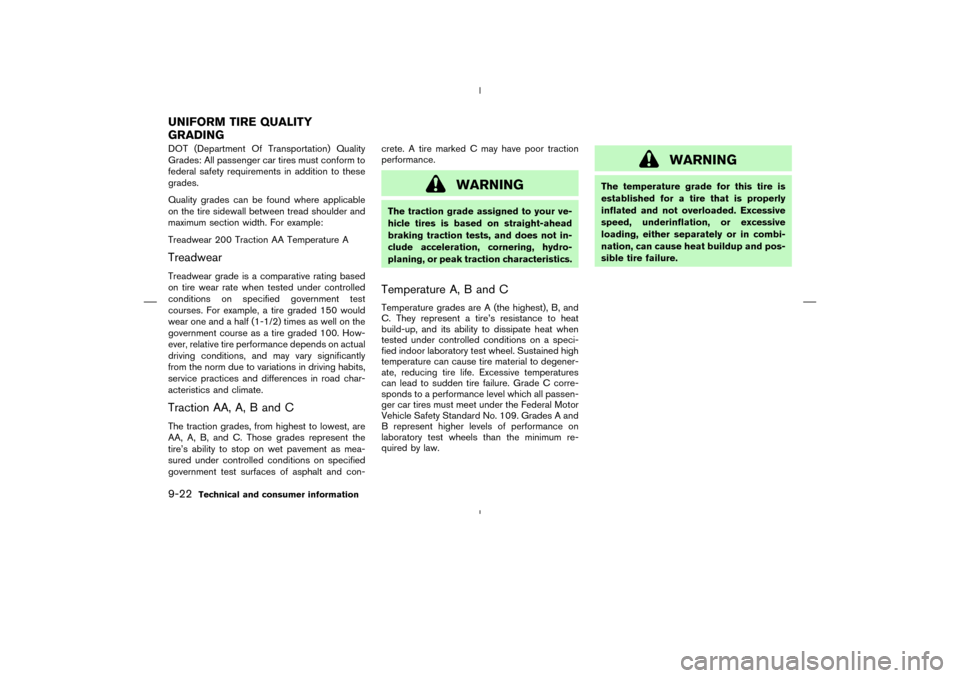

DOT (Department Of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature ATreadwearTreadwear grade is a comparative rating based
on tire wear rate when tested under controlled
conditions on specified government test
courses. For example, a tire graded 150 would
wear one and a half (1-1/2) times as well on the
government course as a tire graded 100. How-
ever, relative tire performance depends on actual
driving conditions, and may vary significantly
from the norm due to variations in driving habits,
service practices and differences in road char-
acteristics and climate.Traction AA, A, B and CThe traction grades, from highest to lowest, are
AA, A, B, and C. Those grades represent the
tire’s ability to stop on wet pavement as mea-
sured under controlled conditions on specified
government test surfaces of asphalt and con-crete. A tire marked C may have poor traction
performance.
WARNING
The traction grade assigned to your ve-
hicle tires is based on straight-ahead
braking traction tests, and does not in-
clude acceleration, cornering, hydro-
planing, or peak traction characteristics.Temperature A, B and CTemperature grades are A (the highest), B, and
C. They represent a tire’s resistance to heat
build-up, and its ability to dissipate heat when
tested under controlled conditions on a speci-
fied indoor laboratory test wheel. Sustained high
temperature can cause tire material to degener-
ate, reducing tire life. Excessive temperatures
can lead to sudden tire failure. Grade C corre-
sponds to a performance level which all passen-
ger car tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades A and
B represent higher levels of performance on
laboratory test wheels than the minimum re-
quired by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, underinflation, or excessive
loading, either separately or in combi-
nation, can cause heat buildup and pos-
sible tire failure.
UNIFORM TIRE QUALITY
GRADING9-22
Technical and consumer information
04.4.5/Z50-D/V5.0
Page 270 of 283

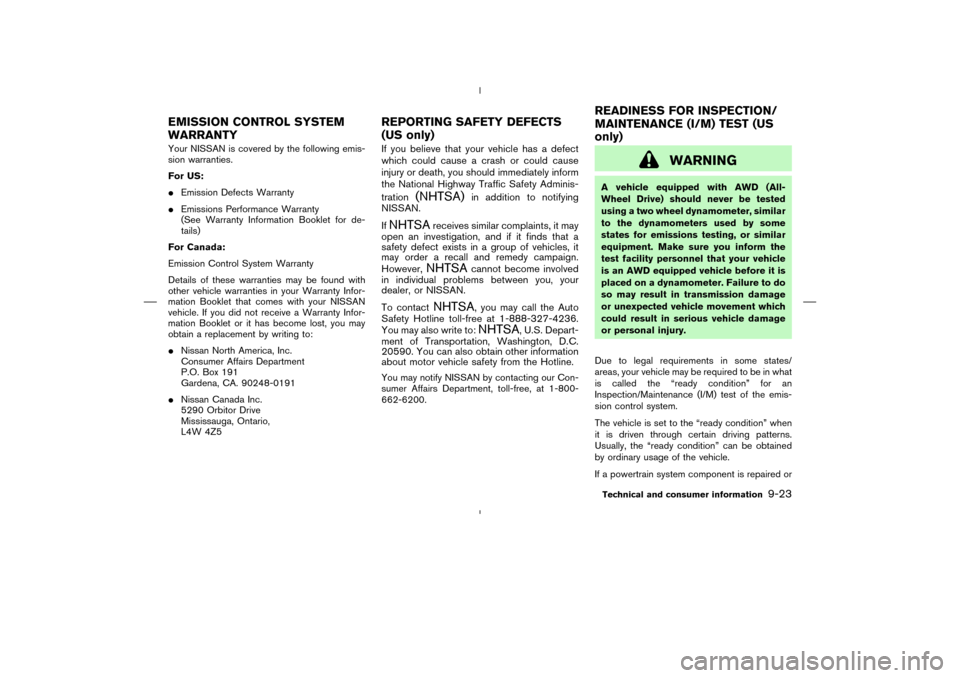

Your NISSAN is covered by the following emis-
sion warranties.
For US:
Emission Defects Warranty
Emissions Performance Warranty
(See Warranty Information Booklet for de-
tails)
For Canada:
Emission Control System Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty Infor-
mation Booklet that comes with your NISSAN
vehicle. If you did not receive a Warranty Infor-
mation Booklet or it has become lost, you may
obtain a replacement by writing to:
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 191
Gardena, CA. 90248-0191
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario,
L4W 4Z5
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately inform
the National Highway Traffic Safety Adminis-
tration
(NHTSA)
in addition to notifying
NISSAN.
If
NHTSA
receives similar complaints, it may
open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it
may order a recall and remedy campaign.
However,NHTSA
cannot become involved
in individual problems between you, your
dealer, or NISSAN.
To contact
NHTSA
, you may call the Auto
Safety Hotline toll-free at 1-888-327-4236.
You may also write to:NHTSA
, U.S. Depart-
ment of Transportation, Washington, D.C.
20590. You can also obtain other information
about motor vehicle safety from the Hotline.
You may notify NISSAN by contacting our Con-
sumer Affairs Department, toll-free, at 1-800-
662-6200.
WARNING
A vehicle equipped with AWD (All-
Wheel Drive) should never be tested
using a two wheel dynamometer, similar
to the dynamometers used by some
states for emissions testing, or similar
equipment. Make sure you inform the
test facility personnel that your vehicle
is an AWD equipped vehicle before it is
placed on a dynamometer. Failure to do
so may result in transmission damage
or unexpected vehicle movement which
could result in serious vehicle damage
or personal injury.
Due to legal requirements in some states/
areas, your vehicle may be required to be in what
is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
EMISSIONCONTROL SYSTEM
WARRANTYREPORTING SAFETY DEFECTS
(US only)READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US
only)
Technical and consumer information
9-23
04.4.5/Z50-D/V5.0
