NISSAN MURANO 2004 1.G Owners Manual

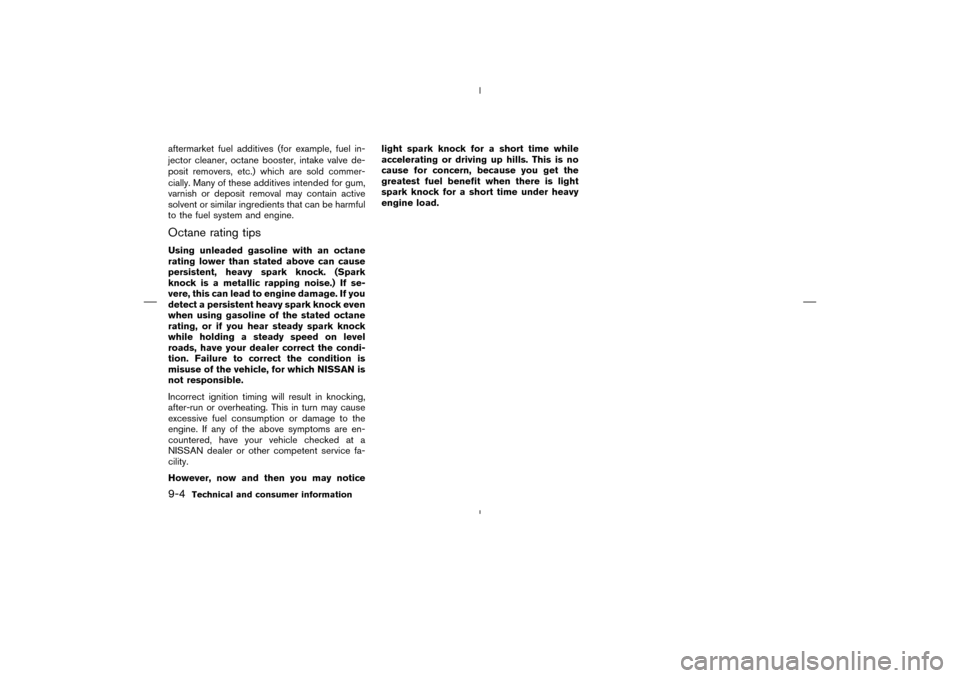

aftermarket fuel additives (for example, fuel in-
jector cleaner, octane booster, intake valve de-
posit removers, etc.) which are sold commer-
cially. Many of these additives intended for gum,
varnish or deposit removal may contain active
solvent or similar ingredients that can be harmful
to the fuel system and engine.Octane rating tipsUsing unleaded gasoline with an octane
rating lower than stated above can cause
persistent, heavy spark knock. (Spark
knock is a metallic rapping noise.) If se-
vere, this can lead to engine damage. If you
detect a persistent heavy spark knock even
when using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on level
roads, have your dealer correct the condi-
tion. Failure to correct the condition is
misuse of the vehicle, for which NISSAN is
not responsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are en-
countered, have your vehicle checked at a
NISSAN dealer or other competent service fa-
cility.
However, now and then you may noticelight spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.9-4
Technical and consumer information


04.4.5/Z50-D/V5.0

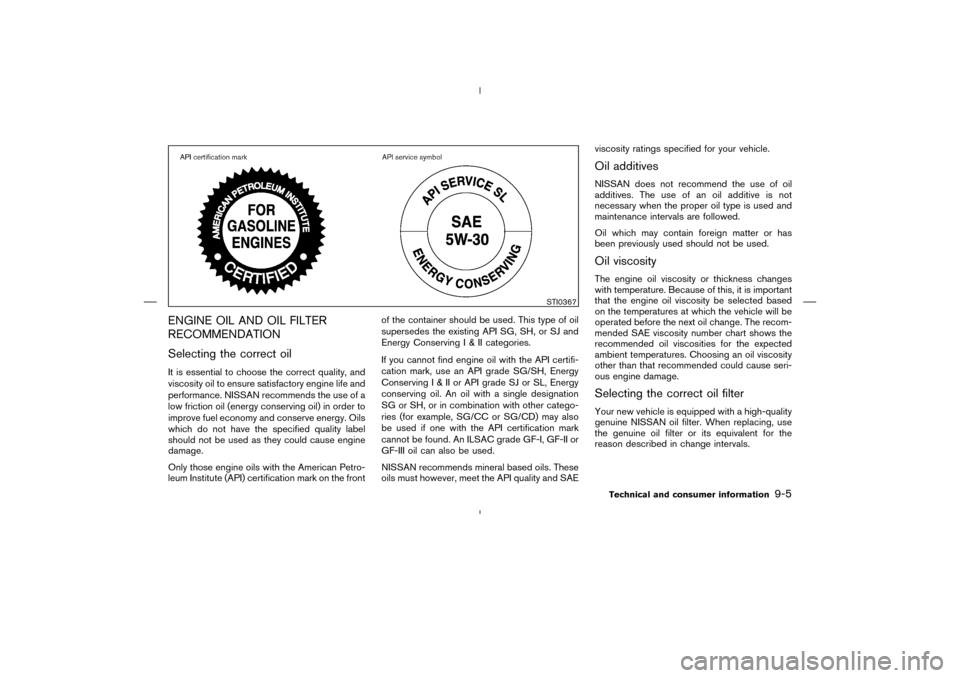

ENGINE OIL AND OIL FILTER
RECOMMENDATION
Selecting the correct oilIt is essential to choose the correct quality, and
viscosity oil to ensure satisfactory engine life and
performance. NISSAN recommends the use of a
low friction oil (energy conserving oil) in order to
improve fuel economy and conserve energy. Oils
which do not have the specified quality label
should not be used as they could cause engine
damage.
Only those engine oils with the American Petro-
leum Institute (API) certification mark on the frontof the container should be used. This type of oil
supersedes the existing API SG, SH, or SJ and
Energy ConservingI&IIcategories.
If you cannot find engine oil with the API certifi-
cation mark, use an API grade SG/SH, Energy
ConservingI&IIorAPIgrade SJ or SL, Energy
conserving oil. An oil with a single designation
SG or SH, or in combination with other catego-
ries (for example, SG/CC or SG/CD) may also
be used if one with the API certification mark
cannot be found. An ILSAC grade GF-I, GF-II or
GF-III oil can also be used.
NISSAN recommends mineral based oils. These
oils must however, meet the API quality and SAEviscosity ratings specified for your vehicle.
Oil additivesNISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.Oil viscosityThe engine oil viscosity or thickness changes
with temperature. Because of this, it is important
that the engine oil viscosity be selected based
on the temperatures at which the vehicle will be
operated before the next oil change. The recom-
mended SAE viscosity number chart shows the
recommended oil viscosities for the expected
ambient temperatures. Choosing an oil viscosity
other than that recommended could cause seri-
ous engine damage.Selecting the correct oil filterYour new vehicle is equipped with a high-quality
genuine NISSAN oil filter. When replacing, use
the genuine oil filter or its equivalent for the
reason described in change intervals.
STI0367
Technical and consumer information
9-5


04.4.5/Z50-D/V5.0


Change intervalsThe oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other than the
specified quality, or oil and filter change intervals
longer than recommended could reduce engine
life. Damage to engines caused by improper
maintenance or use of incorrect oil and filter
quality and/or viscosity is not covered by the
new NISSAN vehicle warranties.
Your engine was filled with a high quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle. Operation under
the following conditions may require more fre-
quent oil and filter changes.

repeated short distance driving at cold out-
side temperatures,

driving in dusty conditions,

extensive idling,

towing a trailer,

stop and go “rush hour” traffic,

aggressive driving.
RECOMMENDED SAE VISCOSITY
NUMBERSAE 5W-30 viscosity oil is preferred for all
ambient temperatures. SAE 10W-30,
10W-40 viscosity oil may be used if the
ambient temperature is above 0°F (−18°C).
AIR CONDITIONING SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONSThe air conditioning system in this NISSAN
vehicle must be charged with the refriger-
ant HFC-134a (R-134a) and the lubricant,
Nissan A/C System Oil Type S or the exact
equivalents.
CAUTION
The use of any other refrigerant or lubri-
cant will cause severe damage to the air
conditioning system and will require the
replacement of all air conditioner sys-
tem components.
The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect
the earth’s atmosphere, certain governmental
regulations require the recovery and recycling of
any refrigerant during automotive air condition-
ing system service. Your NISSAN dealer has the
trained technicians and equipment needed to
recover and recycle your air conditioning system
refrigerant.
TI1028-C
9-6
Technical and consumer information


04.4.5/Z50-D/V5.0

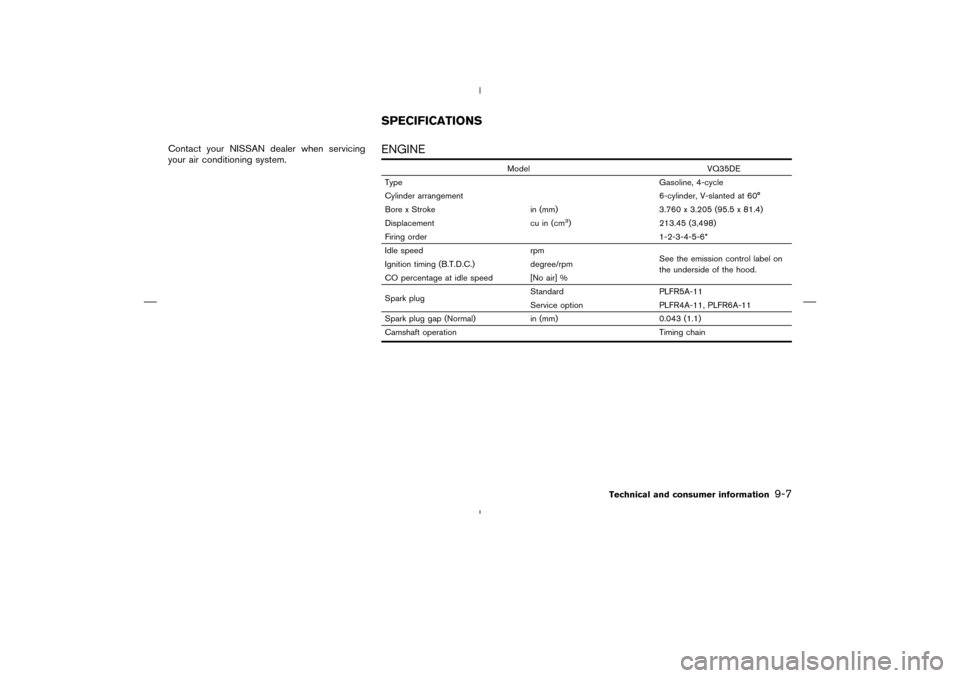

Contact your NISSAN dealer when servicing
your air conditioning system.
ENGINE
Model VQ35DE
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 60°
Bore x Stroke in (mm) 3.760 x 3.205 (95.5 x 81.4)
Displacement cu in (cm
3) 213.45 (3,498)
Firing order 1-2-3-4-5-6*
Idle speed rpm
See the emission control label on
the underside of the hood. Ignition timing (B.T.D.C.) degree/rpm
CO percentage at idle speed [No air] %
Spark plugStandard PLFR5A-11
Service option PLFR4A-11, PLFR6A-11
Spark plug gap (Normal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
SPECIFICATIONS
Technical and consumer information
9-7


04.4.5/Z50-D/V5.0

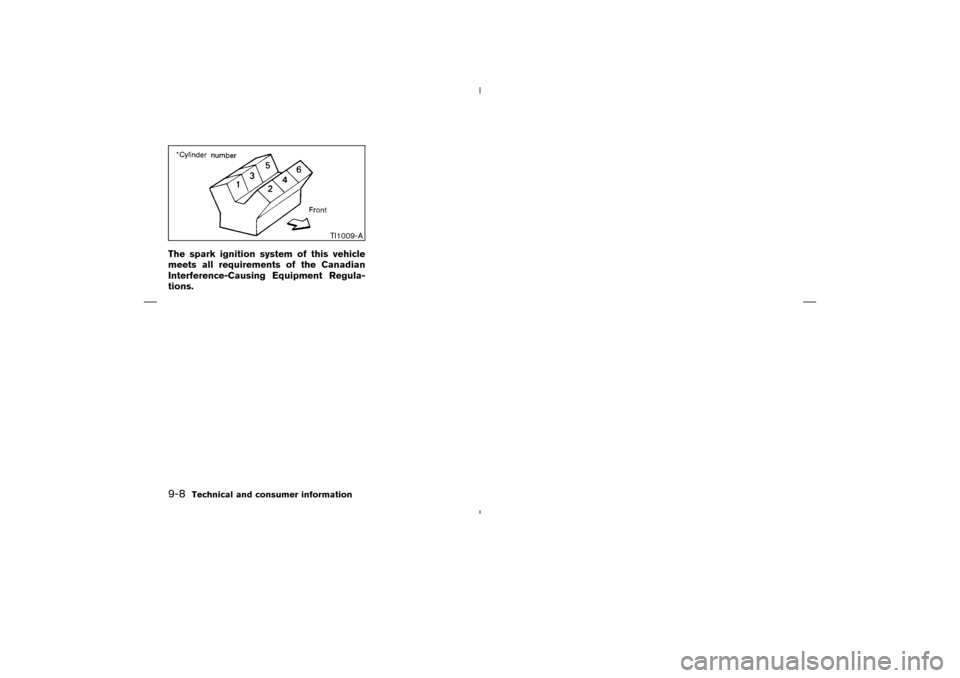

The spark ignition system of this vehicle
meets all requirements of the Canadian
Interference-Causing Equipment Regula-
tions.
TI1009-A
9-8
Technical and consumer information


04.4.5/Z50-D/V5.0

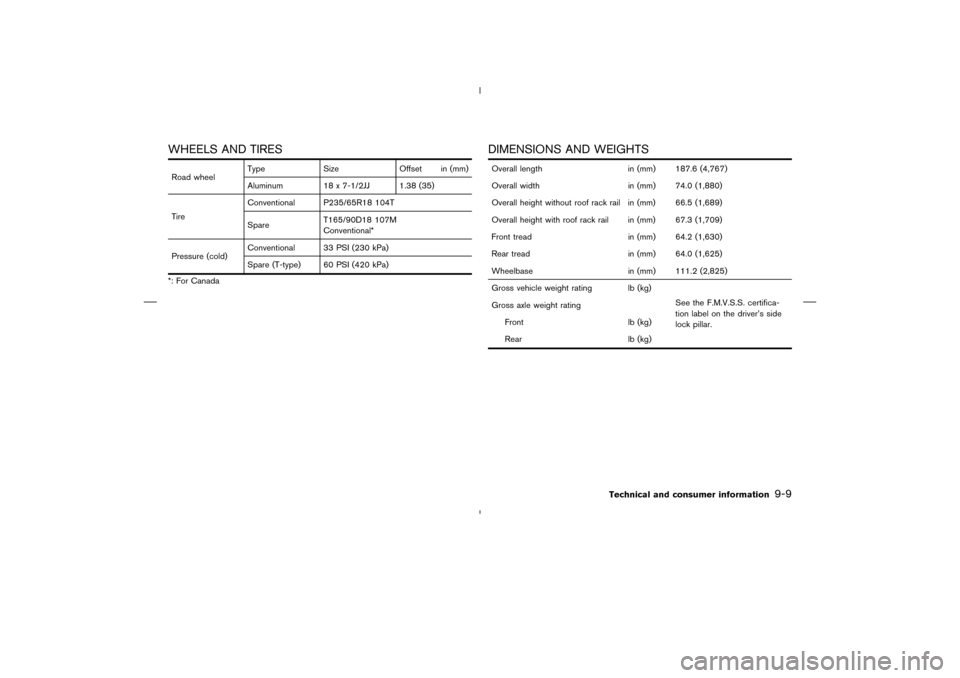

WHEELS AND TIRESRoad wheelType Size Offset in (mm)
Aluminum 18 x 7-1/2JJ 1.38 (35)
TireConventional P235/65R18 104T
SpareT165/90D18 107M
Conventional*
Pressure (cold)Conventional 33 PSI (230 kPa)
Spare (T-type) 60 PSI (420 kPa)
*: For Canada
DIMENSIONS AND WEIGHTSOverall length in (mm) 187.6 (4,767)
Overall width in (mm) 74.0 (1,880)
Overall height without roof rack rail in (mm) 66.5 (1,689)
Overall height with roof rack rail in (mm) 67.3 (1,709)
Front tread in (mm) 64.2 (1,630)
Rear tread in (mm) 64.0 (1,625)
Wheelbase in (mm) 111.2 (2,825)
Gross vehicle weight rating lb(kg)
See the F.M.V.S.S. certifica-
tion label on the driver’s side
lock pillar. Gross axle weight rating
Front lb(kg)
Rear lb(kg)
Technical and consumer information
9-9


04.4.5/Z50-D/V5.0


When planning to travel in another country,
you should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded engine gaso-
line. Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district,it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle emis-
sion control and safety standards vary according
to the country, state, province or district; there-
fore, vehicle specifications may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsibil-
ity of the user. NISSAN is not responsible
for any inconvenience that may result.

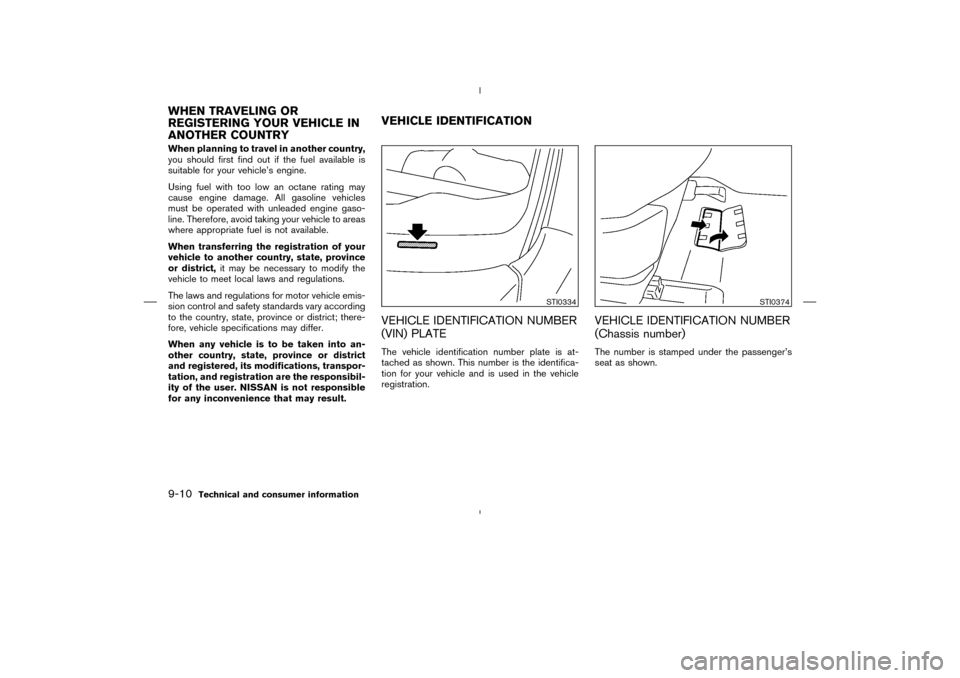

VEHICLE IDENTIFICATION NUMBER
(VIN) PLATEThe vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(Chassis number)The number is stamped under the passenger’s
seat as shown.
STI0334
STI0374
WHENTRAVELING OR
REGISTERING YOUR VEHICLE IN
ANOTHER COUNTRYVEHICLE IDENTIFICATION9-10
Technical and consumer information


04.4.5/Z50-D/V5.0

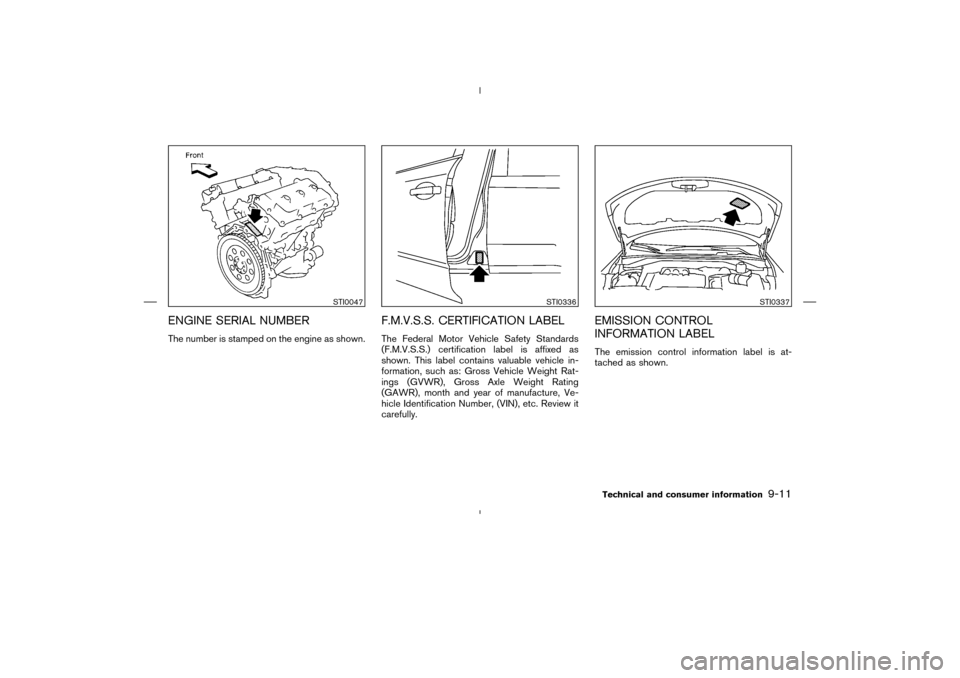

ENGINE SERIAL NUMBERThe number is stamped on the engine as shown.
F.M.V.S.S. CERTIFICATION LABELThe Federal Motor Vehicle Safety Standards
(F.M.V.S.S.) certification label is affixed as
shown. This label contains valuable vehicle in-
formation, such as: Gross Vehicle Weight Rat-
ings (GVWR), Gross Axle Weight Rating
(GAWR), month and year of manufacture, Ve-
hicle Identification Number, (VIN), etc. Review it
carefully.
EMISSION CONTROL
INFORMATION LABELThe emission control information label is at-
tached as shown.
STI0047
STI0336
STI0337
Technical and consumer information
9-11


04.4.5/Z50-D/V5.0

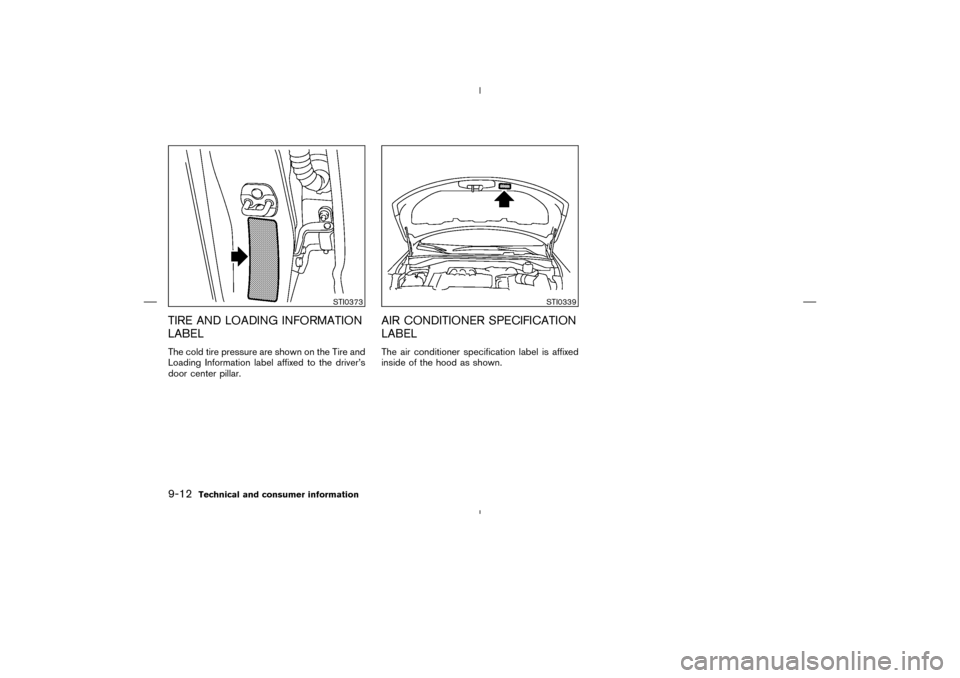

TIRE AND LOADING INFORMATION
LABELThe cold tire pressure are shown on the Tire and
Loading Information label affixed to the driver’s
door center pillar.
AIR CONDITIONER SPECIFICATION
LABELThe air conditioner specification label is affixed
inside of the hood as shown.
STI0373
STI0339
9-12
Technical and consumer information


04.4.5/Z50-D/V5.0

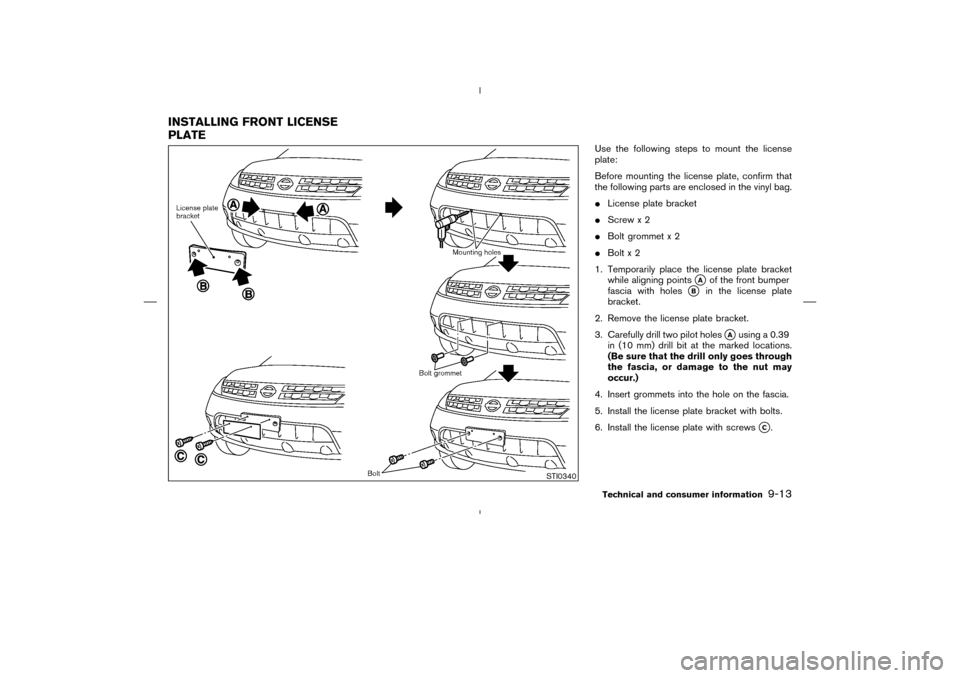

Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the vinyl bag.

License plate bracket

Screw x 2

Bolt grommet x 2

Bolt x 2
1. Temporarily place the license plate bracket
while aligning points
A
of the front bumper
fascia with holes
B
in the license plate
bracket.
2. Remove the license plate bracket.
3. Carefully drill two pilot holes
Ausing a 0.39
in (10 mm) drill bit at the marked locations.
(Be sure that the drill only goes through
the fascia, or damage to the nut may
occur.)
4. Insert grommets into the hole on the fascia.
5. Install the license plate bracket with bolts.
6. Install the license plate with screws
C.
STI0340
INSTALLING FRONT LICENSE
PLATE
Technical and consumer information
9-13


04.4.5/Z50-D/V5.0
