NISSAN MURANO 2009 Owner´s Manual

Black plate (269,1)
Model "Z51-D" EDITED: 2007/ 10/ 2

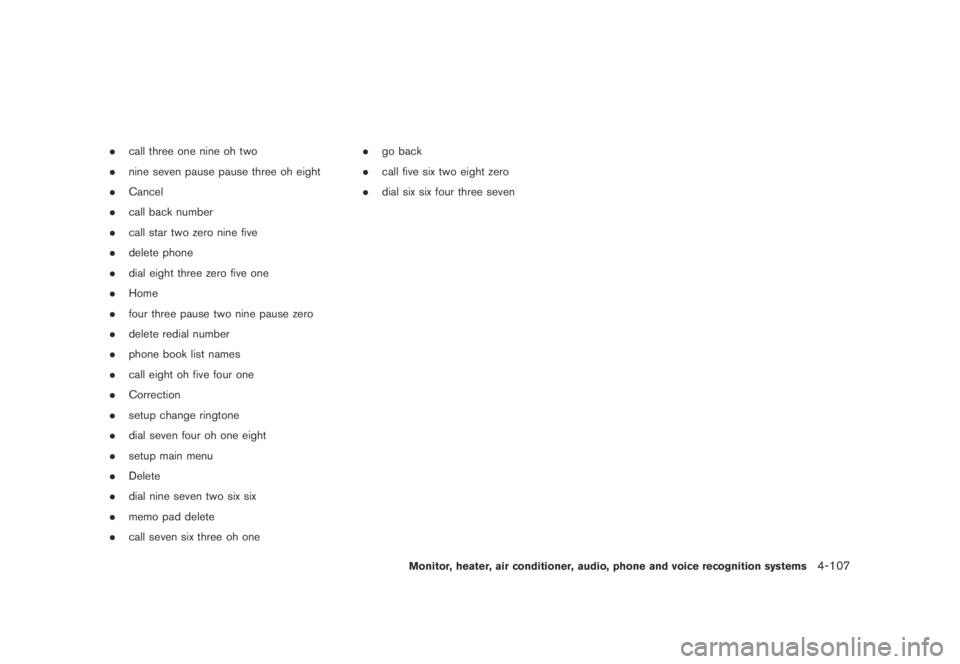

.call three one nine oh two
.nine seven pause pause three oh eight
.Cancel
.call back number
.call star two zero nine five
.delete phone
.dial eight three zero five one
.Home
.four three pause two nine pause zero
.delete redial number
.phone book list names
.call eight oh five four one
.Correction
.setup change ringtone
.dial seven four oh one eight
.setup main menu
.Delete
.dial nine seven two six six
.memo pad delete
.call seven six three oh one.go back
.call five six two eight zero
.dial six six four three seven
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-107

Black plate (270,1)
Model "Z51-D" EDITED: 2007/ 10/ 2

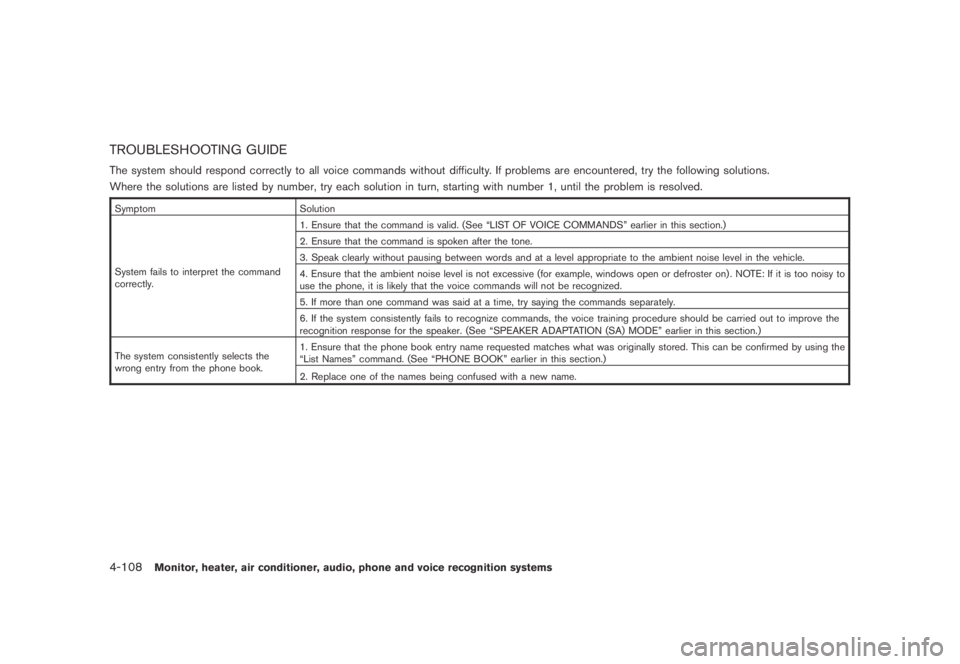

TROUBLESHOOTING GUIDE
The system should respond correctly to all voice commands without difficulty. If problems are encountered, try the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is resolved.
Symptom Solution
System fails to interpret the command
correctly.1. Ensure that the command is valid. (See “LIST OF VOICE COMMANDS” earlier in this section.)
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on) . NOTE: If it is too noisy to
use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
6. If the system consistently fails to recognize commands, the voice training procedure should be carried out to improve the
recognition response for the speaker. (See “SPEAKER ADAPTATION (SA) MODE” earlier in this section.)
The system consistently selects the
wrong entry from the phone book.1. Ensure that the phone book entry name requested matches what was originally stored. This can be confirmed by using the
“List Names” command. (See “PHONE BOOK” earlier in this section.)
2. Replace one of the names being confused with a new name.
4-108Monitor, heater, air conditioner, audio, phone and voice recognition systems

Black plate (271,1)
Model "Z51-D" EDITED: 2007/ 10/ 2

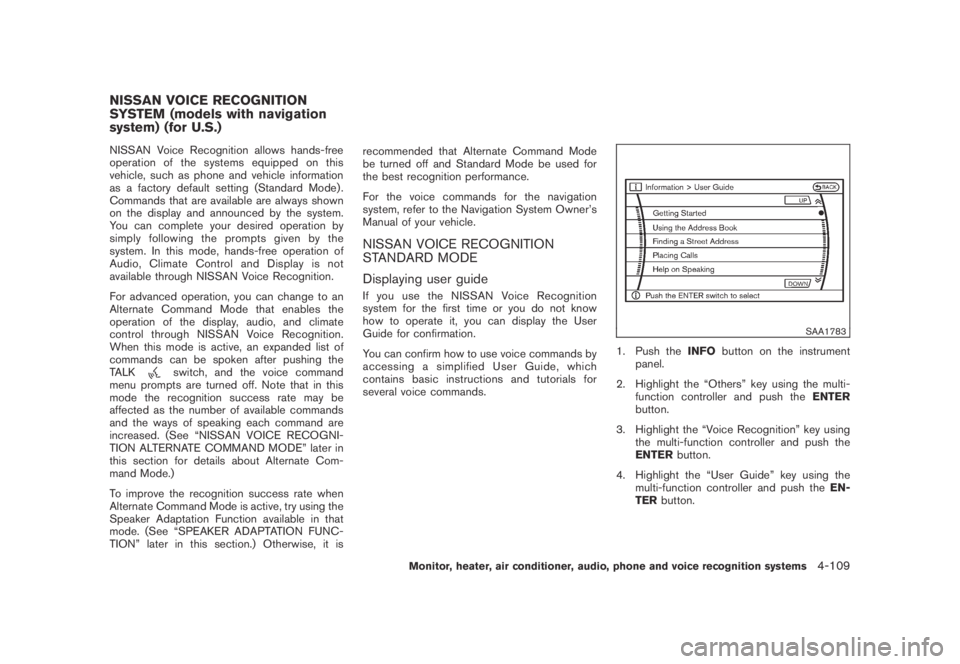

NISSAN Voice Recognition allows hands-free
operation of the systems equipped on this
vehicle, such as phone and vehicle information
as a factory default setting (Standard Mode) .
Commands that are available are always shown
on the display and announced by the system.
You can complete your desired operation by
simply following the prompts given by the
system. In this mode, hands-free operation of
Audio, Climate Control and Display is not
available through NISSAN Voice Recognition.
For advanced operation, you can change to an
Alternate Command Mode that enables the
operation of the display, audio, and climate
control through NISSAN Voice Recognition.
When this mode is active, an expanded list of
commands can be spoken after pushing the
TALK
switch, and the voice command
menu prompts are turned off. Note that in this
mode the recognition success rate may be
affected as the number of available commands
and the ways of speaking each command are
increased. (See “NISSAN VOICE RECOGNI-
TION ALTERNATE COMMAND MODE” later in
this section for details about Alternate Com-
mand Mode.)
To improve the recognition success rate when
Alternate Command Mode is active, try using the
Speaker Adaptation Function available in that
mode. (See “SPEAKER ADAPTATION FUNC-
TION” later in this section.) Otherwise, it isrecommended that Alternate Command Mode
be turned off and Standard Mode be used for
the best recognition performance.
For the voice commands for the navigation
system, refer to the Navigation System Owner’s
Manual of your vehicle.
NISSAN VOICE RECOGNITION
STANDARD MODE
Displaying user guide
IfyouusetheNISSANVoiceRecognition
system for the first time or you do not know
how to operate it, you can display the User
Guide for confirmation.
You can confirm how to use voice commands by
accessing a simplified User Guide, which
contains basic instructions and tutorials for
several voice commands.
SAA1783
1. Push theINFObutton on the instrument
panel.
2. Highlight the “Others” key using the multi-
function controller and push theENTER
button.
3. Highlight the “Voice Recognition” key using
the multi-function controller and push the
ENTERbutton.
4. Highlight the “User Guide” key using the
multi-function controller and push theEN-
TERbutton.
NISSAN VOICE RECOGNITION
SYSTEM (models with navigation
system) (for U.S.)
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-109

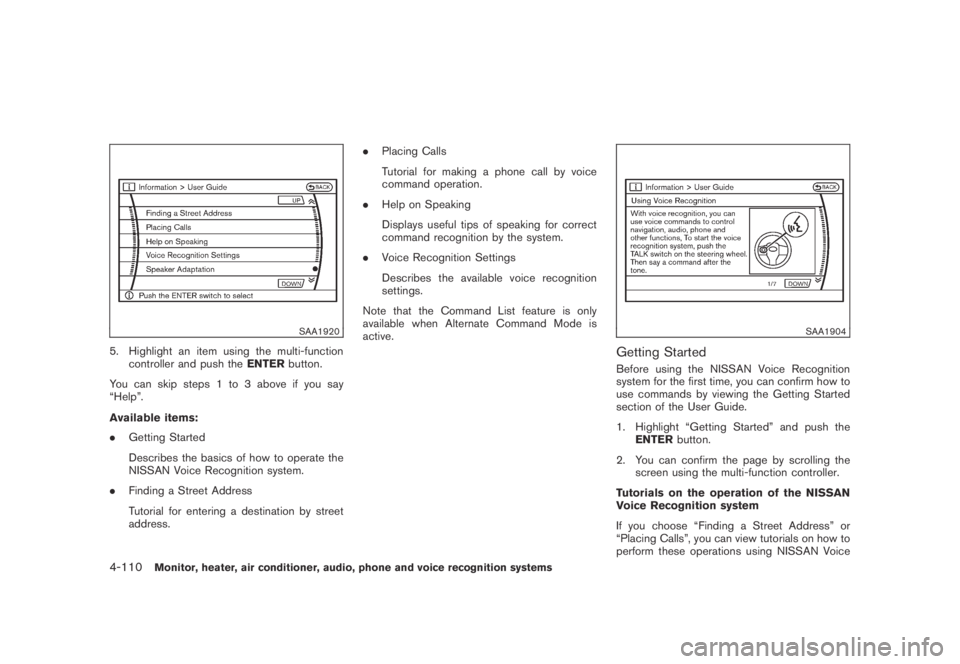

Black plate (272,1)
Model "Z51-D" EDITED: 2007/ 10/ 2
SAA1920
5. Highlight an item using the multi-function
controller and push theENTERbutton.
You can skip steps 1 to 3 above if you say
“Help”.
Available items:
.Getting Started
Describes the basics of how to operate the
NISSAN Voice Recognition system.
.Finding a Street Address
Tutorial for entering a destination by street
address..Placing Calls
Tutorial for making a phone call by voice
command operation.
.Help on Speaking
Displays useful tips of speaking for correct
command recognition by the system.
.Voice Recognition Settings
Describes the available voice recognition
settings.
Note that the Command List feature is only
available when Alternate Command Mode is
active.
SAA1904
Getting Started
Before using the NISSAN Voice Recognition
system for the first time, you can confirm how to
use commands by viewing the Getting Started
section of the User Guide.
1. Highlight “Getting Started” and push the
ENTERbutton.
2. You can confirm the page by scrolling the
screen using the multi-function controller.
Tutorials on the operation of the NISSAN
Voice Recognition system
If you choose “Finding a Street Address” or
“Placing Calls”, you can view tutorials on how to
perform these operations using NISSAN Voice
4-110Monitor, heater, air conditioner, audio, phone and voice recognition systems

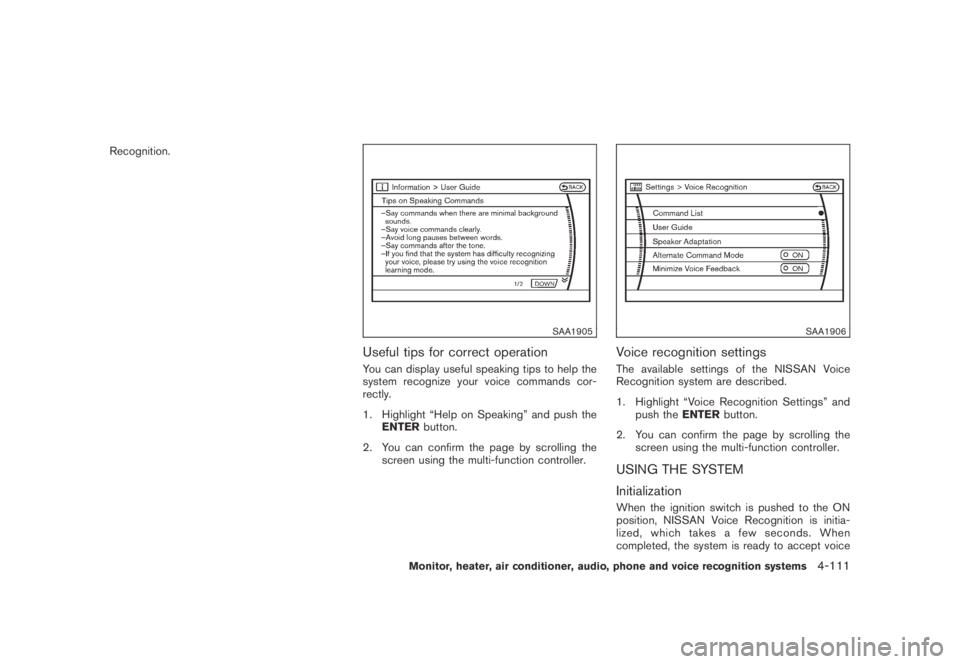

Black plate (273,1)
Model "Z51-D" EDITED: 2007/ 10/ 2
Recognition.
SAA1905
Useful tips for correct operation
You can display useful speaking tips to help the
system recognize your voice commands cor-
rectly.
1. Highlight “Help on Speaking” and push the
ENTERbutton.
2. You can confirm the page by scrolling the
screen using the multi-function controller.
SAA1906
Voice recognition settings
The available settings of the NISSAN Voice
Recognition system are described.
1. Highlight “Voice Recognition Settings” and
push theENTERbutton.
2. You can confirm the page by scrolling the
screen using the multi-function controller.
USING THE SYSTEM
Initialization
When the ignition switch is pushed to the ON
position, NISSAN Voice Recognition is initia-
lized, which takes a few seconds. When
completed, the system is ready to accept voice

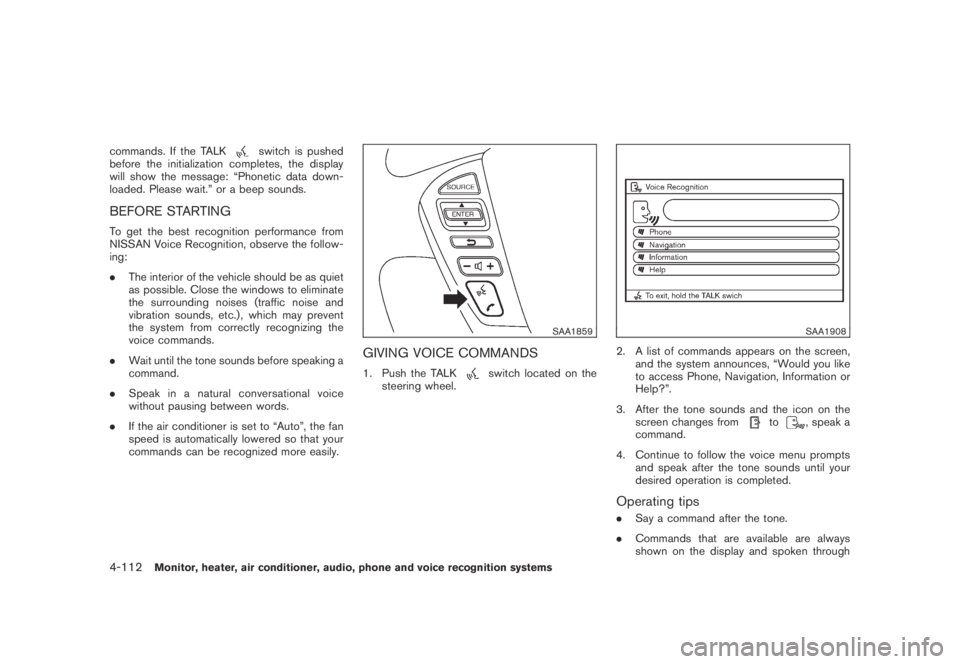

Monitor, heater, air conditioner, audio, phone and voice recognition systems4-111

Black plate (274,1)
Model "Z51-D" EDITED: 2007/ 10/ 2
commands. If the TALKswitch is pushed
before the initialization completes, the display
will show the message: “Phonetic data down-
loaded. Please wait.” or a beep sounds.
BEFORE STARTING
To get the best recognition performance from
NISSAN Voice Recognition, observe the follow-
ing:
.The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and
vibration sounds, etc.) , which may prevent
the system from correctly recognizing the
voice commands.
.Wait until the tone sounds before speaking a
command.
.Speak in a natural conversational voice
without pausing between words.
.If the air conditioner is set to “Auto”, the fan
speed is automatically lowered so that your
commands can be recognized more easily.
SAA1859
GIVING VOICE COMMANDS
1. Push the TALKswitch located on the
steering wheel.
SAA1908
2. A list of commands appears on the screen,
and the system announces, “Would you like
to access Phone, Navigation, Information or
Help?”.
3. After the tone sounds and the icon on the
screen changes from
to, speak a
command.
4. Continue to follow the voice menu prompts
and speak after the tone sounds until your
desired operation is completed.
Operating tips
.Say a command after the tone.
.Commands that are available are always
shown on the display and spoken through
4-112Monitor, heater, air conditioner, audio, phone and voice recognition systems

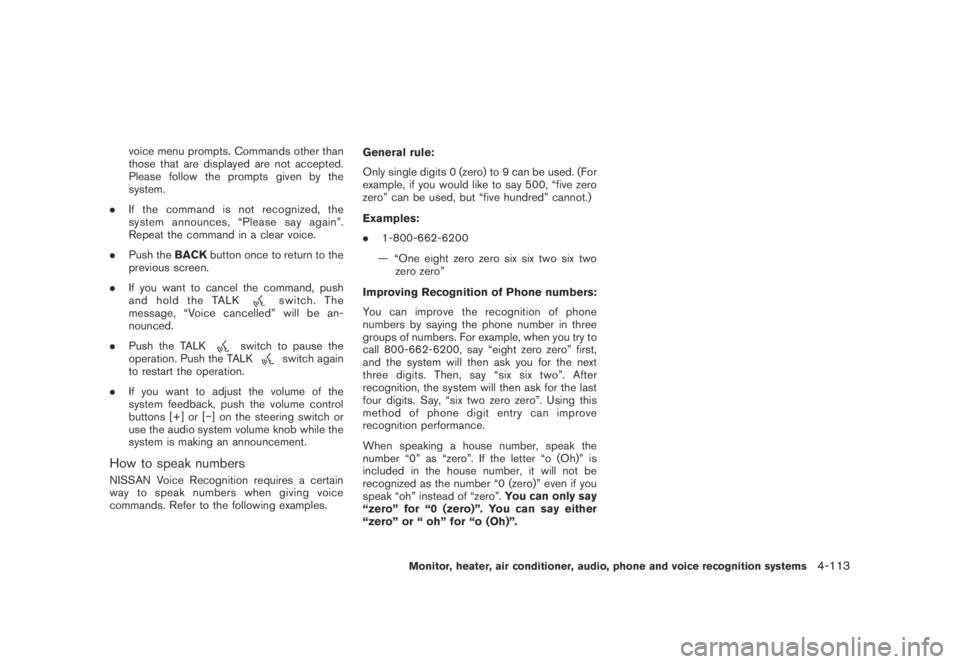

Black plate (275,1)
Model "Z51-D" EDITED: 2007/ 10/ 2
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system.
.If the command is not recognized, the
system announces, “Please say again”.
Repeat the command in a clear voice.
.Push theBACKbutton once to return to the
previous screen.
.If you want to cancel the command, push
and hold the TALK
switch. The
message, “Voice cancelled” will be an-
nounced.
.Push the TALK
switch to pause the
operation. Push the TALKswitch again
to restart the operation.
.If you want to adjust the volume of the
system feedback, push the volume control
buttons [+] or [−] on the steering switch or
use the audio system volume knob while the
system is making an announcement.
How to speak numbers
NISSAN Voice Recognition requires a certain
way to speak numbers when giving voice
commands. Refer to the following examples.General rule:
Only single digits 0 (zero) to 9 can be used. (For
example, if you would like to say 500, “five zero
zero” can be used, but “five hundred” cannot.)
Examples:
.1-800-662-6200
— “One eight zero zero six six two six two
zero zero”
Improving Recognition of Phone numbers:
You can improve the recognition of phone
numbers by saying the phone number in three
groups of numbers. For example, when you try to
call 800-662-6200, say “eight zero zero” first,
and the system will then ask you for the next
three digits. Then, say “six six two”. After
recognition, the system will then ask for the last
four digits. Say, “six two zero zero”. Using this
method of phone digit entry can improve
recognition performance.
When speaking a house number, speak the
number “0” as “zero”. If the letter “o (Oh)” is
included in the house number, it will not be
recognized as the number “0 (zero)” even if you
speak “oh” instead of “zero”.You can only say
“zero” for “0 (zero)”. You can say either
“zero” or “ oh” for “o (Oh)”.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-113

Black plate (276,1)
Model "Z51-D" EDITED: 2007/ 10/ 2

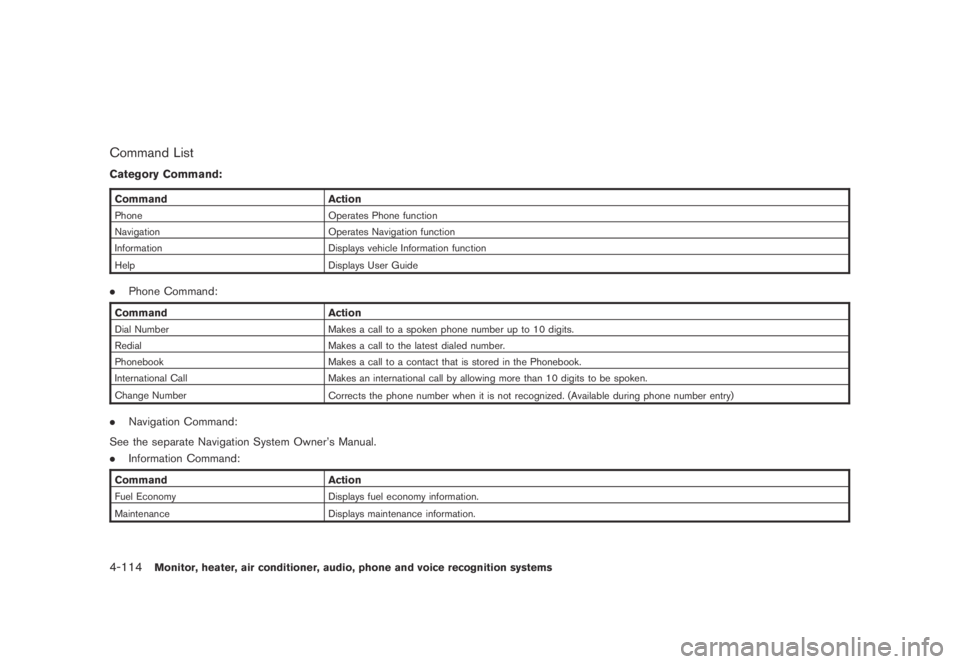

Command List
Category Command:
Command Action
Phone Operates Phone function
Navigation Operates Navigation function
Information Displays vehicle Information function
Help
Displays User Guide
.Phone Command:
Command Action
Dial Number Makes a call to a spoken phone number up to 10 digits.
Redial Makes a call to the latest dialed number.
Phonebook Makes a call to a contact that is stored in the Phonebook.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Change Number
Corrects the phone number when it is not recognized. (Available during phone number entry)
.Navigation Command:
See the separate Navigation System Owner’s Manual.
.Information Command:
Command Action
Fuel Economy Displays fuel economy information.
Maintenance
Displays maintenance information.
4-114Monitor, heater, air conditioner, audio, phone and voice recognition systems

Black plate (277,1)
Model "Z51-D" EDITED: 2007/ 10/ 2

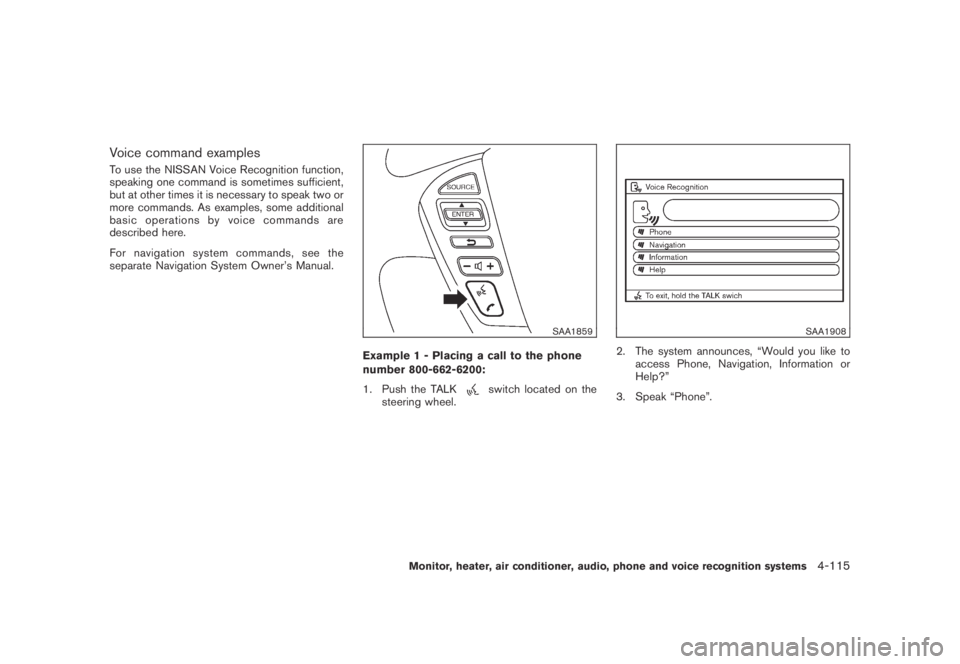

Voice command examples
To use the NISSAN Voice Recognition function,
speaking one command is sometimes sufficient,
but at other times it is necessary to speak two or
more commands. As examples, some additional
basic operations by voice commands are
described here.
For navigation system commands, see the
separate Navigation System Owner’s Manual.
SAA1859
Example 1 - Placing a call to the phone
number 800-662-6200:
1. Push the TALK
switch located on the
steering wheel.
SAA1908
2. The system announces, “Would you like to
access Phone, Navigation, Information or
Help?”
3. Speak “Phone”.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-115

Black plate (278,1)
Model "Z51-D" EDITED: 2007/ 10/ 2
SAA1909

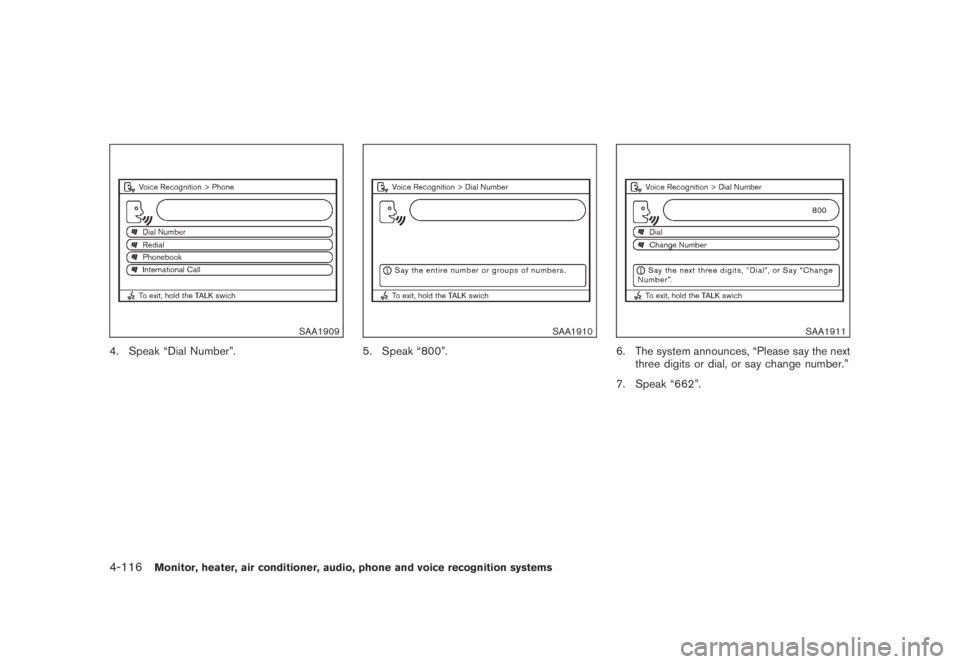

4. Speak “Dial Number”.
SAA1910
5. Speak “800”.
SAA1911
6. The system announces, “Please say the next
three digits or dial, or say change number.”
7. Speak “662”.
4-116Monitor, heater, air conditioner, audio, phone and voice recognition systems
