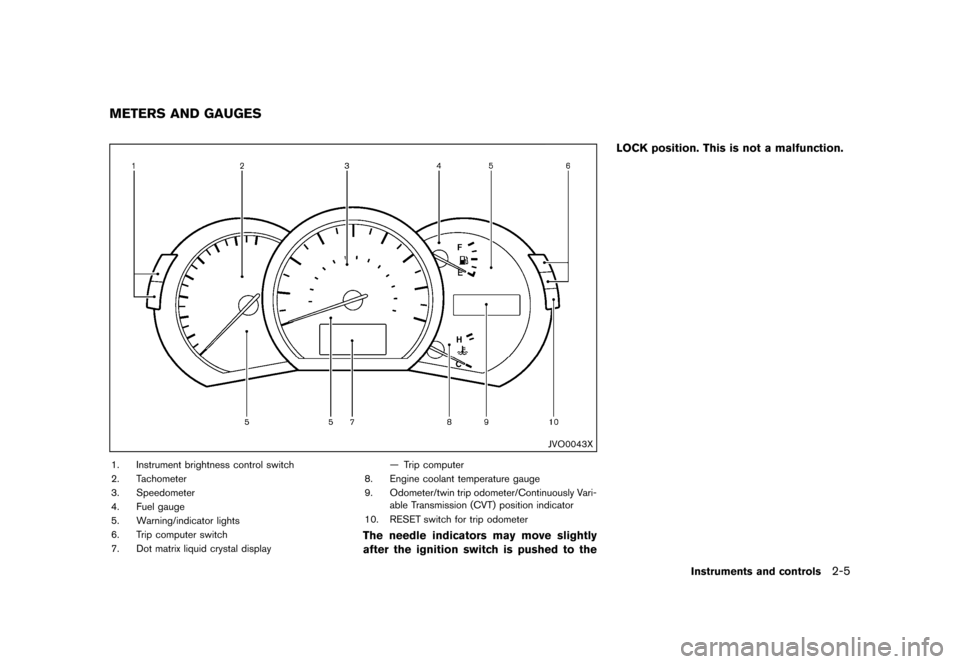

1. Instrument brightness control switch
2. Tachometer
3. Speedometer
4. Fuel gauge
5. Warning/indicator lights
6. Trip computer switch
7. Dot matrix liquid crystal display— Trip computer
8. Engine coolant temperature gauge
9. Odometer/twin trip odometer/Continuously Vari- able Transmission (CVT) position indicator
10. RESET switch for trip odometer
The needle indicators may move slightly
after the ignition switch is pushed to the LOCK position. This is not a malfunction.
Instruments and controls2-5
METERS AND GAUGES
Condition:
Page 92 of 507
Black plate (90,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-6Instruments and controls
JVI0252X

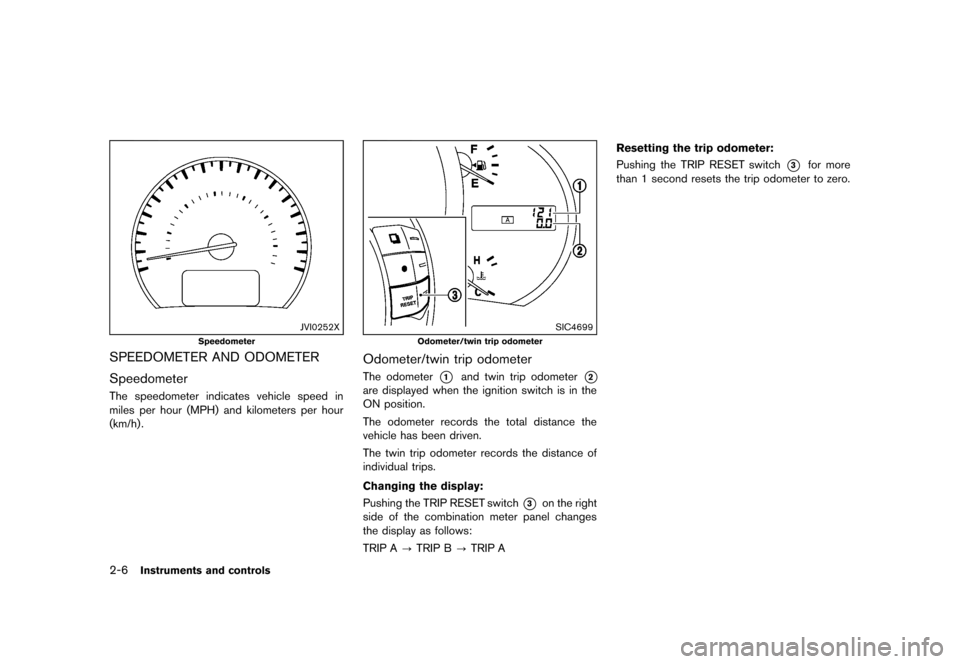

Speedometer
SPEEDOMETER AND ODOMETERGUID-A5312850-B162-4691-B245-BFE52CFF92CD
SpeedometerGUID-6D108D90-F044-4A12-A5A1-80A313264F81The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h) .
SIC4699
Odometer/twin trip odometer
Odometer/twin trip odometerGUID-8971DF72-32A1-467A-9B68-200871A5DCCCThe odometer*1and twin trip odometer*2
are displayed when the ignition switch is in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP RESET switch*3on the right
side of the combination meter panel changes
the display as follows:
TRIP A ?TRIP B ?TRIP A Resetting the trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP RESET switch*3for more
than 1 second resets the trip odometer to zero.
Condition:
Page 93 of 507
Black plate (91,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
JVI0253X

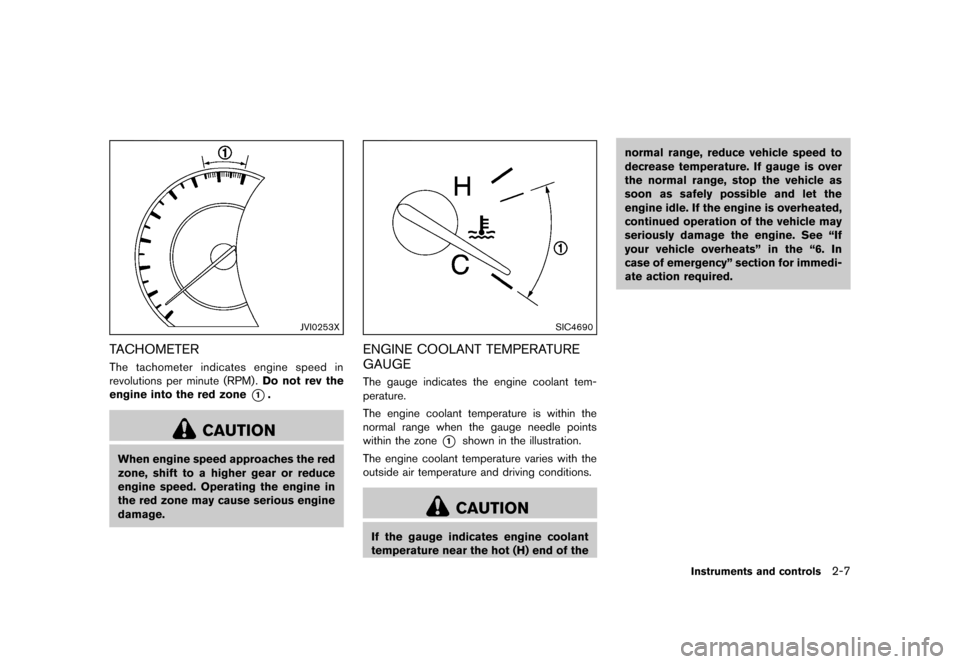

TACHOMETERGUID-D6E06D01-68FC-46F3-83E0-465A7D80EEAAThe tachometer indicates engine speed in
revolutions per minute (RPM) .Do not rev the
engine into the red zone
*1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
SIC4690
ENGINE COOLANT TEMPERATURE
GAUGE
GUID-5D79A6DB-7B0E-48CD-B3D5-38EB0D89F9F4The gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is within the
normal range when the gauge needle points
within the zone
*1shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant
temperature near the hot (H) end of the normal range, reduce vehicle speed to
decrease temperature. If gauge is over
the normal range, stop the vehicle as
soon as safely possible and let the
engine idle. If the engine is overheated,
continued operation of the vehicle may
seriously damage the engine. See “If
your vehicle overheats” in the “6. In
case of emergency” section for immedi-
ate action required.
Instruments and controls2-7
Condition:
Page 94 of 507
Black plate (92,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-8Instruments and controls
JVI0338X

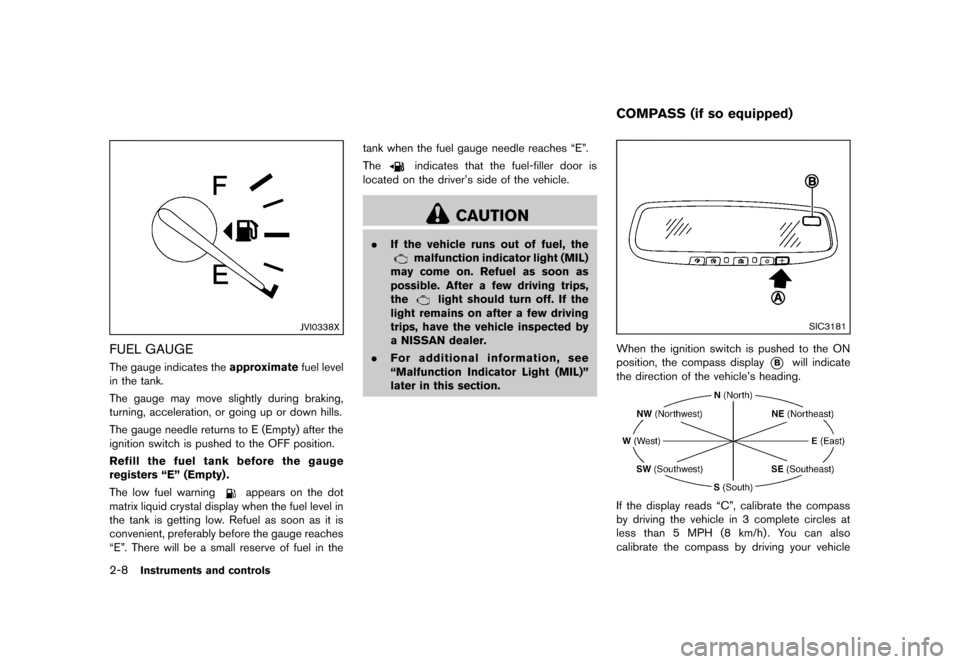

FUEL GAUGEGUID-7C88D297-60D4-4310-84BB-E1EC1735E409The gauge indicates theapproximatefuel level
in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The gauge needle returns to E (Empty) after the
ignition switch is pushed to the OFF position.
Refill the fuel tank before the gauge
registers “E” (Empty) .
The low fuel warning
appears on the dot
matrix liquid crystal display when the fuel level in
the tank is getting low. Refuel as soon as it is
convenient, preferably before the gauge reaches
“E”. There will be a small reserve of fuel in the tank when the fuel gauge needle reaches “E”.
The
indicates that the fuel-filler door is
located on the driver’s side of the vehicle.
CAUTION
. If the vehicle runs out of fuel, the
malfunction indicator light (MIL)
may come on. Refuel as soon as
possible. After a few driving trips,
the
light should turn off. If the
light remains on after a few driving
trips, have the vehicle inspected by
a NISSAN dealer.
. For additional information, see
“Malfunction Indicator Light (MIL)”
later in this section.
GUID-56AB49A5-E009-4FD9-864E-78F14A1329E1
SIC3181
When the ignition switch is pushed to the ON
position, the compass display
*Bwill indicate
the direction of the vehicle’s heading.
NOS1741
If the display reads “C”, calibrate the compass
by driving the vehicle in 3 complete circles at
less than 5 MPH (8 km/h). You can also
calibrate the compass by driving your vehicle
COMPASS (if so equipped)
Condition:
Page 95 of 507
Black plate (93,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
on your everyday route. The compass will be
calibrated once it has tracked 3 complete
circles.
To turn on and off the compass manually, push
the
switch*Awhile the ignition switch is in
the ON position.
SIC0611B

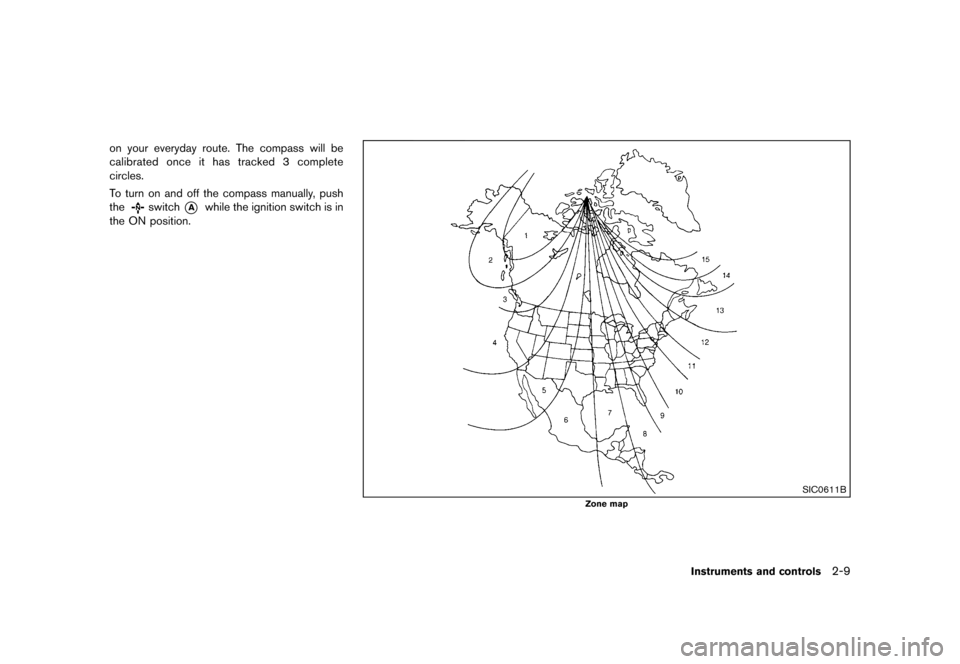

Zone map
Instruments and controls2-9
Condition:
Page 96 of 507
Black plate (94,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-10Instruments and controls

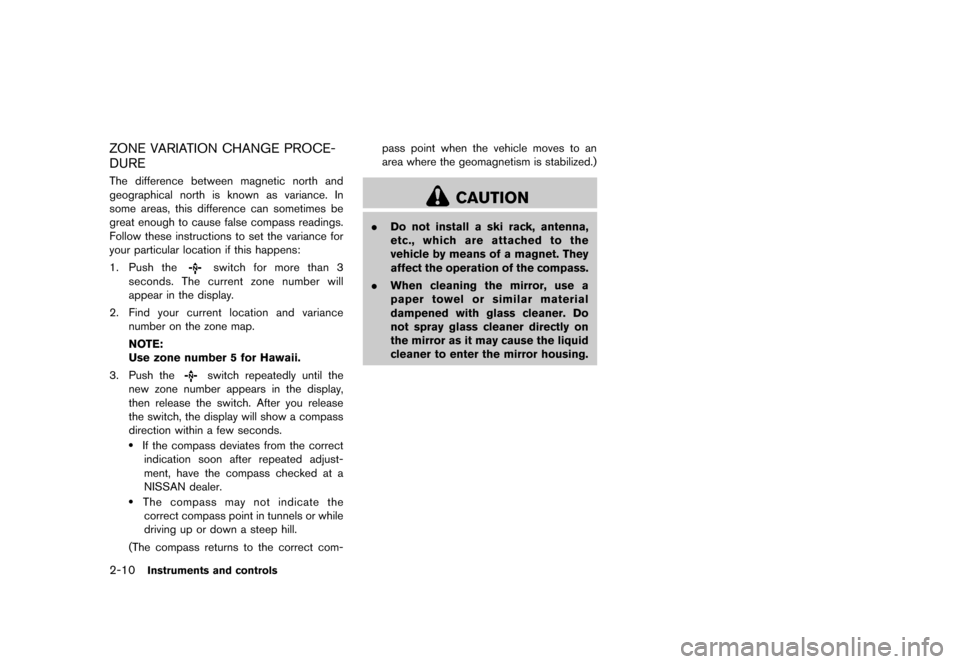

ZONE VARIATION CHANGE PROCE-
DURE
GUID-0E831674-32EA-49CF-AB30-0F9EEEB78E33The difference between magnetic north and
geographical north is known as variance. In
some areas, this difference can sometimes be
great enough to cause false compass readings.
Follow these instructions to set the variance for
your particular location if this happens:
1.Push the
switch for more than 3
seconds. The current zone number will
appear in the display.
2. Find your current location and variance
number on the zone map.
NOTE:
Use zone number 5 for Hawaii.
3. Push the
switch repeatedly until the
new zone number appears in the display,
then release the switch. After you release
the switch, the display will show a compass
direction within a few seconds.
.If the compass deviates from the correct indication soon after repeated adjust-
ment, have the compass checked at a
NISSAN dealer.
.The compass may not indicate thecorrect compass point in tunnels or while
driving up or down a steep hill.
(The compass returns to the correct com- pass point when the vehicle moves to an
area where the geomagnetism is stabilized.)
CAUTION
.
Do not install a ski rack, antenna,
etc., which are attached to the
vehicle by means of a magnet. They
affect the operation of the compass.
. When cleaning the mirror, use a
paper towel or similar material
dampened with glass cleaner. Do
not spray glass cleaner directly on
the mirror as it may cause the liquid
cleaner to enter the mirror housing.
Condition:
Page 97 of 507
Black plate (95,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-6AC4475F-D514-4474-861E-A33DFE4DFCFD
All-Wheel Drive (AWD) warning light (AWD
models)*Low tire pressure warning lightExterior light indicator
Anti-lock Braking System (ABS) warning
lightMaster warning lightFront passenger air bag status light
Seat belt warning lightHigh beam indicator light
Blind Spot Warning (BSW) light (orange)*Supplemental air bag warning lightLane Departure Warning (LDW) light
(green)*
Brake warning lightVehicle Dynamic Control (VDC) warning
lightMalfunction Indicator Light (MIL)
Charge warning lightAll-Wheel Drive (AWD) LOCK indicator light
(AWD models)Overdrive off indicator light
Engine oil pressure warning lightBlind Spot Warning (BSW) light (green)*Soft top indicator light (CrossCabriolet
models)
Intelligent Key warning lightContinuously Variable Transmission (CVT)
position indicator lightTurn signal/hazard indicator lights
Lane Departure Warning (LDW) light (or-
ange)*Cruise indicator lightVehicle Dynamic Control (VDC) off indicator
light
Instruments and controls2-11

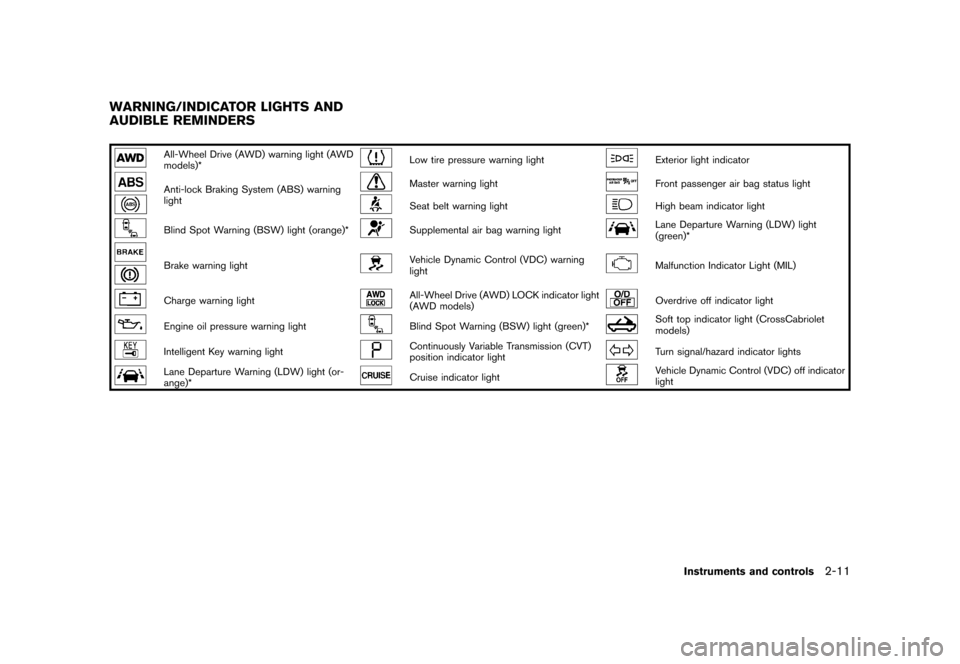

WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Condition:
Page 98 of 507
Black plate (96,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-12Instruments and controls

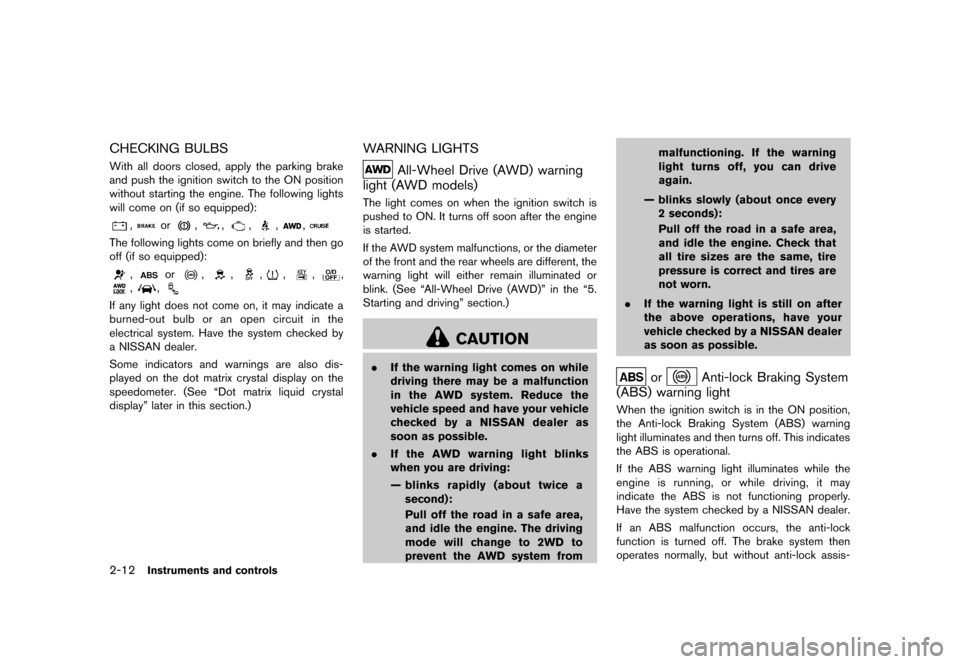

CHECKING BULBSGUID-B5546604-D327-4511-B24A-C4F4615F5F1FWith all doors closed, apply the parking brake
and push the ignition switch to the ON position
without starting the engine. The following lights
will come on (if so equipped):
,or,,,,,
The following lights come on briefly and then go
off (if so equipped):
,or,,,,,,
,,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the
electrical system. Have the system checked by
a NISSAN dealer.
Some indicators and warnings are also dis-
played on the dot matrix crystal display on the
speedometer. (See “Dot matrix liquid crystal
display” later in this section.)
WARNING LIGHTSGUID-39AE13E8-806F-40A7-8C69-3AF4A1790761
All-Wheel Drive (AWD) warning
light (AWD models)
GUID-2C7F9D36-036A-4856-8580-AE4D2A3CACAAThe light comes on when the ignition switch is
pushed to ON. It turns off soon after the engine
is started.
If the AWD system malfunctions, or the diameter
of the front and the rear wheels are different, the
warning light will either remain illuminated or
blink. (See “All-Wheel Drive (AWD)” in the “5.
Starting and driving” section.)
CAUTION
. If the warning light comes on while
driving there may be a malfunction
in the AWD system. Reduce the
vehicle speed and have your vehicle
checked by a NISSAN dealer as
soon as possible.
. If the AWD warning light blinks
when you are driving:
— blinks rapidly (about twice a
second):
Pull off the road in a safe area,
and idle the engine. The driving
mode will change to 2WD to
prevent the AWD system from malfunctioning. If the warning
light turns off, you can drive
again.
— blinks slowly (about once every 2 seconds):
Pull off the road in a safe area,
and idle the engine. Check that
all tire sizes are the same, tire
pressure is correct and tires are
not worn.
. If the warning light is still on after
the above operations, have your
vehicle checked by a NISSAN dealer
as soon as possible.orAnti-lock Braking System
(ABS) warning light
GUID-06CAAC80-C465-4A21-9EB7-C024333BA100When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by a NISSAN dealer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
Condition:
Page 99 of 507
Black plate (97,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
tance. (See “Brake system” in the “5. Starting
and driving” section.)

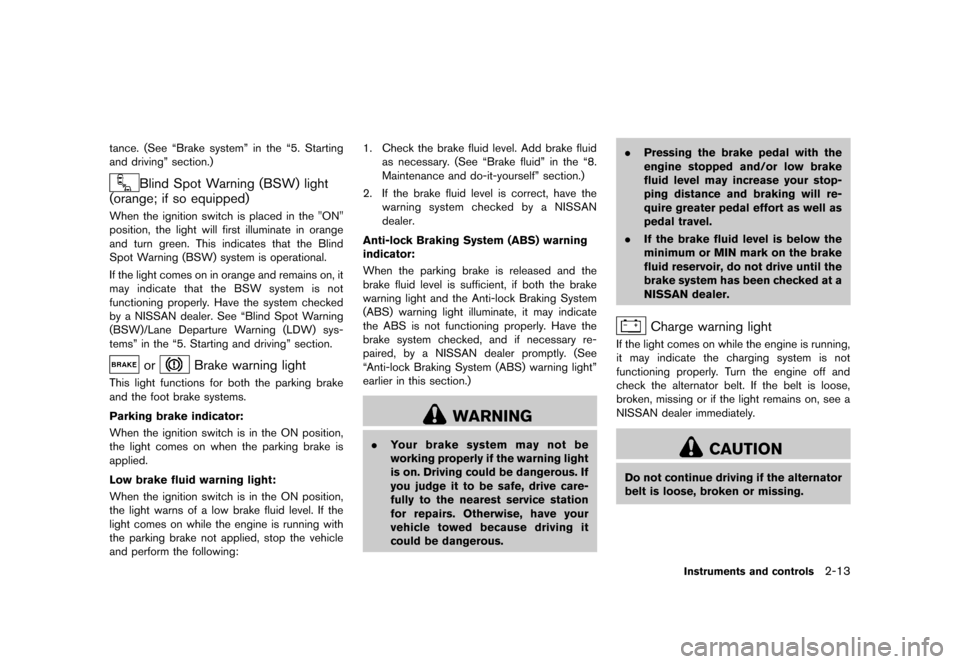

Blind Spot Warning (BSW) light
(orange; if so equipped)
GUID-B39C25AE-4ABA-4768-B972-D7A8500E4C34When the ignition switch is placed in the "ON"
position, the light will first illuminate in orange
and turn green. This indicates that the Blind
Spot Warning (BSW) system is operational.
If the light comes on in orange and remains on, it
may indicate that the BSW system is not
functioning properly. Have the system checked
by a NISSAN dealer. See “Blind Spot Warning
(BSW)/Lane Departure Warning (LDW) sys-
tems” in the “5. Starting and driving” section.
orBrake warning lightGUID-4A67DFC2-D59E-4197-BAD5-168A3CE40A7EThis light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following: 1. Check the brake fluid level. Add brake fluid
as necessary. (See “Brake fluid” in the “8.
Maintenance and do-it-yourself” section.)
2. If the brake fluid level is correct, have the warning system checked by a NISSAN
dealer.
Anti-lock Braking System (ABS) warning
indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
brake system checked, and if necessary re-
paired, by a NISSAN dealer promptly. (See
“Anti-lock Braking System (ABS) warning light”
earlier in this section.)
WARNING
. Your brake system may not be
working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous. .
Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.
Charge warning lightGUID-69B03338-0451-441C-B766-BECF7DE9BC90If the light comes on while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see a
NISSAN dealer immediately.
CAUTION
Do not continue driving if the alternator
belt is loose, broken or missing.
Instruments and controls2-13
Condition:
Page 100 of 507
Black plate (98,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

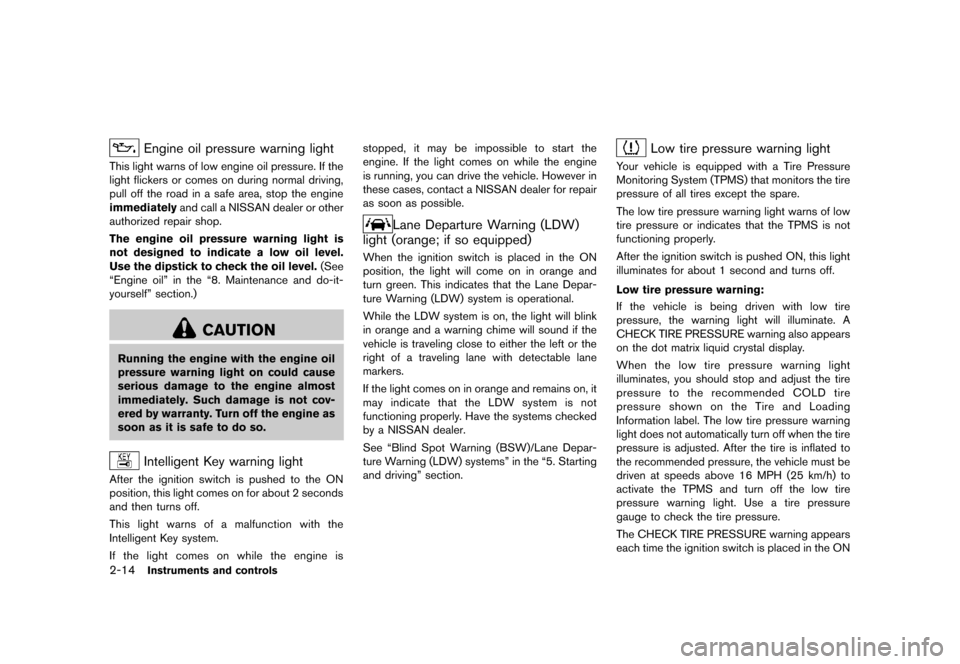

2-14Instruments and controls
Engine oil pressure warning lightGUID-0AE5784C-961F-4FC8-BFAF-77A224D6D347This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediatelyand call a NISSAN dealer or other
authorized repair shop.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. (See
“Engine oil” in the “8. Maintenance and do-it-
yourself” section.)
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by warranty. Turn off the engine as
soon as it is safe to do so.
Intelligent Key warning lightGUID-0700CAF3-DF55-4F0A-A342-324495D014C0After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.
This light warns of a malfunction with the
Intelligent Key system.
If the light comes on while the engine is stopped, it may be impossible to start the
engine. If the light comes on while the engine
is running, you can drive the vehicle. However in
these cases, contact a NISSAN dealer for repair
as soon as possible.
Lane Departure Warning (LDW)
light (orange; if so equipped)
GUID-81D318A7-8F3C-436E-BEFA-B4243024E948When the ignition switch is placed in the ON
position, the light will come on in orange and
turn green. This indicates that the Lane Depar-
ture Warning (LDW) system is operational.
While the LDW system is on, the light will blink
in orange and a warning chime will sound if the
vehicle is traveling close to either the left or the
right of a traveling lane with detectable lane
markers.
If the light comes on in orange and remains on, it
may indicate that the LDW system is not
functioning properly. Have the systems checked
by a NISSAN dealer.
See “Blind Spot Warning (BSW)/Lane Depar-
ture Warning (LDW) systems” in the “5. Starting
and driving” section.
Low tire pressure warning lightGUID-2FD87A32-C17B-42A1-B740-5A7539F98F4BYour vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is pushed ON, this light
illuminates for about 1 second and turns off.
Low tire pressure warning:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the vehicle is being driven with low tire
pressure, the warning light will illuminate. A
CHECK TIRE PRESSURE warning also appears
on the dot matrix liquid crystal display.
When the low tire pressure warning light
illuminates, you should stop and adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The low tire pressure warning
light does not automatically turn off when the tire
pressure is adjusted. After the tire is inflated to
the recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
The CHECK TIRE PRESSURE warning appears
each time the ignition switch is placed in the ON
Condition:
