NISSAN MURANO 2013 2.G Owners Manual

Black plate (129,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-6E6BB70A-A5D0-4C05-9E0F-176C7AC9D46F

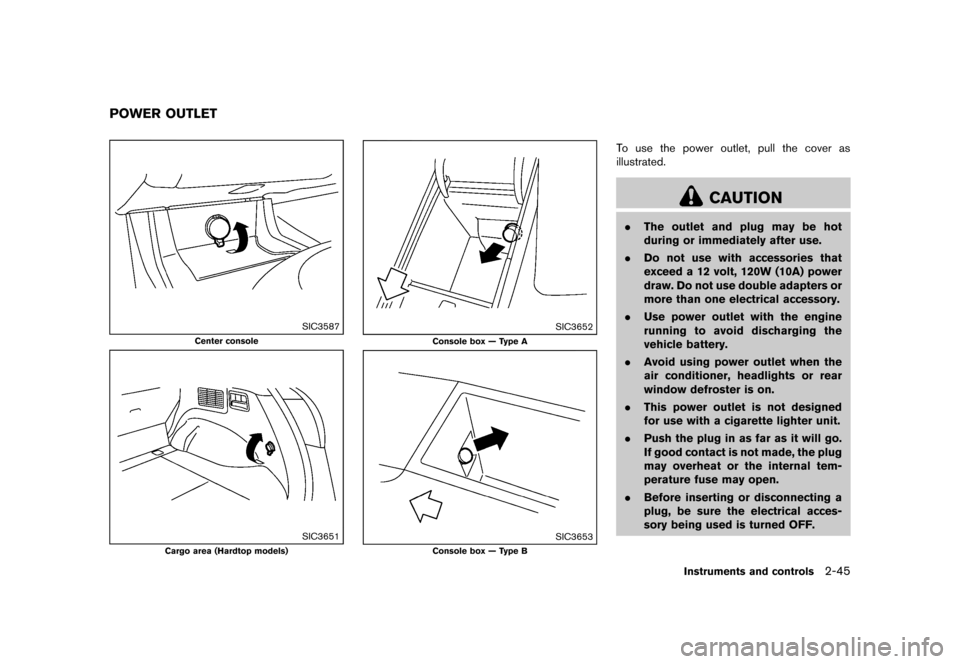

SIC3587
Center console
SIC3651
Cargo area (Hardtop models)
SIC3652
Console box — Type A
SIC3653
Console box — Type B
To use the power outlet, pull the cover as
illustrated.
CAUTION
.The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.
. Use power outlet with the engine
running to avoid discharging the
vehicle battery.
. Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
. This power outlet is not designed
for use with a cigarette lighter unit.
. Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
. Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF.
Instruments and controls2-45
POWER OUTLET
Condition:

Black plate (130,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-46Instruments and controls

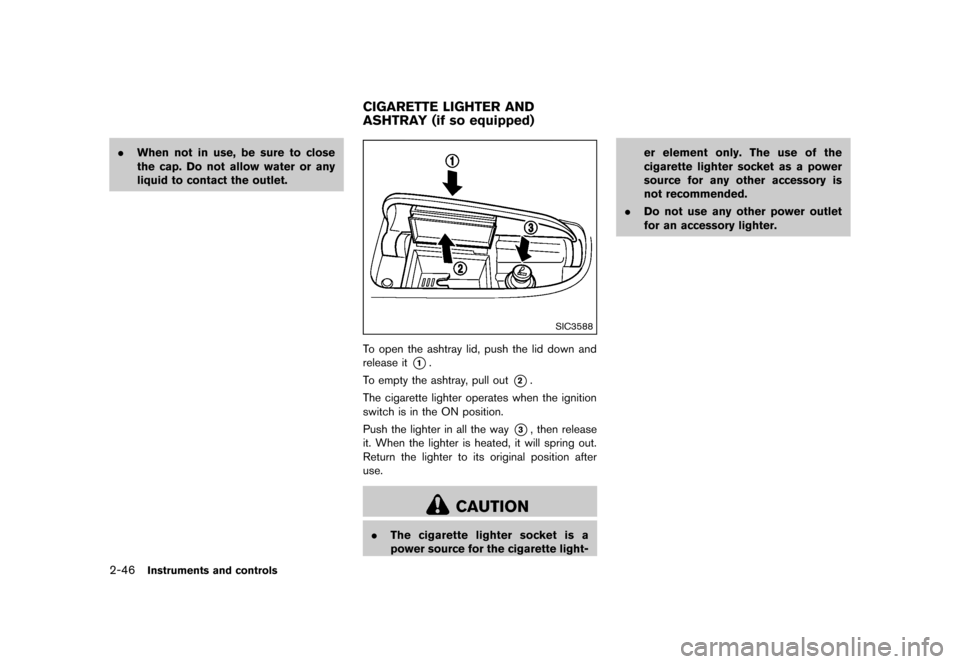

.When not in use, be sure to close
the cap. Do not allow water or any
liquid to contact the outlet.
GUID-4C7EBD79-5E6D-4E92-9577-71A7BEE6B260
SIC3588
To open the ashtray lid, push the lid down and
release it
*1.
To empty the ashtray, pull out
*2.
The cigarette lighter operates when the ignition
switch is in the ON position.
Push the lighter in all the way
*3, then release
it. When the lighter is heated, it will spring out.
Return the lighter to its original position after
use.
CAUTION
. The cigarette lighter socket is a
power source for the cigarette light- er element only. The use of the
cigarette lighter socket as a power
source for any other accessory is
not recommended.
. Do not use any other power outlet
for an accessory lighter.
CIGARETTE LIGHTER AND
ASHTRAY (if so equipped)
Condition:

Black plate (131,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-86E3CA2B-BC40-4857-A4C1-B3487E3BB786CUP HOLDERSGUID-4F3D35E7-AF46-473C-BC0C-F0EE7C53FAAC

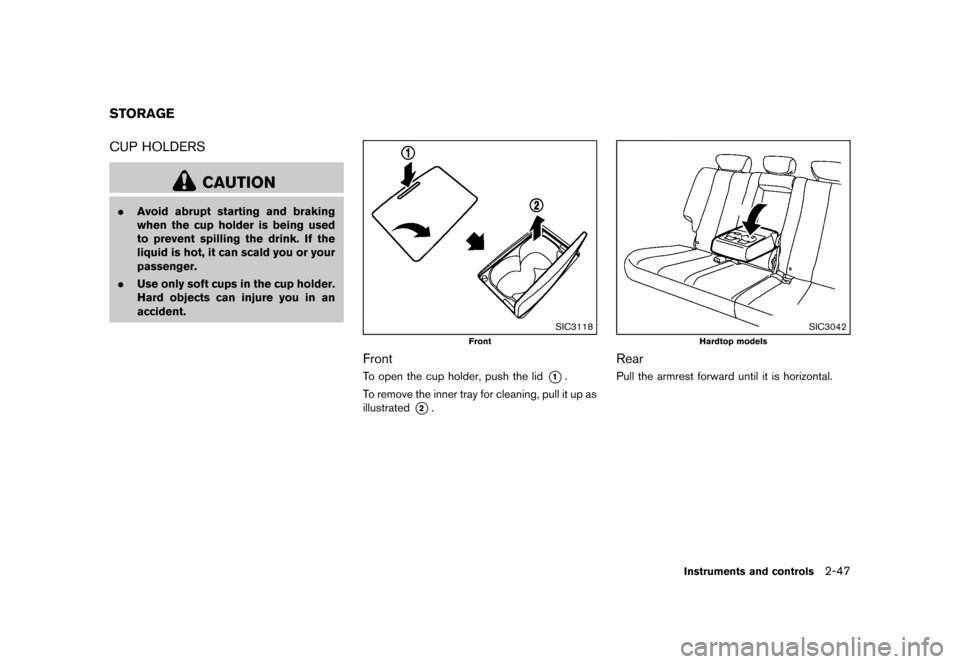

CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
SIC3118
Front
FrontGUID-B482EF25-AADD-4164-87B3-E8C8642A9631To open the cup holder, push the lid*1.
To remove the inner tray for cleaning, pull it up as
illustrated
*2.
SIC3042
Hardtop models
RearGUID-D403F1AF-3B46-4568-9E5A-F5957C8699C4Pull the armrest forward until it is horizontal.
Instruments and controls2-47
STORAGE
Condition:

Black plate (132,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-48Instruments and controls

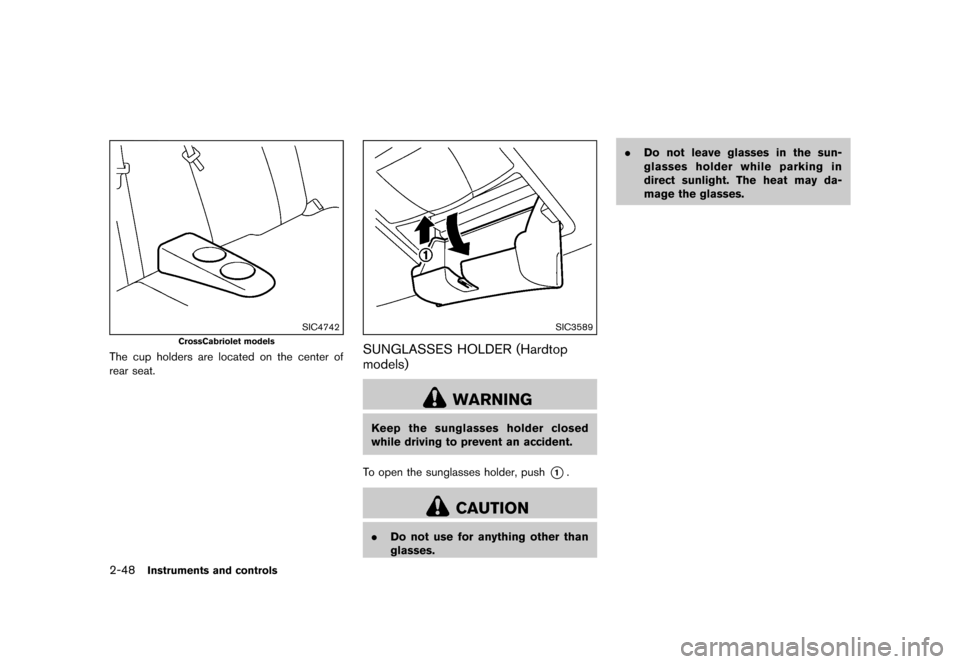

SIC4742
CrossCabriolet models
The cup holders are located on the center of
rear seat.
SIC3589
SUNGLASSES HOLDER (Hardtop
models)
GUID-53F668A0-3562-4634-B37B-CFE15C4C94BD
WARNING
Keep the sunglasses holder closed
while driving to prevent an accident.
To open the sunglasses holder, push
*1.
CAUTION
. Do not use for anything other than
glasses. .
Do not leave glasses in the sun-
glasses holder while parking in
direct sunlight. The heat may da-
mage the glasses.
Condition:

Black plate (133,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

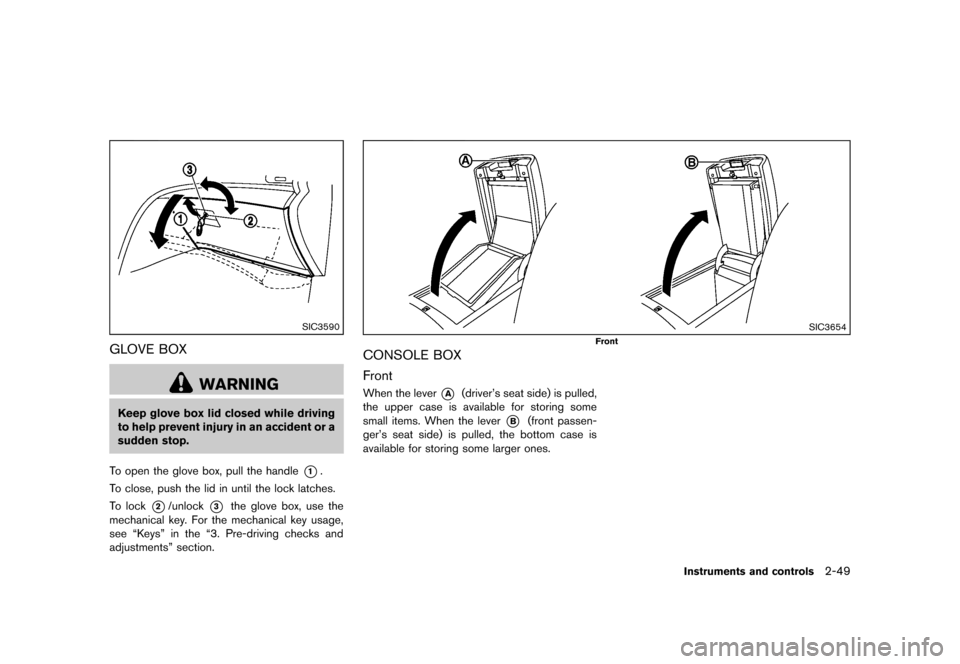

SIC3590
GLOVE BOXGUID-D5755917-EFBF-415E-AE59-B43411F701B6
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle
*1.
To close, push the lid in until the lock latches.
To lock
*2/unlock*3the glove box, use the
mechanical key. For the mechanical key usage,
see “Keys” in the “3. Pre-driving checks and
adjustments” section.
SIC3654
Front
CONSOLE BOXGUID-5C4739C0-4DF5-44A9-B5FD-FBFAAABBD011
FrontGUID-DD4ABB5A-EB54-4D5E-B3ED-627D92BFD082When the lever*A(driver’s seat side) is pulled,
the upper case is available for storing some
small items. When the lever
*B(front passen-
ger’s seat side) is pulled, the bottom case is
available for storing some larger ones.
Instruments and controls2-49
Condition:

Black plate (134,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-50Instruments and controls

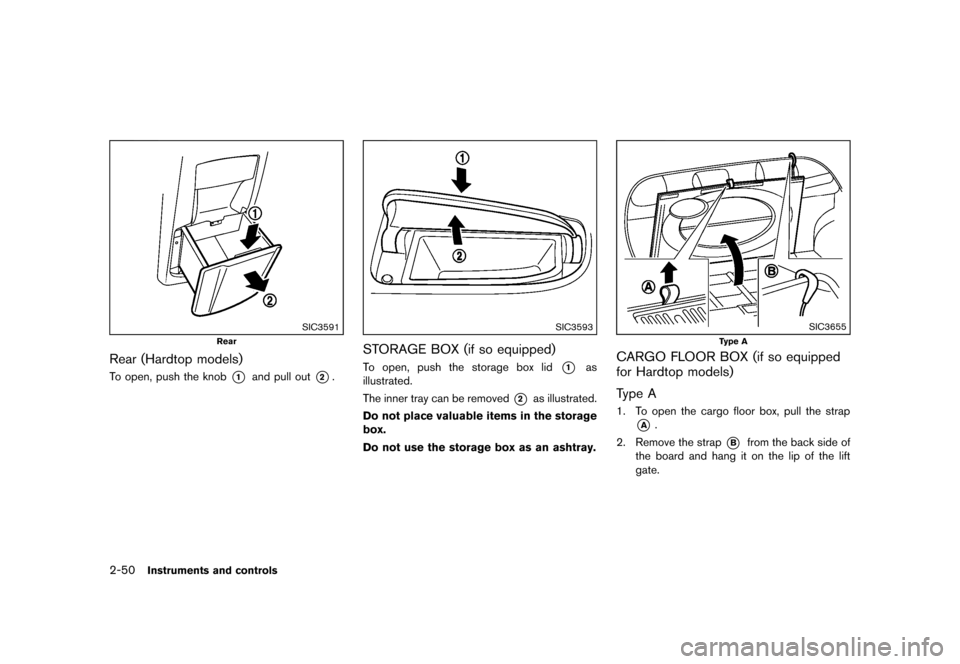

SIC3591
Rear
Rear (Hardtop models)GUID-92205B1E-0645-4A20-A11C-FD29D6989A28To open, push the knob*1and pull out*2.
SIC3593
STORAGE BOX (if so equipped)GUID-A2B41DF3-66C9-4356-B69B-5EF4B1E23F3BTo open, push the storage box lid*1as
illustrated.
The inner tray can be removed
*2as illustrated.
Do not place valuable items in the storage
box.
Do not use the storage box as an ashtray.
SIC3655
Type A
CARGO FLOOR BOX (if so equipped
for Hardtop models)
GUID-22855E8F-5045-4BAA-A462-88723F2D13B2
Type AGUID-D8151D1B-506A-40B8-A864-5F630B4E8E0B1. To open the cargo floor box, pull the strap
*A.
2. Remove the strap
*Bfrom the back side of
the board and hang it on the lip of the lift
gate.
Condition:

Black plate (135,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

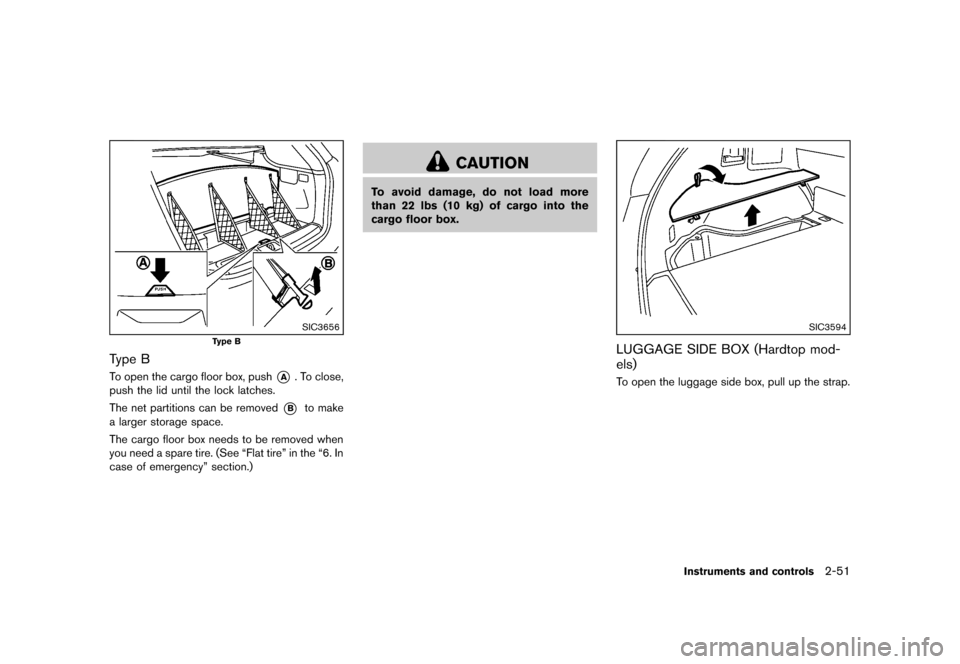

SIC3656
Type B
Type BGUID-4B77D327-C009-48B6-8B7B-1FC4BF4CC444To open the cargo floor box, push*A. To close,
push the lid until the lock latches.
The net partitions can be removed
*Bto make
a larger storage space.
The cargo floor box needs to be removed when
you need a spare tire. (See “Flat tire” in the “6. In
case of emergency” section.)
CAUTION
To avoid damage, do not load more
than 22 lbs (10 kg) of cargo into the
cargo floor box.
SIC3594
LUGGAGE SIDE BOX (Hardtop mod-
els)
GUID-9D068CD2-3E85-4F54-A788-DBF041E5F1B2To open the luggage side box, pull up the strap.
Instruments and controls2-51
Condition:

Black plate (136,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-52Instruments and controls

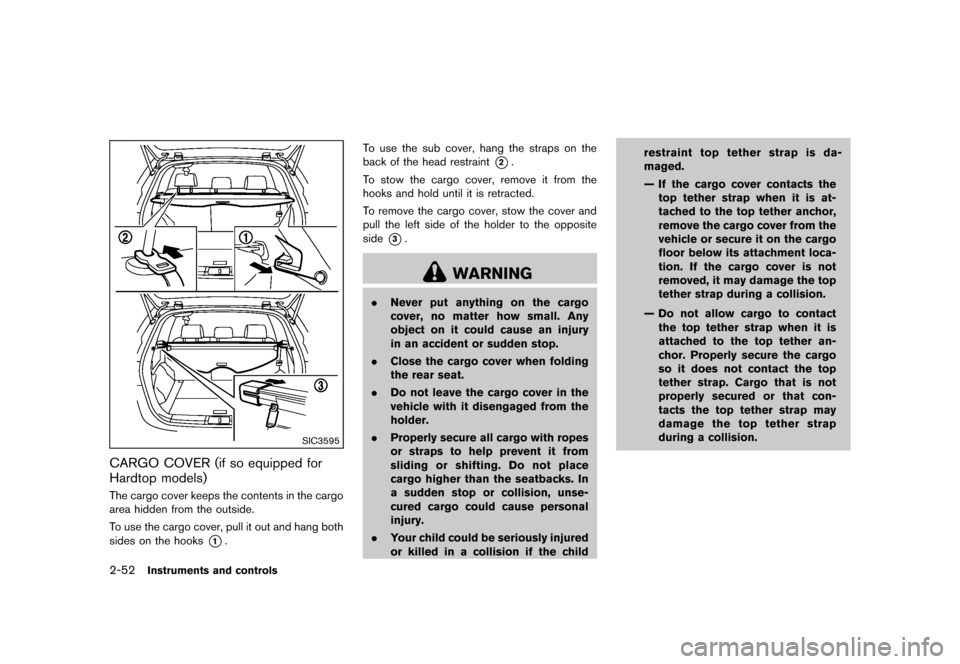

SIC3595
CARGO COVER (if so equipped for
Hardtop models)
GUID-3641C44E-8123-4F91-B5B7-07B068F6D402The cargo cover keeps the contents in the cargo
area hidden from the outside.
To use the cargo cover, pull it out and hang both
sides on the hooks
*1.To use the sub cover, hang the straps on the
back of the head restraint
*2.
To stow the cargo cover, remove it from the
hooks and hold until it is retracted.
To remove the cargo cover, stow the cover and
pull the left side of the holder to the opposite
side
*3.
WARNING
. Never put anything on the cargo
cover, no matter how small. Any
object on it could cause an injury
in an accident or sudden stop.
. Close the cargo cover when folding
the rear seat.
. Do not leave the cargo cover in the
vehicle with it disengaged from the
holder.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.
. Your child could be seriously injured
or killed in a collision if the child restraint top tether strap is da-
maged.
— If the cargo cover contacts the
top tether strap when it is at-
tached to the top tether anchor,
remove the cargo cover from the
vehicle or secure it on the cargo
floor below its attachment loca-
tion. If the cargo cover is not
removed, it may damage the top
tether strap during a collision.
— Do not allow cargo to contact the top tether strap when it is
attached to the top tether an-
chor. Properly secure the cargo
so it does not contact the top
tether strap. Cargo that is not
properly secured or that con-
tacts the top tether strap may
damage the top tether strap
during a collision.
Condition:

Black plate (137,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SIC3596
LUGGAGE HOOKS (Hardtop models)GUID-A76D431E-5514-466D-8503-9352D8CBD662
WARNING
.Always make sure that the cargo is
properly secured. Use the suitable
ropes and hooks. .
Unsecured cargo can become dan-
gerous in an accident or sudden
stop.
CAUTION
Do not apply a total load of more than
22 lb (10 kg)
*Aor 7 lb (3 kg)*Bto a
single hook.
SIC4744
LUGGAGE COVER (CrossCabriolet
models)
GUID-6FCB585A-E72B-4BA2-A8FD-8ADDC214EFA2A luggage cover is used to separate the trunk
and the top storage area.
To use the luggage cover, pull it out and hang
both sides on the hooks
*1.
To stow the luggage cover, remove it from the
hooks and hold it until it is retracted.
The luggage cover must be pulled out and hung
on hooks
*1for the soft top to oparate. (See
“Soft top (CrossCabriolet models)” in the “3.
Pre-driving checks and adjustments” section.)
Instruments and controls2-53
Condition:

Black plate (138,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-54Instruments and controls

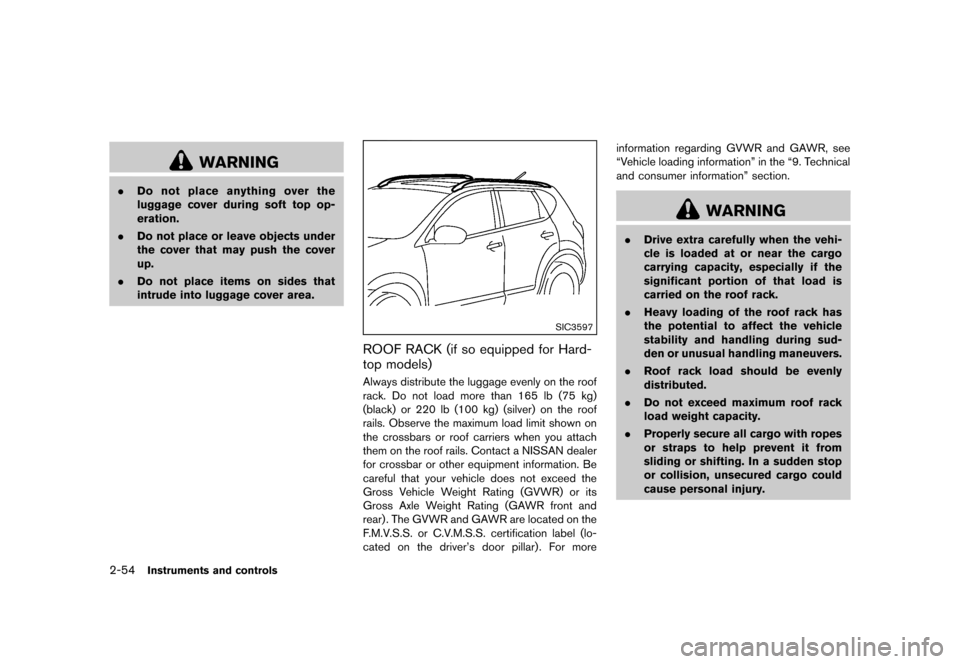

WARNING
.Do not place anything over the
luggage cover during soft top op-
eration.
. Do not place or leave objects under
the cover that may push the cover
up.
. Do not place items on sides that
intrude into luggage cover area.
SIC3597
ROOF RACK (if so equipped for Hard-
top models)
GUID-75E038EF-E93A-4F7C-AC23-5CF5D424F222Always distribute the luggage evenly on the roof
rack. Do not load more than 165 lb (75 kg)
(black) or 220 lb (100 kg) (silver) on the roof
rails. Observe the maximum load limit shown on
the crossbars or roof carriers when you attach
them on the roof rails. Contact a NISSAN dealer
for crossbar or other equipment information. Be
careful that your vehicle does not exceed the
Gross Vehicle Weight Rating (GVWR) or its
Gross Axle Weight Rating (GAWR front and
rear) . The GVWR and GAWR are located on the
F.M.V.S.S. or C.V.M.S.S. certification label (lo-
cated on the driver’s door pillar). For more information regarding GVWR and GAWR, see
“Vehicle loading information” in the “9. Technical
and consumer information” section.
WARNING
.
Drive extra carefully when the vehi-
cle is loaded at or near the cargo
carrying capacity, especially if the
significant portion of that load is
carried on the roof rack.
. Heavy loading of the roof rack has
the potential to affect the vehicle
stability and handling during sud-
den or unusual handling maneuvers.
. Roof rack load should be evenly
distributed.
. Do not exceed maximum roof rack
load weight capacity.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
