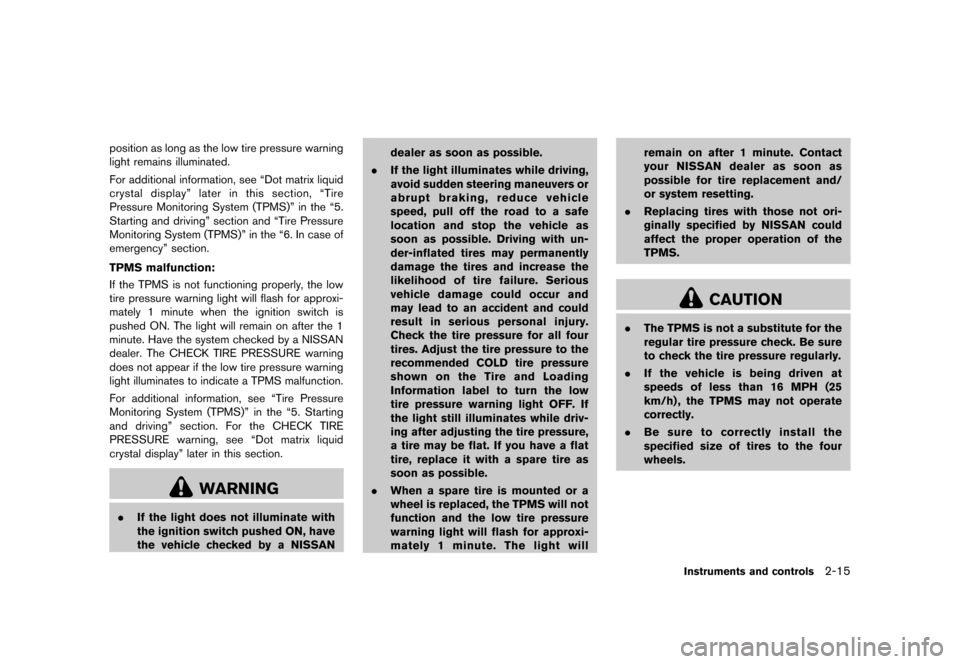

position as long as the low tire pressure warning
light remains illuminated.
For additional information, see “Dot matrix liquid
crystal display” later in this section, “Tire
Pressure Monitoring System (TPMS)” in the “5.
Starting and driving” section and “Tire Pressure
Monitoring System (TPMS)” in the “6. In case of
emergency” section.
TPMS malfunction:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
pushed ON. The light will remain on after the 1
minute. Have the system checked by a NISSAN
dealer. The CHECK TIRE PRESSURE warning
does not appear if the low tire pressure warning
light illuminates to indicate a TPMS malfunction.
For additional information, see “Tire Pressure
Monitoring System (TPMS)” in the “5. Starting
and driving” section. For the CHECK TIRE
PRESSURE warning, see “Dot matrix liquid
crystal display” later in this section.
WARNING
.If the light does not illuminate with
the ignition switch pushed ON, have
the vehicle checked by a NISSAN dealer as soon as possible.
. If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle
speed, pull off the road to a safe
location and stop the vehicle as
soon as possible. Driving with un-
der-inflated tires may permanently
damage the tires and increase the
likelihood of tire failure. Serious
vehicle damage could occur and
may lead to an accident and could
result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading
Information label to turn the low
tire pressure warning light OFF. If
the light still illuminates while driv-
ing after adjusting the tire pressure,
a tire may be flat. If you have a flat
tire, replace it with a spare tire as
soon as possible.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
CAUTION
.The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly.
. If the vehicle is being driven at
speeds of less than 16 MPH (25
km/h) , the TPMS may not operate
correctly.
. Be sure to correctly install the
specified size of tires to the four
wheels.
Instruments and controls2-15
Condition:
Page 102 of 507
Black plate (100,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-16Instruments and controls

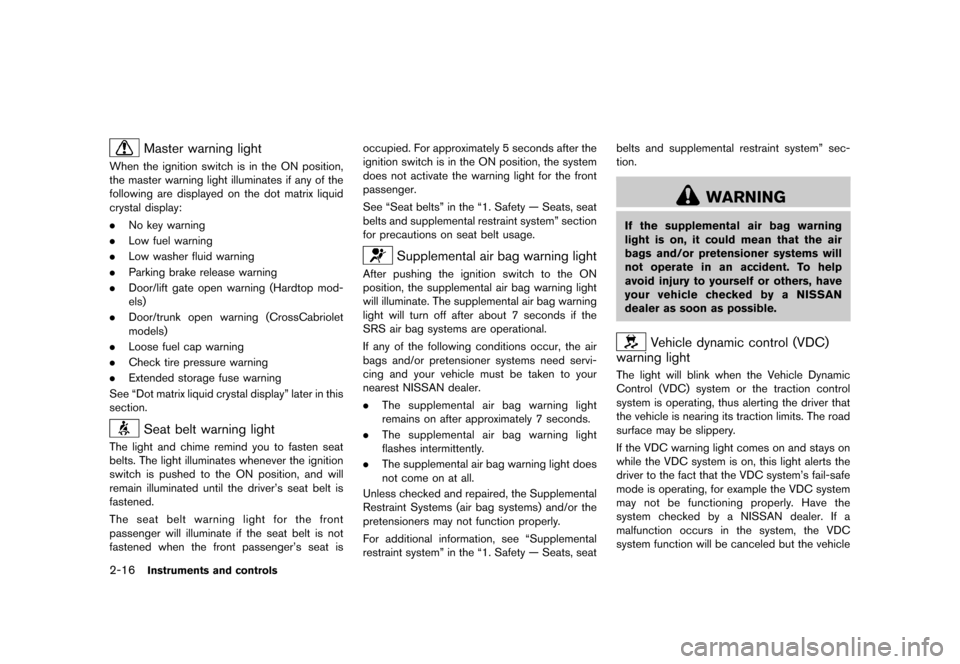

Master warning lightGUID-6AB3A8A0-B446-4089-A66C-618A6659F580When the ignition switch is in the ON position,
the master warning light illuminates if any of the
following are displayed on the dot matrix liquid
crystal display:
.No key warning
. Low fuel warning
. Low washer fluid warning
. Parking brake release warning
. Door/lift gate open warning (Hardtop mod-
els)
. Door/trunk open warning (CrossCabriolet
models)
. Loose fuel cap warning
. Check tire pressure warning
. Extended storage fuse warning
See “Dot matrix liquid crystal display” later in this
section.
Seat belt warning lightGUID-956FC59D-0351-472F-8CD0-3356E0A21318The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
switch is pushed to the ON position, and will
remain illuminated until the driver’s seat belt is
fastened.
The seat belt warning light for the front
passenger will illuminate if the seat belt is not
fastened when the front passenger’s seat is occupied. For approximately 5 seconds after the
ignition switch is in the ON position, the system
does not activate the warning light for the front
passenger.
See “Seat belts” in the “1. Safety — Seats, seat
belts and supplemental restraint system” section
for precautions on seat belt usage.
Supplemental air bag warning lightGUID-C47663FA-9971-432A-840C-6232303C8EC4After pushing the ignition switch to the ON
position, the supplemental air bag warning light
will illuminate. The supplemental air bag warning
light will turn off after about 7 seconds if the
SRS air bag systems are operational.
If any of the following conditions occur, the air
bags and/or pretensioner systems need servi-
cing and your vehicle must be taken to your
nearest NISSAN dealer.
.
The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the Supplemental
Restraint Systems (air bag systems) and/or the
pretensioners may not function properly.
For additional information, see “Supplemental
restraint system” in the “1. Safety — Seats, seat belts and supplemental restraint system” sec-
tion.
WARNING
If the supplemental air bag warning
light is on, it could mean that the air
bags and/or pretensioner systems will
not operate in an accident. To help
avoid injury to yourself or others, have
your vehicle checked by a NISSAN
dealer as soon as possible.
Vehicle dynamic control (VDC)
warning light
GUID-9CD9709D-A6B8-4177-B503-4BF50BC0F688The light will blink when the Vehicle Dynamic
Control (VDC) system or the traction control
system is operating, thus alerting the driver that
the vehicle is nearing its traction limits. The road
surface may be slippery.
If the VDC warning light comes on and stays on
while the VDC system is on, this light alerts the
driver to the fact that the VDC system’s fail-safe
mode is operating, for example the VDC system
may not be functioning properly. Have the
system checked by a NISSAN dealer. If a
malfunction occurs in the system, the VDC
system function will be canceled but the vehicle
Condition:
Page 103 of 507
Black plate (101,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

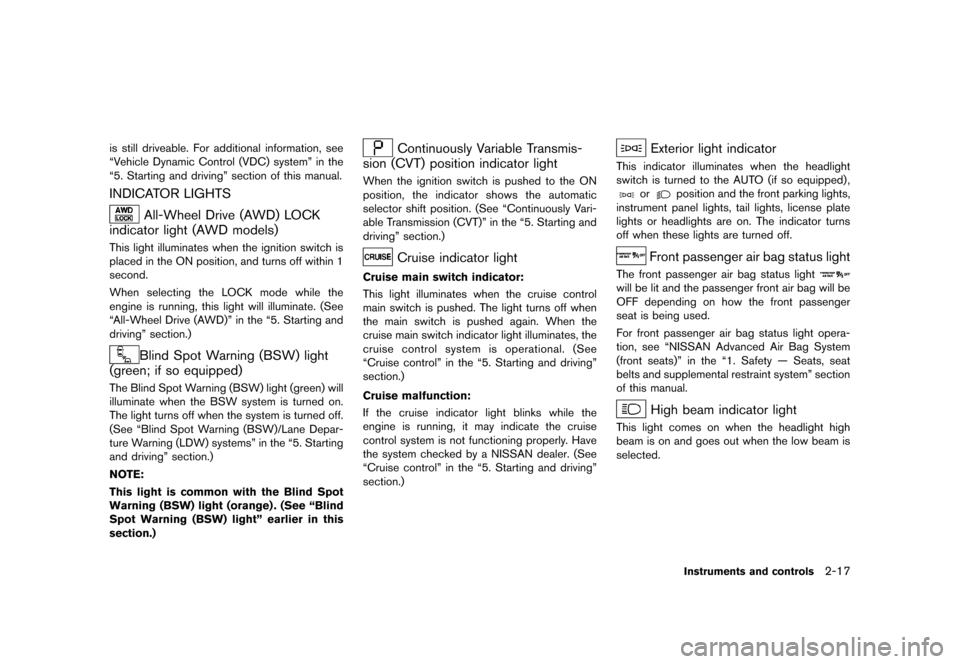

is still driveable. For additional information, see
“Vehicle Dynamic Control (VDC) system” in the
“5. Starting and driving” section of this manual.
INDICATOR LIGHTSGUID-BDD7DC61-68C7-435D-8B71-5F80E875AAAB
All-Wheel Drive (AWD) LOCK
indicator light (AWD models)
GUID-B333F845-9EFA-4E8B-A367-0BBBFF6CDC04This light illuminates when the ignition switch is
placed in the ON position, and turns off within 1
second.
When selecting the LOCK mode while the
engine is running, this light will illuminate. (See
“All-Wheel Drive (AWD)” in the “5. Starting and
driving” section.)
Blind Spot Warning (BSW) light
(green; if so equipped)
GUID-8A539306-30AB-427D-B362-AEEB01FC0854The Blind Spot Warning (BSW) light (green) will
illuminate when the BSW system is turned on.
The light turns off when the system is turned off.
(See “Blind Spot Warning (BSW)/Lane Depar-
ture Warning (LDW) systems” in the “5. Starting
and driving” section.)
NOTE:
This light is common with the Blind Spot
Warning (BSW) light (orange) . (See “Blind
Spot Warning (BSW) light” earlier in this
section.)
Continuously Variable Transmis-
sion (CVT) position indicator light
GUID-0130F932-2380-4325-91F5-49DD5E3D8B5FWhen the ignition switch is pushed to the ON
position, the indicator shows the automatic
selector shift position. (See “Continuously Vari-
able Transmission (CVT)” in the “5. Starting and
driving” section.)
Cruise indicator lightGUID-C4011DB6-8909-4DF3-8C75-17ED51FCED58
Cruise main switch indicator:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This light illuminates when the cruise control
main switch is pushed. The light turns off when
the main switch is pushed again. When the
cruise main switch indicator light illuminates, the
cruise control system is operational. (See
“Cruise control” in the “5. Starting and driving”
section.)
Cruise malfunction:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the cruise indicator light blinks while the
engine is running, it may indicate the cruise
control system is not functioning properly. Have
the system checked by a NISSAN dealer. (See
“Cruise control” in the “5. Starting and driving”
section.)
Exterior light indicatorGUID-31C3710D-82FC-41EC-AE8C-69D56A05CEF7This indicator illuminates when the headlight
switch is turned to the AUTO (if so equipped) ,
orposition and the front parking lights,
instrument panel lights, tail lights, license plate
lights or headlights are on. The indicator turns
off when these lights are turned off.
Front passenger air bag status lightGUID-1AD6EFB7-D318-4868-99B0-D18664F33C71The front passenger air bag status light
will be lit and the passenger front air bag will be
OFF depending on how the front passenger
seat is being used.
For front passenger air bag status light opera-
tion, see “NISSAN Advanced Air Bag System
(front seats)” in the “1. Safety — Seats, seat
belts and supplemental restraint system” section
of this manual.
High beam indicator lightGUID-4EECC9D2-4C62-4418-9FA3-CF0C228A1386This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Instruments and controls2-17
Condition:
Page 104 of 507
Black plate (102,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-18Instruments and controls

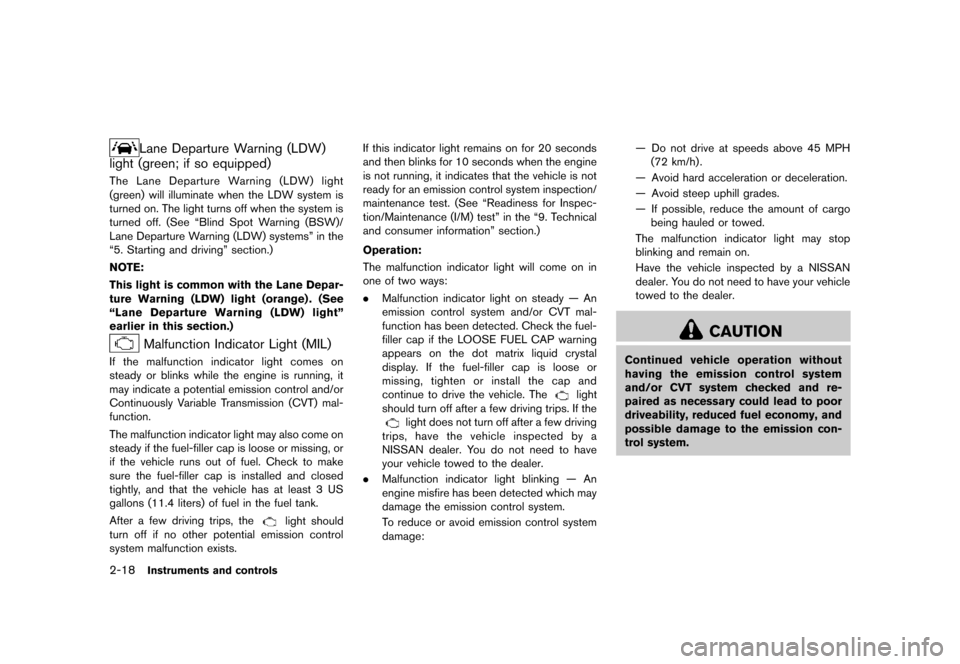

Lane Departure Warning (LDW)
light (green; if so equipped)
GUID-E3C994B9-093A-4F82-BA6D-735ADC99A238The Lane Departure Warning (LDW) light
(green) will illuminate when the LDW system is
turned on. The light turns off when the system is
turned off. (See “Blind Spot Warning (BSW)/
Lane Departure Warning (LDW) systems” in the
“5. Starting and driving” section.)
NOTE:
This light is common with the Lane Depar-
ture Warning (LDW) light (orange) . (See
“Lane Departure Warning (LDW) light”
earlier in this section.)
Malfunction Indicator Light (MIL)GUID-6AF8662E-1DE1-45FE-852C-925D132DCE37If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control and/or
Continuously Variable Transmission (CVT) mal-
function.
The malfunction indicator light may also come on
steady if the fuel-filler cap is loose or missing, or
if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least 3 US
gallons (11.4 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists. If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is not
ready for an emission control system inspection/
maintenance test. (See “Readiness for Inspec-
tion/Maintenance (I/M) test” in the “9. Technical
and consumer information” section.)
Operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The malfunction indicator light will come on in
one of two ways:
.
Malfunction indicator light on steady — An
emission control system and/or CVT mal-
function has been detected. Check the fuel-
filler cap if the LOOSE FUEL CAP warning
appears on the dot matrix liquid crystal
display. If the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
light
should turn off after a few driving trips. If the
light does not turn off after a few driving
trips, have the vehicle inspected by a
NISSAN dealer. You do not need to have
your vehicle towed to the dealer.
. Malfunction indicator light blinking — An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage: — Do not drive at speeds above 45 MPH
(72 km/h).
— Avoid hard acceleration or deceleration.
— Avoid steep uphill grades.
— If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may stop
blinking and remain on.
Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
and/or CVT system checked and re-
paired as necessary could lead to poor
driveability, reduced fuel economy, and
possible damage to the emission con-
trol system.
Condition:
Page 105 of 507
Black plate (103,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
Overdrive off indicator lightGUID-A88B5A9D-E1E7-4ADD-B5C6-FE6EBACFA9C0The overdrive off indicator light illuminates when
the overdrive off mode is selected.
For additional information, see “Continuously
Variable Transmission (CVT)” in the “5. Starting
and driving” section of this manual.
Soft top indicator light (Cross-
Cabriolet models)
GUID-387DFA5A-917F-4E6B-8A1D-1A0AD860A8FAThis light illuminates when the soft top is being
operated or it is stopped before reaching a full
open/close state. When the top is fully opened
or closed, the light will turn off.
The light blinks while the soft top is not fully
opened or closed under the following condi-
tions:
. When the vehicle is driven.
. When the selector lever is in the R (Reverse)
position.
Be sure to fully open or close the soft top when
driving the vehicle.
The soft top can be moved with the soft top
operating switch only under all of the following
conditions:
. When the vehicle is stopped.
. When the ignition switch is ON.
. When the trunk is closed. .
When the luggage cover is pulled out and
hooked so that the roof storage area is
separated from the trunk.
. When the selector lever is in a position other
than the R (Reverse) position.
CAUTION
Operate the soft top with the engine
running to prevent a discharged battery.
When the soft top is operating, if any of the
above conditions are discontinued or any of the
following conditions are met, the top will stop
operating.
. When the selector lever is in the R (Reverse)
position.
. When the vehicle moves at a speed of 3
MPH (5 km/h) or more.
. When the battery voltage is extremely low.
. When the temperature of the soft top
system becomes extremely high.
Release the operating switch, and push it again
under the above conditions until the top is fully
opened or closed. The soft top indicator light will
turn off when the top operation is completely
finished.
If the soft top indicator light illuminates with the ignition switch ON, it may indicate the electric
soft top control unit is not functioning properly.
Have your vehicle checked by a NISSAN dealer
as soon as possible.
For more details about the electric soft top
operation, see “Soft top (CrossCabriolet mod-
els)” in the “3. Pre-driving checks and adjust-
ments” section.Turn signal/hazard indicator lightsGUID-F77394DF-EFC3-4B65-ACF6-5E0E91264160The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control (VDC) off
indicator light
GUID-CE6E8B94-E3C1-4EDD-B5CC-1AA8B731382AThe light comes on when the Vehicle Dynamic
Control (VDC) off switch is pushed to OFF. This
indicates that the VDC system is not operating.
For additional information, see “Vehicle Dynamic
Control (VDC) system” in the “5. Starting and
driving” section of this manual.
Instruments and controls2-19
Condition:
Page 106 of 507
Black plate (104,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

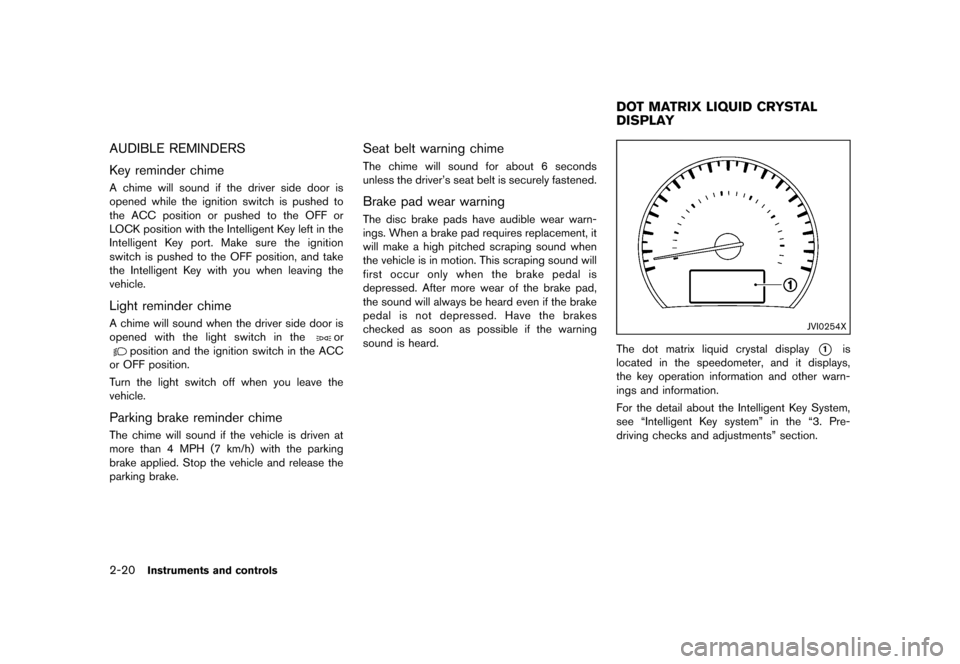

2-20Instruments and controls
AUDIBLE REMINDERSGUID-854CE725-BA1A-4800-8732-43382E89CE05
Key reminder chimeGUID-03B79EB0-07EF-4F48-9DFC-C531CF03B6F2A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position or pushed to the OFF or
LOCK position with the Intelligent Key left in the
Intelligent Key port. Make sure the ignition
switch is pushed to the OFF position, and take
the Intelligent Key with you when leaving the
vehicle.
Light reminder chimeGUID-7B425B53-6E2D-43C2-AE08-9F717545E029A chime will sound when the driver side door is
opened with the light switch in the
or
position and the ignition switch in the ACC
or OFF position.
Turn the light switch off when you leave the
vehicle.
Parking brake reminder chimeGUID-16CE9E88-5960-4CAA-845D-8ACC44A8DB19The chime will sound if the vehicle is driven at
more than 4 MPH (7 km/h) with the parking
brake applied. Stop the vehicle and release the
parking brake.
Seat belt warning chimeGUID-6CB52CBC-6585-437E-BC4E-959C5BB57A7BThe chime will sound for about 6 seconds
unless the driver’s seat belt is securely fastened.
Brake pad wear warningGUID-A531CD6C-63DF-4083-A7B6-FC8F79CA75A0The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.
GUID-8111787A-C29E-4E6F-9310-B498CC7E010D
JVI0254X
The dot matrix liquid crystal display*1is
located in the speedometer, and it displays,
the key operation information and other warn-
ings and information.
For the detail about the Intelligent Key System,
see “Intelligent Key system” in the “3. Pre-
driving checks and adjustments” section.
DOT MATRIX LIQUID CRYSTAL
DISPLAY
Condition:
Page 107 of 507
Black plate (105,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

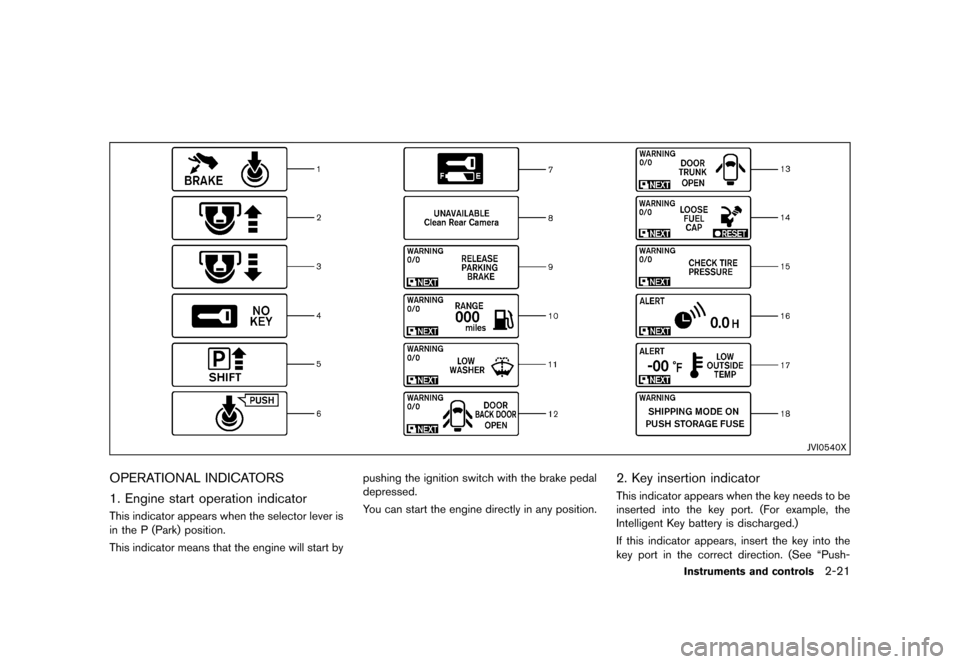

JVI0540X
OPERATIONAL INDICATORSGUID-2BC84707-B5D6-420C-AF4E-599CBE87C0AA
1. Engine start operation indicatorGUID-D97EB6AE-486E-4B90-8447-B6FE87D4AD91This indicator appears when the selector lever is
in the P (Park) position.
This indicator means that the engine will start bypushing the ignition switch with the brake pedal
depressed.
You can start the engine directly in any position.
2. Key insertion indicatorGUID-05110D15-ABEF-44EB-A8DB-34AB9197B4B8This indicator appears when the key needs to be
inserted into the key port. (For example, the
Intelligent Key battery is discharged.)
If this indicator appears, insert the key into the
key port in the correct direction. (See “Push-
Instruments and controls2-21
Condition:
Page 108 of 507
Black plate (106,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

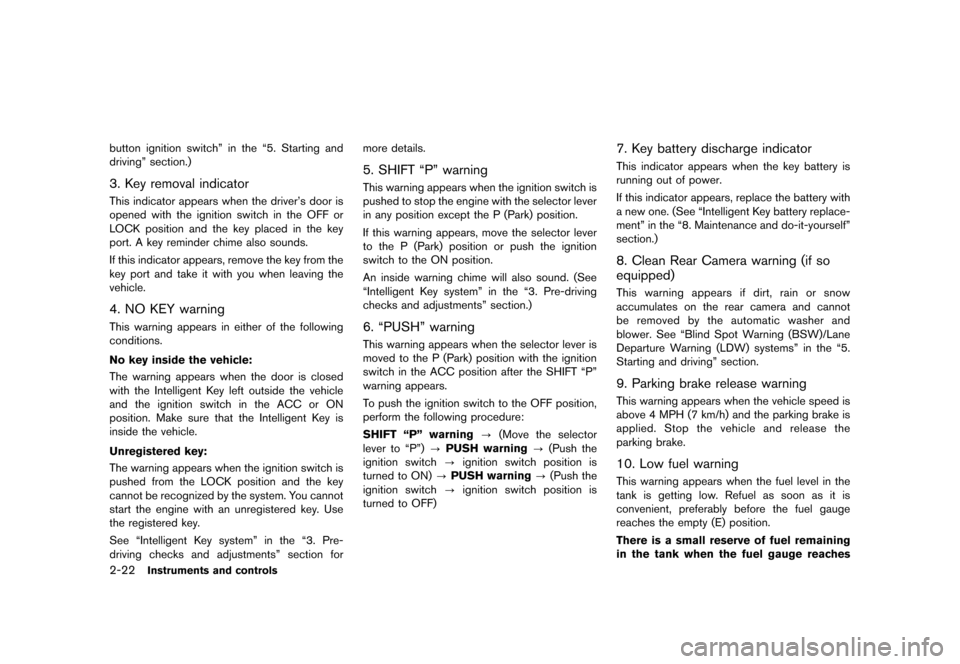

2-22Instruments and controls
button ignition switch” in the “5. Starting and
driving” section.)
3. Key removal indicatorGUID-BB5416CE-8D01-47D1-8C3E-4F7E493AE6E1This indicator appears when the driver’s door is
opened with the ignition switch in the OFF or
LOCK position and the key placed in the key
port. A key reminder chime also sounds.
If this indicator appears, remove the key from the
key port and take it with you when leaving the
vehicle.
4. NO KEY warningGUID-F57235F8-65EC-43AC-9534-39FFBAF7DBADThis warning appears in either of the following
conditions.
No key inside the vehicle:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered key:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The warning appears when the ignition switch is
pushed from the LOCK position and the key
cannot be recognized by the system. You cannot
start the engine with an unregistered key. Use
the registered key.
See “Intelligent Key system” in the “3. Pre-
driving checks and adjustments” section formore details.
5. SHIFT “P” warningGUID-F63536DD-DDB8-49FB-8271-F811D25EC8A1This warning appears when the ignition switch is
pushed to stop the engine with the selector lever
in any position except the P (Park) position.
If this warning appears, move the selector lever
to the P (Park) position or push the ignition
switch to the ON position.
An inside warning chime will also sound. (See
“Intelligent Key system” in the “3. Pre-driving
checks and adjustments” section.)
6. “PUSH” warningGUID-2B3DB981-A402-45B6-B5BB-474886B28E6AThis warning appears when the selector lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT “P”
warning appears.
To push the ignition switch to the OFF position,
perform the following procedure:
SHIFT “P” warning
?(Move the selector
lever to “P”) ?PUSH warning ?(Push the
ignition switch ?ignition switch position is
turned to ON) ?PUSH warning ?(Push the
ignition switch ?ignition switch position is
turned to OFF)
7. Key battery discharge indicatorGUID-4EDE548E-8FF0-4D46-ABCB-68B647C3999AThis indicator appears when the key battery is
running out of power.
If this indicator appears, replace the battery with
a new one. (See “Intelligent Key battery replace-
ment” in the “8. Maintenance and do-it-yourself”
section.)
8. Clean Rear Camera warning (if so
equipped)
GUID-68B781FF-FFC1-4365-8ABF-4F80FB874175This warning appears if dirt, rain or snow
accumulates on the rear camera and cannot
be removed by the automatic washer and
blower. See “Blind Spot Warning (BSW)/Lane
Departure Warning (LDW) systems” in the “5.
Starting and driving” section.
9. Parking brake release warningGUID-834CC27F-8812-483E-9320-C2D89C3E4B39This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied. Stop the vehicle and release the
parking brake.
10. Low fuel warningGUID-15EF772B-A9F6-4FC2-AB15-CABF1BB1DF48This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
Condition:
Page 109 of 507
Black plate (107,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

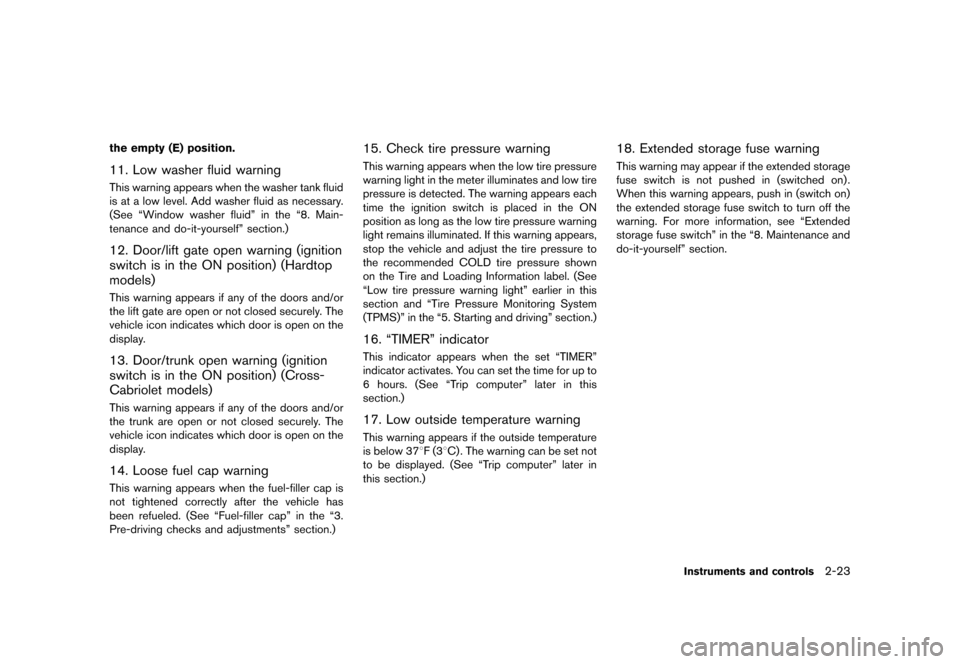

the empty (E) position.
11. Low washer fluid warningGUID-75BFB25F-0C2B-423E-890D-9368CFA667DDThis warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See “Window washer fluid” in the “8. Main-
tenance and do-it-yourself” section.)
12. Door/lift gate open warning (ignition
switch is in the ON position) (Hardtop
models)
GUID-E8BF5142-318A-41D5-8AB1-86843D59BCCFThis warning appears if any of the doors and/or
the lift gate are open or not closed securely. The
vehicle icon indicates which door is open on the
display.
13. Door/trunk open warning (ignition
switch is in the ON position) (Cross-
Cabriolet models)
GUID-CE5E7381-F4E7-4E9D-8BC1-5FDCD9D031B0This warning appears if any of the doors and/or
the trunk are open or not closed securely. The
vehicle icon indicates which door is open on the
display.
14. Loose fuel cap warningGUID-BF7DA770-AB4E-4465-8317-1B41831C3607This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “Fuel-filler cap” in the “3.
Pre-driving checks and adjustments” section.)
15. Check tire pressure warningGUID-0DD3569E-5223-4496-8B17-789648E1715DThis warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated. If this warning appears,
stop the vehicle and adjust the tire pressure to
the recommended COLD tire pressure shown
on the Tire and Loading Information label. (See
“Low tire pressure warning light” earlier in this
section and “Tire Pressure Monitoring System
(TPMS)” in the “5. Starting and driving” section.)
16. “TIMER” indicatorGUID-FF6A1FD2-B5C4-4083-B2CA-3E728C17C633This indicator appears when the set “TIMER”
indicator activates. You can set the time for up to
6 hours. (See “Trip computer” later in this
section.)
17. Low outside temperature warningGUID-84D86BBA-1B59-4DDE-9353-177DB0D95B81This warning appears if the outside temperature
is below 378F (38C) . The warning can be set not
to be displayed. (See “Trip computer” later in
this section.)
18. Extended storage fuse warningGUID-2A83B50D-AAD9-4A8C-8305-E655D5991D17This warning may appear if the extended storage
fuse switch is not pushed in (switched on) .
When this warning appears, push in (switch on)
the extended storage fuse switch to turn off the
warning. For more information, see “Extended
storage fuse switch” in the “8. Maintenance and
do-it-yourself” section.
Instruments and controls2-23
Condition:
Page 110 of 507
Black plate (108,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

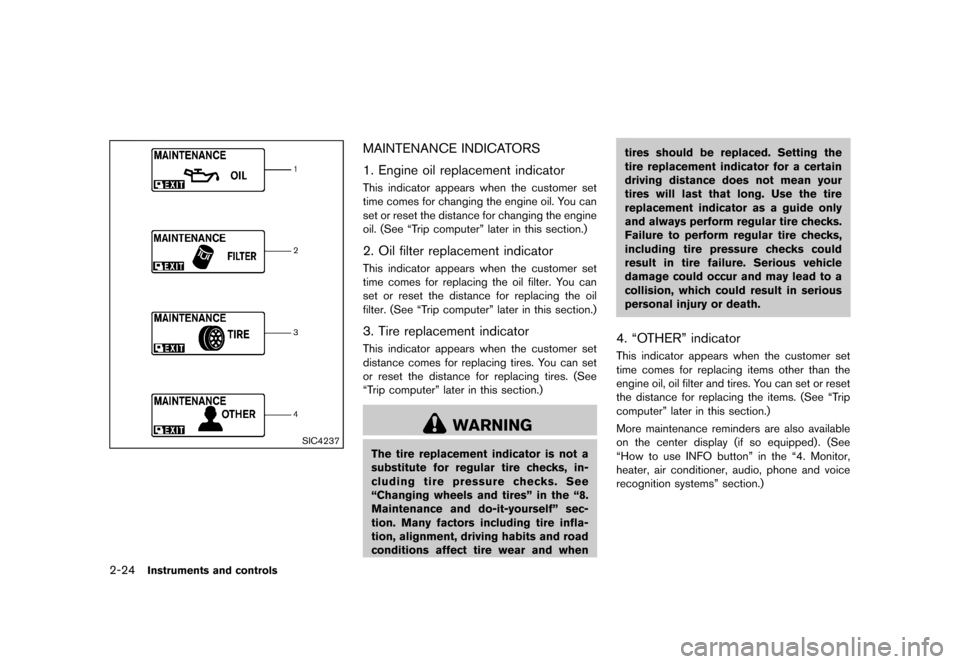

2-24Instruments and controls
SIC4237
MAINTENANCE INDICATORSGUID-0A851647-6BB2-4E92-AEB5-E04319FCA2E4
1. Engine oil replacement indicatorGUID-9CEF8B90-48A9-4FB5-BFD9-0CF43586EC4FThis indicator appears when the customer set
time comes for changing the engine oil. You can
set or reset the distance for changing the engine
oil. (See “Trip computer” later in this section.)
2. Oil filter replacement indicatorGUID-C344252D-B1CB-46F2-AEAD-7C37EC262221This indicator appears when the customer set
time comes for replacing the oil filter. You can
set or reset the distance for replacing the oil
filter. (See “Trip computer” later in this section.)
3. Tire replacement indicatorGUID-1A74526D-9B7C-43A3-95CF-62EFC05FBC61This indicator appears when the customer set
distance comes for replacing tires. You can set
or reset the distance for replacing tires. (See
“Trip computer” later in this section.)
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. See
“Changing wheels and tires” in the “8.
Maintenance and do-it-yourself” sec-
tion. Many factors including tire infla-
tion, alignment, driving habits and road
conditions affect tire wear and whentires should be replaced. Setting the
tire replacement indicator for a certain
driving distance does not mean your
tires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could
result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
4. “OTHER” indicatorGUID-17015DA7-2755-4CAC-AF46-619CAF47DE9DThis indicator appears when the customer set
time comes for replacing items other than the
engine oil, oil filter and tires. You can set or reset
the distance for replacing the items. (See “Trip
computer” later in this section.)
More maintenance reminders are also available
on the center display (if so equipped). (See
“How to use INFO button” in the “4. Monitor,
heater, air conditioner, audio, phone and voice
recognition systems” section.)
Condition:
