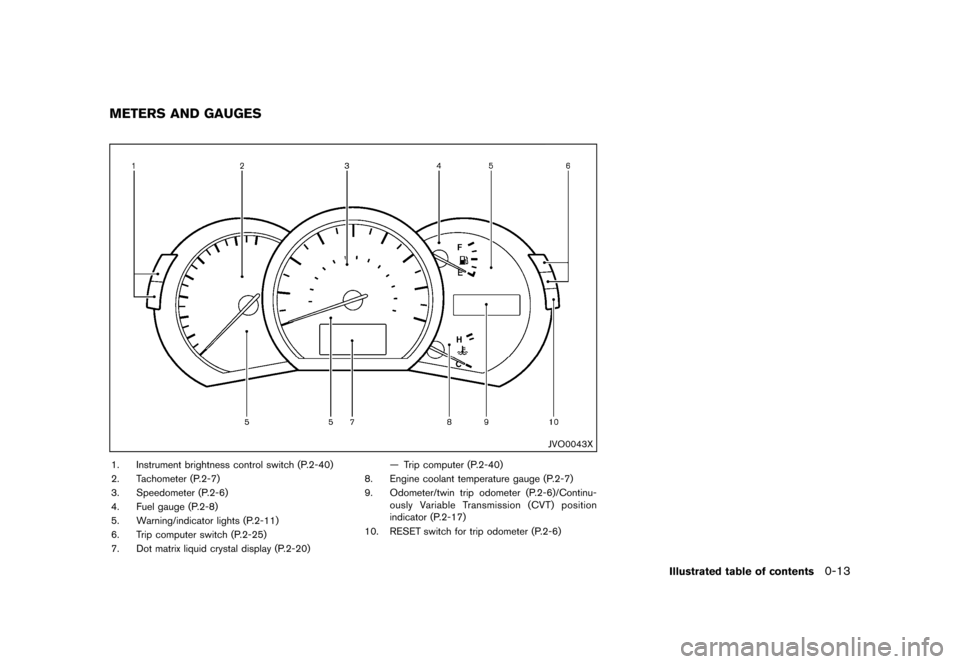

1. Instrument brightness control switch (P.2-40)
2. Tachometer (P.2-7)
3. Speedometer (P.2-6)
4. Fuel gauge (P.2-8)
5. Warning/indicator lights (P.2-11)
6. Trip computer switch (P.2-25)
7. Dot matrix liquid crystal display (P.2-20)— Trip computer (P.2-40)
8. Engine coolant temperature gauge (P.2-7)
9. Odometer/twin trip odometer (P.2-6)/Continu- ously Variable Transmission (CVT) position
indicator (P.2-17)
10. RESET switch for trip odometer (P.2-6)
Illustrated table of contents0-13
METERS AND GAUGES
Condition:
Page 22 of 507
Black plate (20,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
0-14Illustrated table of contents
GUID-907FC48F-D93C-457F-AEE4-15BFC27C6D55
SDI2172

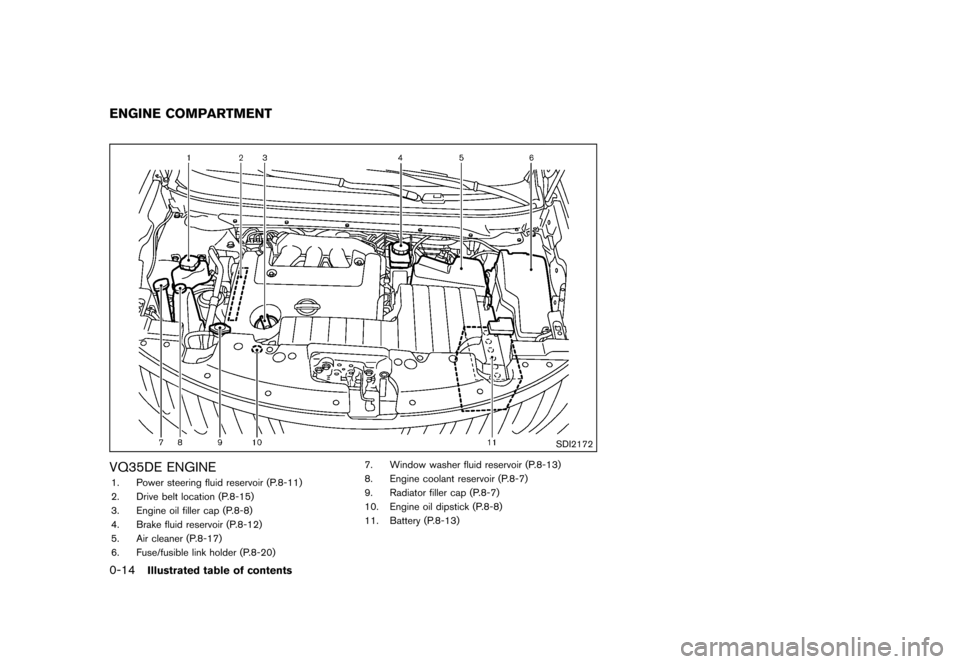

VQ35DE ENGINEGUID-E583ADB4-3DB5-4B36-96ED-07E29BF970D71. Power steering fluid reservoir (P.8-11)
2. Drive belt location (P.8-15)
3. Engine oil filler cap (P.8-8)
4. Brake fluid reservoir (P.8-12)
5. Air cleaner (P.8-17)
6. Fuse/fusible link holder (P.8-20)7. Window washer fluid reservoir (P.8-13)
8. Engine coolant reservoir (P.8-7)
9. Radiator filler cap (P.8-7)
10. Engine oil dipstick (P.8-8)
11. Battery (P.8-13)
ENGINE COMPARTMENT
Condition:
Page 23 of 507
Black plate (21,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-353409D4-8EDC-4D72-921B-F87CF9A54D49

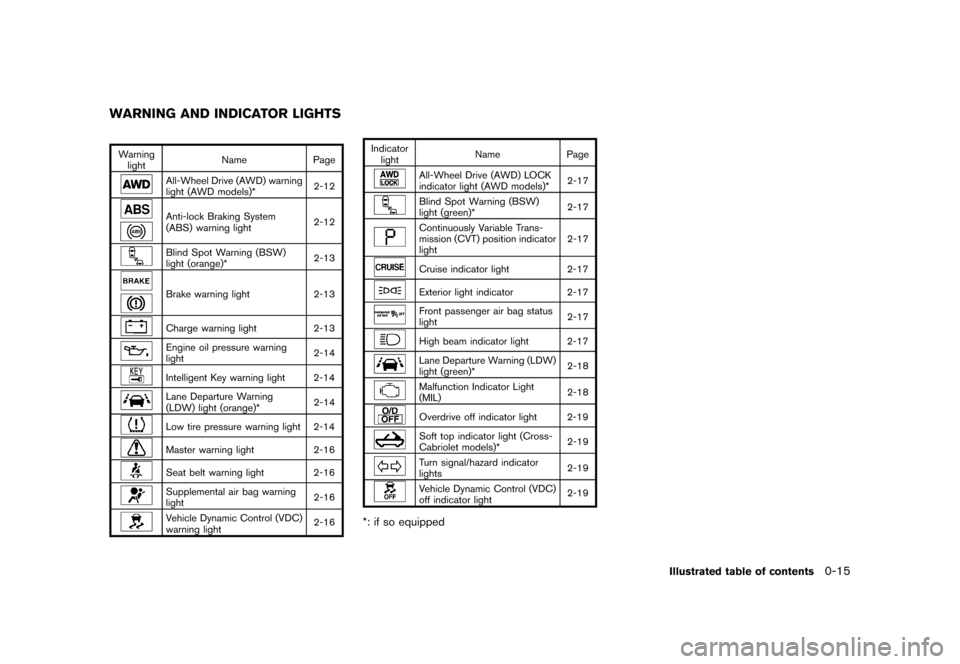

Warninglight Name
Page
All-Wheel Drive (AWD) warning
light (AWD models)* 2-12
Anti-lock Braking System
(ABS) warning light2-12
Blind Spot Warning (BSW)
light (orange)*
2-13
Brake warning light
2-13
Charge warning light2-13
Engine oil pressure warning
light 2-14
Intelligent Key warning light 2-14
Lane Departure Warning
(LDW) light (orange)*
2-14
Low tire pressure warning light 2-14
Master warning light
2-16
Seat belt warning light 2-16
Supplemental air bag warning
light 2-16
Vehicle Dynamic Control (VDC)
warning light2-16Indicator
light Name
Page
All-Wheel Drive (AWD) LOCK
indicator light (AWD models)* 2-17
Blind Spot Warning (BSW)
light (green)*
2-17
Continuously Variable Trans-
mission (CVT) position indicator
light2-17
Cruise indicator light
2-17
Exterior light indicator2-17
Front passenger air bag status
light 2-17
High beam indicator light 2-17
Lane Departure Warning (LDW)
light (green)*2-18
Malfunction Indicator Light
(MIL)
2-18
Overdrive off indicator light 2-19
Soft top indicator light (Cross-
Cabriolet models)*2-19
Turn signal/hazard indicator
lights2-19
Vehicle Dynamic Control (VDC)
off indicator light2-19
*: if so equipped
Illustrated table of contents0-15
WARNING AND INDICATOR LIGHTS
Condition:
Page 24 of 507
Black plate (22,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
0-16Illustrated table of contents
MEMO
Condition:
Page 25 of 507
Black plate (23,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1 Safety — Seats, seat belts and supplementalrestraint system
Seats ...
........................................................................\
.................... 1-2
Front seats ...
........................................................................\
.... 1-3
Rear seats (Hardtop models) ...
.......................................... 1-9
Head restraints ...
................................................................. 1-11
Armrest (Hardtop models) ...
............................................. 1-15
Seat belts ...
........................................................................\
......... 1-15
Precautions on seat belt usage ...
.................................... 1-15
Pregnant women ...
.............................................................. 1-18
Injured persons ...
................................................................. 1-18
Three-point type seat belt ...
.............................................. 1-18
Seat belt extenders ...
.......................................................... 1-25
Seat belt maintenance ...
.................................................... 1-26
Child safety ...
........................................................................\
...... 1-26
Infants ...
........................................................................\
.......... 1-27
Small children ...
.................................................................... 1-27
Larger children ...
.................................................................. 1-27
Child restraints ...
........................................................................\
1-28
Precautions on child restraints ...
..................................... 1-28
LATCH Lower Anchors System ...
.................................... 1-30
Rear-facing child restraint installation
using LATCH ...
..................................................................... 1-32
Rear-facing child restraint installation using the
seat belts ...
........................................................................\
.... 1-34 Forward-facing child restraint installation using
LATCH (Hardtop models only)
...
................................... 1-36
Forward-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-38
Installing top tether strap (Hardtop models) ...
.......... 1-41
Booster seats ...
.................................................................. 1-42
Supplemental restraint system ...
........................................... 1-45
Precautions on supplemental restraint system ...
....... 1-45
NISSAN Advanced Air Bag System
(front seats) ...
..................................................................... 1-51
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact and
rollover supplemental air bag (Hardtop models) or
door-mounted curtain side-impact and rollover
supplemental air bag (CrossCabriolet
models) systems ...
............................................................ 1-57
Seat belts with pretensioners (front seats) ...
............. 1-58
Supplemental air bag warning labels ...
....................... 1-60
Supplemental air bag warning light ...
.......................... 1-60
Repair and replacement procedure ...
.......................... 1-60
Dual pop-up roll bar system
(CrossCabriolet models) ...
.............................................. 1-61
Condition:
Page 26 of 507
Black plate (24,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-2Safety — Seats, seat belts and supplemental restraint system
GUID-2869D0FF-2DAC-47DC-BF36-8D864A5BD9A3

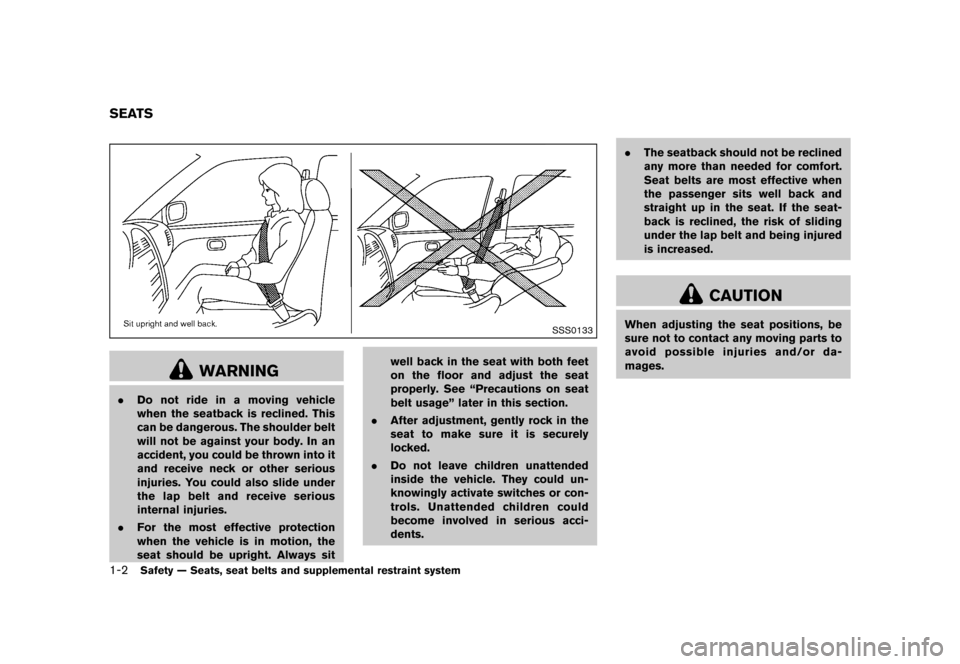

SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat
properly. See “Precautions on seat
belt usage” later in this section.
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or da-
mages.
SEATS
Condition:
Page 27 of 507
Black plate (25,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

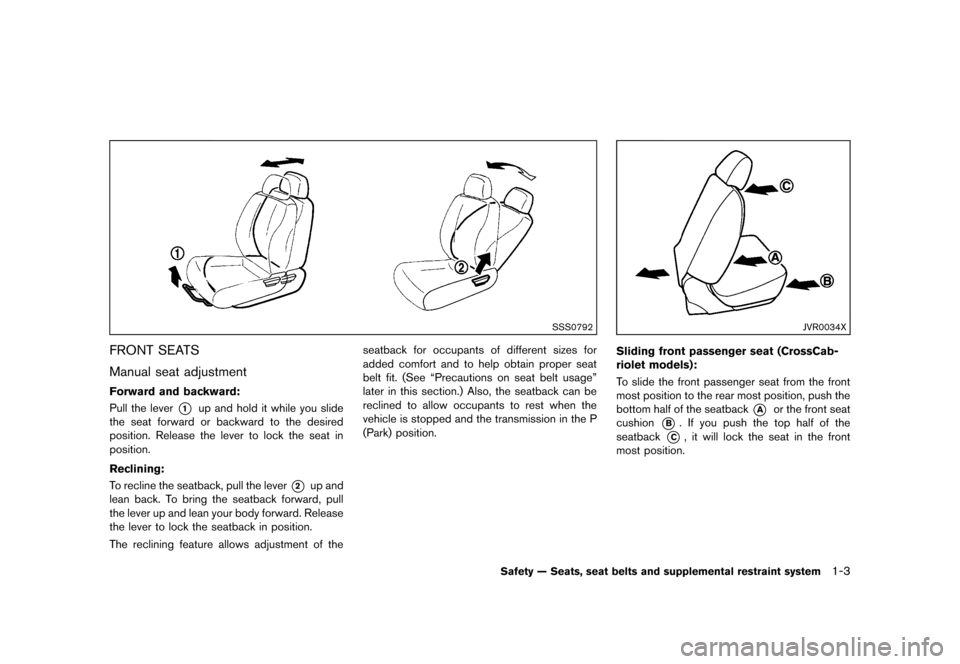

SSS0792
FRONT SEATSGUID-589050CC-5D5C-4407-A4F0-CB0819F0ABAB
Manual seat adjustmentGUID-6BE5370B-3D84-4E0B-B0E0-081F8AF0F764
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To recline the seatback, pull the lever*2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) Also, the seatback can be
reclined to allow occupants to rest when the
vehicle is stopped and the transmission in the P
(Park) position.
JVR0034X
Sliding front passenger seat (CrossCab-
riolet models):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To slide the front passenger seat from the front
most position to the rear most position, push the
bottom half of the seatback
*Aor the front seat
cushion
*B. If you push the top half of the
seatback
*C, it will lock the seat in the front
most position.
Safety — Seats, seat belts and supplemental restraint system1-3
Condition:
Page 28 of 507
Black plate (26,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-4Safety — Seats, seat belts and supplemental restraint system

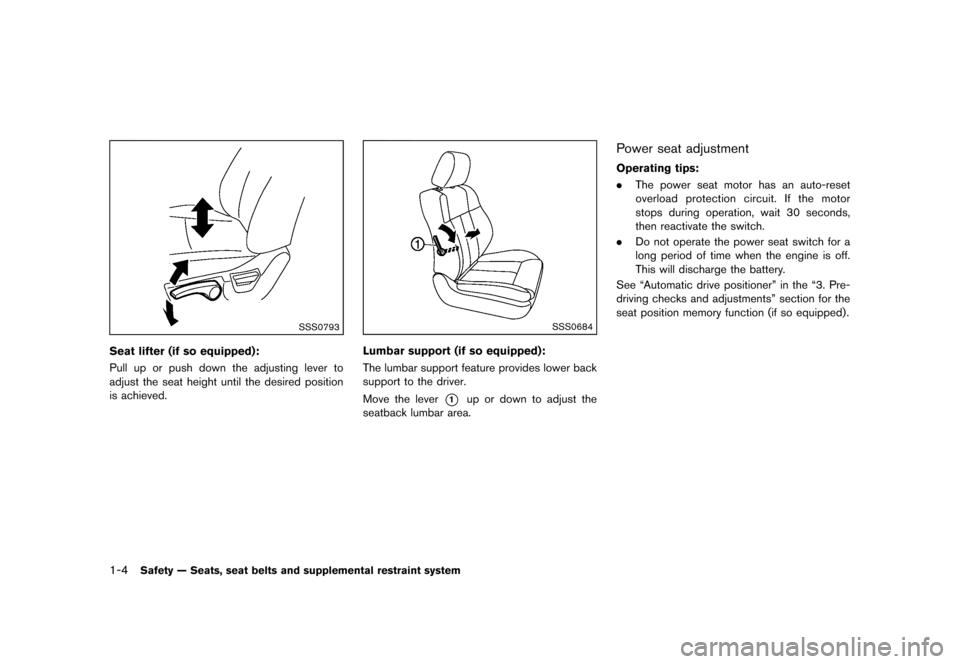

SSS0793
Seat lifter (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
SSS0684
Lumbar support (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The lumbar support feature provides lower back
support to the driver.
Move the lever
*1up or down to adjust the
seatback lumbar area.
Power seat adjustmentGUID-2155E48C-B77E-4502-84B7-2AF110D60DE4
Operating tips:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
. Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “Automatic drive positioner” in the “3. Pre-
driving checks and adjustments” section for the
seat position memory function (if so equipped).
Condition:
Page 29 of 507
Black plate (27,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
JVR0038X
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Moving the switch*Aforward or backward will
slide the seat forward or backward to the
desired position.
Pushing the front
*1or back*2end of the
slide switch
*Bwill slide the driver seat forward
or backward to the desired position (Cross-
Cabriolet models driver’s seat only).
Safety — Seats, seat belts and supplemental restraint system1-5
Condition:
Page 30 of 507
Black plate (28,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
1-6Safety — Seats, seat belts and supplemental restraint system
JVR0039X

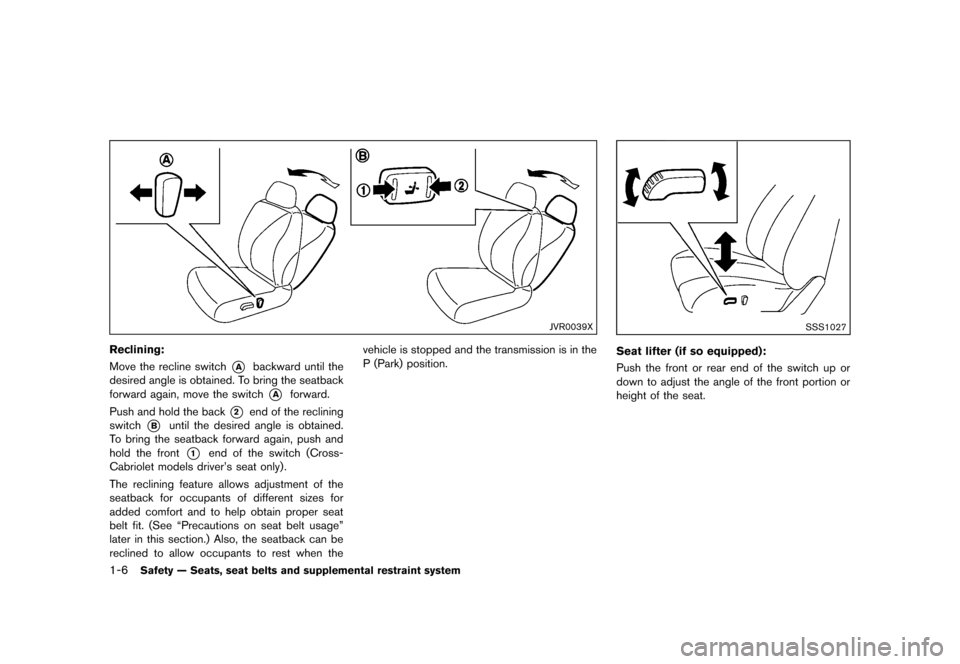

Reclining:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Move the recline switch*Abackward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
*Aforward.
Push and hold the back
*2end of the reclining
switch
*Buntil the desired angle is obtained.
To bring the seatback forward again, push and
hold the front
*1end of the switch (Cross-
Cabriolet models driver’s seat only).
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
later in this section.) Also, the seatback can be
reclined to allow occupants to rest when the vehicle is stopped and the transmission is in the
P (Park) position.
SSS1027
Seat lifter (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the front or rear end of the switch up or
down to adjust the angle of the front portion or
height of the seat.
Condition:
