Page 12 of 507
Black plate (10,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
0-4Illustrated table of contents
GUID-ACAC74ED-4CE9-4346-84EA-C135DDC40621
JVO0040X
HARDTOP MODELSGUID-45F5CB05-5240-4214-B1AF-9A6EAB41FB531. Hood (P.3-20)
2. Headlight and turn signal lights— Switch operation (P.2-37)
— Bulb replacement (P.8-27)
3. Windshield wiper and washer
— Switch operation (P.2-32) — Rain-sensing auto wiper system* (P.2-34)
— Blade replacement (P.8-18)
— Window washer fluid (P.8-13)
4. Roof rack (rail)* (P.2-54)
5. Moonroof* (P.2-58)
6. Power windows (P.2-55)
7. Recovery hook (P.6-22) 8. License plate installation (P.9-12)
9. Fog lights*
— Switch operation (P.2-41)
— Bulb replacement (P.8-29)
10. Tires — Wheel and tires (P.8-32, P.9-7)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System (TPMS)
(P.2-14, P.5-4)
11. Outside mirrors (P.3-50)
12. Doors — Keys (P.3-3)
— Door locks (P.3-5)
— Intelligent Key system (P.3-8)
— Security system (P.2-29)
13. Child safety rear door lock (P.3-8)
14. Fuel-filler door — Operation (P.3-44)
— Fuel recommendation (P.9-3)
*: if so equipped
EXTERIOR FRONT
Condition:
Page 13 of 507
Black plate (11,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSI0835
CROSSCABRIOLET MODELSGUID-DF0D496F-8646-47E0-B4BF-8034FB00EB801. Hood (P.3-20)
2. Headlight and turn signal lights— Switch operation (P.2-37)
— Bulb replacement (P.8-27)
3. Windshield wiper and washer — Switch operation (P.2-32) — Blade replacement (P.8-18)
— Window washer fluid (P.8-13)
4. Soft top (P.3-28)
5. Power windows (P.2-55)
6. Recovery hook (P.6-22)
7. License plate installation (P.9-12)
8. Fog lights — Switch operation (P.2-41)
— Bulb replacement (P.8-29)
9. Tires
— Wheel and tires (P.8-32, P.9-7)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System (TPMS)
(P.2-14, P.5-4)
10. Outside mirrors (P.3-50)
11. Doors
— Keys (P.3-3)
— Door locks (P.3-5)
— Intelligent Key system (P.3-8)
— Security system (P.2-29)
12. Fuel-filler door — Operation (P.3-44)
— Fuel recommendation (P.9-3)
Illustrated table of contents0-5
Condition:
Page 18 of 507
Black plate (16,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
0-10Illustrated table of contents
GUID-32B6101A-1F0F-4AD4-AF3B-40C2CE7B8097
JVO0067X
1. Heated steering wheel switch* (P.2-41)
2. Power lift gate switch* (Hardtop models)(P.3-20) or trunk lid release switch (Cross-
Cabriolet models) (P.3-25)
3. Warning systems switch* (P.2-43) — Lane Departure Warning (LDW) system*
(P.5-20) — Blind Spot Warning (BSW) system* (P.5-20)
4. Instrument brightness control switch (P.2-40)
5. Headlight, fog light and turn signal switch — Headlight (P.2-37)
— Turn signal light (P.2-40)
— Fog light* (P.2-41)
6. Trip computer switch (P.2-25) 7. TRIP/RESET switch (P.2-6)
8. Wiper and washer switch (P.2-32)
9. Vehicle Dynamic Control (VDC) off switch (P.
2-44, P.5-39)
10. Power lift gate main switch* (Hardtop models) (P.3-20) or All-Wheel Drive (AWD) LOCK
switch (CrossCabriolet models) (P.5-33)
11. Power rear seatback switch* (Hardtop models) (P.1-9)
12. Power rear seatback switch* (Hardtop models) (P.1-9) or Remote walk-in switch (CrossCabrio-
let models) (P.1-7)
13. Fuel-filler door opener switch (P.3-44)
14. Manual tilting/telescopic steering wheel lever* (P.3-47)
15. Electric tilting/telescopic steering wheel switch* (P.3-47)
16. Steering-wheel-mounted controls (left side)* — Audio control* (P.4-87)
— Bluetooth
®Hands-Free Phone System con-
trol (models with navigation system)* (P.4-89)
— Bluetooth
®Hands-Free Phone System con-
trol (models without navigation system)*
(P.4-100)
17. Steering wheel — Horn (P.2-41)
— Driver supplemental air bag (P.1-45)
— Power steering system (P.5-37)
18. Steering-wheel-mounted controls (right side) — Cruise control switches (P.5-30)
19. Center-console mounted controls
COCKPIT
Condition:
Page 87 of 507
Black plate (85,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

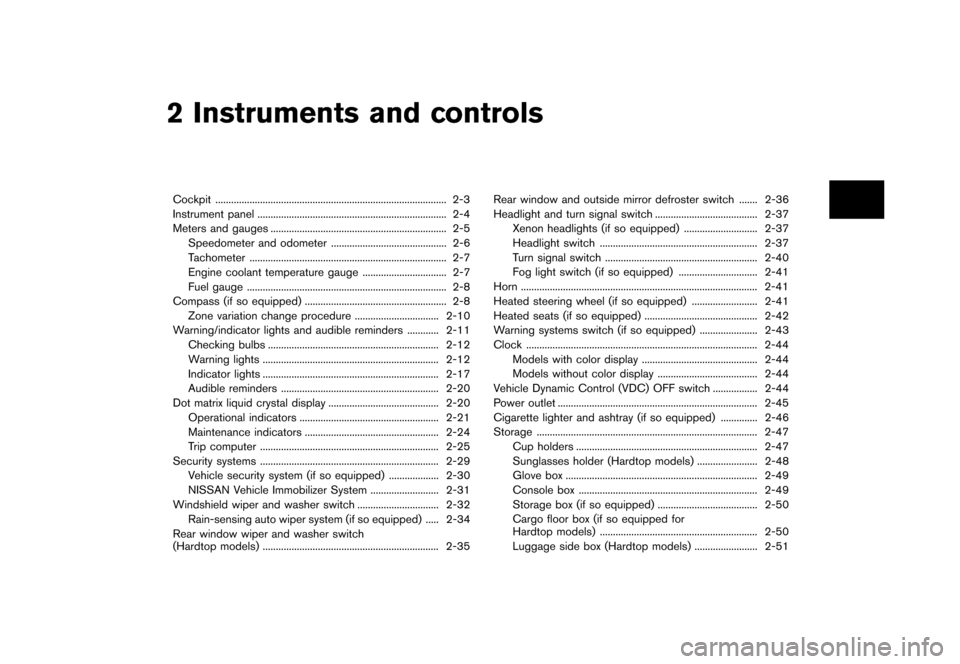

2 Instruments and controls
Cockpit...
........................................................................\
................ 2-3
Instrument panel ...
........................................................................\
2-4
Meters and gauges ...
................................................................... 2-5
Speedometer and odometer ...
............................................ 2-6
Tachometer ...
........................................................................\
... 2-7
Engine coolant temperature gauge ...
................................ 2-7
Fuel gauge ...
........................................................................\
.... 2-8
Compass (if so equipped) ...
...................................................... 2-8
Zone variation change procedure ...
................................ 2-10
Warning/indicator lights and audible reminders ...
............ 2-11
Checking bulbs ...
................................................................. 2-12
Warning lights ...
................................................................... 2-12
Indicator lights ...
................................................................... 2-17
Audible reminders ...
............................................................ 2-20
Dot matrix liquid crystal display ...
.......................................... 2-20
Operational indicators ...
..................................................... 2-21
Maintenance indicators ...
................................................... 2-24
Trip computer ...
.................................................................... 2-25
Security systems ...
.................................................................... 2-29
Vehicle security system (if so equipped) ...
................... 2-30
NISSAN Vehicle Immobilizer System ...
.......................... 2-31
Windshield wiper and washer switch ...
............................... 2-32
Rain-sensing auto wiper system (if so equipped) ...
..... 2-34
Rear window wiper and washer switch
(Hardtop models) ...
................................................................... 2-35 Rear window and outside mirror defroster switch
...
....... 2-36
Headlight and turn signal switch ...
....................................... 2-37
Xenon headlights (if so equipped) ...
............................ 2-37
Headlight switch ...
............................................................ 2-37
Turn signal switch ...
.......................................................... 2-40
Fog light switch (if so equipped) ...
.............................. 2-41
Horn ...
........................................................................\
.................. 2-41
Heated steering wheel (if so equipped) ...
......................... 2-41
Heated seats (if so equipped) ...
........................................... 2-42
Warning systems switch (if so equipped) ...
...................... 2-43
Clock ...
........................................................................\
................ 2-44
Models with color display ...
............................................ 2-44
Models without color display ...
...................................... 2-44
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-44
Power outlet ...
........................................................................\
.... 2-45
Cigarette lighter and ashtray (if so equipped) ...
.............. 2-46
Storage ...
........................................................................\
............ 2-47
Cup holders ...
..................................................................... 2-47
Sunglasses holder (Hardtop models) ...
....................... 2-48
Glove box ...
........................................................................\
. 2-49
Console box ...
.................................................................... 2-49
Storage box (if so equipped) ...
...................................... 2-50
Cargo floor box (if so equipped for
Hardtop models) ...
............................................................ 2-50
Luggage side box (Hardtop models) ...
........................ 2-51
Condition:
>
Page 89 of 507
Black plate (87,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-06B56D4D-A0AA-4178-A121-A31F959AC846
JVO0067X
1. Heated steering wheel switch*
2. Power lift gate switch* (Hardtop models) ortrunk lid release switch (CrossCabriolet models)
3. Warning systems switch* - Lane Departure Warning (LDW) system*
- Blind Spot Warning (BSW) system*
4. Instrument brightness control switch 5. Headlight, fog light and turn signal switch
— Headlight
— Turn signal light
— Fog light*
6. Trip computer switch
7. TRIP/RESET switch
8. Wiper and washer switch 9. Vehicle Dynamic Control (VDC) off switch
10. Power lift gate main switch* (Hardtop models) or
All-Wheel Drive (AWD) LOCK switch (Cross-
Cabriolet models)
11. Power rear seatback switch* (Hardtop models)
12. Power rear seatback switch* (Hardtop models) or Remote walk-in switch (CrossCabriolet mod-
els)
13. Fuel-filler door opener switch
14. Manual tilting/telescopic steering wheel lever*
15. Electric tilting/telescopic steering wheel switch*
16. Steering-wheel-mounted controls (left side)* — Audio control*
— Bluetooth
®Hands-Free Phone System con-
trol (models with navigation system)*
— Bluetooth
®Hands-Free Phone System con-
trol (models without navigation system)*
17. Steering wheel — Horn
— Driver supplemental air bag
— Power steering system
18. Steering-wheel-mounted controls (right side) — Cruise control switches
19. Center-console mounted controls — Heated seat switches*
— All-Wheel Drive (AWD) LOCK switch*
(Hardtop models)
— Soft top operating switch (CrossCabriolet
models)
*: if so equipped
Instruments and controls2-3
COCKPIT
Condition:
Page 122 of 507
Black plate (120,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-36Instruments and controls
The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
*1Intermittent (INT) — intermittent operation (not
adjustable)
*2Low (ON) — continuous low speed operation
Push the switch forward*3to operate the
washer. Then the wiper will also operate several
times.
GUID-6A8EA538-4B5A-4260-A4F9-59AA6EEC9D6A
SIC3584
Type A
SIC3667
Type B
To defog/defrost the rear window glass and
outside mirrors (if so equipped), start the engine
and push the switch
*1on. The indicator light
*2will come on. Push the switch again to turn
the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
. When cleaning the inner side of the
rear window, be careful not to
scratch or damage the rear window
defroster.
. Do not use the rear window defros-
ter switch while the soft top is being
operated or fully opened. The heat
may damage the soft top material
and/or components (CrossCabriolet
models) .
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH
Condition:
Page 127 of 507
Black plate (125,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SIC3672
FOG LIGHT SWITCH (if so equipped)GUID-B77E006A-B448-42A0-B9EB-E9953893F221To turn the fog lights on, turn the headlight
switch to the
position, then turn the switch
to the
position. To turn them off, turn the
switch to the OFF position.
The headlights must be on for the fog lights to
operate.
GUID-76AEBFE4-FB9E-4225-A909-4F10E8A5C7A6
SIC3586
To sound the horn, push the pad area*Aof the
steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.
GUID-158A9409-77D0-4867-8A63-D9F0D56BF7B6
SIC4401
The heated steering wheel system is designed
to operate only when the surface temperature of
the steering wheel is below 688F (208C) .
Push the heated steering wheel switch to warm
the steering wheel after the engine starts. The
indicator light
*1on the switch will illuminate.
If the surface temperature of the steering wheel
is below 688F (208C) , the system will heat the
steering wheel and cycle off and on to maintain a
temperature above 688F (208C) . The indicator
light will remain on as long as the system is on.
Push the switch again to turn the heated
steering wheel system off manually. The indica-
tor light will turn off.
Instruments and controls2-41
HORN HEATED STEERING WHEEL (if so
equipped)
Condition:
Page 252 of 507
Black plate (250,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-44Monitor, heater, air conditioner, audio, phone and voice recognition systems
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Heating (A/C OFF)GUID-C4D96DF4-D0D2-4751-8F78-451CD5632566The air conditioner does not activate in this
mode. When you need to heat only, use this
mode.
1. Push the “A/C” button. (The A/C indicatorwill turn off.)
2. Operate the temperature control buttons (type A) or dial (type B) to set the desired
temperature.
. The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also
controlled automatically.
. Do not set the temperature lower than the
outside air temperature. Otherwise the
system may not work properly.
. Not recommended if windows fog up.
Dehumidified defrosting or defoggingGUID-6430F809-96AC-4582-A1F2-907A1F44D1CF1. Push the “” front defroster button. (The
indicator light on the button will come on.)
2. Operate the temperature control buttons (type A) or dial (type B) to set the desired
temperature. .
To quickly remove ice from the outside of the
windows, turn the “
” fan speed control
dial and set it to the maximum position.
. As soon as possible after the windshield is
clean, push the “AUTO” button to return to
the auto mode.
. When the “
” front defroster button is
pushed, the air conditioner will automatically
be turned on at outside temperatures above
238F (−58C) to defog the windshield, and
the air recirculate mode will automatically be
turned off.
Outside air is drawn into the passenger
compartment to improve the defogging
performance.
MANUAL OPERATIONGUID-DD9F85E6-993D-4D0F-AA81-0E42CFEE8E18
Fan speed controlGUID-A47CE066-351F-4CC8-AC17-7FC4FC991E14Turn the “” fan speed control dial to
manually control the fan speed.
Push the “AUTO” button to return to automatic
control of the fan speed.
Air recirculationGUID-2B823F0D-0272-430E-975F-993BF534048APush the intake air control button “” to
recirculate interior air inside the vehicle. The
indicator light “
” will come on.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrosting mode “
”.
Outside air circulationGUID-E6DC013B-AF1A-40A2-93FA-8FF729A446D3Push the intake air control button “” to
change the air circulation from the intake air to
the outside air. The indicator light “
” will turn
off.
Automatic air intake controlGUID-8618E9EF-436B-4EE2-BD6B-EF915C7F0650In the AUTO mode, the intake air will be
controlled automatically. To manually control
the intake air, push the intake air control button
“
”. To return to the automatic control mode,
push the intake air control button “
” for
about 2 seconds. The indicator lights will flash
twice, and then the intake air will be controlled
automatically.
Air flow controlGUID-C19D08E9-C968-405F-8023-0A5995635CB9Pushing the “MODE” manual air flow control
button selects the air outlet to:
: Air flows from center and side ventilators.
: Air flows from center and side ventilators and foot outlets.
: Air flows mainly from foot outlets.
: Air flows from defroster and foot outlets.
Condition:
Page 253 of 507
Black plate (251,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
Upper vent systemGUID-19867573-E52A-4FE3-A98D-EAD52DA785CDWhen the “” upper vent system button is
pushed, the air flow against the driver’s or
passenger’s upper body becomes gentle. The
indicator light on the button will come on.
In this mode, air from the center ventilators flows
both straight and upward in order to control the
cabin temperature without blowing air directly
on the occupants.
If you want strong air flow against your upper
body, push the “
” button to turn the indicator
light off.
TO TURN THE SYSTEM ON/OFFGUID-47724BF7-EA71-42CD-B9E2-1924EE973459Push the “OFF” or “ON·OFF” button when the
heater and air conditioner is off. The system will
turn on with the settings that were used
immediately before the system was turned off.
SAA1989
OPERATING TIPSGUID-7630774E-D2E9-4A30-80CE-5991156106D5The sunload sensor*Aon the instrument panel
helps maintain a constant temperature. Do not
put anything on or around this sensor.
IN-CABIN MICROFILTERGUID-2A733D05-72A8-4084-85C6-C44B8D240310The air conditioning system is equipped with an
in-cabin microfilter which collects dirt, pollen,
dust, etc. To make sure the air conditioner heats,
defogs, and ventilates efficiently, replace the
filter in accordance with the maintenance
schedule in the NISSAN Service and Mainte-
nance Guide. To replace the filter, contact a
NISSAN dealer.
The filter should be replaced if air flow is extremely decreased or when windows fog
up easily when operating heater or air
conditioning system.
SERVICING AIR CONDITIONERGUID-50FE276B-3951-41D5-85EB-DF3E3DB9E09DThe air conditioning system in your NISSAN is
charged with a refrigerant designed with the
environment in mind.
This refrigerant will not
harm the earth’s ozone layer. However,
special charging equipment and lubricant are
required when servicing your NISSAN air con-
ditioner. Using improper refrigerants or lubri-
cants will cause severe damage to your air
conditioning system. (See “Capacities and
recommended fuel/lubricants” in the “9. Techni-
cal and consumer information” section for air
conditioning system refrigerant and lubricant
recommendations.)
Your NISSAN dealer will be able to service your
environmentally friendly air conditioning system.
WARNING
The system contains refrigerant under
high pressure. To avoid personal injury,
any air conditioner service should be
done only by an experienced technician
with the proper equipment.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-45
Condition:
Page 449 of 507
Black plate (447,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-7930BD1D-6A37-45F8-BD07-EC7DACC0844D
JVM0092X
HARDTOP MODELSGUID-E863F809-FABB-4234-BEE2-35A49E182A3C1. Front turn signal/parking light* or Front turnsignal light**
2. Headlight (high-beam)* or Front parking light**
3. Headlight (low-beam)* or Headlight (low-beam, high-beam)**
4. Side marker light
5. Front map light
6. Rear personal light
7. Front fog light (if so equipped)
8. Step light
9. High-mounted stop light
10. Back-up light
11. Rear stop/tail light
12. Rear side marker light
13. License plate light
14. Cargo light
15. Rear turn signal light
*: Halogen headlight model
**: Xenon headlight model
Maintenance and do-it-yourself8-25
LIGHTS
Condition:
