NISSAN MURANO 2017 3.G Owners Manual

For Canada
This device complies with Industry Canada
license-exempt RSS standard(s) . Operation is
subject to the following two conditions:1. This device may not cause interference,
2. This device must accept any interference, including interference that may cause unde-
sired operation of the device.
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils ra-
dio exempts de licence. L’exploitation est autori-
sée aux deux conditions suivantes: (1) l’appareil
ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouil-
lage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonction-
nement.WARNING
Failure to follow the warnings and instruc-
tions for proper use of the PFCW system
could result in serious injury or death.
● The PFCW system can help warn the
driver before a collision occurs but will
not avoid a collision. It is the driver’s
responsibility to stay alert, drive safely
and be in control of the vehicle at all
times.
The PFCW system can help alert the driver when
there is a sudden braking of a second vehicle
traveling in front of the vehicle ahead in the same
lane. The PFCW system uses a radar sensor
Alo-
cated behind the lower grille of the front bumper
to measure the distance to the vehicle ahead in
the same lane.
LSD2249
PREDICTIVE FORWARD COLLISION
WARNING (PFCW) (if so equipped)
5-62Starting and driving

1. Vehicle ahead detection indicator
2. FEB system warning light
LSD2524
Starting and driving5-63

PFCW SYSTEM OPERATION
The PFCW system operates at speeds above
approximately 3 mph (5 km/h).
If there is a potential risk of a forward collision, the
PFCW system will warn the driver by blinking the
vehicle ahead detection indicator, and sounding
an audible alert.
LSD2263
5-64Starting and driving

TURNING THE PFCW SYSTEM
ON/OFF
Perform the following steps to turn the PFCW
system on or off.1. Press the
button until “Settings” dis-
plays in the vehicle information display and
then press OK button. Use the
button
to select “Driver Assistance.” Then press the
OK button.
2. Select “Emergency Brake” and press the OK button.
3. Select “System” and press the OK button.
When the PFCW system is turned off, the FEB
system warning light illuminates.
NOTE:
● The PFCW system will be automatically
turned on when the engine is restarted.
● The PFCW system (if so equipped) is inte-
grated into the FEB system. There is not a
separate selection in the vehicle information
display for the PFCW system. When the
FEB is turned off, the PFCW system is also
turned off.
LSD2525
Starting and driving5-65

PFCW SYSTEM LIMITATIONS
Illustration A
LSD2312
5-66Starting and driving

WARNING
Listed below are the system limitations for
the PFCW system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
●The PFCW system cannot detect all ve-
hicles under all conditions.
● The radar sensor does not detect the
following objects:
– Pedestrians, animals or obstacles in the roadway – Oncoming vehicles
– Crossing vehicles
● (Illustration A) The PFCW system does
not function when a vehicle ahead is a
narrow vehicle, such as a motorcycle.
● The radar sensor may not detect a ve-
hicle ahead in the following conditions:
– Snow or heavy rain
– Dirt, ice, snow or other material cov- ering the radar sensor.
– Interference by other radar sources. – Snow or road spray from traveling
vehicles.
– Driving in a tunnel
– (Illustration B) When the vehicle ahead is being towed.
– (Illustration C) When the distance to the vehicle ahead is too close, the
beam of the radar sensor is
obstructed.
– (Illustration D) When driving on a steep downhill slope or roads with
sharp curves.
Illustration B
LSD2265
Starting and driving5-67

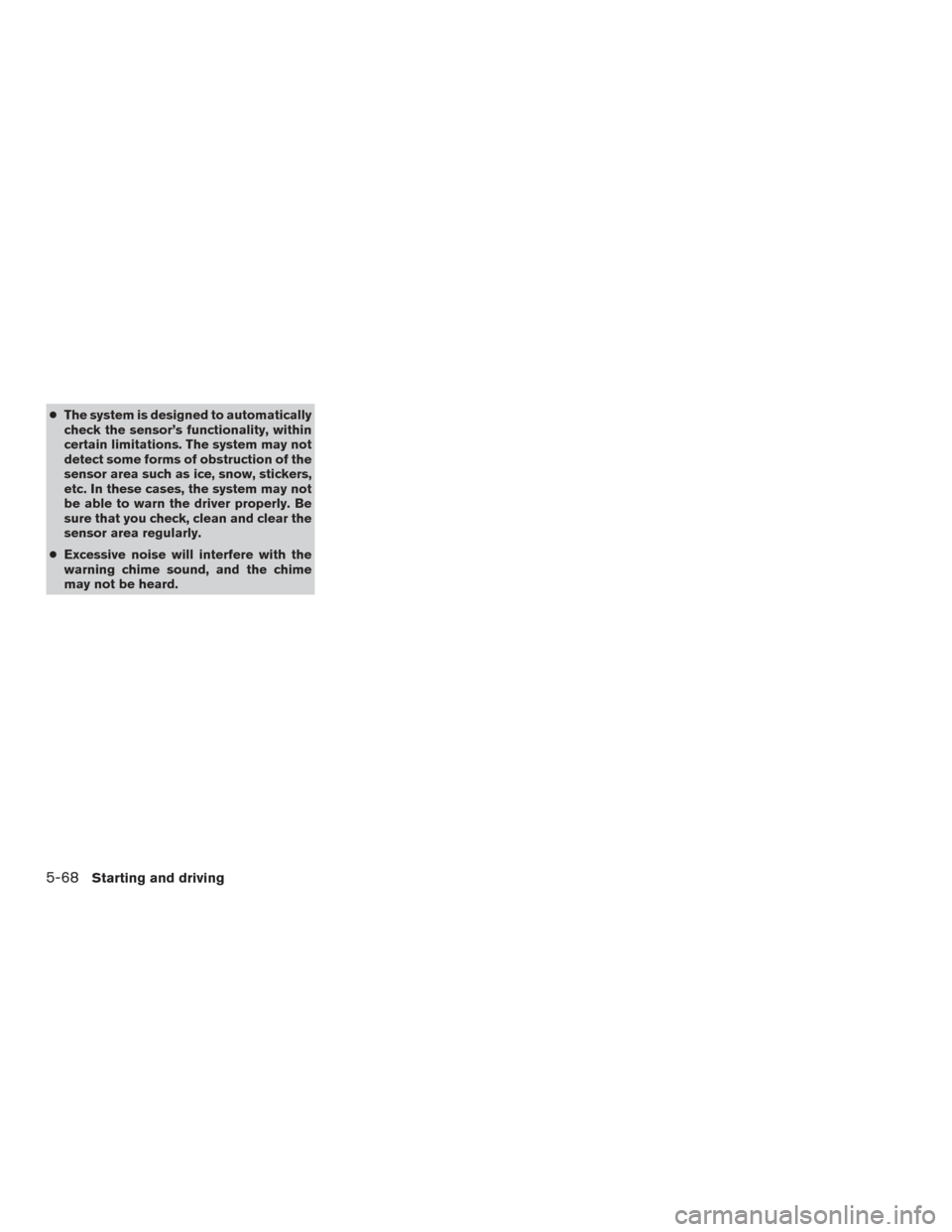

●The system is designed to automatically
check the sensor’s functionality, within
certain limitations. The system may not
detect some forms of obstruction of the
sensor area such as ice, snow, stickers,
etc. In these cases, the system may not
be able to warn the driver properly. Be
sure that you check, clean and clear the
sensor area regularly.
● Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
5-68Starting and driving

Illustration C
LSD2266
Starting and driving5-69

Illustration D
LSD2313
5-70Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE
Condition A
When the radar sensor picks up interference
from another radar source, making it impossible
to detect a vehicle ahead, the PFCW system is
automatically turned off.
The FEB system warning light (orange) will illu-
minate.
Action to take
When the above conditions no longer exist, the
PFCW system will resume automatically.
Condition B
When the sensor area of the front bumper is
covered with dirt or is obstructed, making it im-
possible to detect a vehicle ahead, the PFCW
system is automatically turned off.
The FEB system warning light (orange) will illu-
minate and the “front radar obstruction” warning
message will appear in the vehicle information
display.
LSD2526
Starting and driving5-71
