Page 351 of 466

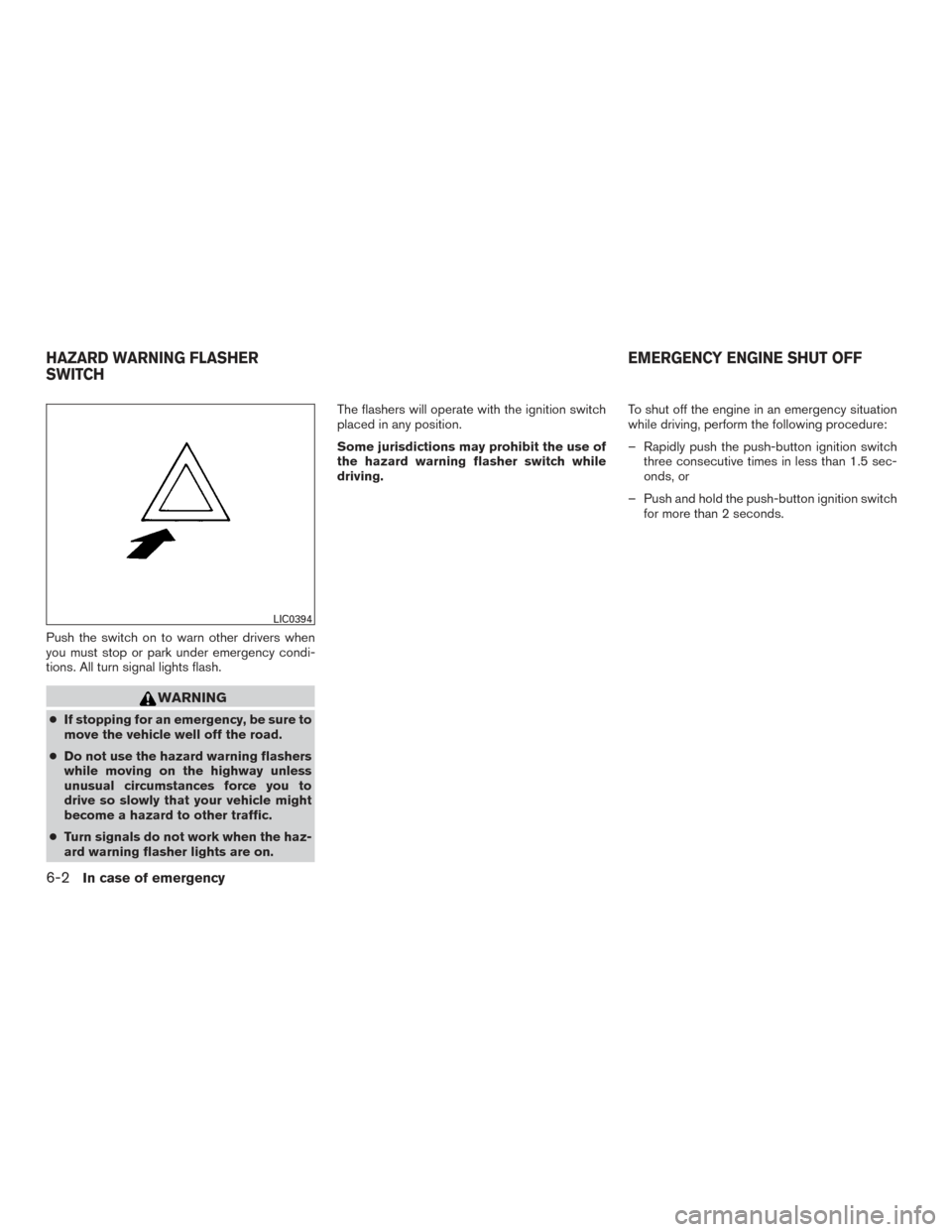

NISSAN MURANO 2017 3.G Owners Manual Push the switch on to warn other drivers when
you must stop or park under emergency condi-
tions. All turn signal lights flash.
WARNING
●If stopping for an emergency, be sure to
move the vehicle wel

Page 352 of 466

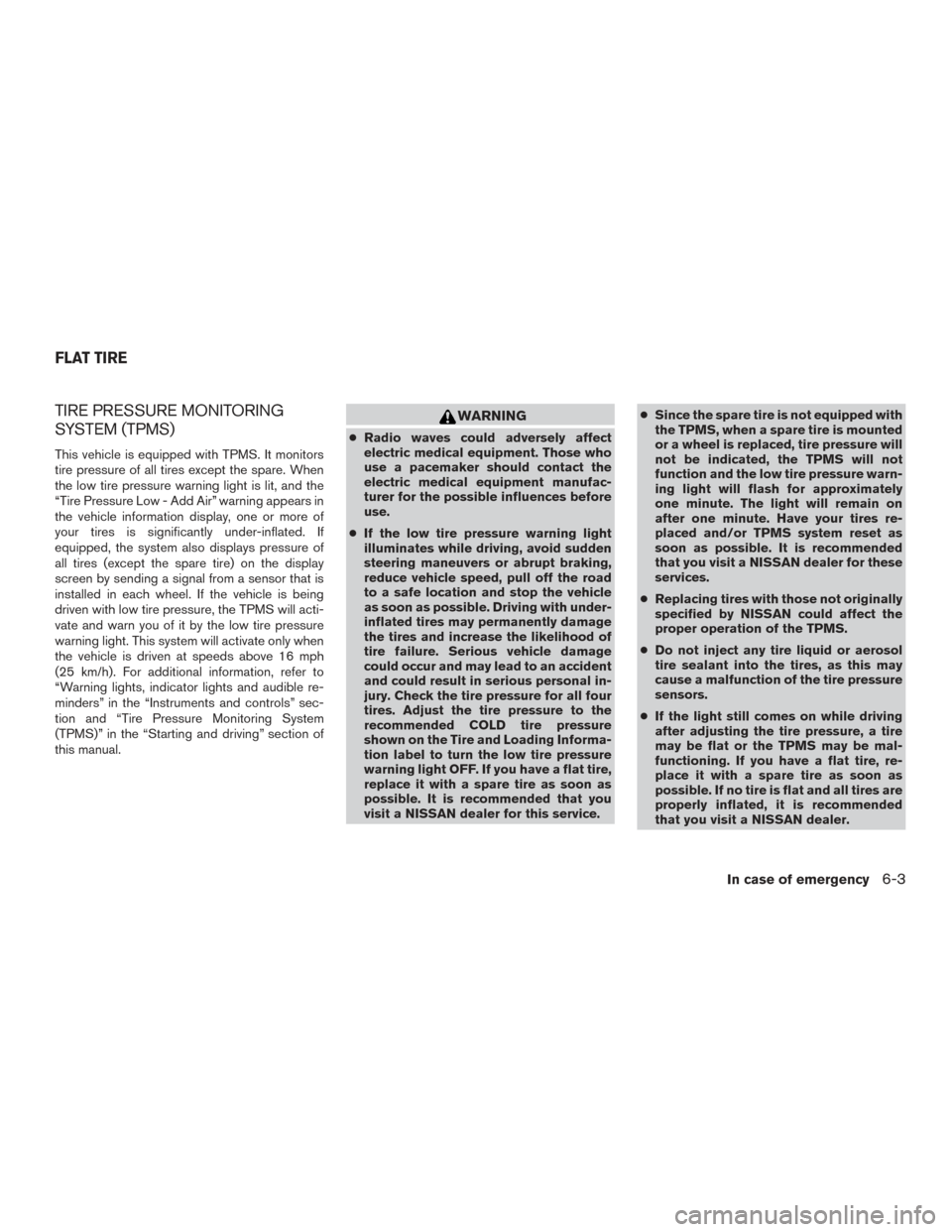

NISSAN MURANO 2017 3.G Owners Manual TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This vehicle is equipped with TPMS. It monitors
tire pressure of all tires except the spare. When
the low tire pressure warning light is lit, and the
“Tire Pre

Page 353 of 466

NISSAN MURANO 2017 3.G Owners Manual CHANGING A FLAT TIRE
If you have a flat tire, follow the instructions be-
low:
Stopping the vehicle
1. Safely move the vehicle off the road andaway from traffic.
2. Turn on the hazard warning flashers

Page 354 of 466

NISSAN MURANO 2017 3.G Owners Manual Getting the spare tire and tools
1. Open the rear liftgate.
2. Pull up on the handle to lift the carpetedfloorboard and attach the hook as shown.
3. The jack and tools are located in the storagecompar

Page 355 of 466

NISSAN MURANO 2017 3.G Owners Manual 6. To remove the spare tire, loosen the bolt byturning counterclockwise.
7. Once free, remove the bolt.
8. Remove the spare tire.
9. Once the flat tire is exchanged with the spare tire, store the flat

Page 356 of 466

NISSAN MURANO 2017 3.G Owners Manual Jacking up vehicle and removing the
damaged tire
WARNING
●Never get under the vehicle while it is
supported only by the jack. If it is nec-
essary to work under the vehicle, sup-
port it with safety

Page 357 of 466

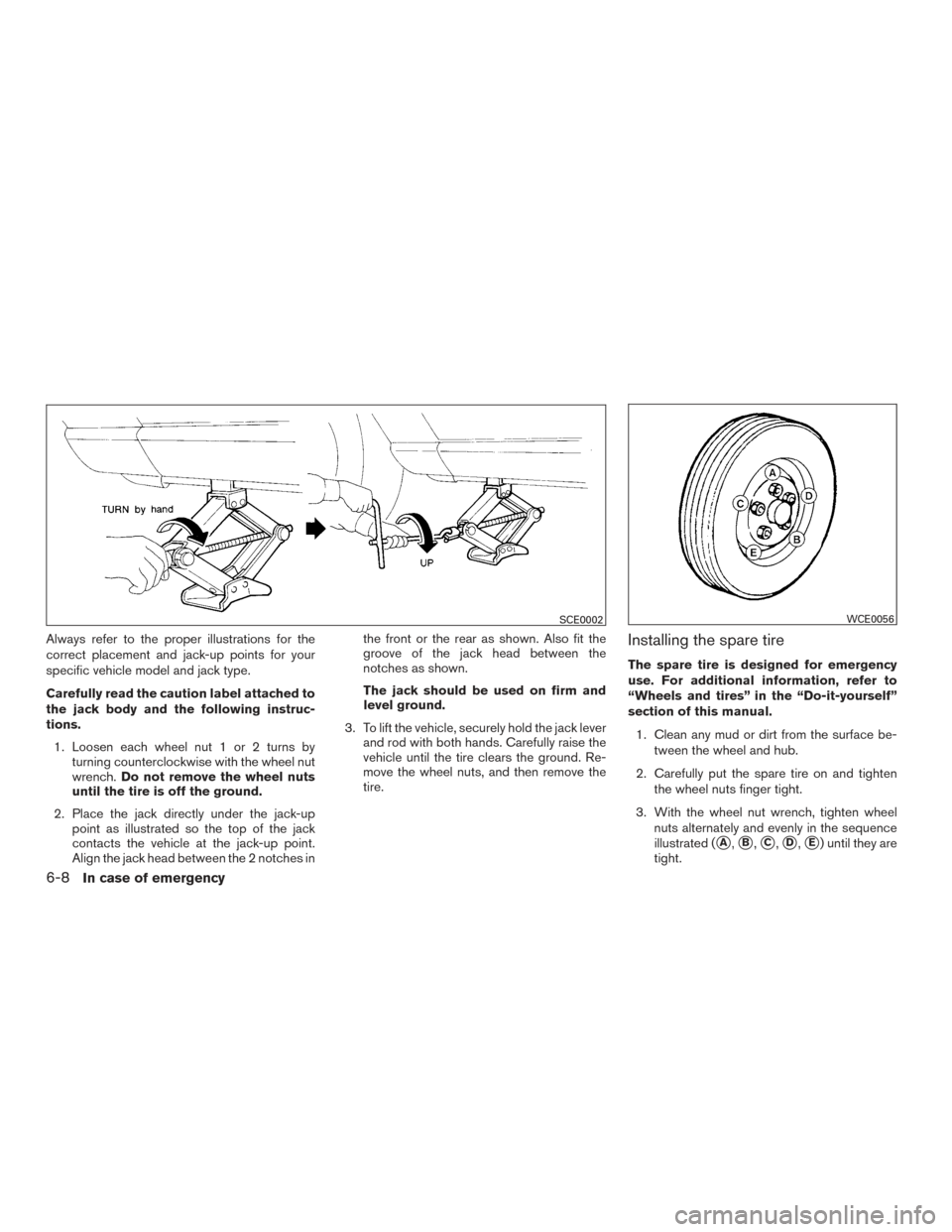

NISSAN MURANO 2017 3.G Owners Manual Always refer to the proper illustrations for the
correct placement and jack-up points for your
specific vehicle model and jack type.
Carefully read the caution label attached to
the jack body and the

Page 358 of 466

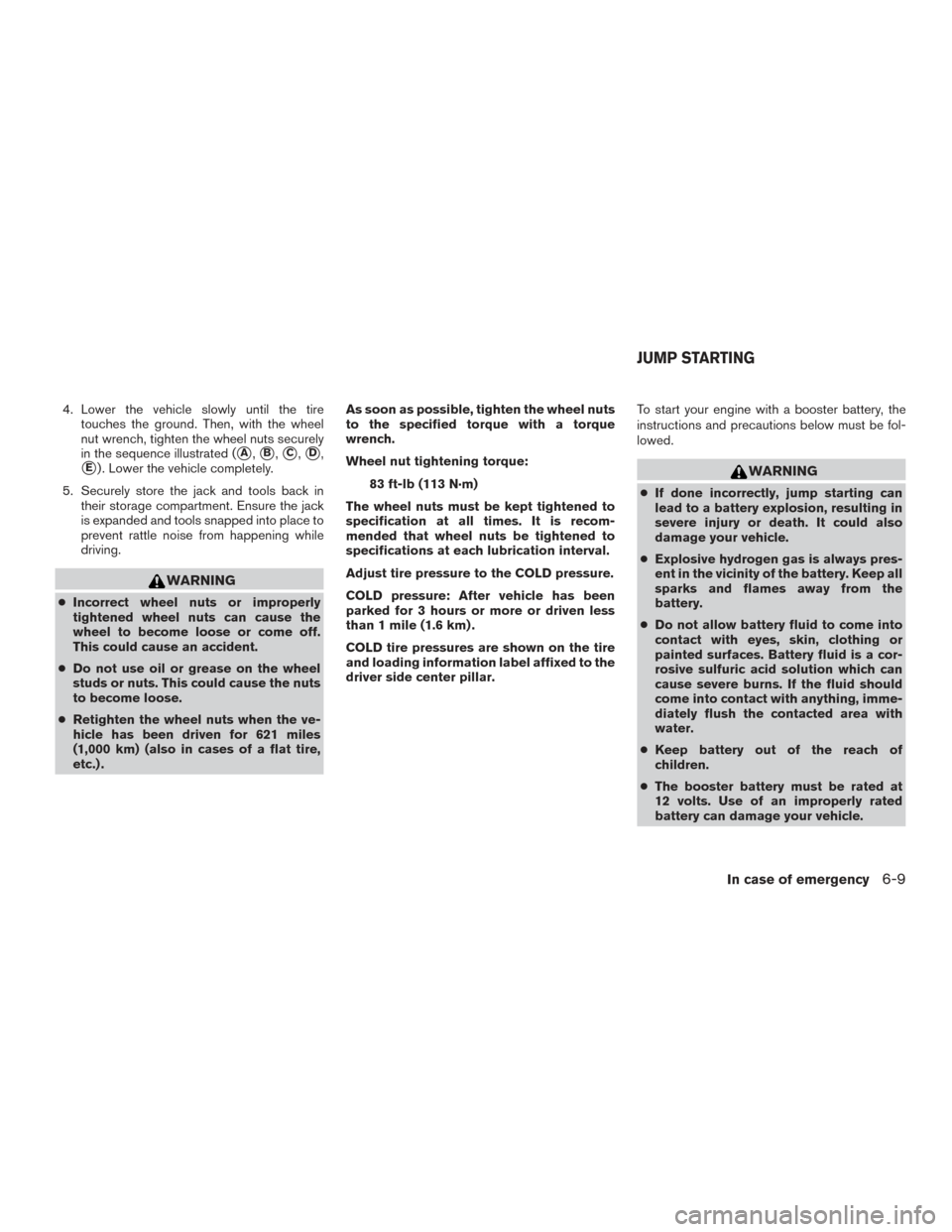

NISSAN MURANO 2017 3.G Owners Manual 4. Lower the vehicle slowly until the tiretouches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts securely
in the sequence illustrated (
A,B,C,D,
E) . Lower the vehicle comple

Page 359 of 466

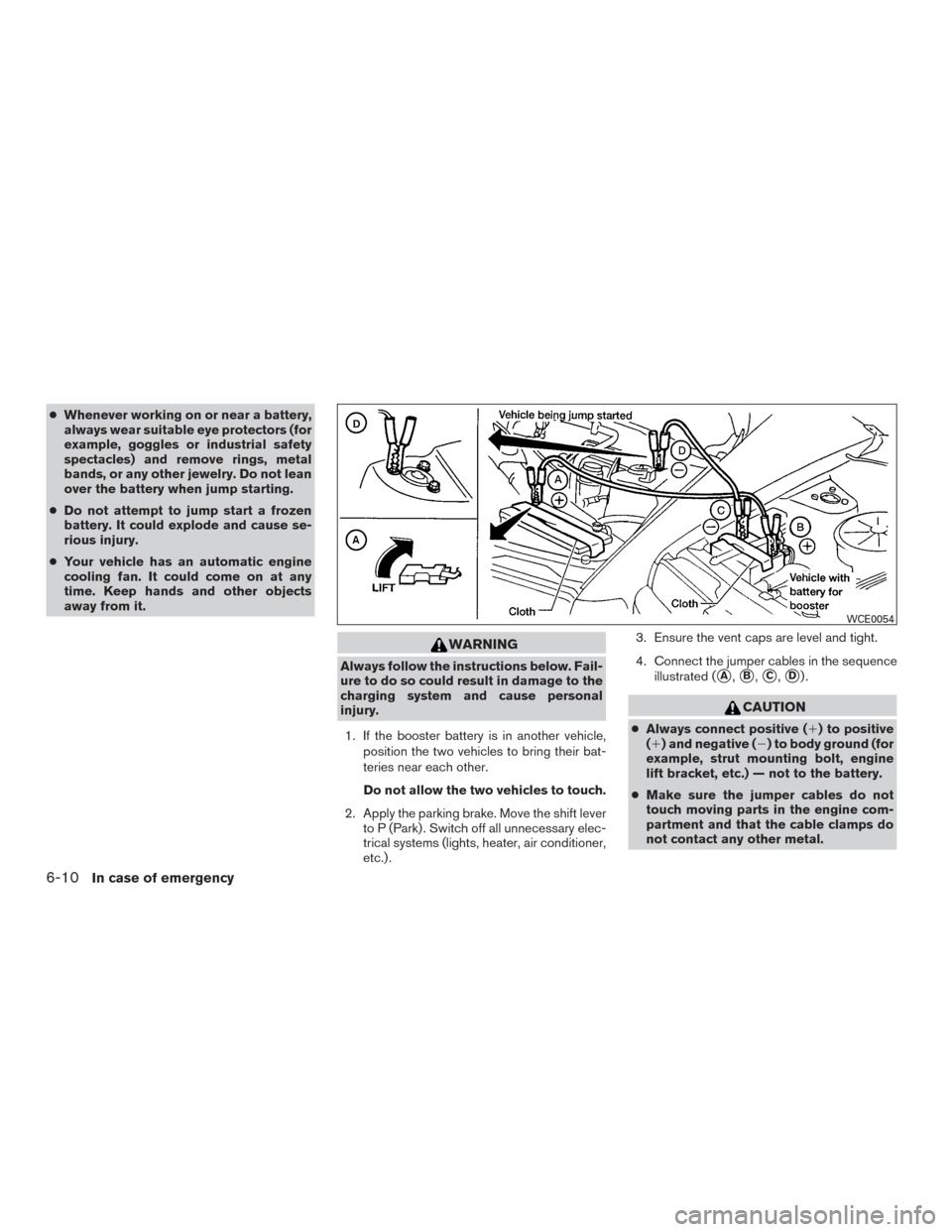

NISSAN MURANO 2017 3.G Owners Manual ●Whenever working on or near a battery,
always wear suitable eye protectors (for
example, goggles or industrial safety
spectacles) and remove rings, metal
bands, or any other jewelry. Do not lean
ov

Page 360 of 466

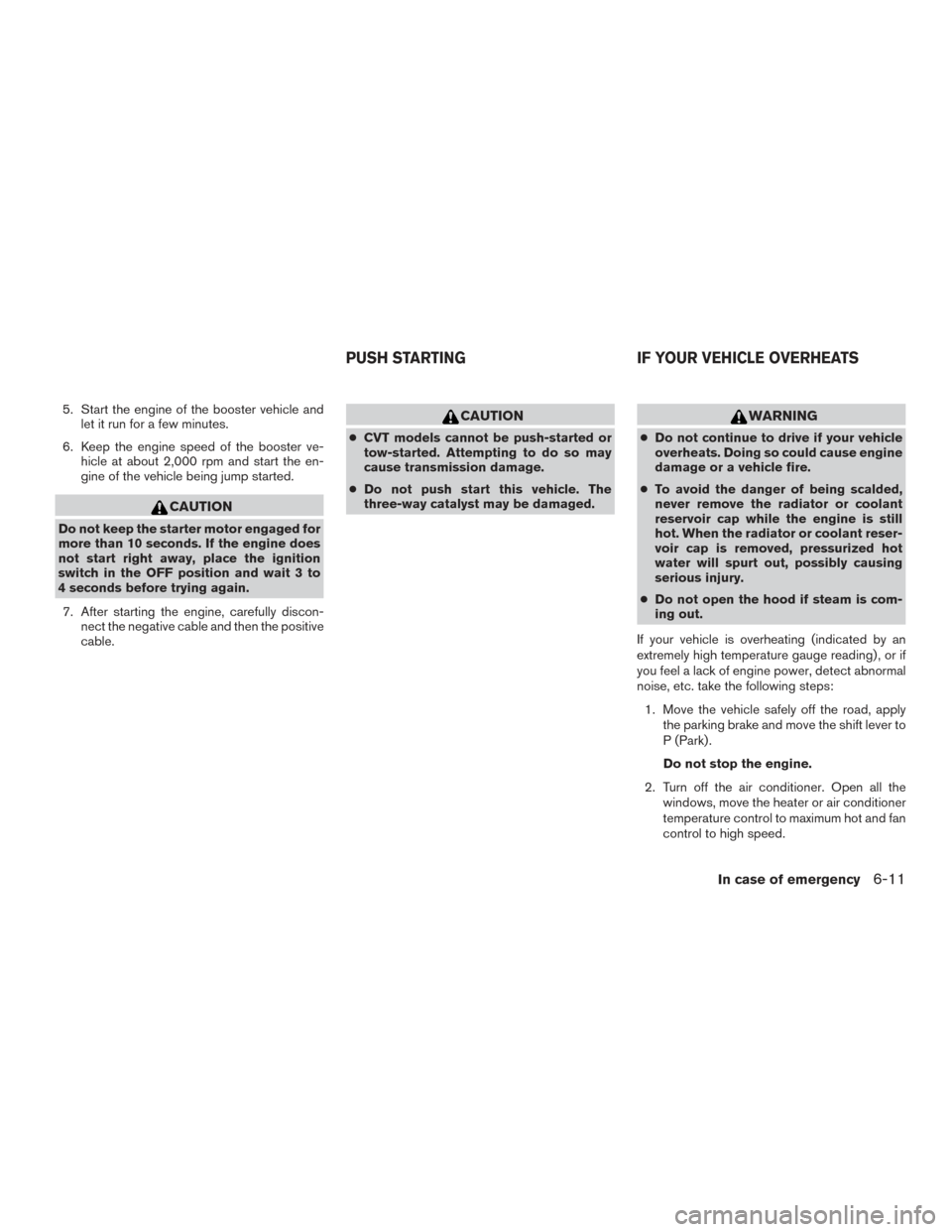

NISSAN MURANO 2017 3.G Owners Manual 5. Start the engine of the booster vehicle andlet it run for a few minutes.
6. Keep the engine speed of the booster ve- hicle at about 2,000 rpm and start the en-
gine of the vehicle being jump starte
