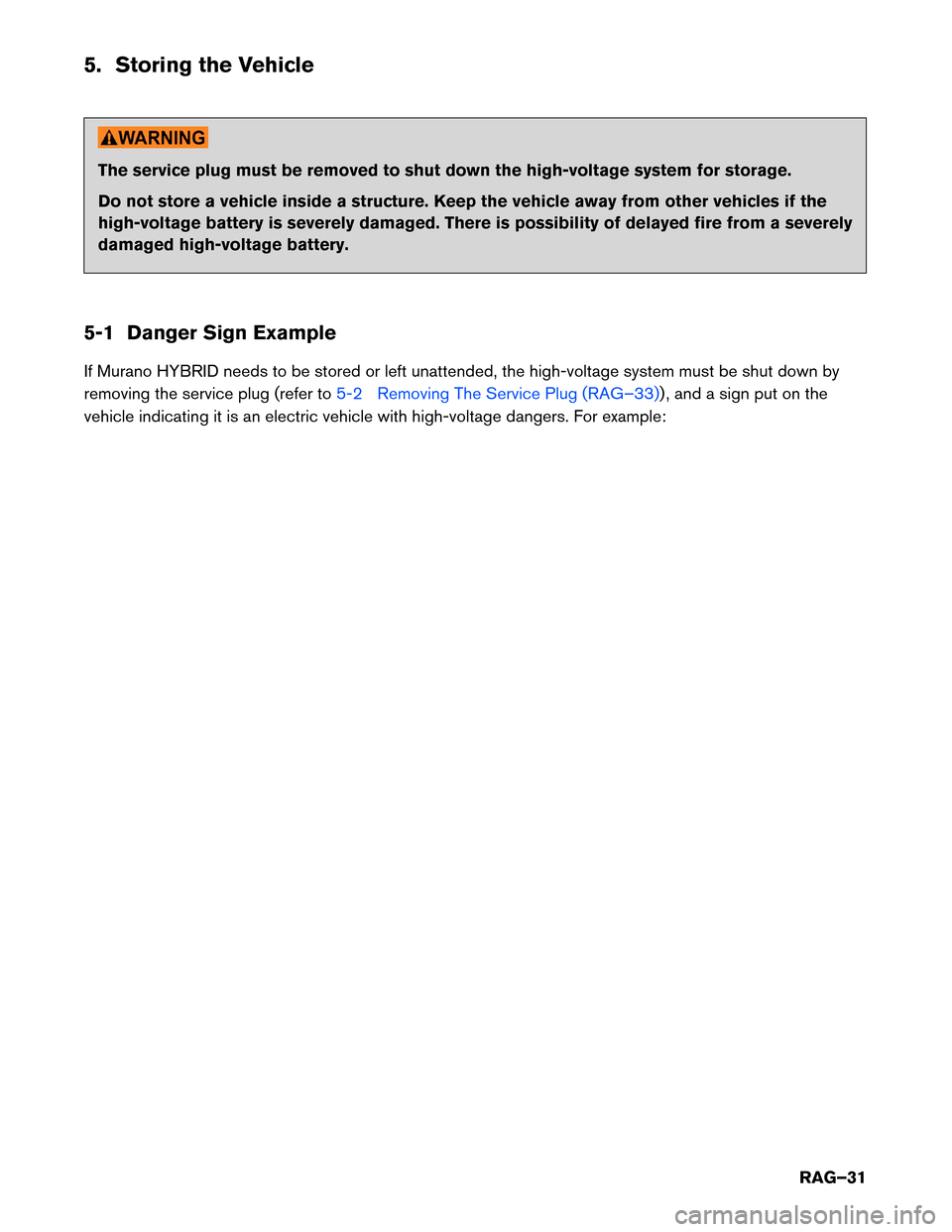

NISSAN MURANO HYBRID 2016 3.G Roadside Assistance Guide 5. Storing the Vehicle
The service plug must be removed to shut down the high-voltage system for storage.
Do
not store a vehicle inside a structure. Keep the vehicle away from other vehicles if the
hi

Page 32 of 36

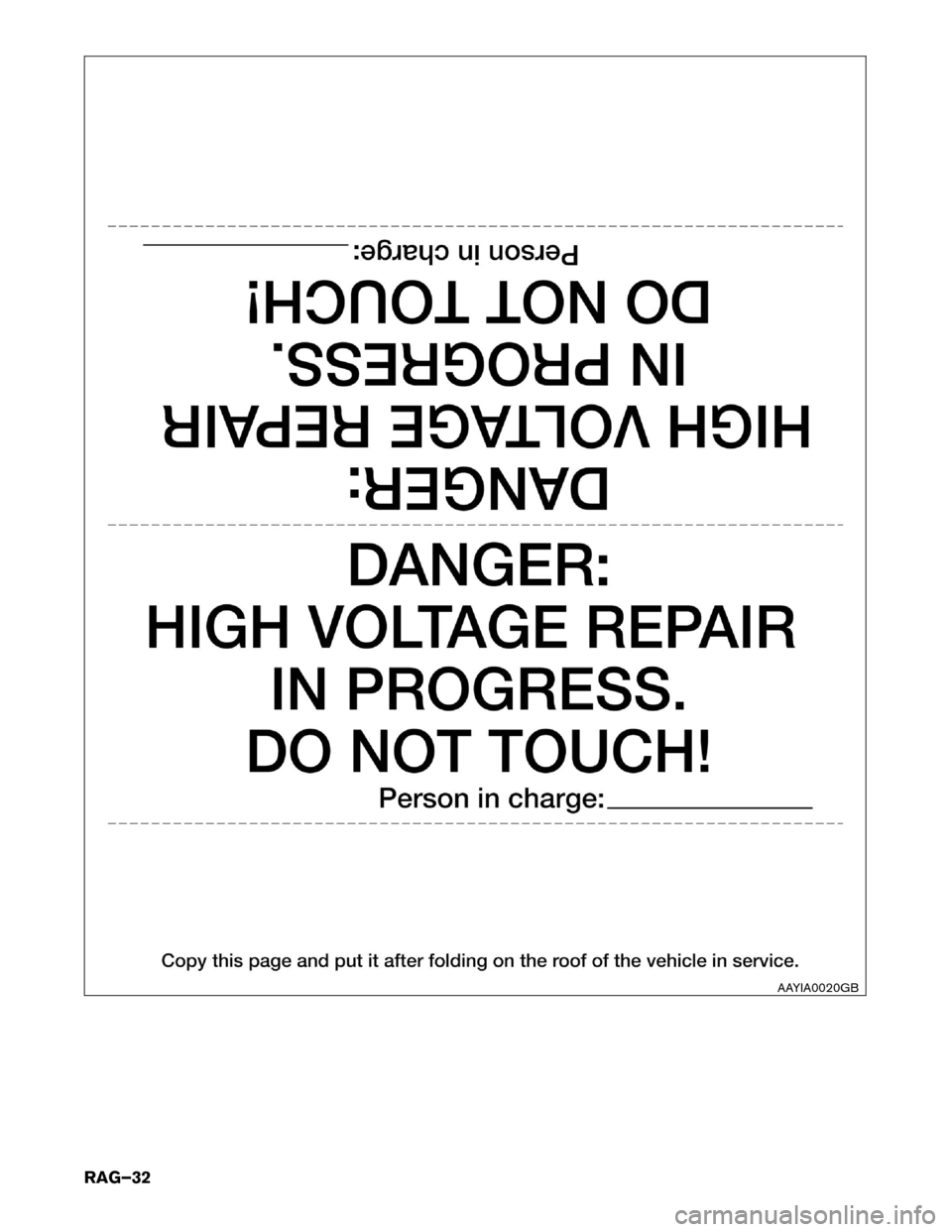

NISSAN MURANO HYBRID 2016 3.G Roadside Assistance Guide AAYIA0020GB
RAG–32

Page 33 of 36

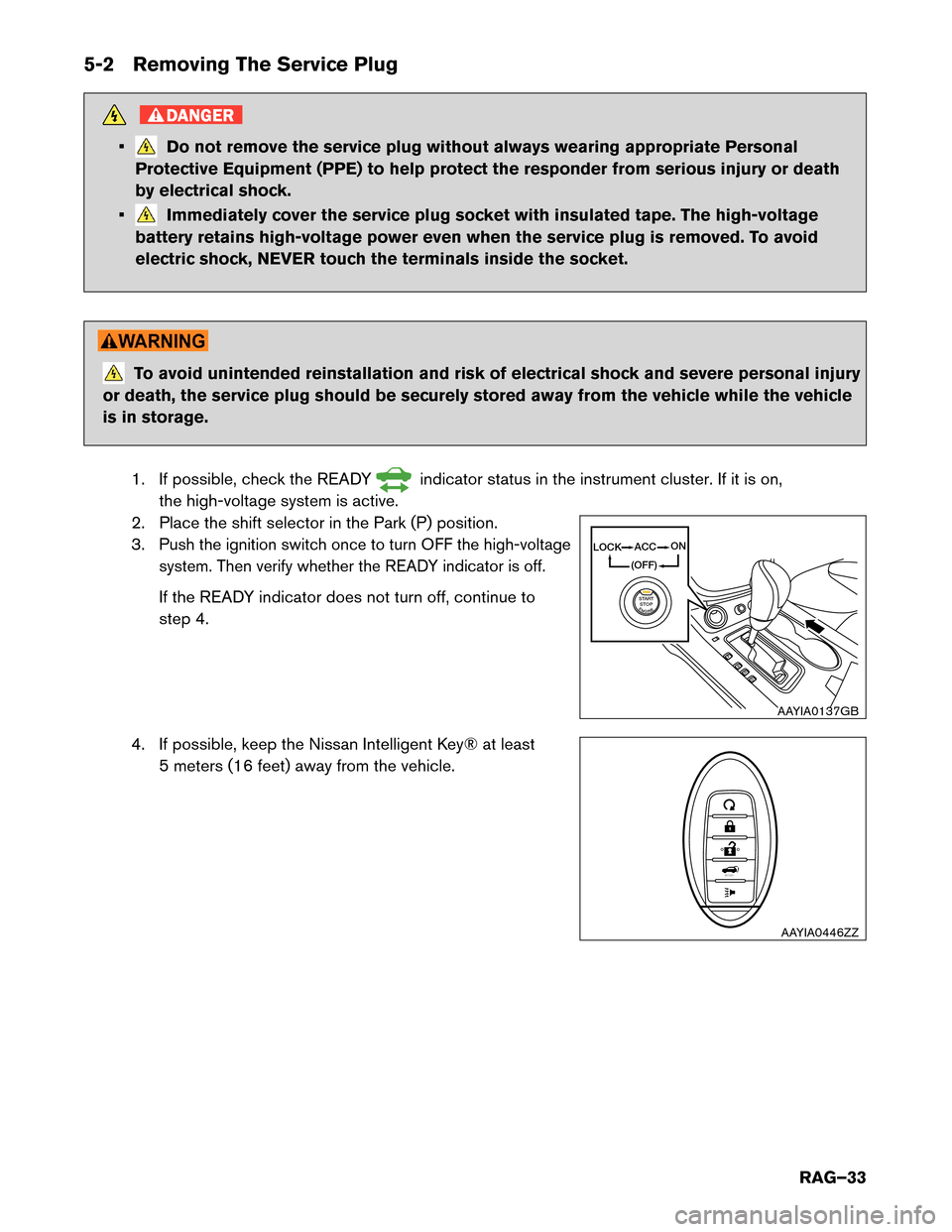

NISSAN MURANO HYBRID 2016 3.G Roadside Assistance Guide 5-2 Removing The Service Plug
DANGER
• Do not remove the service plug without always wearing appropriate Personal
Protective Equipment (PPE) to help protect the responder from serious injury or deat

Page 34 of 36

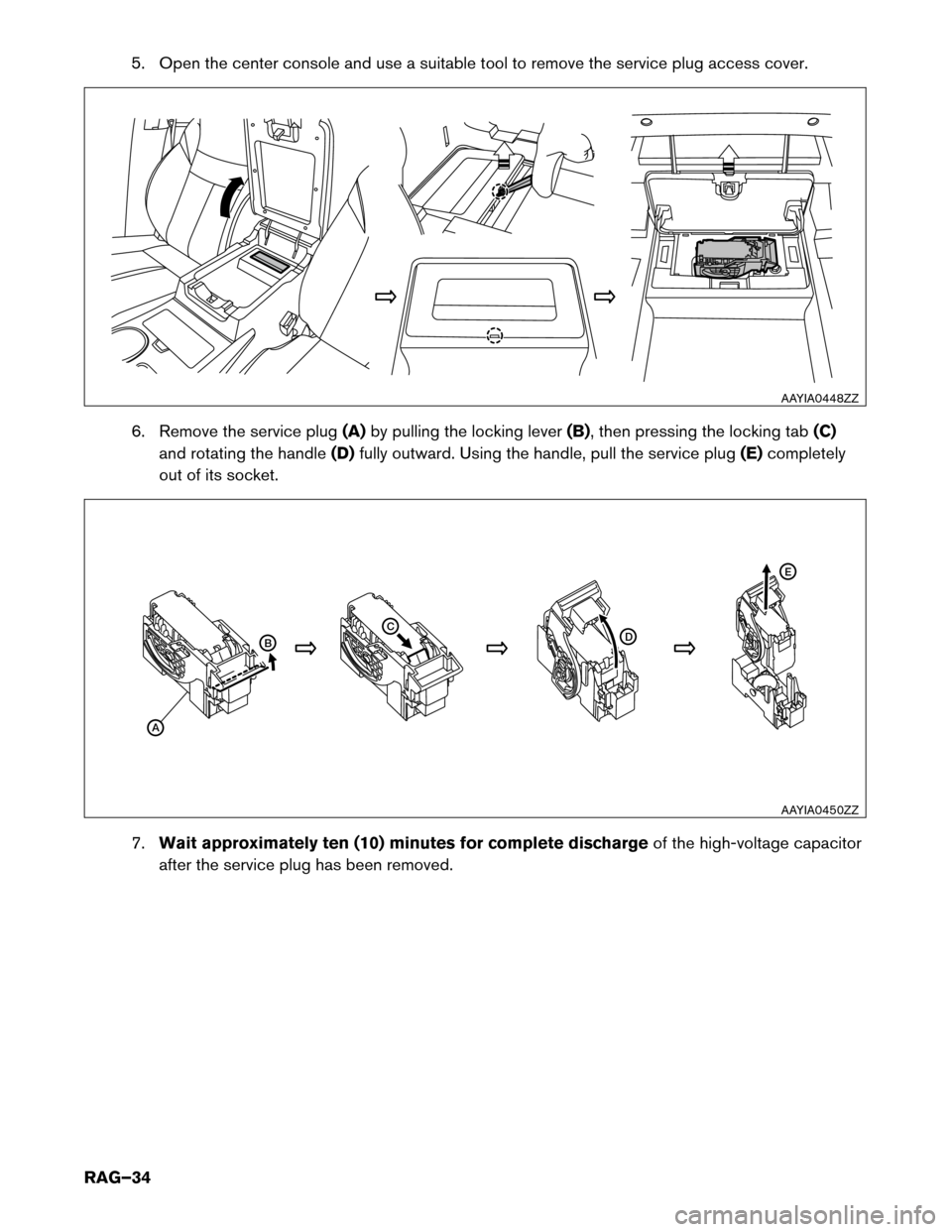

NISSAN MURANO HYBRID 2016 3.G Roadside Assistance Guide 5. Open the center console and use a suitable tool to remove the service plug access cover.
6.
Remove the service plug (A)by pulling the locking lever (B), then pressing the locking tab (C)
and rotati

Page 35 of 36

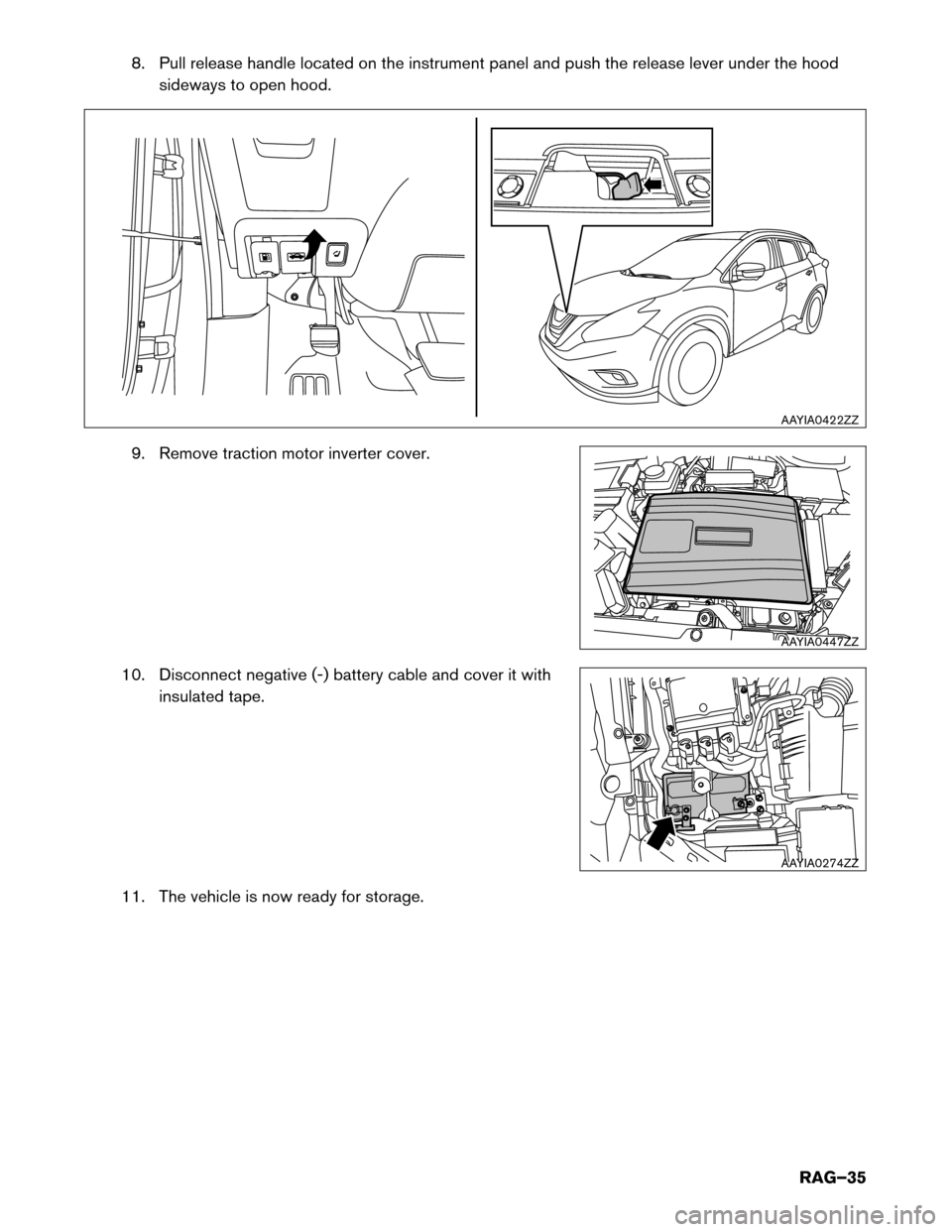

NISSAN MURANO HYBRID 2016 3.G Roadside Assistance Guide 8. Pull release handle located on the instrument panel and push the release lever under the hood
sideways to open hood.
9. Remove traction motor inverter cover.
10. Disconnect negative (-) battery cab
