NISSAN NV200 2016 Owners Manual

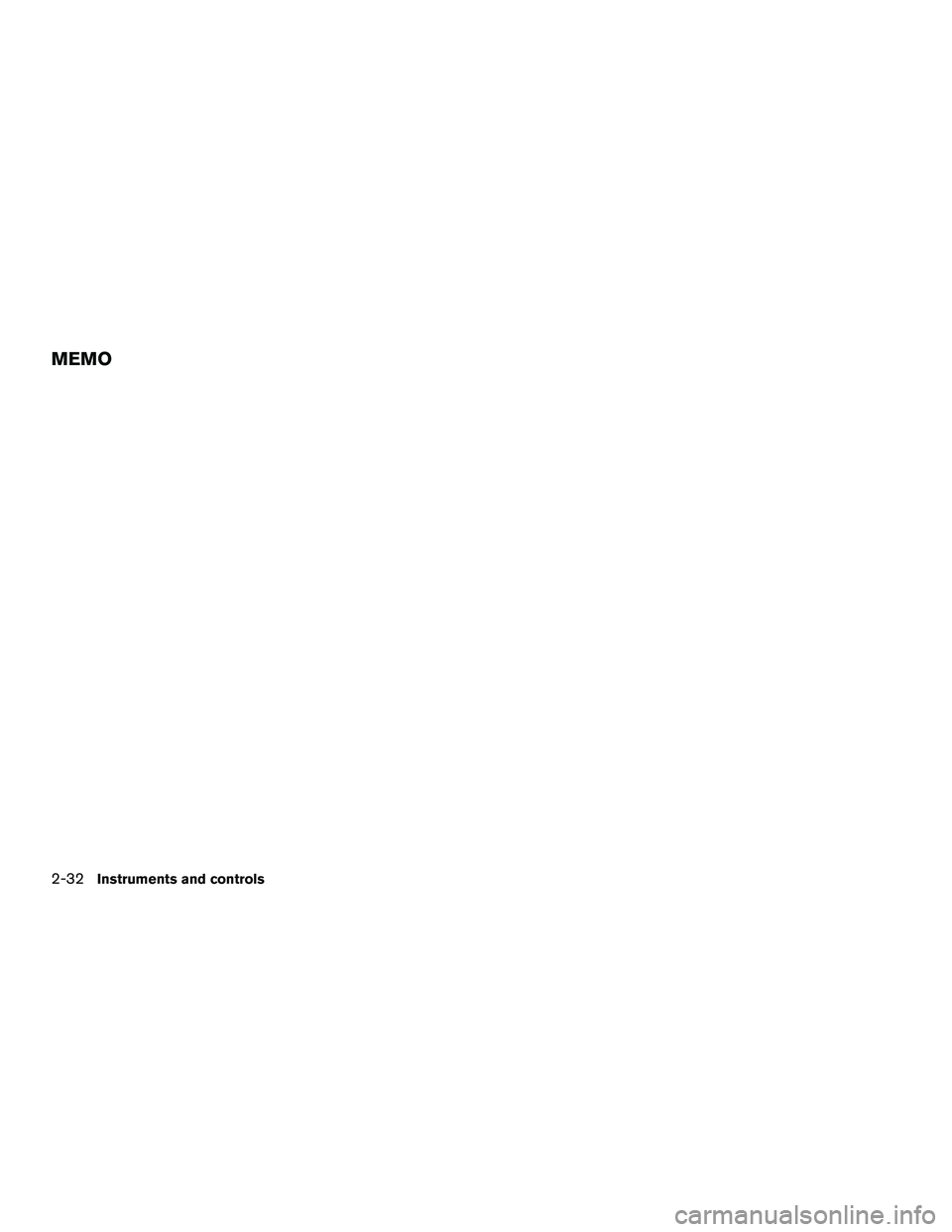

MEMO
2-32Instruments and controls

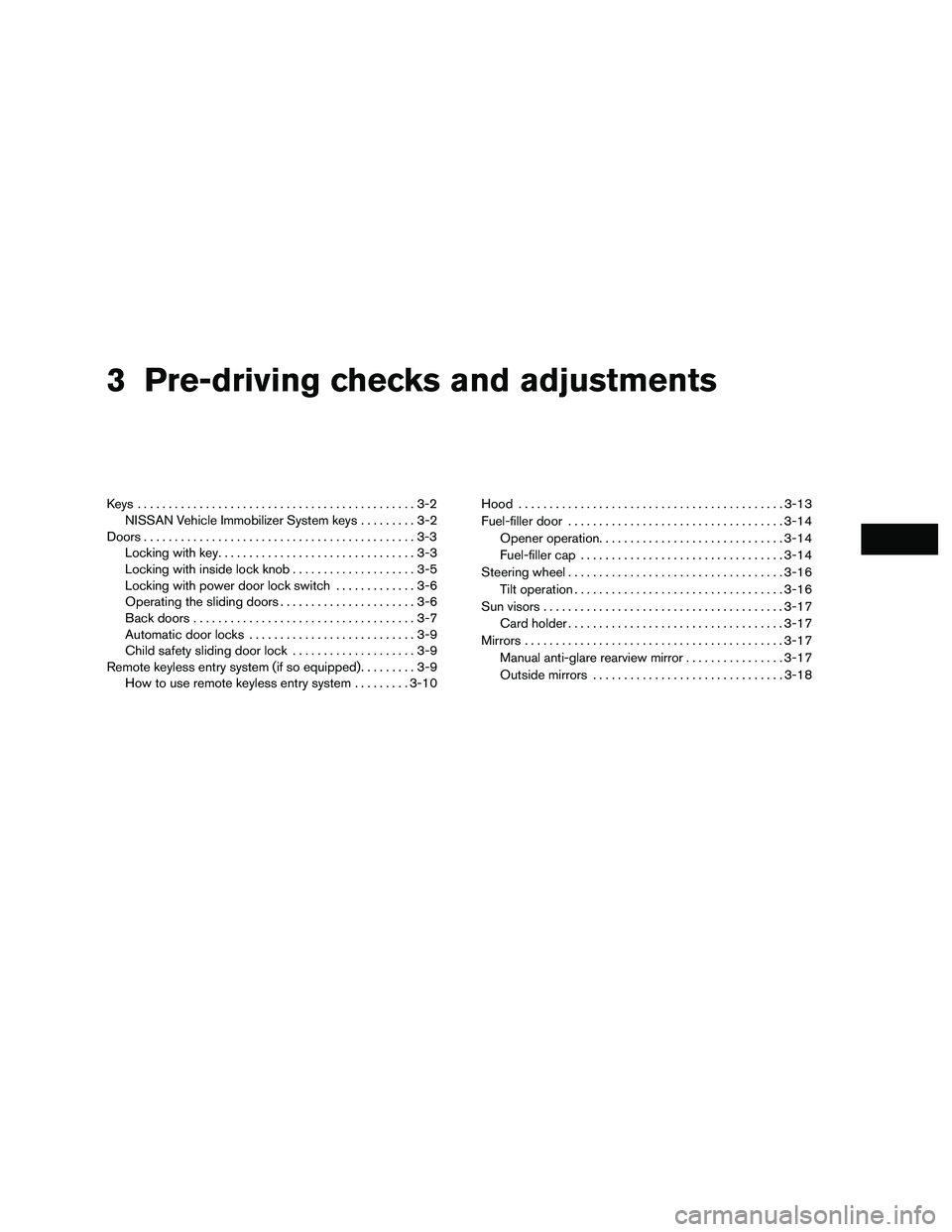

3 Pre-driving checks and adjustments
Keys .............................................3-2NISSAN Vehicle Immobilizer System keys .........3-2
Doors ............................................3-3
Locking with key ................................3-3
Locking with inside lock knob ....................3-5
Locking with power door lock switch . . . ..........3-6
Operating the sliding doors ......................3-6
Back doors ....................................3-7
Automatic door locks ...........................3-9
Child safety sliding door lock ....................3-9
Remote keyless entry system (if so equipped) .........3-9
How to use remote keyless entry system .........3-10 Hood
........................................... 3-13
Fuel-filler door ................................... 3-14
Opener operation .............................. 3-14
Fuel-filler cap ................................. 3-14
Steering wheel ................................... 3-16
Tilt operation .................................. 3-16
Sun visors ....................................... 3-17
Card holder ................................... 3-17
Mirrors .......................................... 3-17
Manual anti-glare rearview mirror ................3-17
Outside mirrors ............................... 3-18

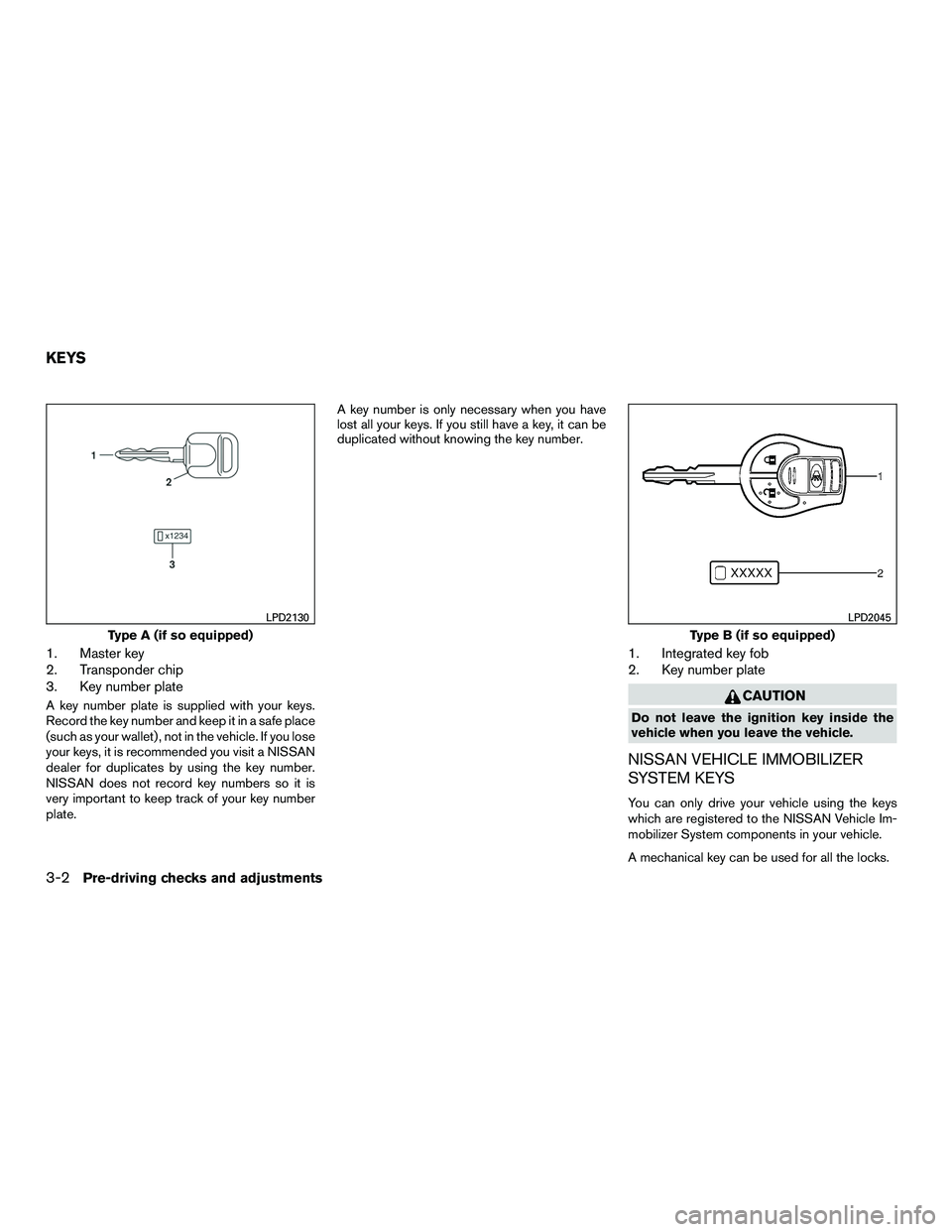

1. Master key
2. Transponder chip
3. Key number plate
A key number plate is supplied with your keys.
Record the key number and keep it in a safe place
(such as your wallet) , not in the vehicle. If you lose
your keys, it is recommended you visit a NISSAN
dealer for duplicates by using the key number.
NISSAN does not record key numbers so it is
very important to keep track of your key number
plate.A key number is only necessary when you have
lost all your keys. If you still have a key, it can be
duplicated without knowing the key number.
1. Integrated key fob
2. Key number plate
CAUTION
Do not leave the ignition key inside the
vehicle when you leave the vehicle.
NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS
You can only drive your vehicle using the keys
which are registered to the NISSAN Vehicle Im-
mobilizer System components in your vehicle.
A mechanical key can be used for all the locks.
Type A (if so equipped)
LPD2130
Type B (if so equipped)
LPD2045
KEYS
3-2Pre-driving checks and adjustments

Never leave the keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
Immobilizer System keys. Your existing key can
be duplicated without knowing the key number.
As many as four NISSAN Vehicle Immobilizer
System keys can be used with one vehicle. You
should bring all NISSAN Vehicle Immobilizer Sys-
tem keys that you have to a NISSAN dealer for
registration. This is because the registration pro-
cess will erase the memory of all key codes
previously registered into the NISSAN Vehicle
Immobilizer System. After the registration pro-
cess, these components will only recognize keys
coded into the NISSAN Vehicle Immobilizer Sys-
tem during registration. Any key that is not given
to the dealer at the time of registration will no
longer be able to start your vehicle.
CAUTION
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with water or salt
water. This could affect system function.When the doors are locked using one of the
following methods, the doors cannot be opened
using the inside or outside door handles. The
doors must be unlocked to open the doors.
WARNING
●
Always have the doors locked while
driving. Along with the use of seat belts,
this provides greater safety in the event
of an accident by helping to prevent
persons from being thrown from the
vehicle. This also helps keep children
and others from unintentionally open-
ing the doors, and will help keep out
intruders.
● Before opening any door, always look
for and avoid oncoming traffic.
● Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.

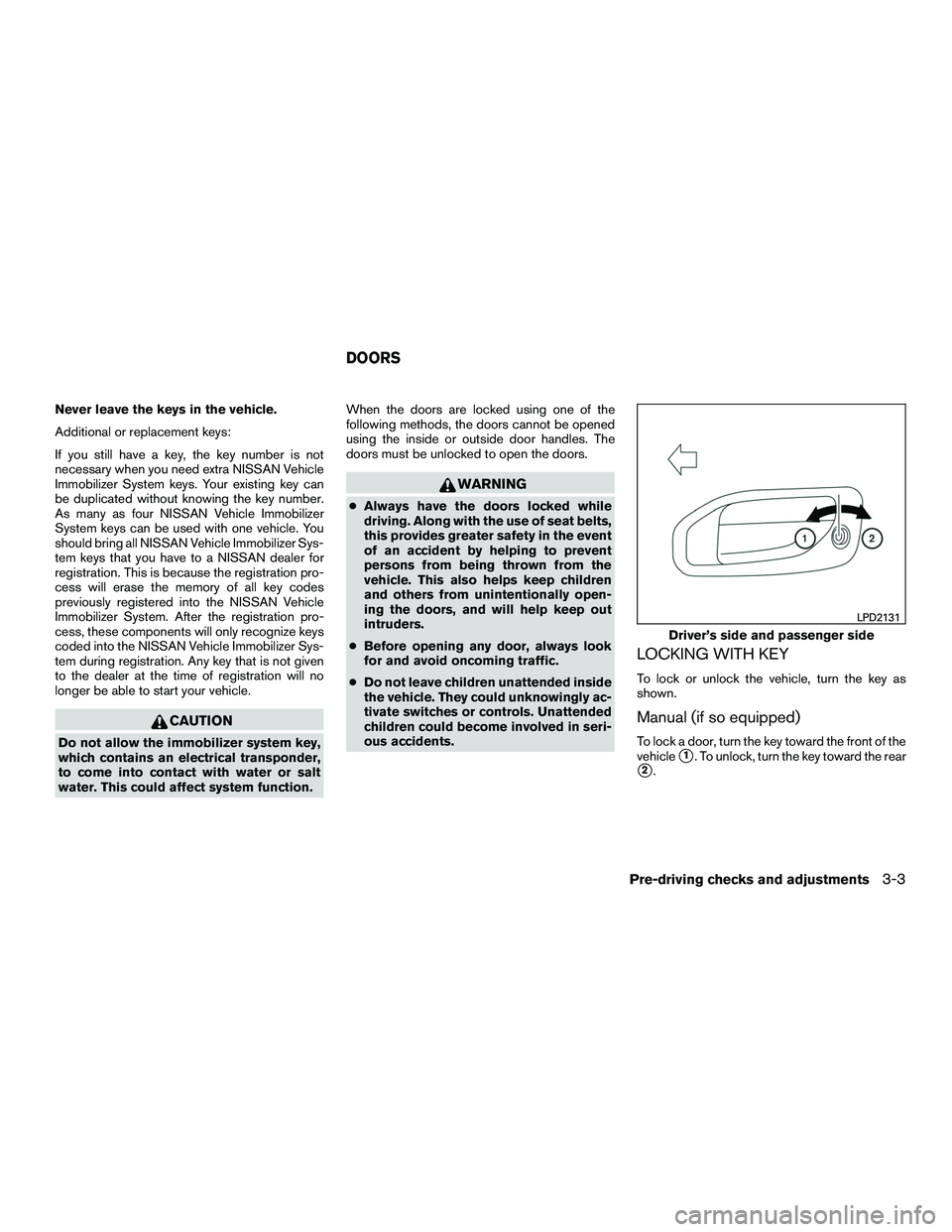

LOCKING WITH KEY
To lock or unlock the vehicle, turn the key as
shown.
Manual (if so equipped)
To lock a door, turn the key toward the front of the
vehicle
1. To unlock, turn the key toward the rear
2.
Driver’s side and passenger side
LPD2131
DOORS
Pre-driving checks and adjustments3-3

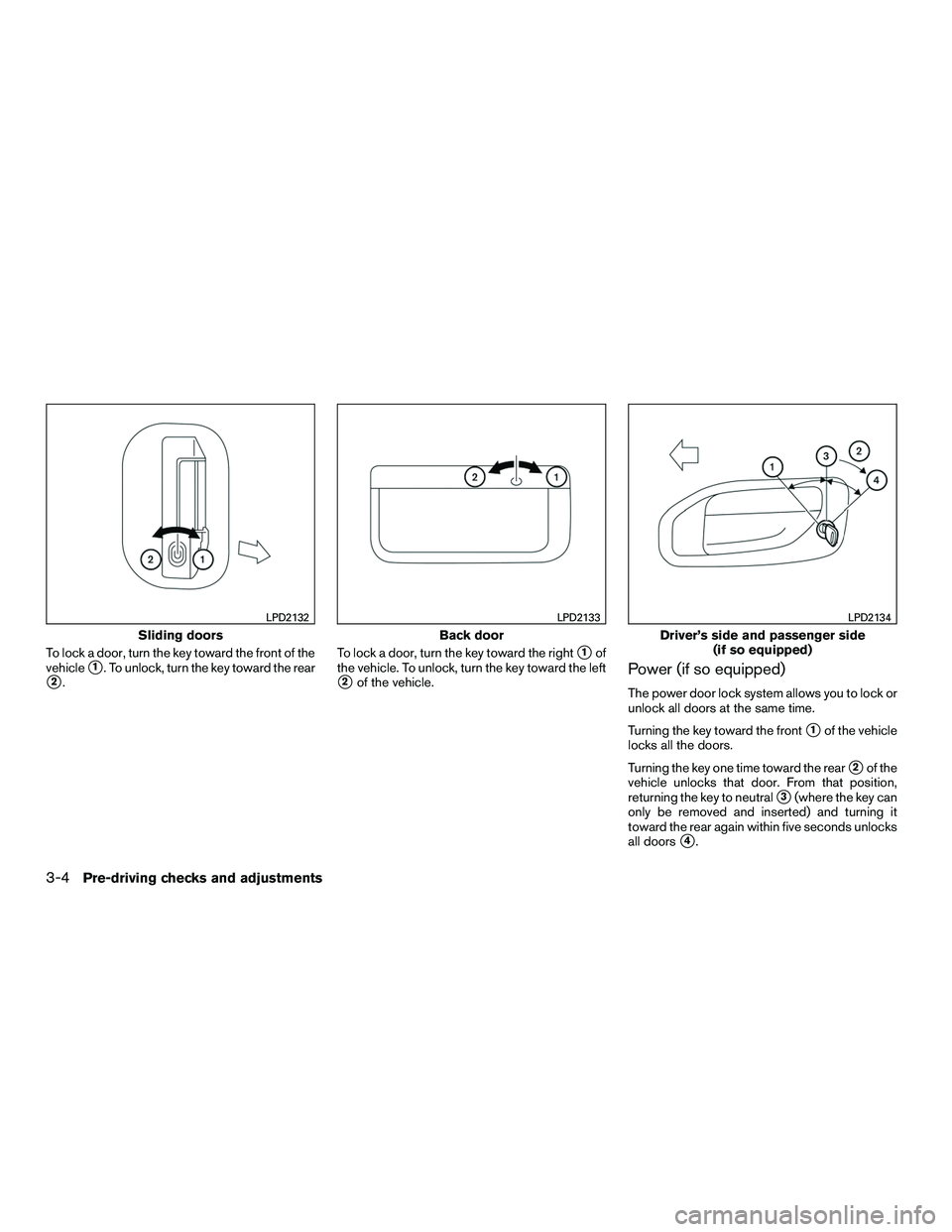

To lock a door, turn the key toward the front of the
vehicle
1. To unlock, turn the key toward the rear
2.To lock a door, turn the key toward the right
1of
the vehicle. To unlock, turn the key toward the left
2of the vehicle.Power (if so equipped)
The power door lock system allows you to lock or
unlock all doors at the same time.
Turning the key toward the front
1of the vehicle
locks all the doors.
Turning the key one time toward the rear
2of the
vehicle unlocks that door. From that position,
returning the key to neutral
3(where the key can
only be removed and inserted) and turning it
toward the rear again within five seconds unlocks
all doors
4.
Sliding doors
LPD2132
Back door
LPD2133
Driver’s side and passenger side (if so equipped)
LPD2134
3-4Pre-driving checks and adjustments

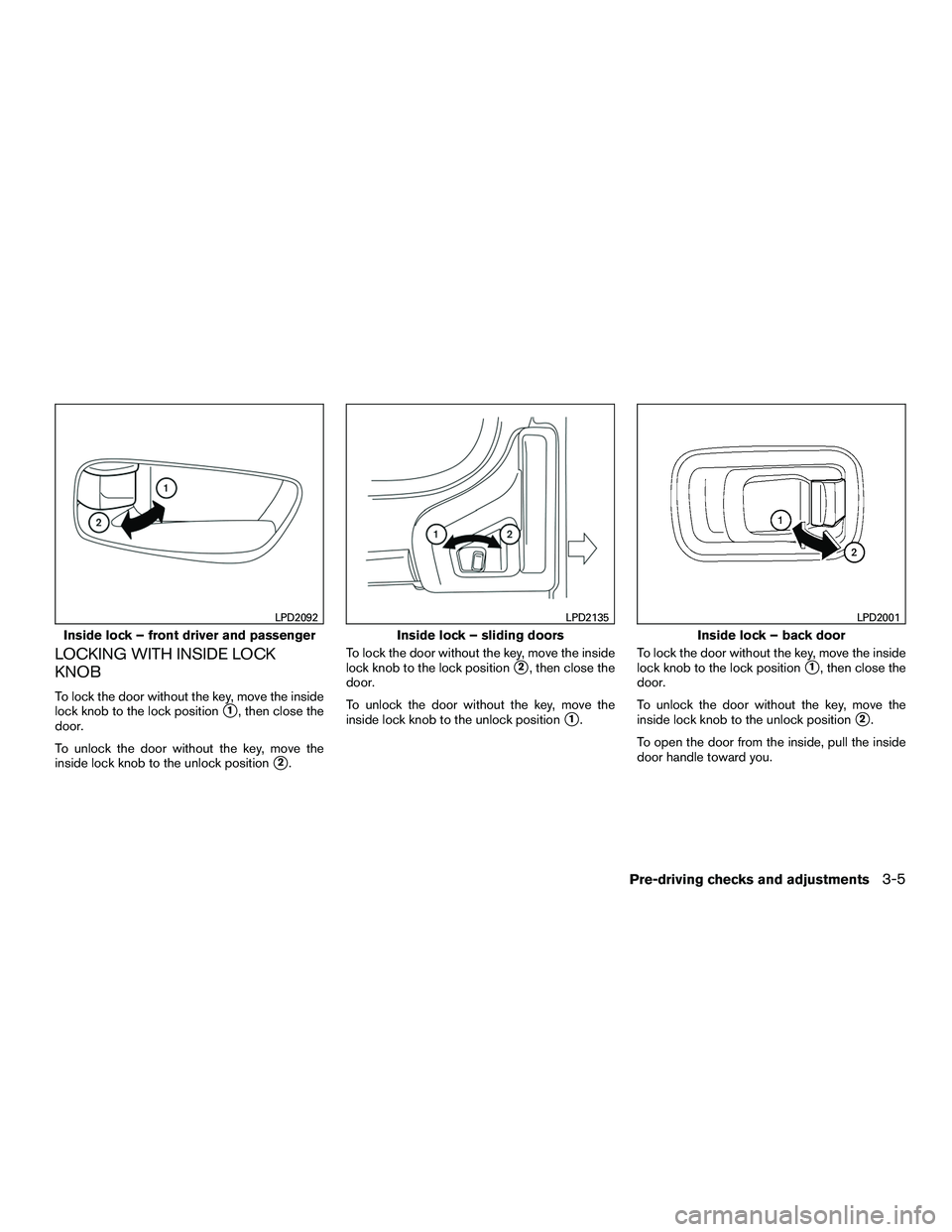

LOCKING WITH INSIDE LOCK
KNOB
To lock the door without the key, move the inside
lock knob to the lock position
1, then close the
door.
To unlock the door without the key, move the
inside lock knob to the unlock position
2. To lock the door without the key, move the inside
lock knob to the lock position
2, then close the
door.
To unlock the door without the key, move the
inside lock knob to the unlock position
1. To lock the door without the key, move the inside
lock knob to the lock position
1, then close the
door.
To unlock the door without the key, move the
inside lock knob to the unlock position
2.
To open the door from the inside, pull the inside
door handle toward you.
Inside lock – front driver and passenger
LPD2092
Inside lock – sliding doors
LPD2135
Inside lock – back door
LPD2001
Pre-driving checks and adjustments3-5

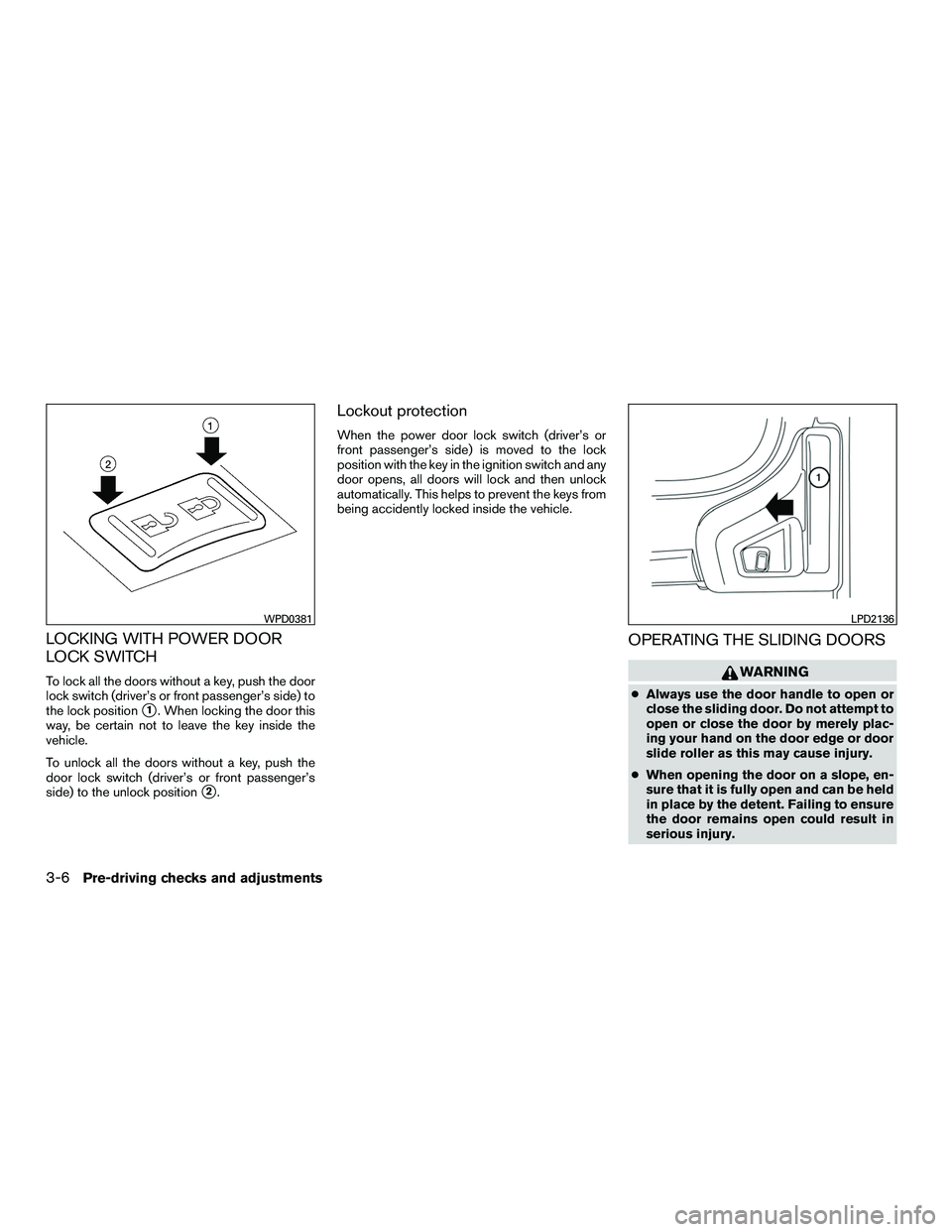

LOCKING WITH POWER DOOR
LOCK SWITCH
To lock all the doors without a key, push the door
lock switch (driver’s or front passenger’s side) to
the lock position
1. When locking the door this
way, be certain not to leave the key inside the
vehicle.
To unlock all the doors without a key, push the
door lock switch (driver’s or front passenger’s
side) to the unlock position
2.
Lockout protection
When the power door lock switch (driver’s or
front passenger’s side) is moved to the lock
position with the key in the ignition switch and any
door opens, all doors will lock and then unlock
automatically. This helps to prevent the keys from
being accidently locked inside the vehicle.
OPERATING THE SLIDING DOORS
WARNING
● Always use the door handle to open or
close the sliding door. Do not attempt to
open or close the door by merely plac-
ing your hand on the door edge or door
slide roller as this may cause injury.
● When opening the door on a slope, en-
sure that it is fully open and can be held
in place by the detent. Failing to ensure
the door remains open could result in
serious injury.
WPD0381LPD2136
3-6Pre-driving checks and adjustments

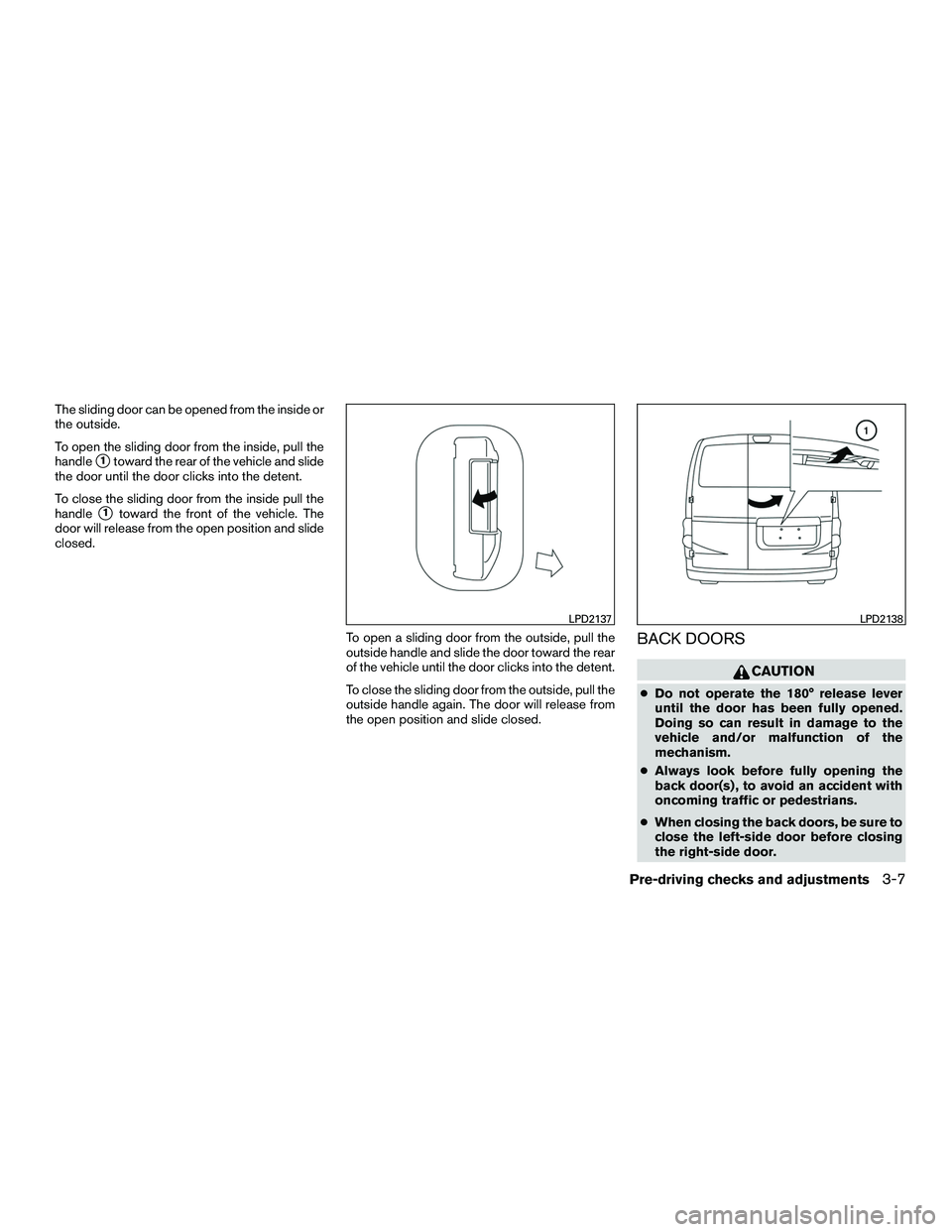

The sliding door can be opened from the inside or
the outside.
To open the sliding door from the inside, pull the
handle
1toward the rear of the vehicle and slide
the door until the door clicks into the detent.
To close the sliding door from the inside pull the
handle
1toward the front of the vehicle. The
door will release from the open position and slide
closed.
To open a sliding door from the outside, pull the
outside handle and slide the door toward the rear
of the vehicle until the door clicks into the detent.
To close the sliding door from the outside, pull the
outside handle again. The door will release from
the open position and slide closed.
BACK DOORS
CAUTION
●Do not operate the 180° release lever
until the door has been fully opened.
Doing so can result in damage to the
vehicle and/or malfunction of the
mechanism.
● Always look before fully opening the
back door(s) , to avoid an accident with
oncoming traffic or pedestrians.
● When closing the back doors, be sure to
close the left-side door before closing
the right-side door.
LPD2137LPD2138
Pre-driving checks and adjustments3-7

Open the back doors by performing the follow-
ing:1. From the outside of the vehicle, pull the door handle
1on the right side door and open
door until it stops.
2. Pull the lever
2, located on the side of the
left back door, toward the rear of the vehicle
and pull the door to open until the door
stops. The back doors open approximately 180° to allow
access to the rear of the vehicle.
3. To open either door to the wide open posi- tion
3pull the release latchA, located on
the inside of each back door, toward the
front of the vehicle to release the check link
arm.
4. Open the door slowly until the door stops. The back doors are not designed to be
latched in their fully open positions.
Park the vehicle in a safe and level place.
Make sure that the area is clear of ob-
stacles and there is enough clearance
around the back doors.
LPD2139LPD2140
3-8Pre-driving checks and adjustments

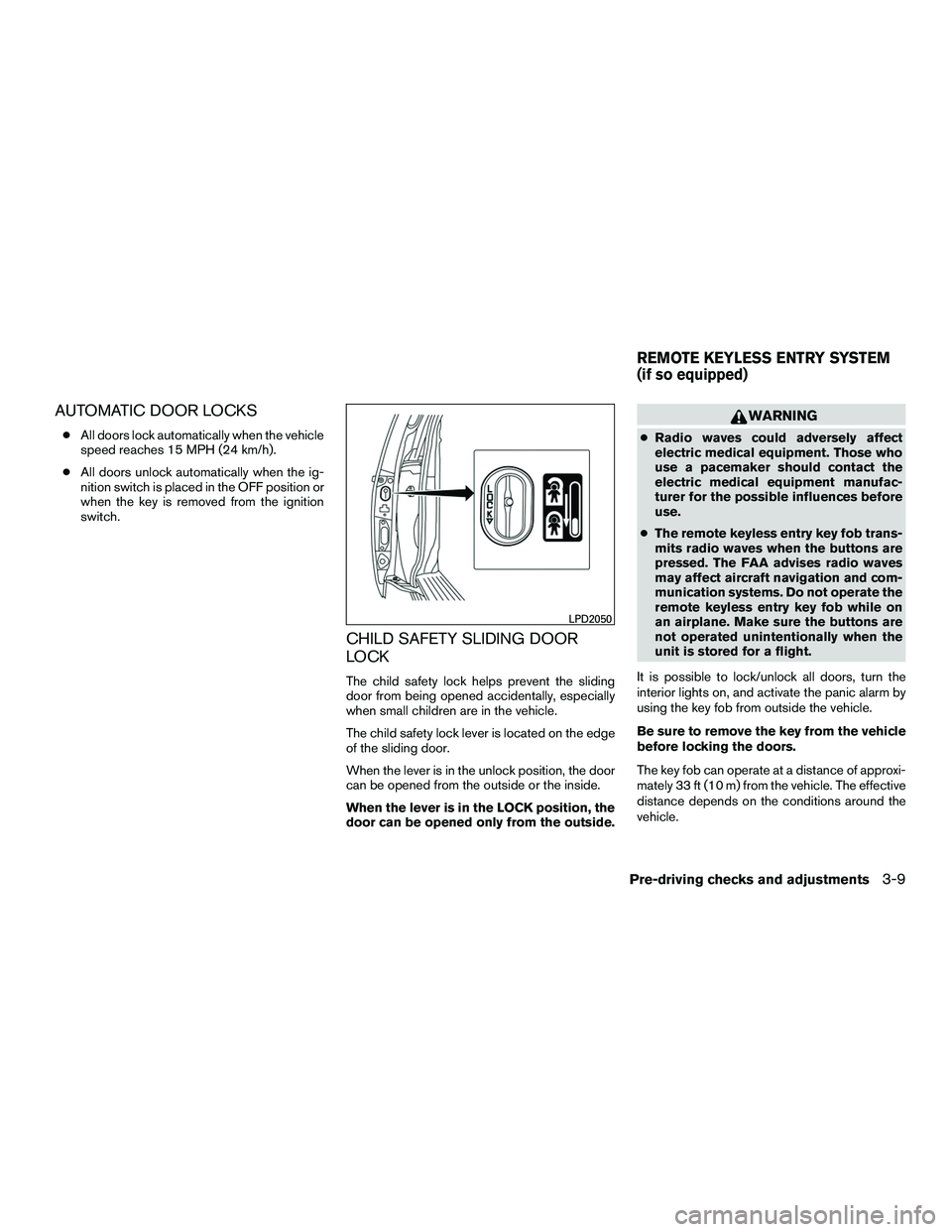

AUTOMATIC DOOR LOCKS
●All doors lock automatically when the vehicle
speed reaches 15 MPH (24 km/h).
● All doors unlock automatically when the ig-
nition switch is placed in the OFF position or
when the key is removed from the ignition
switch.
CHILD SAFETY SLIDING DOOR
LOCK
The child safety lock helps prevent the sliding
door from being opened accidentally, especially
when small children are in the vehicle.
The child safety lock lever is located on the edge
of the sliding door.
When the lever is in the unlock position, the door
can be opened from the outside or the inside.
When the lever is in the LOCK position, the
door can be opened only from the outside.
WARNING
● Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.
● The remote keyless entry key fob trans-
mits radio waves when the buttons are
pressed. The FAA advises radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
remote keyless entry key fob while on
an airplane. Make sure the buttons are
not operated unintentionally when the
unit is stored for a flight.
It is possible to lock/unlock all doors, turn the
interior lights on, and activate the panic alarm by
using the key fob from outside the vehicle.
Be sure to remove the key from the vehicle
before locking the doors.
The key fob can operate at a distance of approxi-
mately 33 ft (10 m) from the vehicle. The effective
distance depends on the conditions around the
vehicle.
LPD2050
REMOTE KEYLESS ENTRY SYSTEM
(if so equipped)
Pre-driving checks and adjustments3-9
