Page 81 of 312

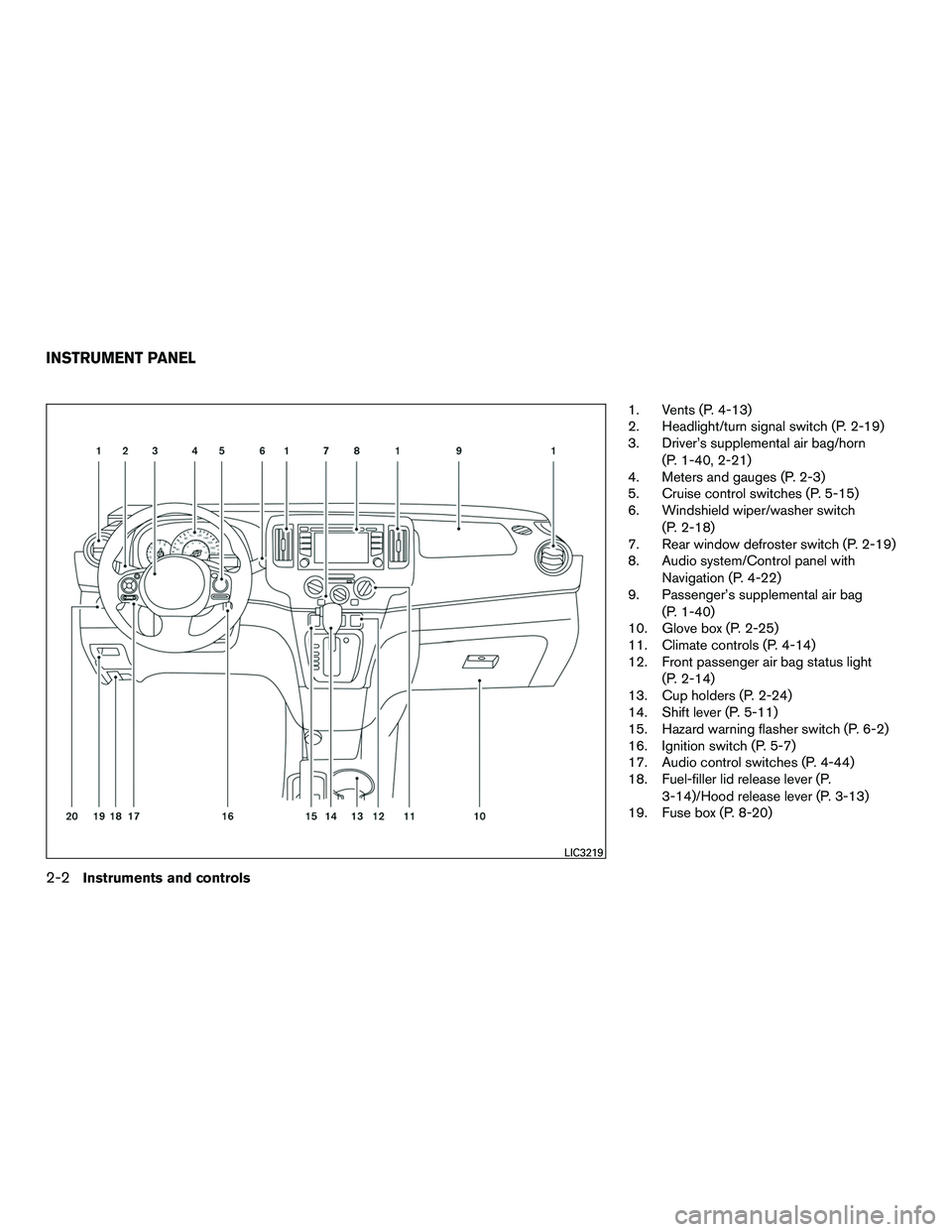

NISSAN NV200 2016 Manual Online 1. Vents (P. 4-13)
2. Headlight/turn signal switch (P. 2-19)
3. Driver’s supplemental air bag/horn(P. 1-40, 2-21)
4. Meters and gauges (P. 2-3)
5. Cruise control switches (P. 5-15)
6. Windshield wip

Page 82 of 312

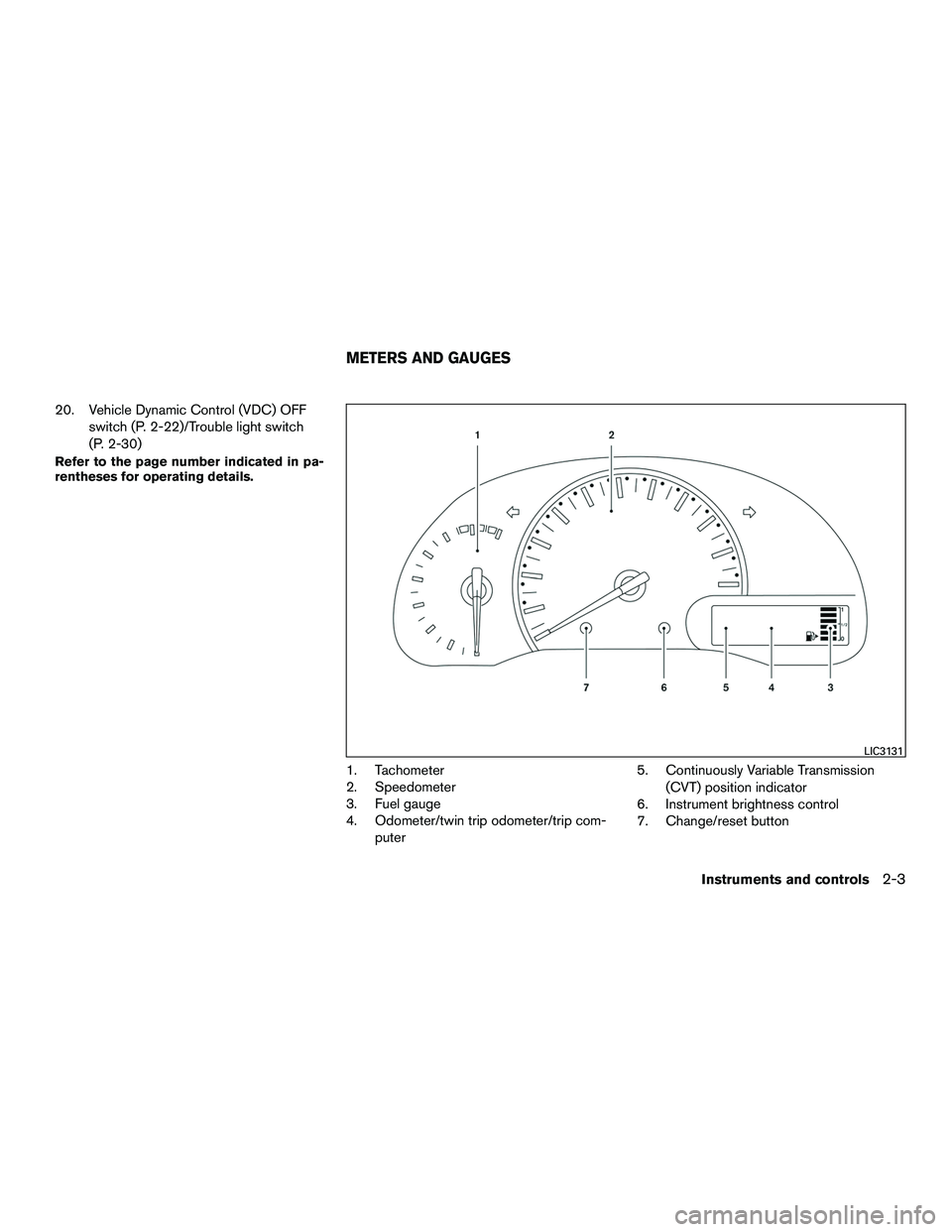

NISSAN NV200 2016 Manual Online 20. Vehicle Dynamic Control (VDC) OFFswitch (P. 2-22)/Trouble light switch
(P. 2-30)
Refer to the page number indicated in pa-
rentheses for operating details.
1. Tachometer
2. Speedometer
3. Fuel gau

Page 83 of 312

NISSAN NV200 2016 Manual Online SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedometer and
odometer. The speedometer is located on the
right side of the meter cluster. The odometer is
located within the Vehicle Informa

Page 84 of 312

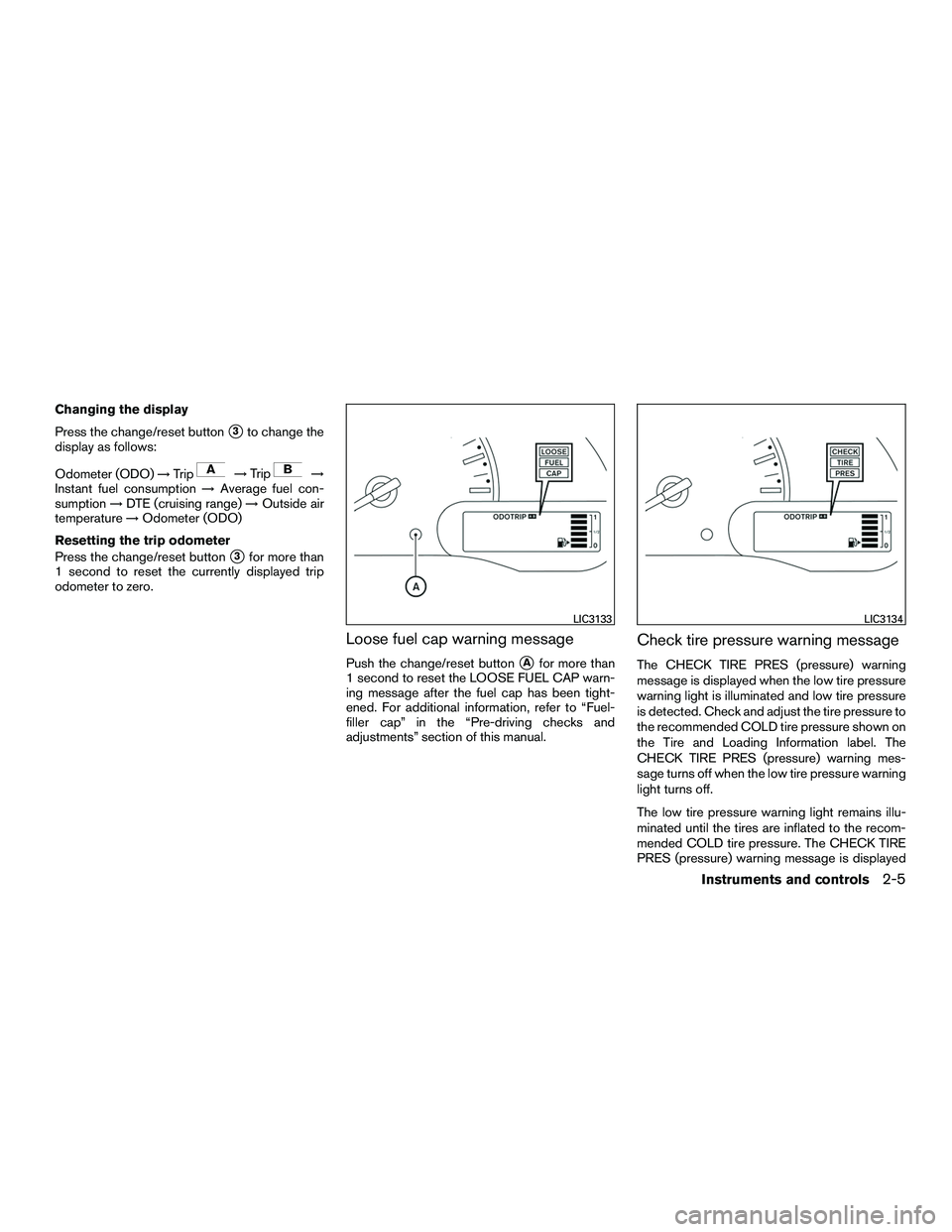

NISSAN NV200 2016 Manual Online Changing the display
Press the change/reset button
3to change the
display as follows:
Odometer (ODO) →Trip
→Trip→
Instant fuel consumption →Average fuel con-
sumption →DTE (cruising range)

Page 85 of 312

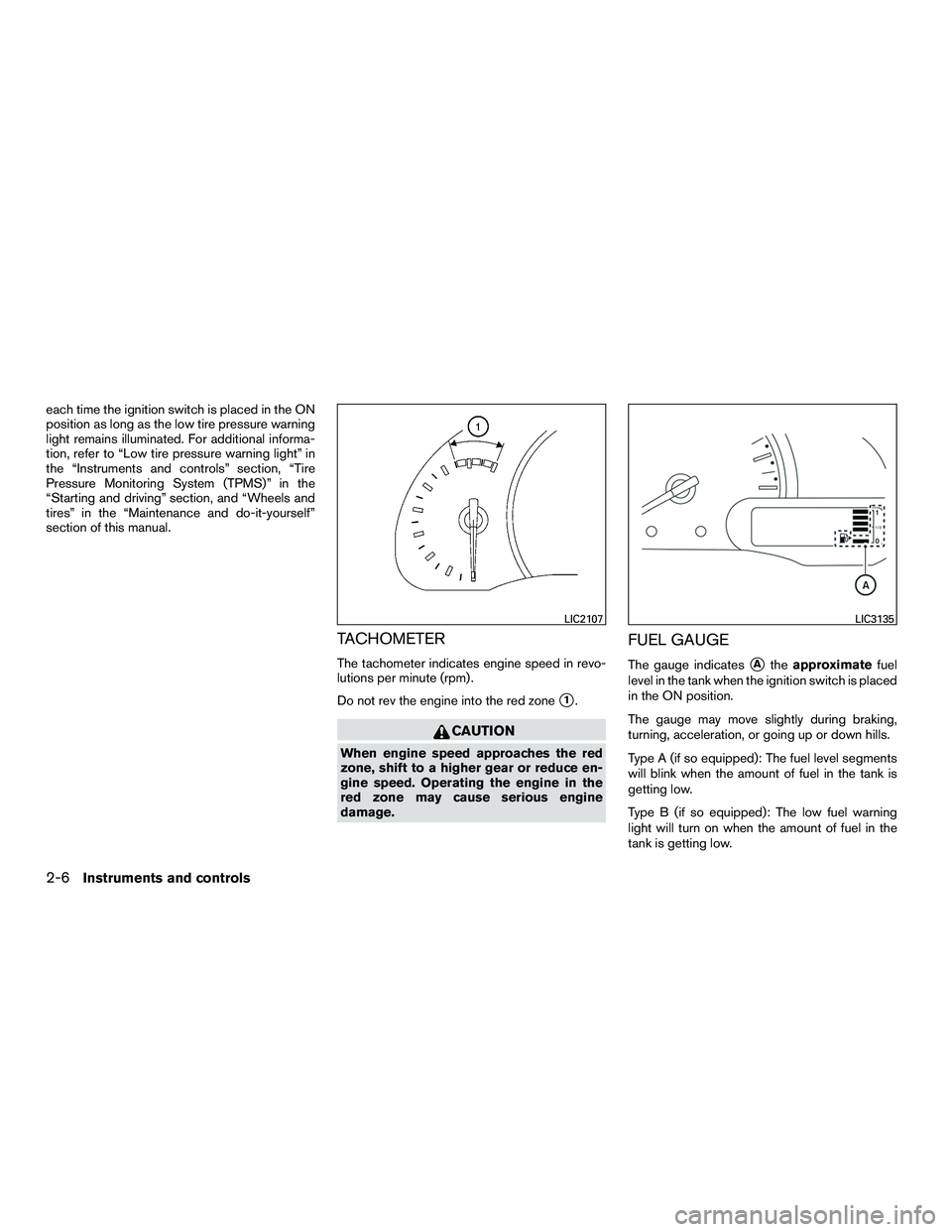

NISSAN NV200 2016 Manual Online each time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated. For additional informa-
tion, refer to “Low tire pressure warning light

Page 86 of 312

NISSAN NV200 2016 Manual Online Refill the fuel tank before the gauge regis-
ters E (Empty) .
The
indicates that the fuel-filler door is
located on the passenger’s side of the vehicle.
CAUTION
● If the vehicle runs out of fuel,

Page 87 of 312

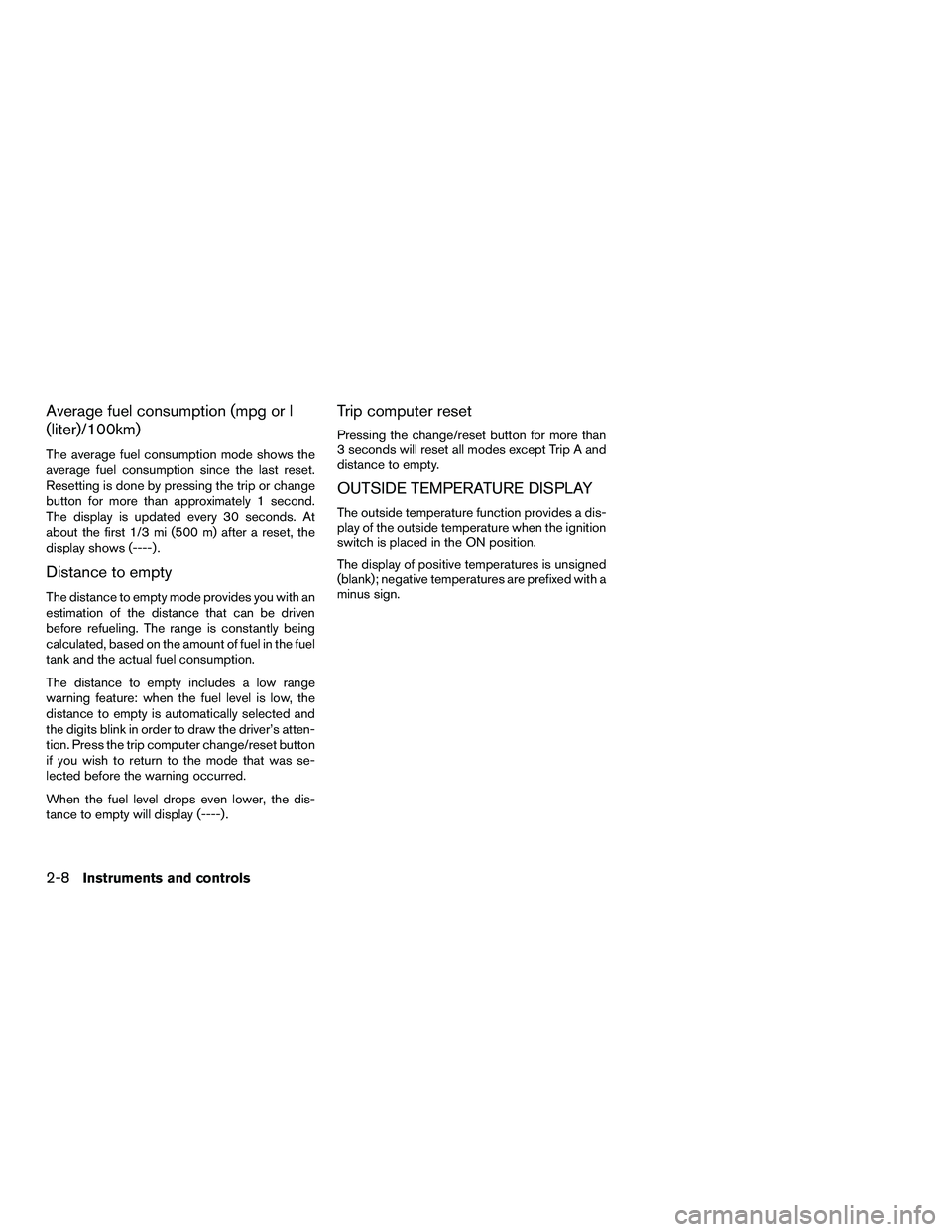

NISSAN NV200 2016 Manual Online Average fuel consumption (mpg or l
(liter)/100km)
The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pressing the trip or change
button for

Page 88 of 312

NISSAN NV200 2016 Manual Online orAnti-lock Braking System (ABS)
warning lightLow windshield-washer fluid warning lightHigh beam indicator light (blue)
orBrake warning lightPower steering warning lightMalfunction Indicator Light (MI

Page 89 of 312

NISSAN NV200 2016 Manual Online WARNING LIGHTS
orAnti-lock BrakingSystem (ABS)
warning light
When the ignition switch is placed in the ON
position, the ABS warning light illuminates and
then turns off. This indicates the ABS is oper

Page 90 of 312

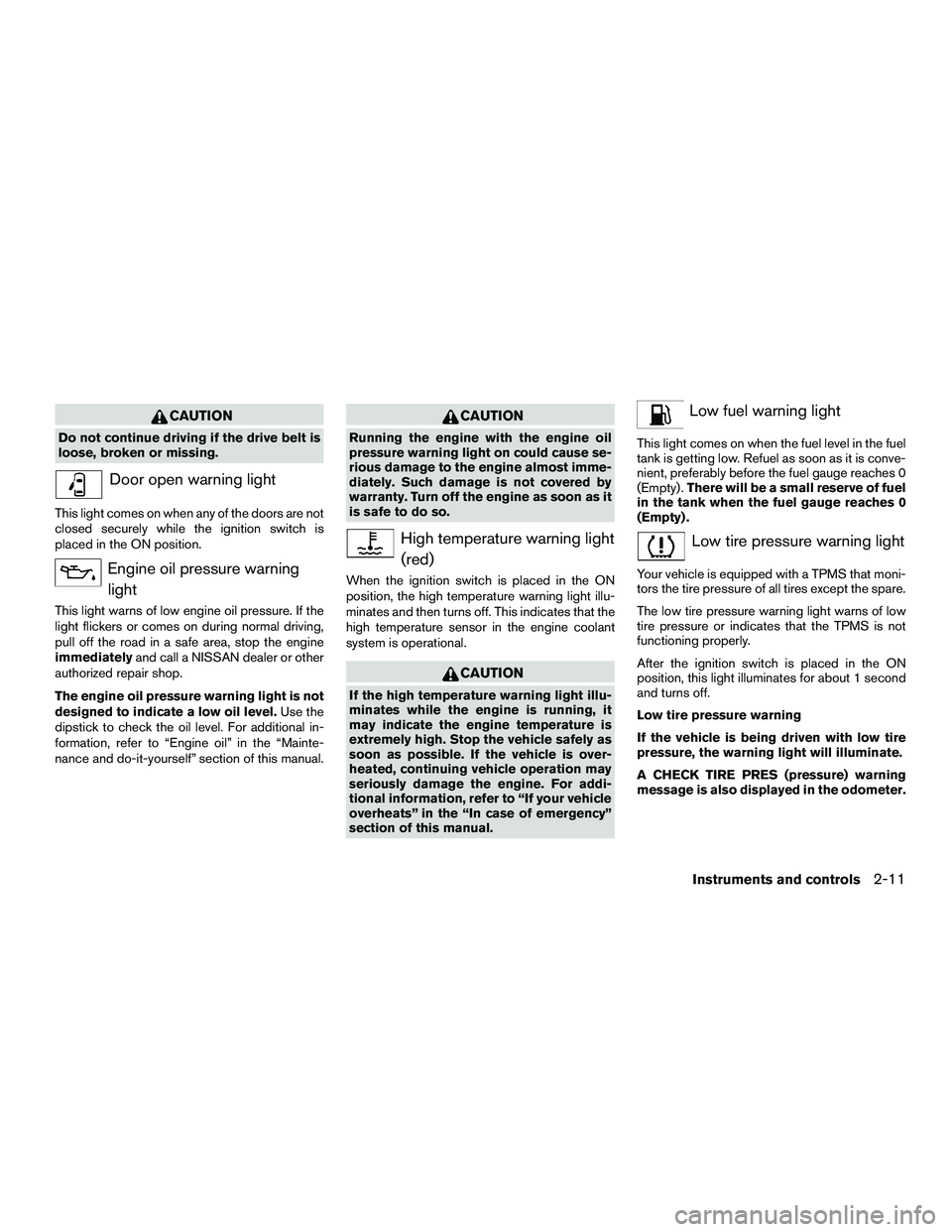

NISSAN NV200 2016 Manual Online CAUTION
Do not continue driving if the drive belt is
loose, broken or missing.
Door open warning light
This light comes on when any of the doors are not
closed securely while the ignition switch is
pl
