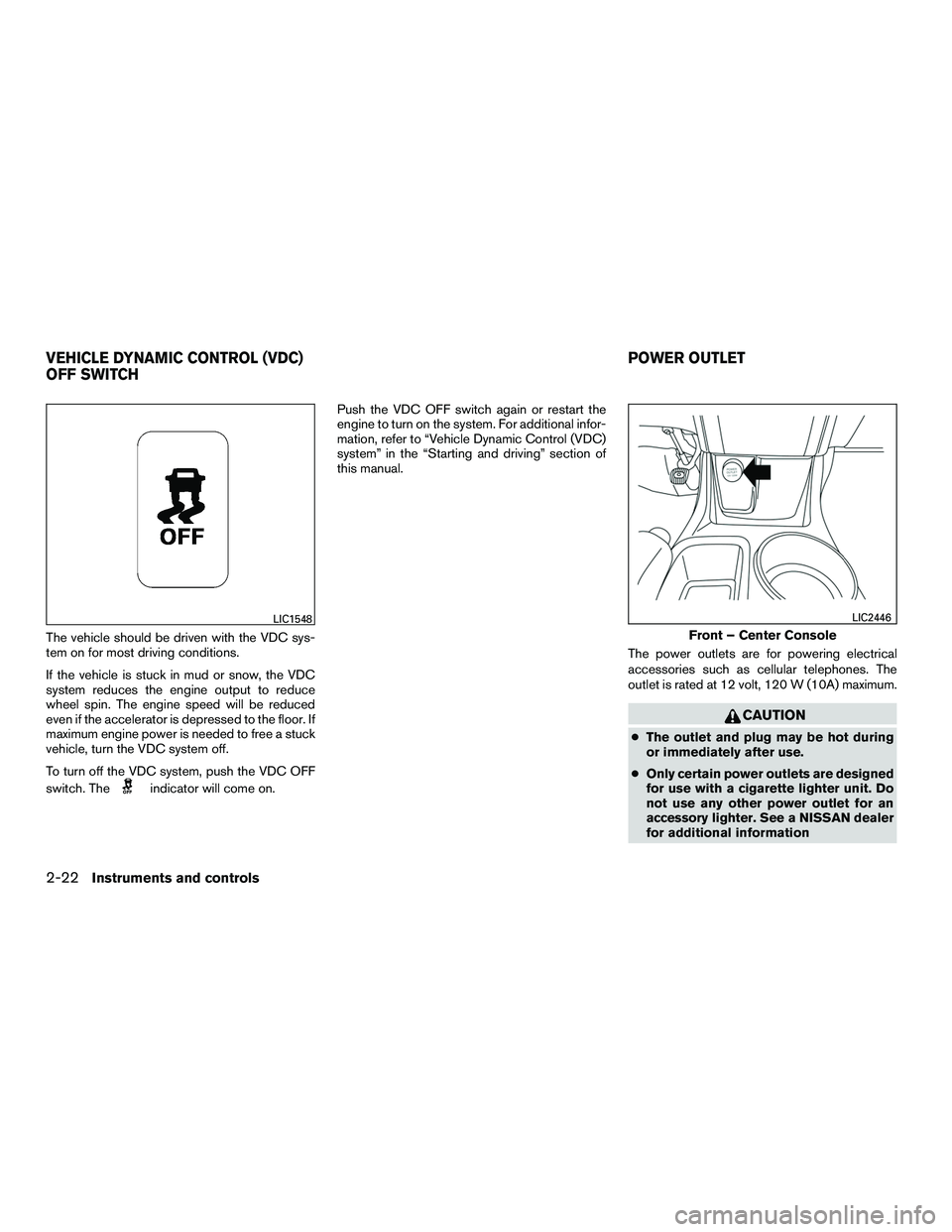

The vehicle should be driven with the VDC sys-
tem on for most driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor. If
maximum engine power is needed to free a stuck
vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will come on.Push the VDC OFF switch again or restart the
engine to turn on the system. For additional infor-
mation, refer to “Vehicle Dynamic Control (VDC)
system” in the “Starting and driving” section of
this manual.
The power outlets are for powering electrical
accessories such as cellular telephones. The
outlet is rated at 12 volt, 120 W (10A) maximum.
CAUTION
●The outlet and plug may be hot during
or immediately after use.
● Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. See a NISSAN dealer
for additional information
LIC1548
Front – Center Console
LIC2446
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH POWER OUTLET
2-22Instruments and controls

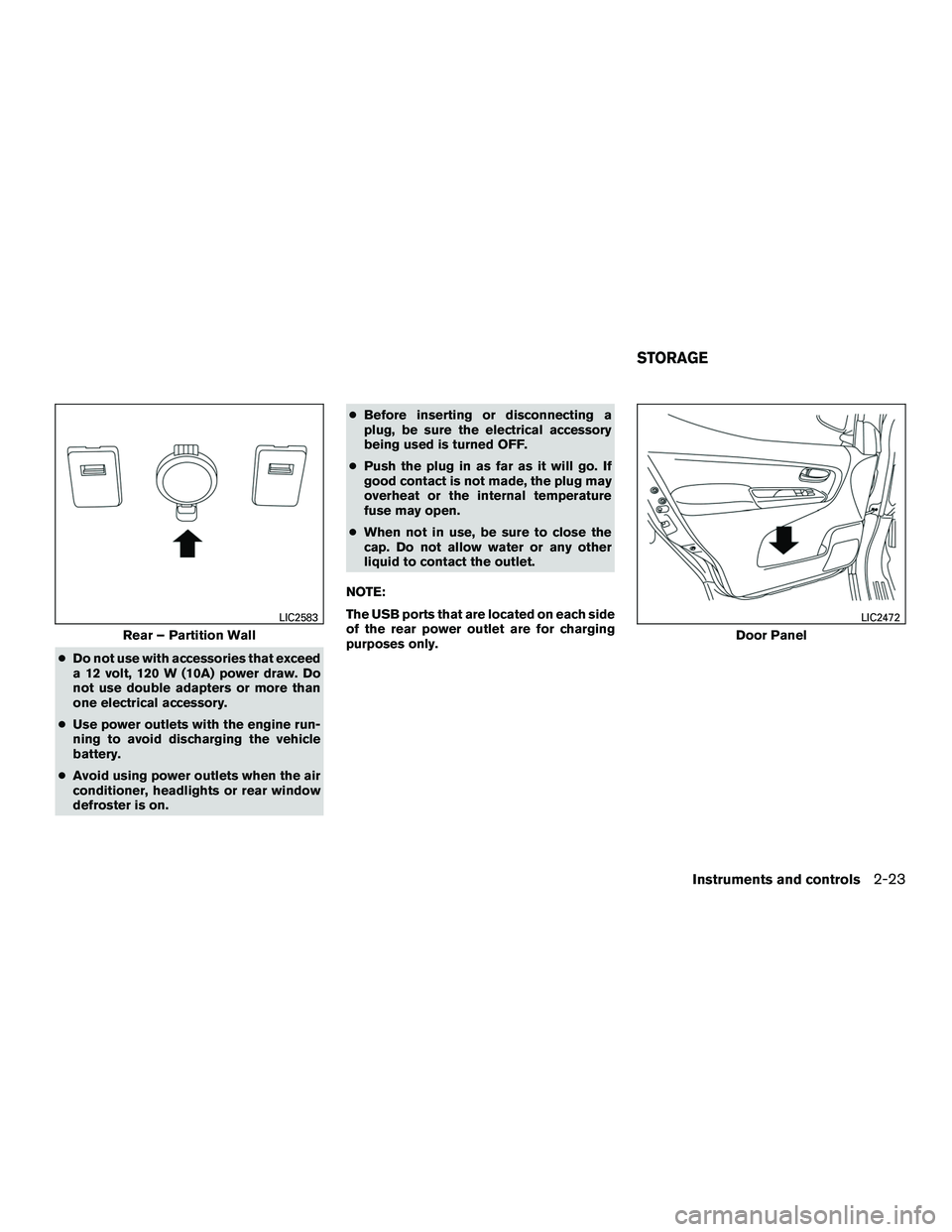

●Do not use with accessories that exceed
a 12 volt, 120 W (10A) power draw. Do
not use double adapters or more than
one electrical accessory.
● Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
● Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on. ●
Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF.
● Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may open.
● When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.
NOTE:
The USB ports that are located on each side
of the rear power outlet are for charging
purposes only.
Rear – Partition Wall
LIC2583
Door Panel
LIC2472
STORAGE
Instruments and controls2-23

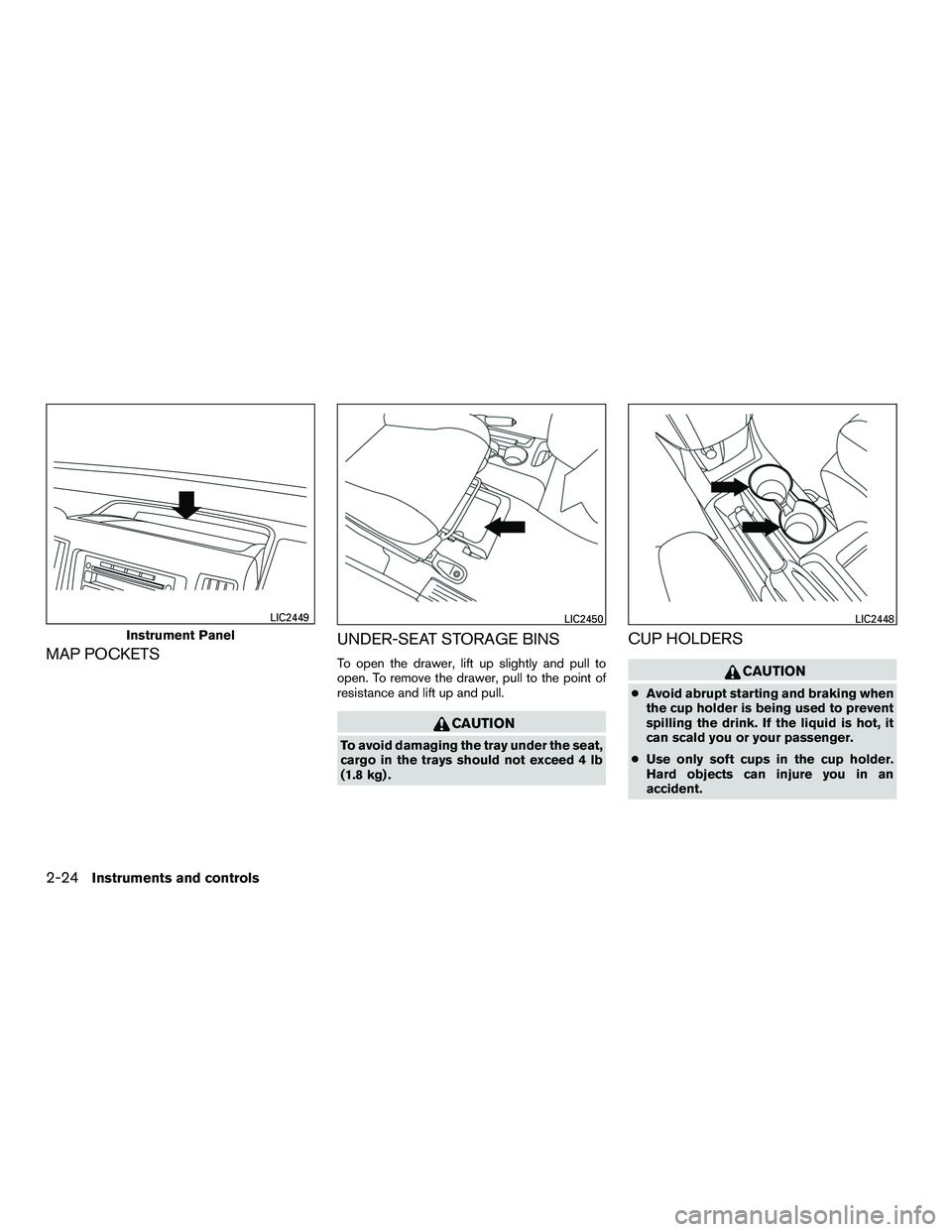

MAP POCKETSUNDER-SEAT STORAGE BINSTo open the drawer, lift up slightly and pull to
open. To remove the drawer, pull to the point of
resistance and lift up and pull.
CAUTION
To avoid damaging the tray under the seat,
cargo in the trays should not exceed 4 lb
(1.8 kg) .
CUP HOLDERS
CAUTION
●
Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it
can scald you or your passenger.
● Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
Instrument Panel
LIC2449LIC2450LIC2448
2-24Instruments and controls

GLOVE BOX
Open the glove box by pulling the handle. Use the
master key when locking or unlocking the glove
box.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
POWER WINDOWS
WARNING
●Make sure that all passengers have
their hands, etc. inside the vehicle while
it is in motion and before closing the
windows. Use the window lock switch to
prevent unexpected use of the power
windows.
● To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your
vehicle. Additionally, the temperature
inside a closed vehicle on a warm day
can quickly become high enough to
cause a significant risk of injury or
death to people and pets.
The power windows operate when the ignition
switch is placed in the ON position, or for a
period of time after the ignition switch is placed in
the OFF position. If the driver’s or passenger’s
door is opened during this period of time, the
power to the windows is canceled.
1. Window lock button
2. Power door lock switch (if so equipped)
3. Front passenger side automatic switch
4. Front driver side automatic switch
Driver’s side power window switch
The driver’s side control panel is equipped with
switches to open or close all of the windows.
To open a window, push the switch to the first
detent and continue to hold down until the de-
sired window position is reached. To close a
window, pull the switch to the first detent and
continue to hold up until the desired window
position is reached.
LIC3136LIC2373
WINDOWS
Instruments and controls2-25

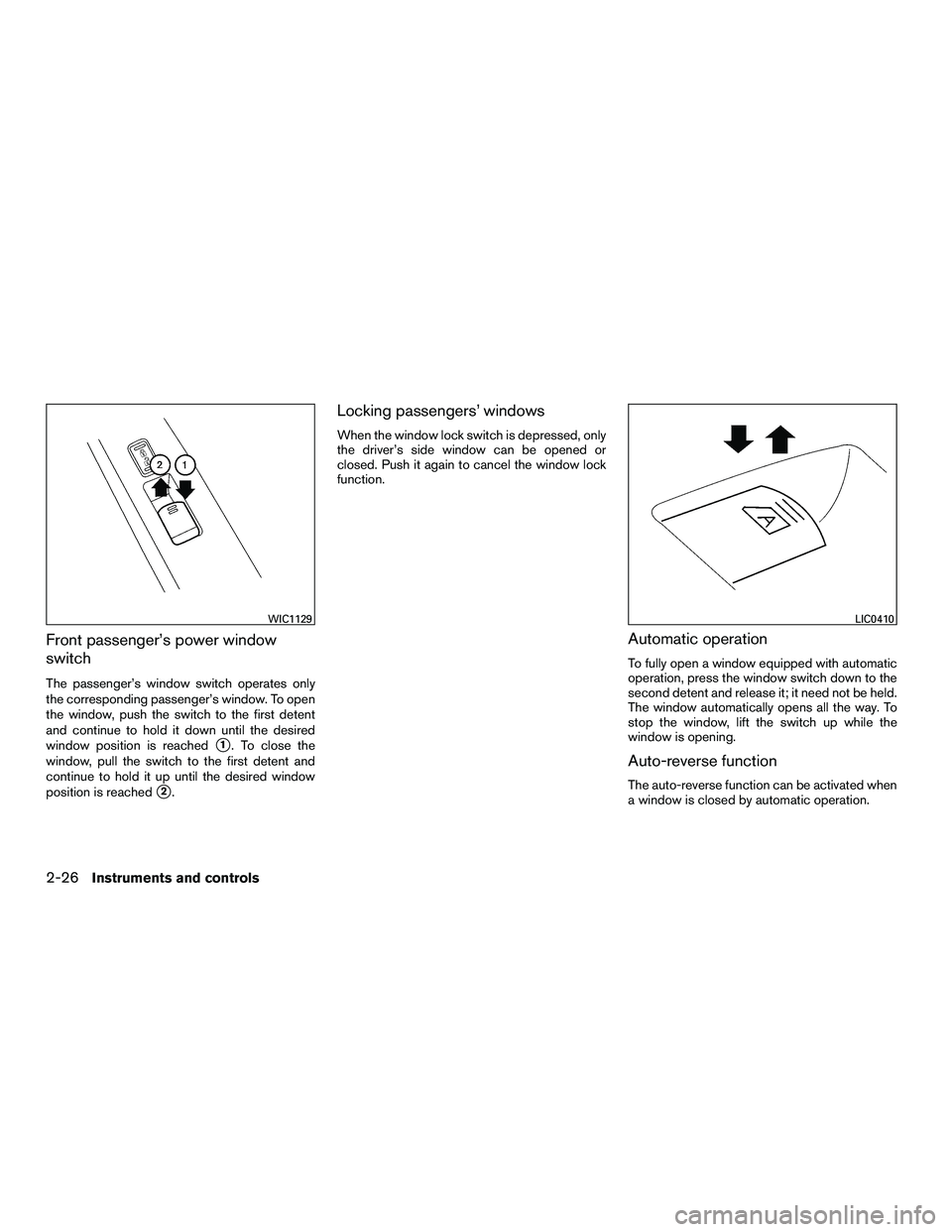

Front passenger’s power window
switch
The passenger’s window switch operates only
the corresponding passenger’s window. To open
the window, push the switch to the first detent
and continue to hold it down until the desired
window position is reached
1. To close the
window, pull the switch to the first detent and
continue to hold it up until the desired window
position is reached
2.
Locking passengers’ windows
When the window lock switch is depressed, only
the driver’s side window can be opened or
closed. Push it again to cancel the window lock
function.
Automatic operation
To fully open a window equipped with automatic
operation, press the window switch down to the
second detent and release it; it need not be held.
The window automatically opens all the way. To
stop the window, lift the switch up while the
window is opening.
Auto-reverse function
The auto-reverse function can be activated when
a window is closed by automatic operation.
WIC1129LIC0410
2-26Instruments and controls

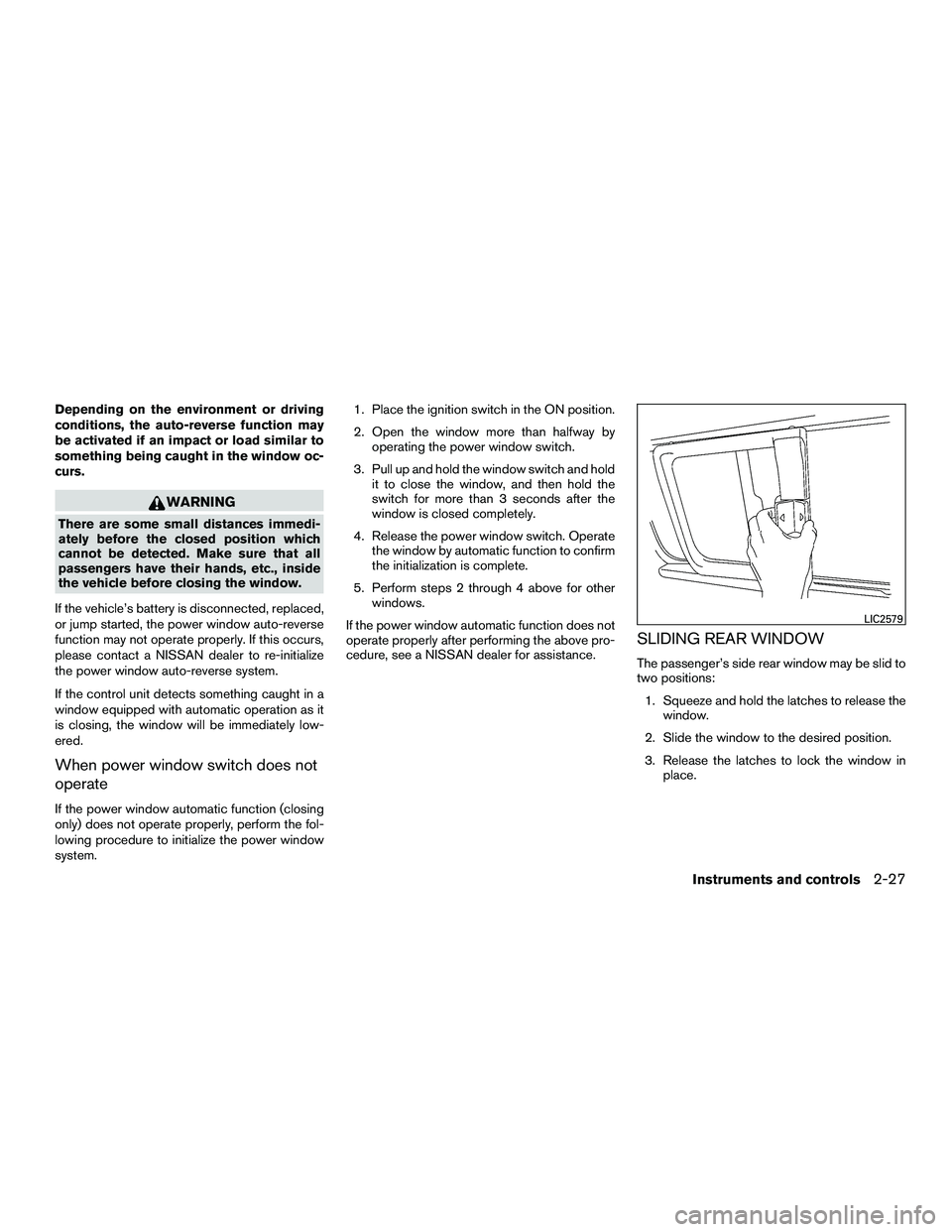

Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the window.
If the vehicle’s battery is disconnected, replaced,
or jump started, the power window auto-reverse
function may not operate properly. If this occurs,
please contact a NISSAN dealer to re-initialize
the power window auto-reverse system.
If the control unit detects something caught in a
window equipped with automatic operation as it
is closing, the window will be immediately low-
ered.
When power window switch does not
operate
If the power window automatic function (closing
only) does not operate properly, perform the fol-
lowing procedure to initialize the power window
system. 1. Place the ignition switch in the ON position.
2. Open the window more than halfway by
operating the power window switch.
3. Pull up and hold the window switch and hold it to close the window, and then hold the
switch for more than 3 seconds after the
window is closed completely.
4. Release the power window switch. Operate the window by automatic function to confirm
the initialization is complete.
5. Perform steps 2 through 4 above for other windows.
If the power window automatic function does not
operate properly after performing the above pro-
cedure, see a NISSAN dealer for assistance.
SLIDING REAR WINDOW
The passenger’s side rear window may be slid to
two positions: 1. Squeeze and hold the latches to release the window.
2. Slide the window to the desired position.
3. Release the latches to lock the window in place.
LIC2579
Instruments and controls2-27

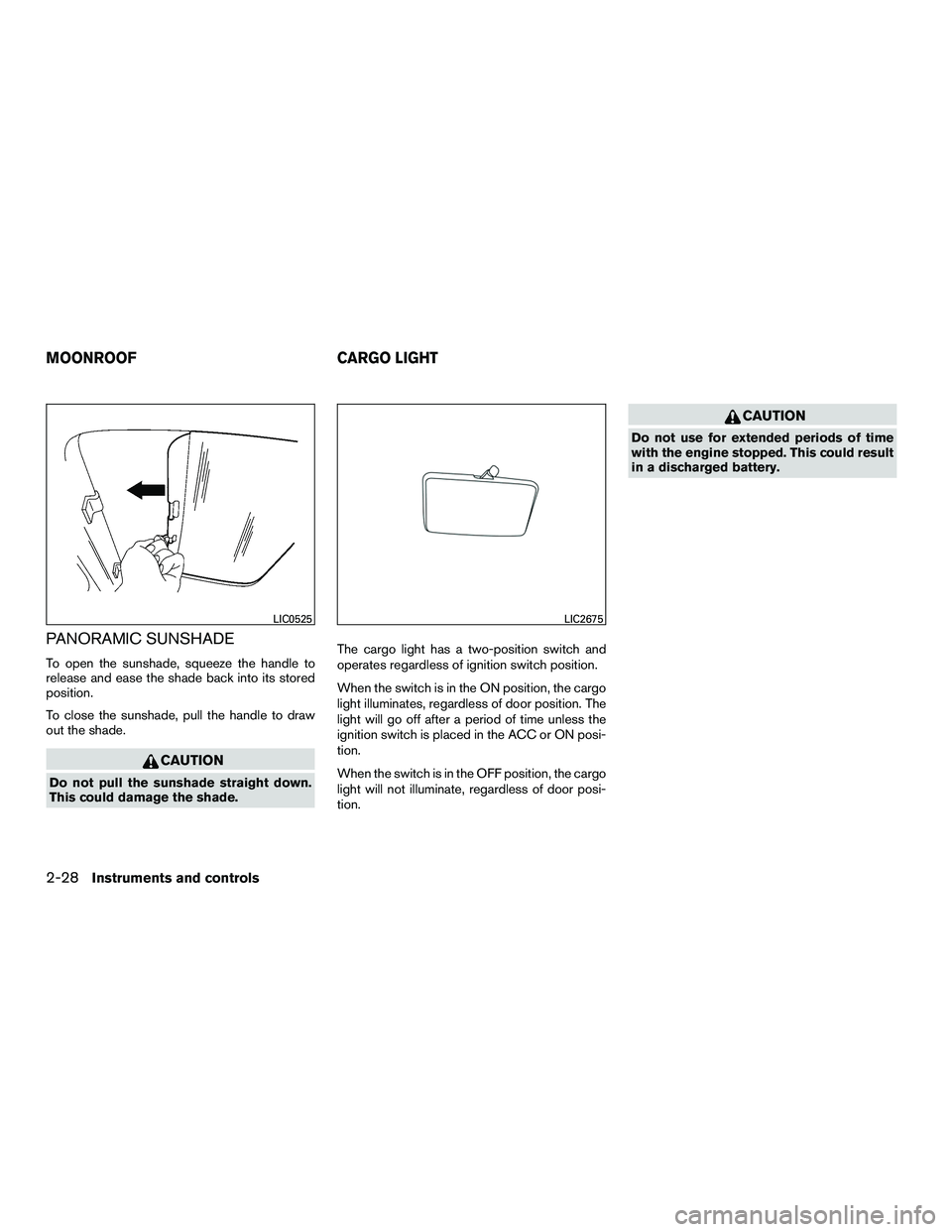

PANORAMIC SUNSHADE
To open the sunshade, squeeze the handle to
release and ease the shade back into its stored
position.
To close the sunshade, pull the handle to draw
out the shade.
CAUTION
Do not pull the sunshade straight down.
This could damage the shade.The cargo light has a two-position switch and
operates regardless of ignition switch position.
When the switch is in the ON position, the cargo
light illuminates, regardless of door position. The
light will go off after a period of time unless the
ignition switch is placed in the ACC or ON posi-
tion.
When the switch is in the OFF position, the cargo
light will not illuminate, regardless of door posi-
tion.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
LIC0525LIC2675
MOONROOF
CARGO LIGHT
2-28Instruments and controls

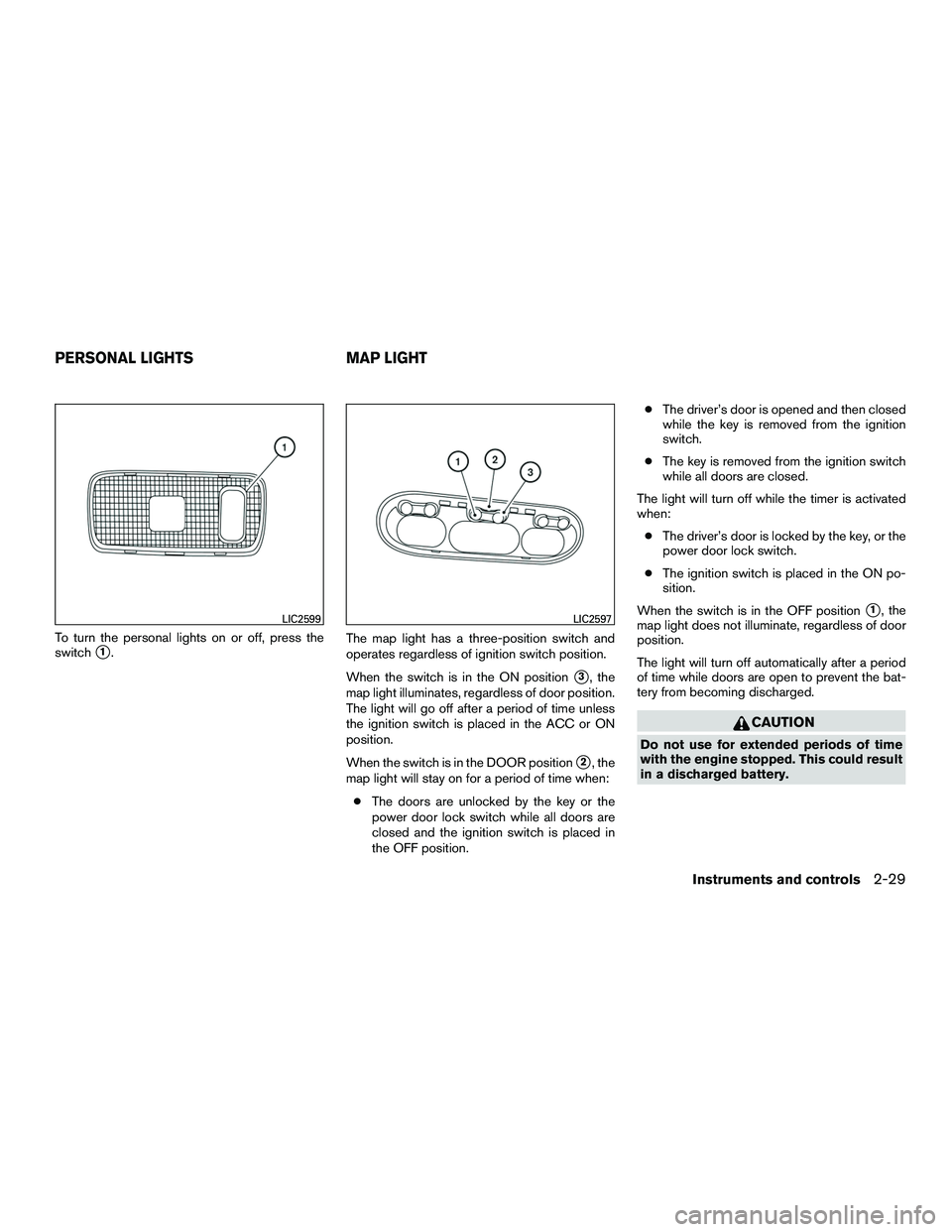

To turn the personal lights on or off, press the
switch
1.The map light has a three-position switch and
operates regardless of ignition switch position.
When the switch is in the ON position
3, the
map light illuminates, regardless of door position.
The light will go off after a period of time unless
the ignition switch is placed in the ACC or ON
position.
When the switch is in the DOOR position
2, the
map light will stay on for a period of time when:
● The doors are unlocked by the key or the
power door lock switch while all doors are
closed and the ignition switch is placed in
the OFF position. ●
The driver’s door is opened and then closed
while the key is removed from the ignition
switch.
● The key is removed from the ignition switch
while all doors are closed.
The light will turn off while the timer is activated
when: ● The driver’s door is locked by the key, or the
power door lock switch.
● The ignition switch is placed in the ON po-
sition.
When the switch is in the OFF position
1, the
map light does not illuminate, regardless of door
position.
The light will turn off automatically after a period
of time while doors are open to prevent the bat-
tery from becoming discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
LIC2599LIC2597
PERSONAL LIGHTS MAP LIGHT
Instruments and controls2-29

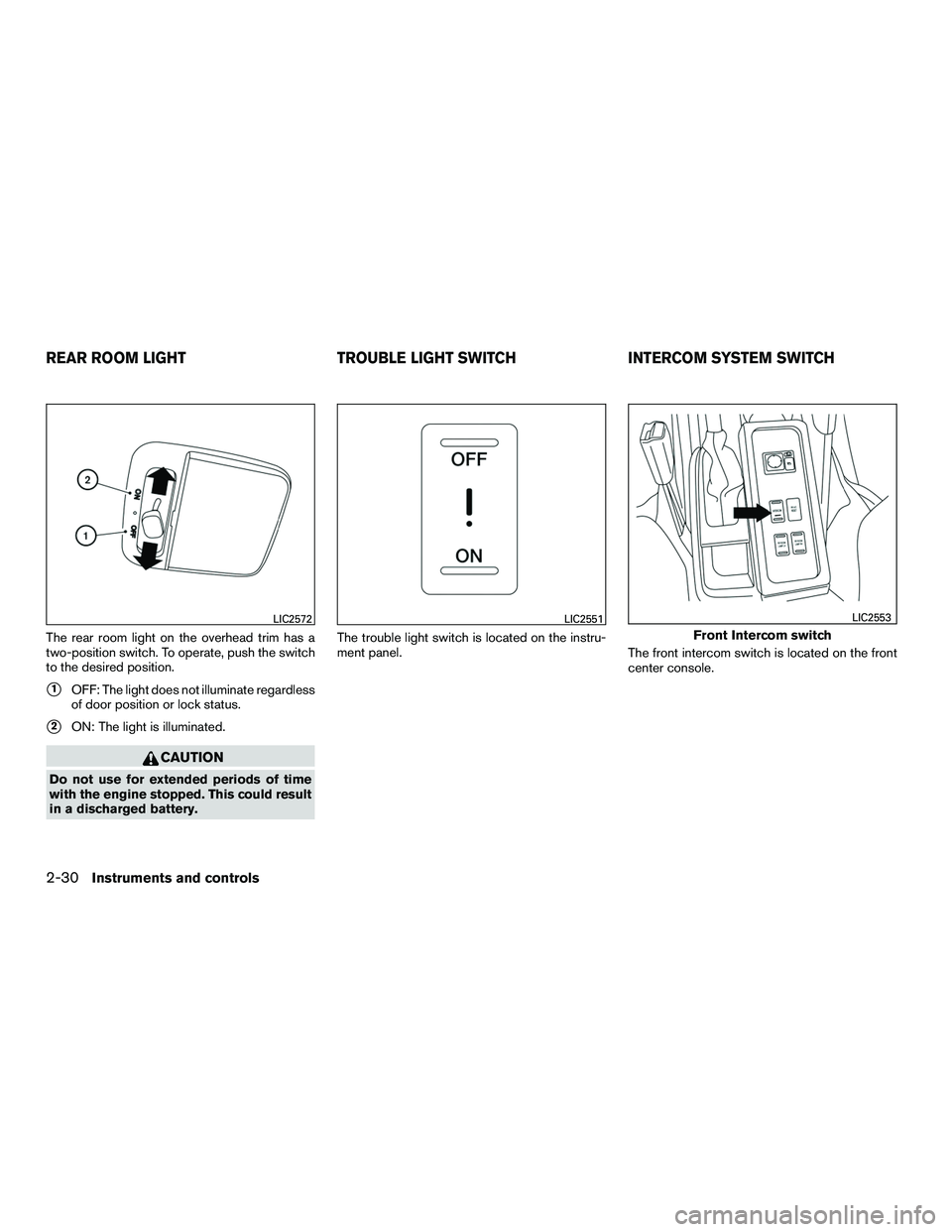

The rear room light on the overhead trim has a
two-position switch. To operate, push the switch
to the desired position.
1OFF: The light does not illuminate regardless
of door position or lock status.
2ON: The light is illuminated.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery. The trouble light switch is located on the instru-
ment panel.
The front intercom switch is located on the front
center console.
LIC2572LIC2551
Front Intercom switch
LIC2553
REAR ROOM LIGHTTROUBLE LIGHT SWITCHINTERCOM SYSTEM SWITCH
2-30Instruments and controls

The rear intercom switch is located on the parti-
tion wall.
For additional information, refer to “Intercom Sys-
tem” in “Monitor, climate, audio, phone and voice
recognition systems” section of this manual.The front personal light switches are located in
the front center console.
The personal light switches operate the rear per-
sonal lights. To turn the left rear personal light on
or off, press the left switch
1. To turn the right
rear personal light on or off, press the right switch
2. The auto step switch is located on the partition
wall.
Rear Intercom switch
LIC2574LIC2674LIC2552
PERSONAL LIGHT SWITCHES
AUTO STEP SWITCH
