NISSAN NV200 2019 User Guide

Illustrated table of contents0-3

Illustrated table of contents0-5

LIC3760

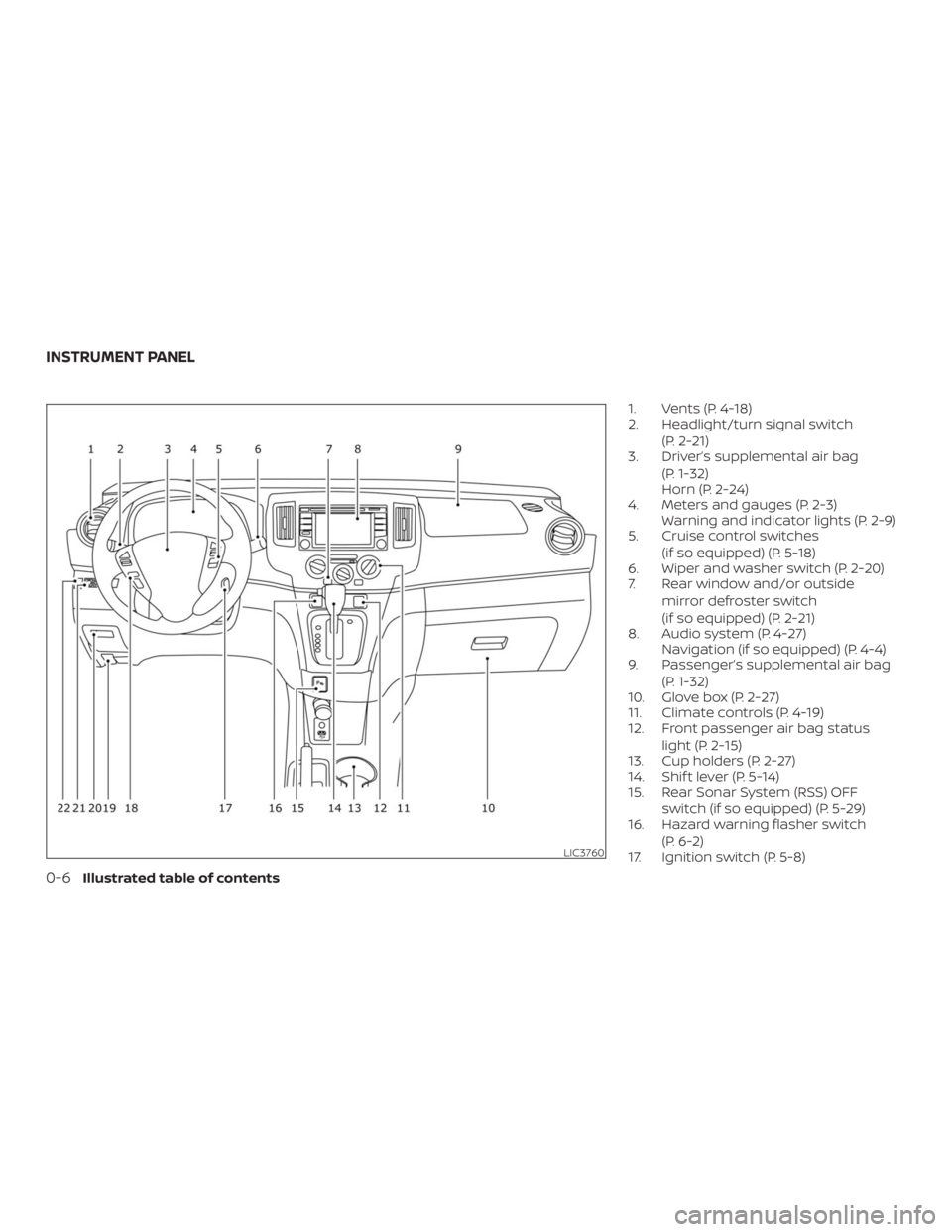

INSTRUMENT PANEL

LDI3187

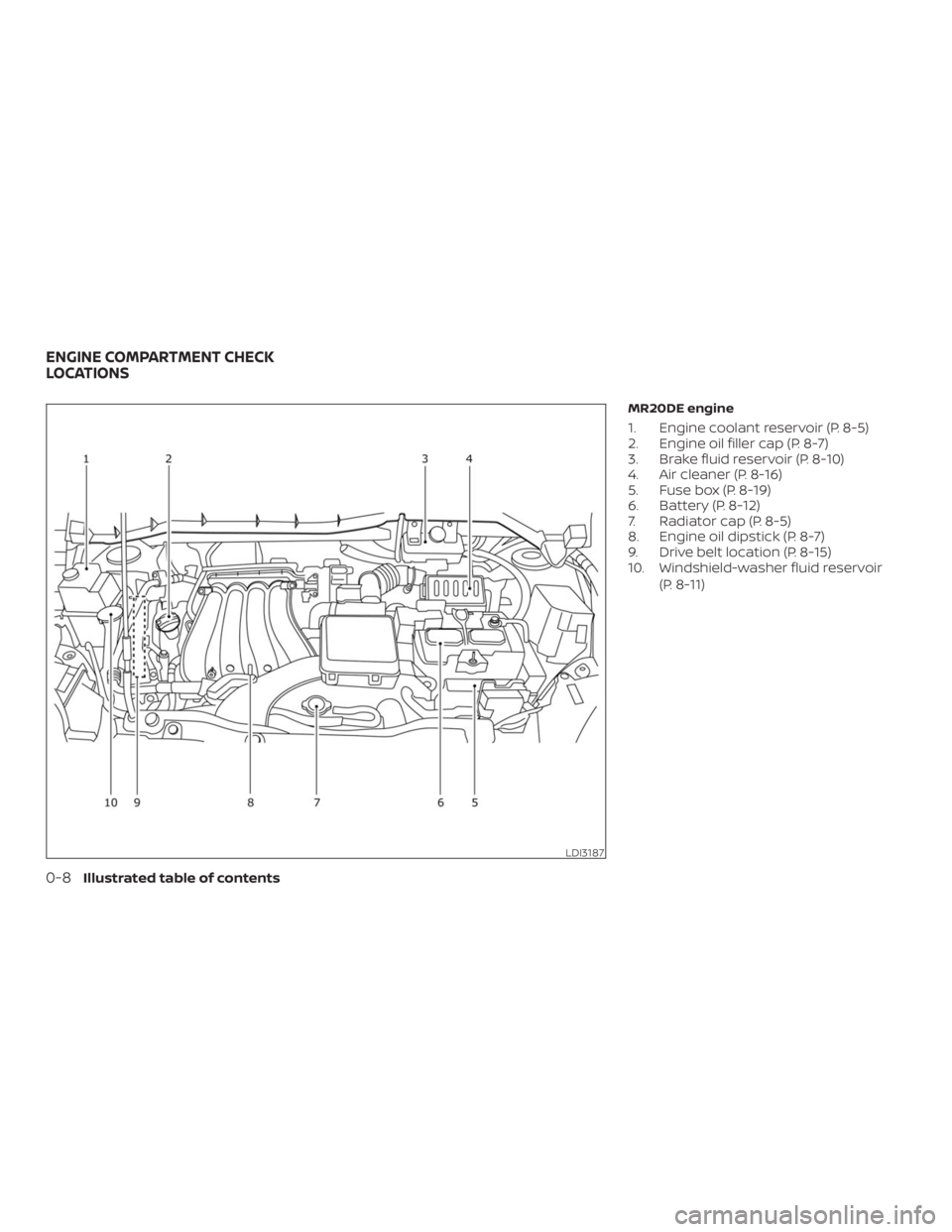

ENGINE COMPARTMENT CHECK
LOCATIONS

or
Anti-lock Braking
System (ABS)
warning light2-10
or
Brake warning
light2-10
Charge warning
light2-11
Door open warn-
ing light2-11
Engine oil pres-
sure warning light2-11
High temperature
warning light (red)2-11
Warning
lightName Page
Low fuel warning
light2-11
Low tire pressure
warning light2-12
Low windshield-
washer fluid
warning light (if so
equipped)2-13
Power steering
warning light2-13
Seat belt warning
light and chime2-14
Supplemental air
bag warning light2-14
Indicator
lightName Page
Continuously
Variable Trans-
mission (CVT) po-
sition indicator
light2-15
Cruise main
switch indicator
light (if so
equipped)2-15
Front passenger
air bag status
light2-15
High beam indi-
cator light (blue)2-15
Malfunction Indi-
cator Light (MIL)2-15
Overdrive OFF
indicator light2-16
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-9

Security indicator
light2-16
Slip indicator light 2-16
Turn signal/
hazard indicator
lights2-16
Vehicle Dynamic
Control (VDC) OFF
indicator light2-17
0-10Illustrated table of contents
