NISSAN NV200 2019 Owner's Manual

LRS2208LRS2220

LRS2221LRS2921LRS2339
1-4Safety—Seats, seat belts and supplemental restraint system

LRS2719

LRS2721

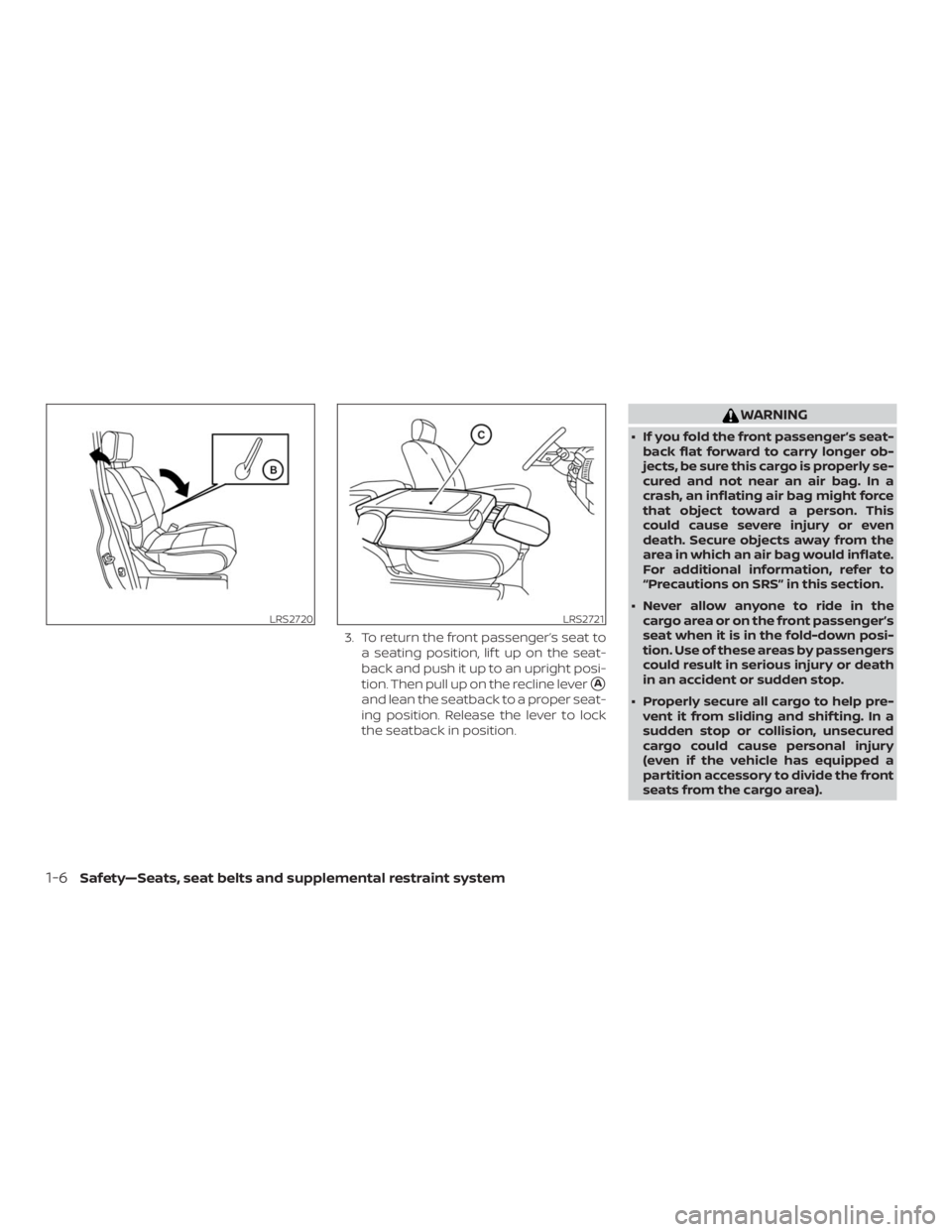

1-6Safety—Seats, seat belts and supplemental restraint system

WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjustable head
restraints/headrests must be adjusted
properly, as specified in this section.
Check the adjustment af ter someone
else uses the seat. Do not attach any-
thing to the head restraint/headrest
stalks or remove the head
restraint/headrest. Do not use the seat
if the head restraint/headrest has been
removed. If the head restraint/headrest
was removed, reinstall and properly ad-
just the head restraint/headrest before
an occupant uses the seating position.
Failure to follow these instructions can
reduce the effectiveness of the head
restraints/headrests. This may in-
crease the risk of serious injury or death
in a collision.
The illustration shows the seating positions
equipped with head restraints/headrests.
Indicates the seating position is
equipped with a head restraint.
Indicates the seating position is equipped
with a headrest.
+ Indicates the seating position is not
equipped with a head restraint or headrest
(if applicable).
∙ Your vehicle is equipped with a head
restraint/headrest that may be inte-
grated, adjustable or non-adjustable.
LRS2515
HEAD RESTRAINTS/HEADRESTS
Safety—Seats, seat belts and supplemental restraint system1-7

LRS2300LRS2299

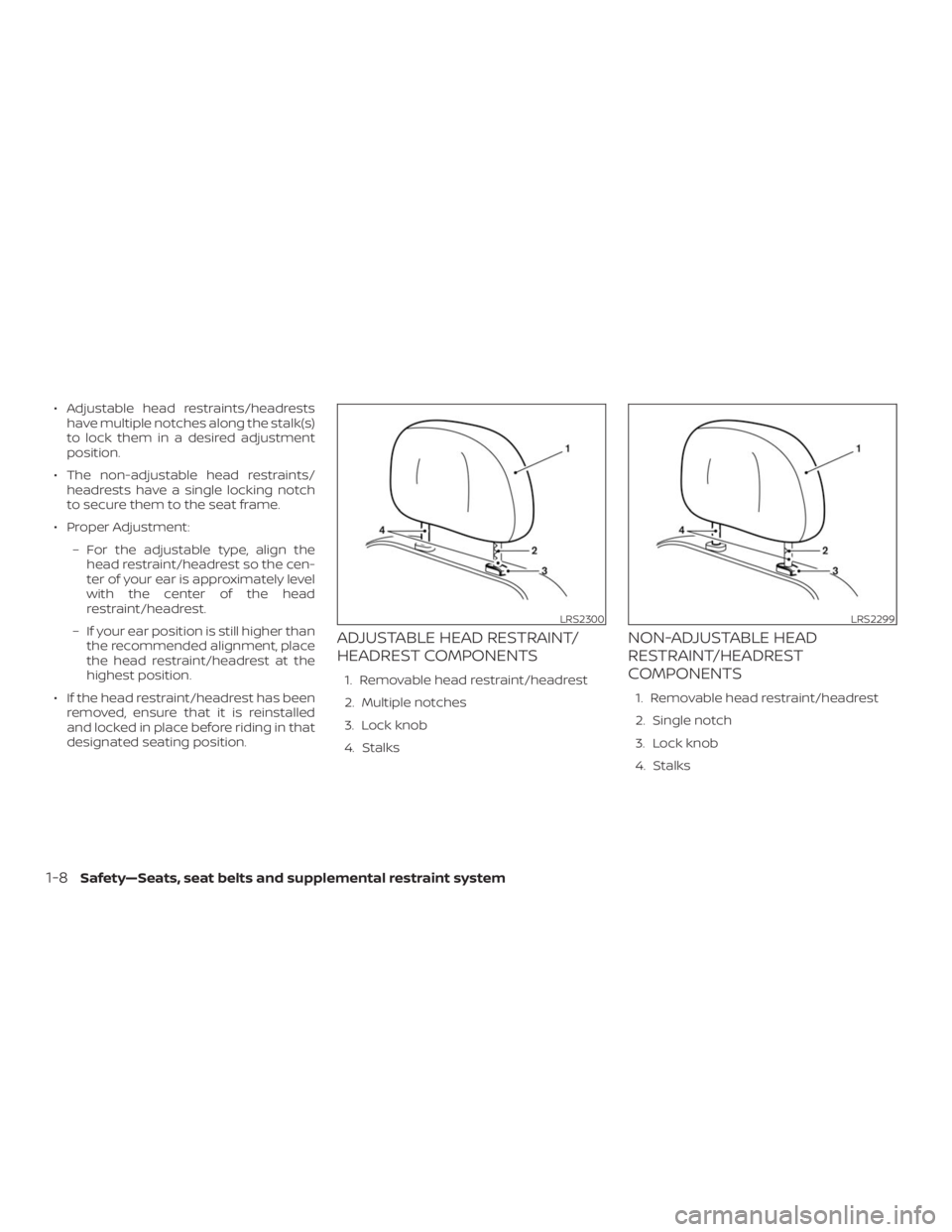

1-8Safety—Seats, seat belts and supplemental restraint system

LRS2302LRS2303

WRS0134LRS2351LRS2305
1-10Safety—Seats, seat belts and supplemental restraint system
