NISSAN PATHFINDER 2004 R50 / 2.G Owners Manual

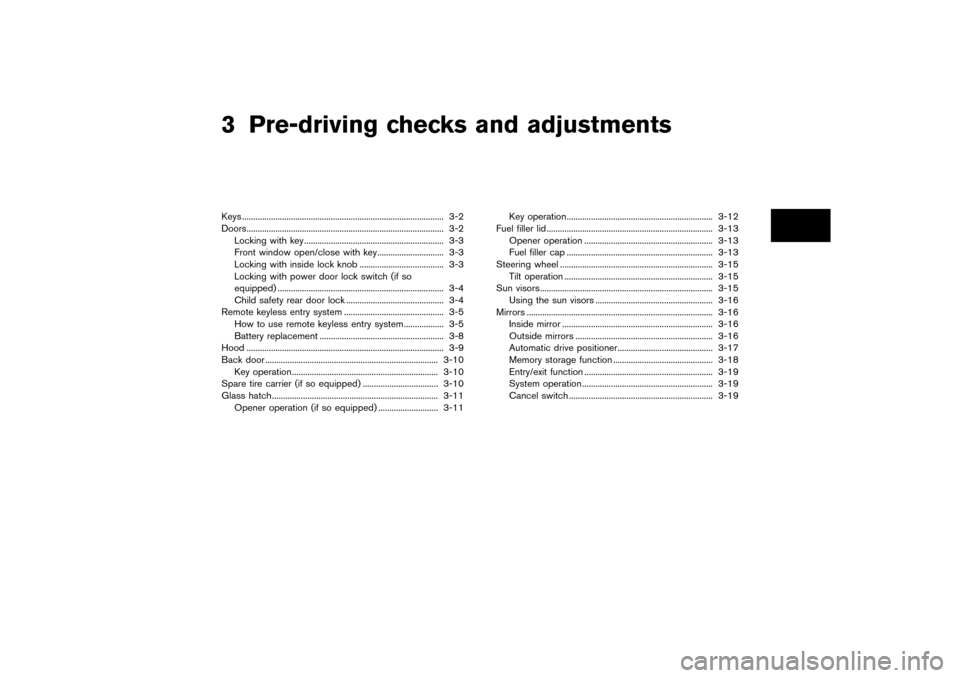

3 Pre-driving checks and adjustmentsKeys ........................................................................................... 3-2
Doors......................................................................................... 3-2
Locking with key ............................................................... 3-3
Front window open/close with key.............................. 3-3
Locking with inside lock knob...................................... 3-3
Locking with power door lock switch (if so
equipped) ........................................................................... 3-4
Child safety rear door lock ............................................ 3-4
Remote keyless entry system ............................................. 3-5
How to use remote keyless entry system.................. 3-5

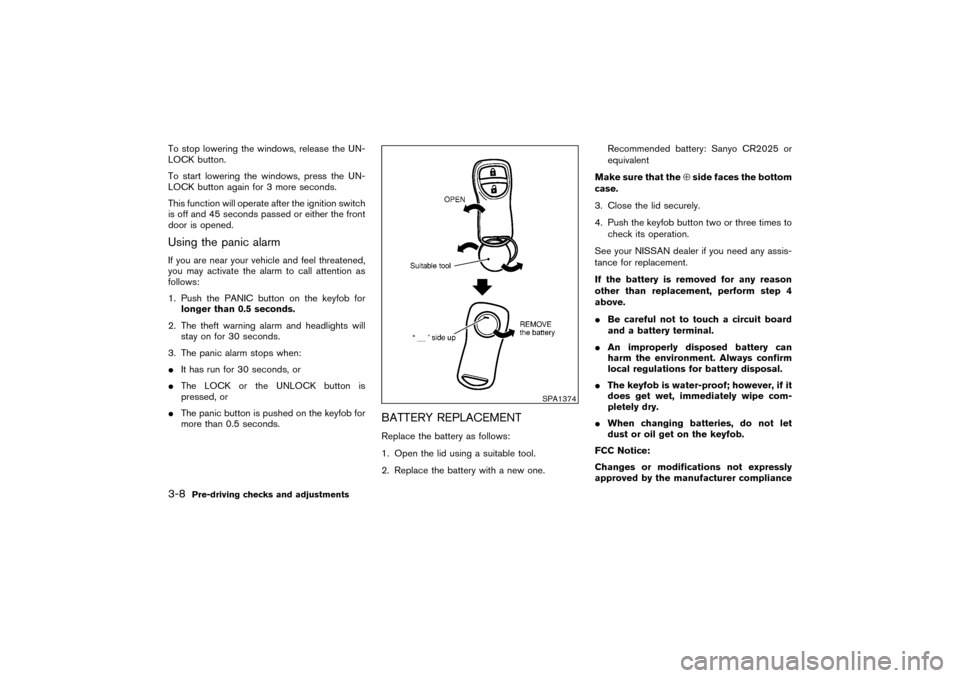

Battery replacement ........................................................ 3-8

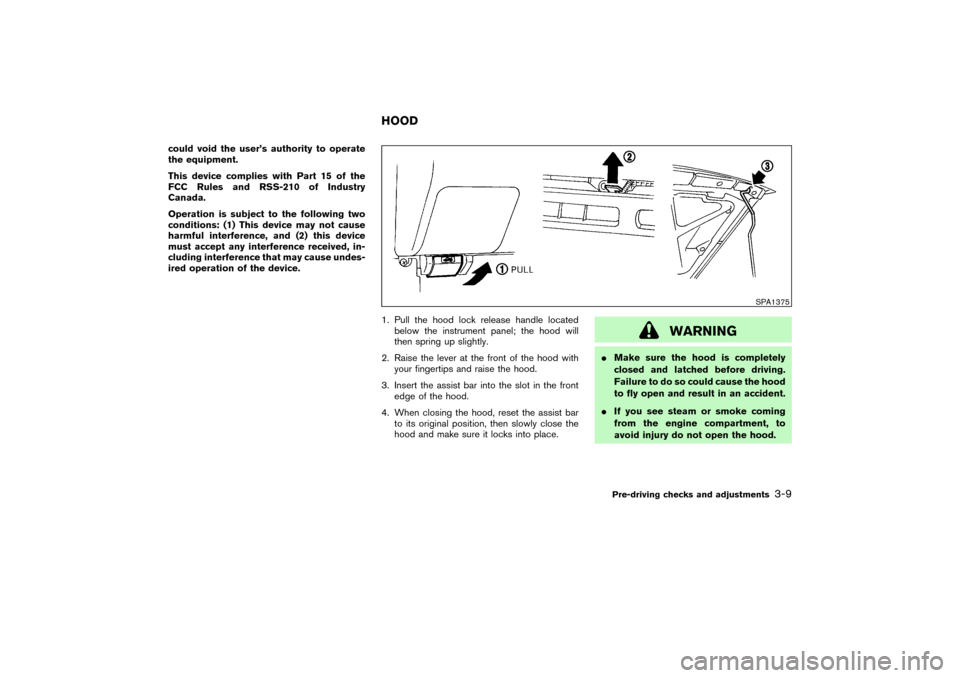

Hood ......................................................................................... 3-9

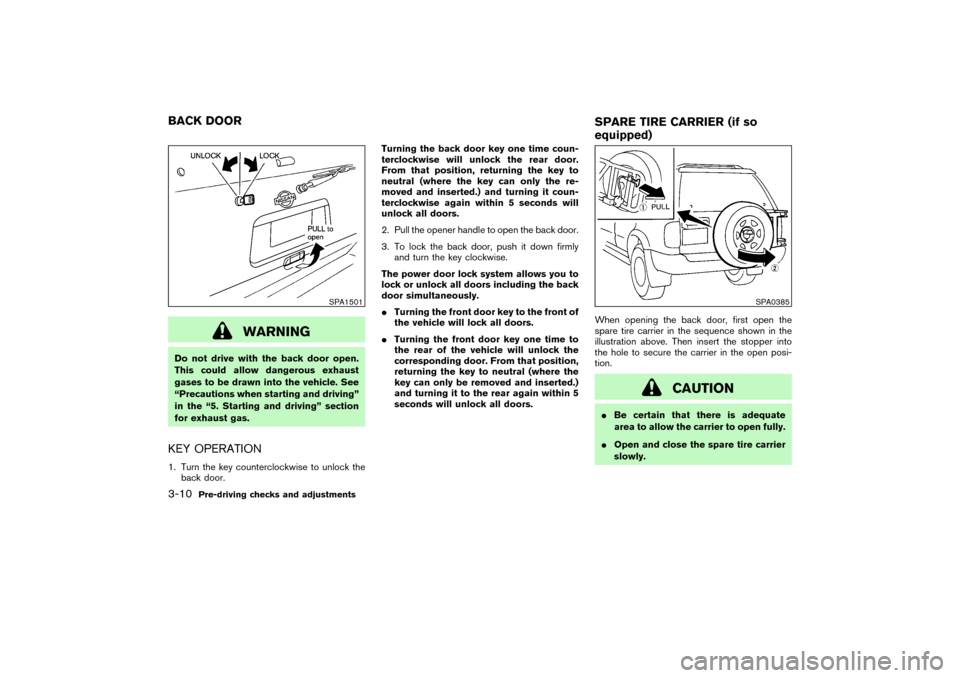

Back door .............................................................................. 3-10
Key operation.................................................................. 3-10
Spare tire carrier (if so equipped) .................................. 3-10
Glass hatch ........................................................................... 3-11
Opener operation (if so equipped) ........................... 3-11Key operation.................................................................. 3-12
Fuel filler lid ........................................................................... 3-13
Opener operation .......................................................... 3-13
Fuel filler cap .................................................................. 3-13
Steering wheel ..................................................................... 3-15
Tilt operation ................................................................... 3-15
Sun visors.............................................................................. 3-15
Using the sun visors ..................................................... 3-16
Mirrors .................................................................................... 3-16
Inside mirror .................................................................... 3-16
Outside mirrors .............................................................. 3-16
Automatic drive positioner........................................... 3-17
Memory storage function ............................................. 3-18
Entry/exit function .......................................................... 3-19
System operation ........................................................... 3-19
Cancel switch ................................................................. 3-19


04.3.9/R50-D/V5

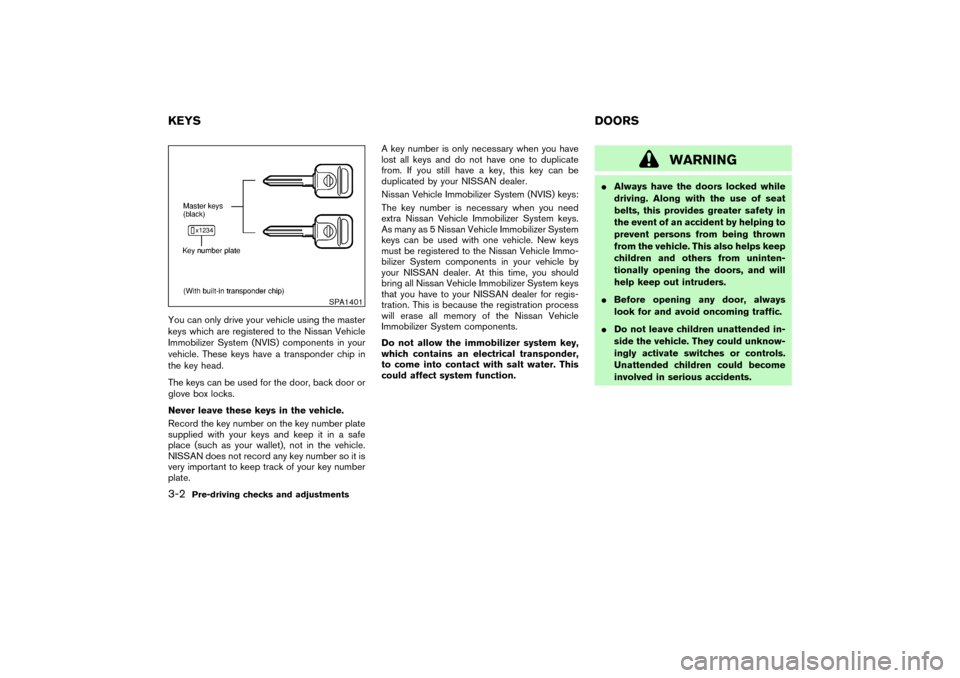

You can only drive your vehicle using the master
keys which are registered to the Nissan Vehicle
Immobilizer System (NVIS) components in your
vehicle. These keys have a transponder chip in
the key head.
The keys can be used for the door, back door or
glove box locks.
Never leave these keys in the vehicle.
Record the key number on the key number plate
supplied with your keys and keep it in a safe
place (such as your wallet), not in the vehicle.
NISSAN does not record any key number so it is
very important to keep track of your key number
plate.A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by your NISSAN dealer.
Nissan Vehicle Immobilizer System (NVIS) keys:
The key number is necessary when you need
extra Nissan Vehicle Immobilizer System keys.
As many as 5 Nissan Vehicle Immobilizer System
keys can be used with one vehicle. New keys
must be registered to the Nissan Vehicle Immo-
bilizer System components in your vehicle by
your NISSAN dealer. At this time, you should
bring all Nissan Vehicle Immobilizer System keys
that you have to your NISSAN dealer for regis-
tration. This is because the registration process
will erase all memory of the Nissan Vehicle
Immobilizer System components.
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with salt water. This
could affect system function.
WARNING

Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from uninten-
tionally opening the doors, and will
help keep out intruders.

Before opening any door, always
look for and avoid oncoming traffic.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.
SPA1401
KEYSDOORS3-2
Pre-driving checks and adjustments


04.3.9/R50-D/V5


LOCKING WITH KEY
ManualTo lock the door, turn the key towards the front
of the vehicle. To unlock, turn it towards the rear.PowerThe power door lock system allows you to lock
or unlock all doors including the back door
simultaneously.

Turning the driver’s door key to the front of
the vehicle will lock all doors.

Turning the driver’s door key one time to therear of the vehicle will unlock the correspond-
ing door. From that position, returning the key
to neutral (where the key can only be re-
moved and inserted.) and turning it to the rear
again within 5 seconds will unlock all doors.
FRONT WINDOW OPEN/CLOSE
WITH KEYTurn the driver’s door key to the unlock position
and hold for about 1 second, the front windows
will begin to lower.
To stop opening, turn the key to the neutral
position.
To close the front windows with the door key
cylinder, turn the key to the lock position and
hold for about 1 second.
To stop closing, turn the key to the neutral
position.
In the event of a hand in the way, or other
obstruction, the auto reverse function will acti-
vate.
LOCKING WITH INSIDE LOCK
KNOBPushing or pulling the door inside lock knobto
the lock or unlock will lock or unlock the corre-
sponding door.
To lock from the outside without a key, move the
inside lock knobto the LOCK position. Then
close the door. When locking the door this way,
be certain not to leave the key inside the vehicle.
SPA1500
PD1160M
Pre-driving checks and adjustments
3-3


04.3.9/R50-D/V5

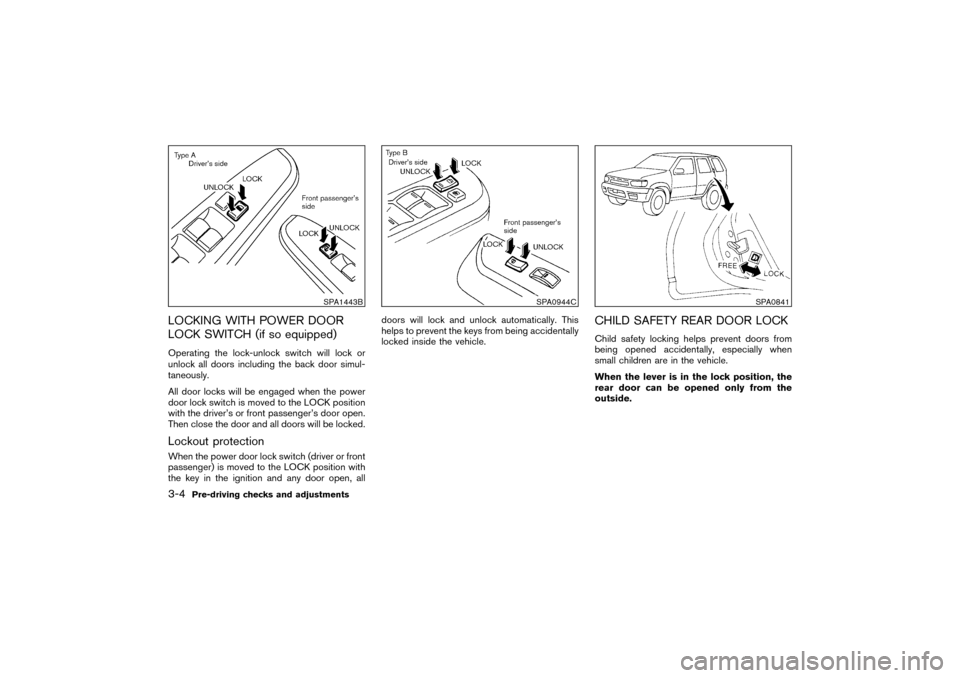

LOCKING WITH POWER DOOR
LOCK SWITCH (if so equipped)Operating the lock-unlock switch will lock or
unlock all doors including the back door simul-
taneously.
All door locks will be engaged when the power
door lock switch is moved to the LOCK position
with the driver’s or front passenger’s door open.
Then close the door and all doors will be locked.Lockout protectionWhen the power door lock switch (driver or front
passenger) is moved to the LOCK position with
the key in the ignition and any door open, alldoors will lock and unlock automatically. This
helps to prevent the keys from being accidentally
locked inside the vehicle.
CHILD SAFETY REAR DOOR LOCKChild safety locking helps prevent doors from
being opened accidentally, especially when
small children are in the vehicle.
When the lever is in the lock position, the
rear door can be opened only from the
outside.
SPA1443B
SPA0944C
SPA0841
3-4
Pre-driving checks and adjustments


04.3.9/R50-D/V5

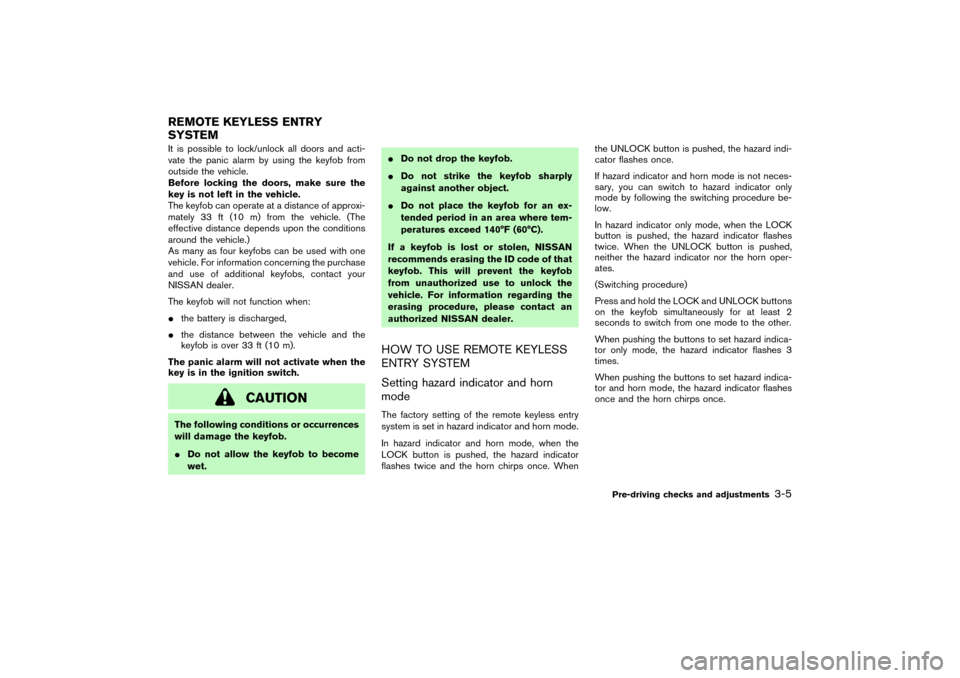

It is possible to lock/unlock all doors and acti-
vate the panic alarm by using the keyfob from
outside the vehicle.
Before locking the doors, make sure the
key is not left in the vehicle.
The keyfobcan operate at a distance of approxi-
mately 33 ft (10 m) from the vehicle. (The
effective distance depends upon the conditions
around the vehicle.)
As many as four keyfobs can be used with one
vehicle. For information concerning the purchase
and use of additional keyfobs, contact your
NISSAN dealer.
The keyfobwill not function when:

the battery is discharged,

the distance between the vehicle and the
keyfobis over 33 ft (10 m).
The panic alarm will not activate when the
key is in the ignition switch.
CAUTION
The following conditions or occurrences
will damage the keyfob.

Do not allow the keyfob to become
wet.
Do not drop the keyfob.

Do not strike the keyfob sharply
against another object.

Do not place the keyfob for an ex-
tended period in an area where tem-
peratures exceed 140°F (60°C).
If a keyfob is lost or stolen, NISSAN
recommends erasing the ID code of that
keyfob. This will prevent the keyfob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, please contact an
authorized NISSAN dealer.
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Setting hazard indicator and horn
modeThe factory setting of the remote keyless entry
system is set in hazard indicator and horn mode.
In hazard indicator and horn mode, when the
LOCK button is pushed, the hazard indicator
flashes twice and the horn chirps once. Whenthe UNLOCK button is pushed, the hazard indi-
cator flashes once.
If hazard indicator and horn mode is not neces-
sary, you can switch to hazard indicator only
mode by following the switching procedure be-
low.
In hazard indicator only mode, when the LOCK
button is pushed, the hazard indicator flashes
twice. When the UNLOCK button is pushed,
neither the hazard indicator nor the horn oper-
ates.
(Switching procedure)
Press and hold the LOCK and UNLOCK buttons
on the keyfobsimultaneously for at least 2
seconds to switch from one mode to the other.
When pushing the buttons to set hazard indica-
tor only mode, the hazard indicator flashes 3
times.
When pushing the buttons to set hazard indica-
tor and horn mode, the hazard indicator flashes
once and the horn chirps once.
REMOTE KEYLESS ENTRY
SYSTEM
Pre-driving checks and adjustments
3-5


04.3.9/R50-D/V5

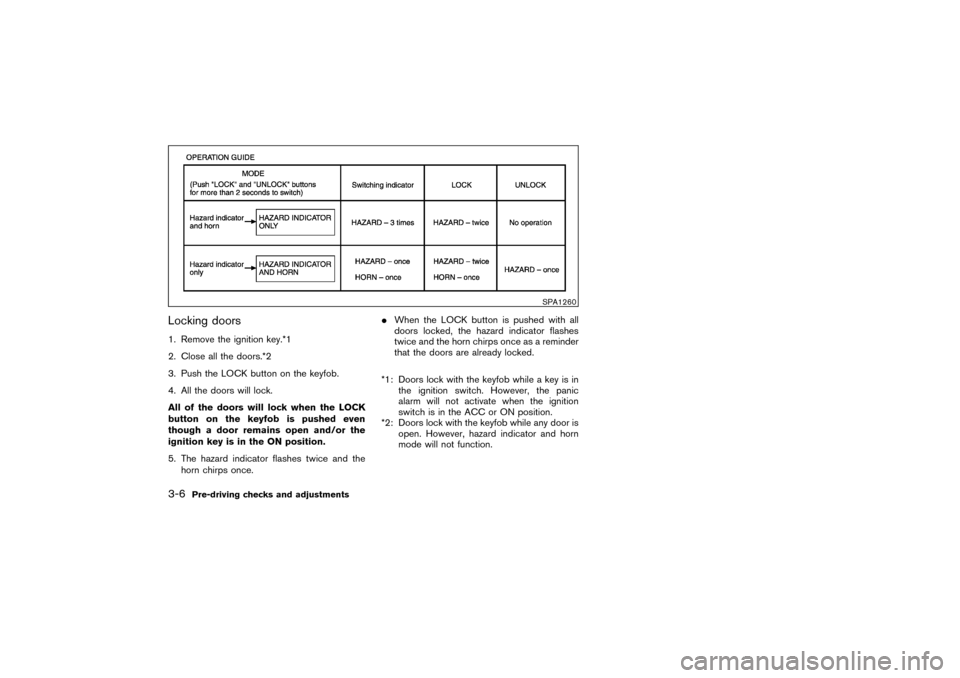

Locking doors1. Remove the ignition key.*1
2. Close all the doors.*2
3. Push the LOCK button on the keyfob.
4. All the doors will lock.
All of the doors will lock when the LOCK
button on the keyfob is pushed even
though a door remains open and/or the
ignition key is in the ONposition.
5. The hazard indicator flashes twice and the
horn chirps once.
When the LOCK button is pushed with all
doors locked, the hazard indicator flashes
twice and the horn chirps once as a reminder
that the doors are already locked.
*1: Doors lock with the keyfobwhile a key is in
the ignition switch. However, the panic
alarm will not activate when the ignition
switch is in the ACC or ON position.
*2: Doors lock with the keyfobwhile any door is
open. However, hazard indicator and horn
mode will not function.
SPA1260
3-6
Pre-driving checks and adjustments


04.3.9/R50-D/V5

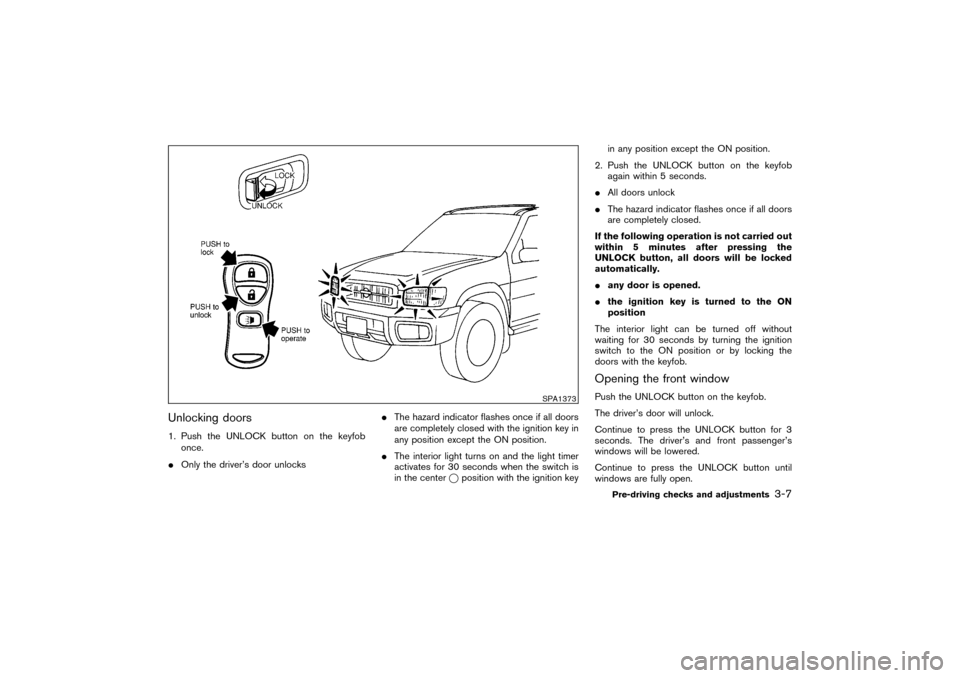

Unlocking doors1. Push the UNLOCK button on the keyfob
once.

Only the driver’s door unlocks
The hazard indicator flashes once if all doors
are completely closed with the ignition key in
any position except the ON position.

The interior light turns on and the light timer
activates for 30 seconds when the switch is
in the centerposition with the ignition keyin any position except the ON position.
2. Push the UNLOCK button on the keyfob
again within 5 seconds.

All doors unlock

The hazard indicator flashes once if all doors
are completely closed.
If the following operation is not carried out
within 5 minutes after pressing the
UNLOCK button, all doors will be locked
automatically.

any door is opened.

the ignition key is turned to the ON
position
The interior light can be turned off without
waiting for 30 seconds by turning the ignition
switch to the ON position or by locking the
doors with the keyfob.
Opening the front windowPush the UNLOCK button on the keyfob.
The driver’s door will unlock.
Continue to press the UNLOCK button for 3
seconds. The driver’s and front passenger’s
windows will be lowered.
Continue to press the UNLOCK button until
windows are fully open.
SPA1373
Pre-driving checks and adjustments
3-7


04.3.9/R50-D/V5


To stop lowering the windows, release the UN-
LOCK button.
To start lowering the windows, press the UN-
LOCK button again for 3 more seconds.
This function will operate after the ignition switch
is off and 45 seconds passed or either the front
door is opened.Using the panic alarmIf you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC button on the keyfob for
longer than 0.5 seconds.
2. The theft warning alarm and headlights will
stay on for 30 seconds.
3. The panic alarm stops when:

It has run for 30 seconds, or

The LOCK or the UNLOCK button is
pressed, or

The panic button is pushed on the keyfob for
more than 0.5 seconds.
BATTERY REPLACEMENTReplace the battery as follows:
1. Open the lid using a suitable tool.
2. Replace the battery with a new one.Recommended battery: Sanyo CR2025 or
equivalent
Make sure that the⊕side faces the bottom
case.
3. Close the lid securely.
4. Push the keyfobbutton two or three times to
check its operation.
See your NISSAN dealer if you need any assis-
tance for replacement.
If the battery is removed for any reason
other than replacement, perform step 4
above.

Be careful not to touch a circuit board
and a battery terminal.

An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.

The keyfob is water-proof; however, if it
does get wet, immediately wipe com-
pletely dry.

When changing batteries, do not let
dust or oil get on the keyfob.
FCC Notice:
Changes or modifications not expressly
approved by the manufacturer compliance
SPA1374
3-8
Pre-driving checks and adjustments


04.3.9/R50-D/V5


could void the user’s authority to operate
the equipment.
This device complies with Part 15 of the
FCC Rules and RSS-210 of Industry
Canada.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause undes-
ired operation of the device.
1. Pull the hood lock release handle located
below the instrument panel; the hood will
then spring up slightly.
2. Raise the lever at the front of the hood with
your fingertips and raise the hood.
3. Insert the assist bar into the slot in the front
edge of the hood.
4. When closing the hood, reset the assist bar
to its original position, then slowly close the
hood and make sure it locks into place.
WARNING

Make sure the hood is completely
closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.

If you see steam or smoke coming
from the engine compartment, to
avoid injury do not open the hood.
SPA1375
HOOD
Pre-driving checks and adjustments
3-9


04.3.9/R50-D/V5


WARNING
Do not drive with the back door open.
This could allow dangerous exhaust
gases to be drawn into the vehicle. See
“Precautions when starting and driving”
in the “5. Starting and driving” section
for exhaust gas.KEY OPERATION1. Turn the key counterclockwise to unlock the
back door.Turning the back door key one time coun-
terclockwise will unlock the rear door.
From that position, returning the key to
neutral (where the key can only the re-
moved and inserted.) and turning it coun-
terclockwise again within 5 seconds will
unlock all doors.
2. Pull the opener handle to open the back door.
3. To lock the back door, push it down firmly
and turn the key clockwise.
The power door lock system allows you to
lock or unlock all doors including the back
door simultaneously.

Turning the front door key to the front of
the vehicle will lock all doors.

Turning the front door key one time to
the rear of the vehicle will unlock the
corresponding door. From that position,
returning the key to neutral (where the
key can only be removed and inserted.)
and turning it to the rear again within 5
seconds will unlock all doors.When opening the back door, first open the
spare tire carrier in the sequence shown in the
illustration above. Then insert the stopper into
the hole to secure the carrier in the open posi-
tion.
CAUTION

Be certain that there is adequate
area to allow the carrier to open fully.

Open and close the spare tire carrier
slowly.
SPA1501
SPA0385
BACK DOOR
SPARE TIRE CARRIER (if so
equipped)3-10
Pre-driving checks and adjustments


04.3.9/R50-D/V5
