NISSAN PATHFINDER 2004 R50 / 2.G Owners Manual

CAUTION

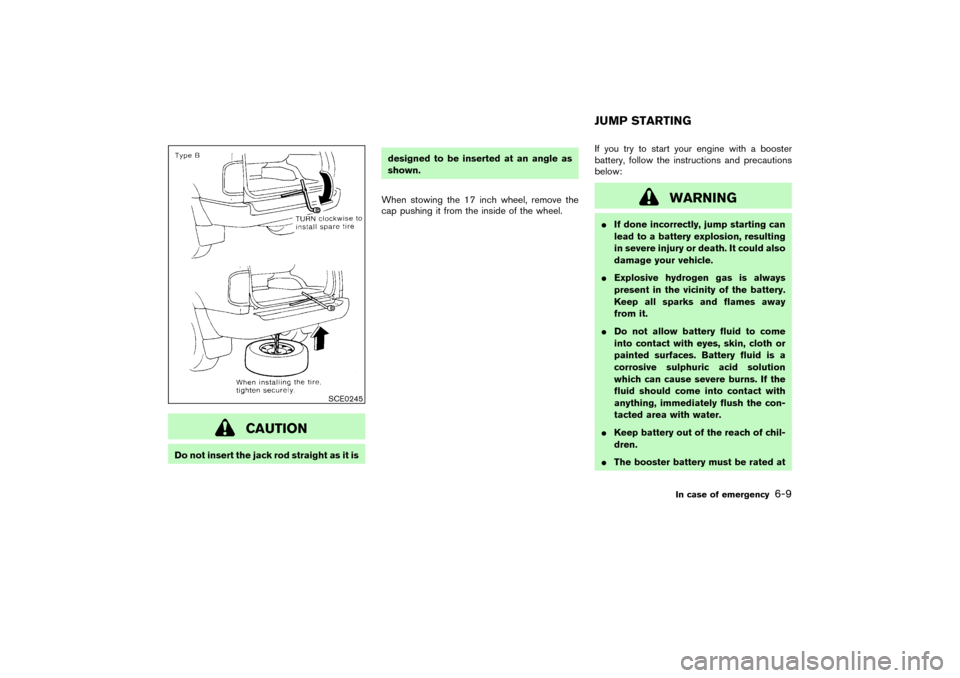

Do not insert the jack rod straight as it isdesigned to be inserted at an angle as
shown.
When stowing the 17 inch wheel, remove the
cap pushing it from the inside of the wheel.If you try to start your engine with a booster
battery, follow the instructions and precautions
below:
WARNING

If done incorrectly, jump starting can
lead to a battery explosion, resulting
in severe injury or death. It could also
damage your vehicle.

Explosive hydrogen gas is always
present in the vicinity of the battery.
Keep all sparks and flames away
from it.

Do not allow battery fluid to come
into contact with eyes, skin, cloth or
painted surfaces. Battery fluid is a
corrosive sulphuric acid solution
which can cause severe burns. If the
fluid should come into contact with
anything, immediately flush the con-
tacted area with water.

Keep battery out of the reach of chil-
dren.

The booster battery must be rated at
SCE0245
JUMP STARTING
In case of emergency
6-9


04.3.9/R50-D/V5

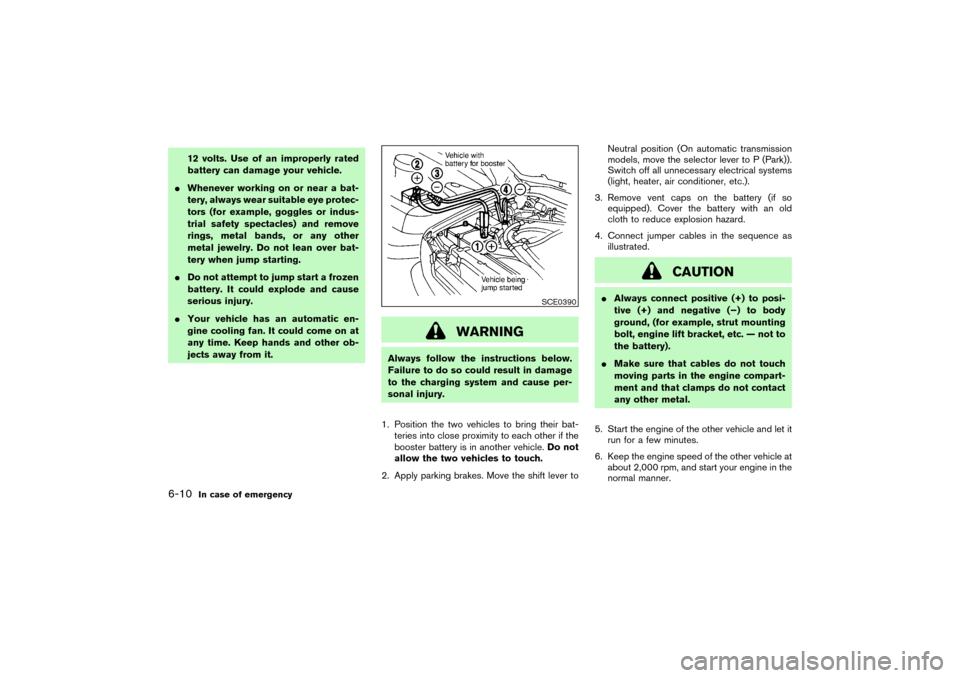

12 volts. Use of an improperly rated
battery can damage your vehicle.

Whenever working on or near a bat-
tery, always wear suitable eye protec-
tors (for example, goggles or indus-
trial safety spectacles) and remove
rings, metal bands, or any other
metal jewelry. Do not lean over bat-
tery when jump starting.

Do not attempt to jump start a frozen
battery. It could explode and cause
serious injury.

Your vehicle has an automatic en-
gine cooling fan. It could come on at
any time. Keep hands and other ob-
jects away from it.
WARNING
Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause per-
sonal injury.
1. Position the two vehicles to bring their bat-
teries into close proximity to each other if the
booster battery is in another vehicle.Do not
allow the two vehicles to touch.
2. Apply parking brakes. Move the shift lever toNeutral position (On automatic transmission
models, move the selector lever to P (Park)).
Switch off all unnecessary electrical systems
(light, heater, air conditioner, etc.).
3. Remove vent caps on the battery (if so
equipped). Cover the battery with an old
cloth to reduce explosion hazard.
4. Connect jumper cables in the sequence as
illustrated.
CAUTION

Always connect positive (+) to posi-
tive (+) and negative (−) to body
ground, (for example, strut mounting
bolt, engine lift bracket, etc. — not to
the battery).

Make sure that cables do not touch
moving parts in the engine compart-
ment and that clamps do not contact
any other metal.
5. Start the engine of the other vehicle and let it
run for a few minutes.
6. Keep the engine speed of the other vehicle at
about 2,000 rpm, and start your engine in the
normal manner.
SCE0390
6-10
In case of emergency


04.3.9/R50-D/V5

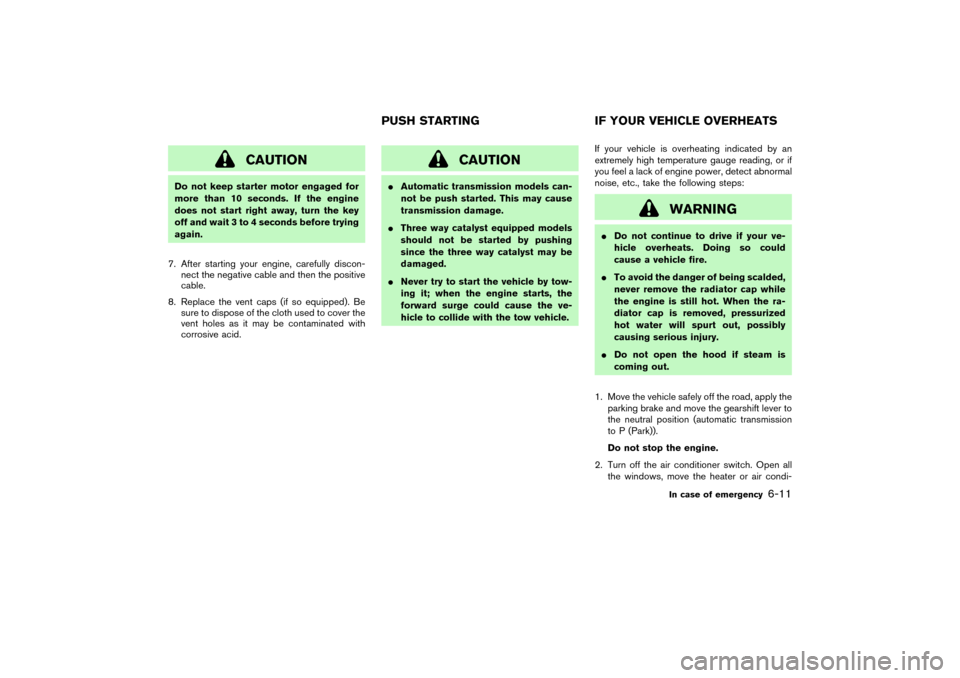

CAUTION
Do not keep starter motor engaged for
more than 10 seconds. If the engine
does not start right away, turn the key
off and wait 3 to 4 seconds before trying
again.
7. After starting your engine, carefully discon-
nect the negative cable and then the positive
cable.
8. Replace the vent caps (if so equipped). Be
sure to dispose of the cloth used to cover the
vent holes as it may be contaminated with
corrosive acid.
CAUTION

Automatic transmission models can-
not be push started. This may cause
transmission damage.

Three way catalyst equipped models
should not be started by pushing
since the three way catalyst may be
damaged.

Never try to start the vehicle by tow-
ing it; when the engine starts, the
forward surge could cause the ve-
hicle to collide with the tow vehicle.If your vehicle is overheating indicated by an
extremely high temperature gauge reading, or if
you feel a lack of engine power, detect abnormal
noise, etc., take the following steps:
WARNING

Do not continue to drive if your ve-
hicle overheats. Doing so could
cause a vehicle fire.

To avoid the danger of being scalded,
never remove the radiator cap while
the engine is still hot. When the ra-
diator cap is removed, pressurized
hot water will spurt out, possibly
causing serious injury.

Do not open the hood if steam is
coming out.
1. Move the vehicle safely off the road, apply the
parking brake and move the gearshift lever to
the neutral position (automatic transmission
to P (Park)).
Do not stop the engine.
2. Turn off the air conditioner switch. Open all
the windows, move the heater or air condi-
PUSH STARTING IF YOUR VEHICLE OVERHEATS
In case of emergency
6-11


04.3.9/R50-D/V5


tioner temperature control to maximum hot
and fan control to high speed.
3. If engine overheating is caused by climbing a
long hill on a hot day, run the engine at a fast
idle (approximately 1,500 rpm) until the tem-
perature gauge indication returns to normal.
4. Get out of the vehicle. Look and listen for
steam or coolant escaping from the radiator
before opening the hood. Do not open the
hood until no further steam or coolant can be
seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the
engine, stand clear to prevent getting
burned.
6. Visually check drive belts for damage or
looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the cooling fan belt is missing or loose or the
cooling fan does not run, stop the engine.
WARNING

Be careful not to allow your hands,
hair, jewelry or clothing to come into
contact with, or to get caught in, the
cooling fan, or drive belt.

The engine cooling fan can start at
any time when the coolant tempera-
ture is high.
7. After the engine cools down, check the cool-
ant level in the reservoir tank with the engine
running. Add coolant to the reservoir tank if
necessary. Have your vehicle repaired at the
nearest NISSAN dealer.For information about towing your vehicle behind
a recreational vehicle (RV), refer to “Flat towing”
in the “9. Technical and consumer information”
section of this manual.
When towing your vehicle, all State (Provincial in
Canada) and local regulations for towing must
be followed. Incorrect towing equipment could
damage your vehicle. Towing instructions are
available from your NISSAN dealer. Local ser-
vice operators are generally familiar with the
applicable laws and procedures for towing. To
assure proper towing and to prevent accidental
damage to your vehicle, NISSAN recommends
having a service operator tow your vehicle. It is
advisable to have the service operator carefully
read the following precautions:
WARNING

Never ride in a vehicle that is being
towed.

Never get under your vehicle after it
has been lifted by a tow truck.TOWING YOUR VEHICLE
6-12
In case of emergency


04.3.9/R50-D/V5

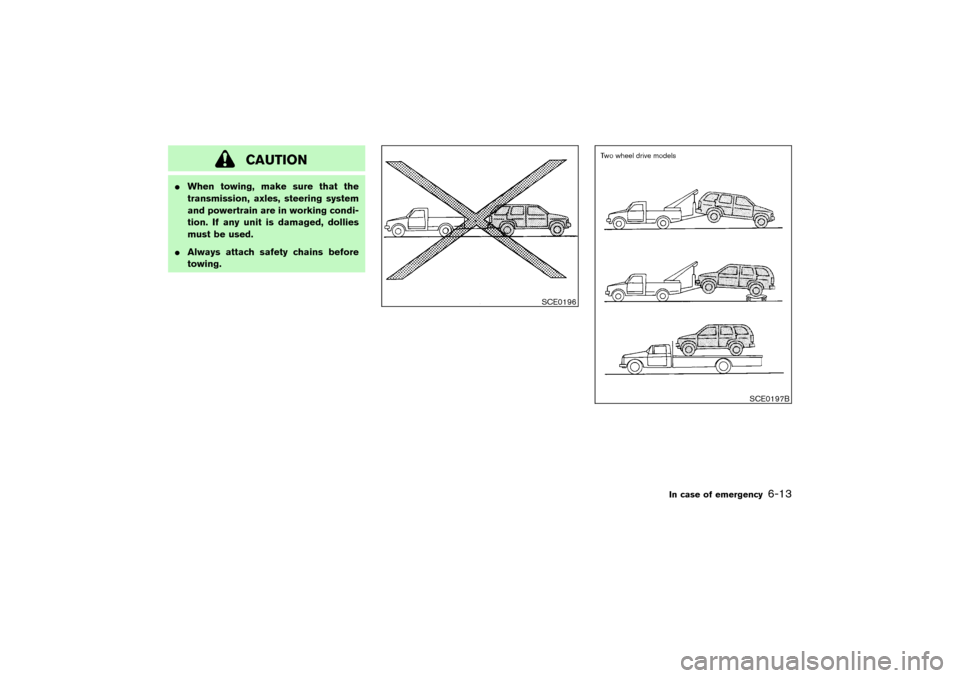

CAUTION

When towing, make sure that the
transmission, axles, steering system
and powertrain are in working condi-
tion. If any unit is damaged, dollies
must be used.

Always attach safety chains before
towing.
SCE0196
SCE0197B
In case of emergency
6-13


04.3.9/R50-D/V5

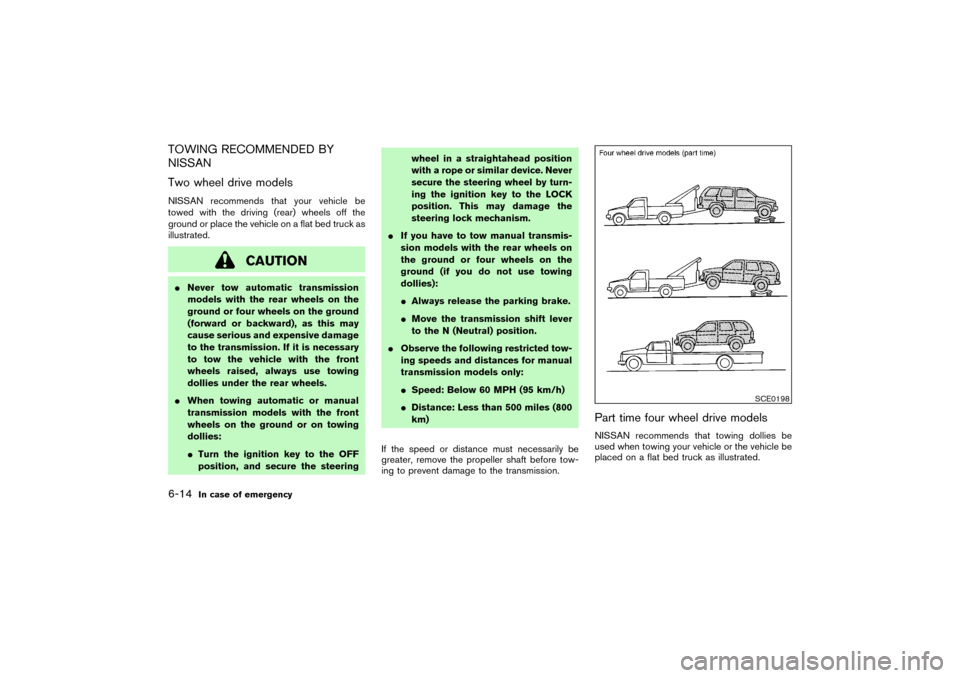

TOWING RECOMMENDED BY
NISSAN
Two wheel drive modelsNISSAN recommends that your vehicle be
towed with the driving (rear) wheels off the
ground or place the vehicle on a flat bed truck as
illustrated.
CAUTION

Never tow automatic transmission
models with the rear wheels on the
ground or four wheels on the ground
(forward or backward), as this may
cause serious and expensive damage
to the transmission. If it is necessary
to tow the vehicle with the front
wheels raised, always use towing
dollies under the rear wheels.

When towing automatic or manual
transmission models with the front
wheels on the ground or on towing
dollies:

Turn the ignition key to the OFF
position, and secure the steeringwheel in a straightahead position
with a rope or similar device. Never
secure the steering wheel by turn-
ing the ignition key to the LOCK
position. This may damage the
steering lock mechanism.

If you have to tow manual transmis-
sion models with the rear wheels on
the ground or four wheels on the
ground (if you do not use towing
dollies):

Always release the parking brake.

Move the transmission shift lever
to the N(Neutral) position.

Observe the following restricted tow-
ing speeds and distances for manual
transmission models only:

Speed: Below 60 MPH (95 km/h)

Distance: Less than 500 miles (800
km)
If the speed or distance must necessarily be
greater, remove the propeller shaft before tow-
ing to prevent damage to the transmission.
Part time four wheel drive modelsNISSAN recommends that towing dollies be
used when towing your vehicle or the vehicle be
placed on a flat bed truck as illustrated.
SCE0198
6-14
In case of emergency


04.3.9/R50-D/V5

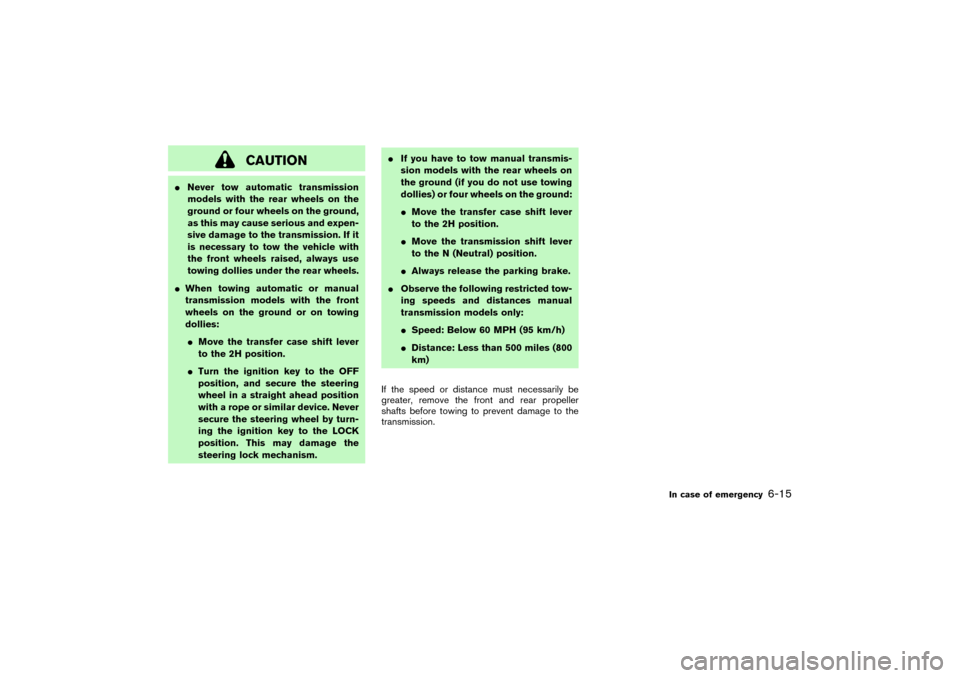

CAUTION

Never tow automatic transmission
models with the rear wheels on the
ground or four wheels on the ground,
as this may cause serious and expen-
sive damage to the transmission. If it
is necessary to tow the vehicle with
the front wheels raised, always use
towing dollies under the rear wheels.

When towing automatic or manual
transmission models with the front
wheels on the ground or on towing
dollies:

Move the transfer case shift lever
to the 2H position.

Turn the ignition key to the OFF
position, and secure the steering
wheel in a straight ahead position
with a rope or similar device. Never
secure the steering wheel by turn-
ing the ignition key to the LOCK
position. This may damage the
steering lock mechanism.
If you have to tow manual transmis-
sion models with the rear wheels on
the ground (if you do not use towing
dollies) or four wheels on the ground:

Move the transfer case shift lever
to the 2H position.

Move the transmission shift lever
to the N(Neutral) position.

Always release the parking brake.

Observe the following restricted tow-
ing speeds and distances manual
transmission models only:

Speed: Below 60 MPH (95 km/h)

Distance: Less than 500 miles (800
km)
If the speed or distance must necessarily be
greater, remove the front and rear propeller
shafts before towing to prevent damage to the
transmission.
In case of emergency
6-15


04.3.9/R50-D/V5

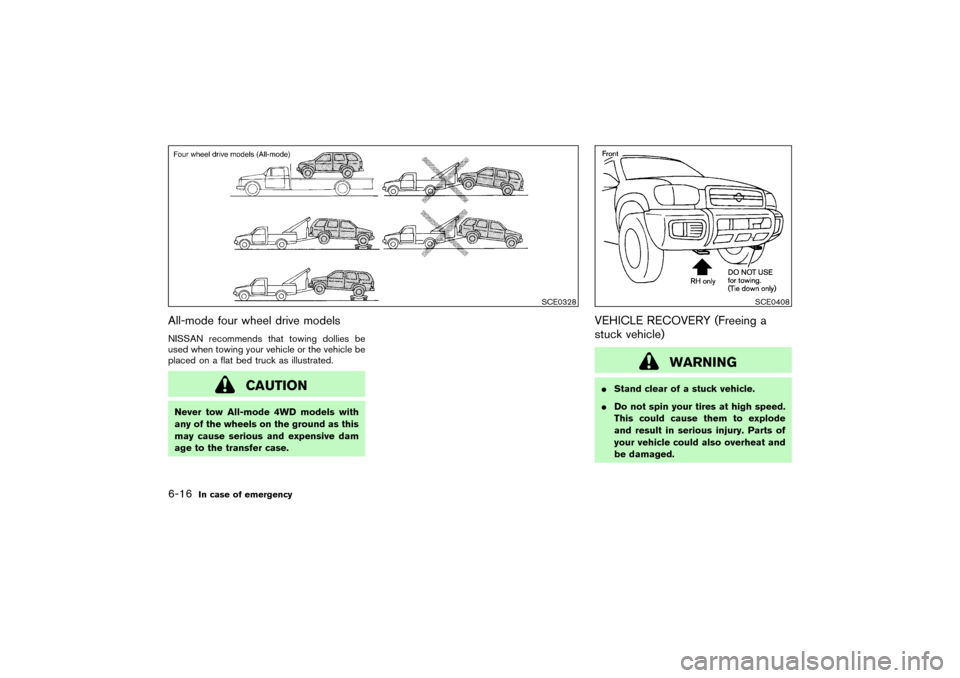

All-mode four wheel drive modelsNISSAN recommends that towing dollies be
used when towing your vehicle or the vehicle be
placed on a flat bed truck as illustrated.
CAUTION
Never tow All-mode 4WD models with
any of the wheels on the ground as this
may cause serious and expensive dam
age to the transfer case.
VEHICLE RECOVERY (Freeing a
stuck vehicle)
WARNING

Stand clear of a stuck vehicle.

Do not spin your tires at high speed.
This could cause them to explode
and result in serious injury. Parts of
your vehicle could also overheat and
be damaged.
SCE0328
SCE0408
6-16
In case of emergency


04.3.9/R50-D/V5

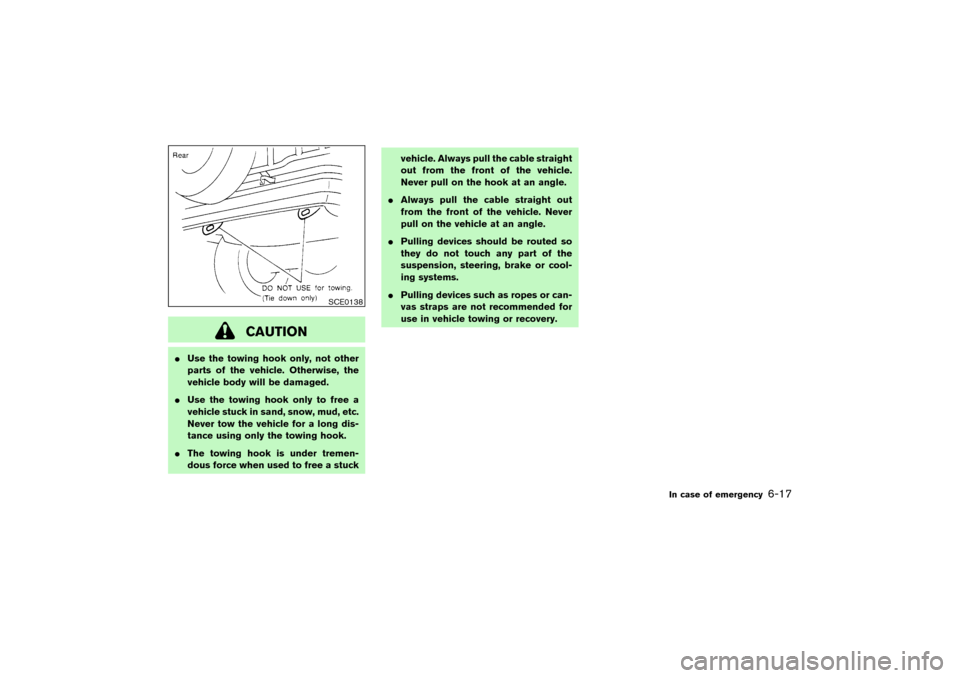

CAUTION

Use the towing hook only, not other
parts of the vehicle. Otherwise, the
vehicle body will be damaged.

Use the towing hook only to free a
vehicle stuck in sand, snow, mud, etc.
Never tow the vehicle for a long dis-
tance using only the towing hook.

The towing hook is under tremen-
dous force when used to free a stuckvehicle. Always pull the cable straight
out from the front of the vehicle.
Never pull on the hook at an angle.

Always pull the cable straight out
from the front of the vehicle. Never
pull on the vehicle at an angle.

Pulling devices should be routed so
they do not touch any part of the
suspension, steering, brake or cool-
ing systems.

Pulling devices such as ropes or can-
vas straps are not recommended for
use in vehicle towing or recovery.
SCE0138
In case of emergency
6-17


04.3.9/R50-D/V5

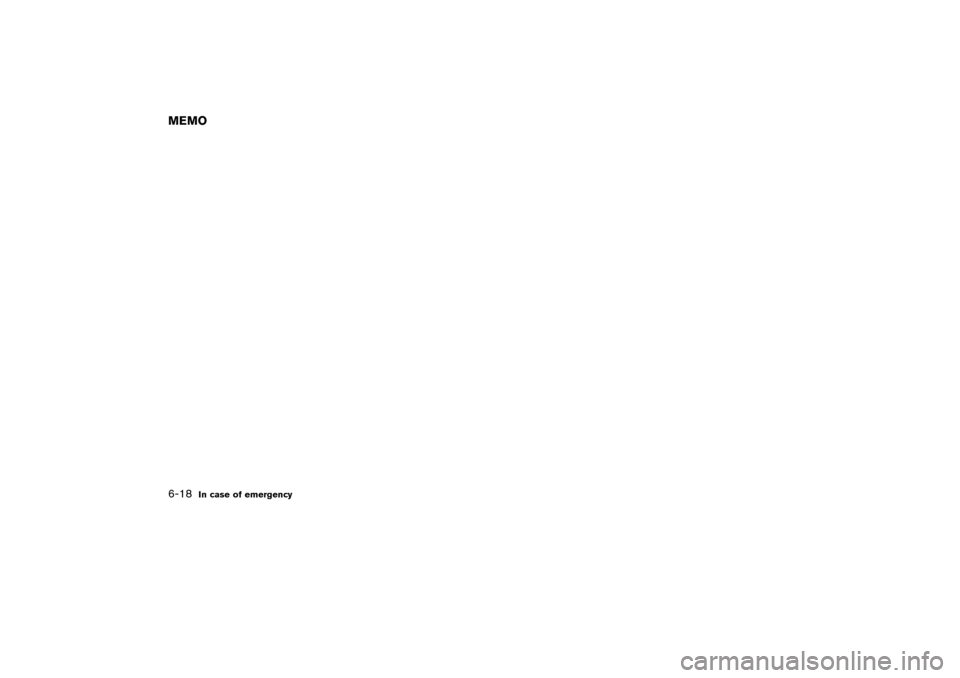

MEMO6-18
In case of emergency


04.3.9/R50-D/V5
