This occurs because the transfer clutch
is released and not because of a mal-
function.
CAUTION

When driving straight, shift the 4WD
shift switch to the 2WD, AUTO, or 4H
position. Do not move the 4WD shift
switch when making a turn or revers-
ing.

Do not shift the 4WD shift switch
while driving on steep downhill
grades. Use the engine brake.

Do not operate the 4WD shift switch
with the rear wheels spinning.

Before placing the 4WD shift switch
in the 4H position from 2WD or
AUTO, ensure the vehicle speed is
less than 50 MPH (80 km/h). Failure
to do so can damage the 4WD sys-
tem.

Never shift the 4WD shift switch be-
tween 4LO and 4H while driving.

Engine idling speed is high whilewarming up the engine. Be especially
careful when starting or driving on
slippery surfaces with the 4WD shift
switch set in AUTO.

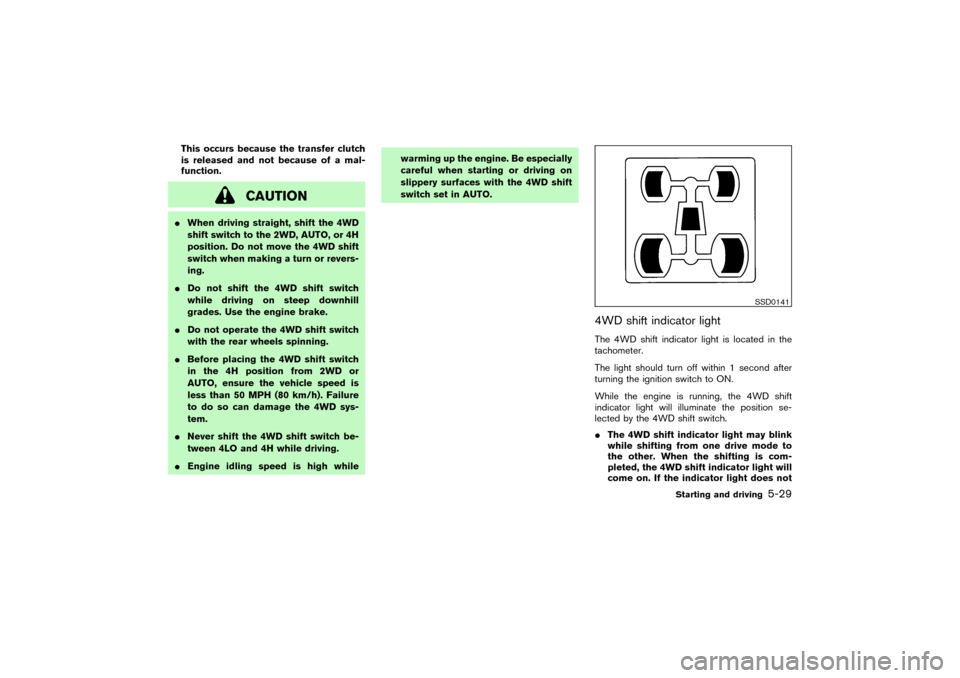

4WD shift indicator lightThe 4WD shift indicator light is located in the
tachometer.
The light should turn off within 1 second after
turning the ignition switch to ON.
While the engine is running, the 4WD shift
indicator light will illuminate the position se-
lected by the 4WD shift switch.

The 4WD shift indicator light may blink
while shifting from one drive mode to
the other. When the shifting is com-
pleted, the 4WD shift indicator light will
come on. If the indicator light does not
SSD0141
Starting and driving
5-29


04.3.9/R50-D/V5


come on immediately, make sure the
area around the vehicle is safe, and
drive the vehicle straight, accelerate or
decelerate or move the vehicle in re-
verse, then shift the 4WD shift switch.

If the 4WD warning light comes on, the 4WD
shift indicator light goes out.
CAUTION

When the 4WD shift switch is turned
to the AUTO position at low ambient
temperatures, the 4WD shift indicator
light may show 4H. If this happens,
all four wheels are driven as torque
distribution is in the 4H position. Be
careful as the vehicle may become
difficult to turn. When the vehicle is
driven, the 4WD shift indicator light
should change to AUTO.

If the 4WD shift indicator light indica-
tion changes to 2WD when the 4WD
shift switch is shifted to the AUTO or
4H position at low ambient tempera-
tures, the 2WD mode may be being
engaged due to malfunctioning drivesystem. If the indicator does not re-
turn to normal and the 4WD warning
light comes on, have the system
checked by the nearest NISSAN
dealer.

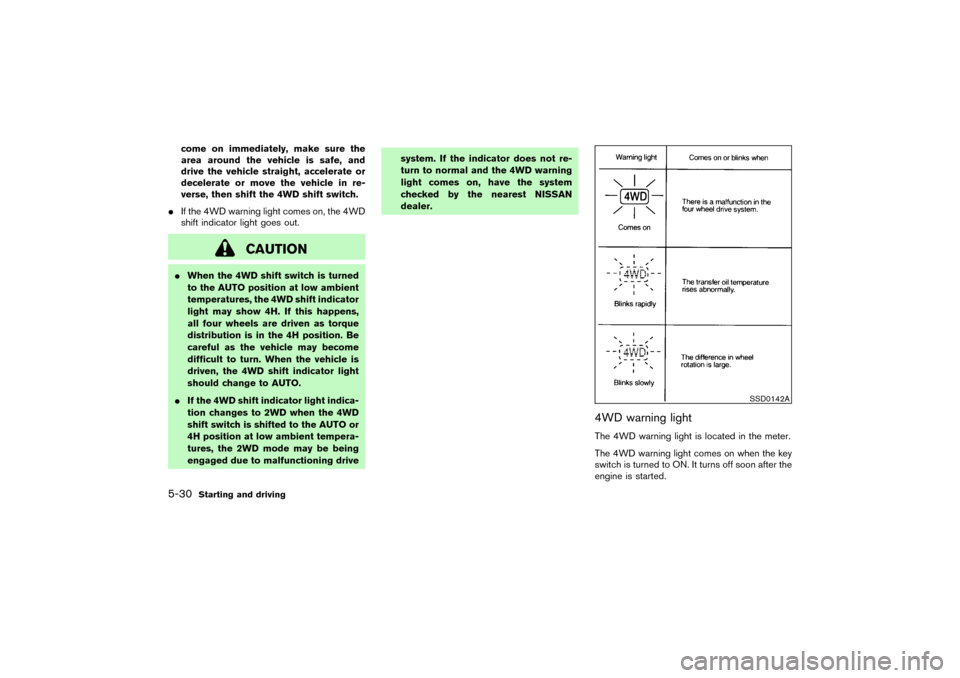

4WD warning lightThe 4WD warning light is located in the meter.
The 4WD warning light comes on when the key
switch is turned to ON. It turns off soon after the
engine is started.
SSD0142A
5-30
Starting and driving


04.3.9/R50-D/V5


If any malfunction occurs in the 4WD system
when the key switch is ON, the warning light will
either remain illuminated or blink.

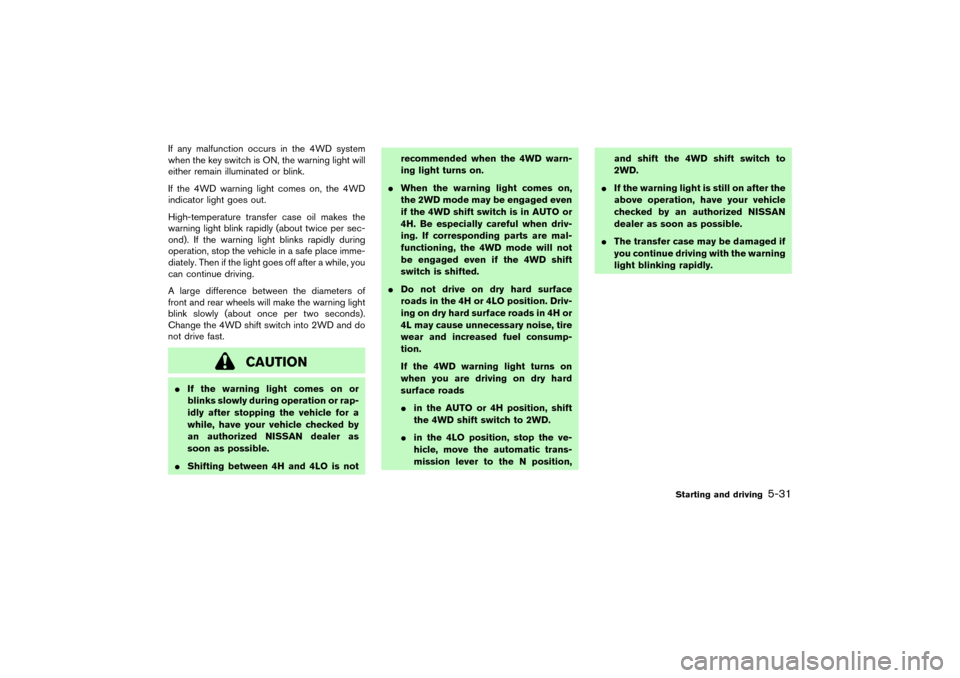

If the 4WD warning light comes on, the 4WD
indicator light goes out.
High-temperature transfer case oil makes the
warning light blink rapidly (about twice per sec-
ond). If the warning light blinks rapidly during
operation, stop the vehicle in a safe place imme-
diately. Then if the light goes off after a while, you
can continue driving.
A large difference between the diameters of
front and rear wheels will make the warning light
blink slowly (about once per two seconds).
Change the 4WD shift switch into 2WD and do
not drive fast.
CAUTION

If the warning light comes on or
blinks slowly during operation or rap-
idly after stopping the vehicle for a
while, have your vehicle checked by
an authorized NISSAN dealer as
soon as possible.

Shifting between 4H and 4LO is notrecommended when the 4WD warn-
ing light turns on.

When the warning light comes on,
the 2WD mode may be engaged even
if the 4WD shift switch is in AUTO or
4H. Be especially careful when driv-
ing. If corresponding parts are mal-
functioning, the 4WD mode will not
be engaged even if the 4WD shift
switch is shifted.

Do not drive on dry hard surface
roads in the 4H or 4LO position. Driv-
ing on dry hard surface roads in 4H or
4L may cause unnecessary noise, tire
wear and increased fuel consump-
tion.
If the 4WD warning light turns on
when you are driving on dry hard
surface roads

in the AUTO or 4H position, shift
the 4WD shift switch to 2WD.

in the 4LO position, stop the ve-
hicle, move the automatic trans-
mission lever to the Nposition,and shift the 4WD shift switch to
2WD.

If the warning light is still on after the
above operation, have your vehicle
checked by an authorized NISSAN
dealer as soon as possible.

The transfer case may be damaged if
you continue driving with the warning
light blinking rapidly.
Starting and driving
5-31


04.3.9/R50-D/V5


WARNING

Do not stop or park the vehicle over
flammable materials, such as dry
grass, waste paper, or rags. They may
ignite and cause a fire.


The transfer shift lever must
be in the 2H, 4H or 4L position and
the parking brake must be set to
prevent the vehicle from rolling.

Never place the transfer shift lever inthe Nposition, otherwise, the vehicle
could roll unexpectedly even if the
manual transmission is in gear or the
automatic transmission is in the P
position. This could result in serious
personal injury or property damage.

Never leave the engine running while
the vehicle is unattended.

Never leave children unattended in
the vehicle.1. Firmly apply the parking brake.
2.Manual transmission models:
Place the shift lever in the R (Reverse) posi-
tion. When parking on an uphill grade, place
the gearshift lever in the 1st position.
Automatic transmission models:
Move the selector lever to the P (Park) posi-
tion.
WARNING

Safe parking procedures require that
both the parking brake be set and the
transmission placed into the P (Park)
for automatic transmission models
or in an appropriate gear for manual
transmission models. Failure to do
so could cause the vehicle to move
unexpectedly or roll away and result
in an accident.

Make sure the automatic transmis-
sion selector lever has been pushed
as far forward as it can go and cannot
be moved without depressing the
button at the end of the lever.
SSD0067

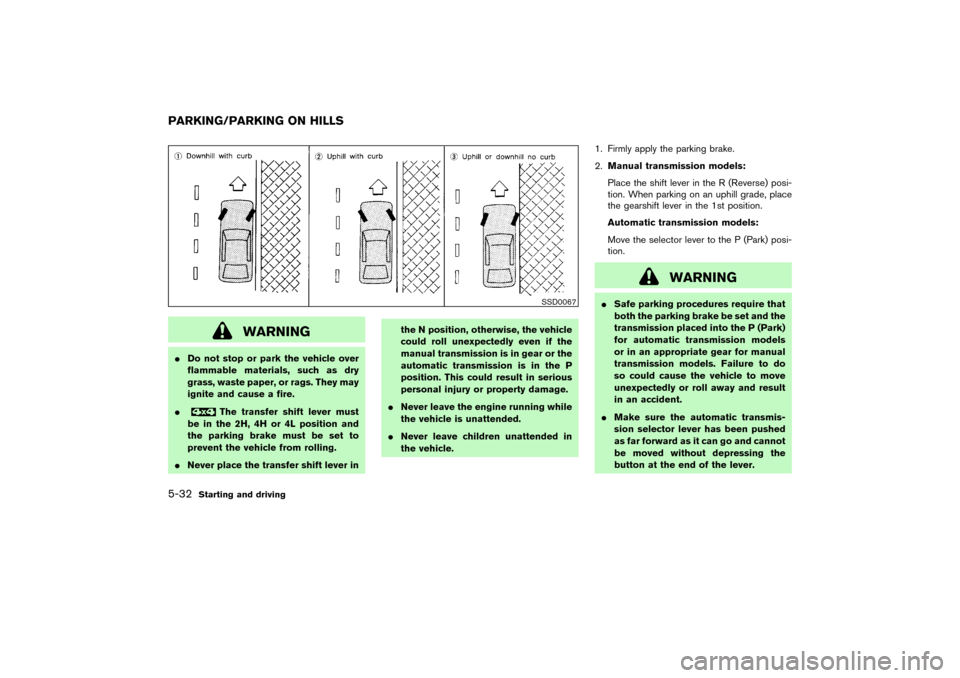

PARKING/PARKING ON HILLS5-32
Starting and driving


04.3.9/R50-D/V5


Part time 4WD models:

If the ATP light is ON, this indicates
that the automatic transmission P
(park) position will not function and
the transfer shift lever is in the N
position. Failure to engage the trans-
fer shift lever in H or 4L could result
in the vehicle moving unexpectedly,
resulting in serious personal injury or
property damage.
All-mode 4WD models:

If the ATP light is ON, this indicates
that the automatic transmission P
(park) position will not function and
the transfer case is in neutral. Make
sure that the 4WD shift indicator light
(and transfer 4LO position indicator)
light remains illuminated before
stopping the engine. Otherwise, the
vehicle could unexpectedly move
even if the automatic transmission is
in the P (park) position.

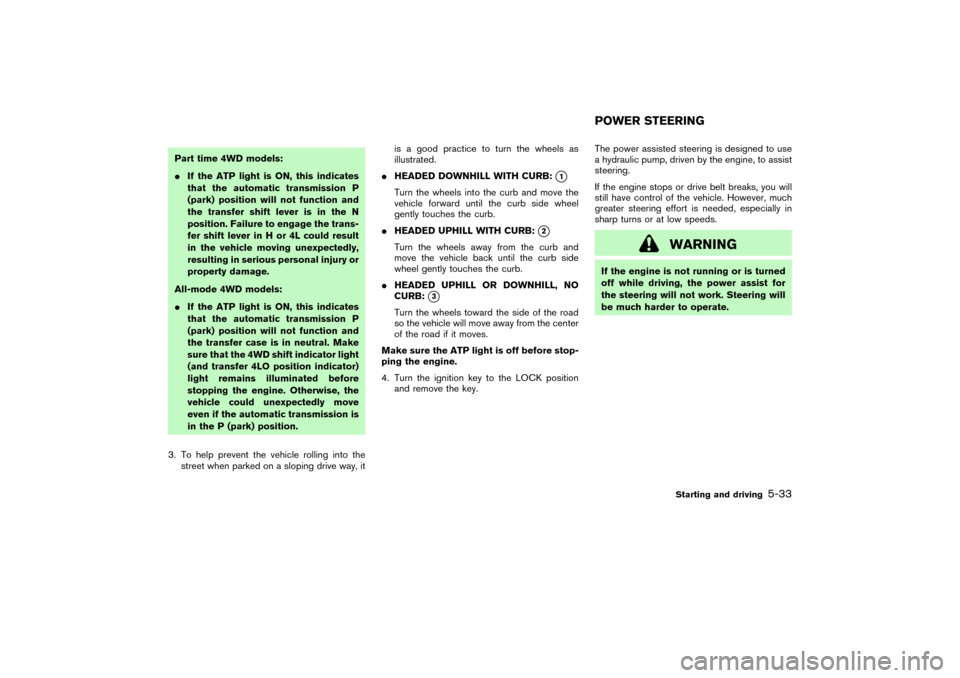

3. To help prevent the vehicle rolling into the
street when parked on a sloping drive way, itis a good practice to turn the wheels as
illustrated.

HEADED DOWNHILL WITH CURB:
1
Turn the wheels into the curband move the
vehicle forward until the curbside wheel
gently touches the curb.

HEADED UPHILL WITH CURB:
2
Turn the wheels away from the curband
move the vehicle back until the curb side
wheel gently touches the curb.

HEADED UPHILL OR DOWNHILL, NO
CURB:
3
Turn the wheels toward the side of the road
so the vehicle will move away from the center
of the road if it moves.
Make sure the ATP light is off before stop-
ping the engine.
4. Turn the ignition key to the LOCK position
and remove the key.The power assisted steering is designed to use
a hydraulic pump, driven by the engine, to assist
steering.
If the engine stops or drive belt breaks, you will
still have control of the vehicle. However, much
greater steering effort is needed, especially in
sharp turns or at low speeds.
WARNING
If the engine is not running or is turned
off while driving, the power assist for
the steering will not work. Steering will
be much harder to operate.POWER STEERING
Starting and driving
5-33


04.3.9/R50-D/V5

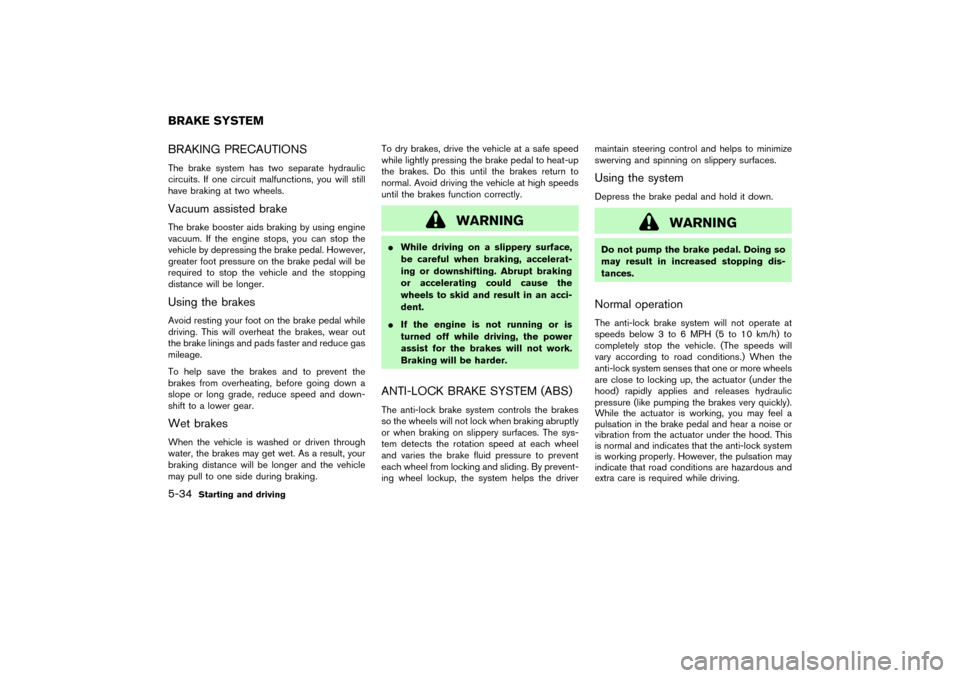

BRAKING PRECAUTIONSThe brake system has two separate hydraulic
circuits. If one circuit malfunctions, you will still
have braking at two wheels.Vacuum assisted brakeThe brake booster aids braking by using engine
vacuum. If the engine stops, you can stop the
vehicle by depressing the brake pedal. However,
greater foot pressure on the brake pedal will be
required to stop the vehicle and the stopping
distance will be longer.Using the brakesAvoid resting your foot on the brake pedal while
driving. This will overheat the brakes, wear out
the brake linings and pads faster and reduce gas
mileage.
To help save the brakes and to prevent the
brakes from overheating, before going down a
slope or long grade, reduce speed and down-
shift to a lower gear.Wet brakesWhen the vehicle is washed or driven through
water, the brakes may get wet. As a result, your
braking distance will be longer and the vehicle
may pull to one side during braking.To dry brakes, drive the vehicle at a safe speed
while lightly pressing the brake pedal to heat-up
the brakes. Do this until the brakes return to
normal. Avoid driving the vehicle at high speeds
until the brakes function correctly.
WARNING

While driving on a slippery surface,
be careful when braking, accelerat-
ing or downshifting. Abrupt braking
or accelerating could cause the
wheels to skid and result in an acci-
dent.

If the engine is not running or is
turned off while driving, the power
assist for the brakes will not work.
Braking will be harder.ANTI-LOCK BRAKE SYSTEM (ABS)The anti-lock brake system controls the brakes
so the wheels will not lock when braking abruptly
or when braking on slippery surfaces. The sys-
tem detects the rotation speed at each wheel
and varies the brake fluid pressure to prevent
each wheel from locking and sliding. By prevent-
ing wheel lockup, the system helps the drivermaintain steering control and helps to minimize
swerving and spinning on slippery surfaces.
Using the systemDepress the brake pedal and hold it down.
WARNING
Do not pump the brake pedal. Doing so
may result in increased stopping dis-
tances.Normal operationThe anti-lock brake system will not operate at
speeds below 3 to 6 MPH (5 to 10 km/h) to
completely stop the vehicle. (The speeds will
vary according to road conditions.) When the
anti-lock system senses that one or more wheels
are close to locking up, the actuator (under the
hood) rapidly applies and releases hydraulic
pressure (like pumping the brakes very quickly).
While the actuator is working, you may feel a
pulsation in the brake pedal and hear a noise or
vibration from the actuator under the hood. This
is normal and indicates that the anti-lock system
is working properly. However, the pulsation may
indicate that road conditions are hazardous and
extra care is required while driving.
BRAKE SYSTEM5-34
Starting and driving


04.3.9/R50-D/V5


If a tire slips on rough roads for more than
10 seconds, the ABS brake warning light
may come on. Turn OFF the ignition key,
restart the engine and drive the vehicle at
speeds above 20 MPH (30 km/h). If the
warning light does not go out, have the
vehicle checked at a NISSAN dealer.Self-test featureThe anti-lock brake system consists of electronic
sensors, electric pumps, and hydraulic solenoids
controlled by a computer. The computer has a
built-in diagnostic feature that tests the system
each time you start the engine and move the
vehicle at a low speed in forward or reverse.
When the self-test occurs, you may hear a clunk
noise and/or feel a pulsation in the brake pedal.
This is normal and is not an indication of any
malfunction. If the computer senses any mal-
function, it switches the anti-lock brake system
OFF and turns on the ABS brake warning light in
the dashboard. The brake system will then be-
have normally, but without anti-lock assistance.
If the light comes on during the self check, or
while you are driving, you should take your
vehicle to your NISSAN dealer for repair at your
earliest convenience.
WARNING
The anti-lock brake system is a sophis-
ticated device, but it cannot prevent ac-
cidents resulting from careless or dan-
gerous driving techniques. It can help
maintain vehicle control during braking
on slippery surfaces, but remember that
the stopping distance on slippery sur-
faces will be longer than on normal
surfaces, even with the anti-lock sys-
tem. Stopping distances may also be
longer on rough, gravel or snow covered
roads, or if you are using tire chains.
Always maintain a safe distance from
the vehicle in front of you. Ultimately,
the responsibility for safety of self and
others rests in the hands of the driver.
Tire type and condition of tires may also
affect braking effectiveness.

When replacing tires, install the
specified size of tires on all four
wheels.

When installing a spare tire, make
sure it is the proper size and type asspecified on the Tire and Loading
Information label. See “Vehicle iden-
tification” in the “9. Technical and
consumer information” section for
Vehicle identification location infor-
mation.
Starting and driving
5-35


04.3.9/R50-D/V5


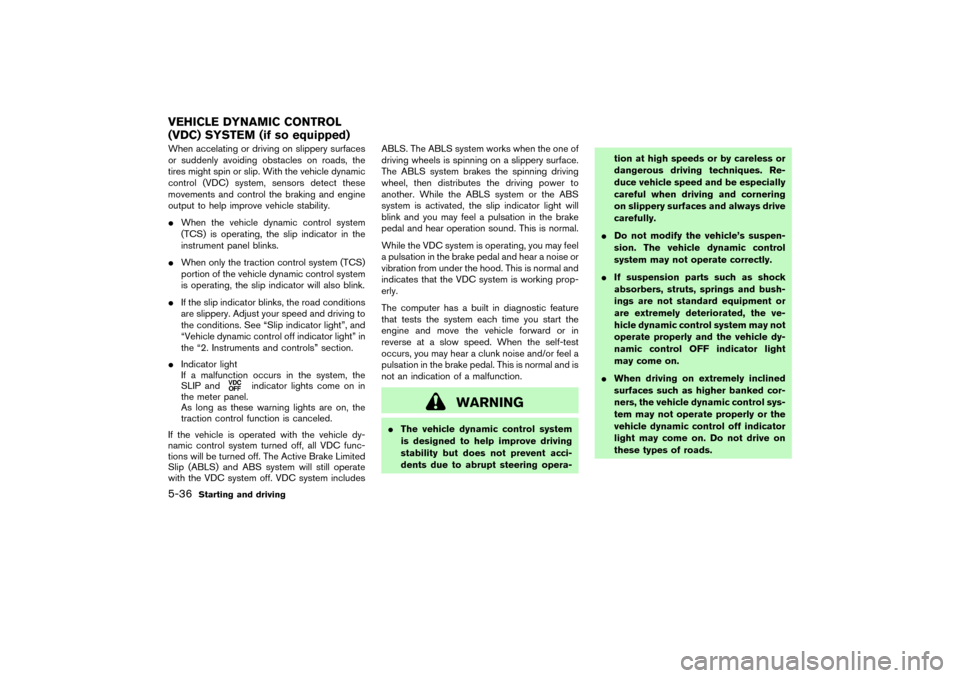

When accelating or driving on slippery surfaces
or suddenly avoiding obstacles on roads, the
tires might spin or slip. With the vehicle dynamic
control (VDC) system, sensors detect these
movements and control the braking and engine
output to help improve vehicle stability.

When the vehicle dynamic control system
(TCS) is operating, the slip indicator in the
instrument panel blinks.

When only the traction control system (TCS)
portion of the vehicle dynamic control system
is operating, the slip indicator will also blink.

If the slip indicator blinks, the road conditions
are slippery. Adjust your speed and driving to
the conditions. See “Slip indicator light”, and
“Vehicle dynamic control off indicator light” in
the “2. Instruments and controls” section.

Indicator light
If a malfunction occurs in the system, the
SLIP and
indicator lights come on in
the meter panel.
As long as these warning lights are on, the
traction control function is canceled.
If the vehicle is operated with the vehicle dy-
namic control system turned off, all VDC func-
tions will be turned off. The Active Brake Limited
Slip (ABLS) and ABS system will still operate
with the VDC system off. VDC system includesABLS. The ABLS system works when the one of
driving wheels is spinning on a slippery surface.
The ABLS system brakes the spinning driving
wheel, then distributes the driving power to
another. While the ABLS system or the ABS
system is activated, the slip indicator light will
blink and you may feel a pulsation in the brake
pedal and hear operation sound. This is normal.
While the VDC system is operating, you may feel
a pulsation in the brake pedal and hear a noise or
vibration from under the hood. This is normal and
indicates that the VDC system is working prop-
erly.
The computer has a built in diagnostic feature
that tests the system each time you start the
engine and move the vehicle forward or in
reverse at a slow speed. When the self-test
occurs, you may hear a clunk noise and/or feel a
pulsation in the brake pedal. This is normal and is
not an indication of a malfunction.
WARNING

The vehicle dynamic control system
is designed to help improve driving
stability but does not prevent acci-
dents due to abrupt steering opera-tion at high speeds or by careless or
dangerous driving techniques. Re-
duce vehicle speed and be especially
careful when driving and cornering
on slippery surfaces and always drive
carefully.

Do not modify the vehicle’s suspen-
sion. The vehicle dynamic control
system may not operate correctly.

If suspension parts such as shock
absorbers, struts, springs and bush-
ings are not standard equipment or
are extremely deteriorated, the ve-
hicle dynamic control system may not
operate properly and the vehicle dy-
namic control OFF indicator light
may come on.

When driving on extremely inclined
surfaces such as higher banked cor-
ners, the vehicle dynamic control sys-
tem may not operate properly or the
vehicle dynamic control off indicator
light may come on. Do not drive on
these types of roads.
VEHICLE DYNAMIC CONTROL
(VDC) SYSTEM (if so equipped)5-36
Starting and driving


04.3.9/R50-D/V5


If the tires other than the recom-
mended ones are used, the vehicle
dynamic control system may not op-
erate properly or the vehicle dynamic
control off indicator light may come
on.

The vehicle dynamic control system
is not a substitute for winter tires or
tire chains on a snow covered road.
FREEING A FROZEN DOOR LOCKTo prevent a door lock from freezing, apply
de-icer or glycerin to it through the key hole. If
the lock becomes frozen, heat the key before
inserting it into the key hole.ANTI-FREEZEIn the winter when it is anticipated that the
temperature will drop below 32°F (0°C), check
anti-freeze to assure proper winter protection.
For details, see “Engine cooling system” in the
“8. Maintenance and do-it-yourself” section.BATTERYIf the battery is not fully charged during extremely
cold weather conditions, the battery fluid may
freeze and damage the battery. To maintain
maximum efficiency, the battery should be
checked regularly. For details, see “Battery” in
the “8. Maintenance and do-it-yourself” section.DRAINING OF COOLANT WATERIf the vehicle is to be left outside without anti-
freeze, drain the cooling system by opening the
drain valves located under the radiator and on
the engine block. Refill before operating the
vehicle. See “Engine cooling system” in the “8.
Maintenance and do-it-yourself” section for
Changing Engine Coolant.
TIRE EQUIPMENT1. SUMMER tires are of a tread design to
provide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your vehicle
on snowy or icy roads, NISSAN recommends
the use of MUD & SNOW or ALL SEASON
tires on all four wheels. Please consult your
NISSAN dealer for the tire type, size, speed
rating and availability information.
2. For additional traction on icy roads, studded
tires may be used. However, some Provinces
and States prohibit their use, so, before
installing studded tires, check local, state and
provincial laws.
Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow
tires.
3. TIRE CHAINS may be used if desired. Make
sure they are of proper size for the tires on
your vehicle and are installed according to
the chain manufacturer’s suggestions. Use of
tire chains may be prohibited according to
location. Check the local laws before install-
ing tire chains. When installing tire chains,
make sure they are of proper size for the tires
on your vehicle and are installed according to
COLD WEATHER DRIVING
Starting and driving
5-37


04.3.9/R50-D/V5


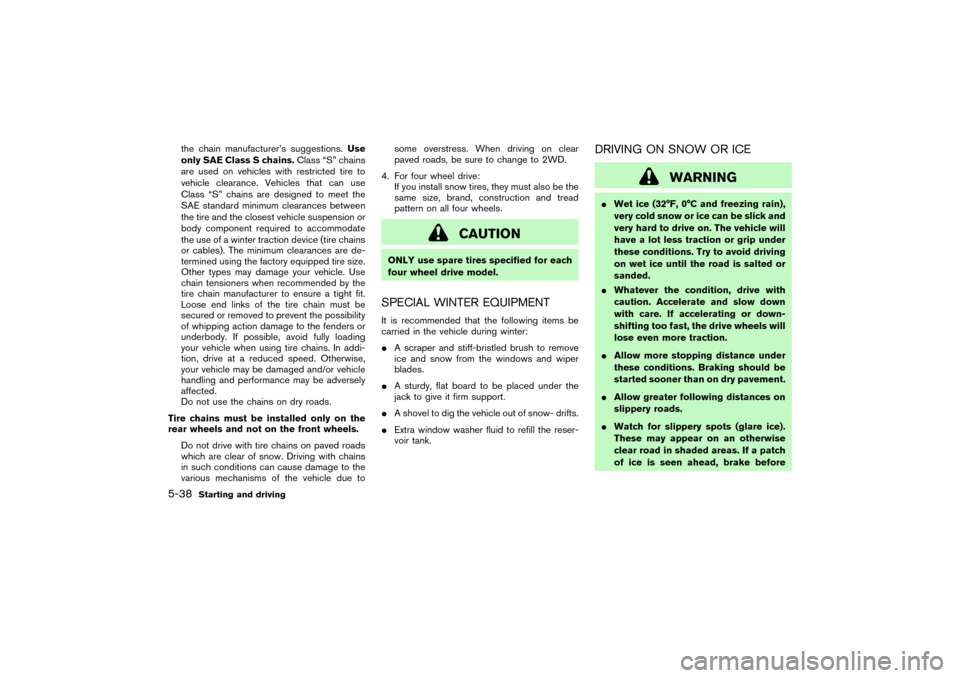

the chain manufacturer’s suggestions.Use
only SAE Class S chains.Class “S” chains
are used on vehicles with restricted tire to
vehicle clearance. Vehicles that can use
Class “S” chains are designed to meet the
SAE standard minimum clearances between
the tire and the closest vehicle suspension or
body component required to accommodate
the use of a winter traction device (tire chains
or cables). The minimum clearances are de-
termined using the factory equipped tire size.
Other types may damage your vehicle. Use
chain tensioners when recommended by the
tire chain manufacturer to ensure a tight fit.
Loose end links of the tire chain must be
secured or removed to prevent the possibility
of whipping action damage to the fenders or
underbody. If possible, avoid fully loading
your vehicle when using tire chains. In addi-
tion, drive at a reduced speed. Otherwise,
your vehicle may be damaged and/or vehicle
handling and performance may be adversely
affected.
Do not use the chains on dry roads.
Tire chains must be installed only on the
rear wheels and not on the front wheels.
Do not drive with tire chains on paved roads
which are clear of snow. Driving with chains
in such conditions can cause damage to the
various mechanisms of the vehicle due tosome overstress. When driving on clear
paved roads, be sure to change to 2WD.
4. For four wheel drive:
If you install snow tires, they must also be the
same size, brand, construction and tread
pattern on all four wheels.
CAUTION
ONLY use spare tires specified for each
four wheel drive model.SPECIAL WINTER EQUIPMENTIt is recommended that the following items be
carried in the vehicle during winter:

A scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades.

A sturdy, flat board to be placed under the
jack to give it firm support.

A shovel to dig the vehicle out of snow- drifts.

Extra window washer fluid to refill the reser-
voir tank.
DRIVING ON SNOW OR ICE
WARNING

Wet ice (32°F, 0°C and freezing rain),
very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have a lot less traction or grip under
these conditions. Try to avoid driving
on wet ice until the road is salted or
sanded.

Whatever the condition, drive with
caution. Accelerate and slow down
with care. If accelerating or down-
shifting too fast, the drive wheels will
lose even more traction.

Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pavement.

Allow greater following distances on
slippery roads.

Watch for slippery spots (glare ice).
These may appear on an otherwise
clear road in shaded areas. If a patch
of ice is seen ahead, brake before
5-38
Starting and driving


04.3.9/R50-D/V5
