NISSAN PATHFINDER 2017 R52 / 4.G Owners Manual

MOD system limitations........................ 4-44
System maintenance ........................... 4-45
Vents ........................................... 4-46
Heater and air conditioner (automatic)(if so
equipped) ....................................... 4-47
Automatic operation ........................... 4-49
Manual operation .............................. 4-50
Operating tips ................................. 4-51
Rear automatic air conditioning system. . .........4-51
Servicing air conditioner ........................... 4-55
Audio system .................................... 4-55
Audio operation precautions ....................4-55
Names and functions of audio control
buttons ....................................... 4-68
Antenna ...................................... 4-70
Audio main operation .......................... 4-70
Radio ........................................ 4-72
Compact Disc (CD) player .....................4-76
USB (Universal Serial Bus) connection port ......4-77
iPod® player .................................. 4-80
Bluetooth® streaming audio ....................4-82
Digital Versatile Disc (DVD) player ...............4-85
Auxiliary (AUX) devices ......................... 4-87Mobile entertainment system (MES) (if so
equipped)
....................................... 4-88
Precautions ................................... 4-88
Technical information .......................... 4-89
Connecting rear media interface .................4-96
Remote controller and headphones ..............4-97
Activating rear displays ........................ 4-101
Operations on rear displays ....................4-102
Settings and information ....................... 4-103
Controlling the rear system on the front
display ...................................... 4-105
Operating tips ................................ 4-106
Care and maintenance ........................ 4-107
Audio settings ................................ 4-107
Disc/USB memory

device care and cleaning .....4-111
Gracenote® end user license agreement ........4-111
Car phone or CB radio ........................... 4-112
Bluetooth® Hands-Free Phone System ............4-113
Regulatory information ........................ 4-115
Phone ....................................... 4-116
Hands-free text messaging assistant ............4-119
Phone and text message settings ...............4-123
Bluetooth® information ....................... 4-128

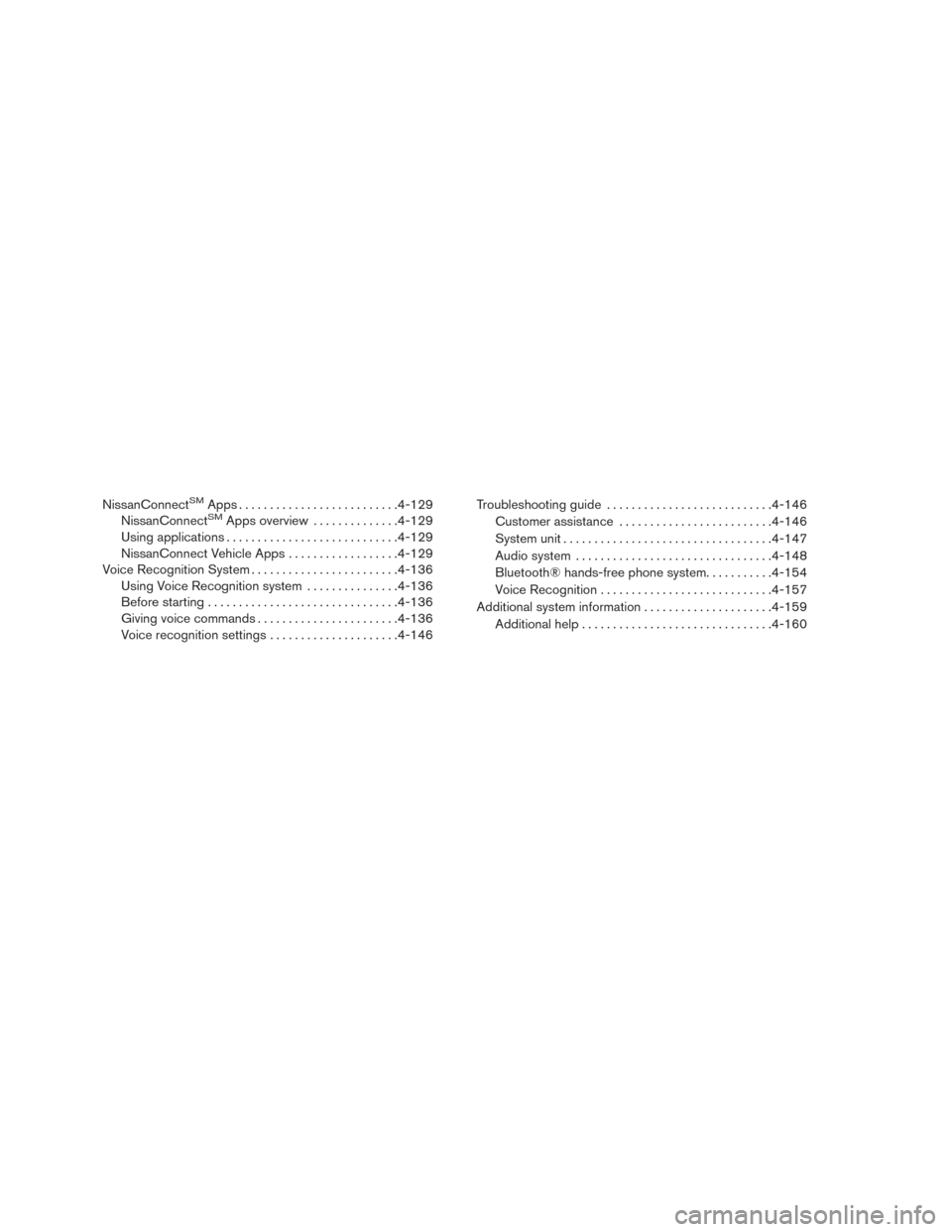

NissanConnectSMApps.......................... 4-129
NissanConnectSMApps overview ..............4-129
Using applications ............................ 4-129
NissanConnect Vehicle Apps ..................4-129
Voice Recognition System ........................4-136
Using Voice Recognition system ...............4-136
Before starting ............................... 4-136
Giving voice commands ....................... 4-136
Voice recognition settings .....................4-146Troubleshooting guide
........................... 4-146
Customer assistance ......................... 4-146
System unit .................................. 4-147
Audio system ................................ 4-148
Bluetooth® hands-free phone system ...........4-154
Voice Recognition ............................ 4-157
Additional system information .....................4-159
Additional help ............................... 4-160

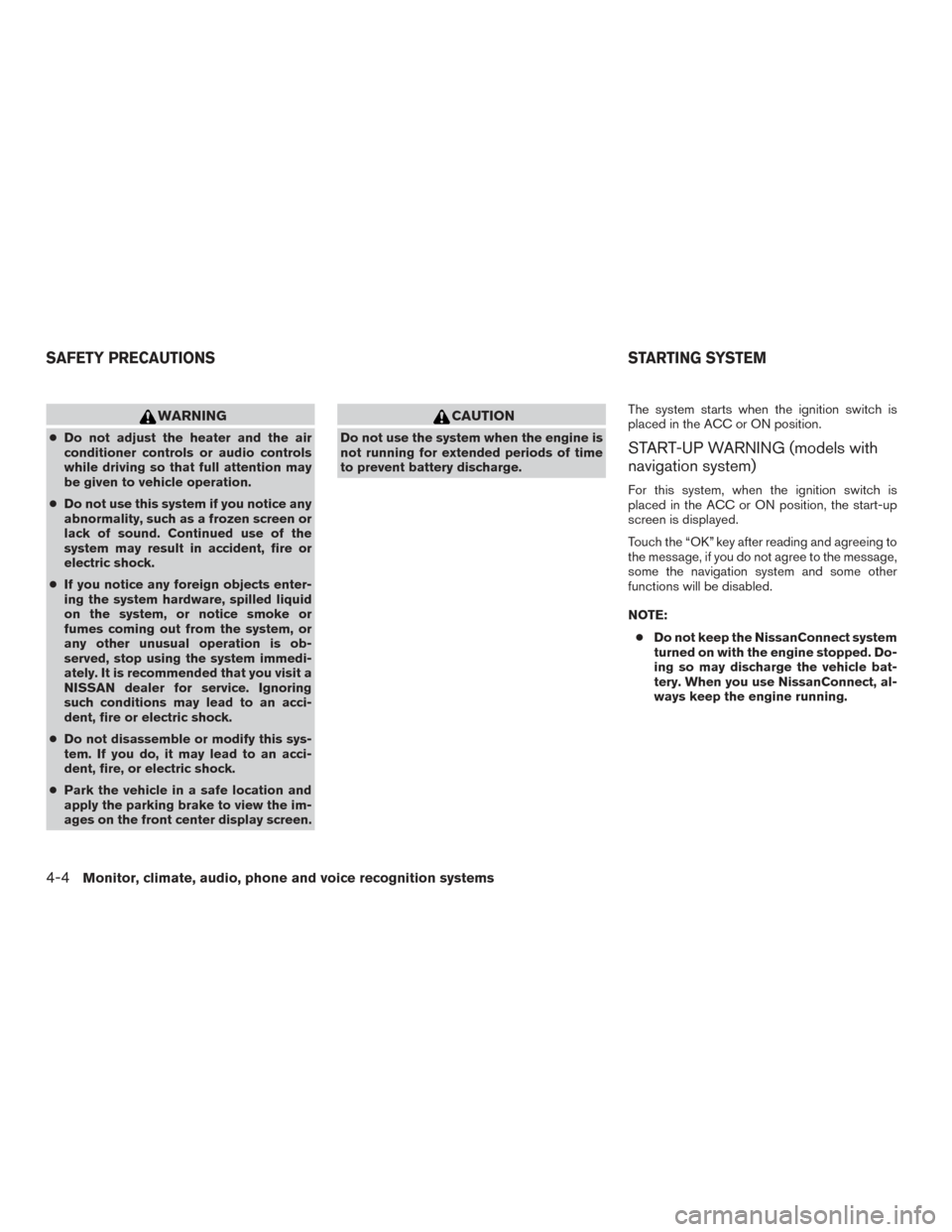

WARNING
●Do not adjust the heater and the air
conditioner controls or audio controls
while driving so that full attention may
be given to vehicle operation.
● Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
● If you notice any foreign objects enter-
ing the system hardware, spilled liquid
on the system, or notice smoke or
fumes coming out from the system, or
any other unusual operation is ob-
served, stop using the system immedi-
ately. It is recommended that you visit a
NISSAN dealer for service. Ignoring
such conditions may lead to an acci-
dent, fire or electric shock.
● Do not disassemble or modify this sys-
tem. If you do, it may lead to an acci-
dent, fire, or electric shock.
● Park the vehicle in a safe location and
apply the parking brake to view the im-
ages on the front center display screen.
CAUTION
Do not use the system when the engine is
not running for extended periods of time
to prevent battery discharge. The system starts when the ignition switch is
placed in the ACC or ON position.START-UP WARNING (models with
navigation system)
For this system, when the ignition switch is
placed in the ACC or ON position, the start-up
screen is displayed.
Touch the “OK” key after reading and agreeing to
the message, if you do not agree to the message,
some the navigation system and some other
functions will be disabled.
NOTE:
● Do not keep the NissanConnect system
turned on with the engine stopped. Do-
ing so may discharge the vehicle bat-
tery. When you use NissanConnect, al-
ways keep the engine running.
SAFETY PRECAUTIONS STARTING SYSTEM
4-4Monitor, climate, audio, phone and voice recognition systems

Models with navigations system
JNB0461X
CENTER MULTI-FUNCTION CONTROL
PANEL
Monitor, climate, audio, phone and voice recognition systems4-5

CONTROL PANEL
1CLIMATEbutton
For additional information, refer to “Heater
and air conditioner” in this section.
2CAMERA button (models with Around
View® Monitor)
Push to display Around View® Monitor.
For additional information, refer to “Around
View® Monitor” in this section. Push and hold the CAMERA button to turn
the display on and off.
button (models without Around
View® Monitor):
For additional information, refer to
“Bluetooth® hands-free phone system” in
this section.
3APPS button
For additional information, refer to “Nissan-
Connect
SMApps” in this section.
4NAVI button
For additional information, refer to the Navi-
gation System Owner’s Manual.
5Multi-function controller Push to select an item on the screen, select
the highlighted item, or scroll the map on the
screen.
For additional information, refer to “Multi-
function controller” in this section.
6STATUS button
Push to display the current setting of the
vehicle information, air conditioner, audio
and navigation route information.Models without navigation system
LHA4297
4-6Monitor, climate, audio, phone and voice recognition systems

7INFObutton
Push to display the information menu. For
additional information, refer to “Information
screen” in this section.
8/OFF button, +/– buttons
Push the
/OFF button to
switch the display brightness to the daytime
mode or the nighttime mode, and to adjust
the display brightness level using the multi-
function controller while the indicator is dis-
played at the bottom of the screen. Push and
hold the
/OFF button to turn
the display on and off.
The display brightness can also be adjusted
using the +button or -button.
9AUDIO button
Push to operate the audio system.
For additional information, refer to “Audio
main operation” in this section.
10BACK button
Push to return to the previous screen. In a
settings screen, this button is also used to
apply the setting.
11MAP button
For additional information, refer to the Navi-
gation System Owner’s Manual.
12SETTING button
Push to access the system settings.
13VOICE button
For additional information, refer to the Navi-
gation System Owner’s Manual.
MULTI-FUNCTION CONTROLLER
1ENTER button
Push to select the highlighted item on the
screen.
2Main directional buttons Use to select an item on the screen or adjust
a setting (volume, brightness, etc.) .
3Additional directional buttons (models with
navigation system)
Use to select an item on the character input
screen.
JNB0085X
Monitor, climate, audio, phone and voice recognition systems4-7

4Center dialTurn to highlight an item on the screen or
adjust a setting.
STEERING WHEEL SWITCH
1ENTER button
Tilt to highlight an item on the screen or
adjust a setting. Push to select the high-
lighted item.
2button
Push this switch to go back to the previous
screen or cancel the selection if it is not
completed. NOTE:
You are unable to operate the display of
NissanConnect
SMusing the buttons on the
steering wheel switch whenever the meter
shows the setting display.
3+- button
Use to adjust the volume. These buttons
have the same function as that of the VOL
button on the audio system.
For additional information, refer to “Steering
wheel switch for audio control” in this sec-
tion.
4SOURCE button
Use to switch the audio mode (source) .
For additional information, refer to “Steering
wheel switch for audio control” in this sec-
tion.
5(TALK) button
Push to start a voice recognition session.
During a voice recognition session, pushing
this button cancels the voice guidance and
you can speak a voice command immedi-
ately.
Push and hold this button to end a voice
recognition session.
JNB0462X
4-8Monitor, climate, audio, phone and voice recognition systems

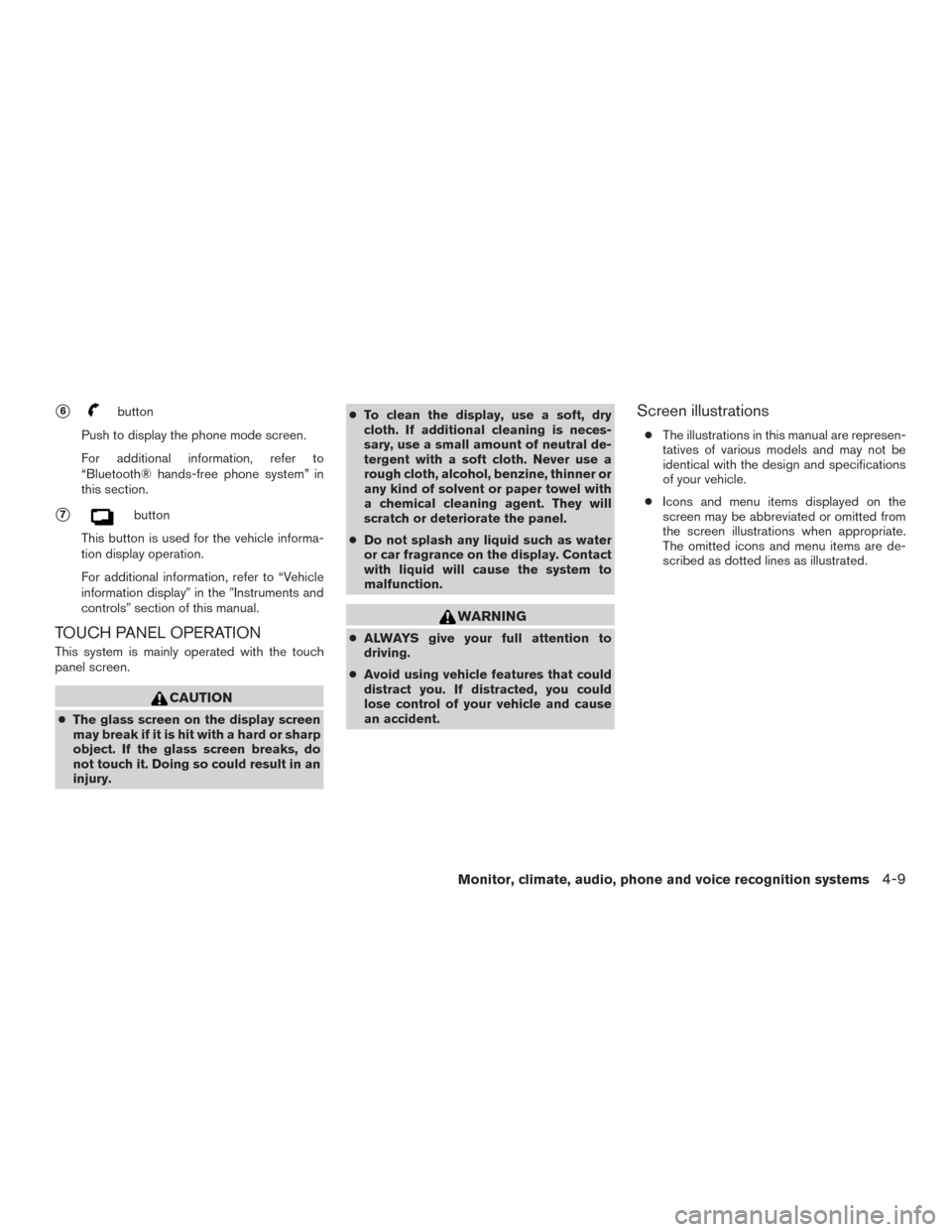

6button
Push to display the phone mode screen.
For additional information, refer to
“Bluetooth® hands-free phone system” in
this section.
7button
This button is used for the vehicle informa-
tion display operation.
For additional information, refer to “Vehicle
information display in theInstruments and
controls section of this manual.
TOUCH PANEL OPERATION
This system is mainly operated with the touch
panel screen.
CAUTION
●The glass screen on the display screen
may break if it is hit with a hard or sharp
object. If the glass screen breaks, do
not touch it. Doing so could result in an
injury. ●
To clean the display, use a soft, dry
cloth. If additional cleaning is neces-
sary, use a small amount of neutral de-
tergent with a soft cloth. Never use a
rough cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel with
a chemical cleaning agent. They will
scratch or deteriorate the panel.
● Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
WARNING
●ALWAYS give your full attention to
driving.
● Avoid using vehicle features that could
distract you. If distracted, you could
lose control of your vehicle and cause
an accident.
Screen illustrations
● The illustrations in this manual are represen-
tatives of various models and may not be
identical with the design and specifications
of your vehicle.
● Icons and menu items displayed on the
screen may be abbreviated or omitted from
the screen illustrations when appropriate.
The omitted icons and menu items are de-
scribed as dotted lines as illustrated.
Monitor, climate, audio, phone and voice recognition systems4-9

●Touch
Select and execute the selected key on the
screen. ●
Swipe
Menu screen pages will skip to the next page. ●
Drag
Drag scroll bar up or down to scroll the menu
screen.
JNB0463X
JNB0464XJNB0465X
4-10Monitor, climate, audio, phone and voice recognition systems

OPERATING MENU SCREENS
1Touch the “<” key to scroll to the previous
page.
2Touch the preferred icon to execute a func-
tion and display the next screen.
3Indicates the position of the currently dis-
played page out of the total number of avail-
able pages.
4Touch the “>” key to scroll to the next page.
A swipe gesture can also be used to move
quickly between pages.
SCROLLING LIST OR MESSAGE
1Drag the scroll bar up or down to scroll the
message or list up or down.
2Touch the preferred item.
3If a listed item name is not completely dis-
played (due to length) , touch the “>” key to
display the hidden part of the name.
4Touch the “” key or the “” key to
scroll the message or list one item at a time.
Touch the “
” key or the “” key to
skip to the next page.
SELECTING ITEM
When an item is touched, it is executed and the
next screen is displayed.
Touch the “
” key to return to the previous
screen.
JNB0439XJNB0451XJNB0466X
Monitor, climate, audio, phone and voice recognition systems4-11
