NISSAN PATHFINDER 2017 R52 / 4.G Owners Manual

ADJUSTING SETTINGS
Level of volume, brightness, etc. can be adjusted.
Touch the adjustment keys, such as the “+/-”
keys or the “L/R” keys, etc., to adjust each item.
Each time a key is touched, the indicator moves
along the bar.
CHARACTER (letters and numbers)
INPUT SCREEN
Alphanumeric characters are entered using the
keyboard screen.
1Touch a character on the displayed key-
board. The selected character is entered.
2Entered characters are displayed here.
3Touch the “Delete” key to delete the last
character entered.
Touch and hold the “Delete” key to delete all
the characters entered.
4The symbol keys are displayed by touching
the “Symbols” key. The alphabet keys are
displayed by touching the “A-Z” keys.
5Touch the “Space” key to enter a space.
6Touch the “OK” key or “List” key to finalize
your input.
INFO:
● Touch the “CAPS” key to toggle uppercase
and lowercase characters on the keyboard
screen.
● Touch the “
” key or the “”
key to move the character input position.JNB0467X5GH0587X
4-12Monitor, climate, audio, phone and voice recognition systems

SYSTEM STATUS SCREEN
By pushing the STATUS button, the current sta-
tus of the system can be displayed.
INFO:
There are different status screens displayed de-
pending on various factors, such as the currently
active mode, whether a destination has been set
or not, etc.
When a route to the destination is set and the
audio system is on, a screen similar to the one
above appears. Touching the “” keys can switch the display
among fuel economy information, navigation
route information (if so equipped) and air condi-
tioner status.
When no route is set, a compass and the direc-
tion of travel is displayed instead of the route
information.
JNB0443X
Monitor, climate, audio, phone and voice recognition systems4-13

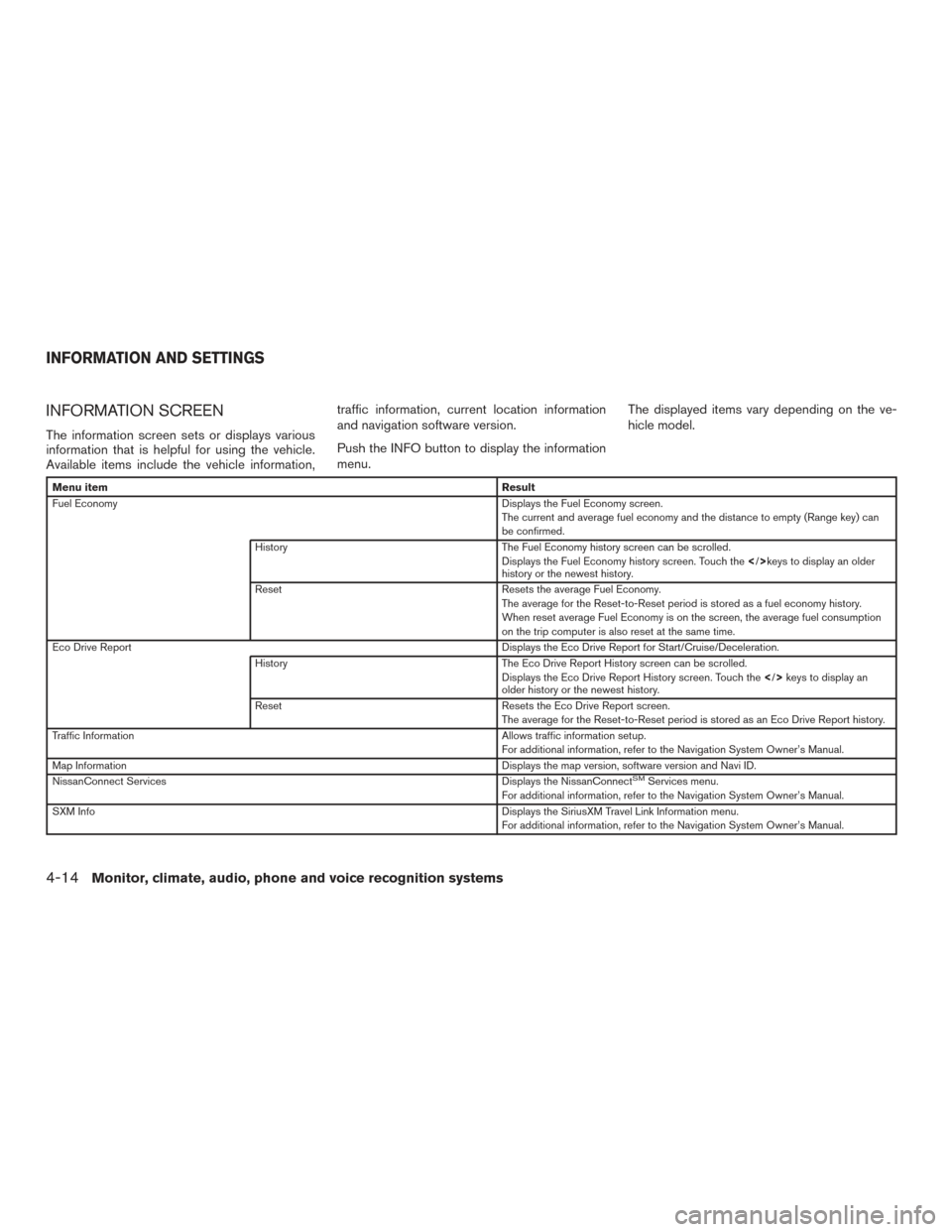

INFORMATION SCREEN
The information screen sets or displays various
information that is helpful for using the vehicle.
Available items include the vehicle information,traffic information, current location information
and navigation software version.
Push the INFO button to display the information
menu.
The displayed items vary depending on the ve-
hicle model.
Menu item
Result
Fuel Economy Displays the Fuel Economy screen.
The current and average fuel economy and the distance to empty (Range key) can
be confirmed.
History The Fuel Economy history screen can be scrolled.
Displays the Fuel Economy history screen. Touch thekeys to display an older
history or the newest history.
Reset Resets the average Fuel Economy.
The average for the Reset-to-Reset period is stored as a fuel economy history.
When reset average Fuel Economy is on the screen, the average fuel consumption
on the trip computer is also reset at the same time.
Eco Drive Report Displays the Eco Drive Report for Start/Cruise/Deceleration.
History The Eco Drive Report History screen can be scrolled.
Displays the Eco Drive Report History screen. Touch the keys to display an
older history or the newest history.
Reset Resets the Eco Drive Report screen.
The average for the Reset-to-Reset period is stored as an Eco Drive Report history.
Traffic Information Allows traffic information setup.
For additional information, refer to the Navigation System Owner’s Manual.
Map Information Displays the map version, software version and Navi ID.
NissanConnect Services Displays the NissanConnect
SMServices menu.
For additional information, refer to the Navigation System Owner’s Manual.
SXM Info Displays the SiriusXM Travel Link Information menu.
For additional information, refer to the Navigation System Owner’s Manual.
INFORMATION AND SETTINGS
4-14Monitor, climate, audio, phone and voice recognition systems

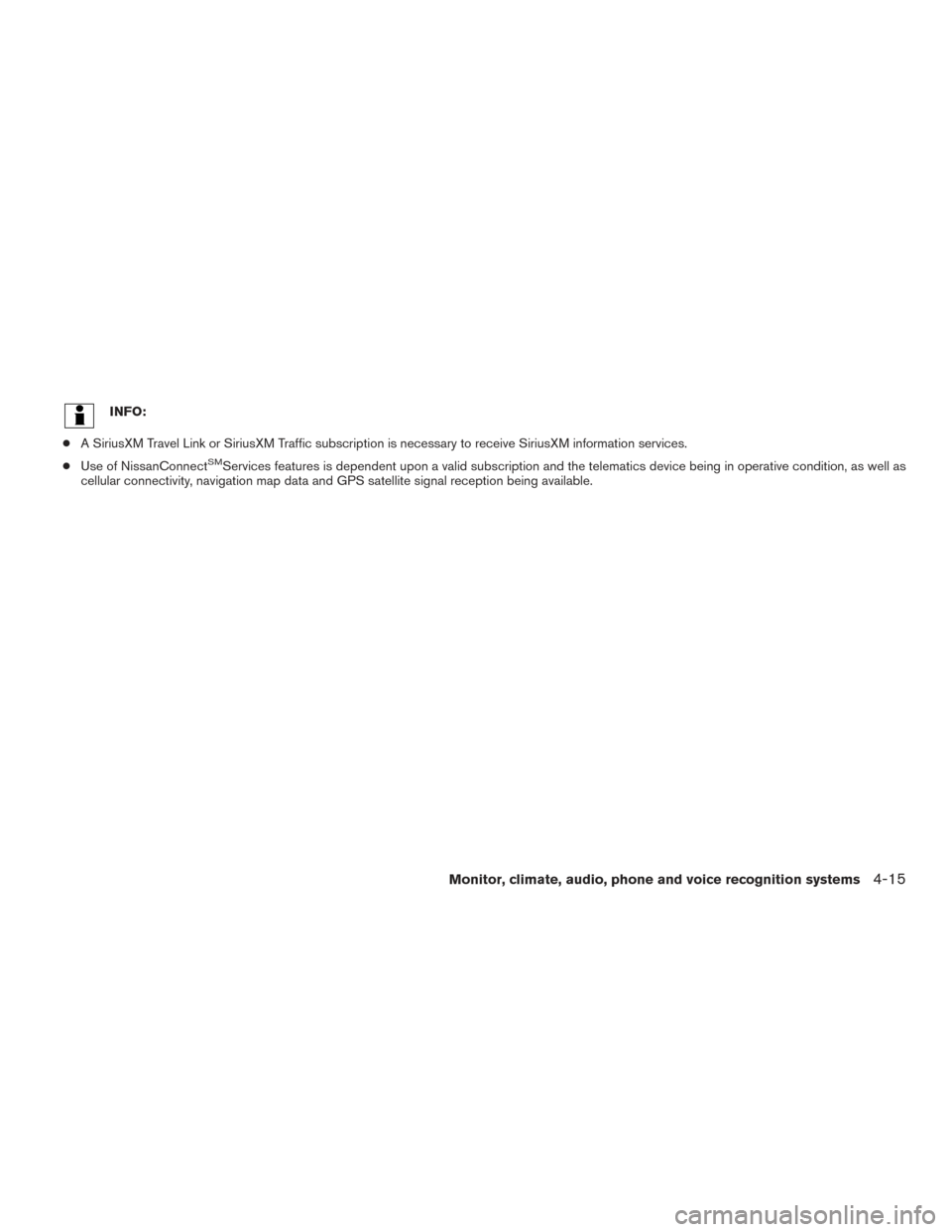

INFO:
● A SiriusXM Travel Link or SiriusXM Traffic subscription is necessary to receive SiriusXM information services.
● Use of NissanConnect
SMServices features is dependent upon a valid subscription and the telematics device being in operative condition, as well as
cellular connectivity, navigation map data and GPS satellite signal reception being available.
Monitor, climate, audio, phone and voice recognition systems4-15

SETTINGS SCREEN
The system can be customized to make it easier
for you to use.The displayed items vary depending on the
equipped options.
The order of the displayed items can be sorted.
Step
Menu Item Result
Push the SET-
TING button. Bluetooth
Sets the Bluetooth® Audio and Phone.
For additional information, refer to “Bluetooth® settings” in this section.
Phone/Mail Displays the Phone/Mail setting screen.
For additional information, refer to “Phone and text message settings” in this section.
Navigation Displays the Navigation setting screen.
For additional information, refer to the Navigation System Owner’s Manual.
Audio Displays the Audio setting screen.
For additional information, refer to “Audio settings” in this section.
Screen Sets the Screen display to the preferred settings.
For additional information, refer to “Screen settings” in this section.
Volume Adjustment Sets the Volume Adjustment.
For additional information, refer to “Volume settings” in this section.
Clock Sets the Clock to your preferred settings.
For additional information, refer to “Clock settings” in this section.
NissanConnect Services Sets NissanConnect
SMServices to your preferred settings.
For additional information, refer to the Navigation System Owner’s Manual.
Voice Recognition Sets Minimize Voice Feedback to on/off and the audio setting for voice recognition use.
Camera/Sonar Sets the Camera/Sonar to your preferred settings.
For additional information, refer to “Sonar function settings” in this section.
Other LanguageSets the language to your preferred settings.
For additional information, refer to “Language setting” in this section.
Keyboard Type Sets the Keyboard Type to ABC key or QWERTY key.
Low on Fuel Alert Sets the fuel low notification to on/off.
Software Information Displays the Software Information.
4-16Monitor, climate, audio, phone and voice recognition systems

Clock Settings
This changes the clock settings.
StepMenu item Action
1. Push the SETTINGbutton.
2. Touch Clock. On-Screen Clock
Sets the clock display on/off. When this item is on, the
clock display appears.
Daylight Savings Time Toggles the setting for daylight saving time between ON or
OFF.
Clock Format (24h) Toggles the clock format between 12–hour and 24–hour
times. When the indicator light illuminates, the clock is set
to the 24–hour format.
Time Zone Selects an appropriate time zone from the list. When se-
lecting AUTO, the system selects the time zone
automatically.
Offset Adjustment Adjusts the offset value (hour and minutes) .
5GH0283X
Monitor, climate, audio, phone and voice recognition systems4-17

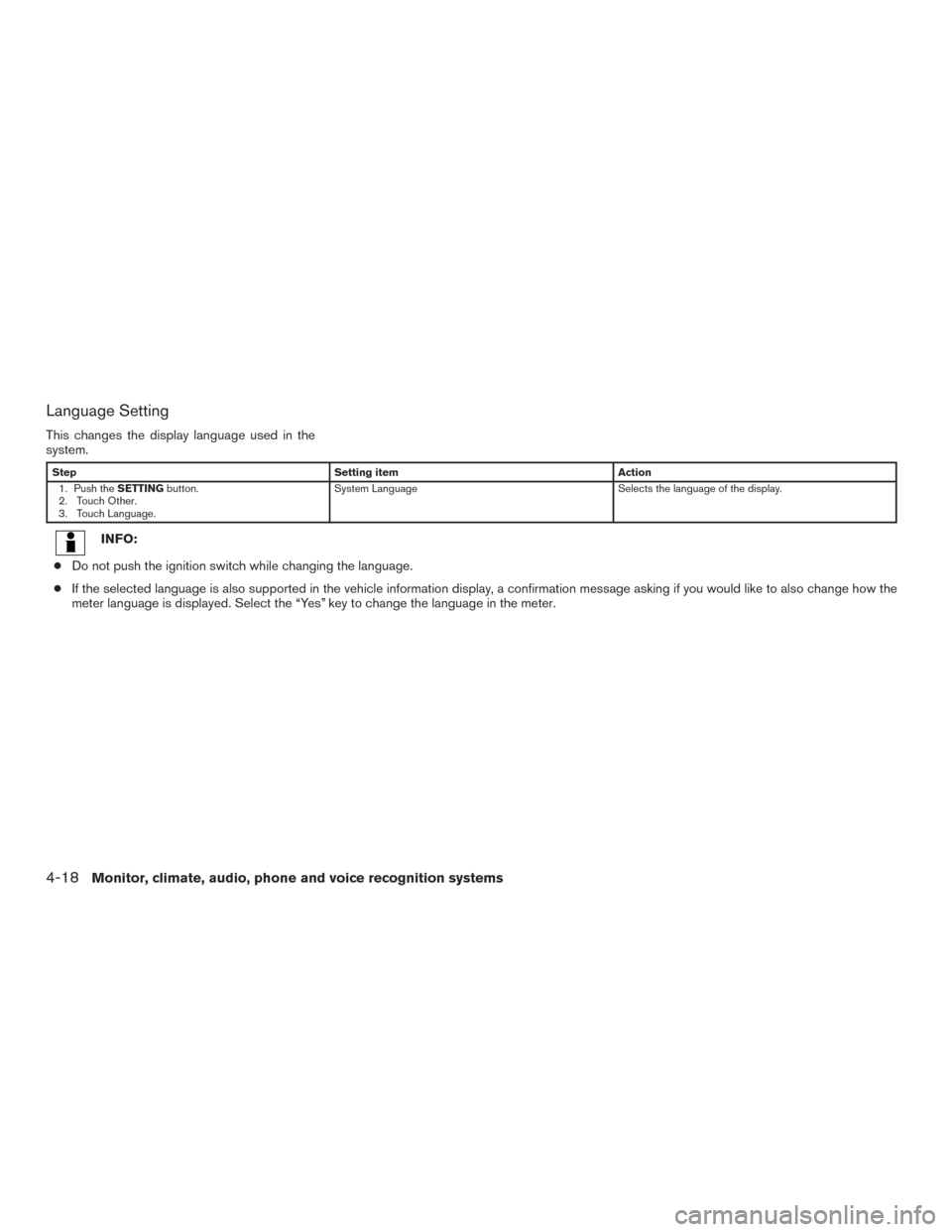

Language Setting
This changes the display language used in the
system.
StepSetting item Action
1. Push the SETTINGbutton.
2. Touch Other.
3. Touch Language. System Language
Selects the language of the display.
INFO:
● Do not push the ignition switch while changing the language.
● If the selected language is also supported in the vehicle information display, a confirmation message asking if you would like to also change how the
meter language is displayed. Select the “Yes” key to change the language in the meter.
4-18Monitor, climate, audio, phone and voice recognition systems

Volume Settings
This turns on and off, as well as adjusts, the
volume for various functions including audio,
phone (ringer, incoming, and outgoing volumes) ,
navigation voice guidance, and system beeps.
StepSetting item Action
1. Push the SETTINGbutton
2. Touch Volume Adjustment Audio Volume
Adjusts the volume of the audio system.
Voice Guidance Toggles the voice guidance on and off.
Guidance Volume Adjusts the volume level of guidance volume .
Ringtone Volume Adjusts the volume level of the ringtone.
Incoming Call Vol. Adjusts the incoming call volume.
Outgoing Call Vol. Adjusts the outgoing call volume.
NissanConnect Svcs. Vol. Adjusts the volume level of the NissanConnect
SMServices
information channel.
Sonar Volume Adjusts the volume level of the sonar warning volume.
Button Beep sound Toggles the button beep sound and alarm for a prohibited
operation to on and off.
5GG0052X
Monitor, climate, audio, phone and voice recognition systems4-19

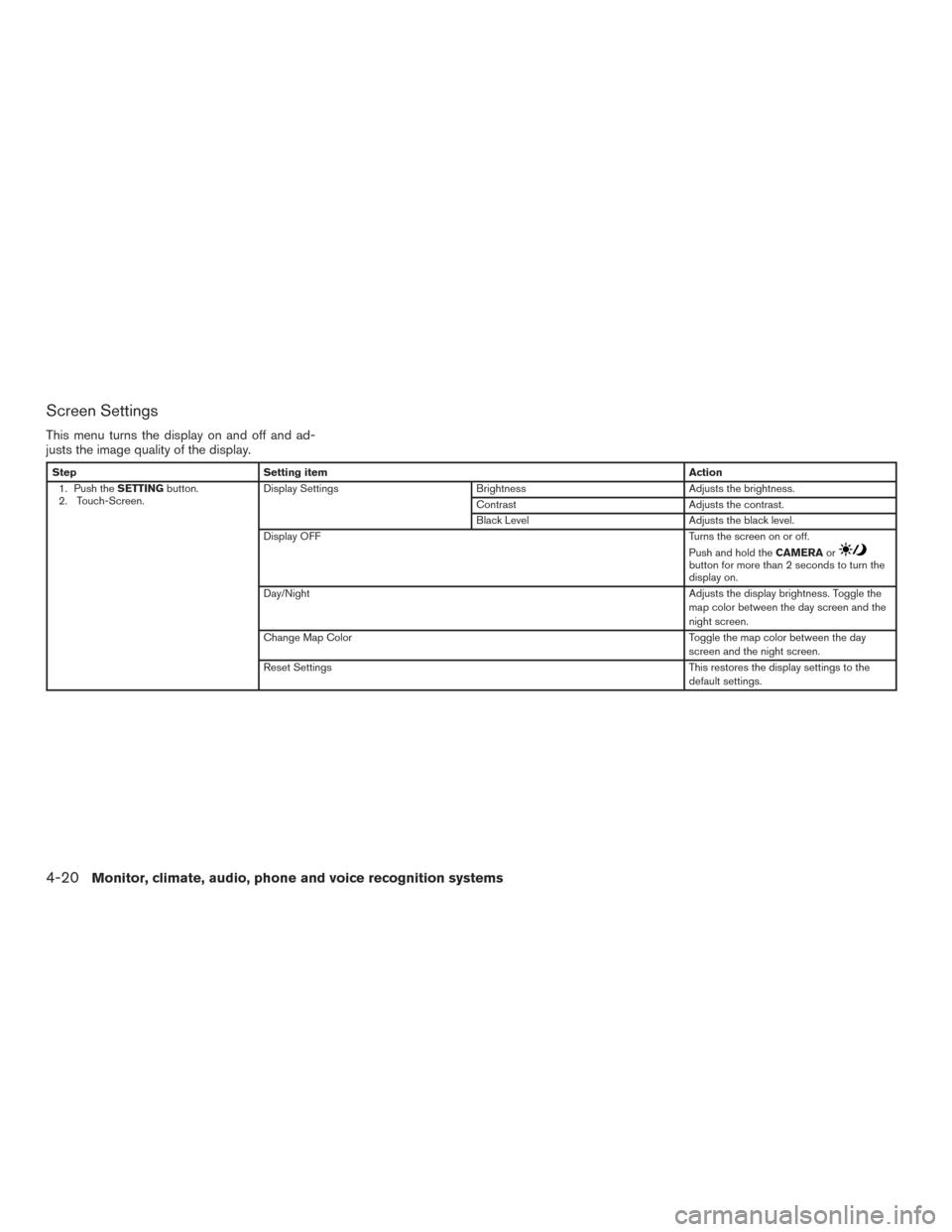

Screen Settings
This menu turns the display on and off and ad-
justs the image quality of the display.
StepSetting item Action
1. Push the SETTINGbutton.
2. Touch-Screen. Display Settings
BrightnessAdjusts the brightness.
Contrast Adjusts the contrast.
Black Level Adjusts the black level.
Display OFF Turns the screen on or off.
Push and hold theCAMERAor
button for more than 2 seconds to turn the
display on.
Day/Night Adjusts the display brightness. Toggle the
map color between the day screen and the
night screen.
Change Map Color Toggle the map color between the day
screen and the night screen.
Reset Settings This restores the display settings to the
default settings.
4-20Monitor, climate, audio, phone and voice recognition systems

1. CAMERA button (if so equipped)WARNING
●Failure to follow the warnings and in-
structions for proper use of the Rear-
View Monitor system could result in se-
rious injury or death. ●
RearView Monitor is a convenience fea-
ture and is not a substitute for proper
backing. Always turn and look out the
windows and check mirrors to be sure
that it is safe to move before operating
the vehicle. Always back up slowly.
LHA3756
REARVIEW MONITOR (if so
equipped)
