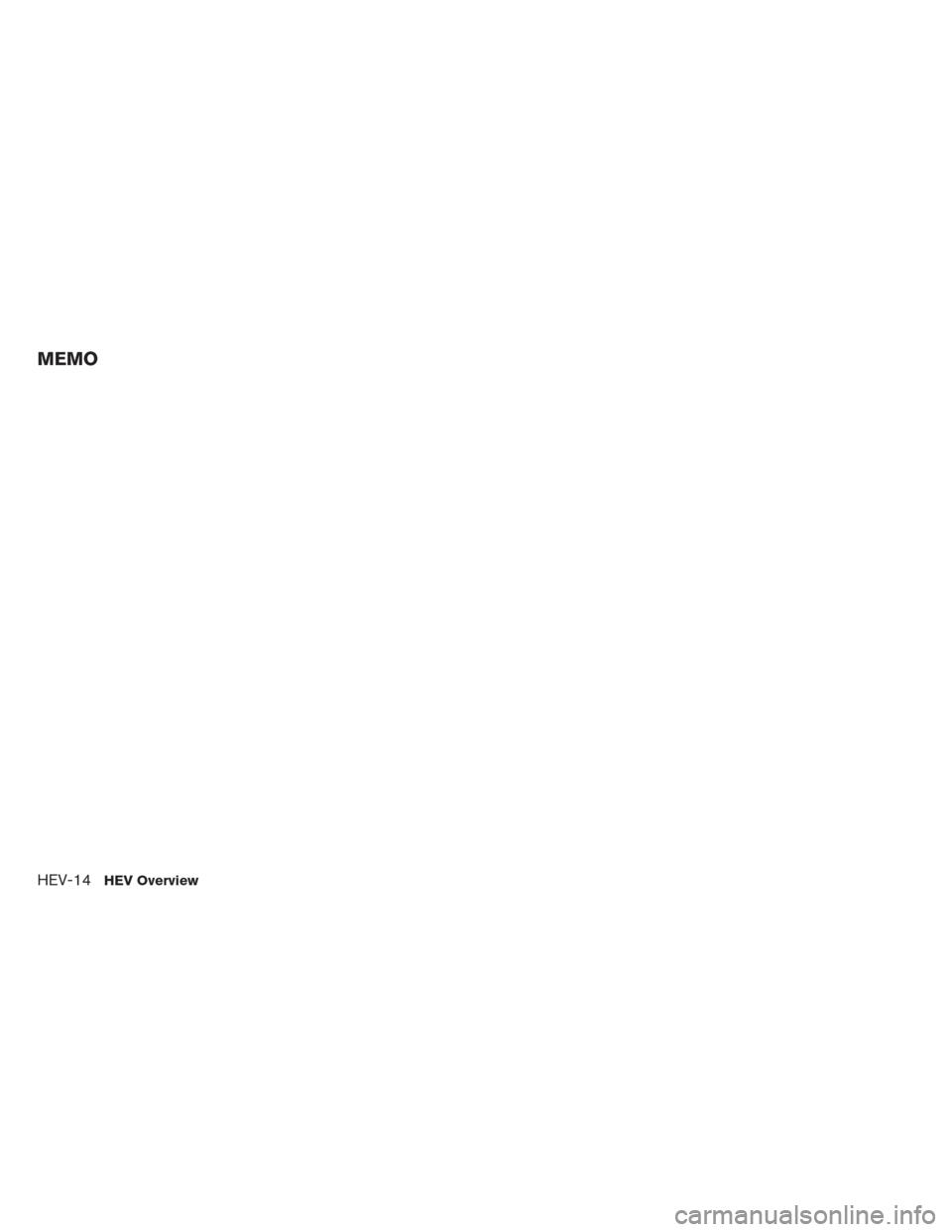

MEMO
HEV-14HEV Overview

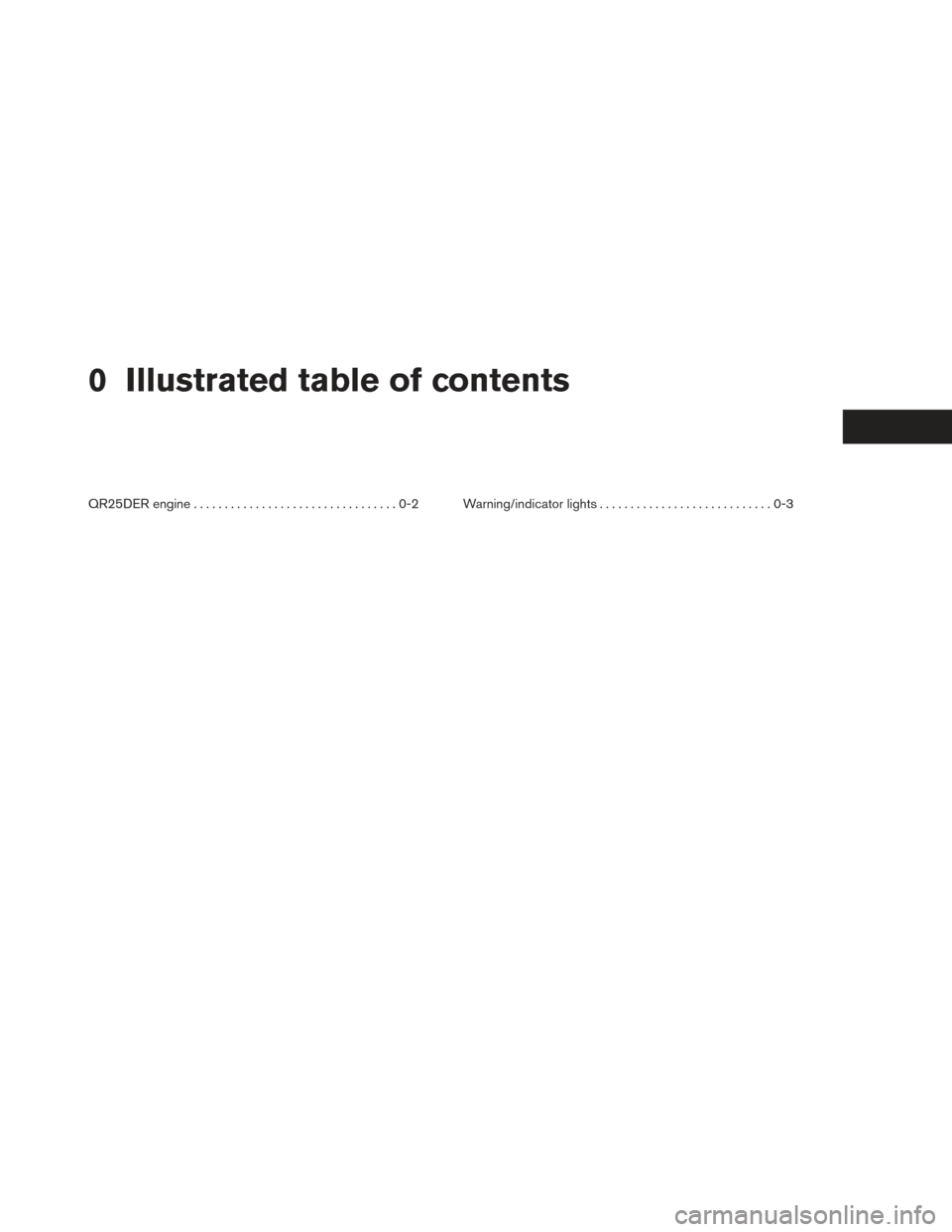

0 Illustrated table of contents
QR25DER engine.................................0-2 W arning/indicator lights............................0-3

1. Power steering fluid reservoir(See Owner’s Manual)
2. Engine coolant reservoir (See Owner’s
Manual)
3. Drive belt location (P. 8-11)
4. Fuse box (P. 8-12) 5. Engine oil filler cap (P. 8-6)
6. Inverter coolant reservoir (P. 8-5)
7. Brake fluid reservoir (See Owner’s
Manual)
8. Air cleaner (See Owner’s Manual) 9. Fusible link box (P. 8-12) and remote
positive battery terminal
10. Fuse box (P. 8-12)
11. Fuse box/Fusible links (P. 8-12)
12. Fuse box/Fusible links (P. 8-12)
13. Battery (P. 8-9)
14. Engine oil dipstick (P. 8-6)
15. Radiator cap (See Owner’s Manual)
16. Windshield-washer fluid reservoir
(See Owner’s Manual)
See the page number indicated in paren-
theses for operating details.
NOTE:
Hybrid system engine compartment
cover(s) removed for clarity.
NJE0001
QR25DER ENGINE
0-2Illustrated table of contents

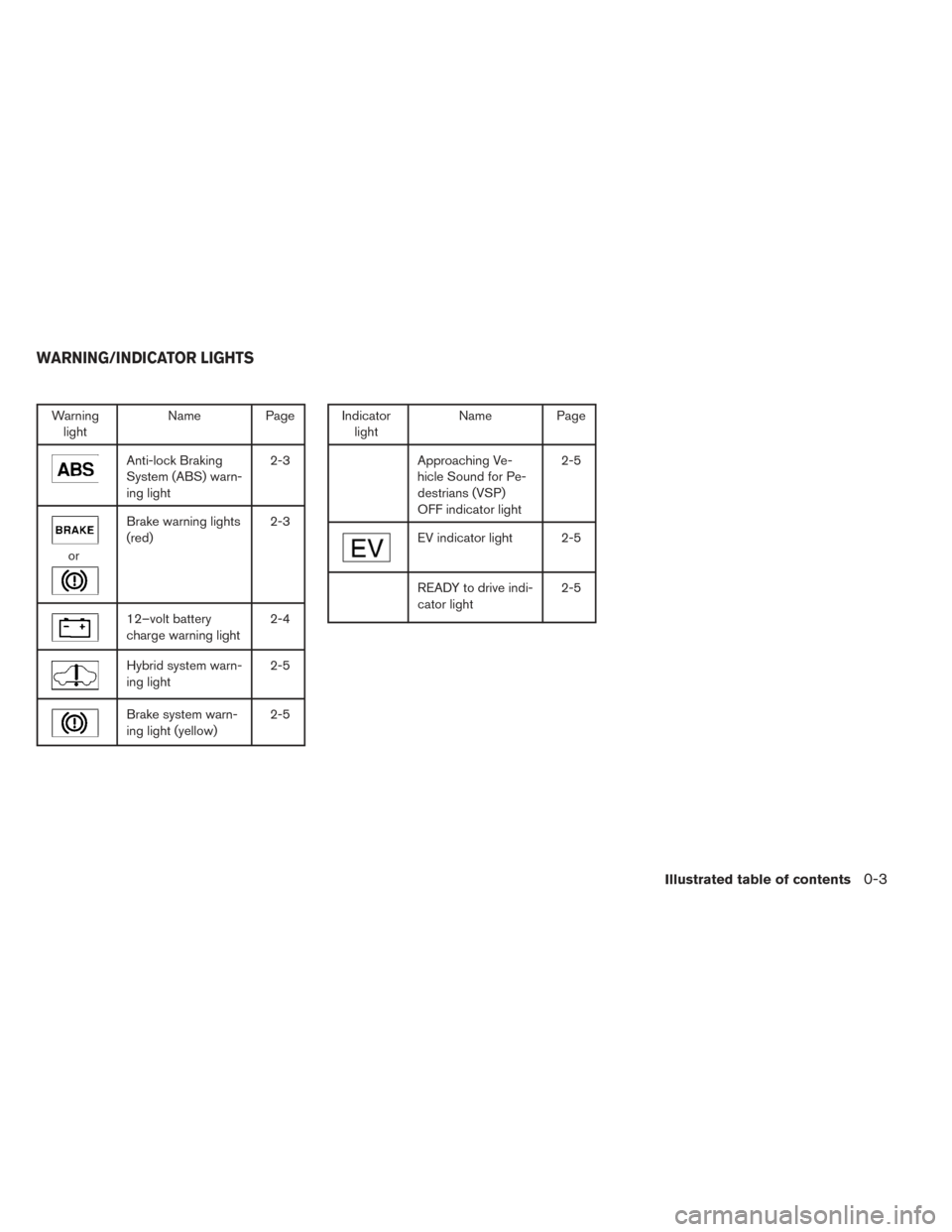

Warninglight Name Page
Anti-lock Braking
System (ABS) warn-
ing light 2-3
or
Brake warning lights
(red)
2-3
12–volt battery
charge warning light2-4
Hybrid system warn-
ing light2-5
Brake system warn-
ing light (yellow)2-5
Indicator
light Name Page
Approaching Ve-
hicle Sound for Pe-
destrians (VSP)
OFF indicator light 2-5
EV indicator light 2-5
READY to drive indi-
cator light
2-5
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-3

MEMO
0-4Illustrated table of contents

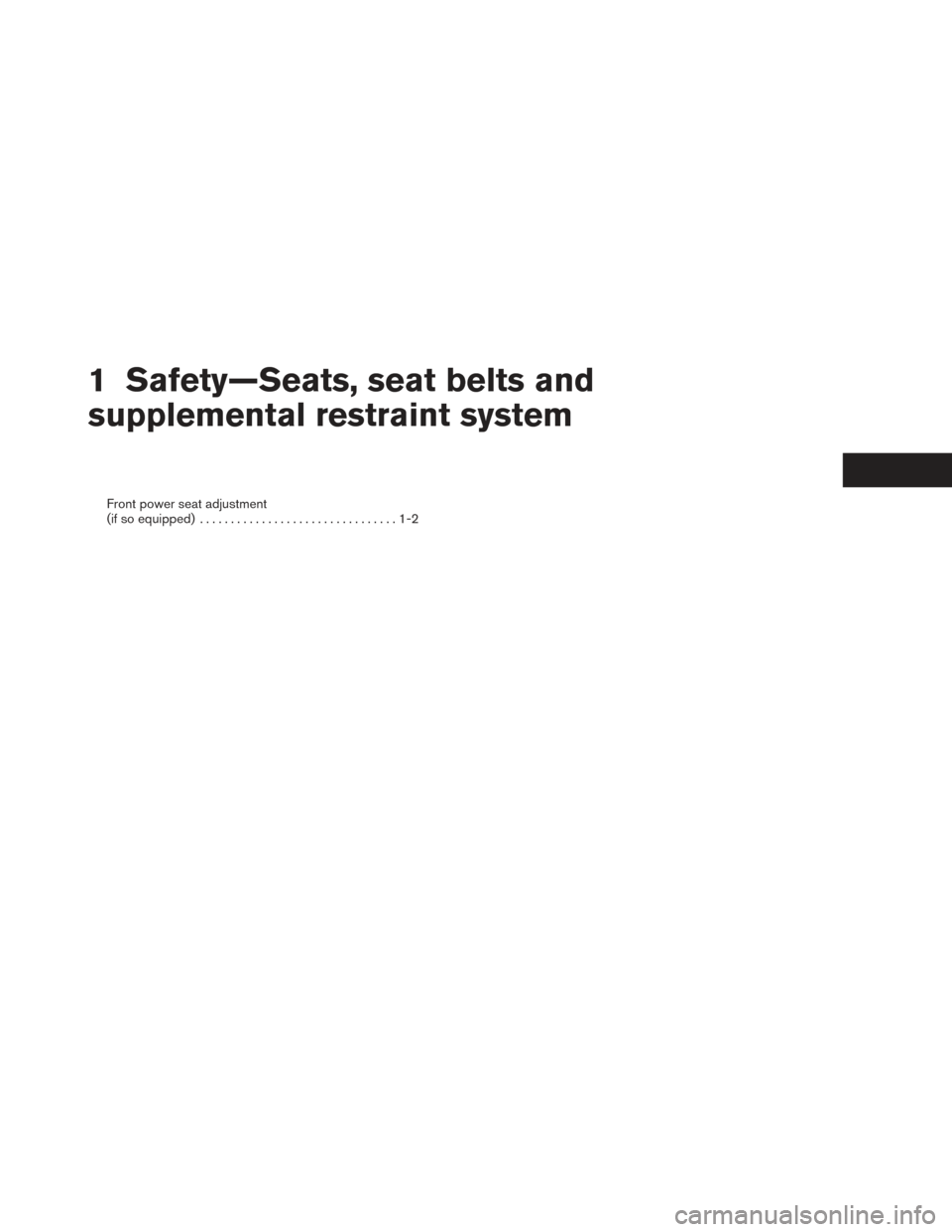

1 Safety—Seats, seat belts and
supplemental restraint system
Front power seat adjustment
(if so equipped)................................1-2

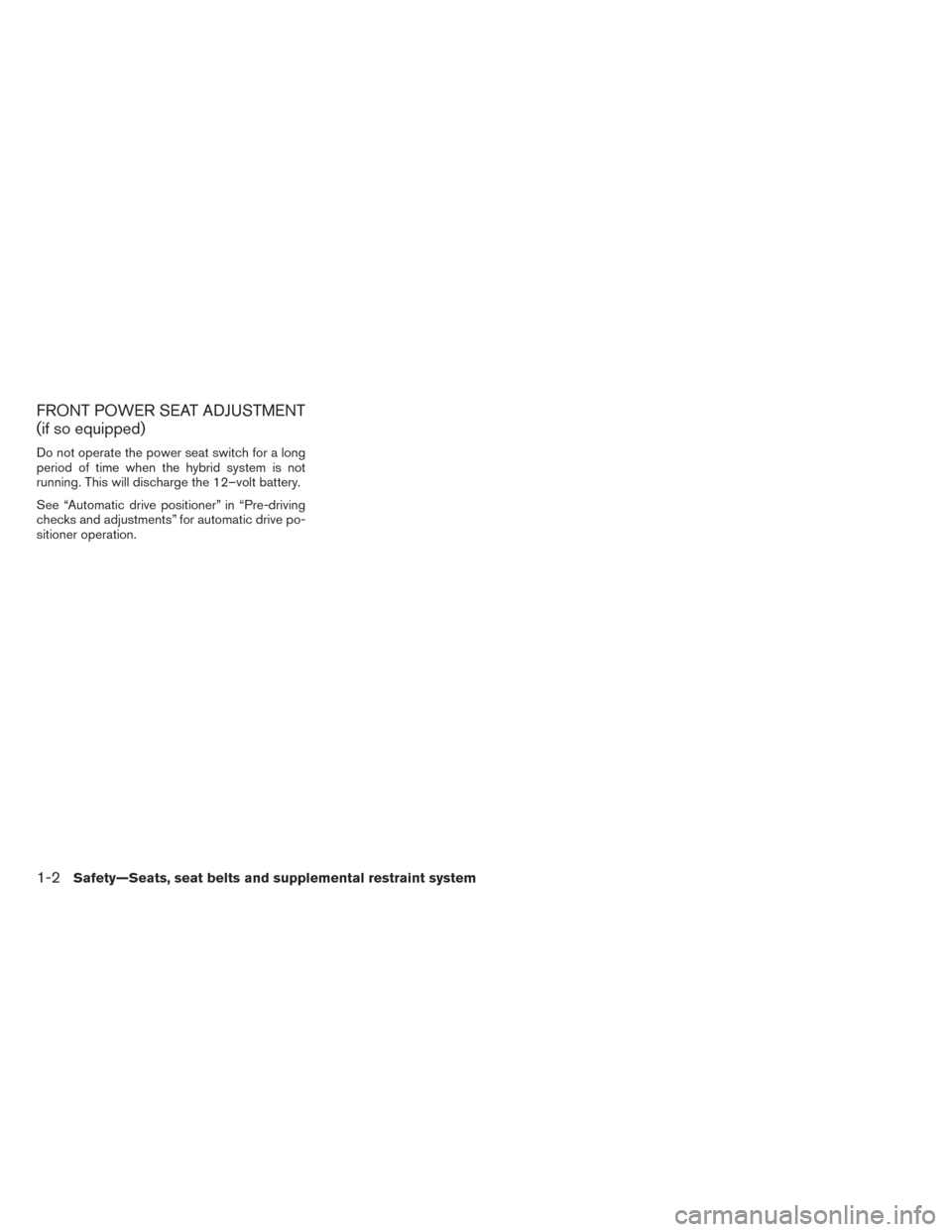

FRONT POWER SEAT ADJUSTMENT
(if so equipped)
Do not operate the power seat switch for a long
period of time when the hybrid system is not
running. This will discharge the 12–volt battery.
See “Automatic drive positioner” in “Pre-driving
checks and adjustments” for automatic drive po-
sitioner operation.
1-2Safety—Seats, seat belts and supplemental restraint system

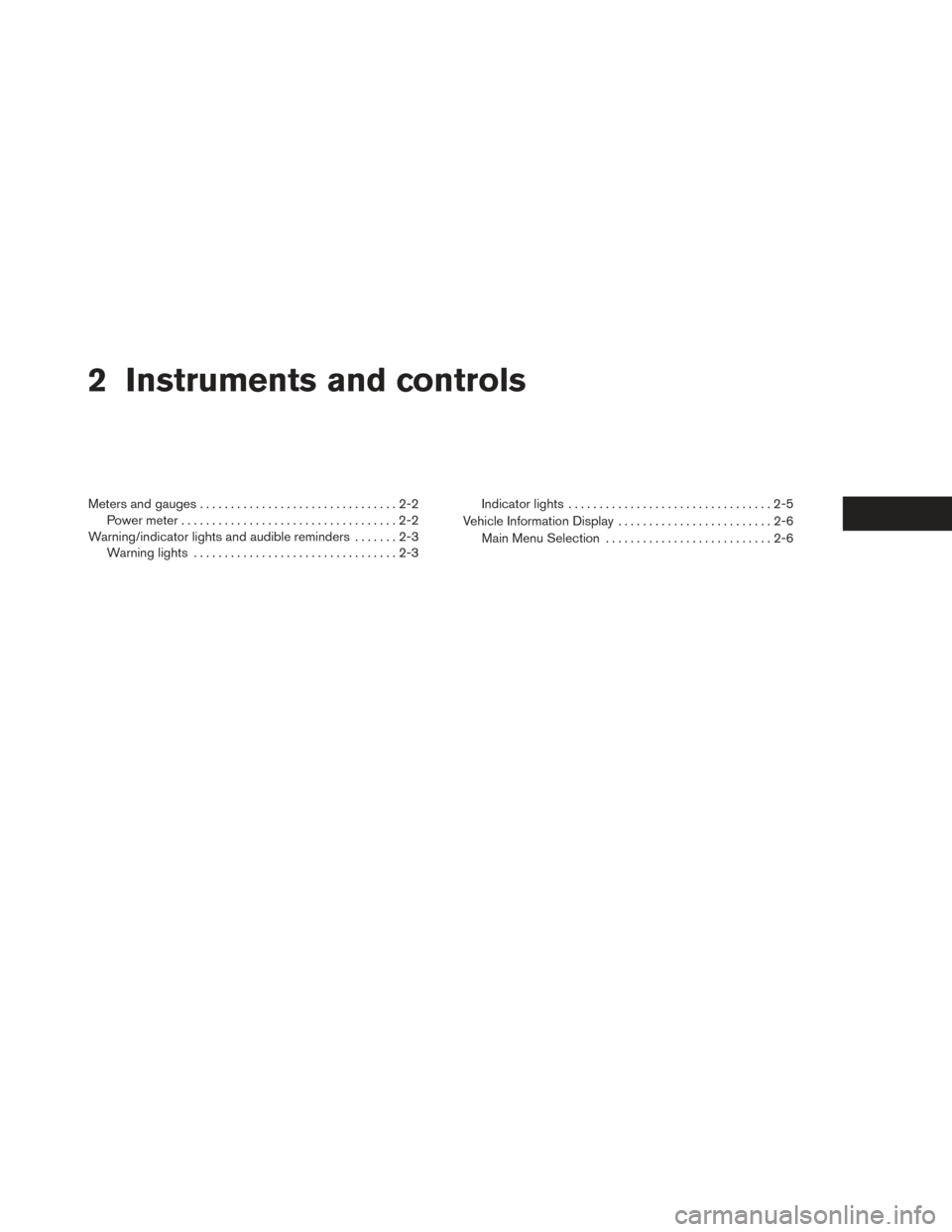

2 Instruments and controls
Meters and gauges................................2-2
Power meter ...................................2-2
Warning/indicator lights and audible reminders .......2-3
Warning lights .................................2-3 Indicator lights
.................................2-5
Vehicle Information Display .........................2-6
Main Menu Selection ...........................2-6

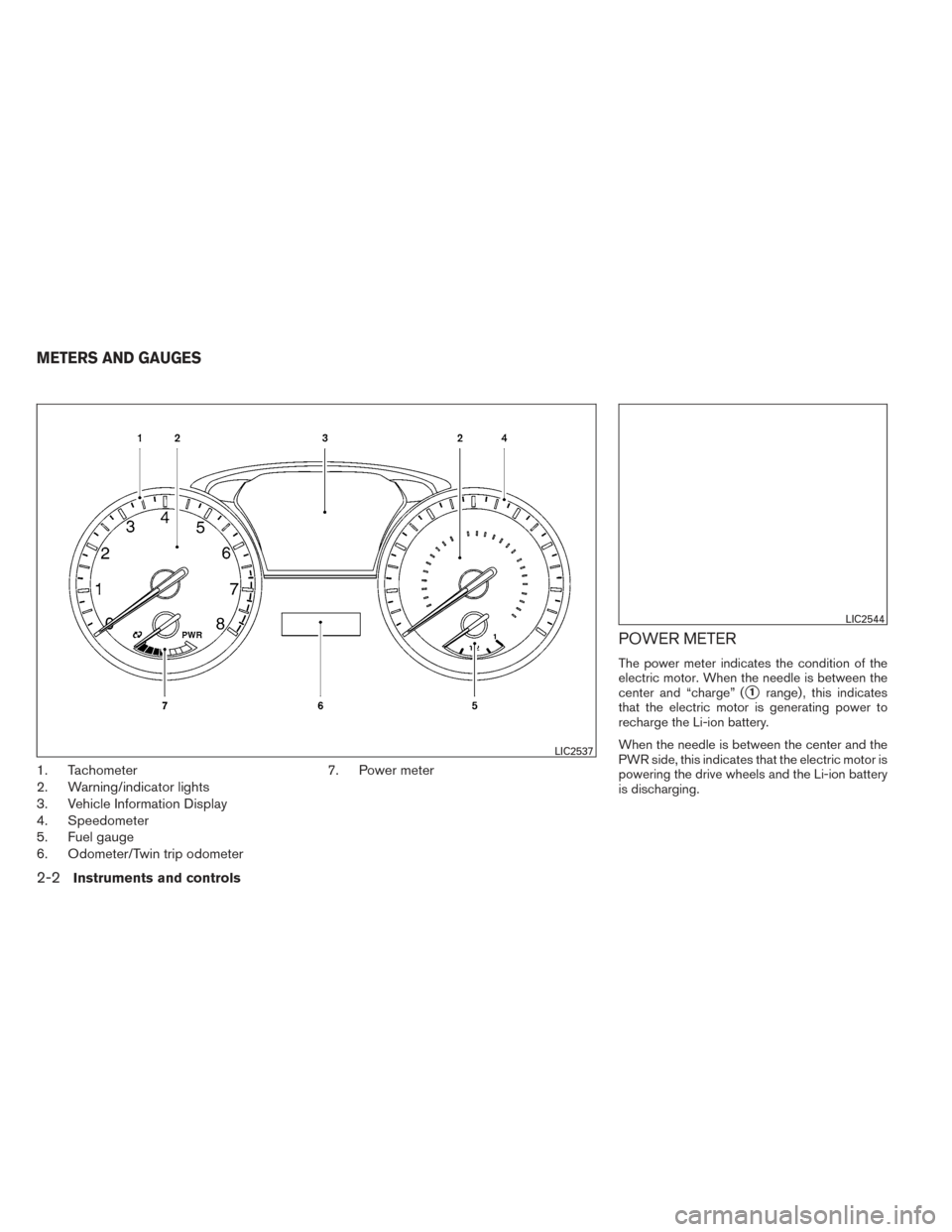

1. Tachometer
2. Warning/indicator lights
3. Vehicle Information Display
4. Speedometer
5. Fuel gauge
6. Odometer/Twin trip odometer7. Power meter
POWER METER
The power meter indicates the condition of the
electric motor. When the needle is between the
center and “charge” (
1range) , this indicates
that the electric motor is generating power to
recharge the Li-ion battery.
When the needle is between the center and the
PWR side, this indicates that the electric motor is
powering the drive wheels and the Li-ion battery
is discharging.
LIC2537
LIC2544
METERS AND GAUGES
2-2Instruments and controls

Anti-lock Braking System (ABS) warning lightorBrake warning light (red)12–volt battery charge warning light
Approaching Vehicle Sound for Pedestrians (VSP)
OFF indicator lightREADY to drive indicator lightHybrid system warning light
EV indicator lightElectronically controlled brake warning light
(yellow)

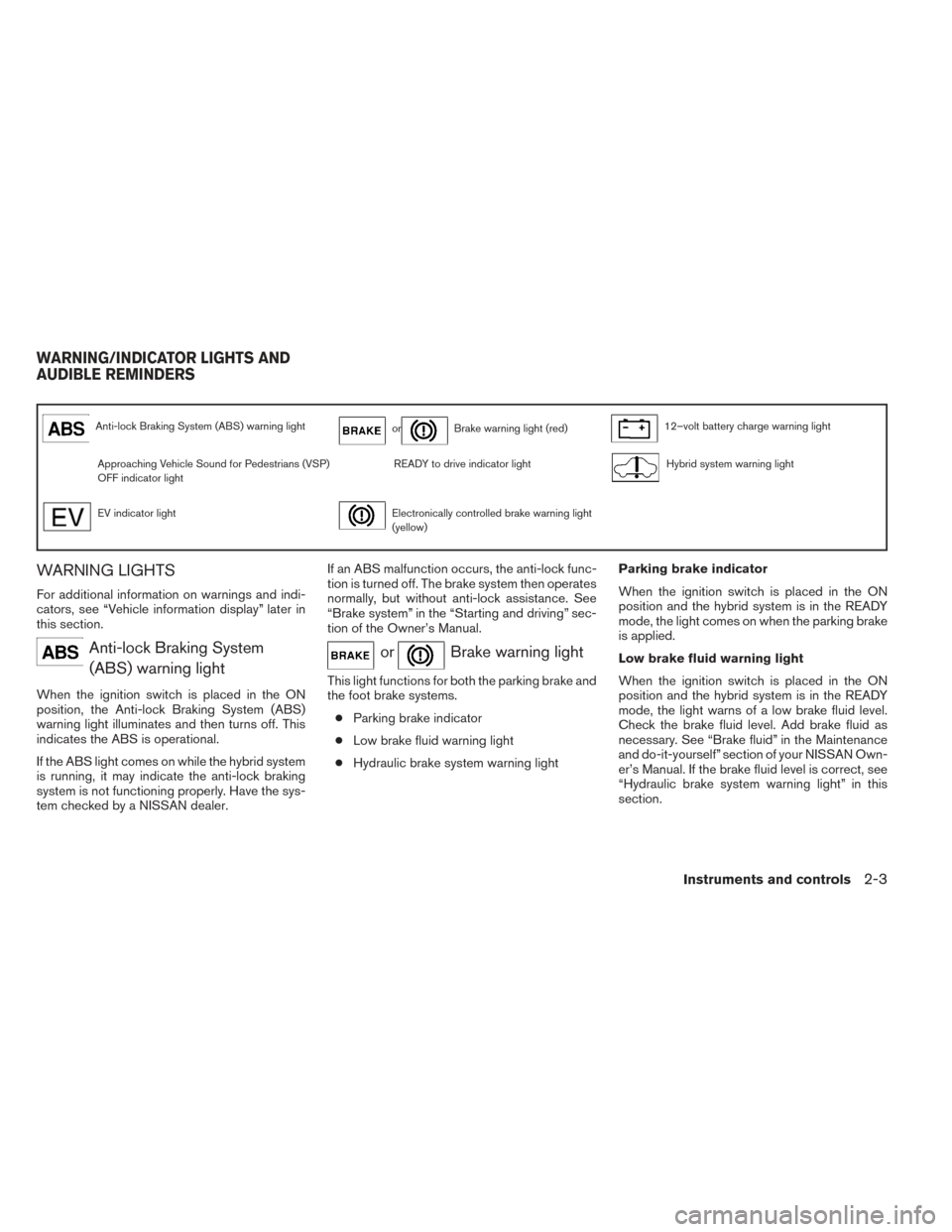

WARNING LIGHTS
For additional information on warnings and indi-
cators, see “Vehicle information display” later in
this section.
Anti-lock Braking System(ABS) warning light
When the ignition switch is placed in the ON
position, the Anti-lock Braking System (ABS)
warning light illuminates and then turns off. This
indicates the ABS is operational.
If the ABS light comes on while the hybrid system
is running, it may indicate the anti-lock braking
system is not functioning properly. Have the sys-
tem checked by a NISSAN dealer. If an ABS malfunction occurs, the anti-lock func-
tion is turned off. The brake system then operates
normally, but without anti-lock assistance. See
“Brake system” in the “Starting and driving” sec-
tion of the Owner’s Manual.
orBrake warning light
This light functions for both the parking brake and
the foot brake systems.
● Parking brake indicator
● Low brake fluid warning light
● Hydraulic brake system warning light Parking brake indicator
When the ignition switch is placed in the ON
position and the hybrid system is in the READY
mode, the light comes on when the parking brake
is applied.
Low brake fluid warning light
When the ignition switch is placed in the ON
position and the hybrid system is in the READY
mode, the light warns of a low brake fluid level.
Check the brake fluid level. Add brake fluid as
necessary. See “Brake fluid” in the Maintenance
and do-it-yourself” section of your NISSAN Own-
er’s Manual. If the brake fluid level is correct, see
“Hydraulic brake system warning light” in this
section.
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Instruments and controls2-3
