NISSAN PATHFINDER HYBRID 2014 R52 / 4.G Owner's Guide

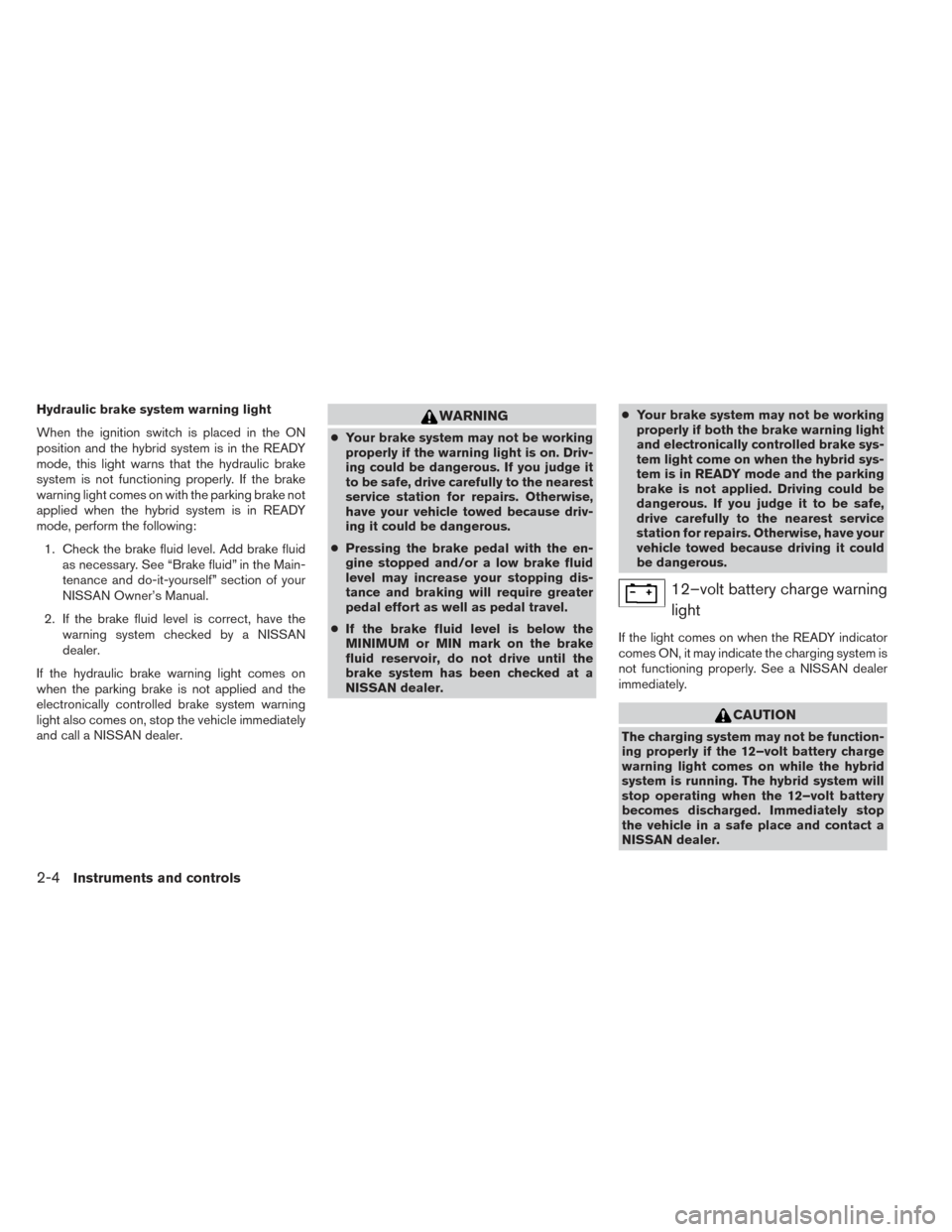

Hydraulic brake system warning light
When the ignition switch is placed in the ON
position and the hybrid system is in the READY
mode, this light warns that the hydraulic brake
system is not functioning properly. If the brake
warning light comes on with the parking brake not
applied when the hybrid system is in READY
mode, perform the following:1. Check the brake fluid level. Add brake fluid as necessary. See “Brake fluid” in the Main-
tenance and do-it-yourself” section of your
NISSAN Owner’s Manual.
2. If the brake fluid level is correct, have the warning system checked by a NISSAN
dealer.
If the hydraulic brake warning light comes on
when the parking brake is not applied and the
electronically controlled brake system warning
light also comes on, stop the vehicle immediately
and call a NISSAN dealer.WARNING
● Your brake system may not be working
properly if the warning light is on. Driv-
ing could be dangerous. If you judge it
to be safe, drive carefully to the nearest
service station for repairs. Otherwise,
have your vehicle towed because driv-
ing it could be dangerous.
● Pressing the brake pedal with the en-
gine stopped and/or a low brake fluid
level may increase your stopping dis-
tance and braking will require greater
pedal effort as well as pedal travel.
● If the brake fluid level is below the
MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer. ●
Your brake system may not be working
properly if both the brake warning light
and electronically controlled brake sys-
tem light come on when the hybrid sys-
tem is in READY mode and the parking
brake is not applied. Driving could be
dangerous. If you judge it to be safe,
drive carefully to the nearest service
station for repairs. Otherwise, have your
vehicle towed because driving it could
be dangerous.
12–volt battery charge warning
light
If the light comes on when the READY indicator
comes ON, it may indicate the charging system is
not functioning properly. See a NISSAN dealer
immediately.
CAUTION
The charging system may not be function-
ing properly if the 12–volt battery charge
warning light comes on while the hybrid
system is running. The hybrid system will
stop operating when the 12–volt battery
becomes discharged. Immediately stop
the vehicle in a safe place and contact a
NISSAN dealer.
2-4Instruments and controls

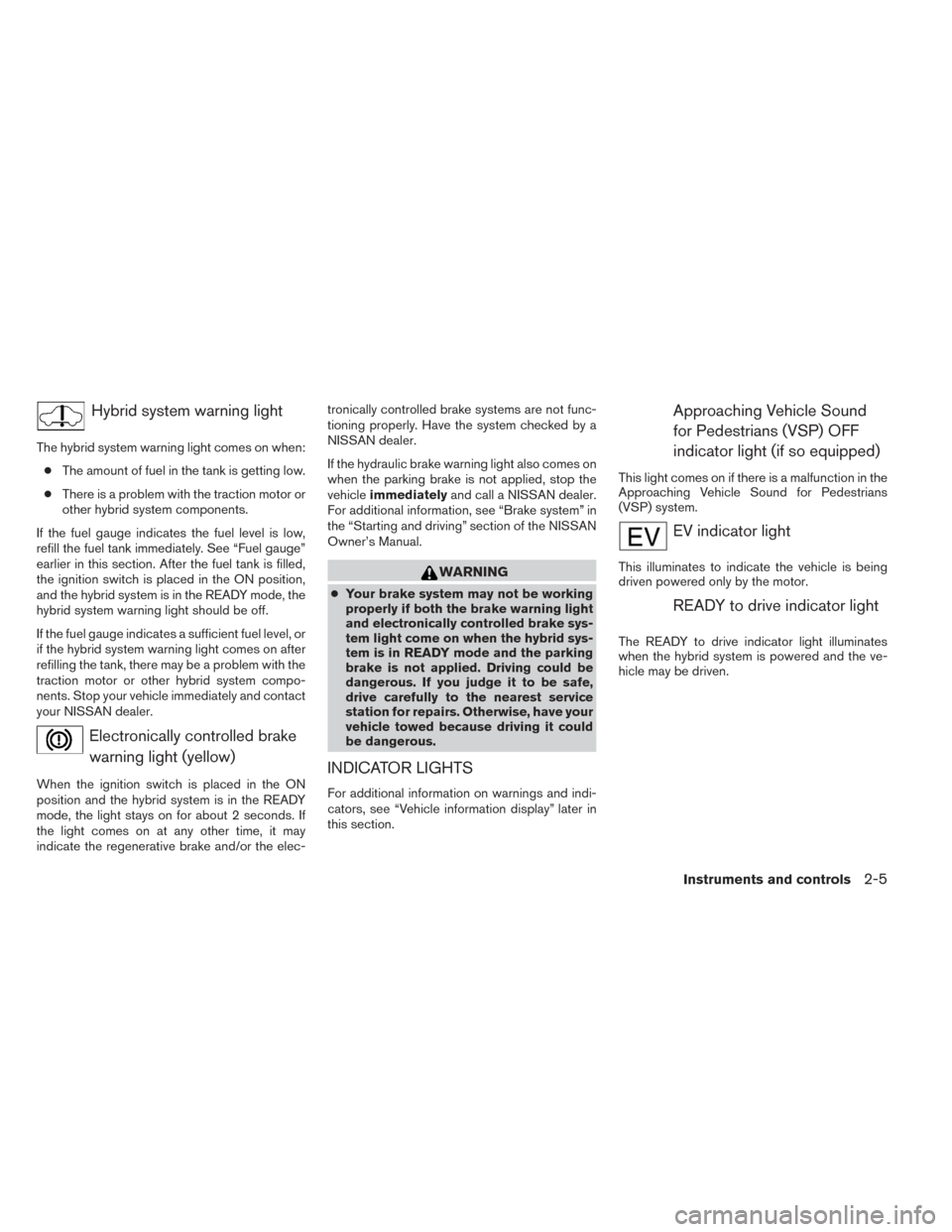

Hybrid system warning light
The hybrid system warning light comes on when:● The amount of fuel in the tank is getting low.
● There is a problem with the traction motor or
other hybrid system components.
If the fuel gauge indicates the fuel level is low,
refill the fuel tank immediately. See “Fuel gauge”
earlier in this section. After the fuel tank is filled,
the ignition switch is placed in the ON position,
and the hybrid system is in the READY mode, the
hybrid system warning light should be off.
If the fuel gauge indicates a sufficient fuel level, or
if the hybrid system warning light comes on after
refilling the tank, there may be a problem with the
traction motor or other hybrid system compo-
nents. Stop your vehicle immediately and contact
your NISSAN dealer.
Electronically controlled brake warning light (yellow)
When the ignition switch is placed in the ON
position and the hybrid system is in the READY
mode, the light stays on for about 2 seconds. If
the light comes on at any other time, it may
indicate the regenerative brake and/or the elec- tronically controlled brake systems are not func-
tioning properly. Have the system checked by a
NISSAN dealer.
If the hydraulic brake warning light also comes on
when the parking brake is not applied, stop the
vehicle
immediately and call a NISSAN dealer.
For additional information, see “Brake system” in
the “Starting and driving” section of the NISSAN
Owner’s Manual.
WARNING
● Your brake system may not be working
properly if both the brake warning light
and electronically controlled brake sys-
tem light come on when the hybrid sys-
tem is in READY mode and the parking
brake is not applied. Driving could be
dangerous. If you judge it to be safe,
drive carefully to the nearest service
station for repairs. Otherwise, have your
vehicle towed because driving it could
be dangerous.
INDICATOR LIGHTS
For additional information on warnings and indi-
cators, see “Vehicle information display” later in
this section.
Approaching Vehicle Sound
for Pedestrians (VSP) OFF
indicator light (if so equipped)
This light comes on if there is a malfunction in the
Approaching Vehicle Sound for Pedestrians
(VSP) system.
EV indicator light
This illuminates to indicate the vehicle is being
driven powered only by the motor.
READY to drive indicator light
The READY to drive indicator light illuminates
when the hybrid system is powered and the ve-
hicle may be driven.
Instruments and controls2-5

The vehicle information display is located to the
left of the speedometer. It displays the HEV en-
ergy flow. For descriptions of other items found
on the vehicle information display, refer to the
NISSAN Owner’s Manual.
MAIN MENU SELECTION
The items that display can be enabled/disabled
when the ignition switch is placed in the ON
position. To change the items that display.Use the
button to select and the ENTER
button to change a menu item:
● Trip Computer
● Energy Flow
● Fuel Economy
● 4WD (if so equipped)
● Tire Pressures (if so equipped)
● Engine Temperature
Energy flow
The energy flow can be enabled/disabled to dis-
play in the vehicle information display when the
ignition switch is placed in the ON position.
From the “Main Menu Selection” select “Energy
Flow” to display the energy flow information when
the ignition switch is placed in the ON position.
LIC2205NJE0017
VEHICLE INFORMATION DISPLAY
2-6Instruments and controls

Vehicle information display warnings
and indicators
1. Hybrid System Overheated
2. Shift to Park Li-ion battery low
3. HV System Warm up Please Wait In Park
4. Shutting Down
Hybrid System Overheated
This warning appears when the temperature of
the hybrid system is extremely high. Stop the
vehicle in a safe location as soon as possible. Avoid quick starting or abrupt acceleration.
When the warning turns off, the vehicle can be
driven.
If the warning appears again soon after it turns
off, have the vehicle checked by a NISSAN
dealer.
Do not drive the vehicle with the warning
on. Doing so could cause a hybrid system
malfunction.
CAUTION
If the high temperature warning appears
when the ignition switch is in the ON po-
sition, stop the vehicle safely as soon as
possible.
If the vehicle is overheated, continuing
vehicle operation may seriously damage
the engine.
Shift to Park Li-ion battery low
This warning appears when the shift lever is in the
“N” position and level of remaining charge in the
Li-ion battery is low.
When this warning appears, place the shift lever
in the P (Park) position. This will turn off in the
following conditions.
When the shift lever has been placed in the P
(Park) position. HV System Warm Up Please Wait In Park
This warning appears when the hybrid system
has not reached full operating temperature.
When the warning turns off, the vehicle can be
driven.
Shutting Down
This warning appears when the hybrid system
has been turned off.
NJE0016
Instruments and controls2-7

MEMO
2-8Instruments and controls

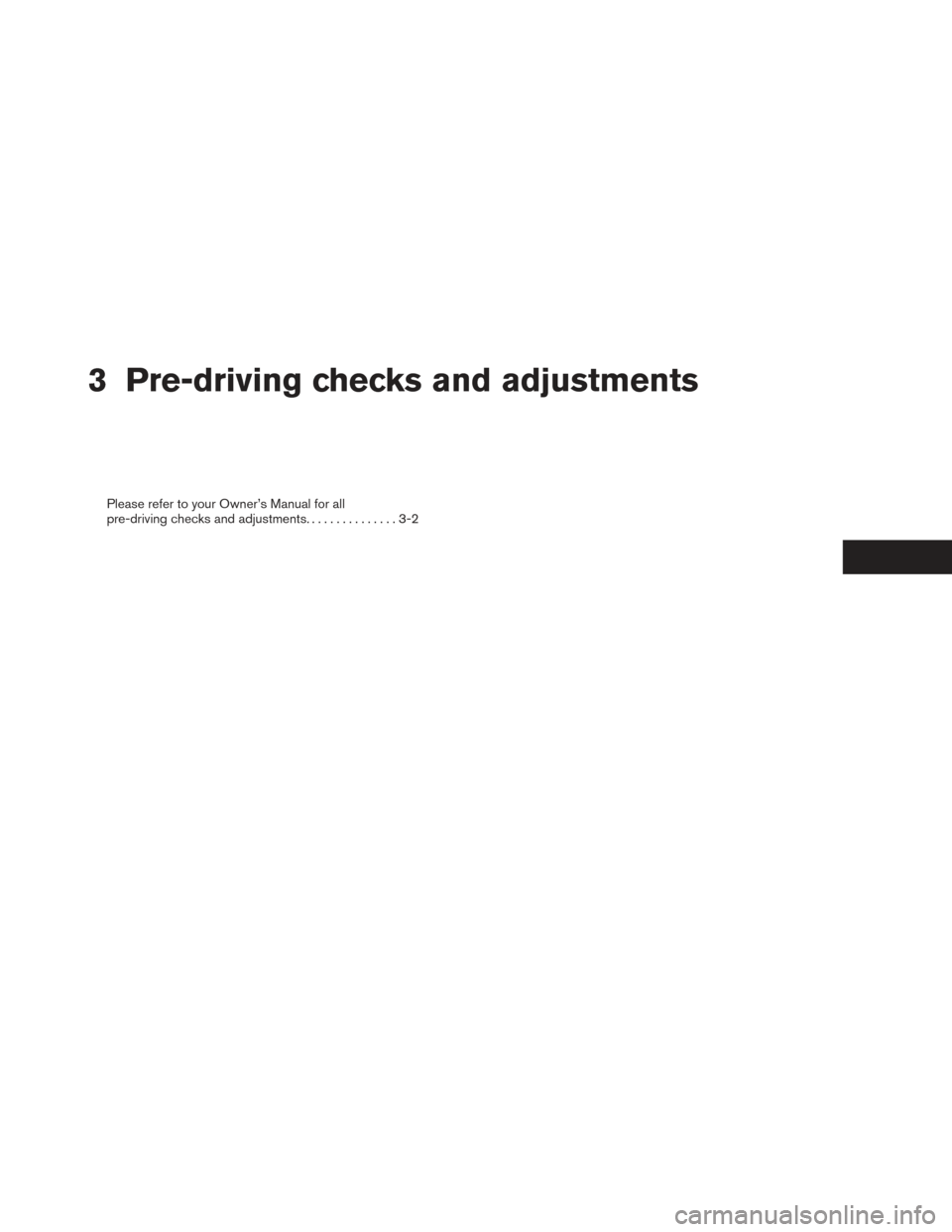

3 Pre-driving checks and adjustments
