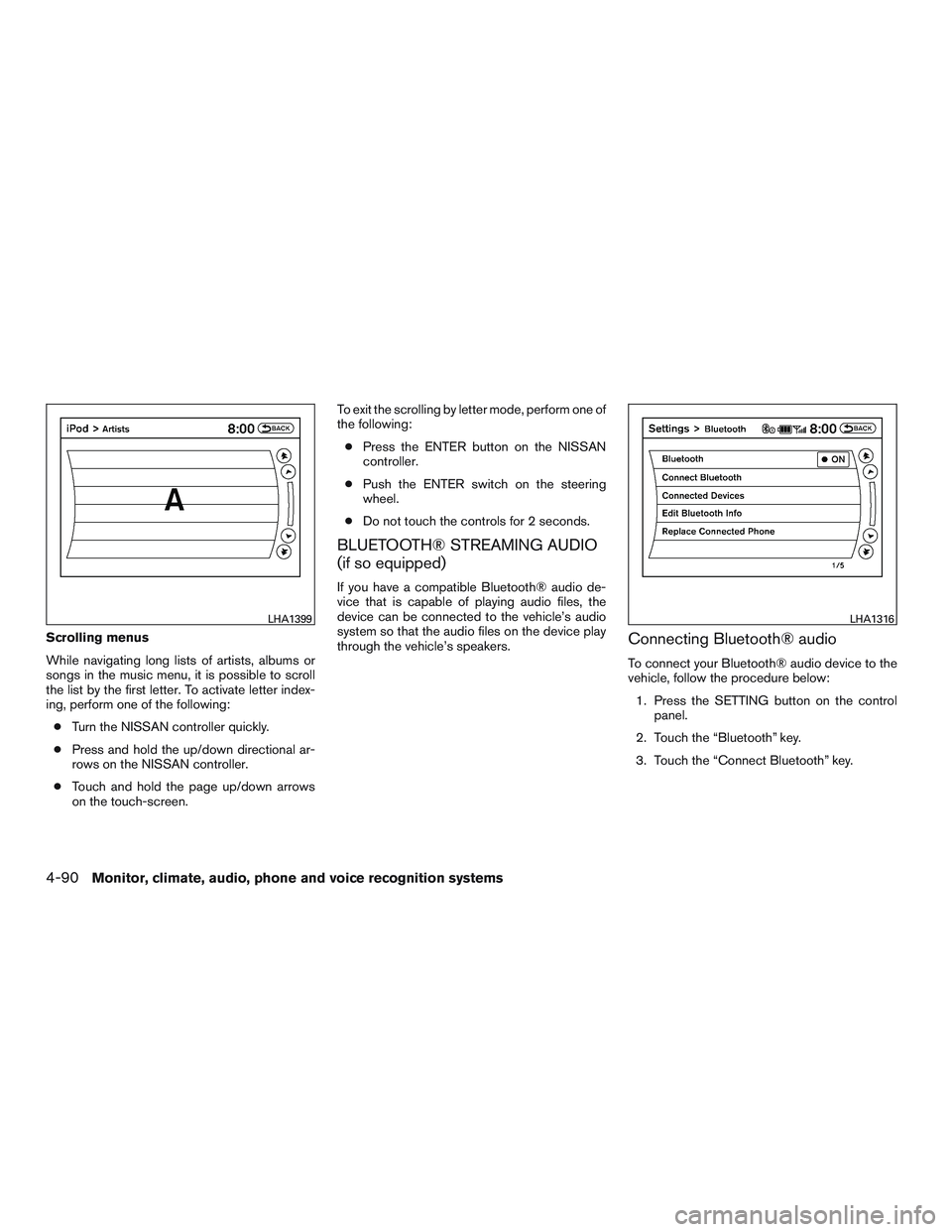

Scrolling menus
While navigating long lists of artists, albums or
songs in the music menu, it is possible to scroll
the list by the first letter. To activate letter index-
ing, perform one of the following:
●Turn the NISSAN controller quickly.
●Press and hold the up/down directional ar-
rows on the NISSAN controller.
●Touch and hold the page up/down arrows
on the touch-screen.To exit the scrolling by letter mode, perform one of
the following:
●Press the ENTER button on the NISSAN
controller.
●Push the ENTER switch on the steering
wheel.
●Do not touch the controls for 2 seconds.
BLUETOOTH® STREAMING AUDIO
(if so equipped)
If you have a compatible Bluetooth® audio de-
vice that is capable of playing audio files, the
device can be connected to the vehicle’s audio
system so that the audio files on the device play
through the vehicle’s speakers.
Connecting Bluetooth® audio
To connect your Bluetooth® audio device to the
vehicle, follow the procedure below:
1. Press the SETTING button on the control
panel.
2. Touch the “Bluetooth” key.
3. Touch the “Connect Bluetooth” key.
LHA1399LHA1316
4-90Monitor, climate, audio, phone and voice recognition systems

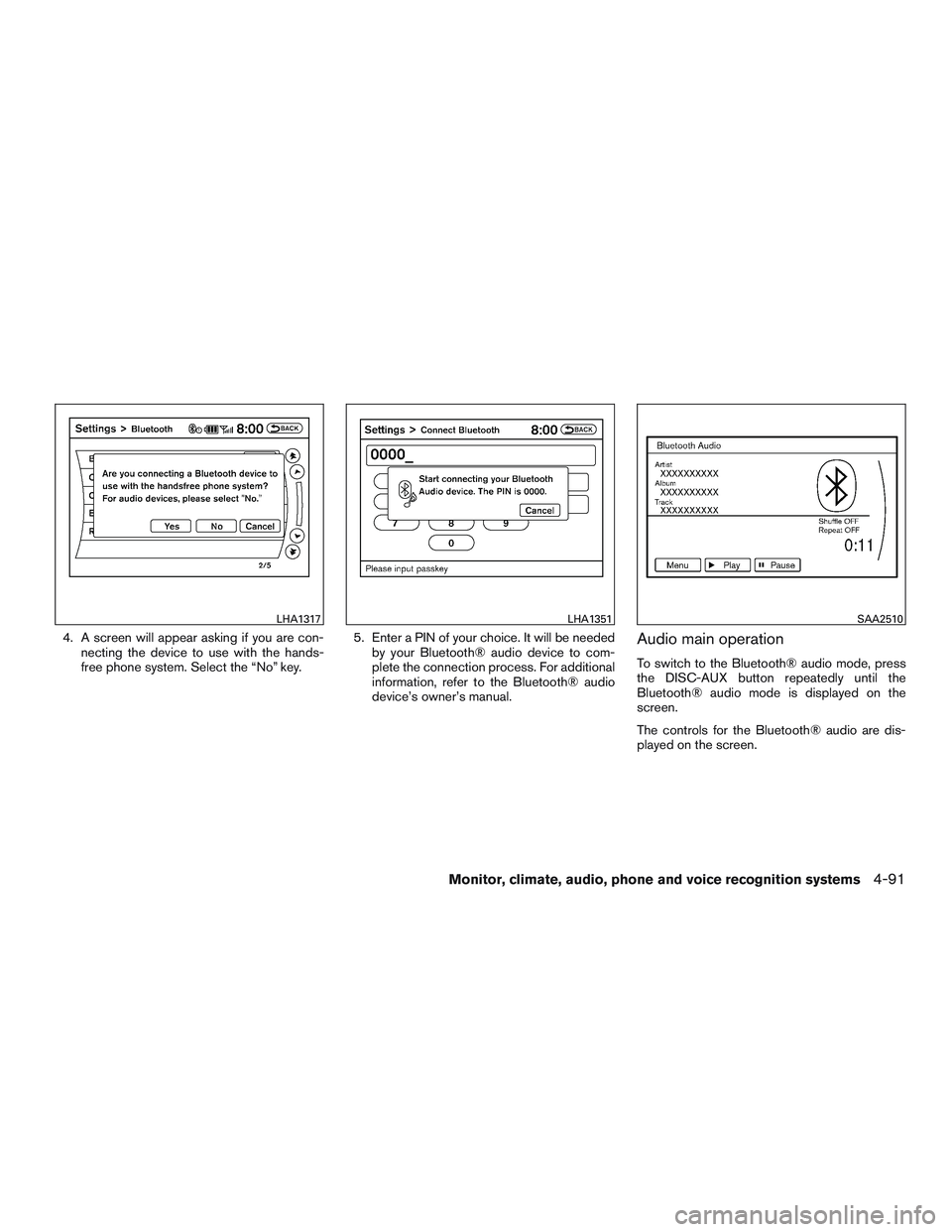

4. A screen will appear asking if you are con-
necting the device to use with the hands-
free phone system. Select the “No” key.5. Enter a PIN of your choice. It will be needed
by your Bluetooth® audio device to com-
plete the connection process. For additional
information, refer to the Bluetooth® audio
device’s owner’s manual.Audio main operation
To switch to the Bluetooth® audio mode, press
the DISC-AUX button repeatedly until the
Bluetooth® audio mode is displayed on the
screen.
The controls for the Bluetooth® audio are dis-
played on the screen.
LHA1317LHA1351SAA2510
Monitor, climate, audio, phone and voice recognition systems4-91

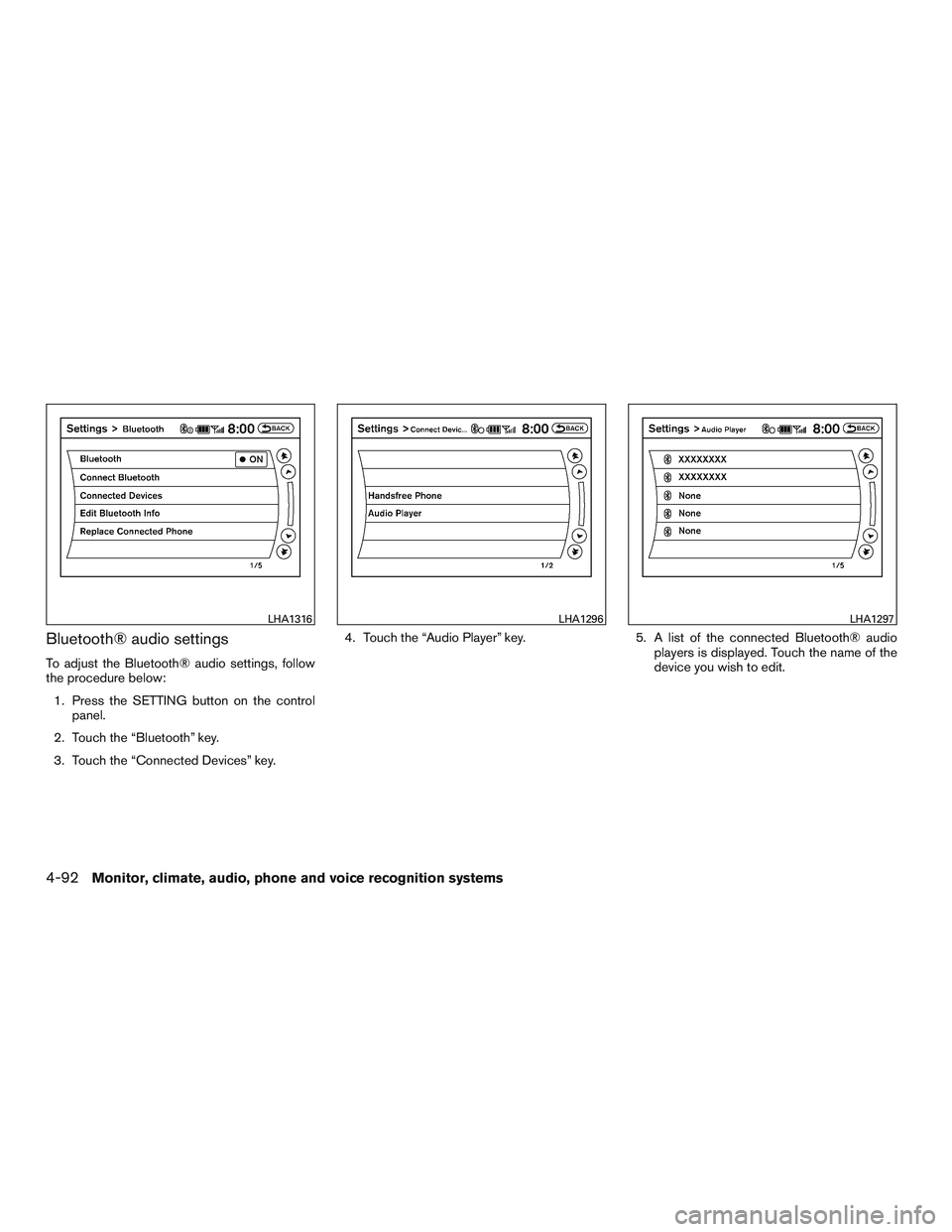

Bluetooth® audio settings
To adjust the Bluetooth® audio settings, follow
the procedure below:
1. Press the SETTING button on the control
panel.
2. Touch the “Bluetooth” key.
3. Touch the “Connected Devices” key.4. Touch the “Audio Player” key. 5. A list of the connected Bluetooth® audio
players is displayed. Touch the name of the
device you wish to edit.
LHA1316LHA1296LHA1297
4-92Monitor, climate, audio, phone and voice recognition systems

6. The Device Name and Device Address are
displayed on the screen. Touch the “Select”
key to make this device the active
Bluetooth® audio player. Touch the “Edit”
key to edit the details of the player, such as
Device Name. Touch the “Delete” key to
delete the device.CD CARE AND CLEANING
●Handle a CD by its edges. Do not bend the
disc. Never touch the surface of the disc.
●Always place the discs in the storage case
when they are not being used.
●To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
●Do not use a conventional record cleaner or
alcohol intended for industrial use.●A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
LHA1298LHA0049
Monitor, climate, audio, phone and voice recognition systems4-93

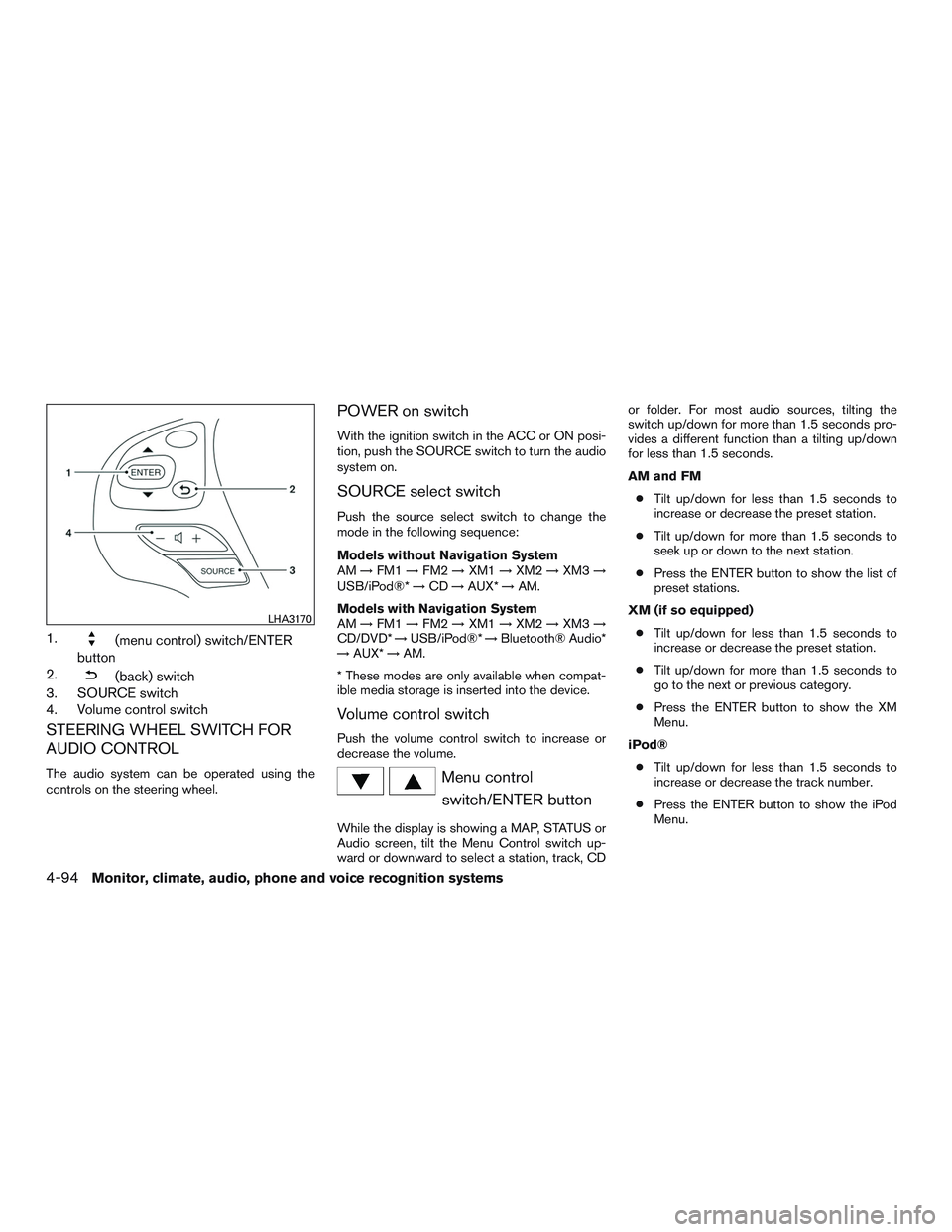

1.(menu control) switch/ENTER
button
2.
(back) switch
3. SOURCE switch
4. Volume control switch
STEERING WHEEL SWITCH FOR
AUDIO CONTROL
The audio system can be operated using the
controls on the steering wheel.
POWER on switch
With the ignition switch in the ACC or ON posi-
tion, push the SOURCE switch to turn the audio
system on.
SOURCE select switch
Push the source select switch to change the
mode in the following sequence:
Models without Navigation System
AM→FM1→FM2→XM1→XM2→XM3→
USB/iPod®*→CD→AUX*→AM.
Models with Navigation System
AM→FM1→FM2→XM1→XM2→XM3→
CD/DVD*→USB/iPod®*→Bluetooth® Audio*
→AUX*→AM.
* These modes are only available when compat-
ible media storage is inserted into the device.
Volume control switch
Push the volume control switch to increase or
decrease the volume.
Menu control
switch/ENTER button
While the display is showing a MAP, STATUS or
Audio screen, tilt the Menu Control switch up-
ward or downward to select a station, track, CDor folder. For most audio sources, tilting the
switch up/down for more than 1.5 seconds pro-
vides a different function than a tilting up/down
for less than 1.5 seconds.
AM and FM
●Tilt up/down for less than 1.5 seconds to
increase or decrease the preset station.
●Tilt up/down for more than 1.5 seconds to
seek up or down to the next station.
●Press the ENTER button to show the list of
preset stations.
XM (if so equipped)
●Tilt up/down for less than 1.5 seconds to
increase or decrease the preset station.
●Tilt up/down for more than 1.5 seconds to
go to the next or previous category.
●Press the ENTER button to show the XM
Menu.
iPod®
●Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
●Press the ENTER button to show the iPod
Menu.
LHA3170
4-94Monitor, climate, audio, phone and voice recognition systems

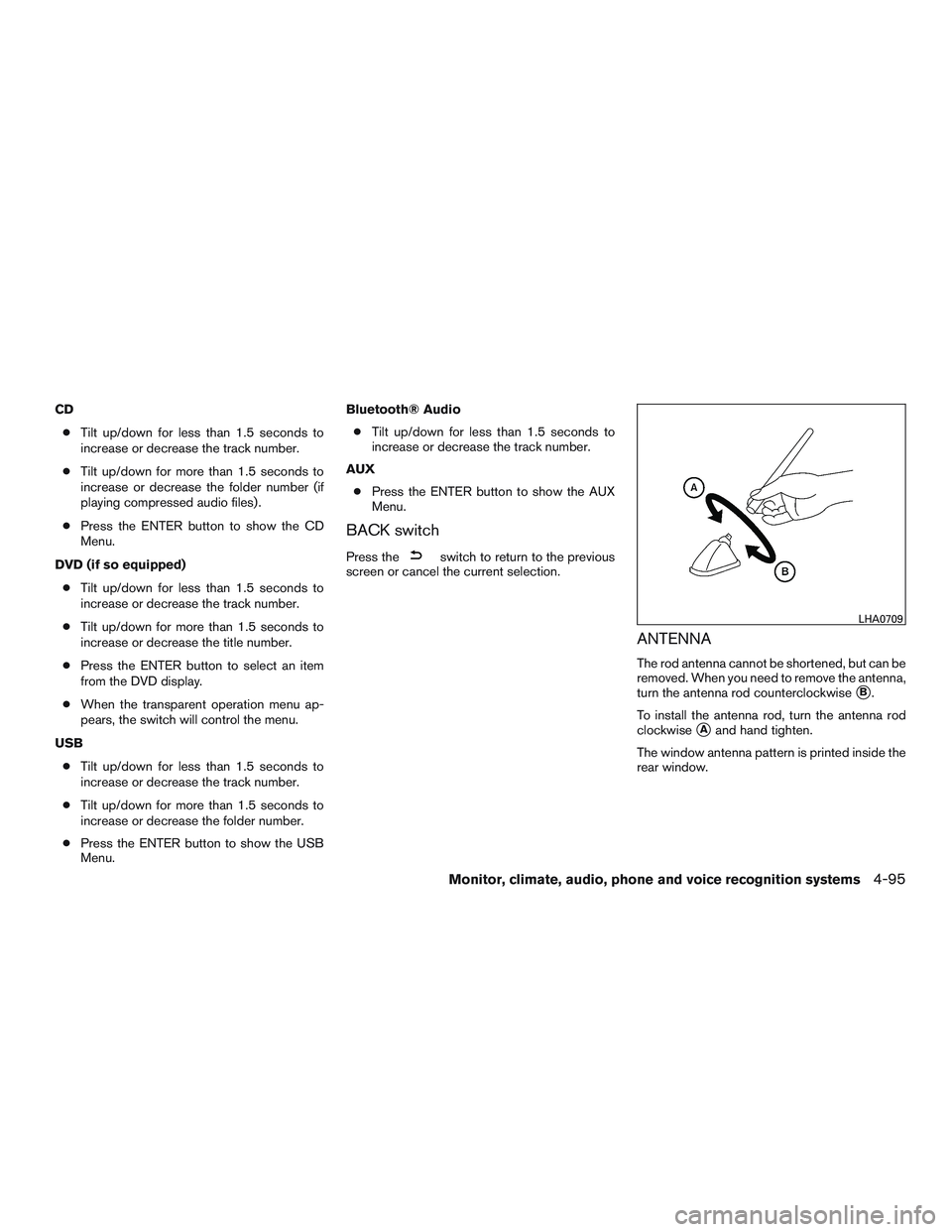

CD
●Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
●Tilt up/down for more than 1.5 seconds to
increase or decrease the folder number (if
playing compressed audio files) .
●Press the ENTER button to show the CD
Menu.
DVD (if so equipped)
●Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
●Tilt up/down for more than 1.5 seconds to
increase or decrease the title number.
●Press the ENTER button to select an item
from the DVD display.
●When the transparent operation menu ap-
pears, the switch will control the menu.
USB
●Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
●Tilt up/down for more than 1.5 seconds to
increase or decrease the folder number.
●Press the ENTER button to show the USB
Menu.Bluetooth® Audio
●Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
AUX
●Press the ENTER button to show the AUX
Menu.
BACK switch
Press theswitch to return to the previous
screen or cancel the current selection.
ANTENNA
The rod antenna cannot be shortened, but can be
removed. When you need to remove the antenna,
turn the antenna rod counterclockwise
B.
To install the antenna rod, turn the antenna rod
clockwise
Aand hand tighten.
The window antenna pattern is printed inside the
rear window.
LHA0709
Monitor, climate, audio, phone and voice recognition systems4-95

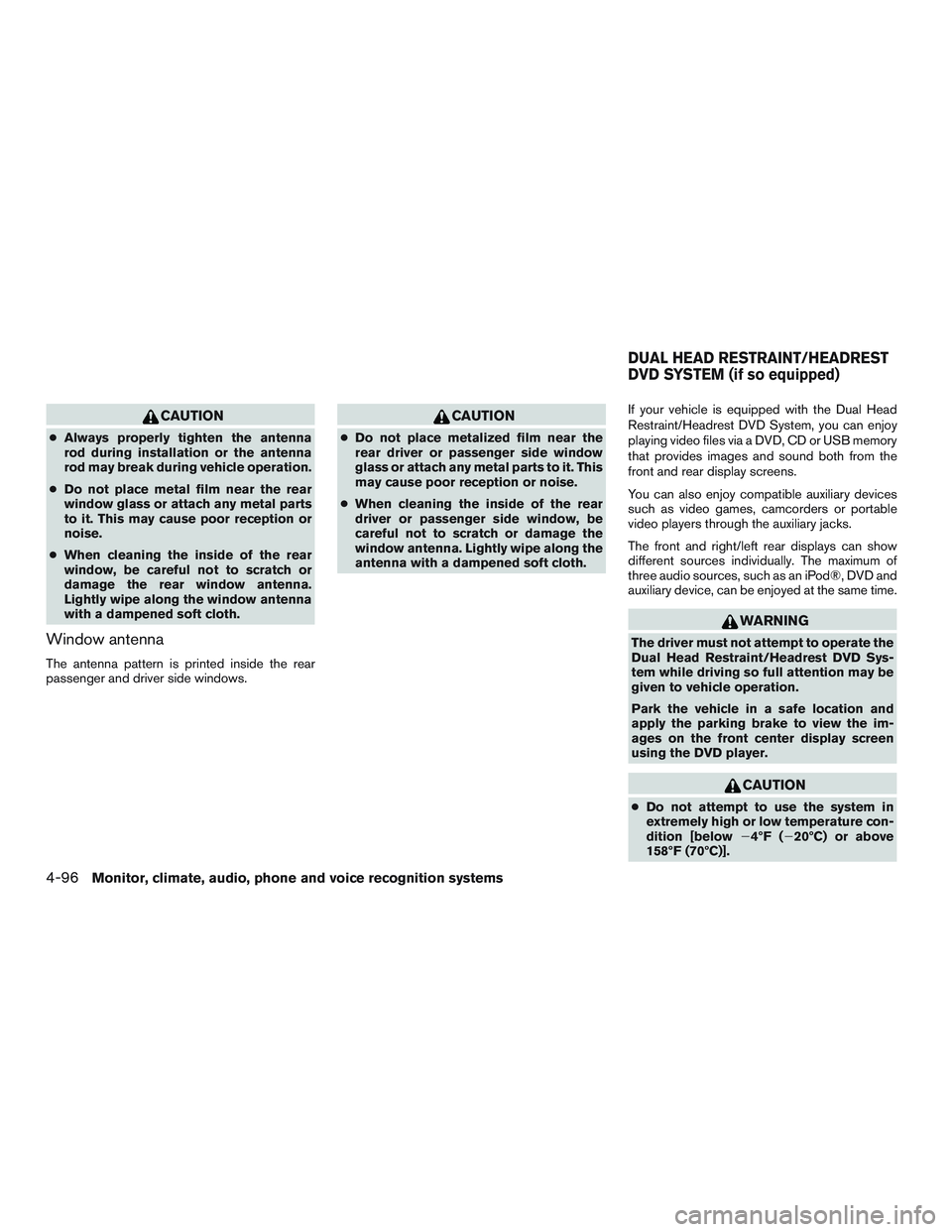

CAUTION
●Always properly tighten the antenna
rod during installation or the antenna
rod may break during vehicle operation.
●Do not place metal film near the rear
window glass or attach any metal parts
to it. This may cause poor reception or
noise.
●When cleaning the inside of the rear
window, be careful not to scratch or
damage the rear window antenna.
Lightly wipe along the window antenna
with a dampened soft cloth.
Window antenna
The antenna pattern is printed inside the rear
passenger and driver side windows.
CAUTION
●Do not place metalized film near the
rear driver or passenger side window
glass or attach any metal parts to it. This
may cause poor reception or noise.
●When cleaning the inside of the rear
driver or passenger side window, be
careful not to scratch or damage the
window antenna. Lightly wipe along the
antenna with a dampened soft cloth.If your vehicle is equipped with the Dual Head
Restraint/Headrest DVD System, you can enjoy
playing video files via a DVD, CD or USB memory
that provides images and sound both from the
front and rear display screens.
You can also enjoy compatible auxiliary devices
such as video games, camcorders or portable
video players through the auxiliary jacks.
The front and right/left rear displays can show
different sources individually. The maximum of
three audio sources, such as an iPod®, DVD and
auxiliary device, can be enjoyed at the same time.
WARNING
The driver must not attempt to operate the
Dual Head Restraint/Headrest DVD Sys-
tem while driving so full attention may be
given to vehicle operation.
Park the vehicle in a safe location and
apply the parking brake to view the im-
ages on the front center display screen
using the DVD player.
CAUTION
●Do not attempt to use the system in
extremely high or low temperature con-
dition [below4ºF (20ºC) or above
158ºF (70ºC)].
DUAL HEAD RESTRAINT/HEADREST
DVD SYSTEM (if so equipped)
4-96Monitor, climate, audio, phone and voice recognition systems

●To avoid draining the vehicle battery, do
not operate the system for more than
15 minutes without starting the engine.
The front display is designed not to show
the images while driving, as the driver’s
attention must be given to vehicle opera-
tion for safety. Sounds are available. To
show the images in the front display, stop
the vehicle in a safe location, move the shift
lever to the P (Park) position and apply the
parking brake.
SYSTEM COMPONENTS
Rear displays
CAUTION
●The glass screen on the liquid crystal
display may break if hit with a hard or
sharp object. If the glass breaks, do not
touch the liquid crystalline material. In
case of contact with skin, wash immedi-
ately with soap and water.
●Use soft, damp cloth when cleaning the
Dual Head Restraint/Headrest DVD
System components. Do not use sol-
vents or cleaning solutions.The rear displays are located on the back of the
front head restraints (headrests) .
Use the remote control to operate the rear display
screen.
Press the preferred side (L or R) of the power
ON/OFF button on the remote control to activate
the rear display.
The rear screens can also be activated using the
NISSAN controller. For additional information,
refer to “Rear display settings” in this section.
Do not block the range of the wireless remote
control receiver and wireless headphones trans-
mitter
1.The angle of the rear display screen can be
adjusted for optimal viewing.
Gently apply pressure to the base of the screen
where indicated until the screen reached the
desired position. When the screen is released, it
will remain in the current position. To return to the
screen to the flat position, press the base of the
screen in all the way until it clicks and retracts.
SAA3329LHA2210
Monitor, climate, audio, phone and voice recognition systems4-97

Rear auxiliary input jacks
The rear auxiliary input jacks are located on the
inside of the center console. NTSC/PAL compat-
ible devices can be connected to the auxiliary
jacks. The images from the connected device can
be viewed on the rear displays.
The rear auxiliary jacks are color coded for iden-
tification purposes.
●Yellow - video input
●White - left channel audio input
●Red - right channel audio inputBefore connecting a device to a jack, turn off the
power of the portable device.
To display the rear AUX screen, press the pre-
ferred side (L or R) of the AUX (L)/AUX (R)
buttons (rear input jacks) on the remote control.
The device connected to the rear auxiliary input
jacks cannot be displayed on the front screen.
Headphones
The headphones for this system are a wireless
type and no cables are necessary. The head-
phones can only be used in the rear seat.
Power ON/OFF
Press the power ON/OFF button to turn the
headphones on or off.
LHA2260SAA3077
4-98Monitor, climate, audio, phone and voice recognition systems

Volume control
Turn the volume control knob to adjust the vol-
ume.
The headphones will automatically turn off after
about 4 minutes if there is no sound during that
period. The headphones will also turn off after
approximately 4 hours of continuous use. To pre-
vent the battery from being discharged, keep the
power turned off when not in use.
If the sound from the headphones is not clear, it
may be due to interference from an infrared com-
munication device or a cellular phone. If this
happens, turn down the headphone volume or
stop using the headphones.It is also possible that the headphones may be
too far from the transmitter which is in the rear
display screen. This is not a malfunction.
The sound may also be interrupted temporarily
when there is an obstacle between the head-
phones and the transmitter. Remove the ob-
stacle, such as opaque materials, hands, hair,
etc.
Channel change
When the rear displays are playing different
sources, slide the channel select switch to select
the sound.
SAA3078
Type A (if so equipped)
LHA2211
Monitor, climate, audio, phone and voice recognition systems4-99
